4 hours of effort treating the passenger door. that's deadening, absorption, MLV barrier and CCF decoupler, and then terminating the speaker wires i had previously ran into the door. tomorrow i will repeat for the passenger door. //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif
the passenger door needed deadening, so a few sheets of BXT II did the trick.

then came the most important part of treating a door - adding absorption. this is a 1" thick compressed fiberglass ceiling tile (with the white cover removed). $6 per 2'x4' piece. this is easier to work with than the loose batt insulation and being compressed it offers more absorption with less hassle.

next came the barrier. the factory barrier is thin. i wanted to use MLV for the barrier but had the challenge of keeping water out. the factory setup has a slit where water can drain but it is flawed. so i added Ensolite (CCF( to the metal where the MLV will contact and also to the entire inside (one piece, sticky side out) to stick to the MLV and create a watertight barrier.

I'm trying to find these insulating tiles locally. I checked out the Lowes and Home Depot websites, but I'm not sure what these things looked like before you cut them down. Would so be so kind as to provide me with a product link?



[keep_hope_alive Premium Member]

I'm trying to find these insulating tiles locally. I checked out the Lowes and Home Depot websites, but I'm not sure what these things looked like before you cut them down. Would so be so kind as to provide me with a product link?

They have a thin white plastic covering. I have a photo in Lowe's I will find.

Sent from my SM-G900V using Tapatalk



[lew-e 10+ year member]

They have a thin white plastic covering. I have a photo in Lowe's I will find.
Sent from my SM-G900V using Tapatalk

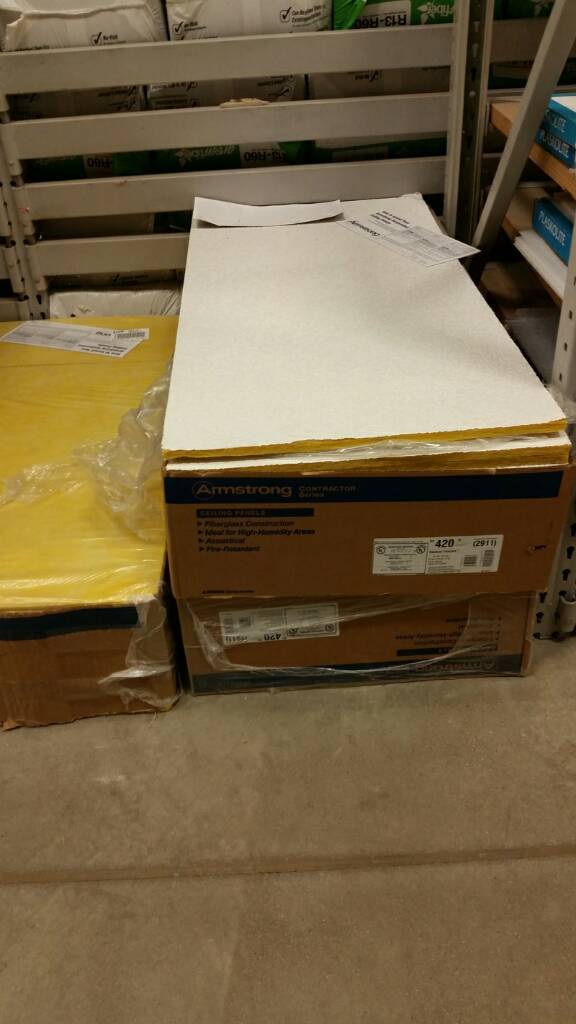

This is what you sent me



[keep_hope_alive Premium Member]

Perfect!

Sent from my SM-G900V using Tapatalk



[lew-e 10+ year member]

Isn't that stuff 2" or something? Would a similar ceiling tile, thinner though, work? My home Depot and Lowes do not carry that particular tile. I've been in numerous times looking

Sent from my HTC One_M8 using Tapatalk



[big scott]

no its the thin tile.

maybe 1/2 - 3/4 thick.



[lew-e 10+ year member]

Well poop shoot. Wonder where the hell I got 2" from... Would any fiberglass ceiling tile work?

Sent from my HTC One_M8 using Tapatalk



[big scott]

as long as its like the same stuff sure.



[keep_hope_alive Premium Member]

yep, compressed fiberglass is the goal. mineral fiber ceiling tile isn't useful. any high NRC acoustical ceiling tile would work.



[keep_hope_alive Premium Member]

Just tapping the pins wasn't consistent and the HU circuitry didn't like the parallel connections. It was randomly muting output. So I removed the IC to also get a confirmation of the chip used.

This is the actual IC

I removed the IC pins and decided to solder the RCA stranded wires directly to the board

I changed the location of the RCA jacks which fit much better

works great. I didn't get the channel assignments correct. This is the channel assignment

IN1 = Front Right

IN2 = Front Left

IN3 = Rear Left

IN4 = Rear Right

This surprises me because the circuit layout wasn't symmetric, was completely different than the similar IC I suspected, and i expected an attenuated rear with the front channels having the parallel inputs as seen on the board.

The good news is that both front and rear outputs sound the same. I observed bass roll-off in the output compared to my 9887 but it sounded MUCH better than the speaker outputs. Volume 39 of 40 had no clipping and sounded great - a signal level that matched the AUX input on my HU.



[keep_hope_alive Premium Member]

RTA testing completed. Front matches Rear in frequency response but not in level. Front is louder (as we all knew) by 8dB.

FRONT

REAR

Front (same as above, different scale)

Compare to the RTA I did on the speaker outputs

Looks like the roll-off is the same and certainly ahead of the factory amp. But this is able to be managed and with ultra-low distortion, i think a standard bass restoration interface or processor should be fine. Especially a processor with an auto-EQ CD that measures the factory output. Regardless of this bypass or high-level inputs, the advantage here is eliminating the HU distortion.
