Help with wiring 4 channel amp to 3 channels - how many RCA cables?

[PuZo 10+ year member]

I'm looking to get a 4 channel amp to power 2 front speakers and an amp. So I already know channel 1 will be left, channel 2 will be right and channels 3/4 will be bridged for a sub.

My Sony HU has 3 sets of RCA's, Front, Rear, and Sub.

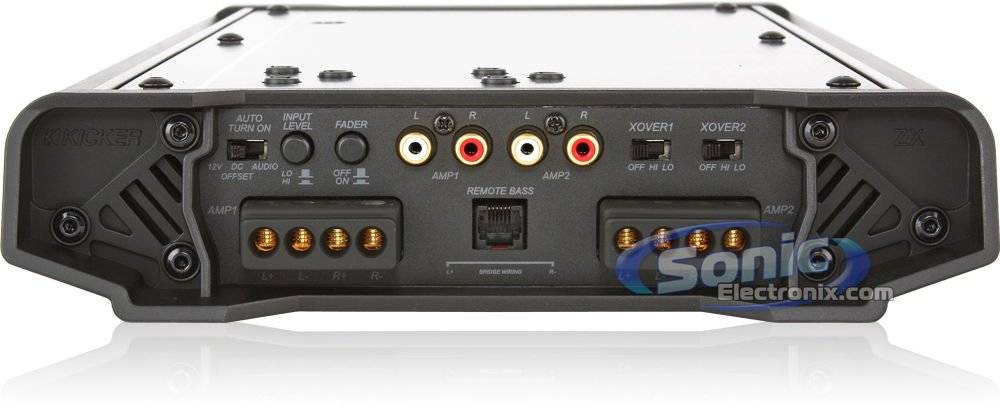

I'm looking at a Kicker zx650.4. My biggest question is that it only has 2 sets of RCA outputs, 1 set for channels 1/2 and 1 set for channels 3/4.

If I just connect 2 sets of RCA's(channel 1/2 to Front, and channel 3/4 to sub), will I still get stereo sound for the front?

Do I need a y-splitter anywhere in this configuration? Would I only need a y-splitter if each channel had it's own seperate RCA output?

Thanks

Click to read more...



[jco1385 5,000+ posts]

Nope, do it just like you stated.

If you are running 4 speakers, you will have to wire the two speakers on each side in parallel. Keep in mind if you bridge channels 3 and 4 together you can only run at 4 ohms.



[PuZo 10+ year member]

Nope, do it just like you stated.
If you are running 4 speakers, you will have to wire the two speakers on each side in parallel. Keep in mind if you bridge channels 3 and 4 together you can only run at 4 ohms.

I'm running components in the front that are 4 ohms, so each will have their own channel for power, but I just want to make sure I'll still have stereo sound. My sub is also 4 ohms. So I would only need 2 sets of RCA cables then.

What benefit would an amp have to have each channel with it's own RCA outputs?



[jco1385 5,000+ posts]

Each channel does have it's own RCA. You are just running the front channels from the HU to the front channels on the amp. Then the sub channels to the amp. You will leave the rear outputs at the HU unhooked. The amp will 'sum' the 2 channels when you bridge it to run the sub.

This way you will still be able to left/right balance the fronts and use the HU's subwoofer adjustments.



[keep_hope_alive Premium Member]

keep in mind that a "set" is both left and right channels (2 plugs). This has been implied in the responses, but i'm curious if you grasped that with the question on "stereo sound".

HU front output: RCA set #1 (left and right) to amp 1 input (left and right). Speakers wired in stereo.

HU sub output: RCA set #2 (left and right) to amp 2 input (left and right). Sub wired in mono.

be sure the "fader" button on the amp is off - that will allow for sub level control at the HU.

if your head unit has built-in crossovers you can use them, or use the HPF and LPF at the amp.



[PuZo 10+ year member]

keep in mind that a "set" is both left and right channels (2 plugs). This has been implied in the responses, but i'm curious if you grasped that with the question on "stereo sound".

HU front output: RCA set #1 (left and right) to amp 1 input (left and right). Speakers wired in stereo.

HU sub output: RCA set #2 (left and right) to amp 2 input (left and right). Sub wired in mono.

be sure the "fader" button on the amp is off - that will allow for sub level control at the HU.

if your head unit has built-in crossovers you can use them, or use the HPF and LPF at the amp.

Yes, a set would be 2 plugs.

As far as wiring the speakers in stereo, I assume you mean just the L+ and L- going to the left crossover (and then splitting into the tweeter and speaker) and the R+ and R- going to the right crossover.



[jco1385 5,000+ posts]

Yes, a set would be 2 plugs.
As far as wiring the speakers in stereo, I assume you mean just the L+ and L- going to the left crossover (and then splitting into the tweeter and speaker) and the R+ and R- going to the right crossover.

Exactly. Stereo = left and right channels separate.



[PuZo 10+ year member]

As far as running all the cables, I assume I'd run the power wire on one side and the RCA cables on the other side to avoid any potential interference?



[mylows10 5,000+ posts]

As far as running all the cables, I assume I'd run the power wire on one side and the RCA cables on the other side to avoid any potential interference?

Yes



[PuZo 10+ year member]

And hopefully last question! but how would you run something like this?

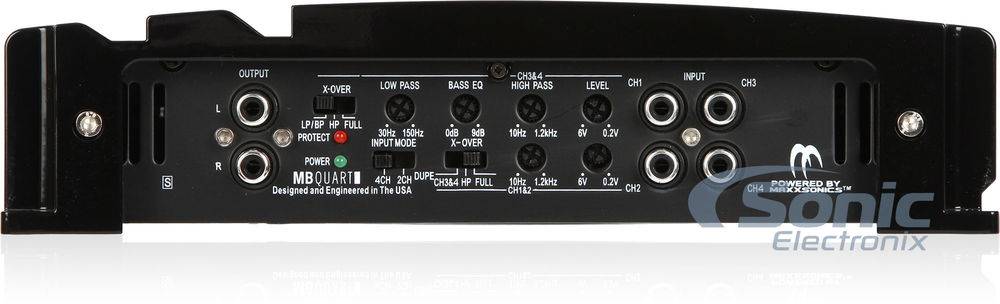

MB Quart OA800.4 800W RMS 4-Channel Onyx Series Class SQ Full-Range Bridgeable Power Amplifier

I'm confused on the input/output. How would I plug a single RCA for the sub into my Headunit? (which has 2 RCA's for the sub)



[jco1385 5,000+ posts]

The headunit sends the signal (output) and the amp receives it (input). You would wire that amp exactly the same as the previous one. The 2 RCAs from the subwoofer output of the headunit will be 'summed' (averaged together) when you bridge channels 3 and 4 of the amp. The outputs on the amp are to daisy-chain to another amp, such as a monoblock. Why would you have a single RCA for the sub?



[PuZo 10+ year member]

The headunit sends the signal (output) and the amp receives it (input). You would wire that amp exactly the same as the previous one. The 2 RCAs from the subwoofer output of the headunit will be 'summed' (averaged together) when you bridge channels 3 and 4 of the amp. The outputs on the amp are to daisy-chain to another amp, such as a monoblock. Why would you have a single RCA for the sub?

This is what it shows in the manual:



[n2audio 5,000+ posts]

How would I plug a single RCA for the sub into my Headunit? (which has 2 RCA's for the sub)

You wouldn't. Connect BOTH the sub output channels to the amp's 3/4 channels. The mono summing is done internally.

Connect the sub to the bridged terminals on the 3/4 output and you're set.



[jco1385 5,000+ posts]

That is confusing.

I would like to assume that the sub output from the HU is a mono signal and you just do as I said above.



[keep_hope_alive Premium Member]

Sub output on HU has stereo RCA and you can usually set mono or stereo in HU. You want to run both so the amp can sum and you gain 3dB of signal.

Sent from my SM-G900V using Tapatalk
