Complete build log (toyota sequoia)

[4bannger 10+ year member]

Okay so with tax return coming up it's not Time to put some more boom in my system. Gonna be changing from top to bottom.

Current set up:

Headunit: pioneer touch screen navi

Components: kicker all around

Sub amp: kenwood 1000 wat kac-8150d

Subs: (2) alpine type r 15's custom ported box

Wire: 4 gauge not sure on brand

Upgrades:

Headunit: undecided (the current on runs very slow maybe just need the new software update)

Components: undecided ( give me all of your thoughts wanna keep price in mind but don't want by bass over powering the vocals)

Component amp: hifonics brz640.4

Sub amp: hifonics brz2400.1d (possibly getting two)

Subs: sticking with the (2) alpine type r 15's building a 4th order and possibly upgrading to 4 sa-12's

Rear battery: marine deep cell with a isolater

Wire: 1/0 knukonceptz all around

Other mods:

(Done)Added voltmeter running from amp

(Done)Leds but more to come

(Need) hid kit for from headlights and dog lights

(Need) led bulbs all around on signal lights

(Need) powder coat rims black

So here's the vehicle in all it's beauty with my current and some past set ups

Click to read more...



[4bannger 10+ year member]



[4bannger 10+ year member]

Okay so after much trial and error ive got the final box design.thanks to all the helpful users especially @Tenacious I hope to start on the build tomorrow.

version 1: total fail first attempt

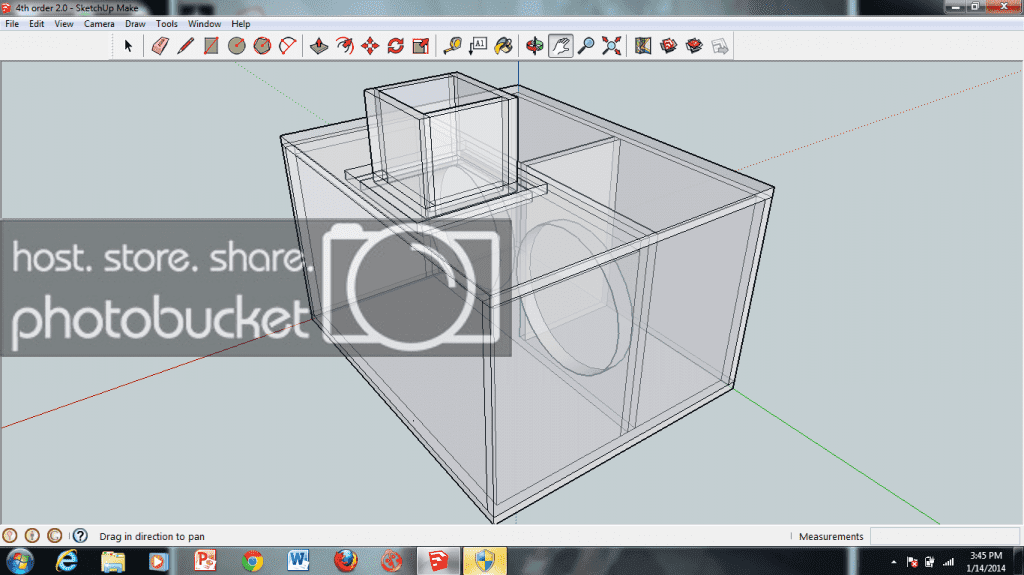

version 2: wrong


version 3: finally got it right. ported section tuned to 40hz its a 1;1 sealed to ported ration. 3 cuft in each sealed chamber and 6 ported



[garretttt4 10+ year member]

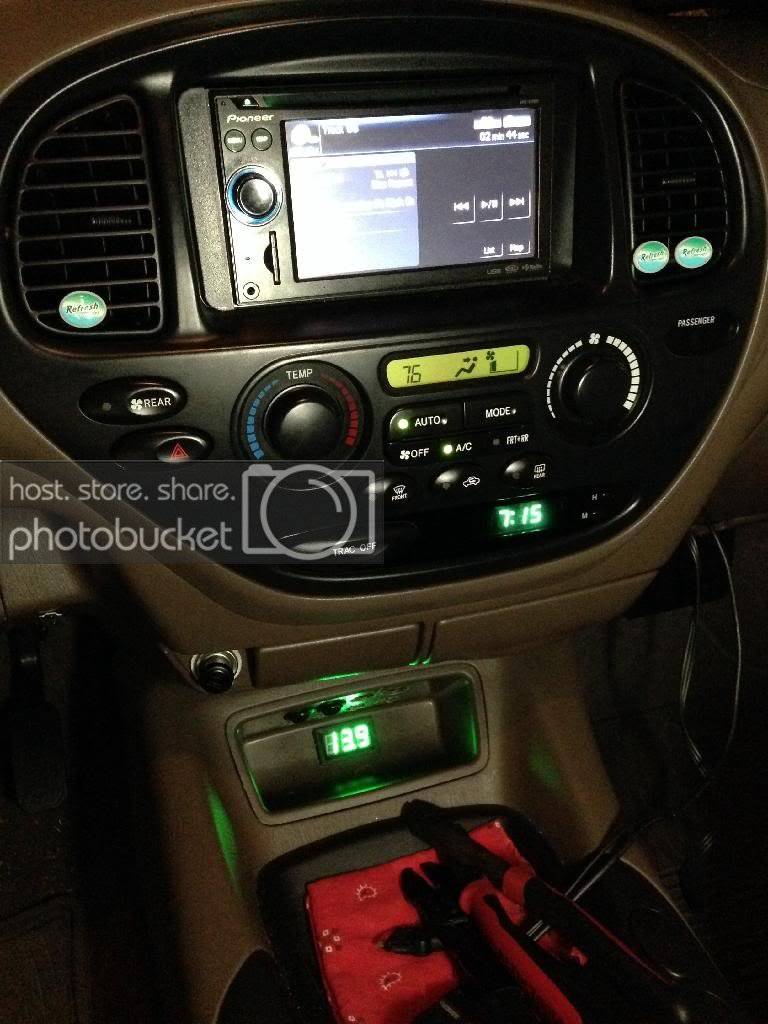

Looks good man. I like how underglow and ur voltage meter match like exactly. Haha



[akadj 10+ year member]

Lights in the grill are nice



[tat2bass 10+ year member]

What is your budget for your speakers?



[yogegoy]

A real strapped amp.



[4bannger 10+ year member]

Looks good man. I like how underglow and ur voltage meter match like exactly. Haha

conveniently they sell them that way lol

Lights in the grill are nice

thanks man

What is your budget for your speakers?

as far as budget im not really sure i know that the mainstream stuff can cost around $40-$100 a set but i know nothing about the better grades. Any suggestions.

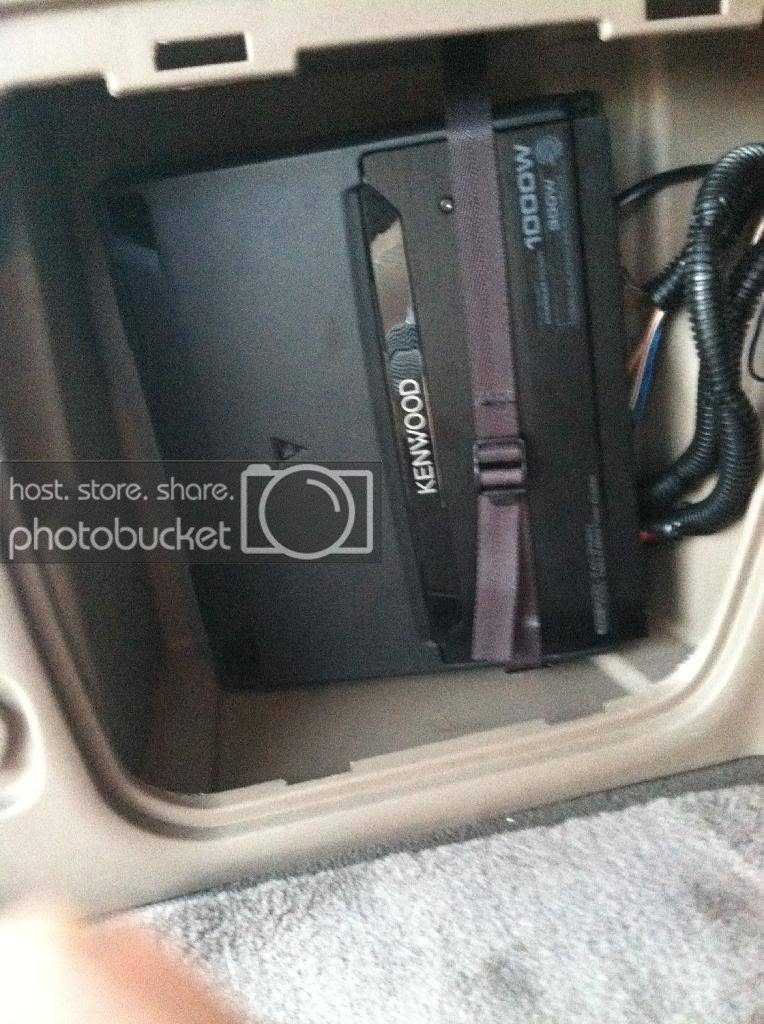

A real strapped amp.

lmao thats was really the only way i could keep it there without doing major mods to it. it holds it in there pretty good.



[SUNDOWNBITCH]

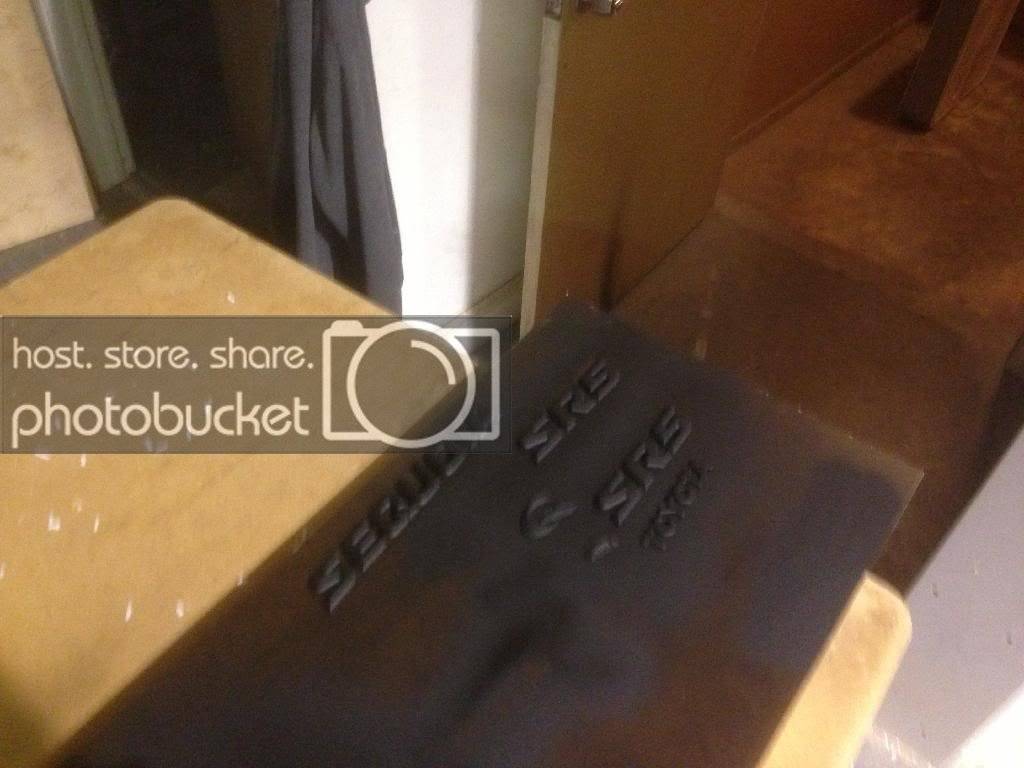

What did you do to your tail lights to make them look like that? I wanna do something like that



[Silver-N-Black 10+ year member]

Nice build keep up the good work.

What did you do to your tail lights to make them look like that? I wanna do something like that

Item Detail

You will need to sand the tail lights, paint, sand, clear coat, buff, buff.



[4bannger 10+ year member]

What did you do to your tail lights to make them look like that? I wanna do something like that

yeah it is the spray stuff, but i would reccomend getting the tint strip stuff. you can put it on just like tint on a window. it cost a little more money and is just easier to take off if you get a ticket from it. and it looks better. Im going to be doing the same thing.



[4bannger 10+ year member]

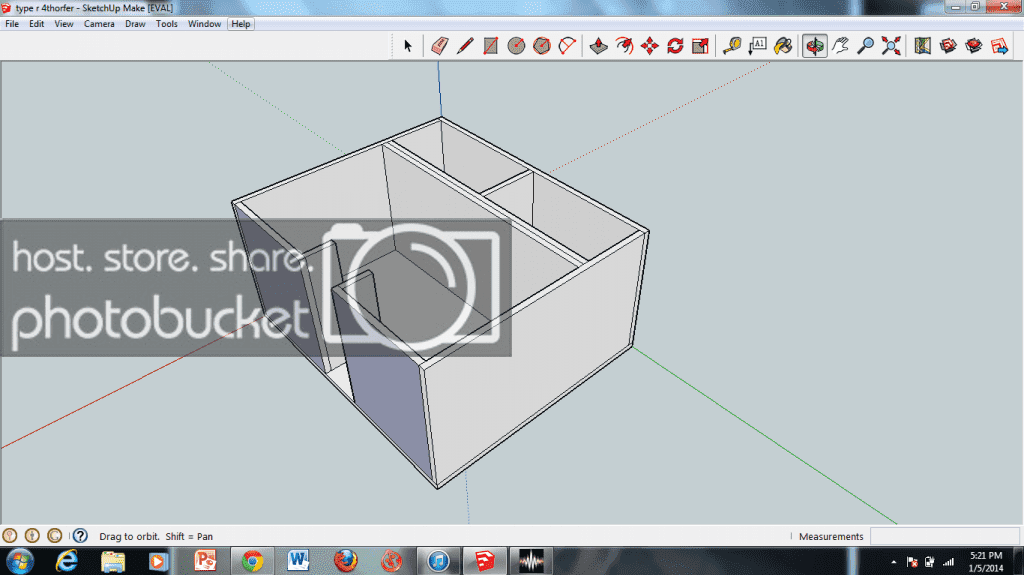

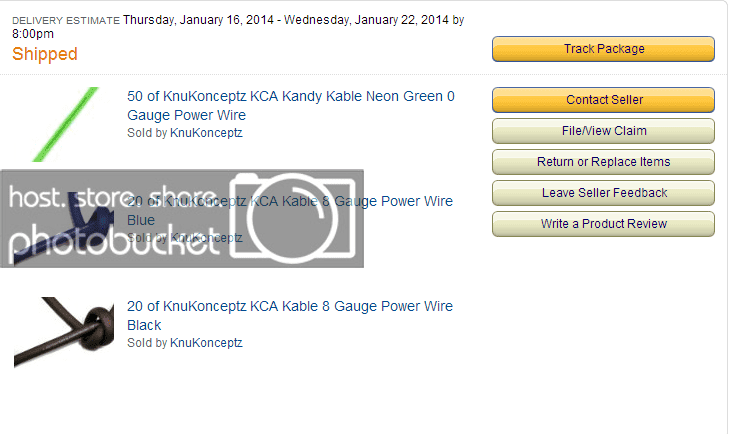

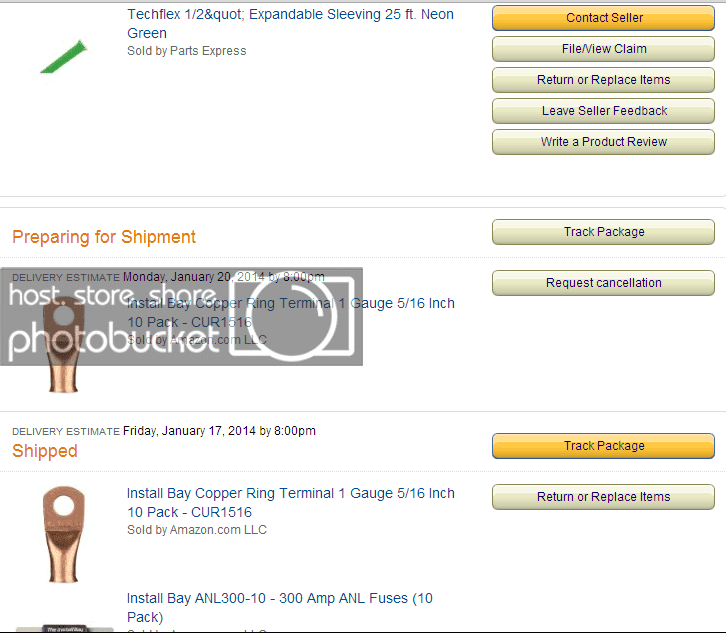

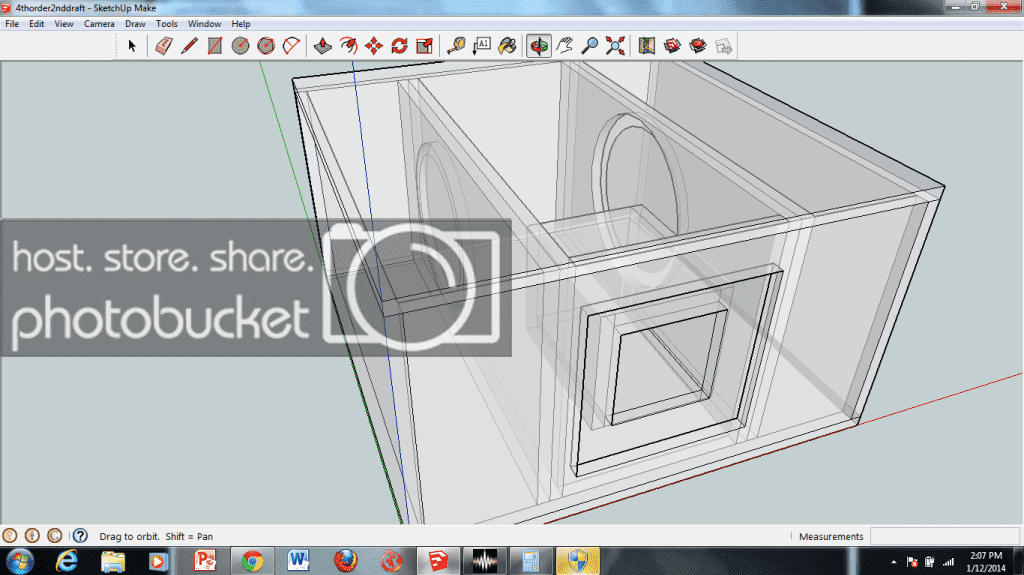

okay so here is my last design for the box (hopefully) also picked up some goodies from my favorite place, amazon . 50 foot spool on 1/0 some 8 guage to wire my subs up, isolator for my rear battery, some fuses, and some other install stuff. Big three and amp rewire coming soon.



[4bannger 10+ year member]

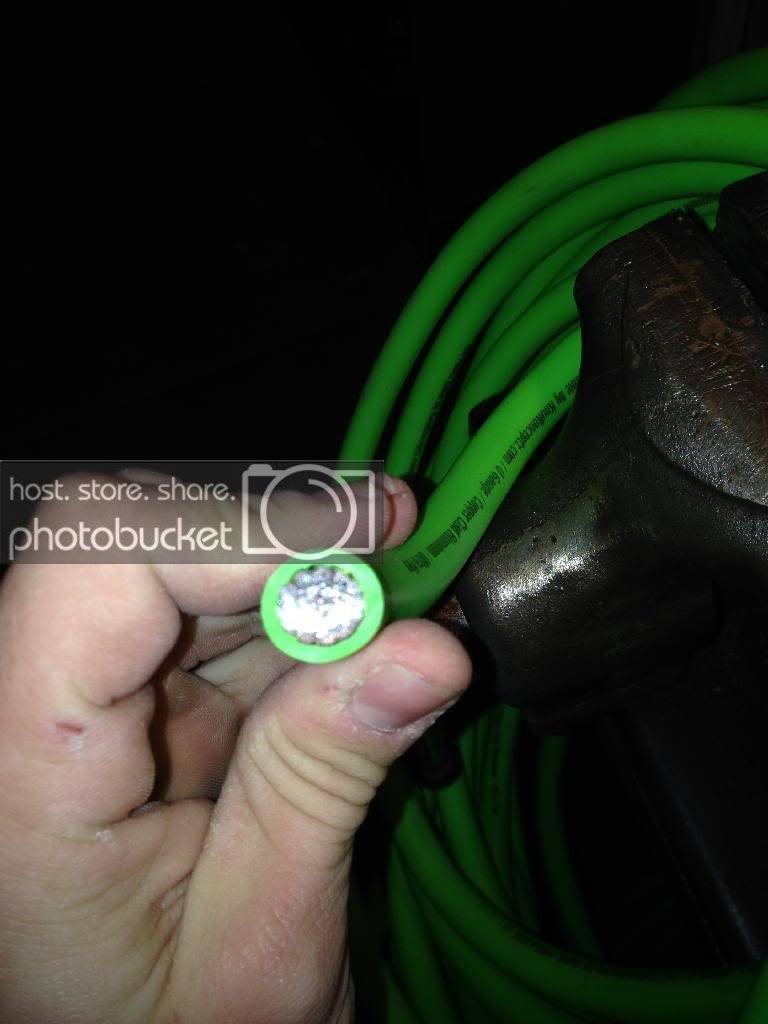

okay so i was pretty pumped about this. I got my w ire in today. still waiting on the isolator, fuse blocks, fuses, tekflex, heat (shrink, and ring terminals.

just waiting on my home depot gift card from work to but the wood for the build



[4bannger 10+ year member]

So I got almost everything but the fuse holders and the heat shrink. I wanna get this show in the road already. Gonna pick up some tool maker battery terminals soon also.

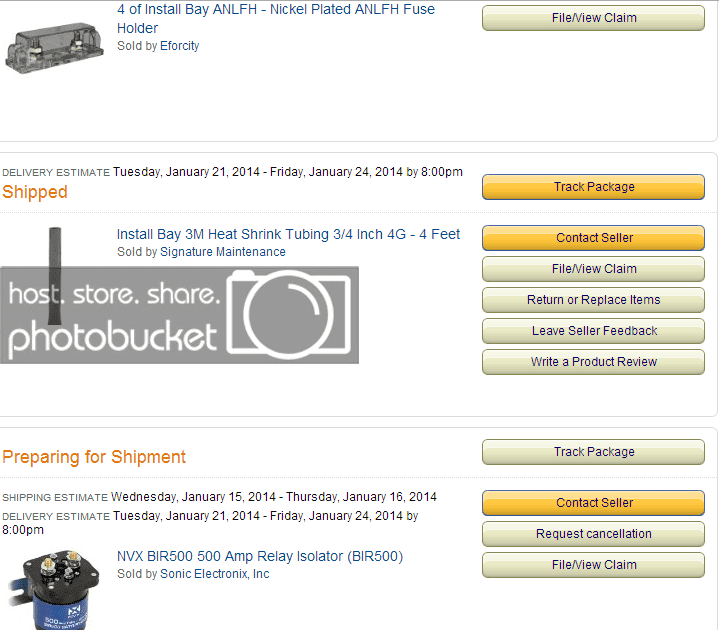

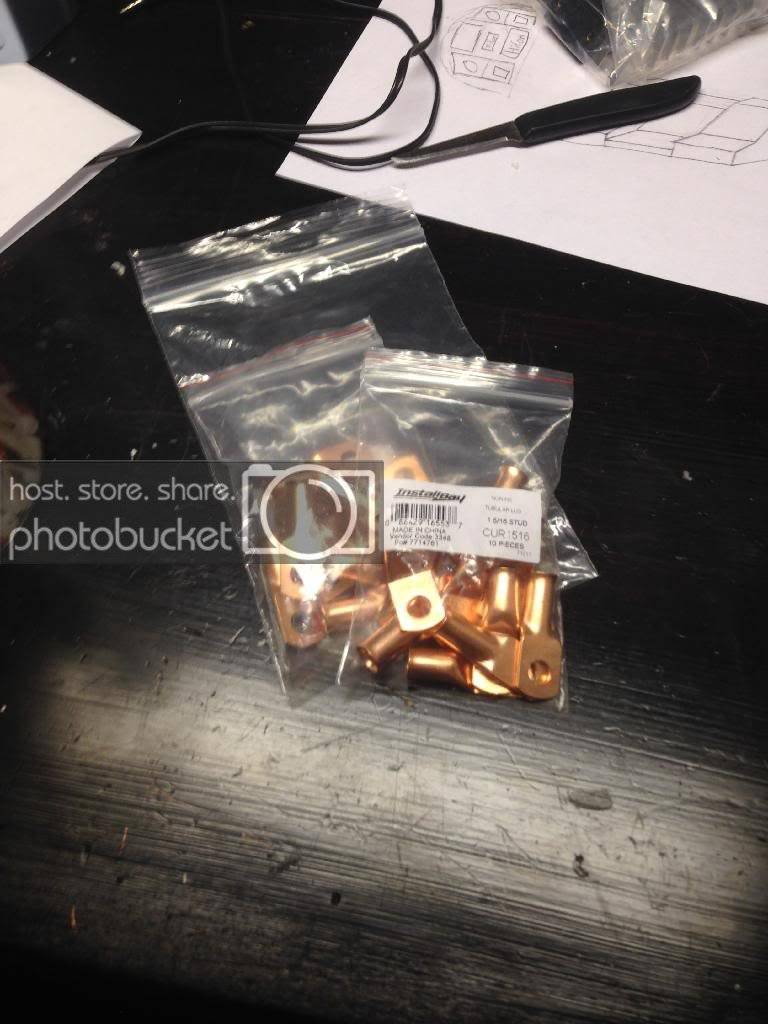

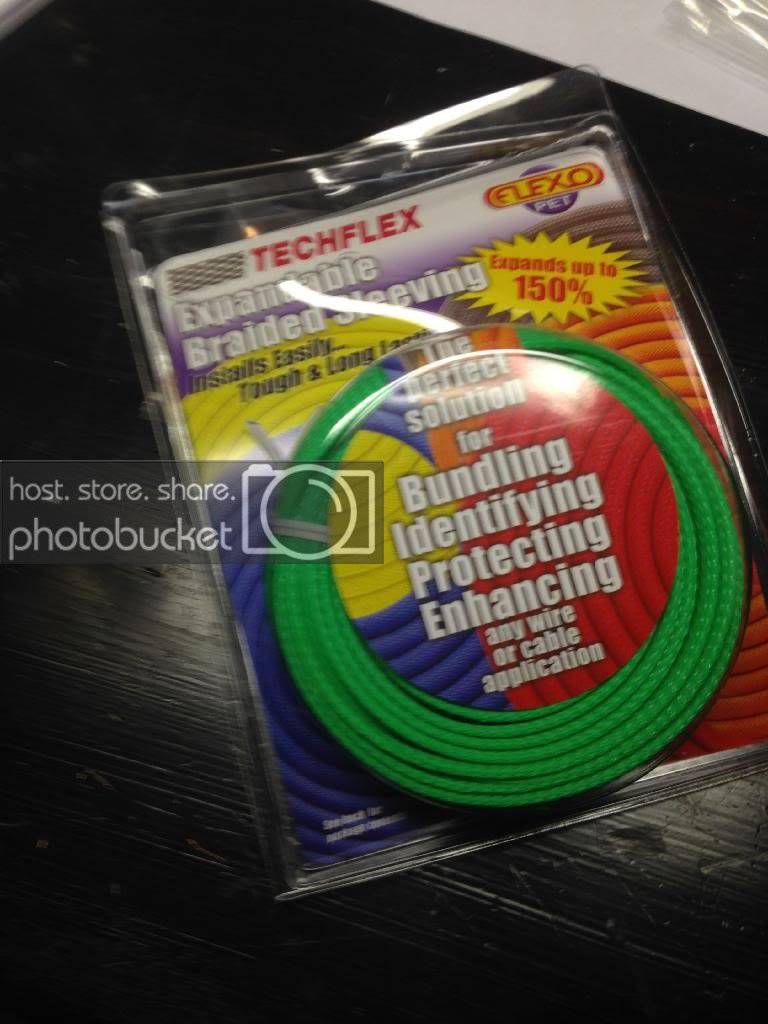

Got the isolator, the tech flex to cover the wire, fuses, ring terminals, and fuses.



[4bannger 10+ year member]

Okay so I'm STILL waiting in the **** heat shrink to come in. Try to save a little by buying it online and wait two weeks. If it not in by tomorrow I'll just go pick some up at the audio shop and pay the extra money.

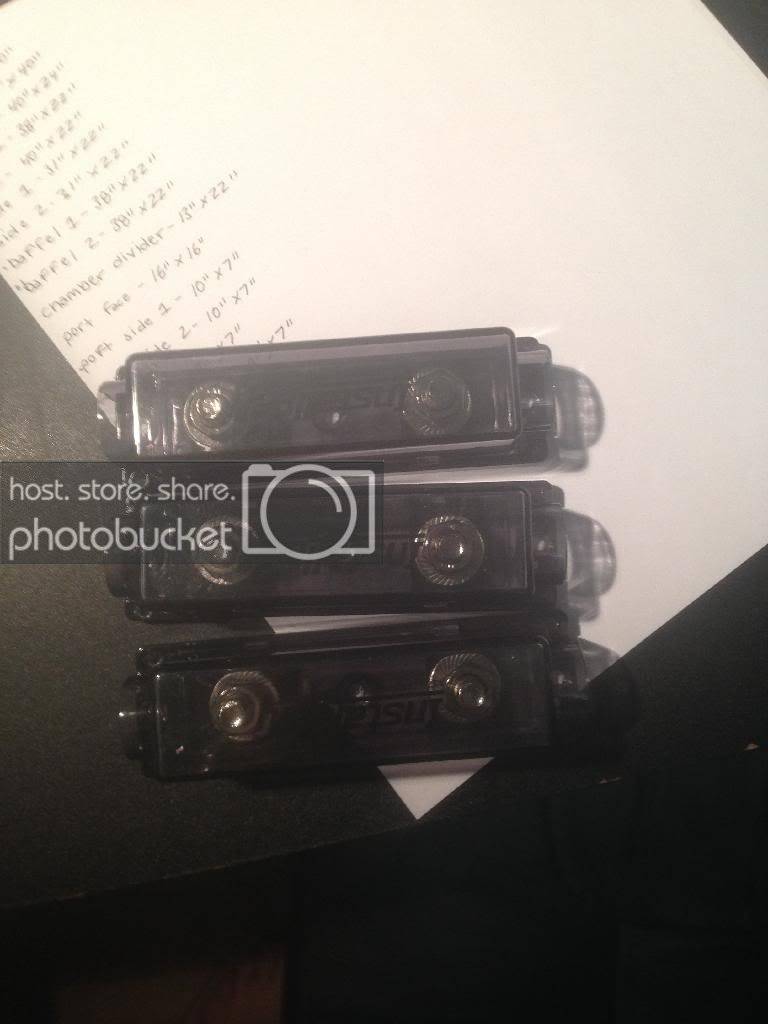

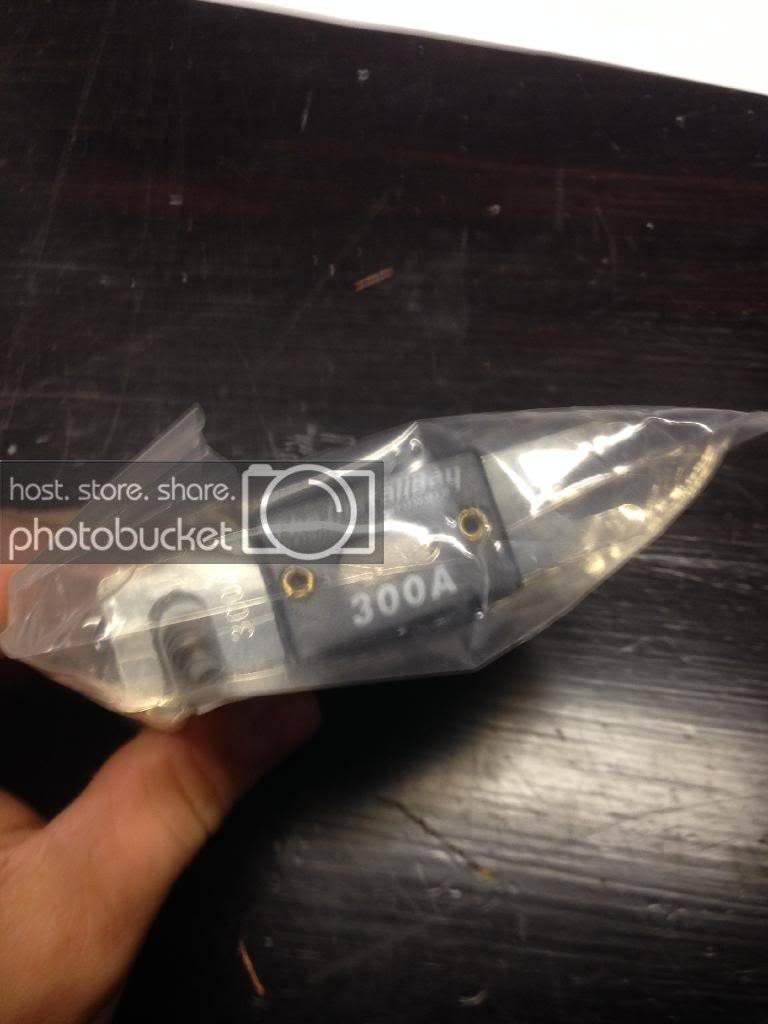

Just got the fuses and the fuses holders in. Accidentally ordered 300a fuses online but I already picked up some 200 amp fuses at the shop the other day. Gonna save the 300 amp ones for future upgrades I suppose.
