Box design help 4 DD 9510g’s

[Louisiana_CRX 5,000+ posts]

Two on to two on the side?

It avoids speaker cancellation run two front to back ...



[shredder2]

I'm confused as to your actual space... when you say you have " 36Wx35Dx17H with the port on a 32” side " this just leaves it kinda vague to me... are you tryin to leave port clearance?.. better off just listing the available space and the way you want to orient the box



[shredder2]

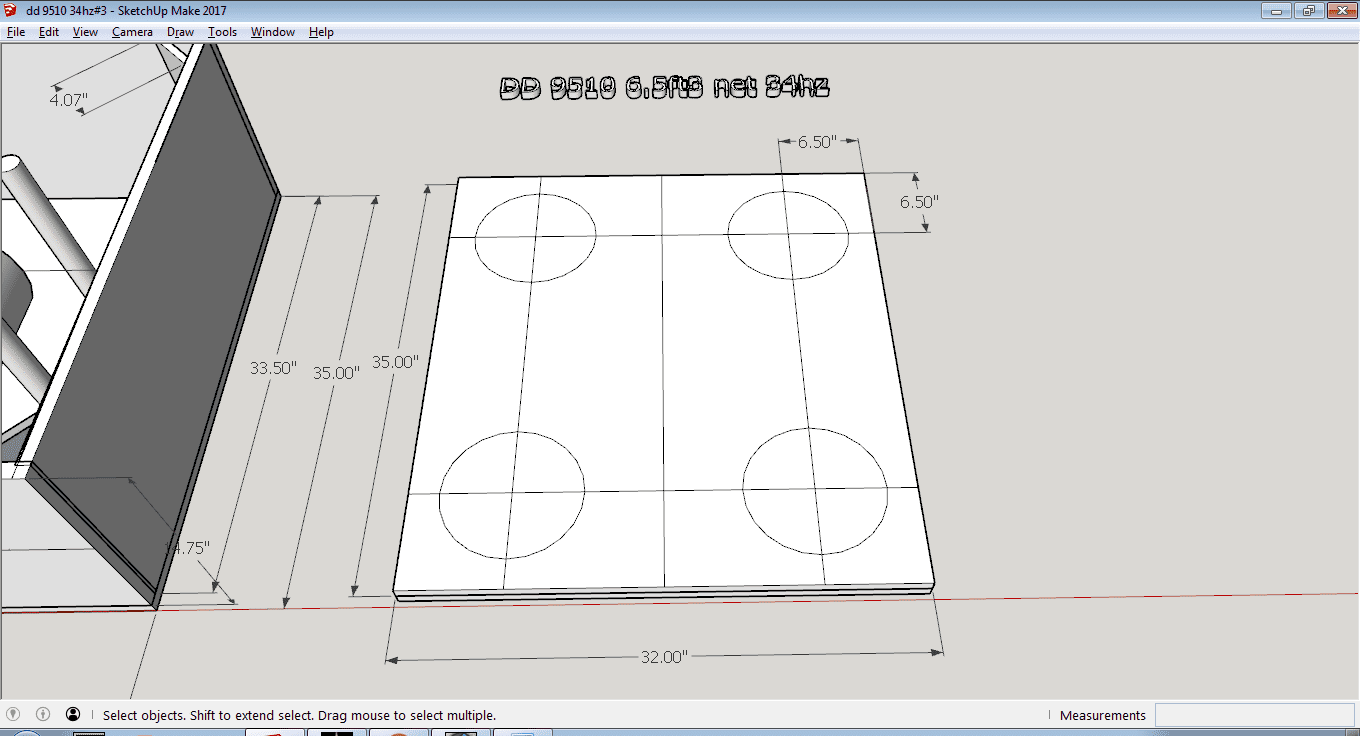

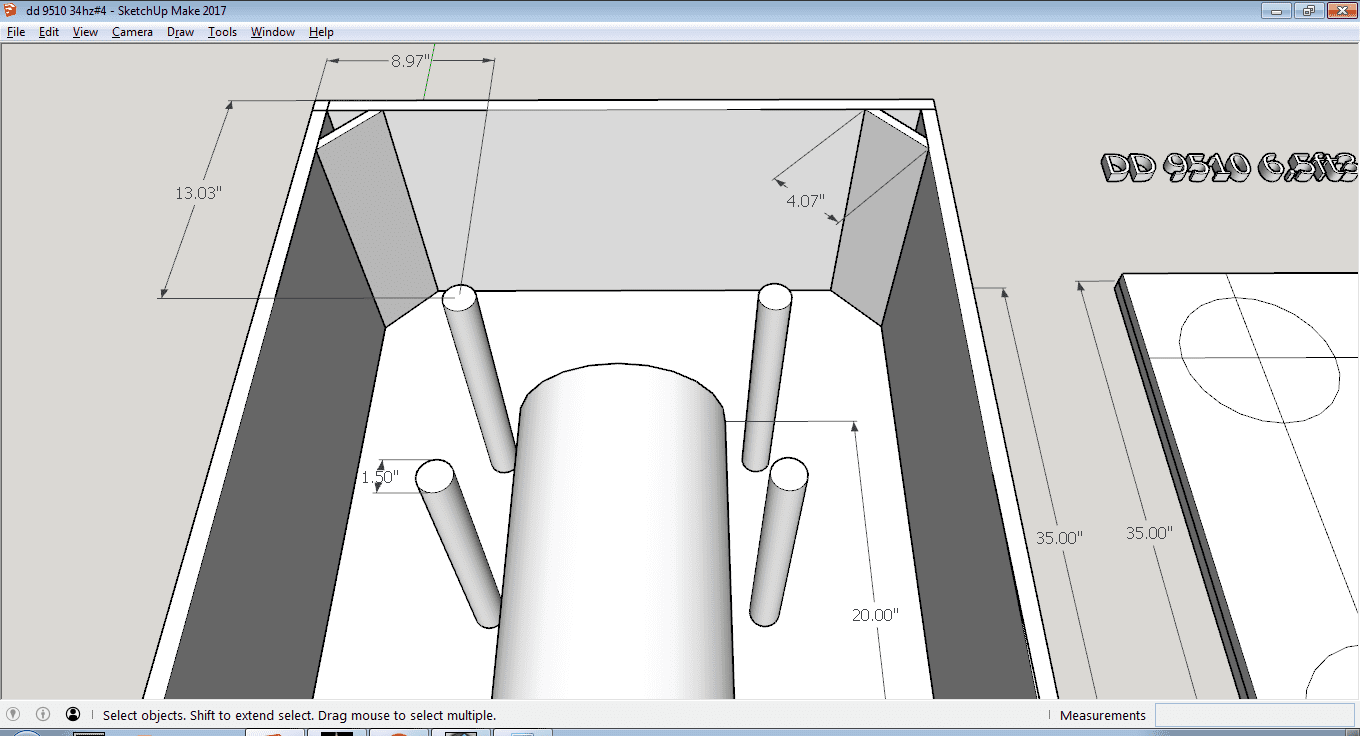

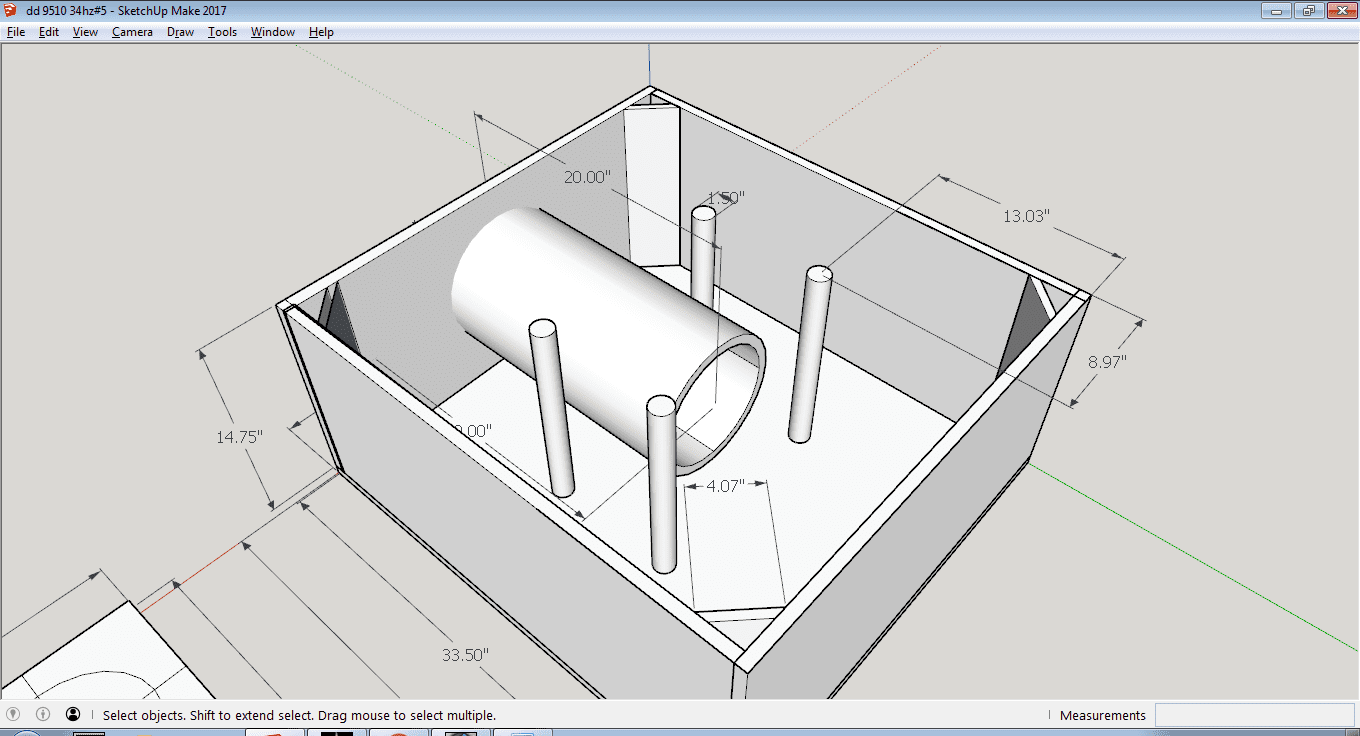

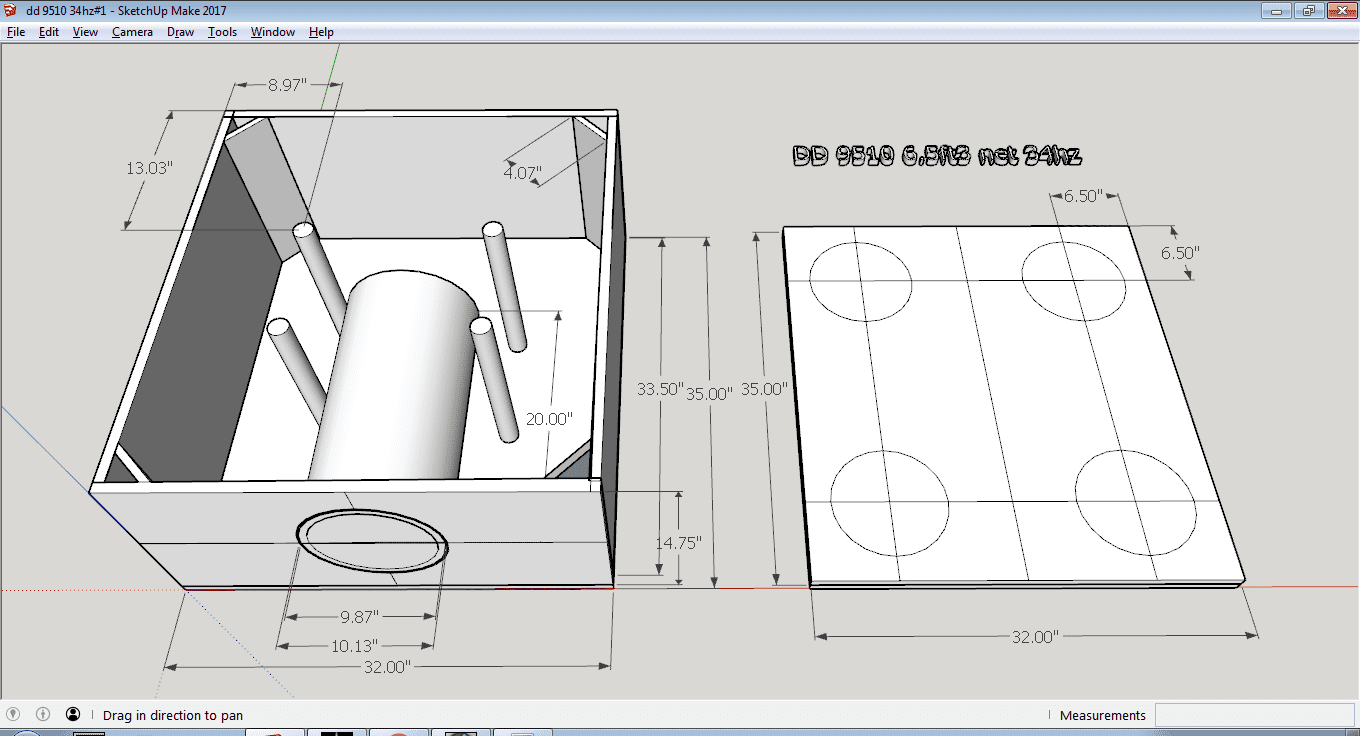

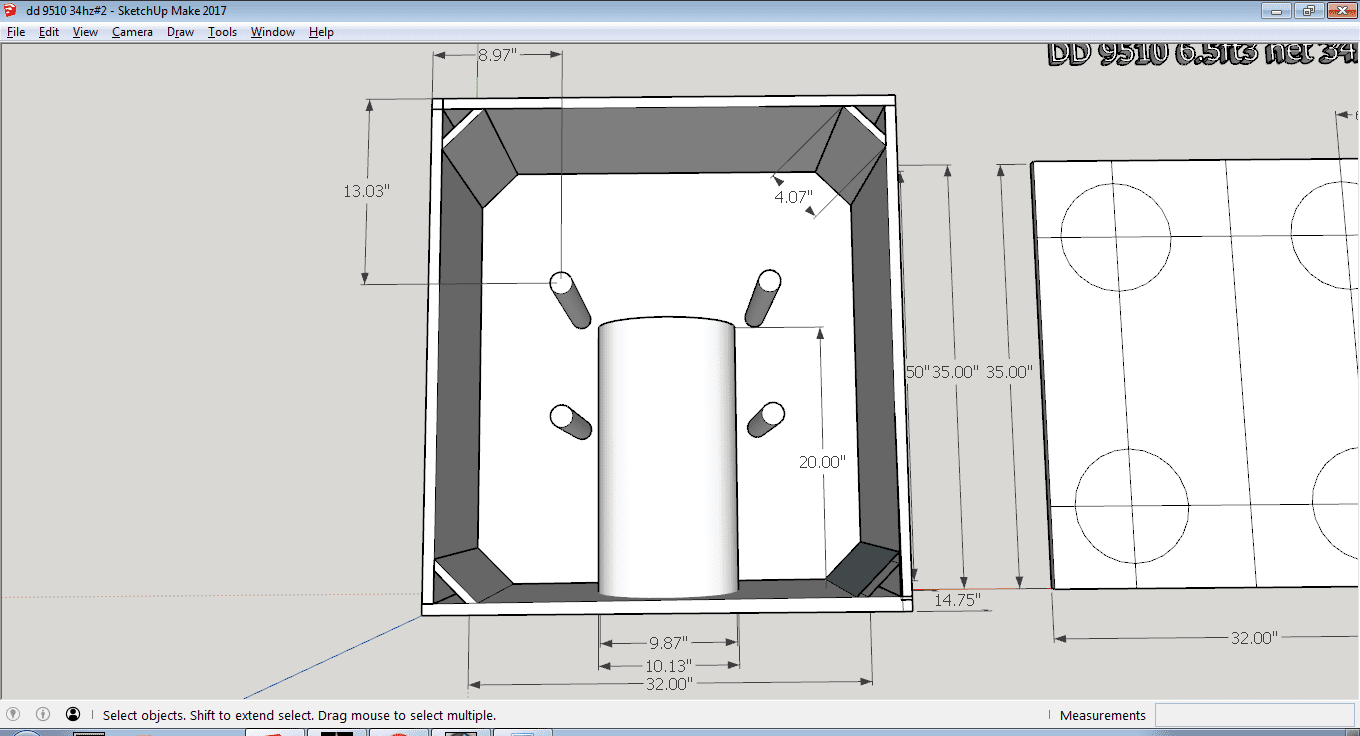

32" wide /w/ the port on that side, 35" deep x 17" tall double baffled... 6.5 ft3 net ad, 9.875 ID round 20" long ported at 34.09hz according to Winisd.

I'm getting the hang of Sketchup I think.



[Ispector 10+ year member]

32" wide /w/ the port on that side, 35" deep x 17" tall double baffled... 6.5 ft3 net ad, 9.875 ID round 20" long ported at 34.09hz according to Winisd.

I'm getting the hang of Sketchup I think.

Bingo! That’s it! I apologize if I wasn’t clear.



[shredder2]

Bingo! That’s it! I apologize if I wasn’t clear.

I'd like to see it once it's done... pics?.. a vid?



[Ispector 10+ year member]

I'd like to see it once it's done... pics?.. a vid?

I will definitely post some pics and vids. I’ll wait until it’s time to figure out how to post them. LOL



[shredder2]

I will definitely post some pics and vids. I’ll wait until it’s time to figure out how to post them. LOL

I use imgur... then insert a "direct link" into the "insert image" button above the text field when replying, a window will appear once you hit that button and you paste the link there.



[Papermaker85 5,000+ posts]

It avoids speaker cancellation run two front to back ...

Two on the side?



[shredder2]

@Ispector If you're gonna use an aero vs a round... be sure to factor in the flares to get the length if you want it to be close to the 34hz tune... it'll probably raise it fractionally due to s slight displacement change. That's OK, it's just under 34hz as is and with an aero it'll probably change to 34 1/2 hz or so...

https://audibleengineering.com/products/10-adjustable-aeroport-kit-11-18-l

Good luck!



[Ispector 10+ year member]

[quote name='shredder2']@Ispector If you're gonna use an aero vs a round... be sure to factor in the flares to get the length if you want it to be close to the 34hz tune... it'll probably raise it fractionally due to s slight displacement change. That's OK, it's just under 34hz as is and with an aero it'll probably change to 34 1/2 hz or so...

https://audibleengineering.com/products/10-adjustable-aeroport-kit-11-18-l

Good luck![/QUOTE]

I’m going to make the aero port. I’ve made a couple before and I want to show my son how it’s done so he can make them in the future. I’m excited to build this and get it playing! Thanks again for the design. Is it your first design with this program? My son said we should have his buddy make a sticker that says Shredder2 Enclosure Designs to rep your boxes. He’s a good young man and appreciates all the help too.



[shredder2]

Shredder2 Enclosure Designs huh?.. it's my 5th attempt as I did a few popular ones such as 2 xfl-12's or 2 SA-12's suv style. If anyone would like to have something modeled/designed/drawn up all they gotta do is ask and ill see if I can come up with something presentable.

Im trying kerfed drawings atm... it's just a little harder



[shredder2]

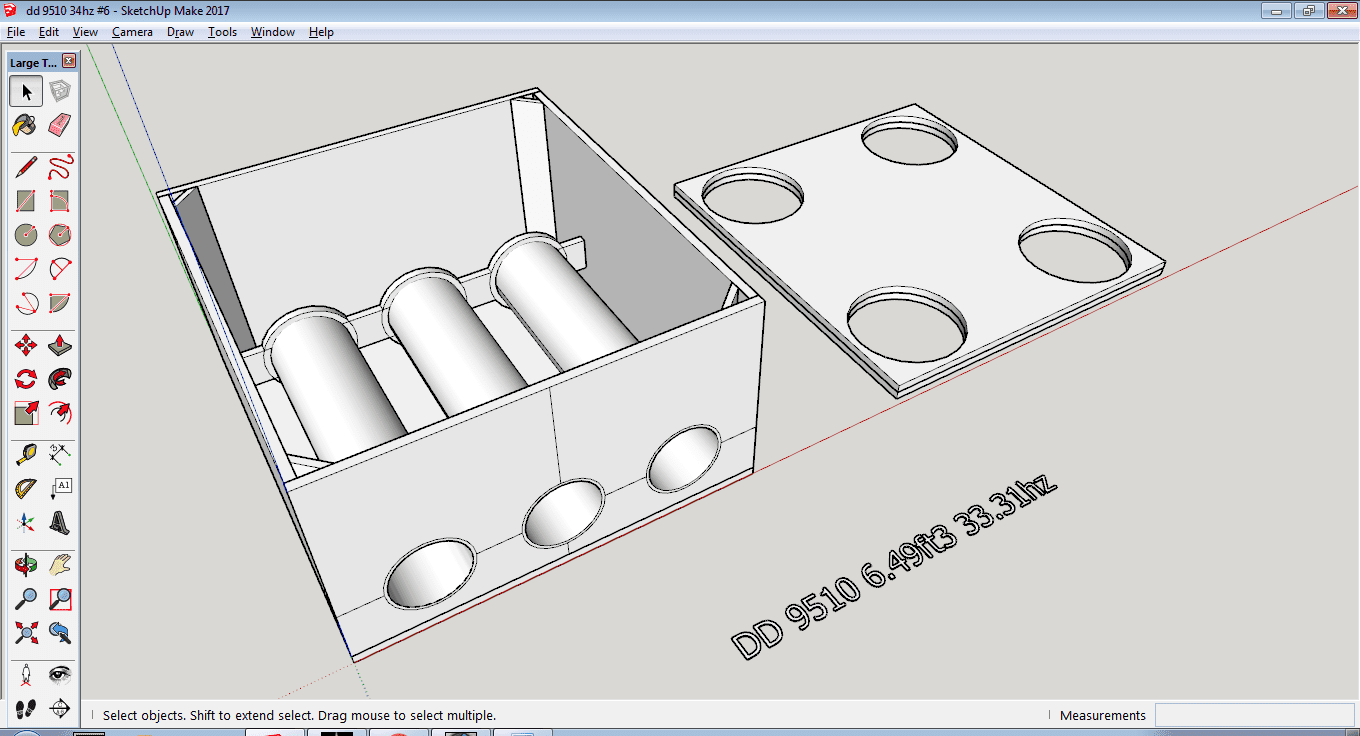

I like this one...

Just playin around... //content.invisioncic.com/y282845/emoticons/wink.gif.608e3ea05f1a9f98611af0861652f8fb.gif



[Ispector 10+ year member]

I wanted to show my son how to make aero ports but I really want this build to look nice so I ordered some audible engineering ports. 10” for the 4 DD 9510’s and an 8” for a box for 3 DD 9510’s. We want to see which setup sounds better and looks better. We got the b stock adjustable ports deal. They need a little sanding and with some paint I think they will look clean.



[Boomin_tahoe 5,000+ posts]

I just finished a design too...can I share?



[Ispector 10+ year member]

I just finished a design too...can I share?

Sure.
