wiring help please

[texasfight 10+ year member]

i have a power acoustic 4 channel amp would it be safe to hook one sub up to it? the sub is a rockford p1 150 rms 4ohms.

heres what i got on the amp:

RMS Power (4 ohms) 80 watts x 4 channels

RMS Power (2 ohms) 95 watts x 4 channels

RMS Power (1 ohm) N/A

Bridged RMS Power 190 watts x 2 channels

2 Ohm stereo, 4 ohm mono stable

Click to read more...



[mcsoul 10+ year member]

Very safe to put it on the 190w bridged channel.

I's almost perfect.



[x1le 10+ year member]

bridge it and adjust the gain accordingly and you should be good to go my friend.



[texasfight 10+ year member]

thanks for the help ya'll just saved me some money

another question about the setting the gain

when i look t the amp i see high pass knob low pass knob bass boost knob and level knob.

then a high pass low pass cross over switch

what would i use to set the gain

and what would be a safe level for the gain?



[mcsoul 10+ year member]

give me your amp model number



[texasfight 10+ year member]

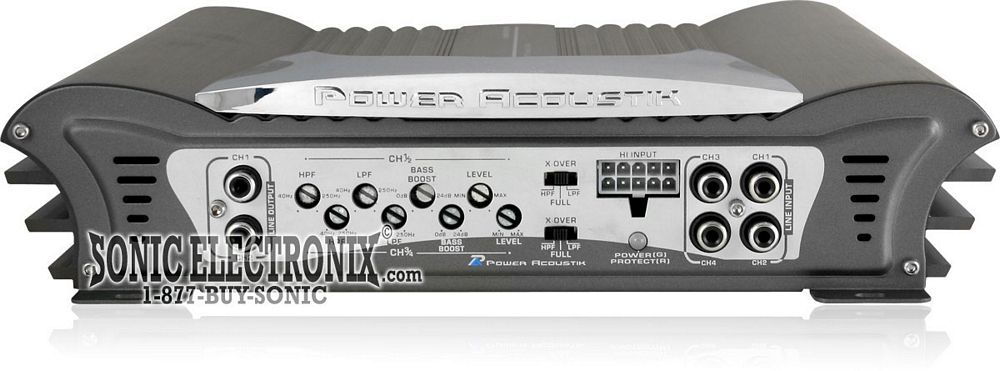

Power Acoustik OV4-840 (ov4840)



[mcsoul 10+ year member]

turn the bass boost all the way down on both knobs.

Looks like your headunit has to have a subwoofer output and full

range outputs to work. Plug the full range front pre-out into 1&2,

and the sub out into 3&4 RCA jacks.

The level dial adjusts the gain for the 2 internal amps. The upper dial does channels 1&2

the lower level dial adjusts 3&4.

run channels 1&2 (upper row of dials and buttons) to your component or coax speakers:

xover hpf, HPF dial first dot past the 40 (80ish)

channels 3&4 (lower row of dials and buttons) to your woofer bridged on the speaker outputs.

xover lpf, LPF dial first dot past the 40 (80ish)

Remember, on the speaker output side of the amp is where you bridge 3&4 so pay

attention to how you wire it up.



[texasfight 10+ year member]

thanks
