Transmission line enclosure build for 12" se

[Twisted_0912 10+ year member]

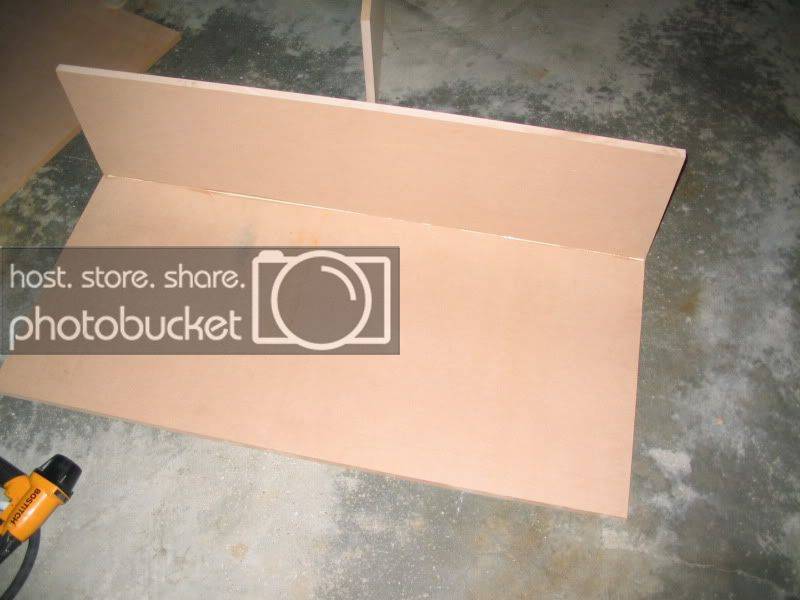

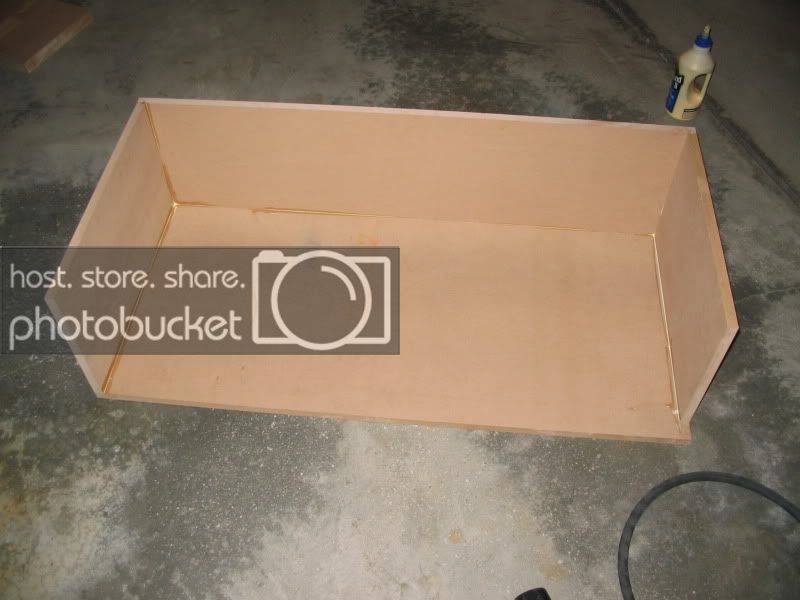

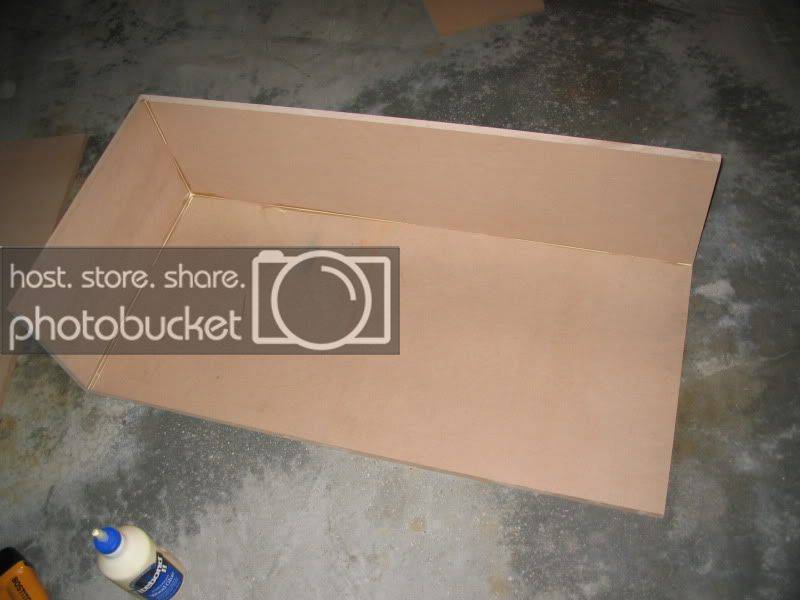

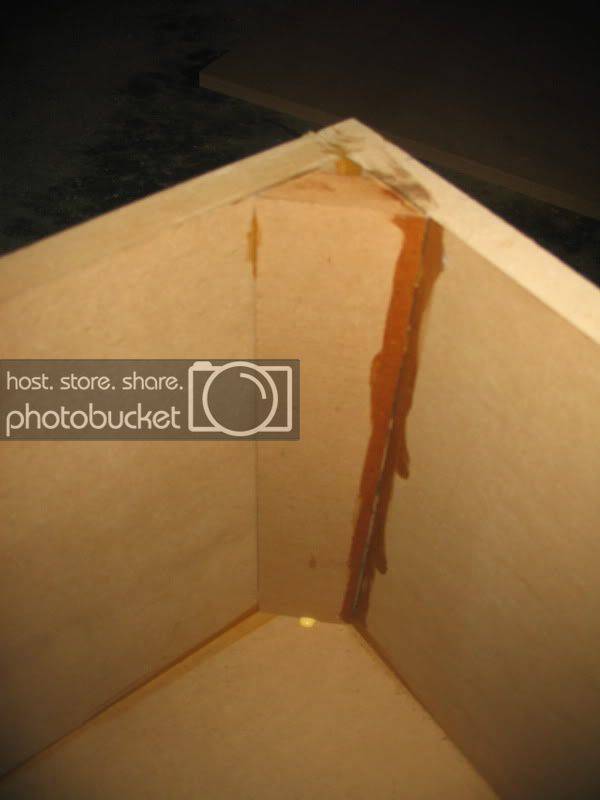

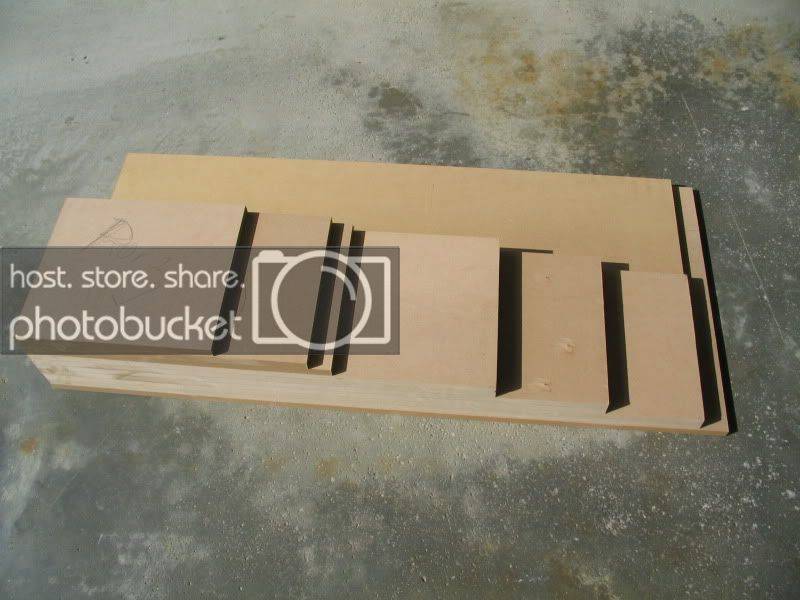

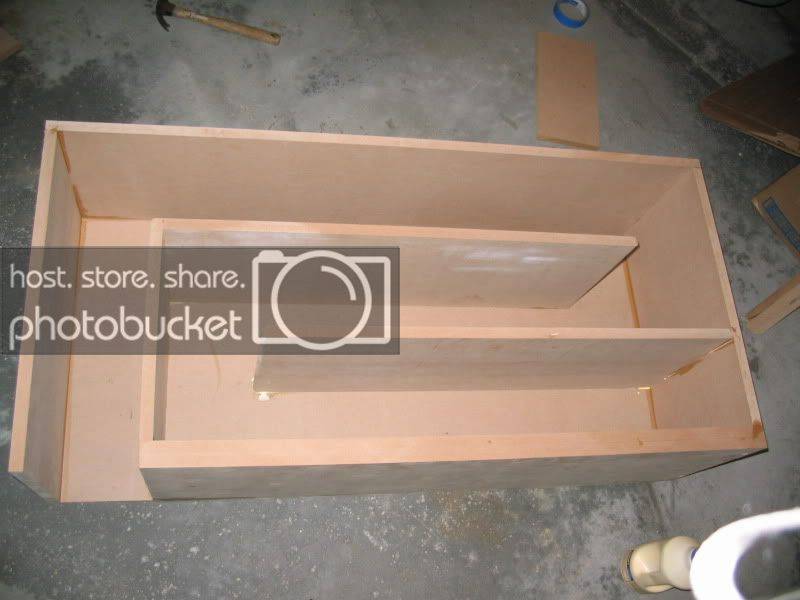

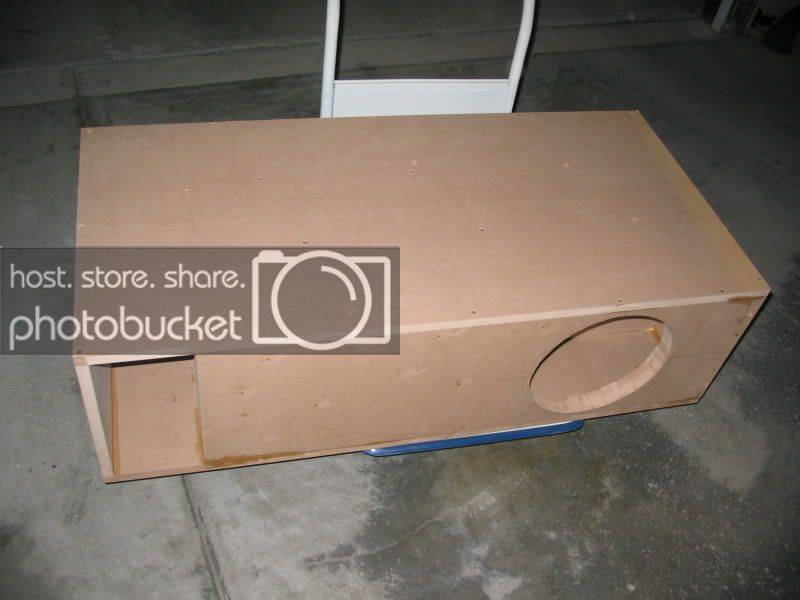

ok well i saw a tutorial on this this morning and didnt have anything to do today so i decided to try building one. if it works out right, ill be using it in my home theater setup, im gonna build it out of oak plywood that i have and stain it to match the trim in my house. it is a 1/4 wave transmission line. its tuned to 25hz with 11.3 feet long port with the port area equaling the sd of the sub, which it 74 in^2. here are the pics...

Click to read more...



[hornedfrog1985 5,000+ posts]

lookin good guy. Never really seen one of these. Kinda like a snail shell or something?



[Twisted_0912 10+ year member]

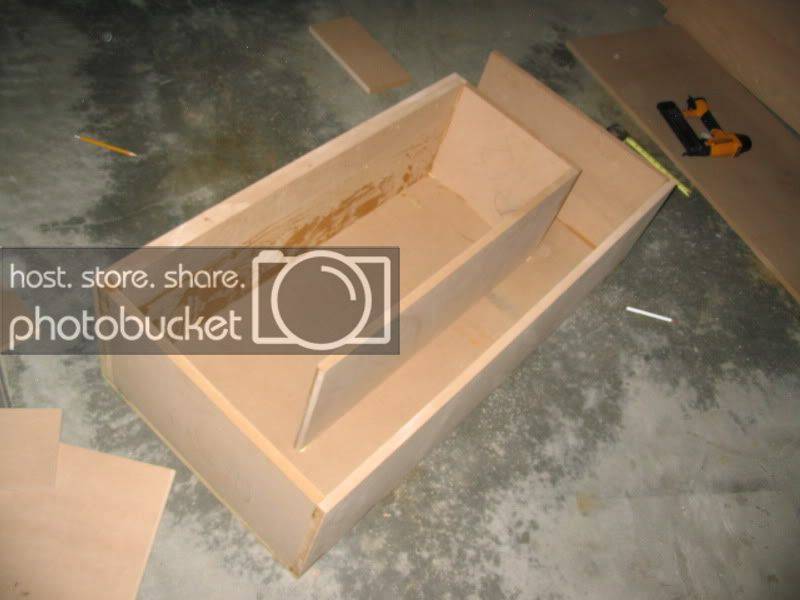

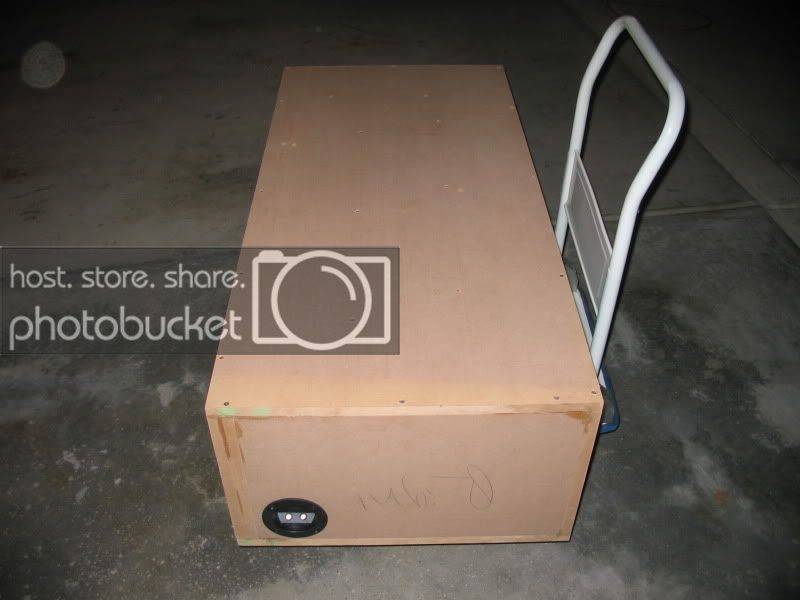

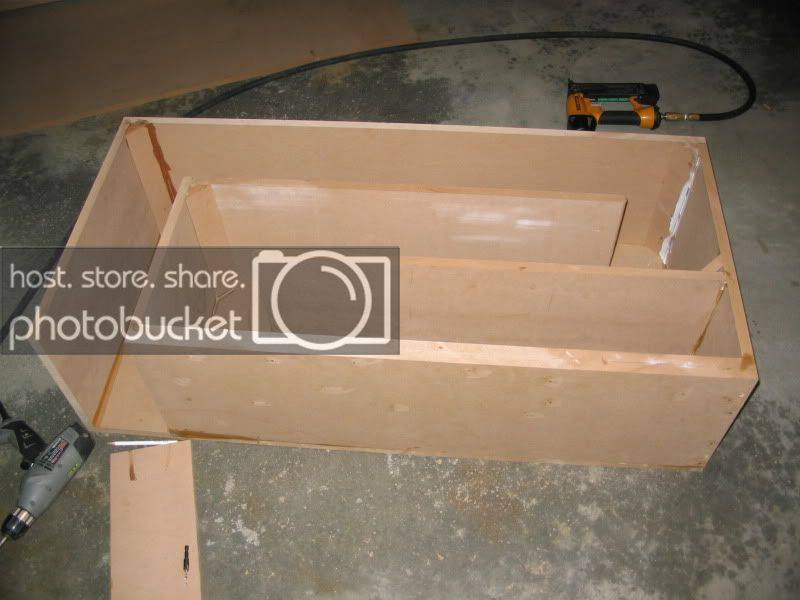

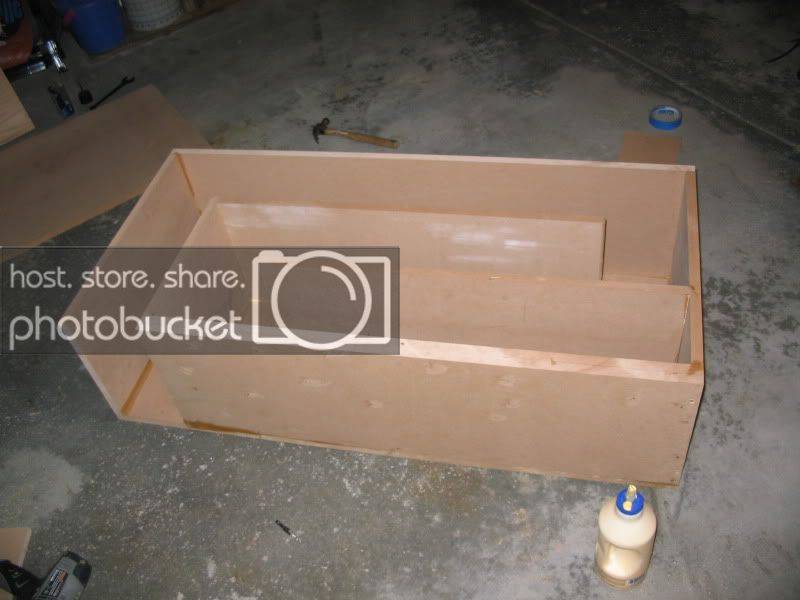

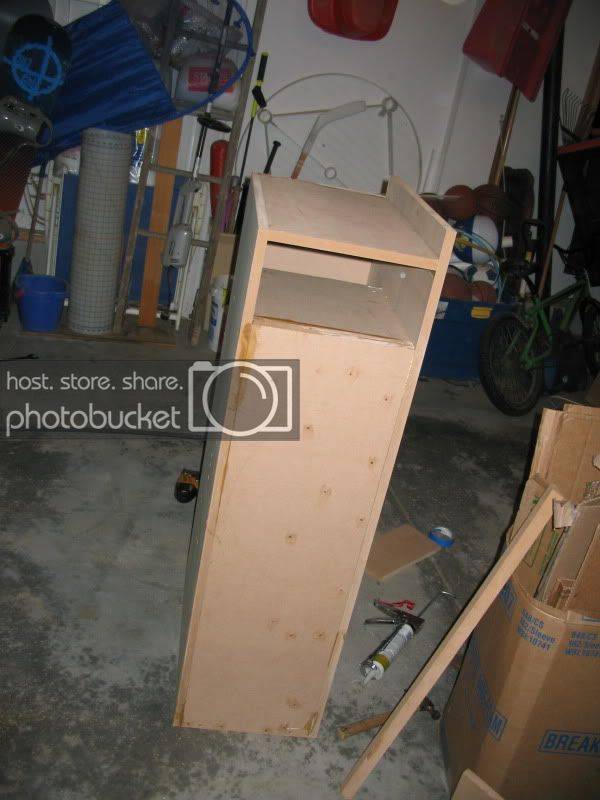

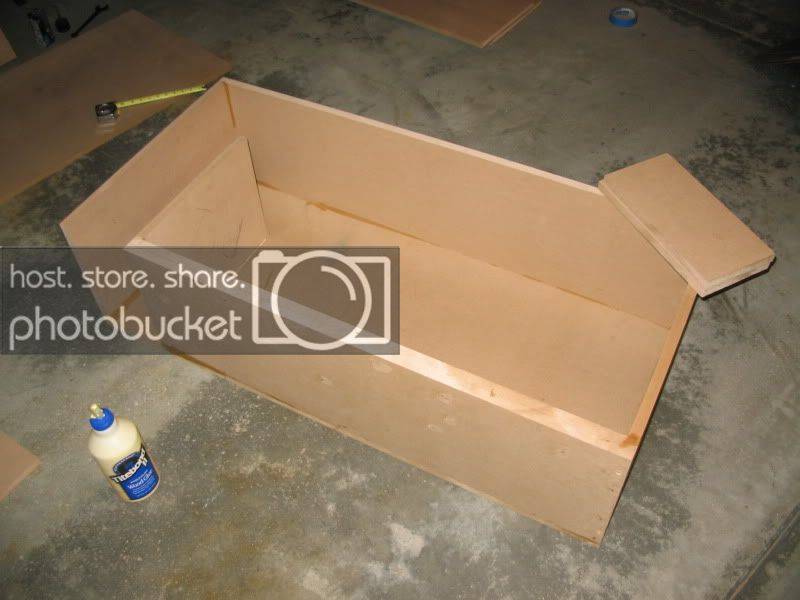

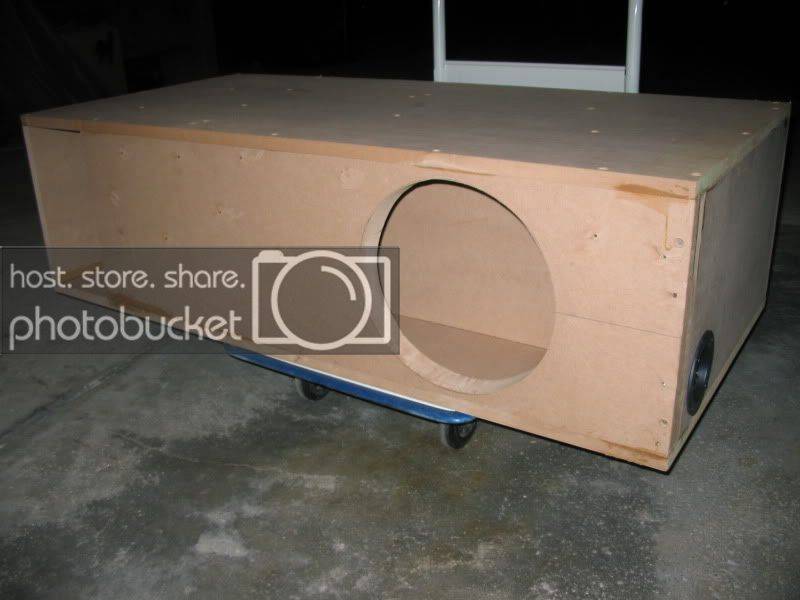

more pics...



[av8ter 10+ year member]

I wanna hear this so **** bad. Stick it in a car for a day and post some vids and you will have created a new TL box boner on our forum.......

Kevin



[WrenchGuy 10+ year member]

Cool.

Where is this tutorial if I may?



[wgsj_fortvalley 10+ year member]

nice



[Fuknmovin 10+ year member]

Where can you find a calculator for a T line enclosure, I have always wanted to try one, maybe I can do one for my HT setup.



[SELFMADE]

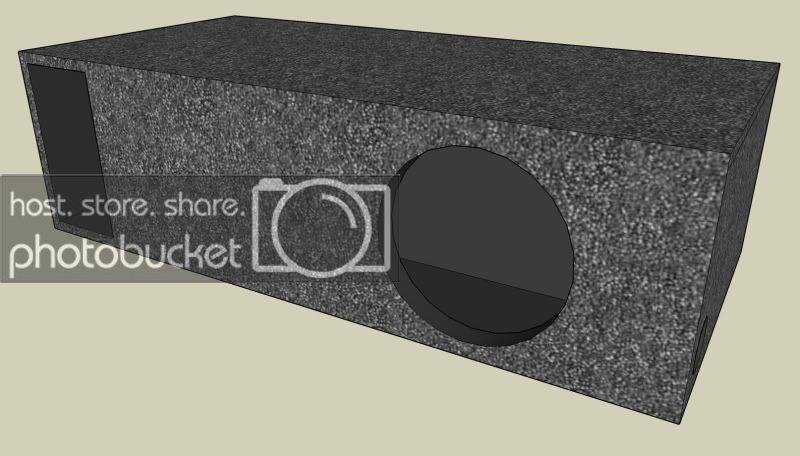

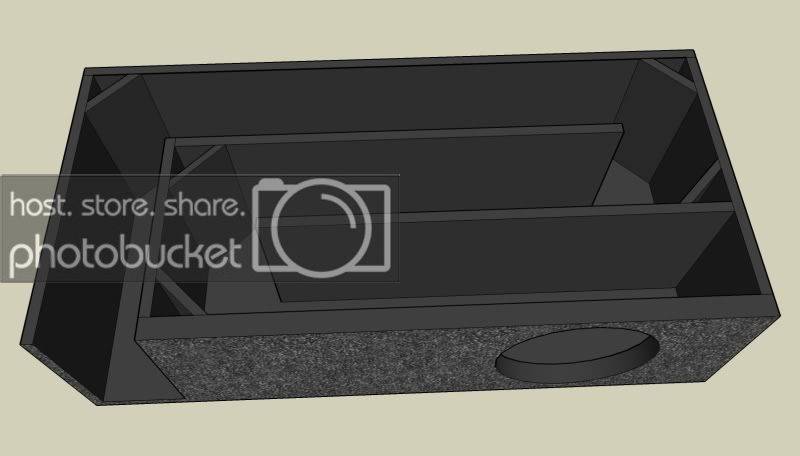

The 45's look smaller than the ones in the design, any reason? Nice box though came out nice man..



[Twisted_0912 10+ year member]

thanks guys. i didnt use a calculator for this box. its not really that hard to design. here is the tutorial i used. http://www.stevemeadedesigns.com/board/index.php?showtopic=1828 i found it on another thread from the build logs on here. im about to go test it



[Dj Arr 10+ year member]

badassssss



[DB-Audio 10+ year member]

looks good good job



[Twisted_0912 10+ year member]

thanks guys. this thing is a beast on the lows



[Pioneer~Saturn 5,000+ posts]

Shi' son



[Twisted_0912 10+ year member]

Shi' son

lol like the lazyness with the jigsaw?



[revrider1 5,000+ posts]

Nice, Id love to hear this.
