Design Needed for American Bass XFL 1522 in 3.5 Cubic Ft @ 30 Hz Enclosure Slot Port

[nyoc 10+ year member]

Vehicle : 2006 Dodge Stratus

Location in the vehicle: Trunk

Space available (Length x Width x Height): 22" x 36" x 22"

Subwoofer make and model: American Bass XFL 1522

Subwoofer Size: 15"

Number of Subwoofers: 1

Type of Port (Kerfed, Slot, Aero, etc.): Slot

What type of music do you like?: Rap

Is your goal SPL or Everyday Music?: A little of both

Tuning Freq (Hz): 30

Volume : 3.5 cubic feet

Questions: Thinking about doing sub up port back

I will be using 3/4" MDF with a double baffle. I would also like to get a cut sheet if this isn't asking too much. I tried doing this on my own with WinISD and a couple of other programs but I can't seem to get it just right. If you have any questions, please ask here or pm me please. I will pushing his with a Skar 800.1

Click to read more...



[Androidaaron34]

I can tell you what I did that's just really really close to your trunk build but it is a aeroport round Port design for 2 Sundowns

I would go 35 wide 21 and a half deep and 16 High use a 6 by 10 aeroport from Parts Express it's tuned and exactly at 33 Hertz and you're right at 3.98 cubic feet

That's Precision Dimensions providing your subs will require between 1.75 and 2 cubic feet each you will be slamming with that specs don't worry about the hassles of vented ports just go with a simple aeroport design cutout of 8 1/4 Quarter inch hole between the subwoofer cutouts after you center the subs Slide the port in screw it in



[Androidaaron34]

Just realize you're using One 15" it should still work if that's sub requires between 1.75 and 2 cubic feet ported and you can point the sub up and Port back put the port to the very far right and put the sub to the left. It's all still relevant regardless of 2 12" or 1 15"

All that matters is Port dimensions lining up with the SUB port requirements and cubic feet of box if you build a box to those specs you'll be right at 3.98 cubic feet just make sure that the sub requirements give you at least between 3.5 and 4 cubic feet Max



[CSCStang]

Vehicle : 2006 Dodge StratusLocation in the vehicle: Trunk

Space available (Length x Width x Height): 22" x 36" x 22"

Subwoofer make and model: American Bass XFL 1522

Subwoofer Size: 15"

Number of Subwoofers: 1

Type of Port (Kerfed, Slot, Aero, etc.): Slot

What type of music do you like?: Rap

Is your goal SPL or Everyday Music?: A little of both

Tuning Freq (Hz): 30

Volume : 3.5 cubic feet

Questions: Thinking about doing sub up port back

I will be using 3/4" MDF with a double baffle. I would also like to get a cut sheet if this isn't asking too much. I tried doing this on my own with WinISD and a couple of other programs but I can't seem to get it just right. If you have any questions, please ask here or pm me please. I will pushing his with a Skar 800.1

I can hook you up with a cutsheet. Pm me.



[nyoc 10+ year member]

Thanks, from what I have seen it requires 3.5 cubic feet. Someone has actually given me a very nice design. Thanks for the input.



[Buck 5,000+ posts]

I can make you a design if you still need one.



[nyoc 10+ year member]

I'm open to other options, please let me know what you would come up with. Thanks



[CSCStang]

I'm open to other options, please let me know what you would come up with. Thanks

Pms are full. I looked at the design, looks great. I say build it.



[The_Dealer]

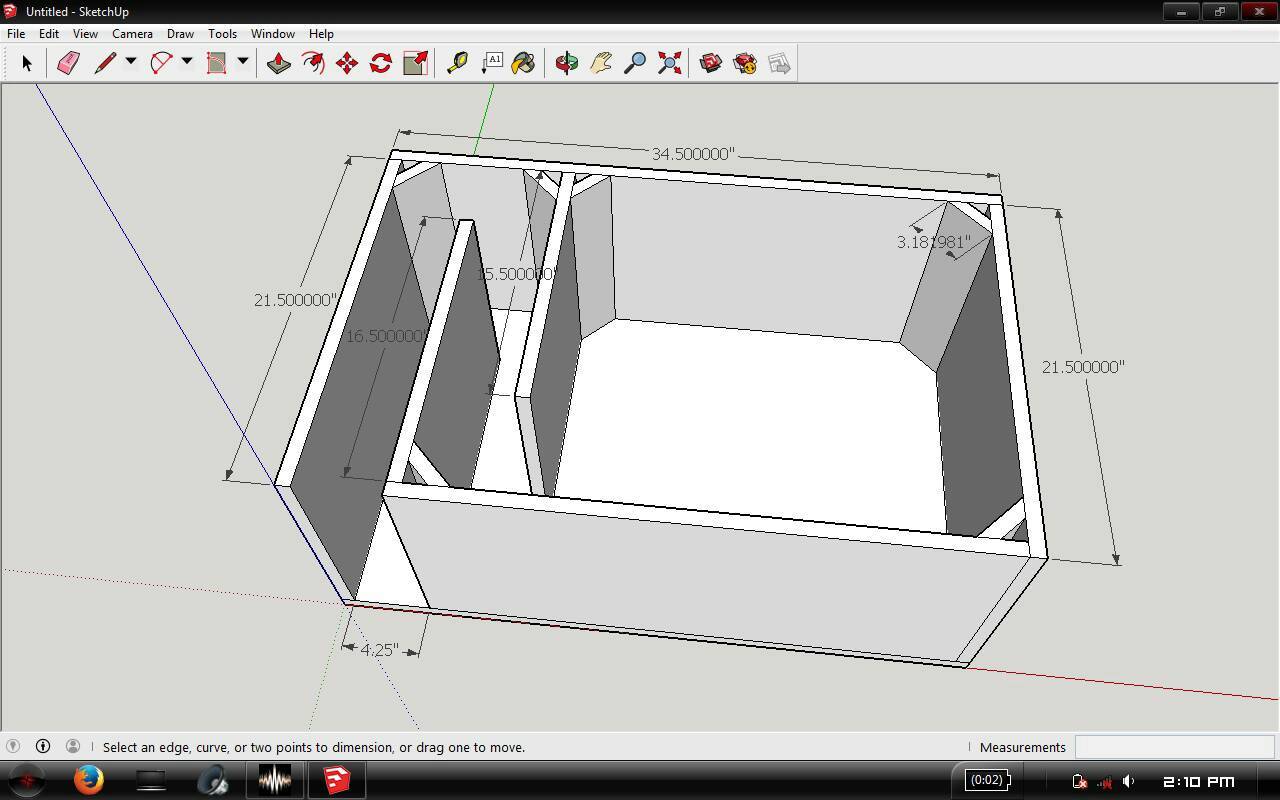

This is what I recommended on caco

Sent from my SM-G900A using Tapatalk



[Basshead92]

I'm a noob to the box building with same design could I shorten the width to 32 and make the depth a little deeper and still have the same specs my measurements are 32 Wide 26 Depth 16 Height max need help understanding and I really wanted to be tuned a 32hz



[Papermaker85 5,000+ posts]

i personally think 3.5 is on the small side. Id do closer to 4. tuning to 32 will give you good extension dont expect a TON of output.



[Boomin_tahoe 5,000+ posts]

I'm a noob to the box building with same design could I shorten the width to 32 and make the depth a little deeper and still have the same specs my measurements are 32 Wide 26 Depth 16 Height max need help understanding and I really wanted to be tuned a 32hz

Also depends what kind of music you listen to. Anywhere from 30-35 Hz. is the ideal tuning.



[Basshead92]

Rap music so 4 cu would better in my case



[Basshead92]

I'm running a hifonics 2000.1D to it BTW at 2ohm which is about 1400 with the sub firing up port the the rear of the car



[Cm_low]

How did this setup work for you? I am about to build for the same sub and be running approximately the same power but in a 2012 chevy cruze. I was going to do sub firing rear though instead of up. I was toying with the idea to face upwards but read a few different places that it would cause more rattling with little benefit.
