Can someone explain this to me(Diagram Included)

[ccab 10+ year member]

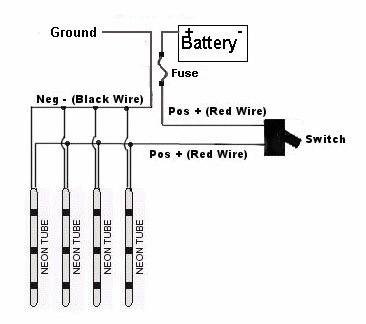

Can someone explain to me what the black dots are in this diagram?

Click to read more...



[Pioneer~Saturn 5,000+ posts]

I dont see any diagram..



[ccab 10+ year member]

sorry it got messed up..here is the diagram.



[Rich B 5,000+ posts]

Atoms?



[ccab 10+ year member]

sorry it got messed up..here is the diagram.



[ccab 10+ year member]

sorry it got messed up..here is the diagram.



[Stalin-ohaulic]

HAHAHA ccab's posts are full of fail.

ccab= undisputed village idiot



[ccab 10+ year member]

OKAY. maybe it will work this time.



[ccab 10+ year member]

here is the link lol

http://www.oznium.com/forum/topic3633

its the first diagram.



[ccab 10+ year member]

Recent discussion:

Cooper: The black dots just mean the wire is connected . You see how sometimes when two lines cross there's a black dot, and sometimes one wire looks like its a bridge or hopping over the other wire ? When its a dot that means the wire is actually connected in real life . When its hopping over the other wire that means the wires aren't connected in real life (they might not even be close together) but because of how the diagram is drawn they had to cross in the drawing .

Ccab: okay but HOW do you connect those wires together like that..I still dont seem to understand that. How do you take one long positive wire and cut the other 3 positive wires short and attach them all to the one long one..its not comprehending in my brain. lol.



[99grandprixGT 5,000+ posts]

like this man



[ccab 10+ year member]

like this man

how did you do that! oh well it doesnt matter. just need the question answered OP.



[Stalin-ohaulic]

There it is genius. It shows that all neon tubes are in parallel. This is because in a parallel circuit the voltage stays the same across all components. The switch is inline on the positive wire and it completes or disconnects the circuit. I implore you to not attempt this yourself. You are clearly not capable.



[99grandprixGT 5,000+ posts]

right click. copy image location, then post it in the



[ccab 10+ year member]

There it is genius. It shows that all neon tubes are in parallel. This is because in a parallel circuit the voltage stays the same across all components. The switch is inline on the positive wire and it completes or disconnects the circuit. I implore you to not attempt this yourself. You are clearly not capable.

thats not what I asked.
