Alarm Wiring Harness "Pics"

[blackdragonaudi 10+ year member]

I am getting ready to install my viper alarm and from what I have been reading it is a good idea to hid your brain somewhere. So today after getting my wire from a great seller fasfocus00 I quickly got to work and made my harness. It will be wrapped again with palstic tubing to make it look more factory. Take a look

All cut and straighten out

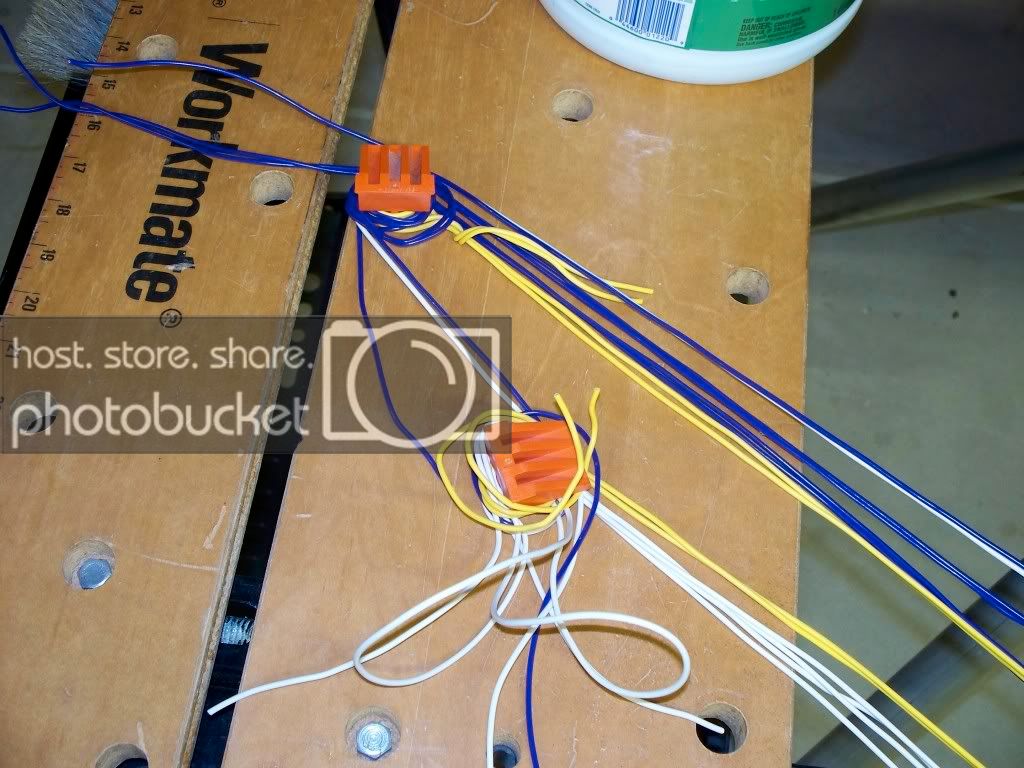

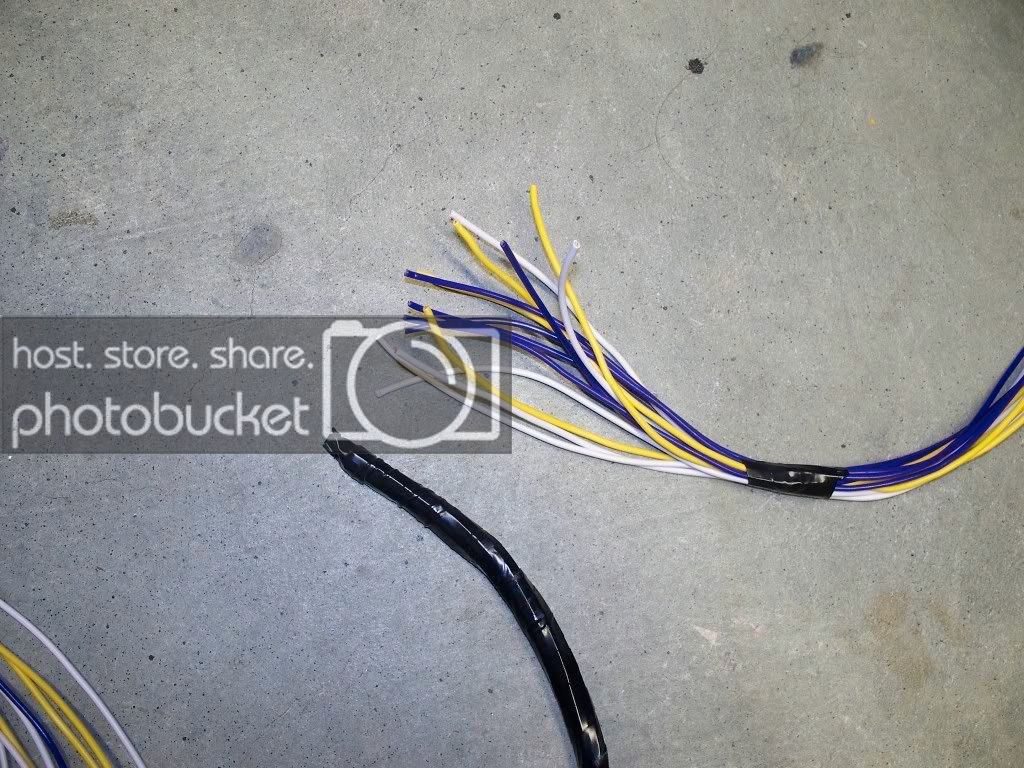

After taped them up so they wouldn't tangle up

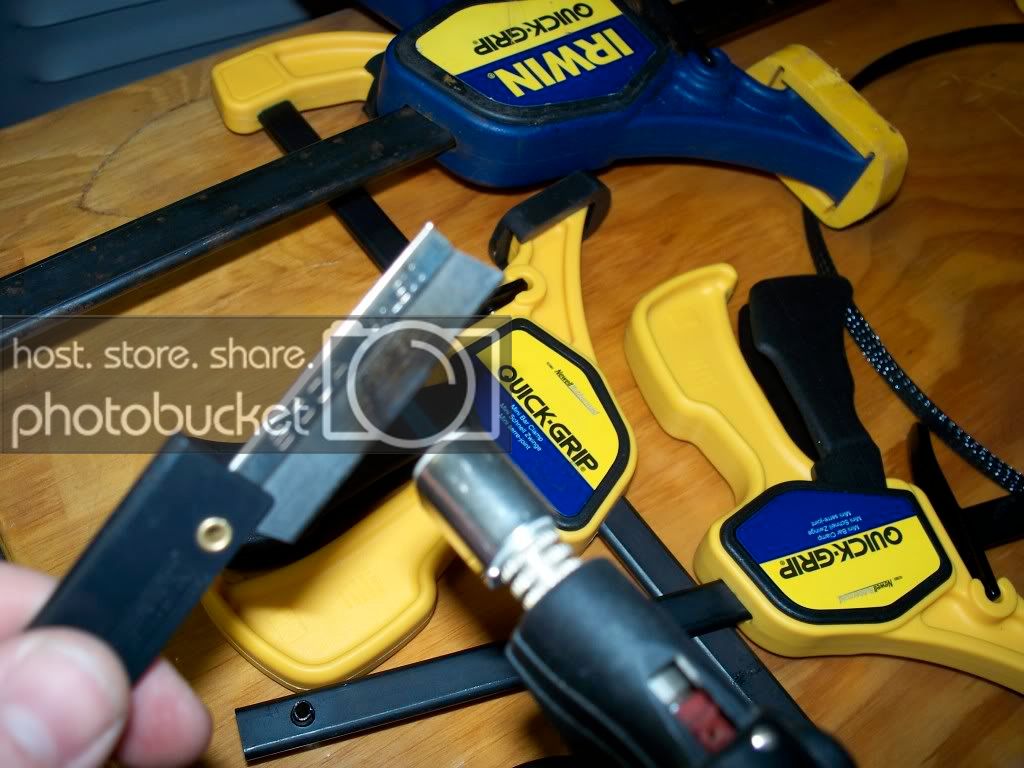

Heating up the knife to cut the expandable tubing

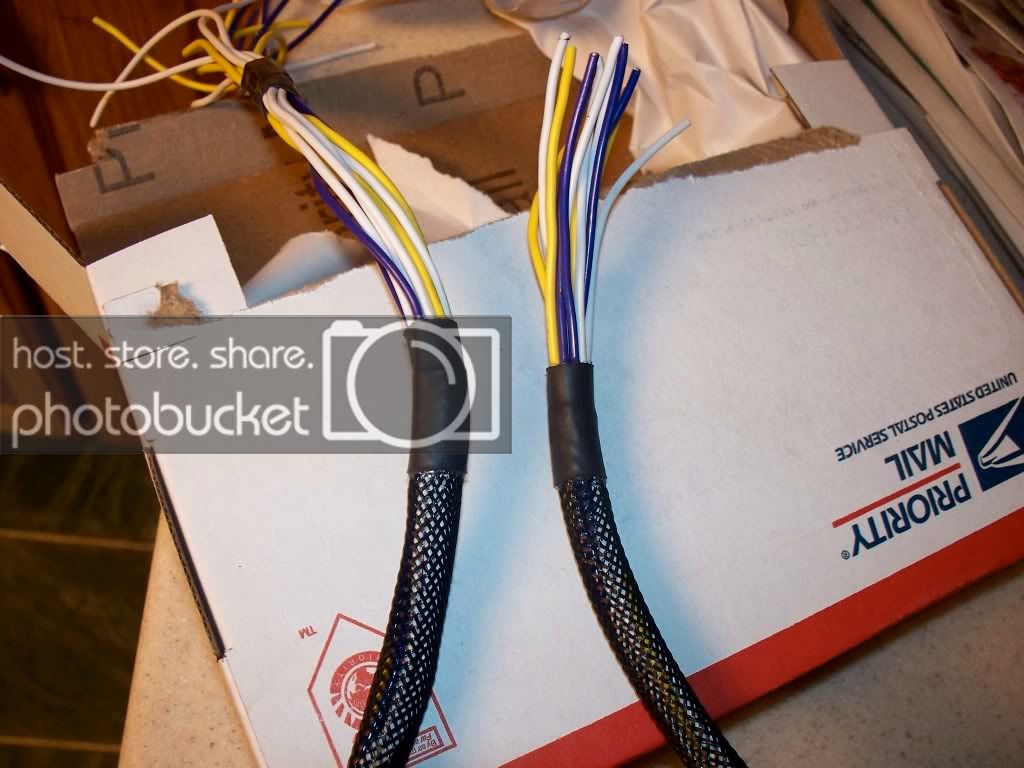

Expandable Tubing starting to be slid onto wire

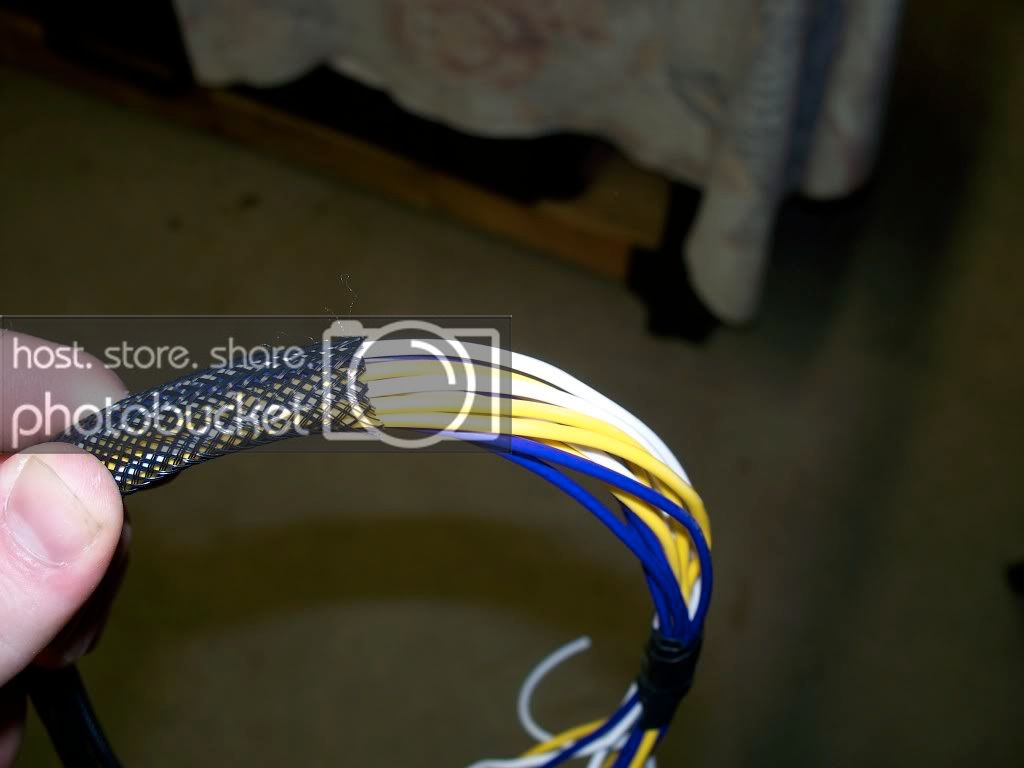

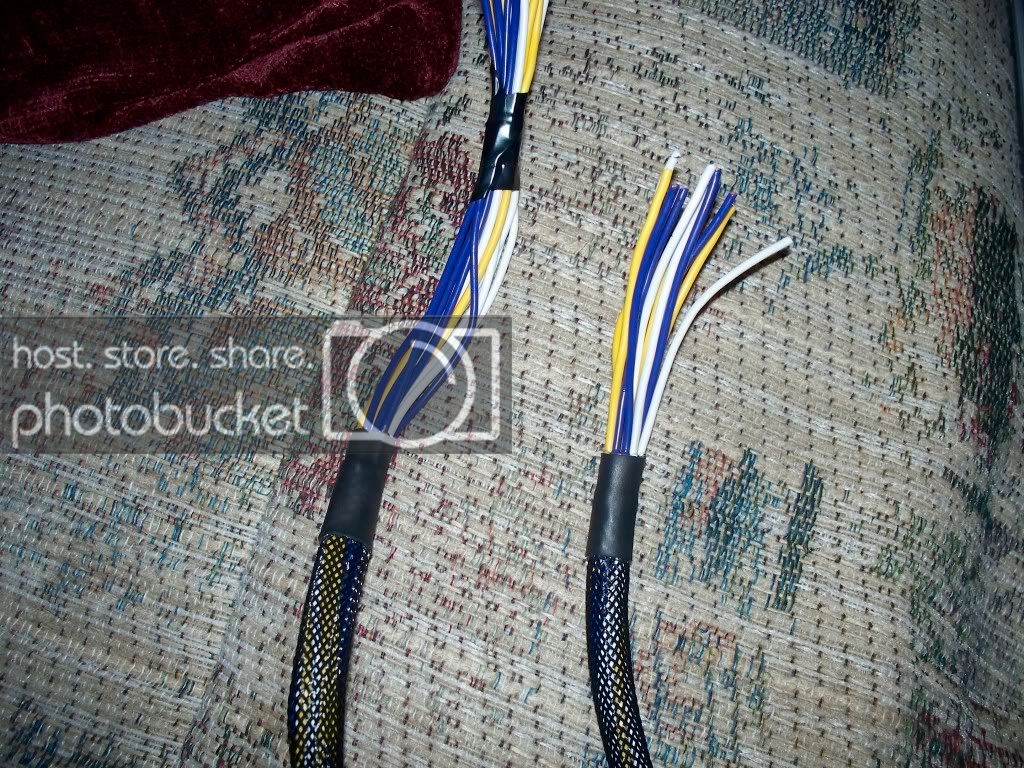

All finished and Shrink wrapped ends

Click to read more...



[fasfocus00 5,000+ posts]

looking good. love the wire.



[blackdragonaudi 10+ year member]

looking good. love the wire.

Thanks man If someone is wondering how I know which wire is which I am doing that tomorrow with a DMM because I am so bored lol.



[geowick07 10+ year member]

Nice work.

geo



[THUNDERBIRD 10+ year member]

the 3 feet of wire on the brain isnt enough? where do you plan on mounting the brain and what about the antenna. sounds like a great idea i have done it before but if that antenna isnt on the windsheild it dont work for crap on the rear or sides. behind the radio or glove box or center console is where i install them.



[blackdragonaudi 10+ year member]

The brain is going in the trunk and if i have to expand the antenna wire I will do that to or mount in the back window.



[Worlddre 5,000+ posts]

an alarm behind a radio is a bad idea as the majority of the time that is what a car is being broken into for so pop the radio out and look an alarm let me unplug it for some extra time.



[blackdragonaudi 10+ year member]

I have to agree with worlddre if they take the radio there is the brain which can be quickly disconnected.



[blackdragonaudi 10+ year member]

Bump



[93dakota 10+ year member]

looks nice man



[SentraStyle 10+ year member]

I usually put mine behind the instrument cluster. You can't see it from under the dash, and how many people break into a car to take out the instrument cluster?



[Fiercetimbo17 10+ year member]

That is not a very good idea, if im a theif and i look under your dash for the alarm wires to cut, guess what stands out from the rest of the regular wires/splitloomed wires...your nice techflexed wiring. Looks good but stands out like a sore thumb which kinda defeats the purpose of an alarm.



[blackdragonaudi 10+ year member]

Not insulting you but I guess you cant read. When I install it I am putting the plastic wire covering over to make it blend in and also using fake wires and a fake brain.



[93dakota 10+ year member]

Not insulting you but I guess you cant read. When I install it I am putting the plastic wire covering over to make it blend in and also using fake wires and a fake brain.

I did the fake wire part i want to do the fake brain though... just one more thing to make it hard on the guy tryin to steal your stuff...lol



[SentraStyle 10+ year member]

Is that wire even thick enough to provide the amount of current needed to remote start all the way from the trunk?
