Want box design and cut sheet for T-Line box..experienced planners please.PayPal 10$

[bad @SS chevy 10+ year member]

I have 2 atomic 12" ELE's. I would love a T-Line made for them. For my 12 grand cherokee.

40 wide. .... 19 height ...... 16 depth. ... 34hz ish?? I've never done a tline just spot port or aero box..... I'd prefer someone with knowledge just take control. Give me box specs./layout And a cut sheet... gladly do like 10$ PayPal gift. ... been member here for Wong time... been a minute since my last visit. Miss you caraudio.com crew....kids.work.. life. .. consumes.... someone private message me.. get my number... and let's get it.

Click to read more...



[Jeffdachef 5,000+ posts]

@CSCStang thats your element.



[CSCStang]

I have 2 atomic 12" ELE's. I would love a T-Line made for them. For my 12 grand cherokee.40 wide. .... 19 height ...... 16 depth. ... 34hz ish?? I've never done a tline just spot port or aero box..... I'd prefer someone with knowledge just take control. Give me box specs./layout And a cut sheet... gladly do like 10$ PayPal gift. ... been member here for Wong time... been a minute since my last visit. Miss you caraudio.com crew....kids.work.. life. .. consumes.... someone private message me.. get my number... and let's get it.

I built one for 2 IA Lethal 12s last year tuned at 32hz and it was 48x22x24 at 100% SD. I'll take a look and see if we can squeeze one into your dimensions with a line reduction but it may not be enough.

Sent from my SCH-I605 using Tapatalk



[CSCStang]

After some quick math you'd be less than 50% which I would never recommend for a standard tline. I'd go with one 12.

Sent from my SCH-I605 using Tapatalk



[bad @SS chevy 10+ year member]

I'm sending you a PM... I believe you provided me with specs actually for one of the last box's I built.



[The_Dealer]

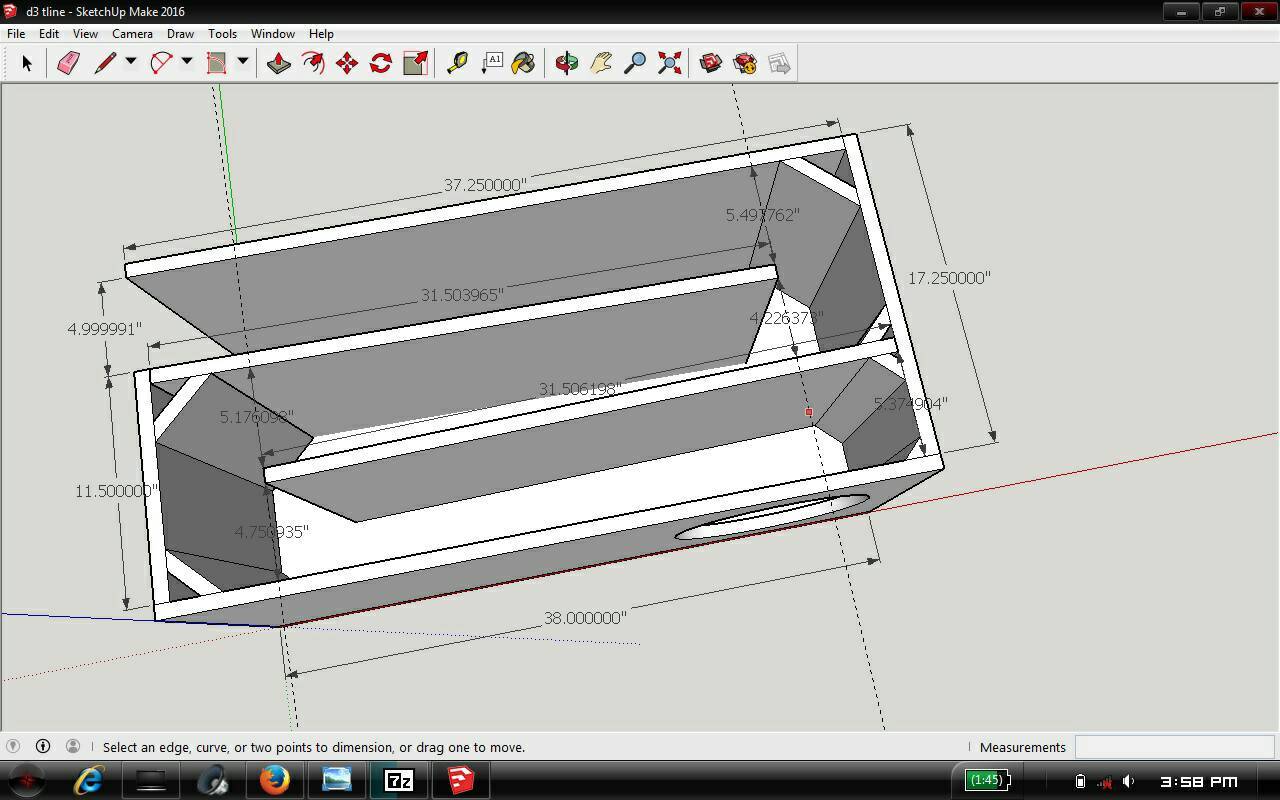

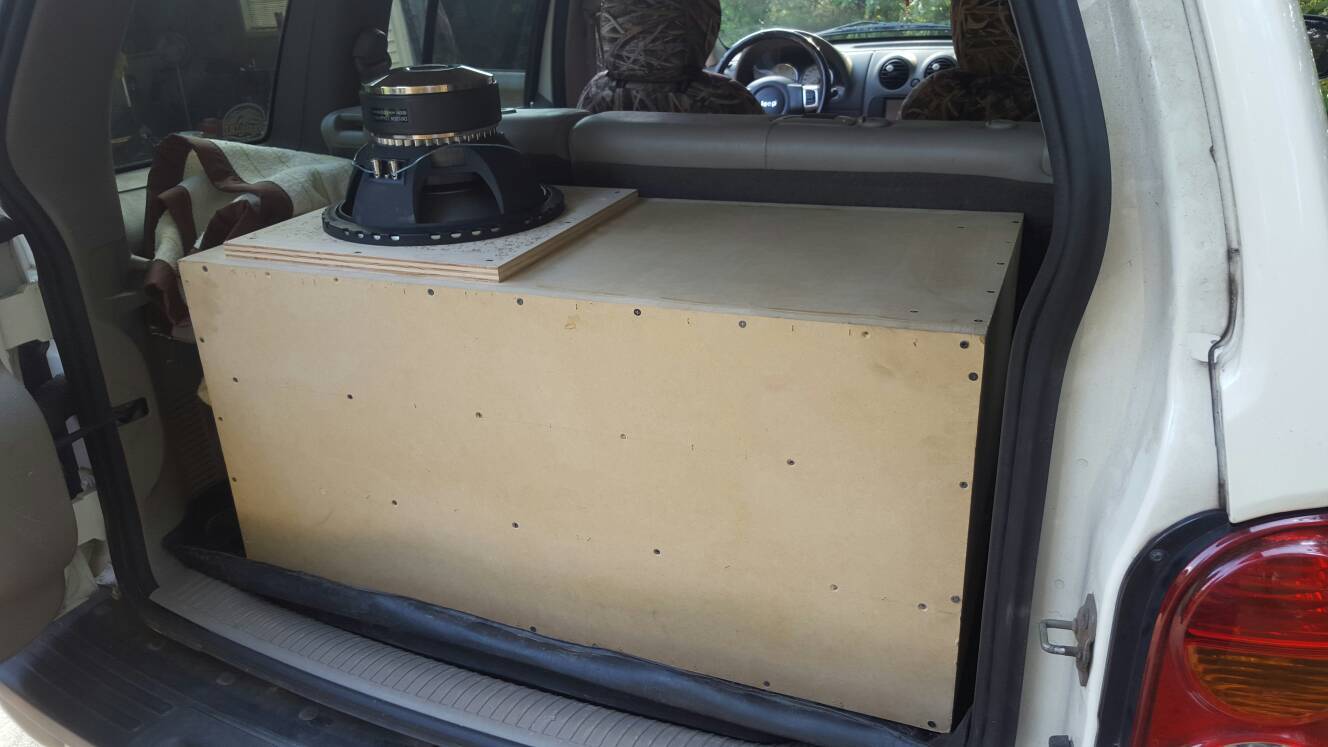

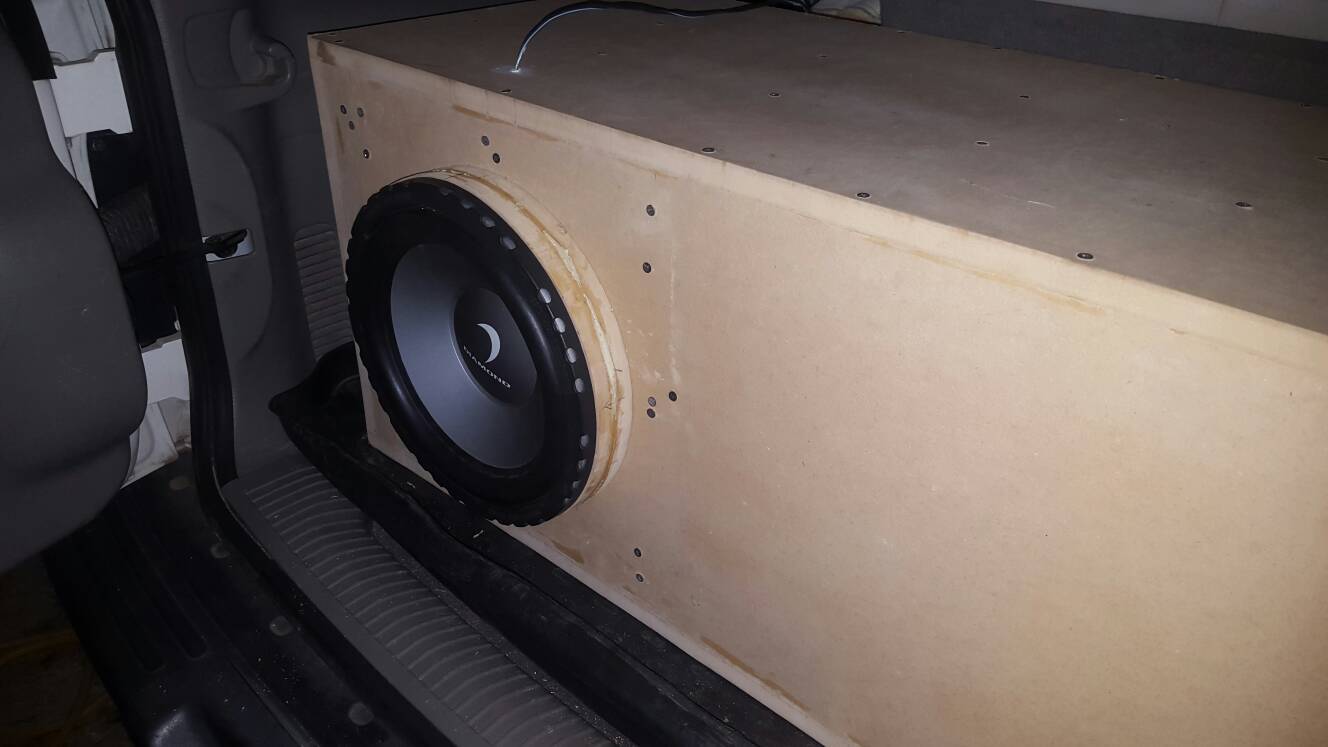

I'd do as csc said and go with one or do a horn variant. Here's the double folded horn I did for a D6 12". It's friggen huge, and that's just a single 12. The d6 shares very similar t/'s parameters as the sa-12v3

Sent from my SM-G920T using Tapatalk
