It was about time for an upgrade and I had to do a project for school that required a project that took 15 hours so I figured it was a win win situation. I saved up $500 to cover everything but soon realized it wasn't nearly enough some how. I probably should have kept better track.

So the old set up was

12" MTX Thunder 6000

Kenwood KAC-7204 powering the MTX

MTX4240 powering the front

Alpine SPX-13REF for the front.

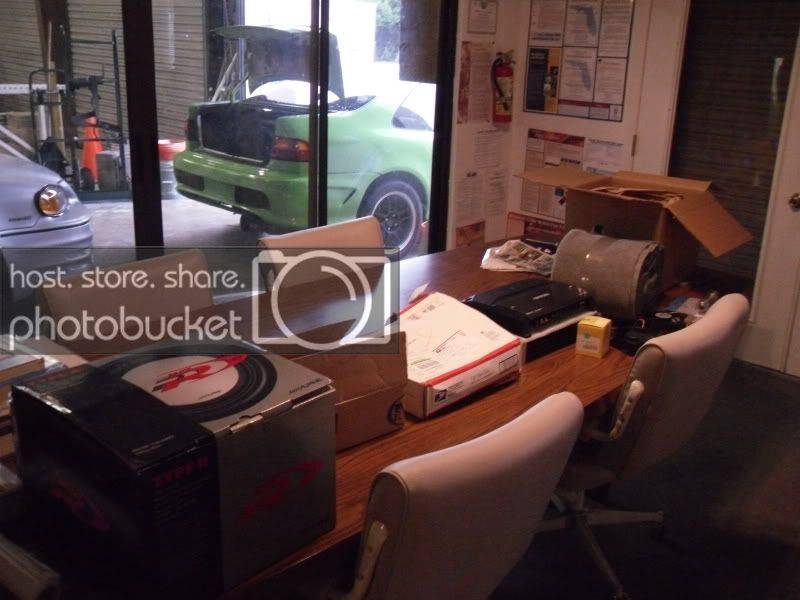

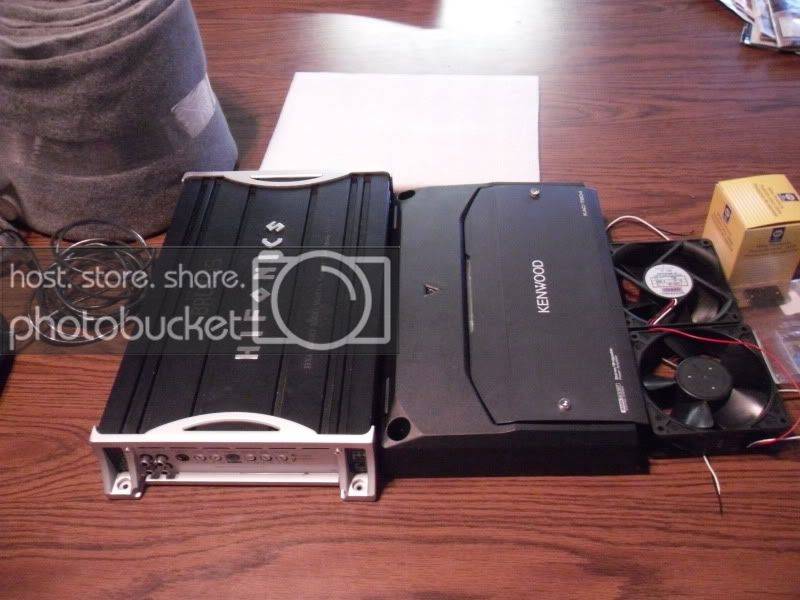

I took out the thunder and the MTX amp, put the Kenwood on the doors and picked up a Hifonics BXI 1610D and a 12" Type R.

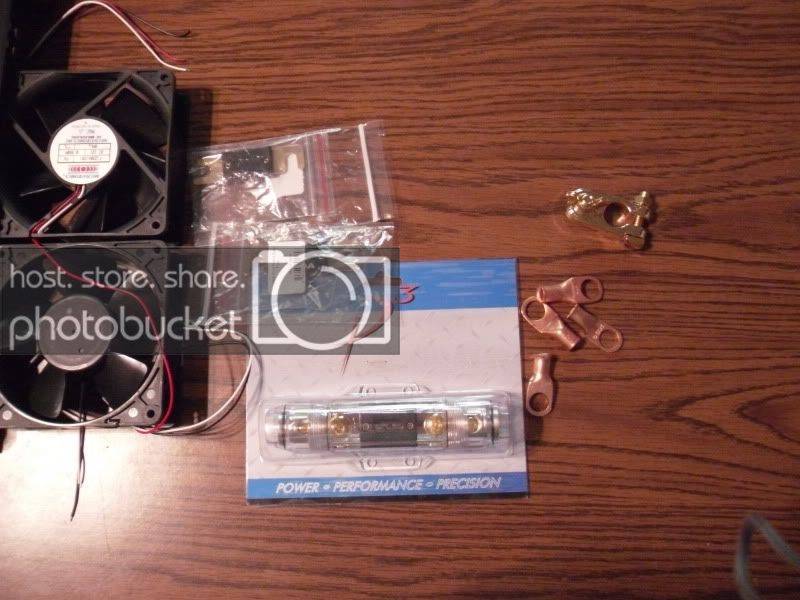

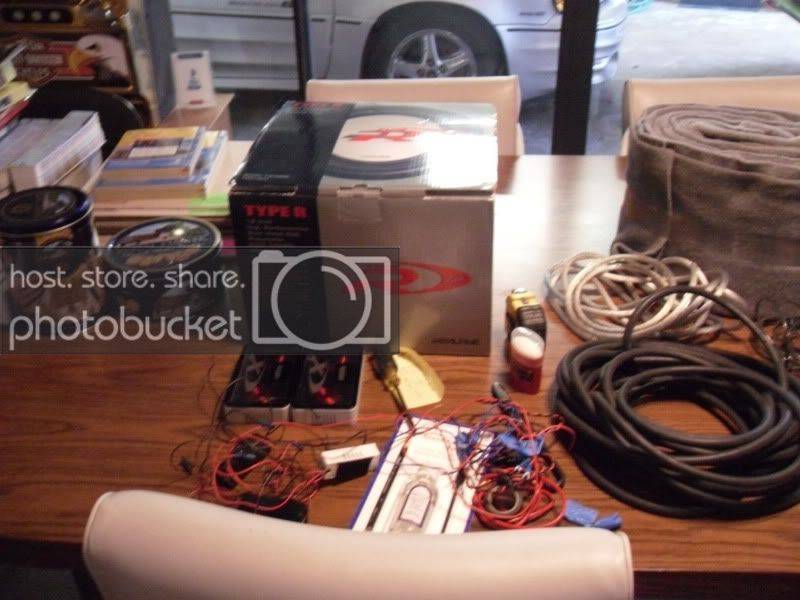

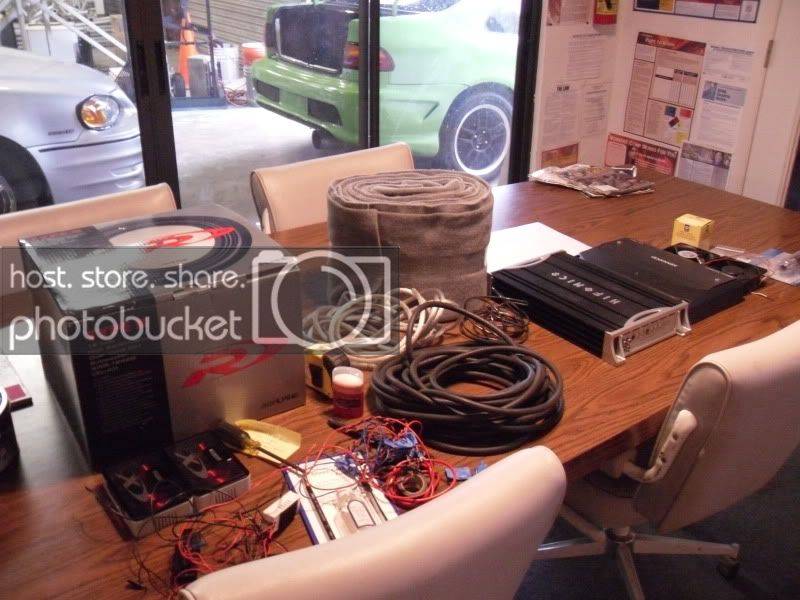

40ft of 2ga welding cable

3ydx40" of grey automotive carpet

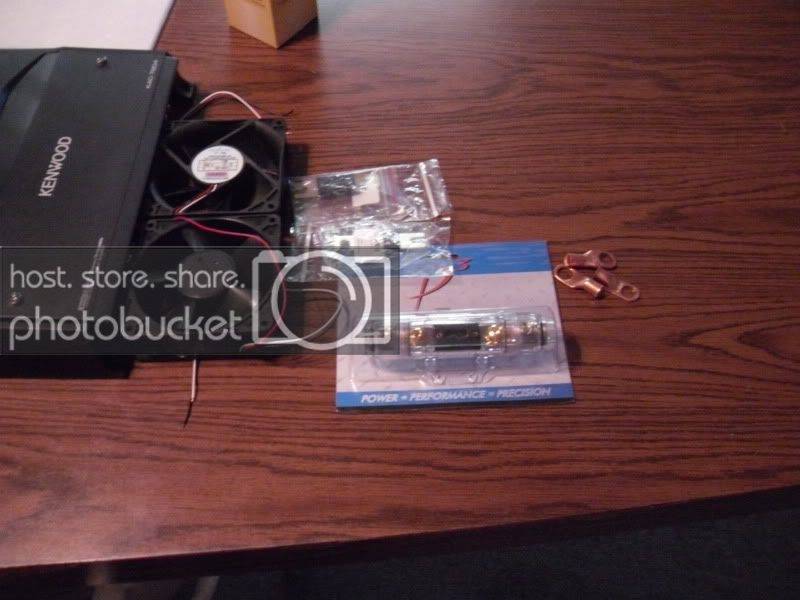

150A 2ga ANL inline fuse

battery post terminals

2/0 ring terminals

10ga wire for the speakers

2x 120mm fans

some mdf

plexi glass

and some other stuff.

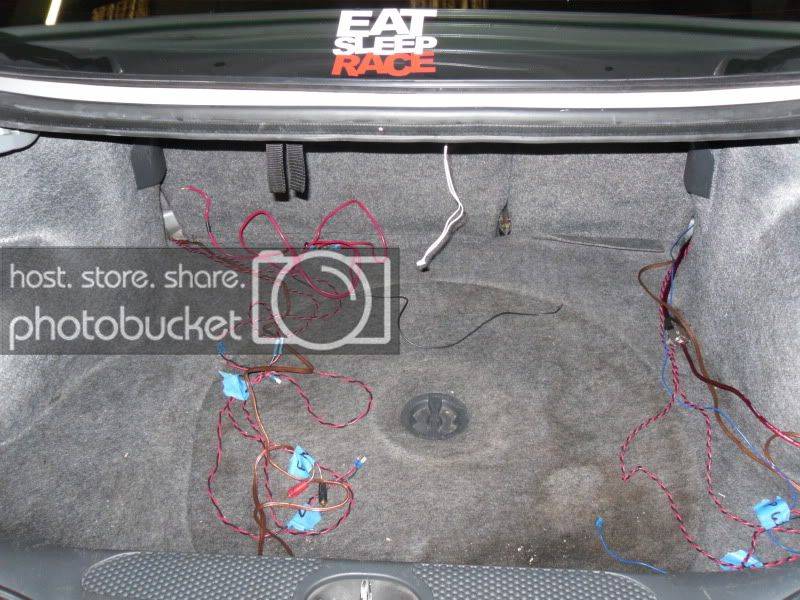

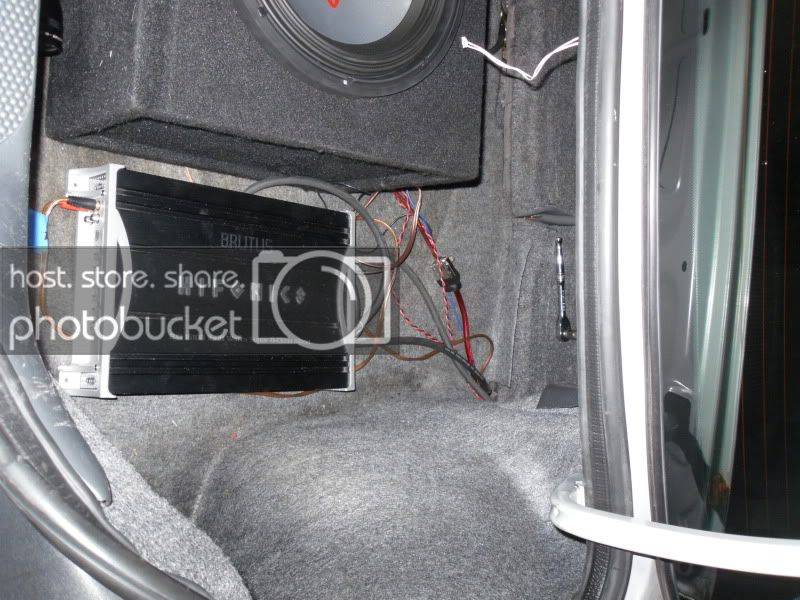

Nothing in the trunk, other than the wiring for the mids and the old 4ga wire thats now on the kenwood

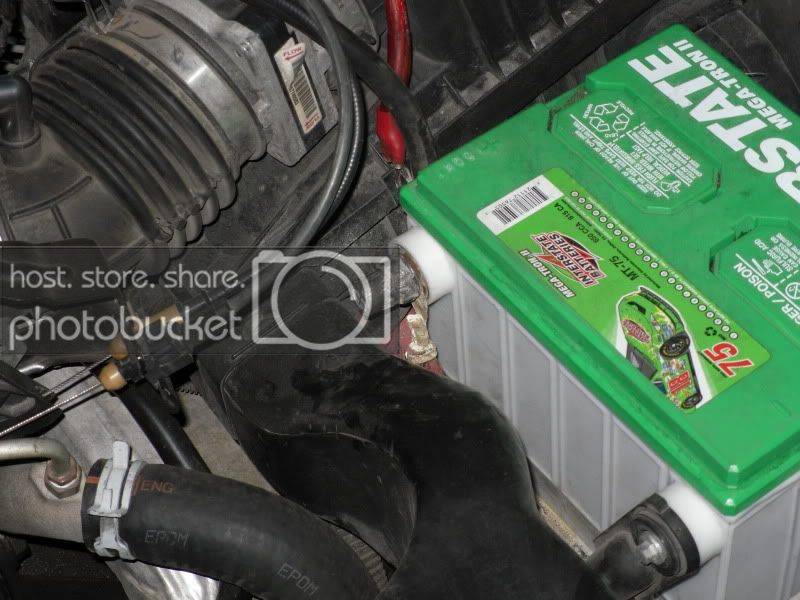

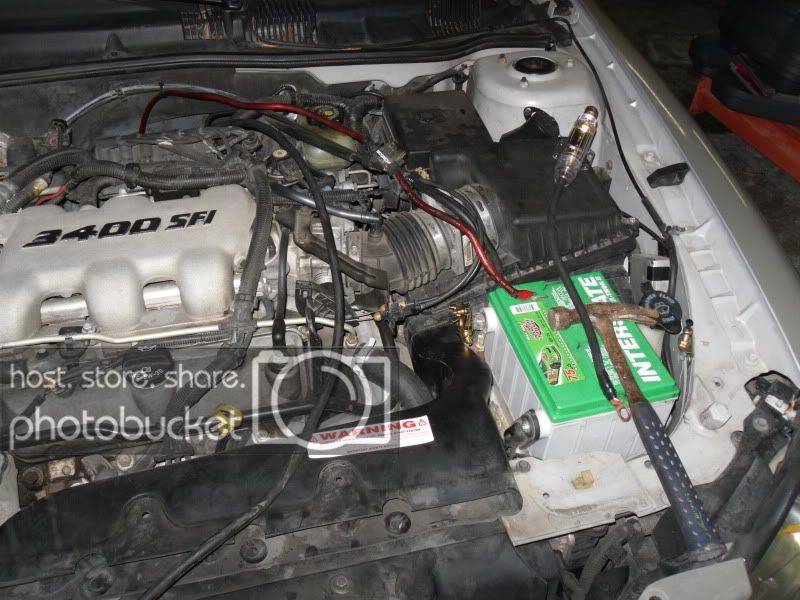

Lug on the side post battery, i bought battery post terminals then realized they wern't going to work so I went to my mechanic and he hooked me up with one of those battery lugs, worked like a charm.

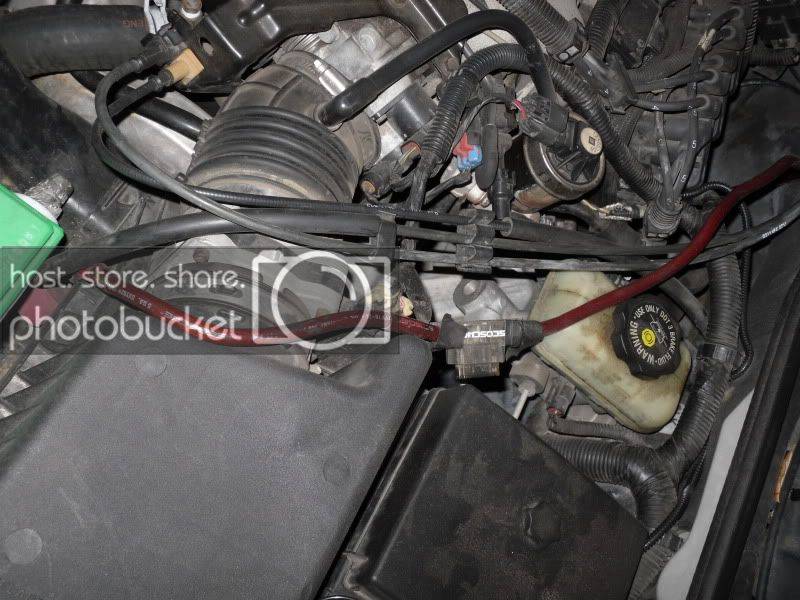

4ga with a maxi fuse

Click to read more...



[iApex 10+ year member]

Nothing in the trunk but the speaker wire to the fronts RCA's and the 4ga for the kenwood

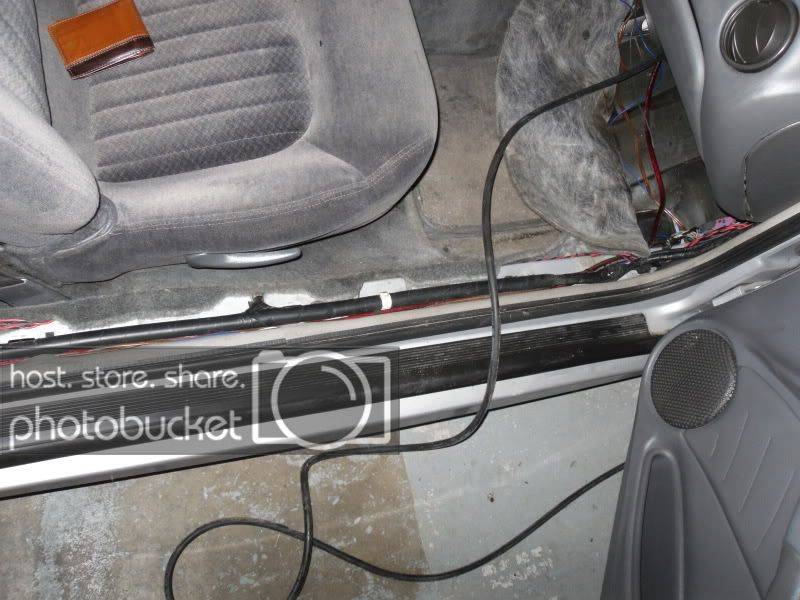

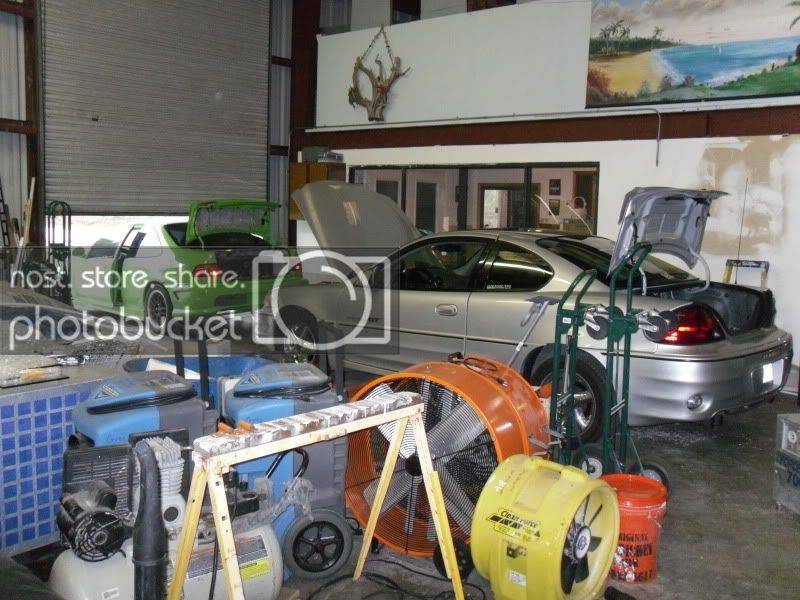

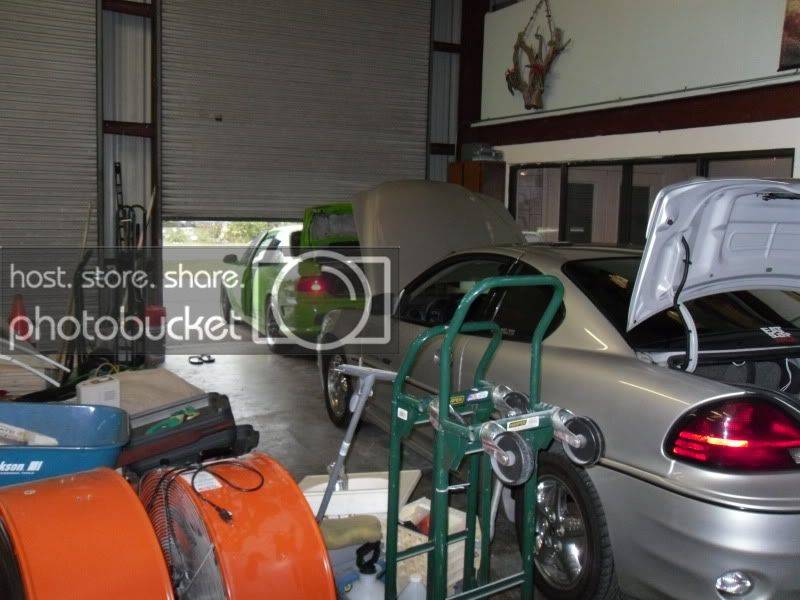

My friend's Honda and my GA in the shop because it was raining all day

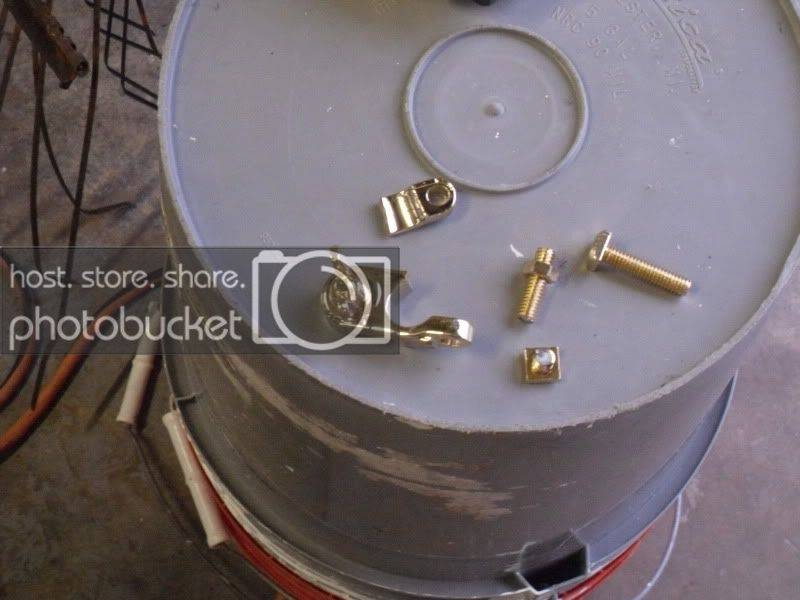

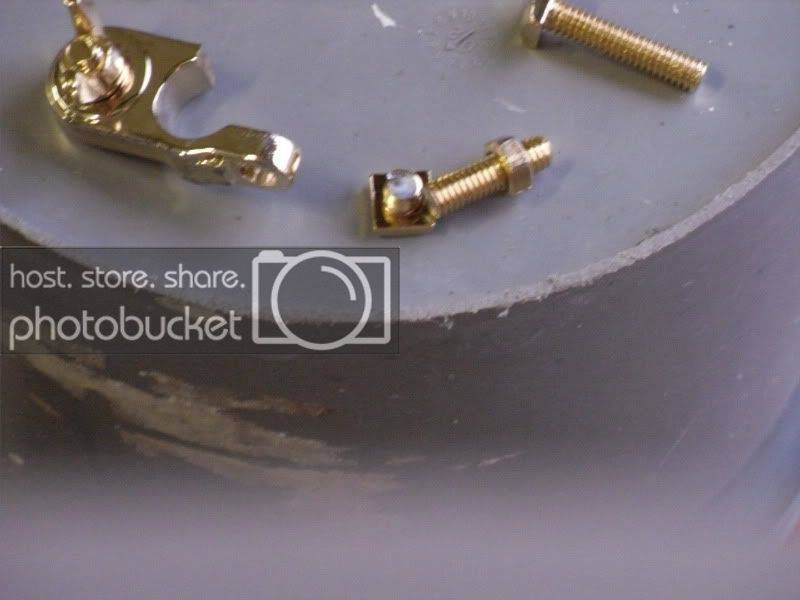

I tried to get the battery terminal to fit on the battery lug but even when i tightened as hard as i could it was still super loose so i put it in the vice and 2 rotations later i snapped the bolt in half. Then I took the vice and closed the end to make the hole smaller, but ended up over doing it so i tried to open it back up and the thing just cracked in half, i was pissed lol.

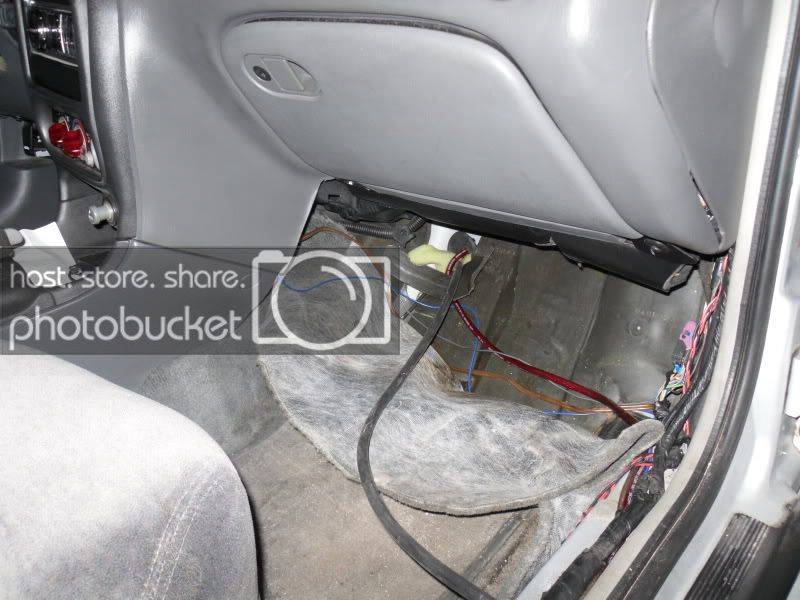

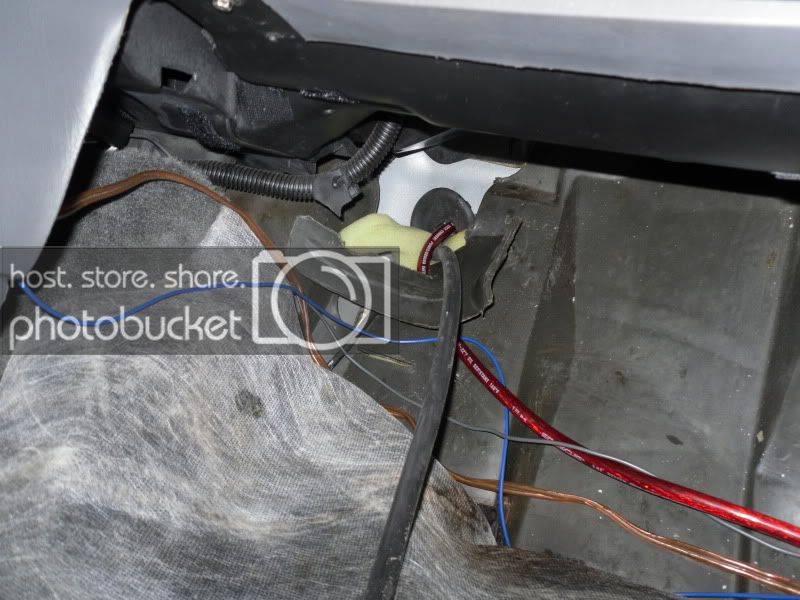

Power wire running through the firewall



[iApex 10+ year member]

Just wired everything up, the grounds that were in a picture above were wimpy little 8ga grounds and those have been tossed, they were replaced by 2ga grounds.

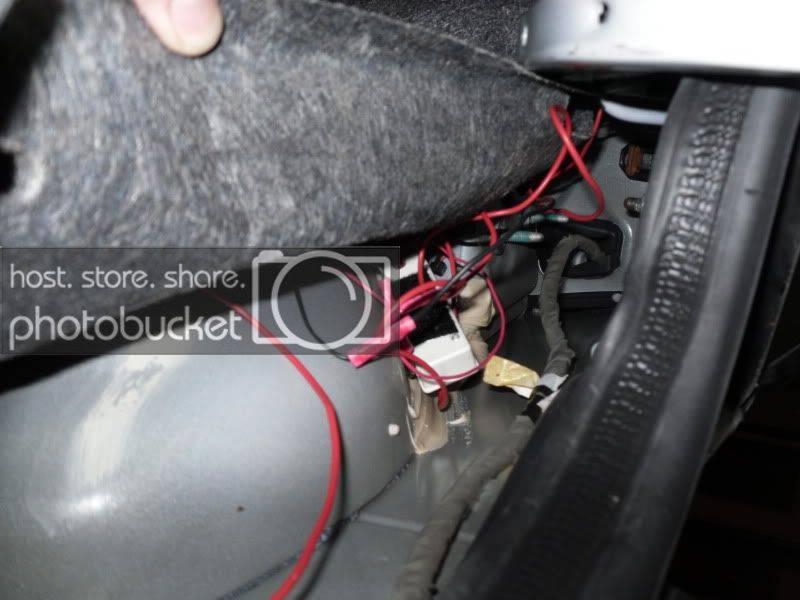

I have some cathodes i'll be using later on that i wired up and tucked behind the trunk carpet

That's all for now, everything has been wired up and just tossed in.

The sub is in that prefab box as a temp 2 day thing until my custom box is ready, the one andy is working on. 2.25cf @32hz.

I just wanted to see if the sub and amp worked so i tossed it in that prefab sealed box for now, that thing slams in that box so I can't wait until i put it in the good box.

Everything is working fine but one thing, i can't figure it out. when the volume on the deck is low, the speakers emit this whining noise it's really high pitched like the ringing you hear in your ears and really annoying, but you can only hear it if you press your ear against the pillar. I was thinking it might be from running both of the power wire down the same side of the car? I have no idea, but i figured i'll trouble shoot it another day, it doesnt bother me right now and i wont be running it a lot.

On friday, the custom box goes in, along with the fans and the amp board to make it look all nice and neat. I'll be back with updates friday evening hopefully.
