to all you box building gurus....

[Rawr-DQ 10+ year member]

so the picture isn't to scale...did you really expect it to be?



[brchd]

so the picture isn't to scale...did you really expect it to be?

yeah man... i was just giving you guys a general idea of the shape of the box.....cmon...i did it on the paint part of my software:*******:



[Rawr-DQ 10+ year member]

..I hope the measurements are inside dimensions...lol.



[brchd]

actually no...they are the outside dimensions...sorry for all your hard work //content.invisioncic.com/y282845/emoticons/frown.gif.a3531fa0534503350665a1e957861287.gif a fellow member on here is going to build a box for me and he said that i had had 1.16 cubes...a little short for 2 L7 10's....



[Rawr-DQ 10+ year member]

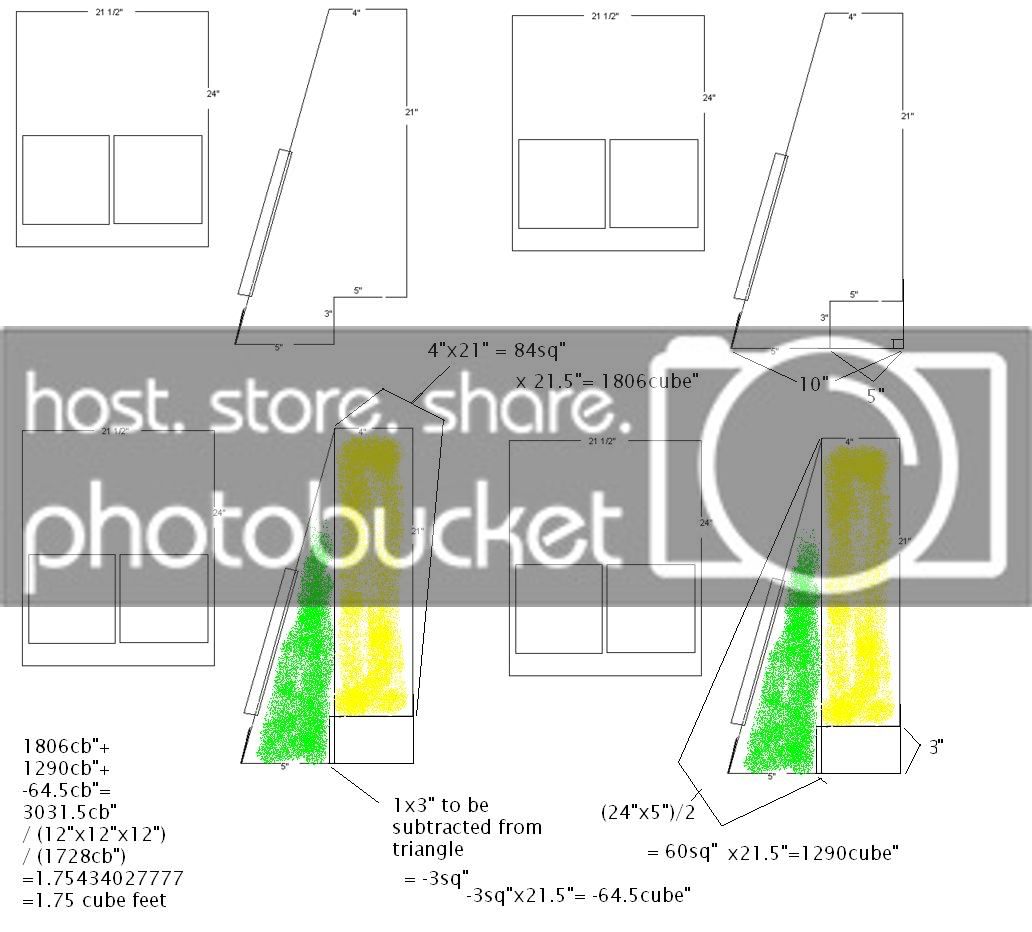

Well it's to show all these other people how to calc. the airspace...you just got to cut out the shapes, and even if they dont come out right, the triangle, you can find another shape and subtract it...



[MrSwiss 10+ year member]

the more I look at this picture, the dimensions are messed up... near the top you have 4" which is longer then the 5" dimension at the bottom, also your back piece is 21" + 3" , but this would make the front piece larger then 24" since it's angled
or maybe I'm high on resin fumes...

thats correct. but if u cut a square in half, your going to have an angle piece that is longer than 2 sides, that is the definition of a triangle.



[punch 10+ year member]

thats correct. but if u cut a square in half, your going to have an angle piece that is longer than 2 sides, that is the definition of a triangle.

yes i agree, so if the original poster was to cut his boards with this digram, his front piece would come up short...



[punch 10+ year member]

..I hope the measurements are inside dimensions...lol.

gotcha....//content.invisioncic.com/y282845/emoticons/graduate.gif.d982460be9f153bb54e5d4cb744f6ae8.gif



[Rawr-DQ 10+ year member]

yes i agree, so if the original poster was to cut his boards with this digram, his front piece would come up short...

He'll come up about a half inch short.

A²+b²=C²

5²+24²=C²

5²+24²=C²

25+576=601²

Square Root of 601 = ~24.5...that is the length of the front slanted piece



[Trixter 10+ year member]

here's my answer....



[IonSQL 10+ year member]

actually no...they are the outside dimensions...sorry for all your hard work //content.invisioncic.com/y282845/emoticons/frown.gif.a3531fa0534503350665a1e957861287.gif a fellow member on here is going to build a box for me and he said that i had had 1.16 cubes...a little short for 2 L7 10's....

Close... but it's actually 1.252662037037037037037037037037cf.... to be exact lol



[Mr Cabinetry 10+ year member]

Exact volume is 1.25 cu.ft.

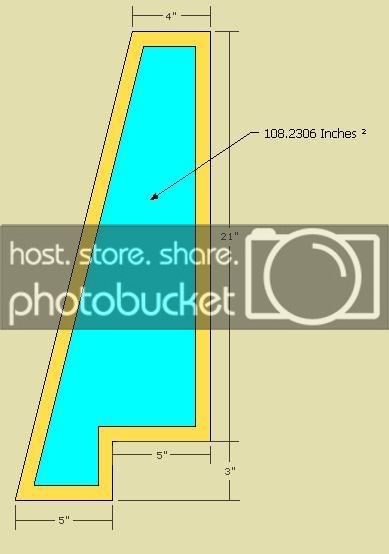

Total Area of the side profile subtracting for 3/4" MDF = 108.2306 sq.in x 20" id width = 2164.6120 cu. in. ÷ 1728 = 1.25 cu.ft.

That's the great thing about using SketchUp, it will do all the math for ya in determining the square inches of shape's and then you can calculate the rest using good ole math.



[Rawr-DQ 10+ year member]

I'll have to use sketchup way more often.



[Mr Cabinetry 10+ year member]

I'll have to use sketchup way more often.

BTW, in the other post regarding the width across the angle, it's 24.7386" according to sketchup.//content.invisioncic.com/y282845/emoticons/eyebrow.gif.fe2c18d8720fe8c7eaed347b21ea05a5.gif



[Rawr-DQ 10+ year member]

Hmm. I get 24.515301344262525707583875748357 on the windows calc.
