Mounting Depth help

[bad03ranger 10+ year member]

i need help finding the mounting depth of this box im new to this stuff so im not sure what i have i will be using 5/8 MDF thanks for any help, the BD will be 8" i forgot to put that on the drawing srry i was rushing to do this one

Click to read more...



[bad03ranger 10+ year member]

anybody? i dont have the box built yet so i just cant go out and measure are there other dim. needed



[geowick07 10+ year member]

If the box depth is 8", then the internal depth will be 8" - 5/8" - 5/8".

Which equals 6 3/4" roughly.

Is that what you mean?



[bad03ranger 10+ year member]

no im looking for the sub mounting depth for this box- i need to know the deepest sub i can fit in the box ,the TD is 3" and BD is 8" H is 11"



[Mr Cabinetry 10+ year member]

no im looking for the sub mounting depth for this box- i need to know the deepest sub i can fit in the box ,the TD is 3" and BD is 8" H is 11"

Honestly, no one's going to be able to answer this questions simply because your going to need to know the subwoofer's physical dimensions to check if the subwoofer's motor/magnet will or will hit the interior back of the enclosure given the subwoofers mounting depth.

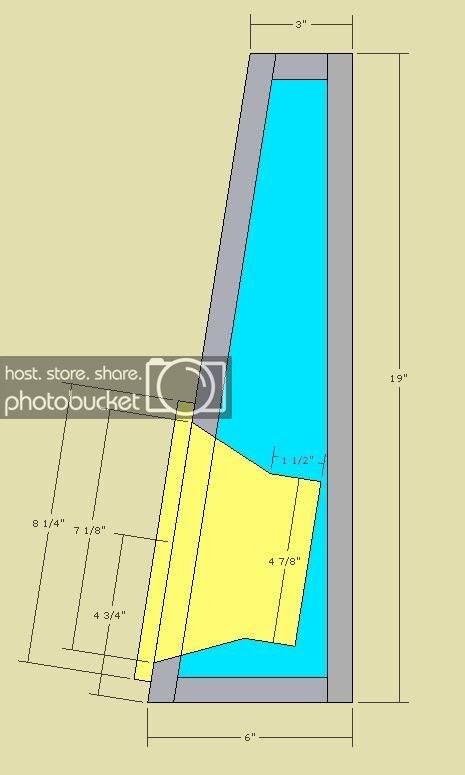

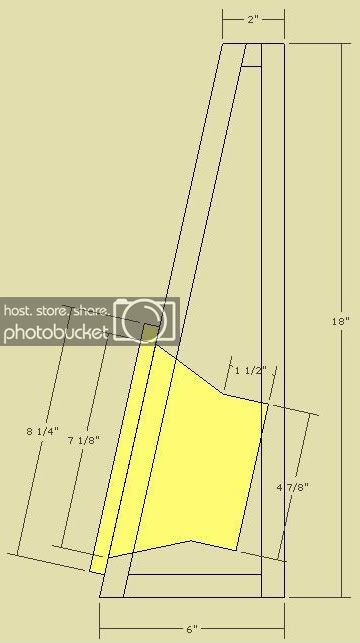

Basically, this is what I am talking about: Though the dimensions of the enclosure's are not identical, it illustrates the issue of the subwoofer's dimensions as they relate to the mount depth clearance.

vs



[bad03ranger 10+ year member]

i dont have the magnet depth only the full mounting depth

these are two subs im looking into- unless theres something else that will work better in my application and i do want to port this box i will be running 2-8s or 1-10

JL8W3V3

Nominal Diameter-8.0 in. / 200 mm

Overall Diameter-8.54 in. / 217 mm

Mounting Hole Diameter-7.09 in. / 180 mm

Bolt Hole Circle-7.85 in. / 199 mm

Magnet Diameter- 4.75 in. / 121 mm

Mounting Depth -4.63 in. / 118 mm

JL10W3V3

Nominal Diameter-10.0 in. / 250 mm

Overall Diameter-10.5 in. / 267 mm

Mounting Hole Diameter-9.0625 in. / 230 mm

Bolt Hole Circle-9.7 in. / 246.5 mm

Magnet Diameter- 5.25 in. / 133 mm

Mounting Depth -5.93 in. / 151 mm

Edit:

will RLI-8s fit

thanks for the replys



[Mr Cabinetry 10+ year member]

i dont have the magnet depth only the full mounting depththese are two subs im looking into- unless theres something else that will work better in my application and i do want to port this box i will be running 2-8s or 1-10

JL8W3V3

Nominal Diameter-8.0 in. / 200 mm

Overall Diameter-8.54 in. / 217 mm

Mounting Hole Diameter-7.09 in. / 180 mm

Bolt Hole Circle-7.85 in. / 199 mm

Magnet Diameter- 4.75 in. / 121 mm

Mounting Depth -4.63 in. / 118 mm

JL10W3V3

Nominal Diameter-10.0 in. / 250 mm

Overall Diameter-10.5 in. / 267 mm

Mounting Hole Diameter-9.0625 in. / 230 mm

Bolt Hole Circle-9.7 in. / 246.5 mm

Magnet Diameter- 5.25 in. / 133 mm

Mounting Depth -5.93 in. / 151 mm

Edit:

will RLI-8s fit

thanks for the replys

Nope, none of them will fit, I checked the physical dims of the subs to the dims you have for the enclosure.

You could fit the JL8W3V3, BUT, you will need to increase the TD to 3 3/4" to do it and have the cutouts located exactly on the front angled baffle to clear the interior back and bottom of the enclosure by 1/4".

That measurement is 5 1/4" from the bottom on the front baffle. Where you locate the subwoofer centers from the sides is your preference.

BTW, your design looks errielly similar to an enclosure I built in the past.

3 JL Audio 10w6 subwoofers



[bad03ranger 10+ year member]

You could fit the JL8W3V3, BUT, you will need to increase the TD to 3 3/4" to do it and have the cutouts located exactly on the front angled baffle to clear the interior back and bottom of the enclosure by 1/4".

If i do a TD of 4" will i need to be exact on my sub center or just closer to the bottom rather than center of the box the 3" is with seats all the way back and layed as far as they can i can slide foward a bit but not much



[Mr Cabinetry 10+ year member]

If you do a 4" TD that will give you alittle more clearance for mounting depth.

The 5 1/4" I referred to is the vertical center height measuring from the bottom edge on the front angle baffle to located the center of the subwoofer cutout.
