Help with schematics or wiring diagram for No name 2 DIN multimedia

[daga]

Hi guys,
I got a used No name 2 DIN multimedia, but there is no ISO adapter with it. So now I can't connect it to my car.
On the top of the unit there is a schematics but isn't full explained. I'll attach them, so if you can help me. I can't understand which cable to which pin must go. Thank you for the help, and excuse me for my bad english.

Click to read more...



[Firewalker]

That isn't a no name double din. That is from an OEM Car manufacturer meaning it can only fit the car it was made for and is NOT aftermarket.



[daga]

OK. But how I can find for what car is made? If I know that I will may be find a pinout wiring for it. I know that will not fit perfectly in my car.



[1aespinoza 10+ year member]

That isn't a no name double din. That is from an OEM Car manufacturer meaning it can only fit the car it was made for and is NOT aftermarket.

That seems to be the case. But upon close inspection, do the connections not seem industry standard to aftermarket equipment?



[daga]

And I think so. Closest head unit to that I have is from Hyundai Sonata 2009-2010. May be that I have is some chineis imitation. I find over the net a few links, but on them there is no model,no brand, no noting.

Here is what I find so far



[Firewalker]

For the speakers yes the rest of it good ?. Either way it won't work because most of those OEM head units have codes in them that lock them to their Original ECU/Computer. Worked in Auto Parts a long time and had to deal with this quite a bit.



[daga]

For now I want to find why to find which pins is for power,so I can connect it to power supply and try it if it will works



[Firewalker]

You can power it up but I am telling you it WILL NOT WORK in your car. That unit is locked to the OEM car it came with even if you power it up it will not function properly if at all.

Look at the schematic it says black ground yellow battery and red 12v. Same as any other head unit. Good luck but if you do this you may end up screwing something in your electrical system as it wasn't made for your car.



[daga]

The color is OK. But on the schematic you can't understand what color on what pin on the adapter must be. Are you follow what I want to say ? Also there is no risk for screw something in the electrical system at my car, becouse I'll connected it at my home with power 12V power supply just for testing. I will not connect speakers and etc before I see that work OK. So once again I need to find which color on the connector to which pin on the unit must connect



[Firewalker]

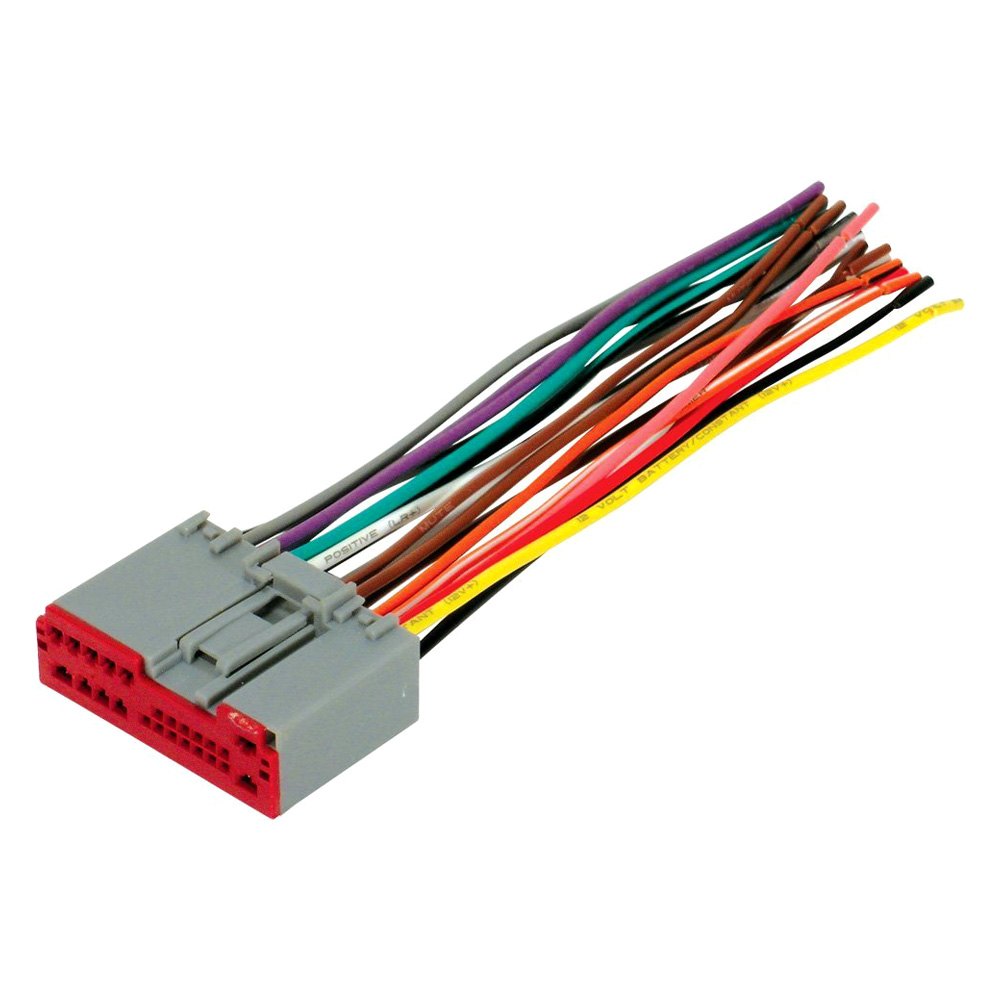

This is a replacement wiring harness that plugs into the back of that radio. You can take the part number from scosche FD23RB and go from there.

Scosche® - Factory Replacement Wiring Harness with OEM Radio Plug

Factory Replacement Wiring Harness by Scosche®, with OEM Radio Plug. Scosche FD23RB

www.carid.com

Your best bet is to buy one of these locally and then plug it in. Each wire is color coded and has what it does typed on it in english or if you are lucky enough your language

edit: idk why it says security check but it goes to carid.com and has the harness you are looking for

or type in Scosche FD23RB as said above in the 1st sentence



[daga]

Do you mean that connector ? If so - the connector no way to fit in the unit

P.S. I find that site - https://pinoutguide.com/ , if I only know from which car the unit is from I will find the pinout schematics



[Firewalker]

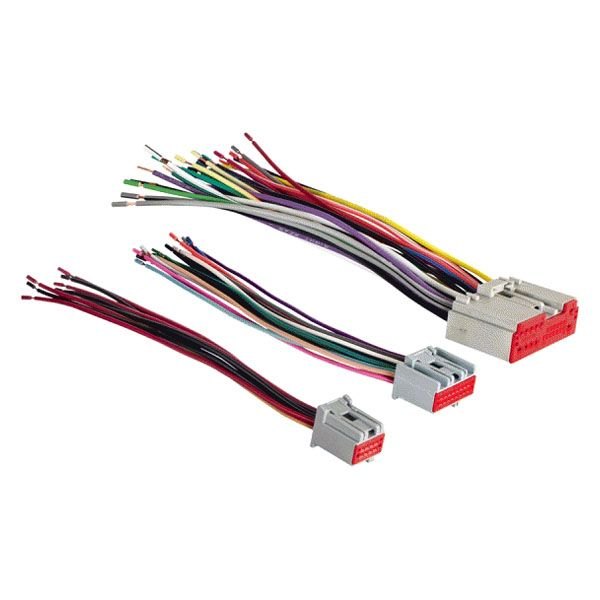

For some reason it put the wrong link in there. Yes it is called a wiring harness. The one you need is the middle one in the link below.

Metra® - Factory Replacement Wiring Harness with OEM Radio Plug

Factory Replacement Wiring Harness by Metra®, with OEM Radio Plug. For factory stereo. Metra 71-5520

www.carid.com



[daga]

I think I find some like may be work,but which one ?!



[daga]

For some reason it put the wrong link in there. Yes it is called a wiring harness. The one you need is the middle one in the link below.

Sorry I cant see the link. Can you give it me again ?



[daga]

So I was able to start it. But theare is a problem - when start, the screen is blank,no logo,no icons,no menu,no noting. When press the buttons they beeped but noting happend. Only when I turn volum up or down shows the current level on volume. Bass also can adjust but that's all. What can be the problem ?
