Like NEW Condition. 6 months old. Pulled from my car, which I sold.

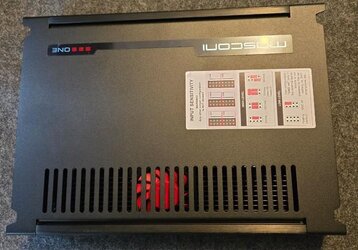

ONE 8|10 DSP Mosconi ONE Line 8 Channel Class AB Amplifier With Built-In 10 Channel DSP, 8x90W 4 Ohm, 8x120W 2 Ohm Car Audio Amplifier
FEATURES:
The new MOSCONI ONE 8|10 DSP is a universal 8-channel Class AB technology DSP amplifier. It is the ideal amplifier for speaker systems in combination with efficient subwoofers. In addition to the revised optics, this 8-channel amplifier has a 10-channel DSP with the latest software. Thus, the new ONE-Line amplifier series is now also compatible with our GUI 3.xx software, offering you full functionality.
The output-side power amp section has remained analog to deliver a warm and powerful sound image to the listener.
Of course, all speaker outputs are compatible with each other. Here, almost limitless configurations are open to the user.
With its power of 8 x 90 watts RMS, the ONE 8|10 DSP is sufficiently equipped for large 3-way solutions as well as for complete multi-channel concepts.
For system expansion, the integrated 10-channel DSP offers two additional stereo outputs.
The MOSCONI ONE 8|10 DSP is equipped with a Molex speaker connection. This not only ensures clean cabling but is also compatible with all plug & play cable sets from our SoundUp program.
8 Channel Amplifier
New design
Analog amplifier technology
10-channel DSP
Loudspeaker outputs bridgeable
8 x 90 watts @ 4 ohms
8 x 120 watts @ 2 ohms
4 x 240 Watt @ 4 Ohm (bridged)
Auto On (High Level)
SPECS:
OUTPUT POWER:
Output power @ 4 Ohm:
8 x 90 Watt
Output power @ 4 Ohm:
4 x 85 Watt + 2 x 250 Watt BTL
Output power @ 2 Ohm:
8 x 120 Watt
Bridged Output power @ 4 Ohm:
4 x 240 Watt
SPECIFICATIONS:
Input sensitivity:
0.35 V – 16 V
Fuse:
2 x 40 A
Analog DSP Output:
2 x 2 Vrms
Digital input:
Optical (Toslink)
Remote Control:
RTC (optional)
Dimensions:
290 x 210 x 55 mm / 11.41" x 8.27" x 2.17" inches
