FOR SALE Dual 1.4 ohm 3" 4 layer copper coils to fit '05 "small gap" Shocker Sig


hispls

CarAudio.com Veteran
5,000+ posts
10+ year member
Rating - 100%
15   0   0
Sep 10, 2009
11,716
591
Central Maine
Price
$ 30
Was Photo Included
Yes

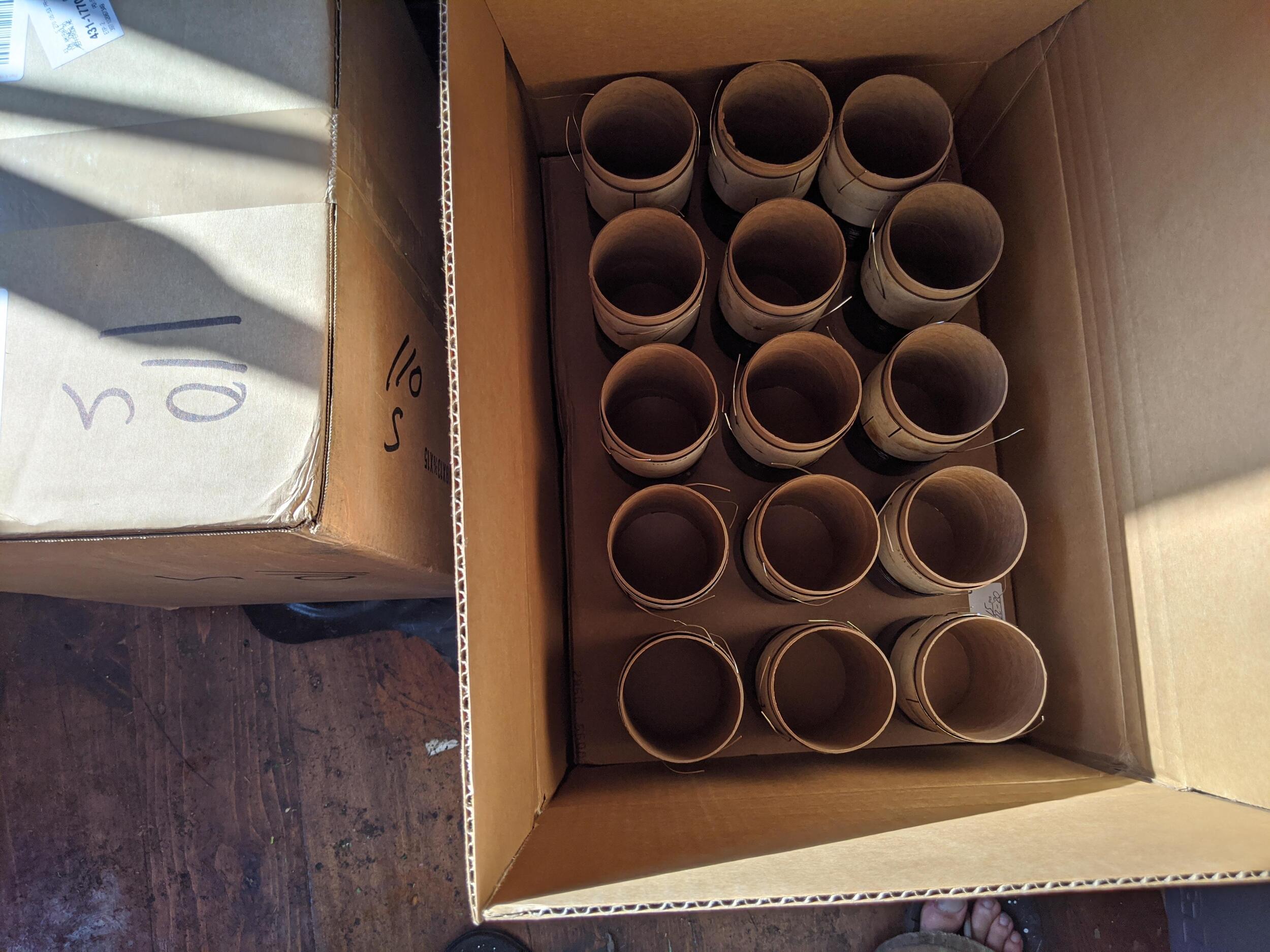

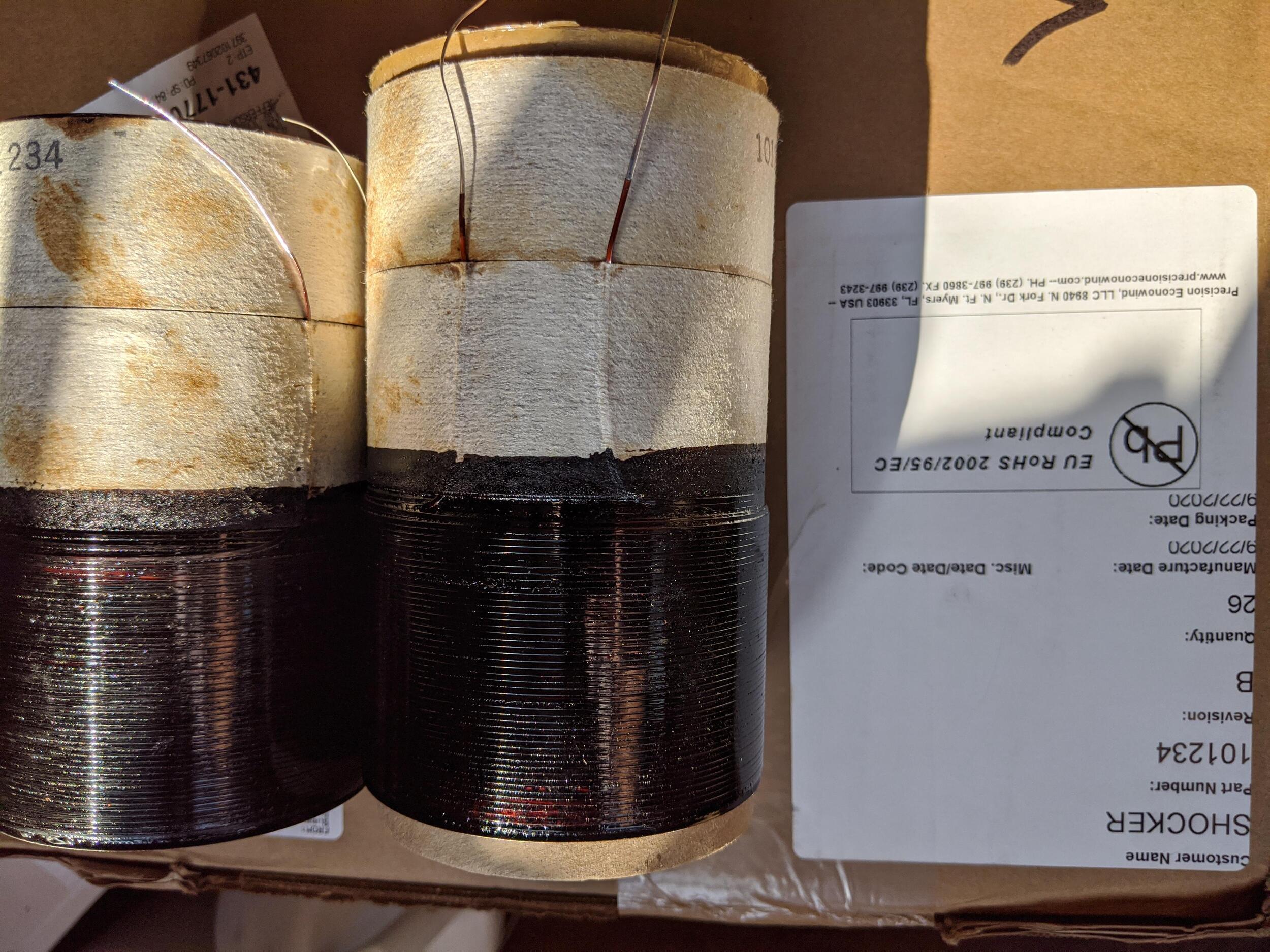

Pretty sure Shocker Mike is gone so I had a batch of these coils made to spec by Precision Econowind. Dual 1.4 ohm copper (I will have D2.8 copper sometime in December). This is the most recent revision with the black coating and slightly thicker former. I've used these with the previous version of this coil and they are close enough specs to run together with no ill effects.

Fits small gap Sig and neo-Sig. They also do fairly well in TC9 motor though they're a bit heavier than any of the OEM TC9 stuff I've seen.

30$ each + shipping. Spread the word if you see anyone asking about coils for these subs. AFAIK there's nothing else on the market that fits and these are the OEM specs Mike and I came up with about 8 or 9 years ago so they'll match anything up to that old.


23626

23627





EDIT**************************************

Got D2.8 copper coils last week, those were a little more money so 31$ a pop for those.

Last edited:

ciaonzo

TheContinental
5,000+ posts
10+ year member
Rating - 100%
28   0   0
Feb 1, 2009
11,697
194
WI
Them's nice. Steal of a price, too.

50mm, 60mm WW?


coleinalaska

CarAudio.com Newbie
Rating - 0%
0   0   0
Jan 8, 2021
5
0
ALASKA
i got my motors directly from mike on another forum years ago. wanted to get coils from him to since i saw another thread that he had a few but then lost contact with him


hispls

CarAudio.com Veteran
5,000+ posts
10+ year member
Rating - 100%
15   0   0
Sep 10, 2009
11,716
591
Central Maine
  • Thread Starter Thread Starter
  • #8
Sorry to have ignored this thread. I DO NOT get notified about messages to threads here but do get notifications to PMs so please PM me if interested.

ID 3.018
OD 3.150
WW 2.150
Former height 5.000"

Dual 2.8 versions should be here late April though they were supposed to by done late last year so no promises there. They will be the same ID and OD but 2.600 WW


ciaonzo

TheContinental
5,000+ posts
10+ year member
Rating - 100%
28   0   0
Feb 1, 2009
11,697
194
WI
Dual 2.8 versions should be here late April though they were supposed to by done late last year so no promises there. They will be the same ID and OD but 2.600 WW
I will definitely be grabbing a pair of the D2.8 once they come in, and likely one of the D1.4 along with it. Thanks, dude.


hispls

CarAudio.com Veteran
5,000+ posts
10+ year member
Rating - 100%
15   0   0
Sep 10, 2009
11,716
591
Central Maine
  • Thread Starter Thread Starter
  • #10
Bump. Dual 2.8 versions finally turned up last week so I will have both available for anybody trying to keep their Sig motors going or for anybody who wants to put a big power handling upgrade into a TC9.
