Hello,

I have a Erisin RK3368 Android headunit that I purchased second hand for my VW Passat CC 2013.

I previously had the VW RCD315 OEM unit.

I am trying to connect GPS/WiFi and DAB. The WiFi and GPS connections were missing but I am using SM external antennae ordered from Amazon, yet to fit.

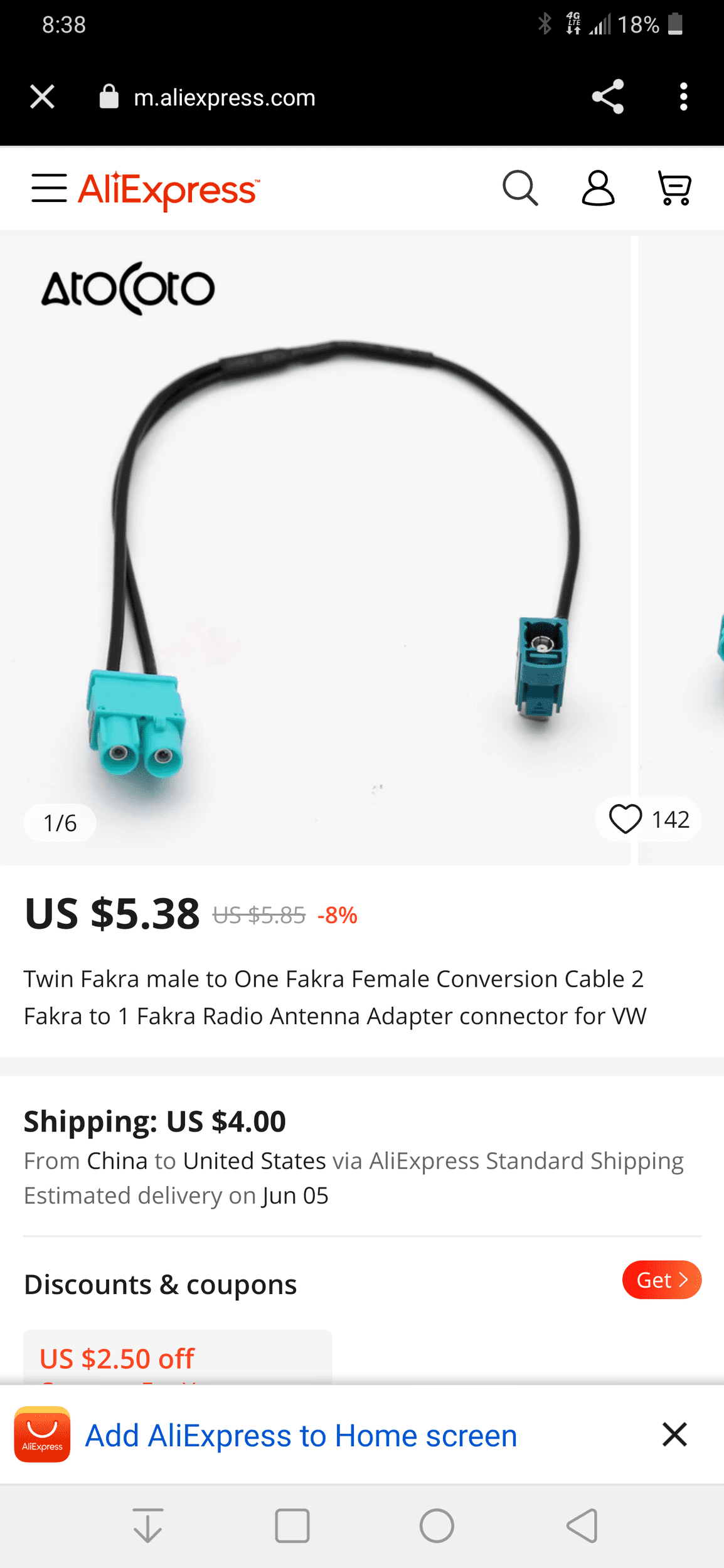

The DAB connector is the bit I am struggling with. The OEM had a seperate connector (Fakra) which in an ideal world I would connect to the new head unit, but it doesn't fit. I don't recognise the connection type I should be looking for, the top two connectors are FM, what is the below connector type in the attached pic.

Can anyone please identify??

Thanks 😊


Attachments
