CJL's Bandpass build log.

[CJL 10+ year member]

First build log. //content.invisioncic.com/y282845/emoticons/redface.gif.62fdbfe1a101588a808c4cff71bcb942.gif

I finally pulled the trigger and decided to try to build my first 4th order bandpass. I plan to have it ported thru the rear armrest,but that will depend on how this comes out and sounds.

The Design

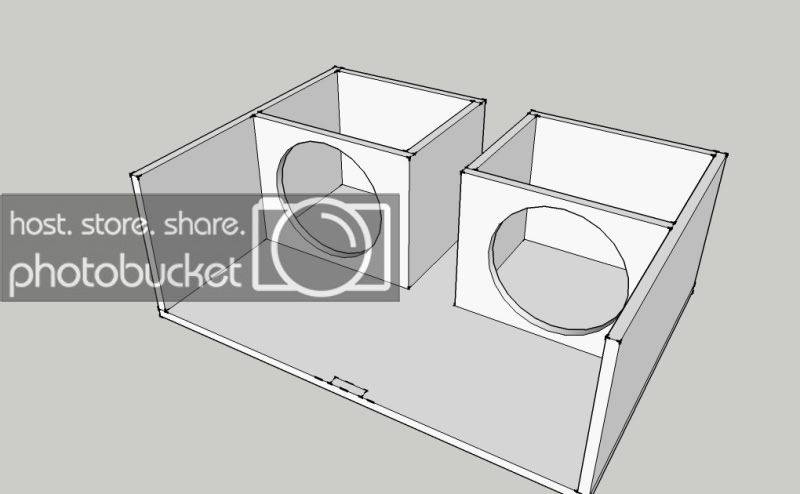

Got the idea from a build log I seen. 3^ft P / 2^ft S @ 50hz for 2 12's. I plan to paint the inside and put plexi on the back side if the paint comes out good.

Build

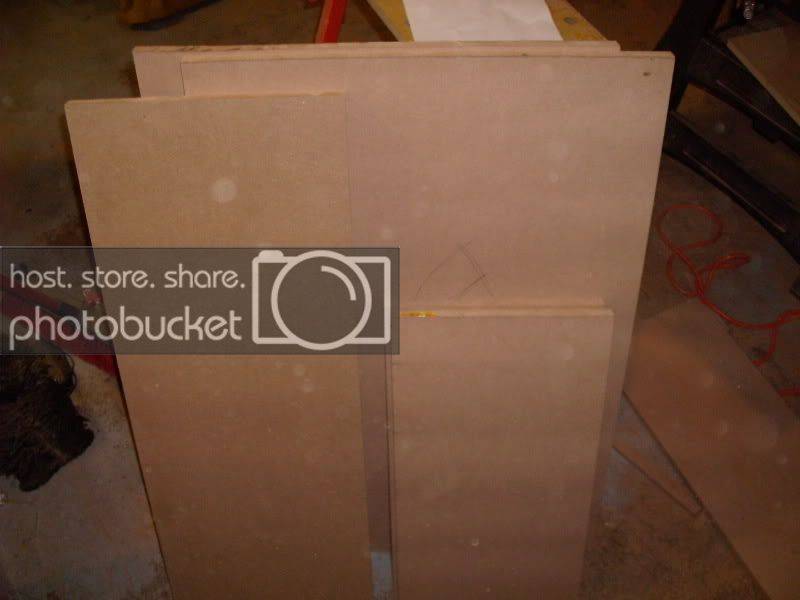

Panels cut.

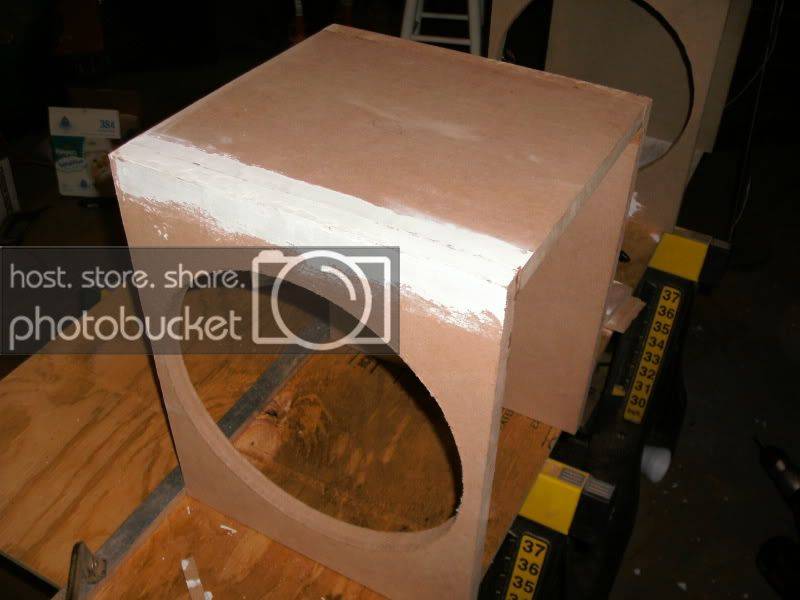

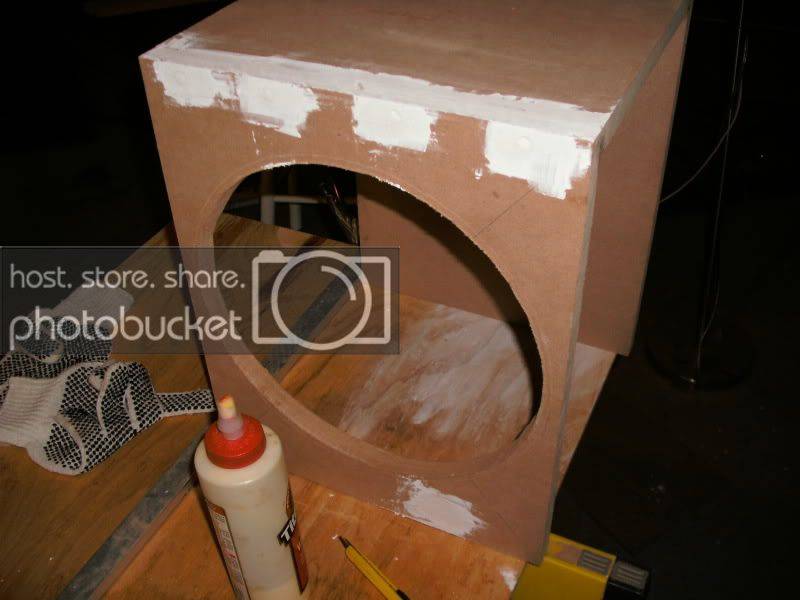

Left sub cutout/sealed section. Seams and screw holes covered.

Right side.

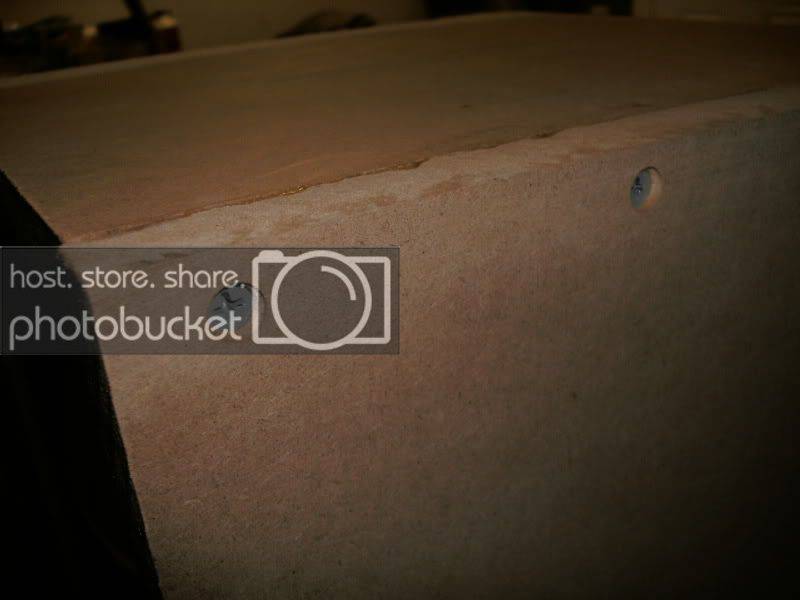

Countersinking FTW!

Thats it so far. This is by far the most time I spent on a box ever,hell I never even predrilled before. //content.invisioncic.com/y282845/emoticons/crazy.gif.c13912c32de98515d3142759a824dae7.gif But patience is the key with this build, as I want to get the sanding and painting perfect.

Even if the paint come out terrible out and it just sounds like yesterdays trash,its been one hell of a learing experience, learned many tricks of the trade. //content.invisioncic.com/y282845/emoticons/wink.gif.608e3ea05f1a9f98611af0861652f8fb.gif

stay tuned.

Click to read more...



[Mr. Slate 10+ year member]

Nice work.



[tez4life Premium Member]

^^what he said, //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif^^

Looks promising...



[dappa5 10+ year member]

First build log. //content.invisioncic.com/y282845/emoticons/redface.gif.62fdbfe1a101588a808c4cff71bcb942.gif
I finally pulled the trigger and decided to try to build my first 4th order bandpass.

Got the idea from a build log I seen. 3^ft P / 2^ft S @ 50hz for 2 12's.

i'm curious what build log inspired you?



[CJL 10+ year member]

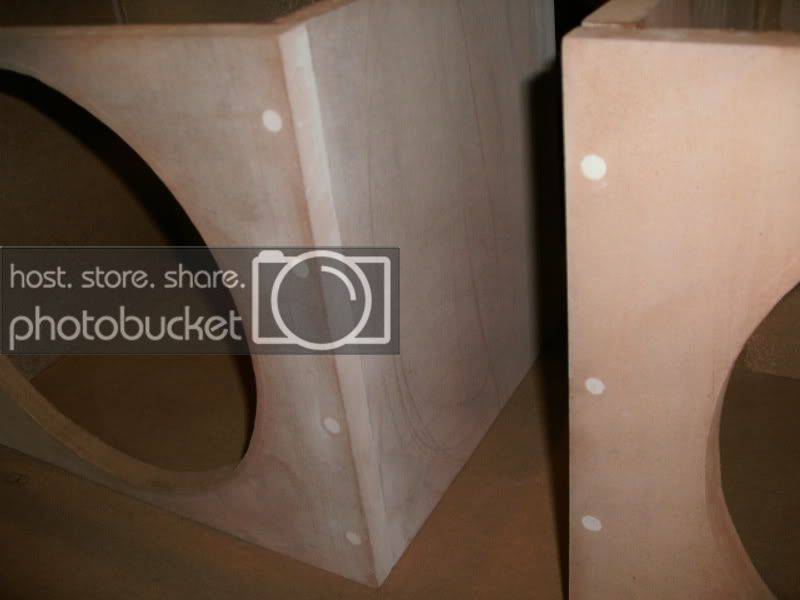

Sanded down..

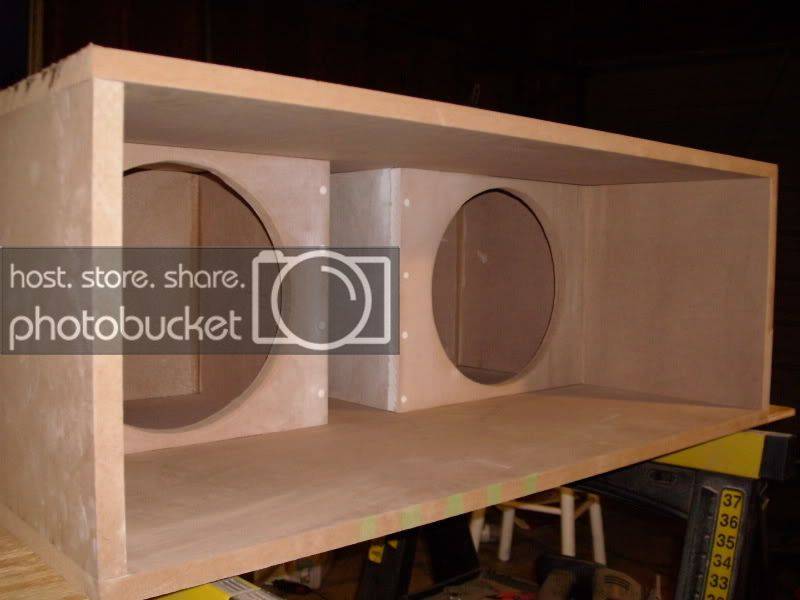

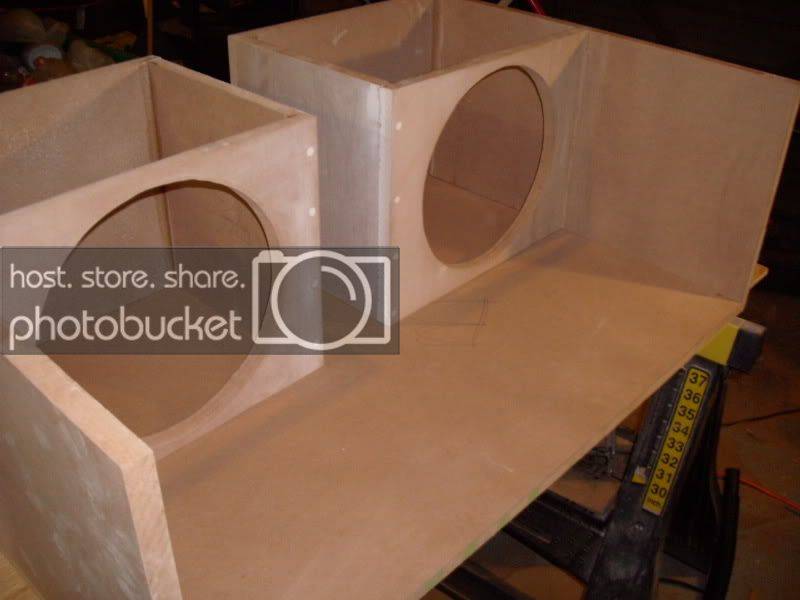

Couple mockup pics..

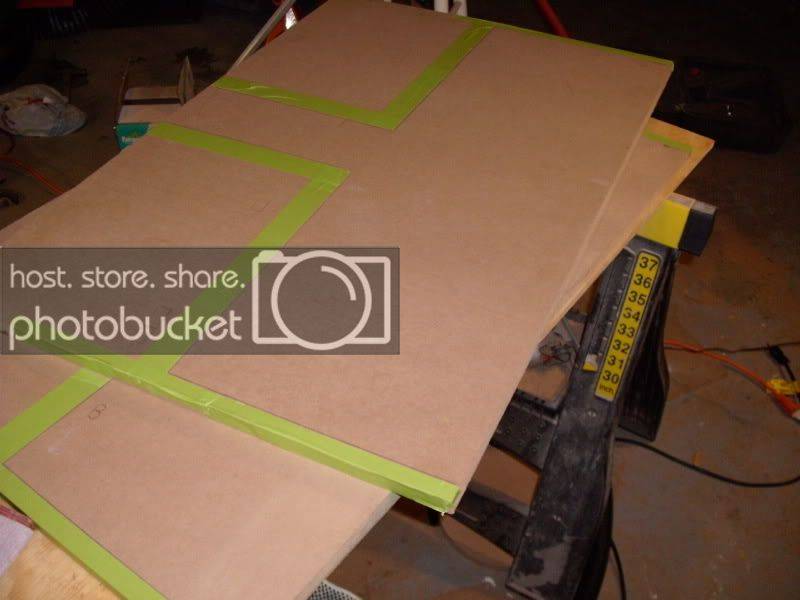

Top & bottom masked, waiting to be sanded and primed..
