Build for orioles26 4cu/ft @ 34Hz

[rpfuror 10+ year member]

Heres another design and build I am doing for orioles26

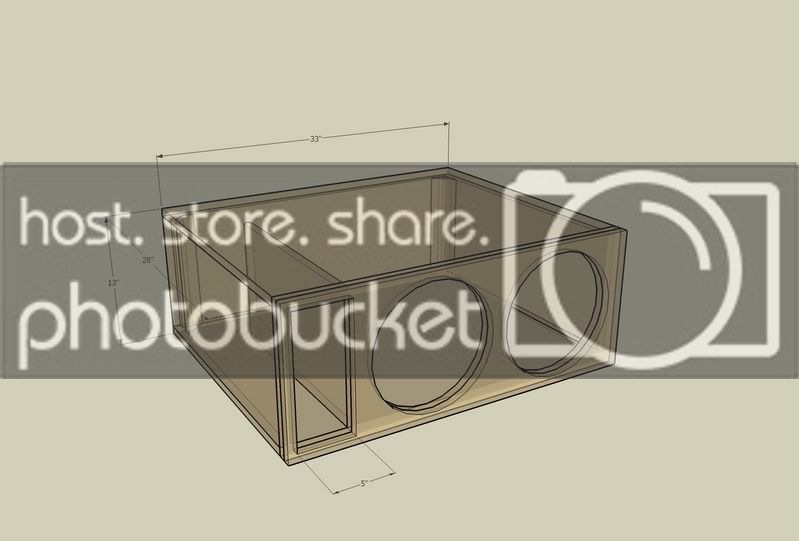

3d Design.

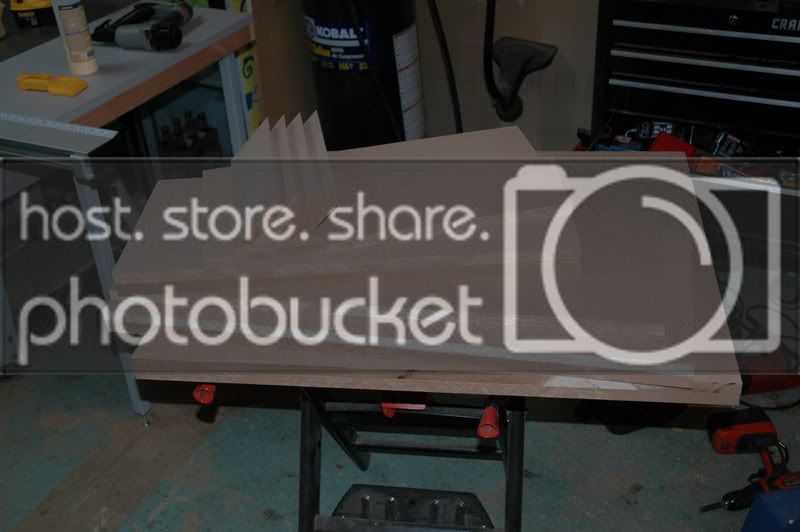

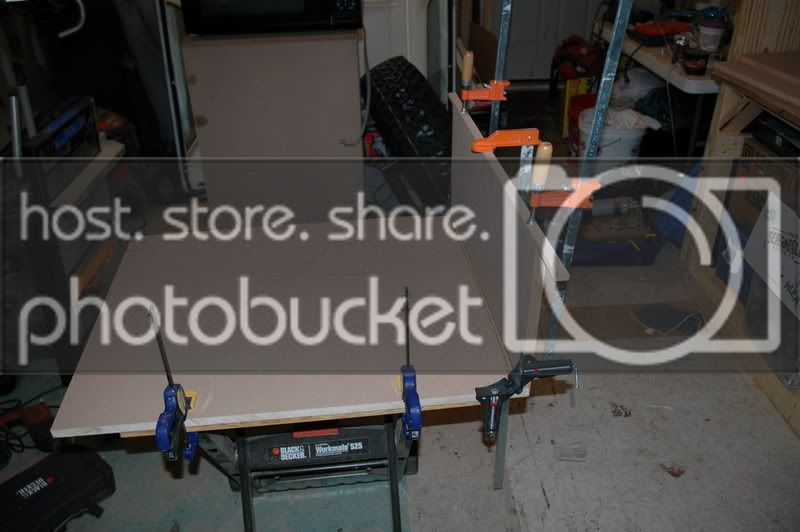

Wood Cuts.

Back.

Side1

Side1 w/45.

Side2 w/45

Click to read more...



[rpfuror 10+ year member]

Heres some more:

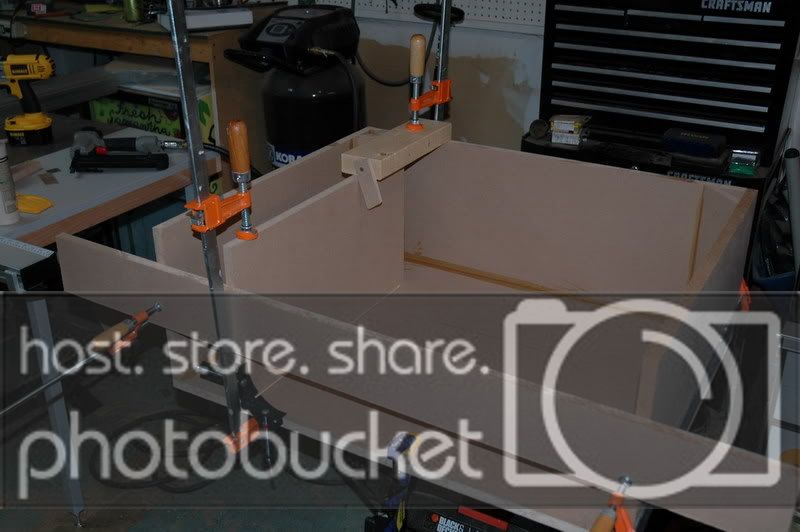

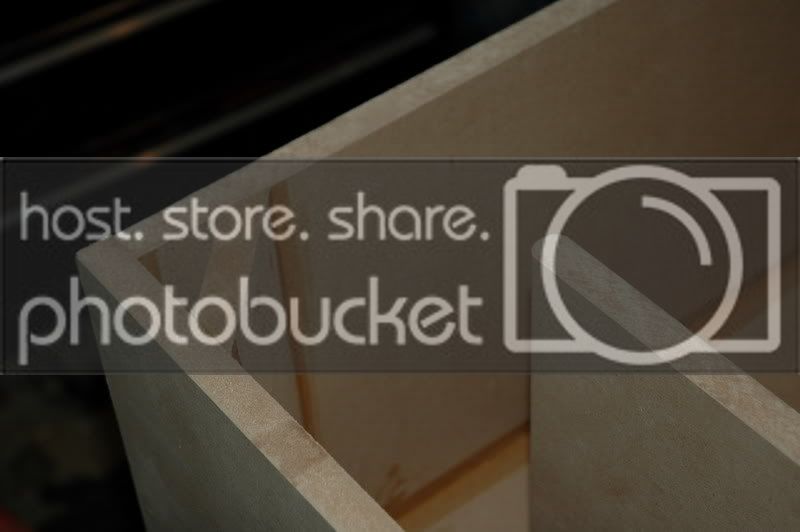

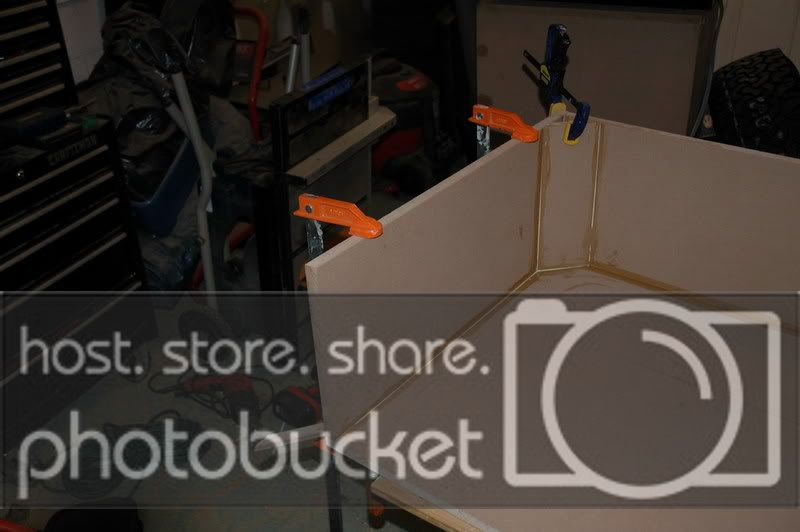

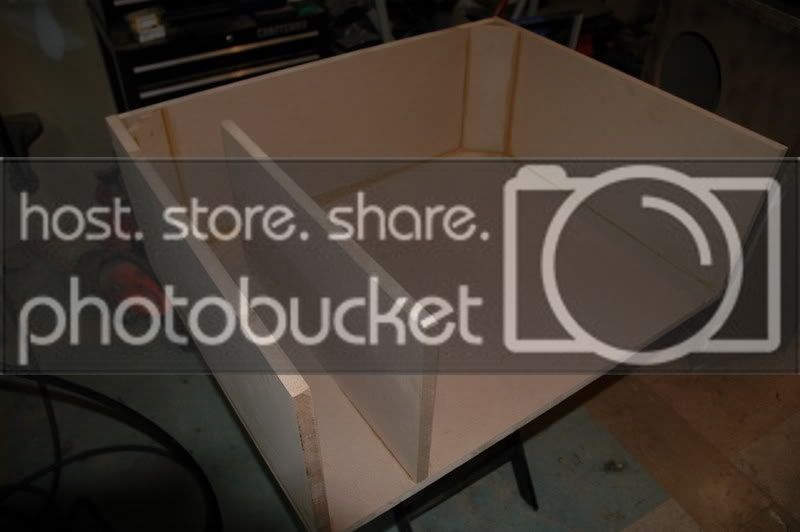

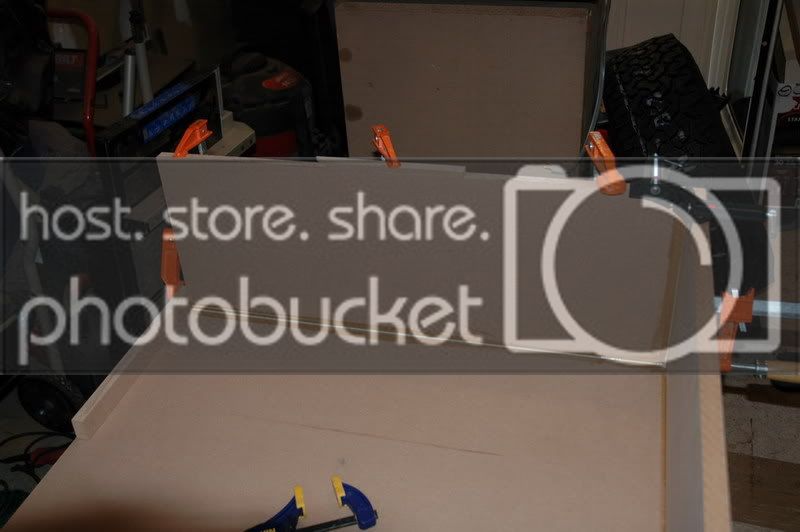

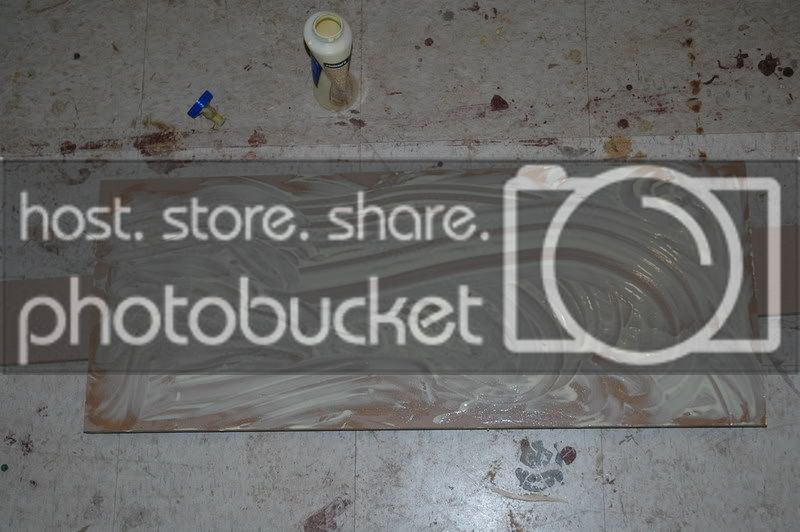

Glue up front for double baffle.

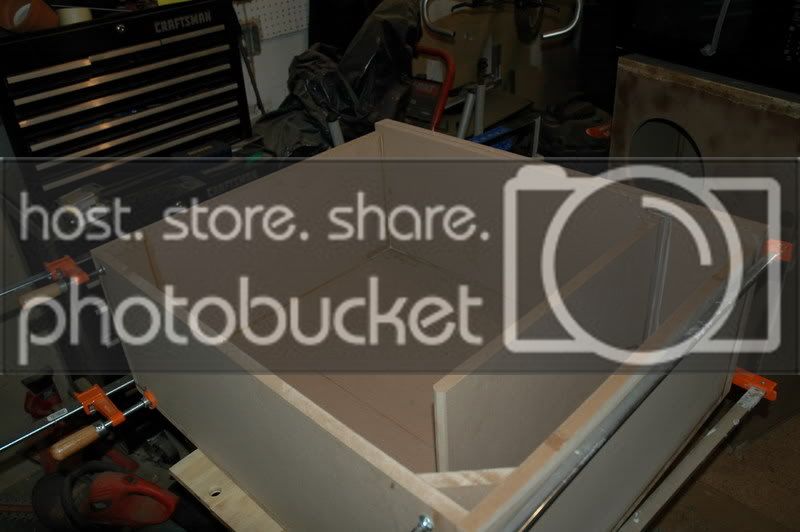

Port.

Port.

Port Rollover.

Double Baffle.



[bjfish11 5,000+ posts]

I spy a Kobalt compressor in the background. Kobalt FTW!

Anyway, what do you use to cut your circles? If you use a router/jasper jig, Its much easier to cut them before you double up. If your using a jig saw, get er done.

If your using a router. Here is how I do it. I cut the circle from the bottom baffle first. Then glue/brad nail the two together and run a flush cut bit in my router over it. Perfect match, everytime.

Looking good man. //content.invisioncic.com/y282845/emoticons/wink.gif.608e3ea05f1a9f98611af0861652f8fb.gif



[blackbonnie 5,000+ posts]

nice building



[rpfuror 10+ year member]

Yea, I have had the compressor for years.. a little loud but it does the job (doesn't help I'm working in a packed 1 car garage).

I use a 1" x 1/4" spiral up cut bit, jasper jig and a plung router.. then run 2 passes.

It leaves a small mark on the overlap between the 2 pieces, but cuts through the wood like butter.

Thanks!



[rpfuror 10+ year member]

nice building

Thanks!



[bjfish11 5,000+ posts]

Yea, I have had the compressor for years.. a little loud but it does the job (doesn't help I'm working in a packed 1 car garage).
I use a 1.5 " spiral up cut bit, jasper jig and a plunger router.. then run 2 passes.

It leaves a small mark on the overlap between the 2 pieces, but cuts through the wood like butter.

Thanks!

Is it a direct drive compressor, or belt driven? What size tank?

Spiral up cut bits are the way to go. Ever since I tried them out one time, because of some hype, I love them and will never go back to a straight cut bit.



[rpfuror 10+ year member]

40 gallon direct drive.



[Fattony911 10+ year member]

ill be contacting you soon about designs rp, it looks good is it possible for you to quote me a price on what a design similar to this would cost im looking to build a box for my 2 12 bl's and im about ready to put everything in. lmk shoot me a pm if you ahve the time. Thanks-Alex
