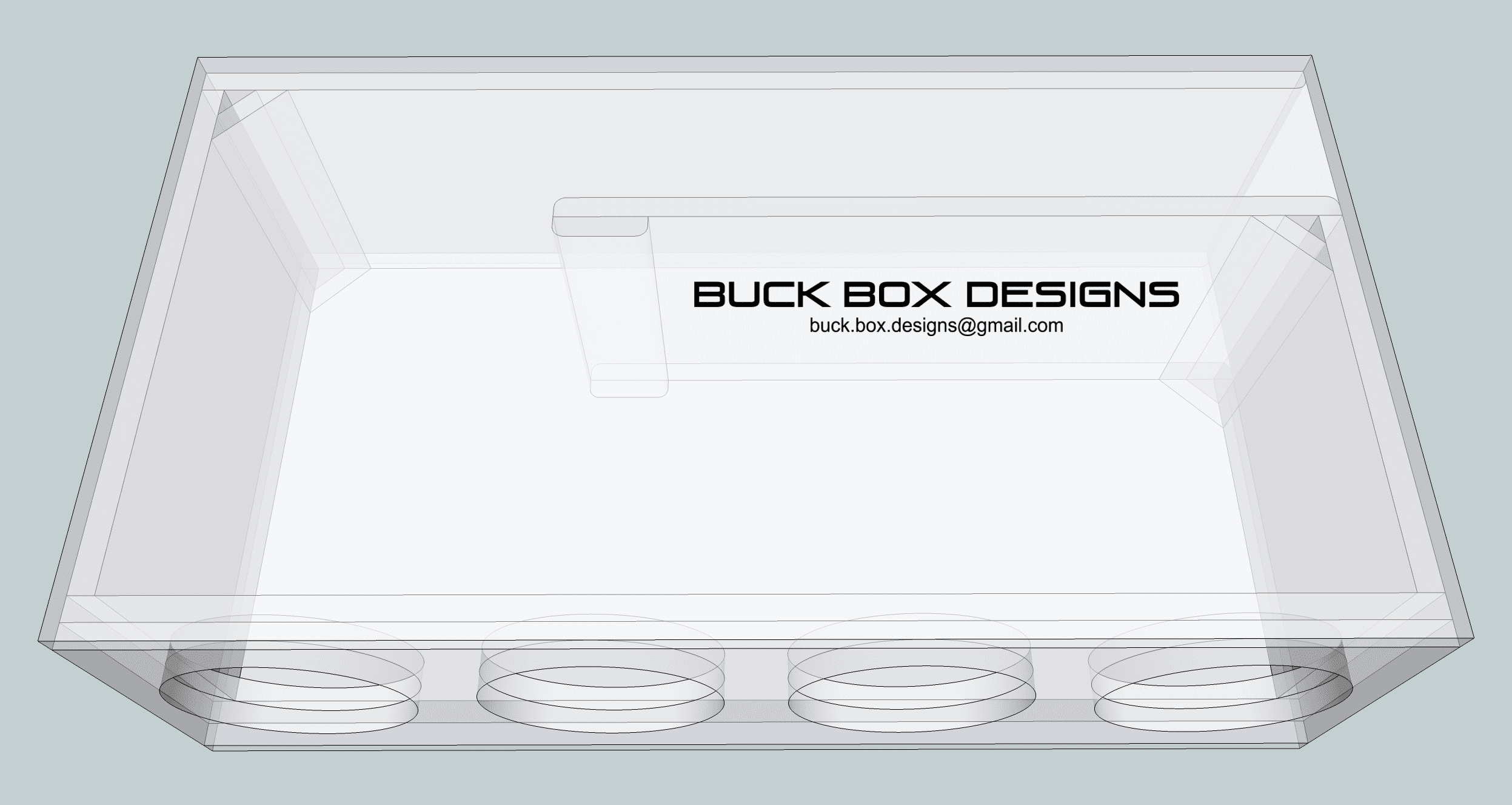

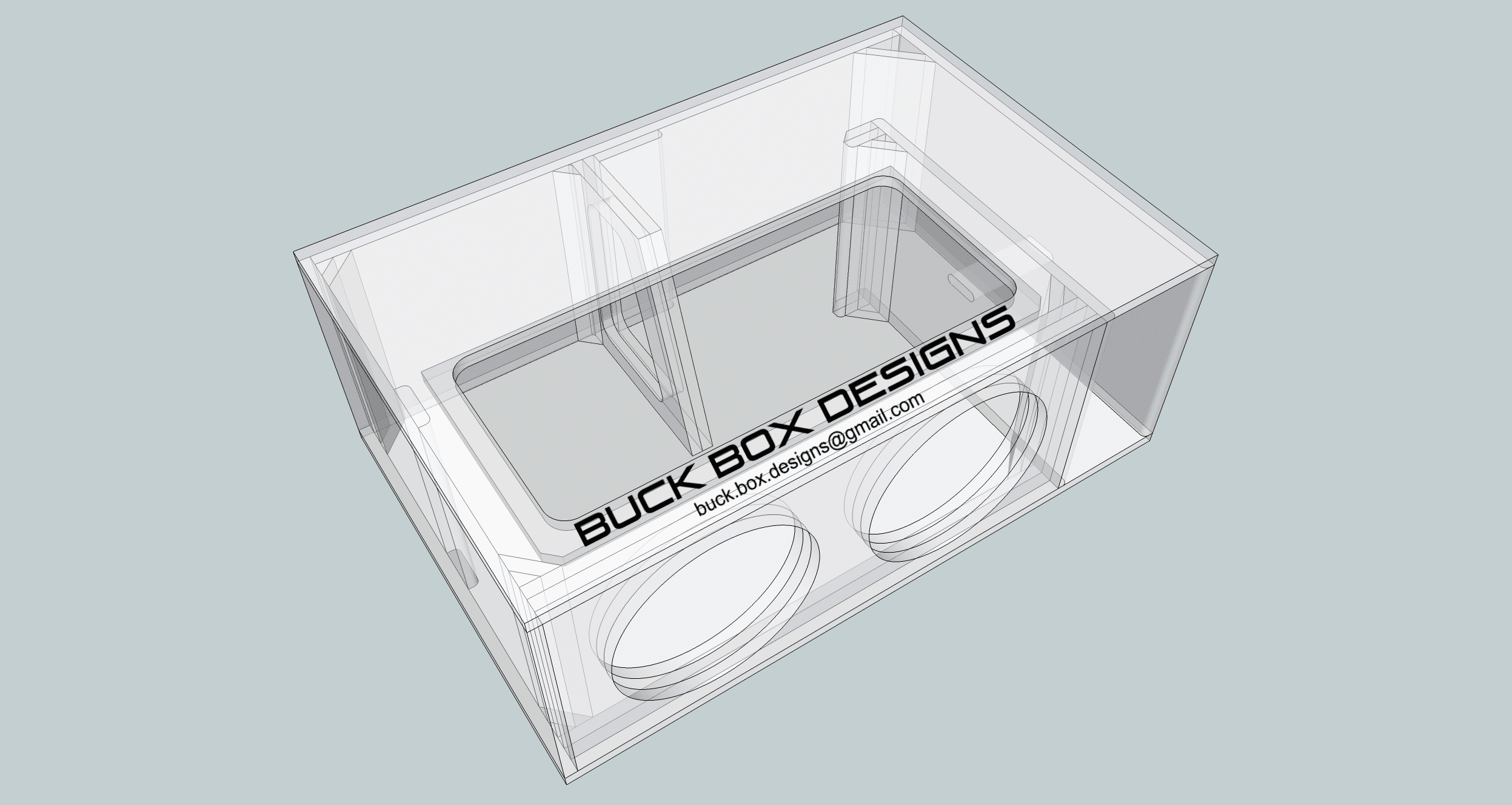

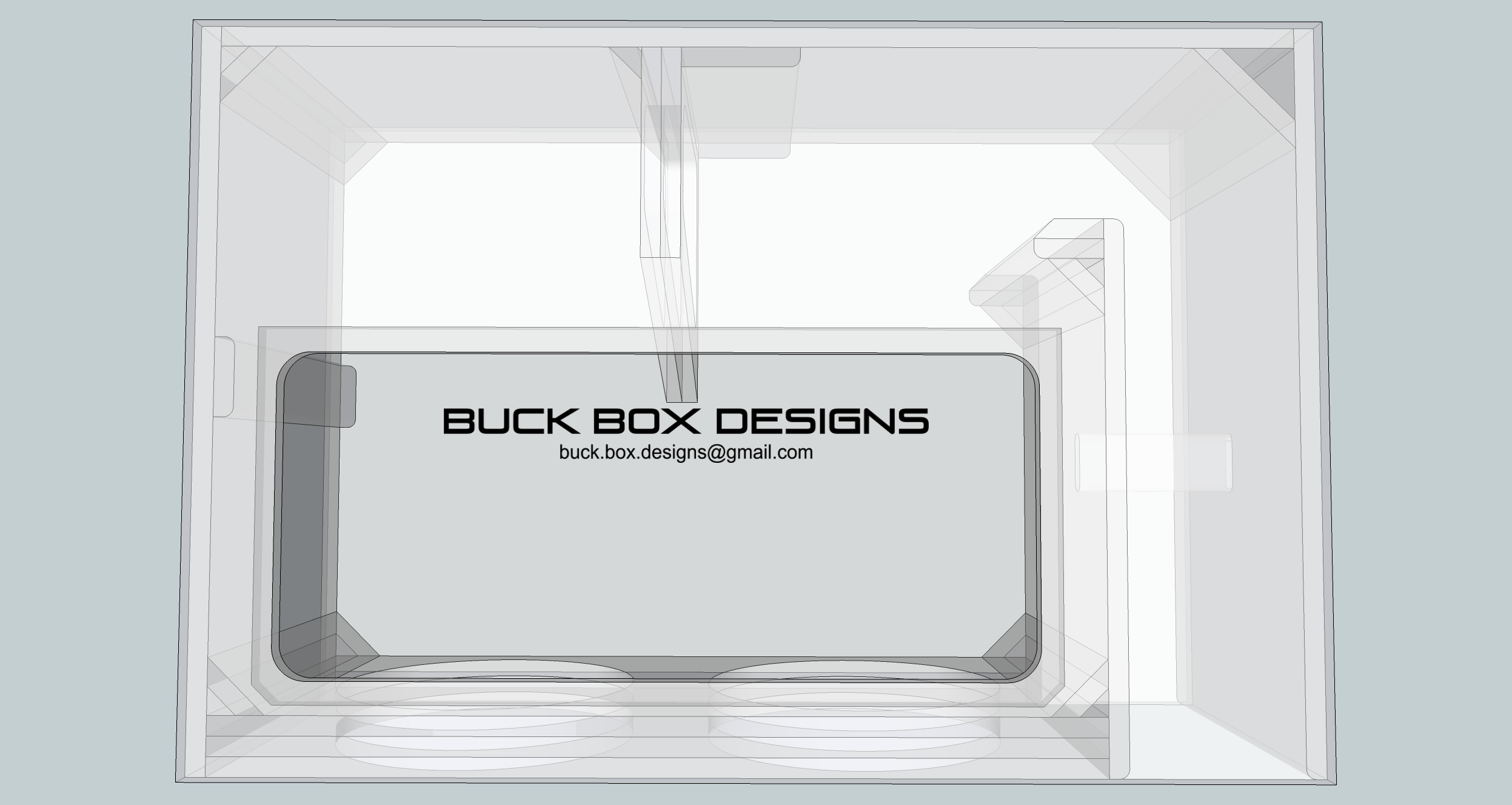

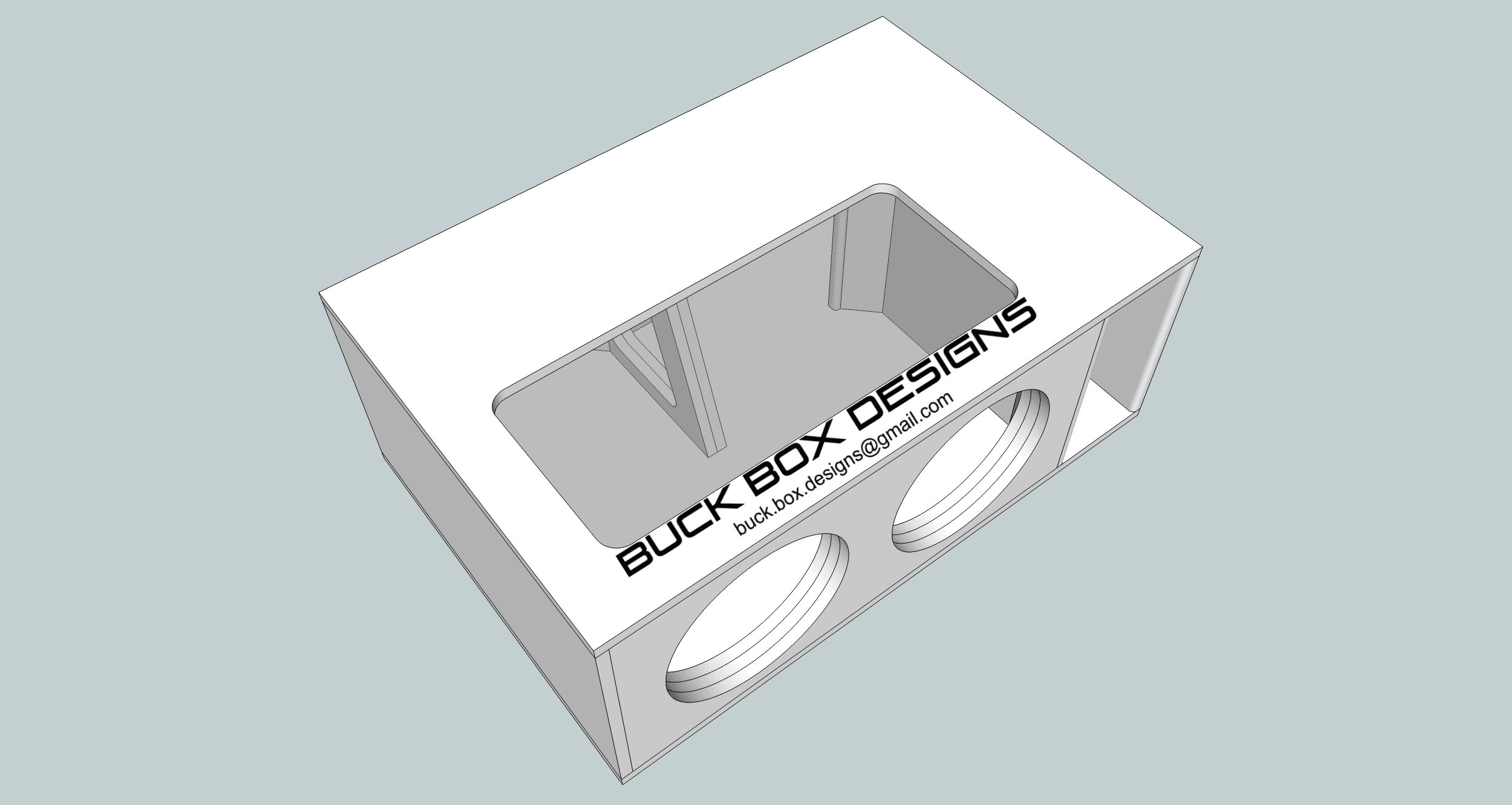

6 Sundown Zv5 15's in a 4th Order wall, going in a mid size SUV. Tuned super low, amp is 16,000w. Removable front port and rear top wall. There may be some score chasing with this box, so the port needs to be modifiable. There will be steel braces going in the top ported chamber. Subs will be inverted.

27127


27128


27129


27130


27131



27132


audiobaun

CarAudio.com Veteran
5,000+ posts
Jun 28, 2011
10,705
299
USA
6 Sundown Zv5 15's in a 4th Order wall, going in a mid size SUV. Tuned super low, amp is 16,000w. Removable front port and rear top wall. There may be some score chasing with this box, so the port needs to be modifiable. There will be steel braces going in the top ported chamber. Subs will be inverted.

View attachment 27127

View attachment 27128

View attachment 27129

View attachment 27130

View attachment 27131


View attachment 27132
Whew.. Thats going to get down right dirty and nasty man!


Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
22,427
761
FL
  • Thread Starter Thread Starter
  • #285
Whew.. Thats going to get down right dirty and nasty man!
The owner already had them in a 4th order wall designed by the dude who's boxes are on Sundown's site. I was shown the design. I think I may have gotten little more space to work with, but that thing is a wind tunnel. His previous box was more SPL'ish, like smaller sealed side and huge ported. The sealed side on my wall is quiet a bit larger to help those subs resonate with low notes.


Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
22,427
761
FL
  • Thread Starter Thread Starter
  • #287

Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
22,427
761
FL
  • Thread Starter Thread Starter
  • #290

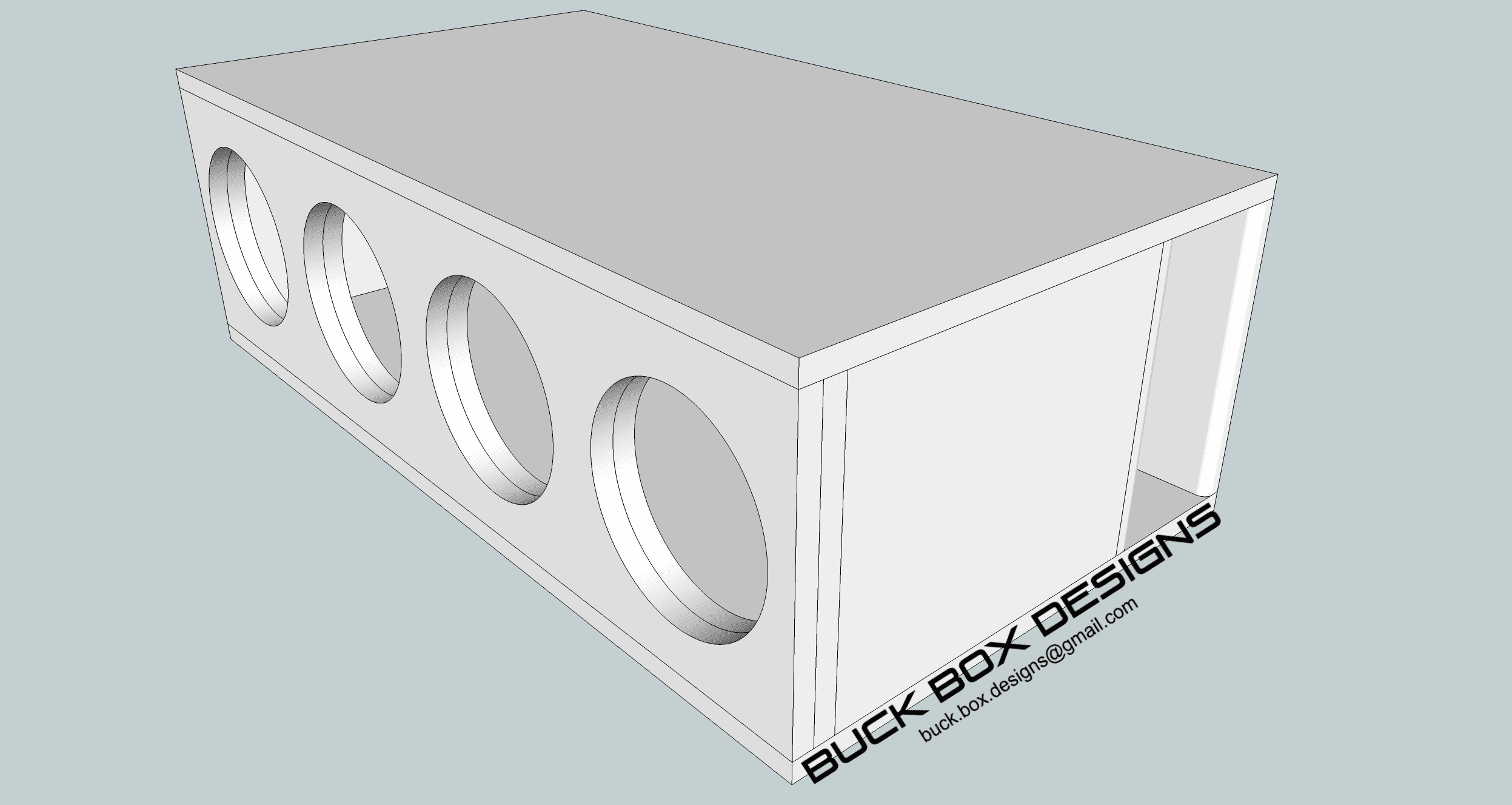

4 DD Redline 610's (10 inch) ported, firing forward in a trunk. One of those situations, we had enough cubic feet, just had to figure how to mount the subs. The two subs in the middle will be inverse mounted.

27152


27153


27154


Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
22,427
761
FL
  • Thread Starter Thread Starter
  • #295
Also is it just me or for something like this one that they offer a 2.75" voice coil seems small?

I've literally had the exact same thought. They do have CCA coils which can help with heat. I'd imagine that they would have a good bit of cooling to help with the heat. I guess 2.75 isn't that much smaller than a 3". I can't imagine a sub with a coil that size having any more power handling than that. The length of the coil matters a ton too, when it comes to power handling. There's a big difference between something like an 8 layer coil vs. a long 4 layer coil.


Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
22,427
761
FL
  • Thread Starter Thread Starter
  • #296
Deaf Bonce should give more detailed t/s parameters. I need Mms, Qms, Qes at least. I would be hesitant to buy a woofer with that few of t/s parameters personally, even though they really seem like powerful woofers.


Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
22,427
761
FL
  • Thread Starter Thread Starter
  • #299
Who does Skar's t/s parameters? Something is just horrifically off. Something there is like double or half of what it's supposed to be. Idk if they took these t/s parameters with zero break in time, idk. I highly doubt that woofer's Fs is 51 hz. Rms is pretty high too and Cms is pretty low too. It may be a stiff sub but I really doubt it's THAT stiff with a 1500w rating.
