Build log for 1996 Lumina LS- The Blue Fury

[Ellsworthz 10+ year member]

nice build, I bought a 95' lumina for $500 for a winter beater, its really nice, all it needed was brake pads. I'm going to steal your ipod holder thing because on mine their isn't a bottom piece to even hold a cup, it would just fall right through.

prolly put 2 DC level 3's in there in about 4ft ~35hz idk how hard the box will be to get in with that hump in the middle.



[Blue Fury 10+ year member]

lexan from civicman



[Blue Fury 10+ year member]

Theyre pretty much finished. All I have to to is drill the pilot hole in the 4 corners of each for the anchor screws. Once that is done, 2 more magnets right above the screws to attrack each other for a total of 16 magnets per block.

Next on the list is to replace most of the 0g wire with 4/0. Then put in the other 2 amps and test locations for the front speakers. Here is what Im thinking but not absolute.

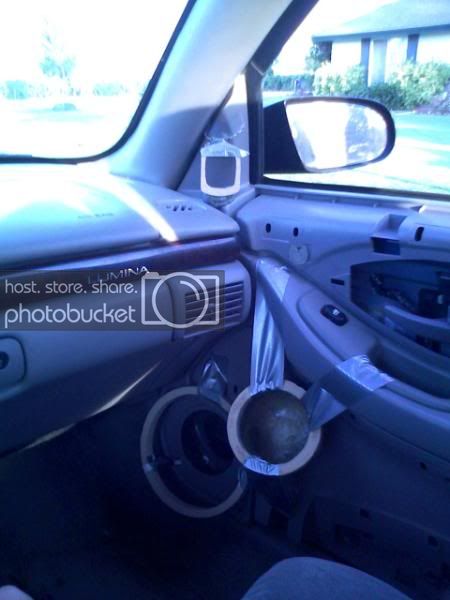

(middle seat perspective)



[Blue Fury 10+ year member]

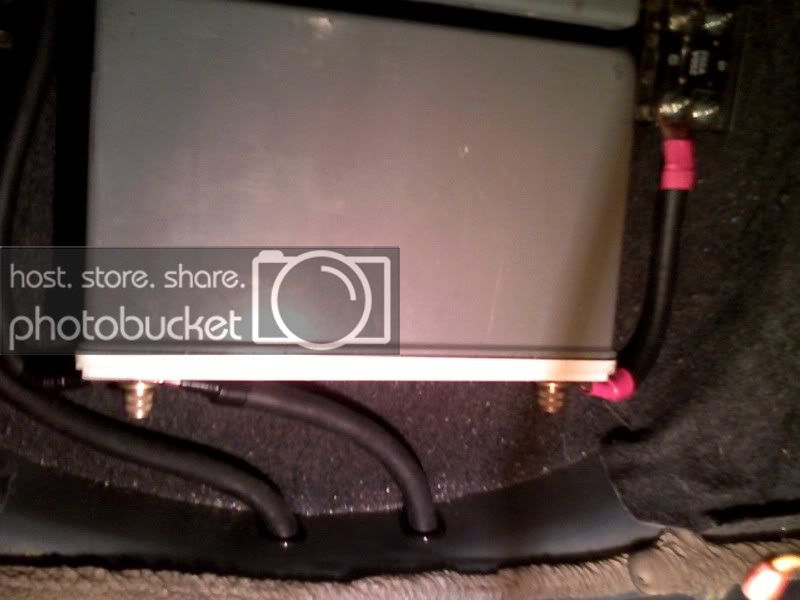

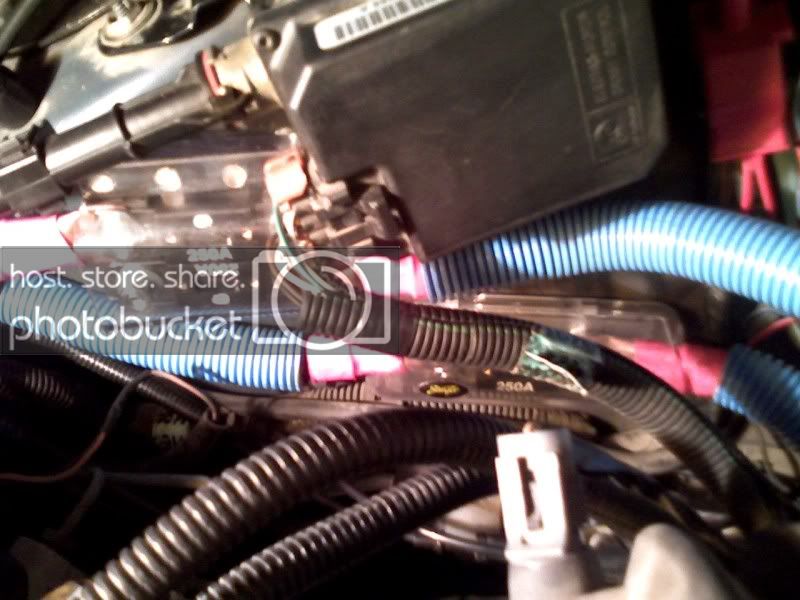

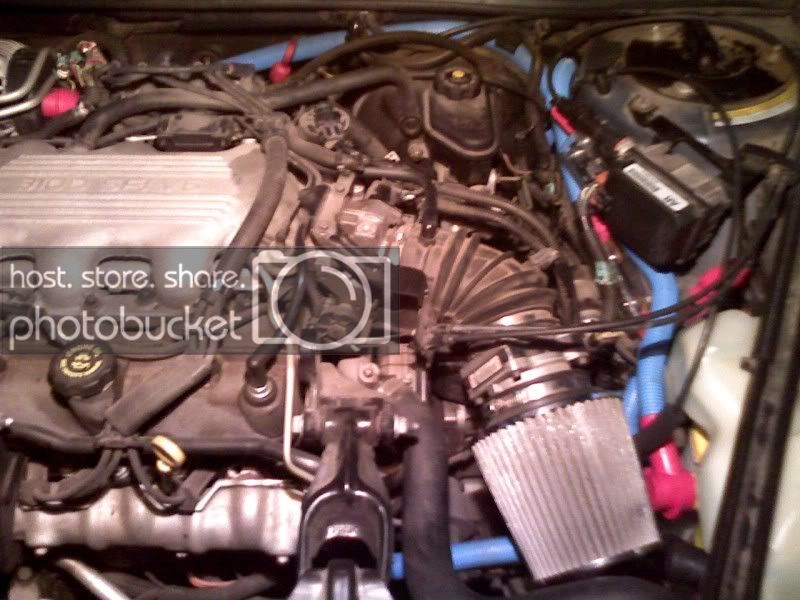

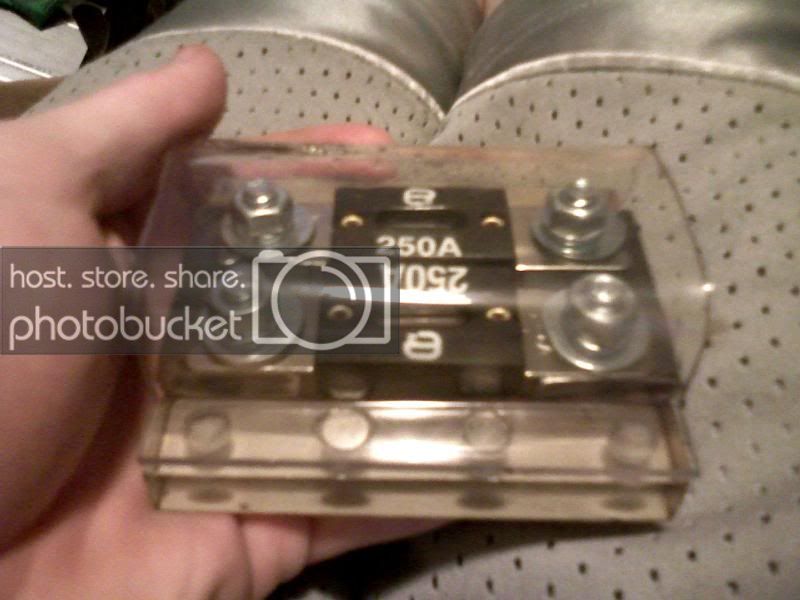

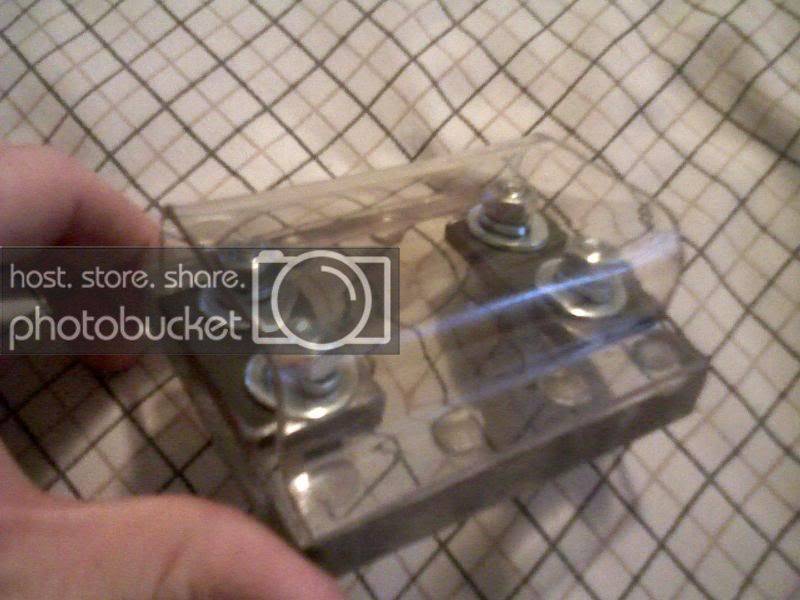

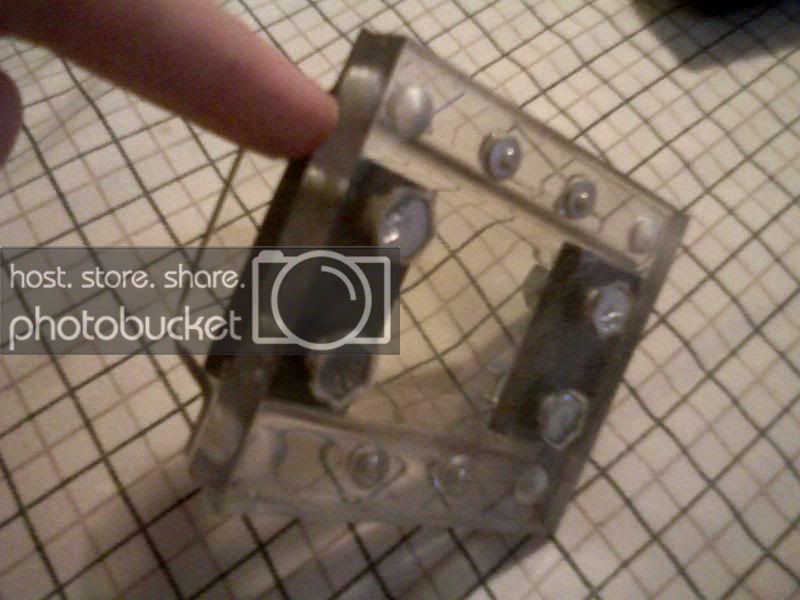

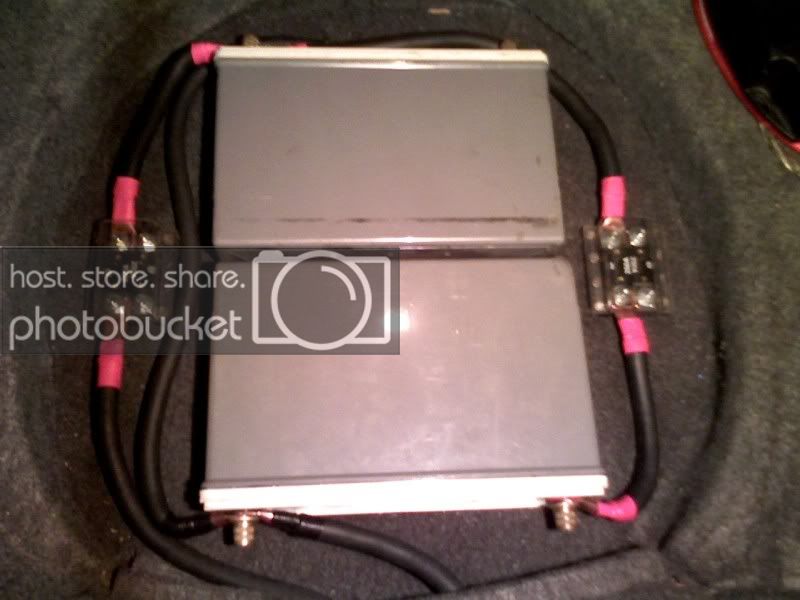

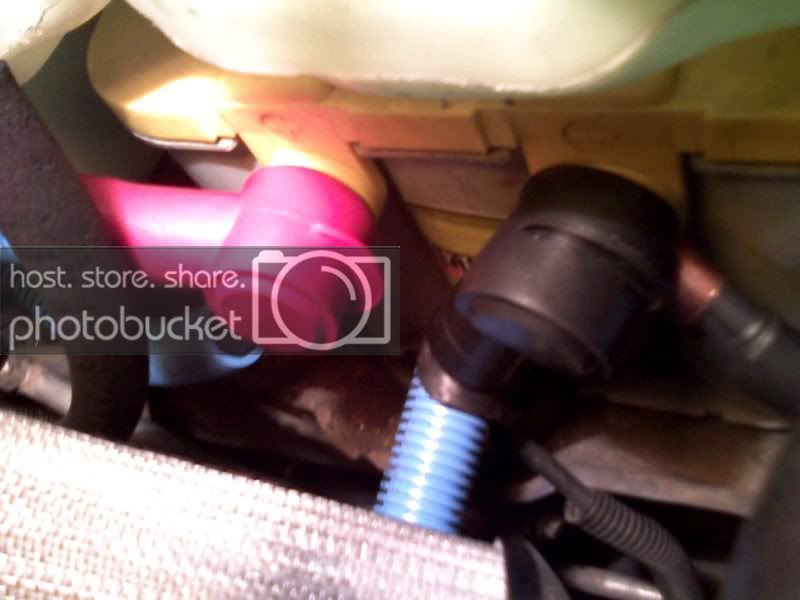

These are pics of all main power and ground wires replaced with 4/0g.

Ok remember that cup I made for the midrange? I couple months ago I got a hold of the company to see what they recommend for airspace in a sealed enclosure for my frequency range. They did not tell me displacement tho //content.invisioncic.com/y282845/emoticons/frown.gif.a3531fa0534503350665a1e957861287.gif . So I had to find it myself using the water method.

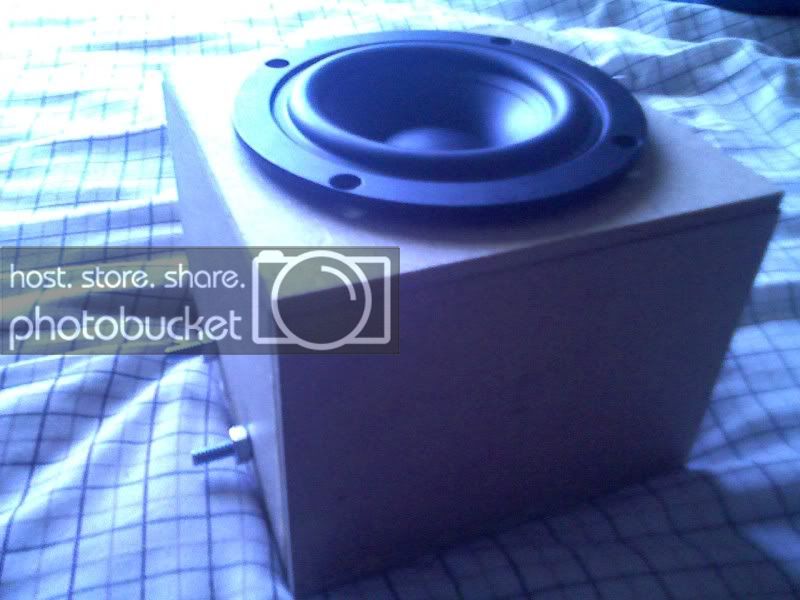

With that, I'll be using these temporary boxes to make sure of the positioning. They are 1.5L net, 1.8L total with internal dimensions of 5.25"l x 5.25"w x 4"h. btw, the top wasn't glued on in this pic.. that's why it looks crooked in the top right corner haha



[Kyle. 10+ year member]

I like how creative you are. I can't wait to see what else You come up with.



[Blue Fury 10+ year member]

I like how creative you are. I can't wait to see what else You come up with.

Why thanks you sir



[crash9201 10+ year member]

man; 4/0; i put 2/0 in my car for the big3; i thought it looked like garden hose; but 4/0 looks like fire hose; o and i like the ducttape holding the mdf rings up; classy



[tipnitty 10+ year member]

killer build man!



[Blue Fury 10+ year member]

man; 4/0; i put 2/0 in my car for the big3; i thought it looked like garden hose; but 4/0 looks like fire hose; o and i like the ducttape holding the mdf rings up; classy

haha Ya it was almost unmanageable. And duct tape works great as a 2nd/3rd/4th set of hands haha

killer build man!

Thank you! I appreciate the input



[Blue Fury 10+ year member]

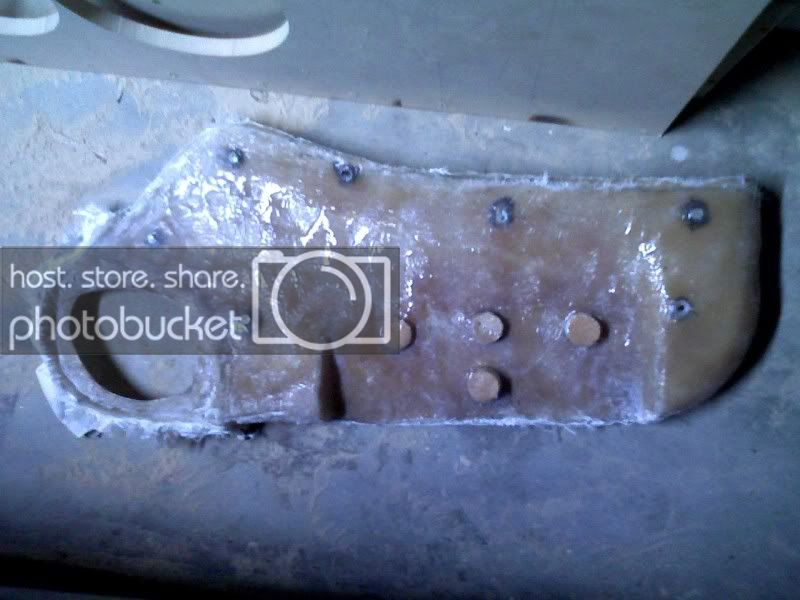

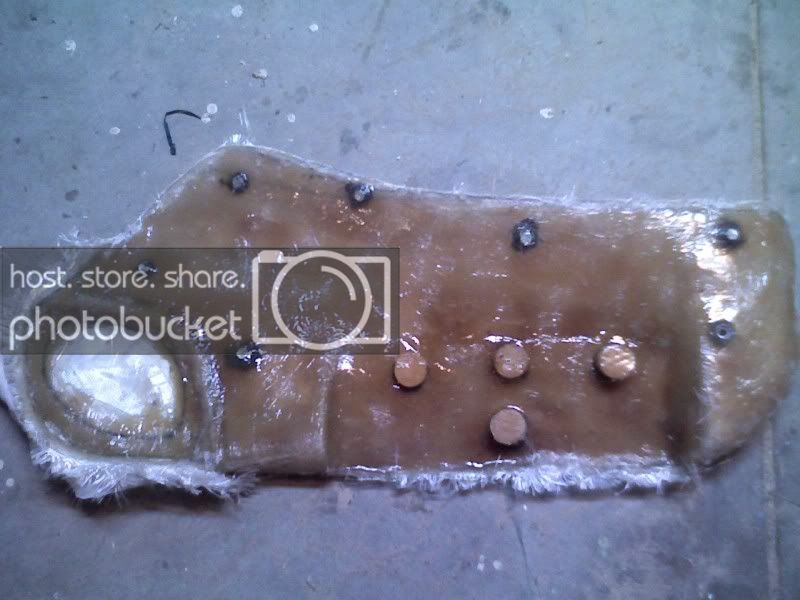

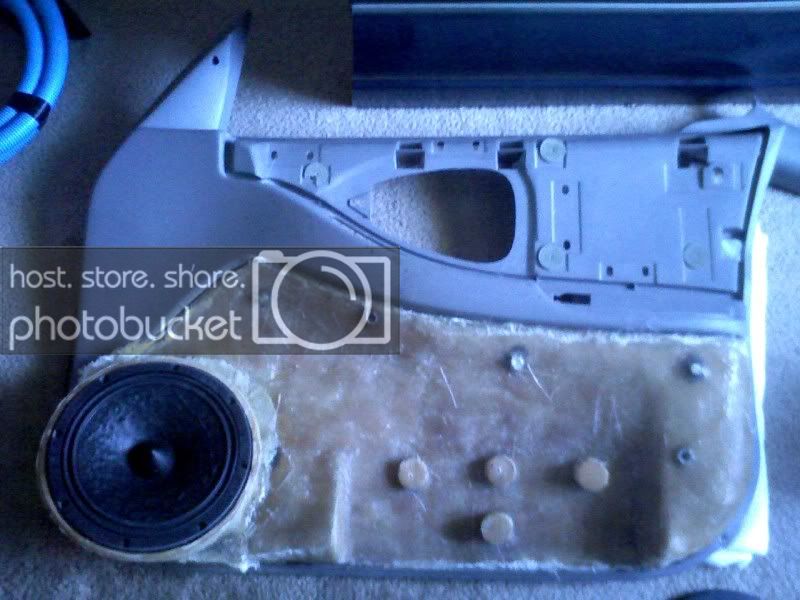

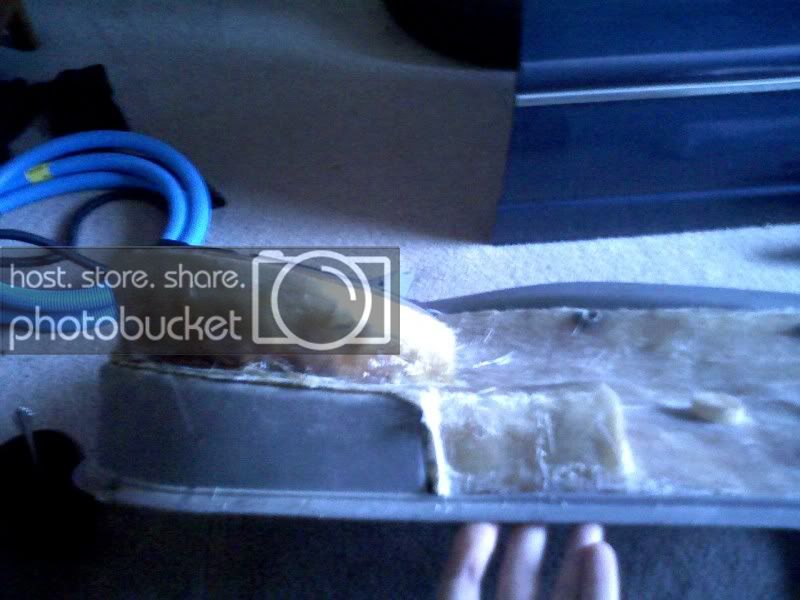

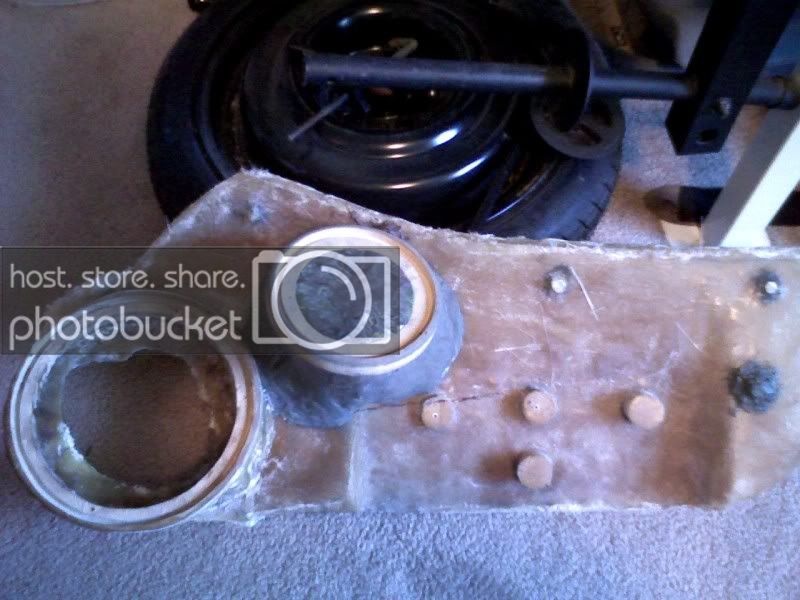

Finished the base layer of the front passenger door. Next is the midbass layer, then the midrange layer. I'm not doing them both at the same time because the midrange needs its own airspace to follow tang band's recommendation. Btw those are hex screws and short cylinders of wood glassed in there.

Now Im waiting to ask a friend to come over sometime this week to use as a second set of hands to position the midbass while I hot glue the support dowels to the ring and base.



[way2sl0 10+ year member]

Just read through this all. I just moved into a place with a garage and was planning on making my own head unit mount into the dash out of MDF, but builds like this dwarf what I was planning on doing.

Great job im looking forward to continue reading. Im a jigsaw man too.



[Max_Power 10+ year member]

Fantasic job man!!

I love your attention to detail!!!



[Blue Fury 10+ year member]

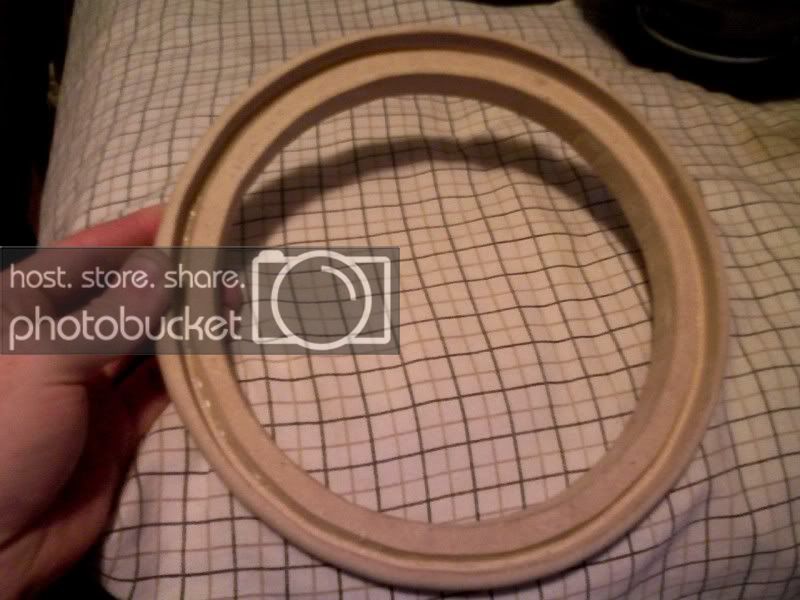

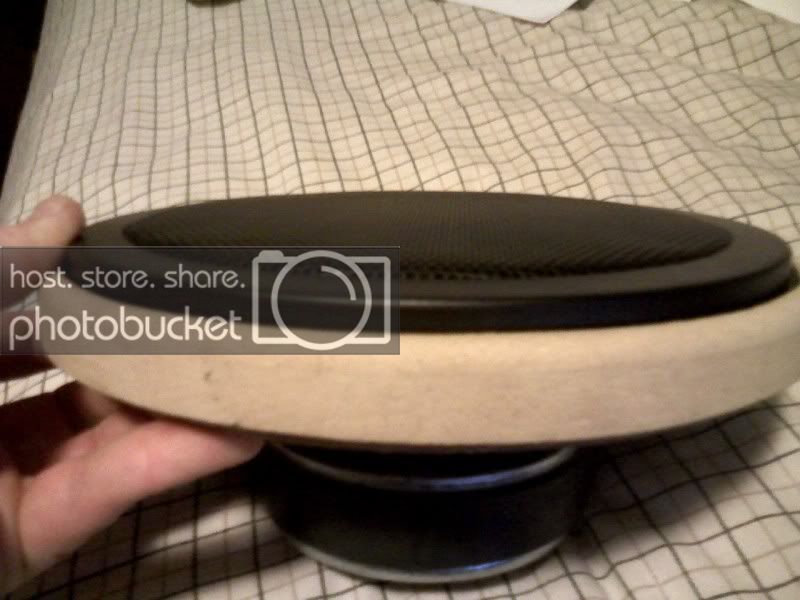

Got the 8" ring in. It barely rubs against the bottom of an interior piece so I'll have to grind that 1" section of the ring down.. Nothing major.

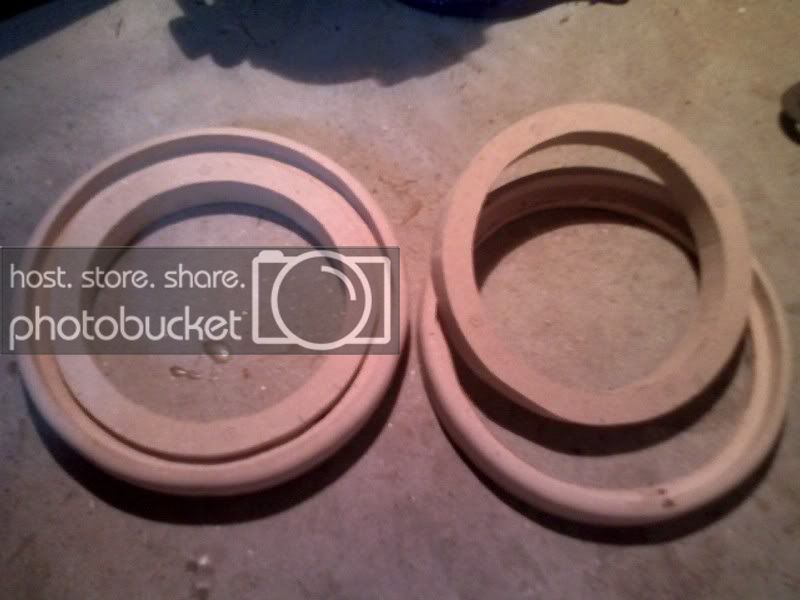

I ended up making new adjustable rings for the mids. They took forever to make using the jigsaw.. again.

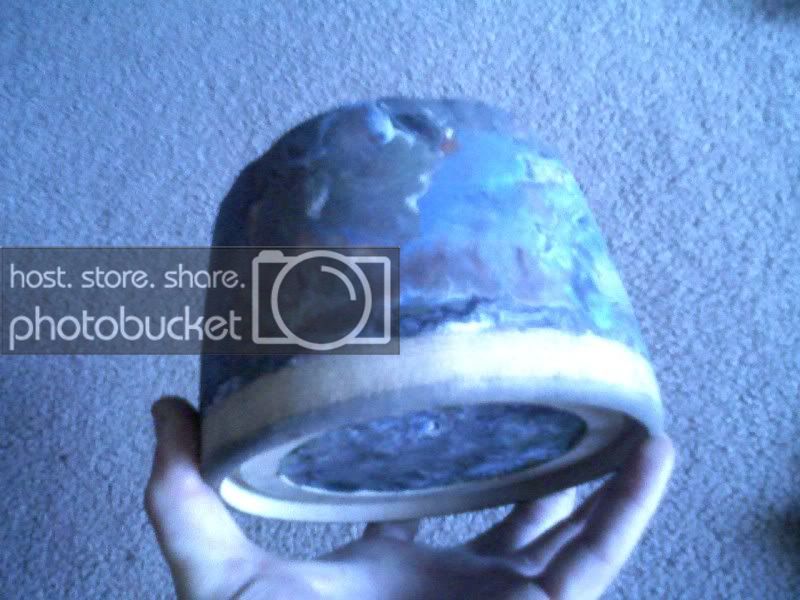

1.2 Liters of clay with .6 liters of styrofoam inside for the correct fb.

This will be near the shape of the actual enclosure for it. It may change a bit, but I'll probably end up keeping it and add the layers tonight.

View from right

View from bottom

View from left



[Blue Fury 10+ year member]

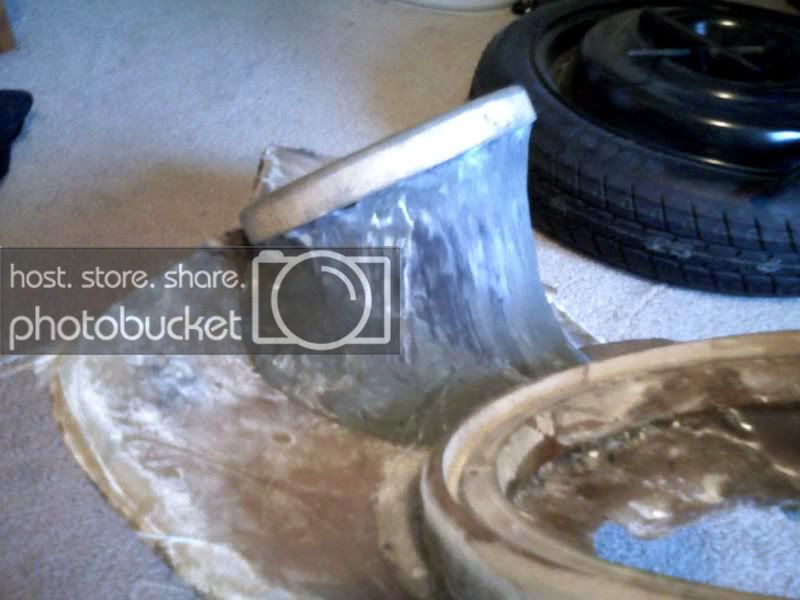

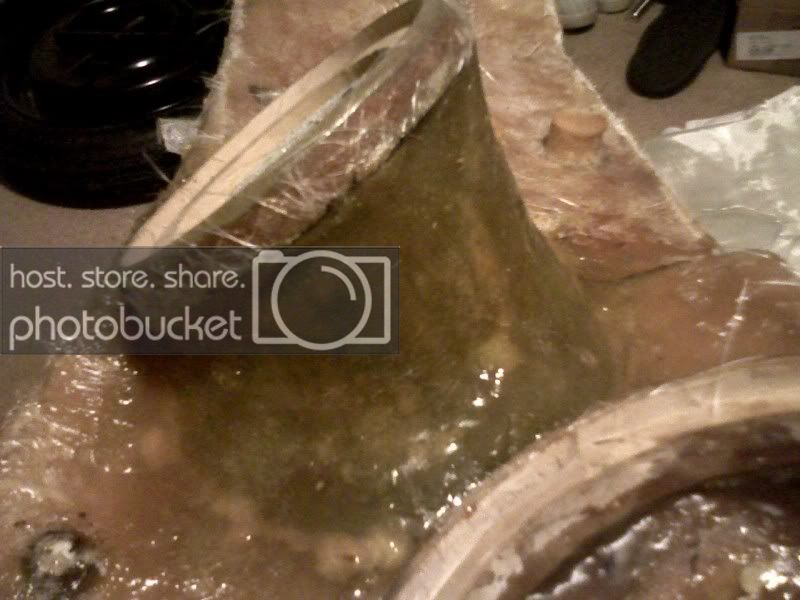

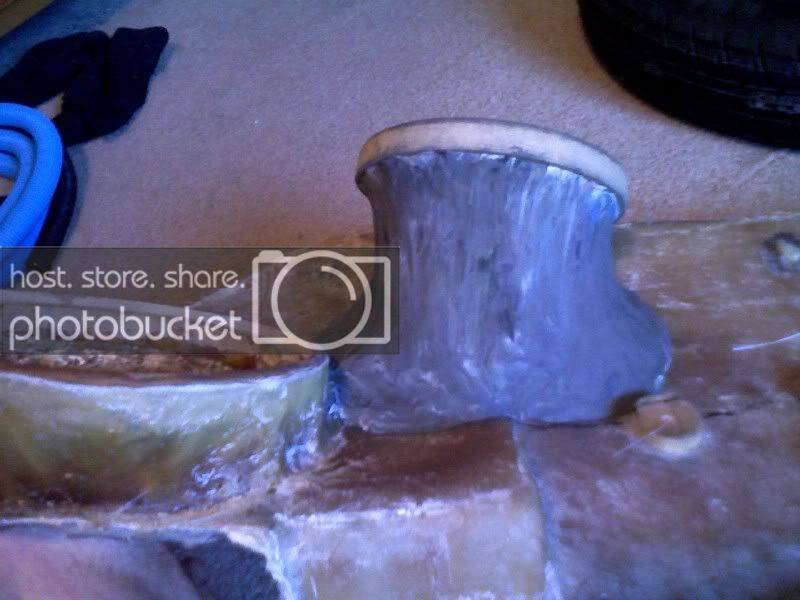

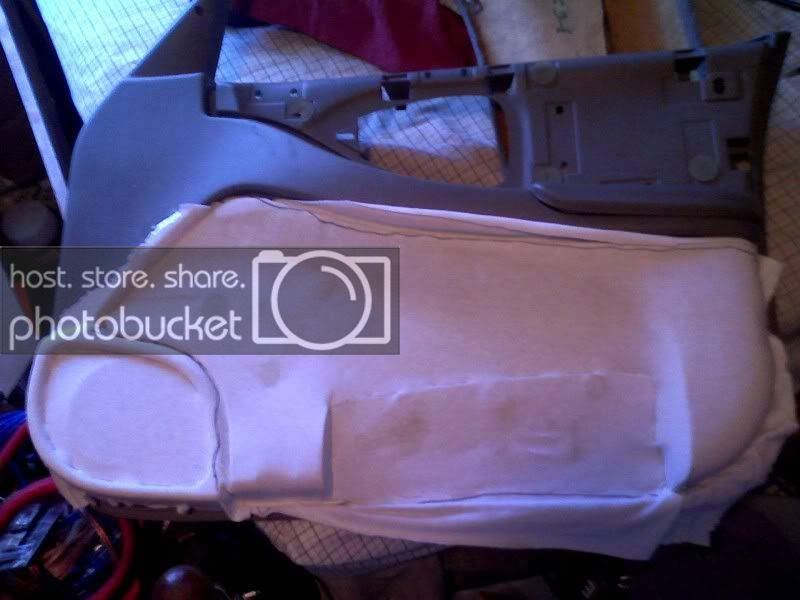

A few layers later, its starting to come together

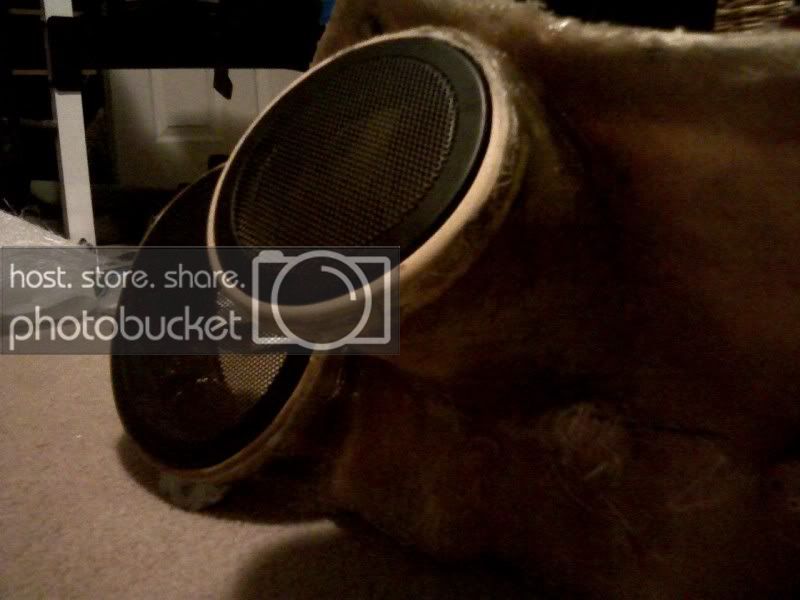

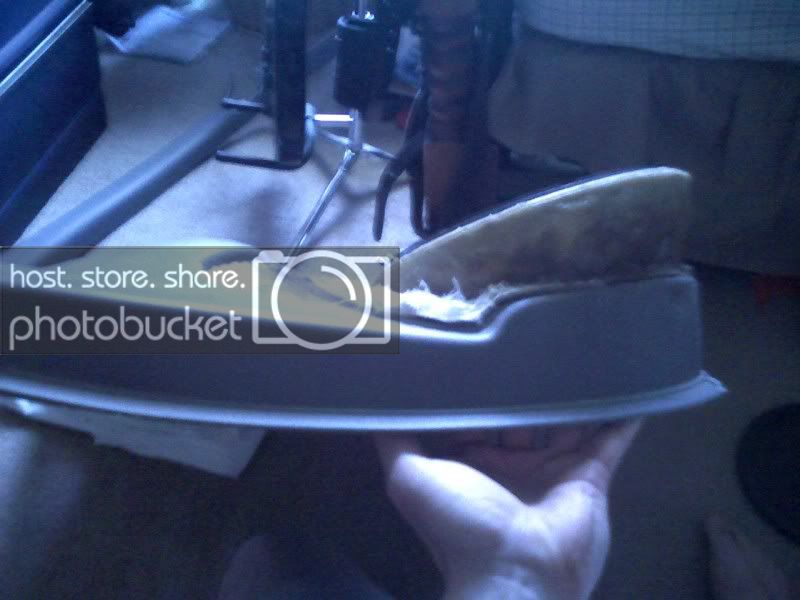

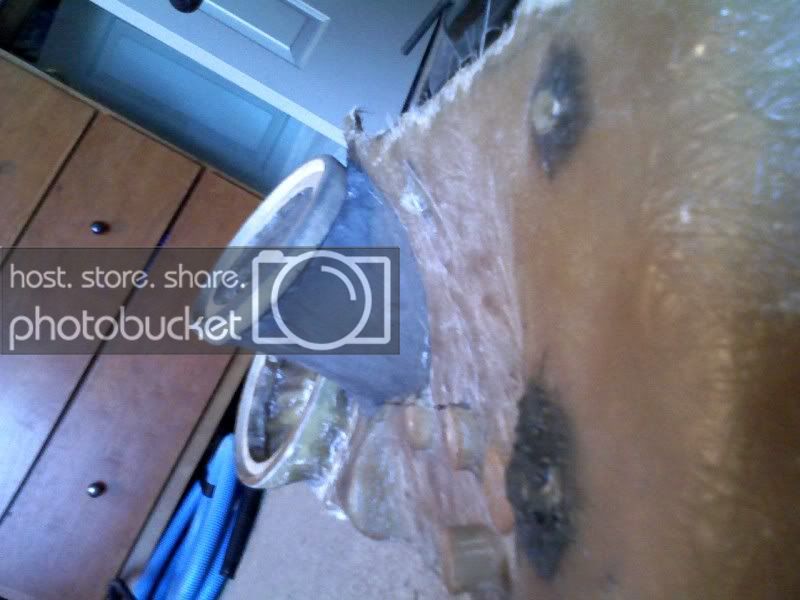

I just put some kitty hair on the inside of the mold in the small area between the ring and outer layers. Tomorrow I'll sand this portion down and grind any excess off the entire thing. After that, I'll start on the final aesthetic layers.



[CLNFREAK 10+ year member]

nice build

I have an 06 impala and did a 4th order bandpass box thru the rear seat. I had an arm rest tho so it was easier for me

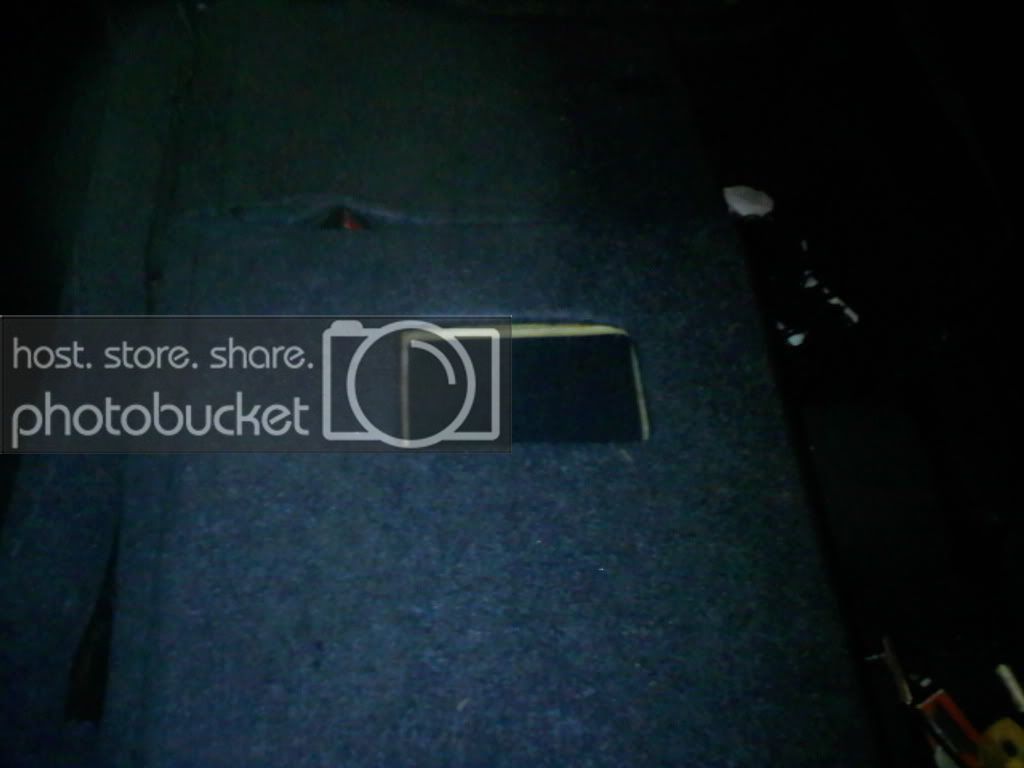

rear seat folded down

back of rear seat

arm rest folded down port fires thru the black area
