For years I have wanted to try an IB setup. Well. I finally Decided to give it ago. While waiting for the rack to free up to put my engine In I decided to start the project. With only a jigsaw, square, and chalk I got started.

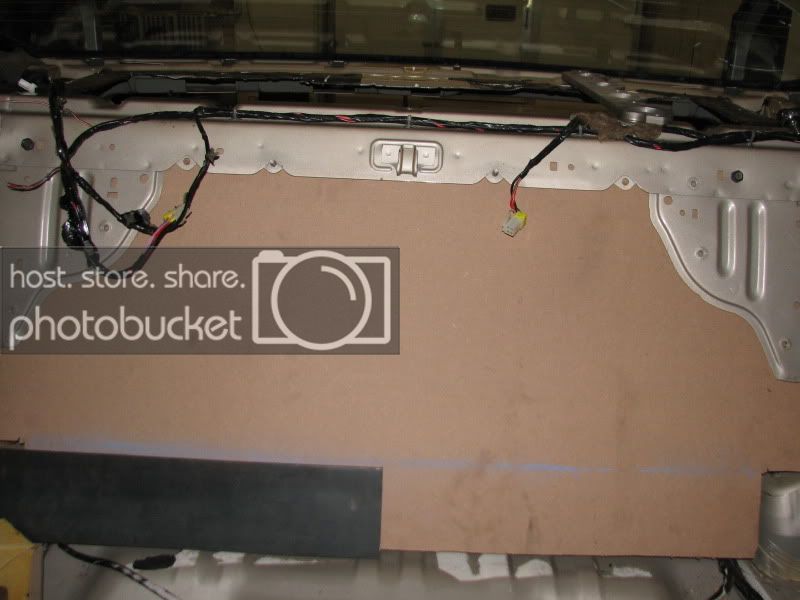

After Inspecting the deck, I decided that it was just too uneven to slap some mdf on it and sprayfoam it. I wanted to make use of anything on it. If it went there it was rigid. So...

After measuring and marking this happened.

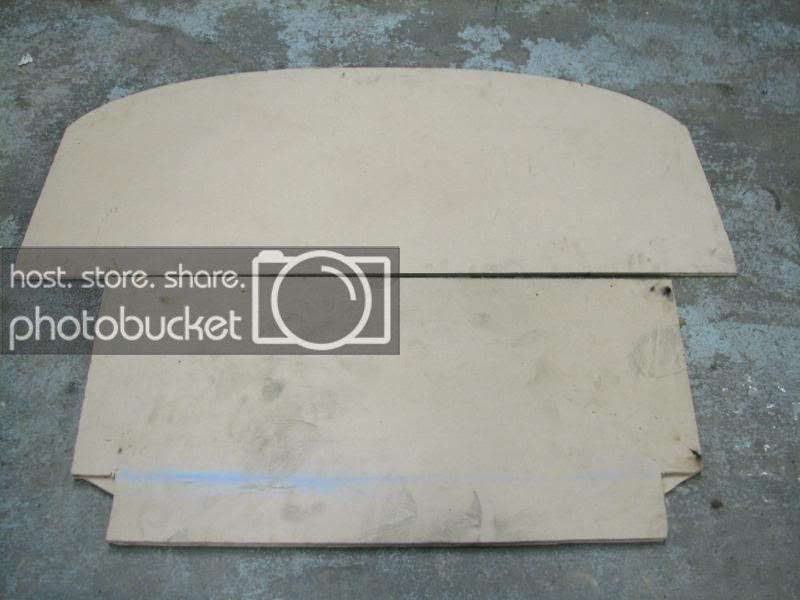

I then measured and cut the blockoff for the seat

There is a 2nd layer now glued to the board that fits the shock mount better

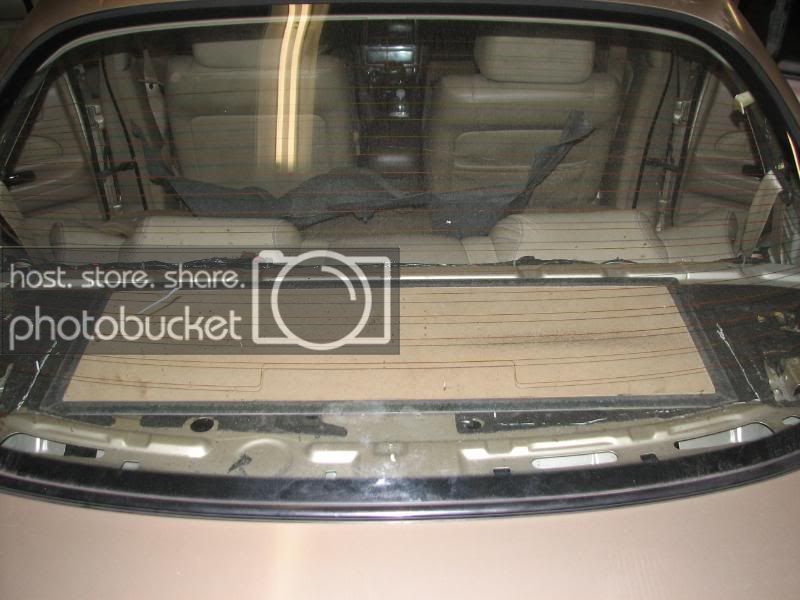

I also made the deck cover that will be more cosmetic than structural. Seen here with seat cover

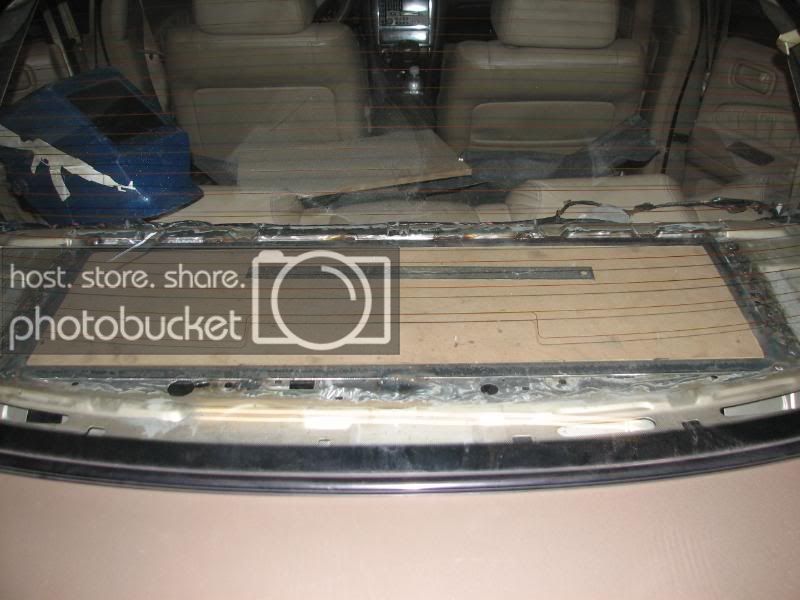

You might ask WTF is going in that gaping hole? This

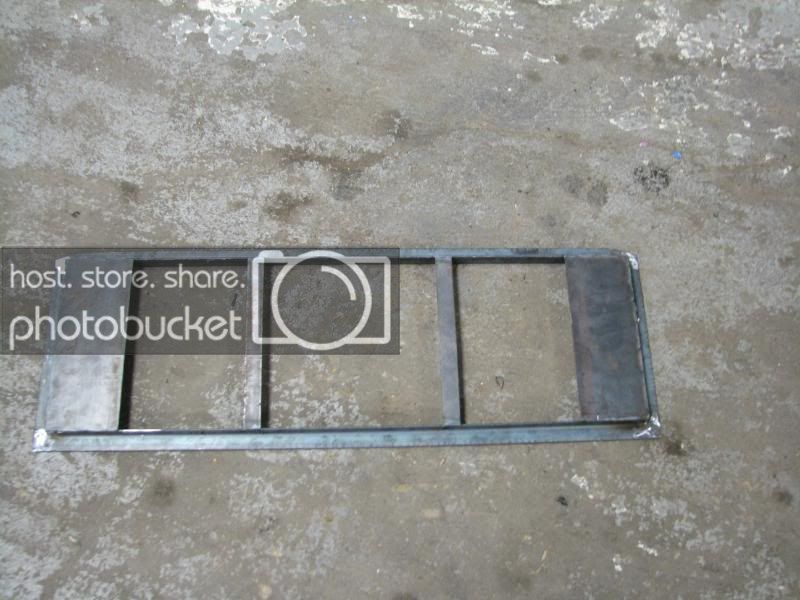

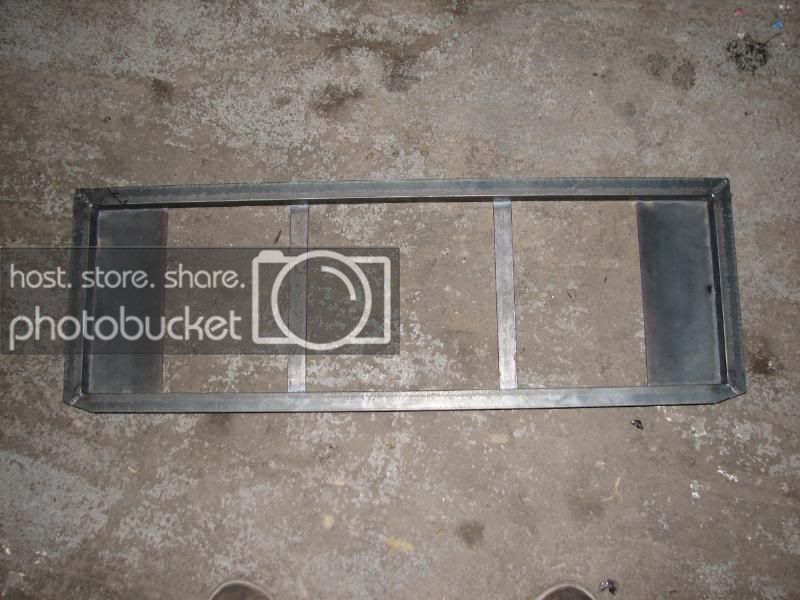

1" L channel 1/8" thick 1/8x1" mounts for the baffle. I still need to cut radii out of the ones on the side and finish a parameter. to mount the baffle

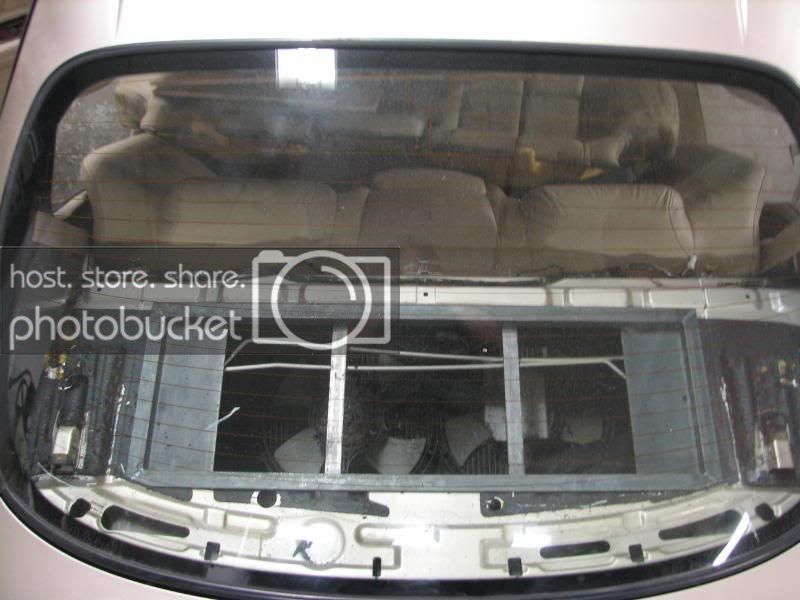

After some massaging of the hole I stuck it in.

I then cut the baffle.

As with the seat block it is 1" 2 layers of glued 1/2"mdf.

I still have a long way to go and updates will be slow coming. After the baffle basket gets welded in, there will be misc bracing for it above and below. I am also welding in bracing behind the seat and plating in larger gaps. I will be using spray foam along with your abcs of dampening, just sparingly. You don't build an enclosure to flex and I feel IB is the same way. I will be running 3 10s in this byotch. The above was a span of 2 nights and about 10 hours

Peas.

Click to read more...



[FurbiesAndBeans 10+ year member]

work looks nice!



[Highs on bass]

MORE lol



[Upgrayedd 10+ year member]

More will be a long wait. I work at 3 shops (none audio related), along with being Mr. Mom during the day. This vehicle needs an engine before audio. And I want my sprite on the road before the end of this coming summer, so I am occupied to say the least. On top of that I need family time which is more important than any of this. There may be 2 updates a month or so.



[Upgrayedd 10+ year member]

Nothing too exciting but I got some time.

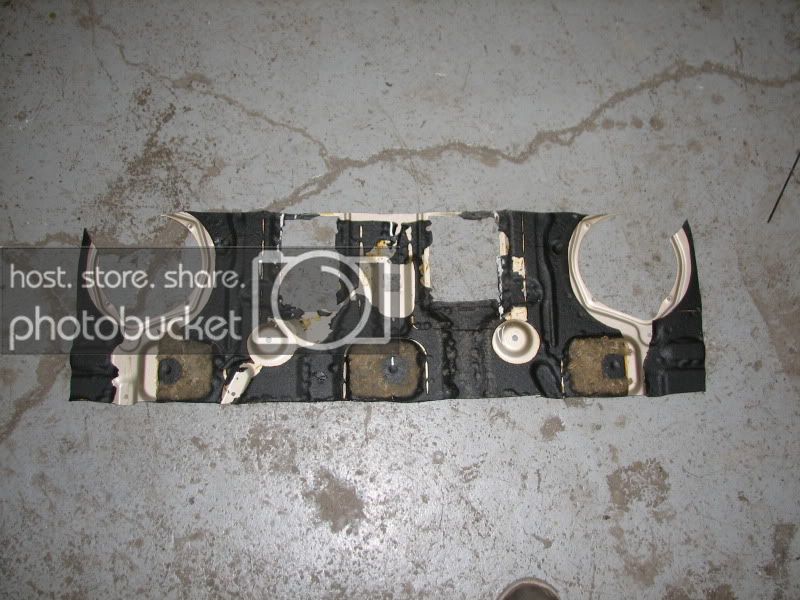

I scraped off the factory sound deadening, Luckily this wasn't as stuck as usual. Took less than an hour

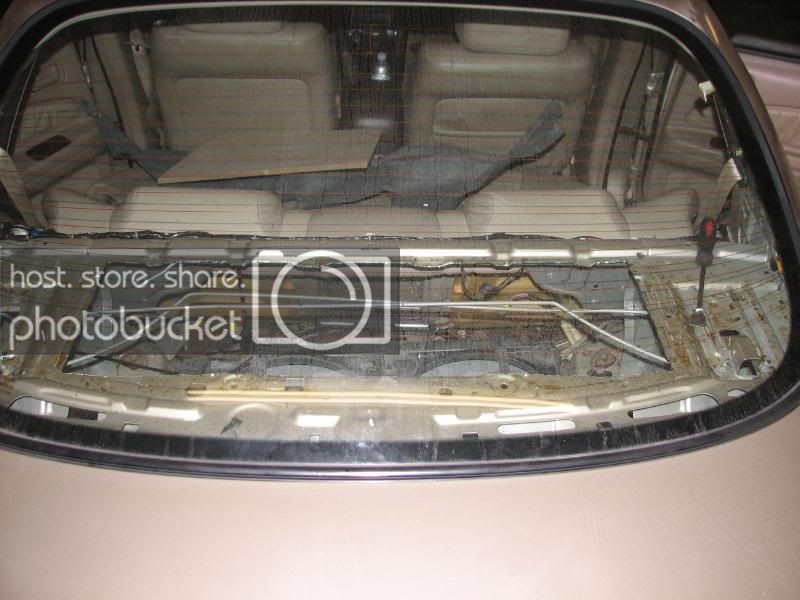

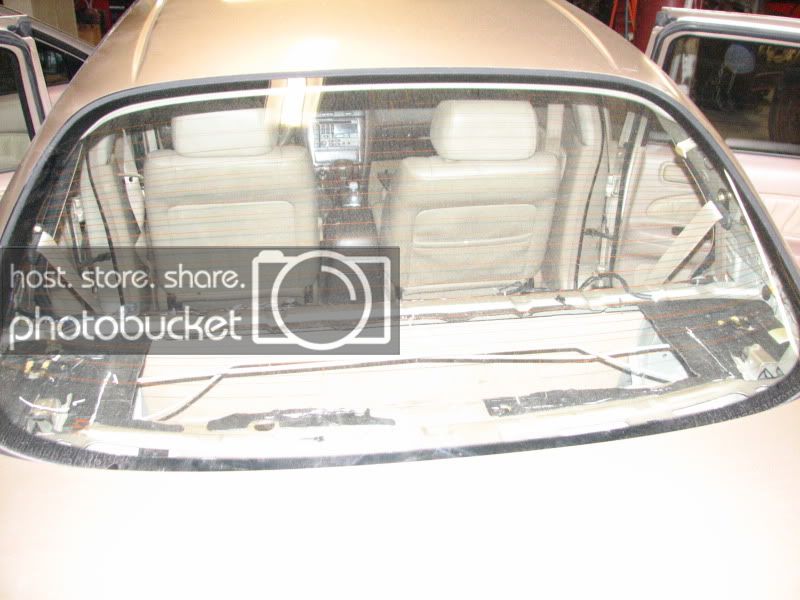

I then sanded the deck and the frame.

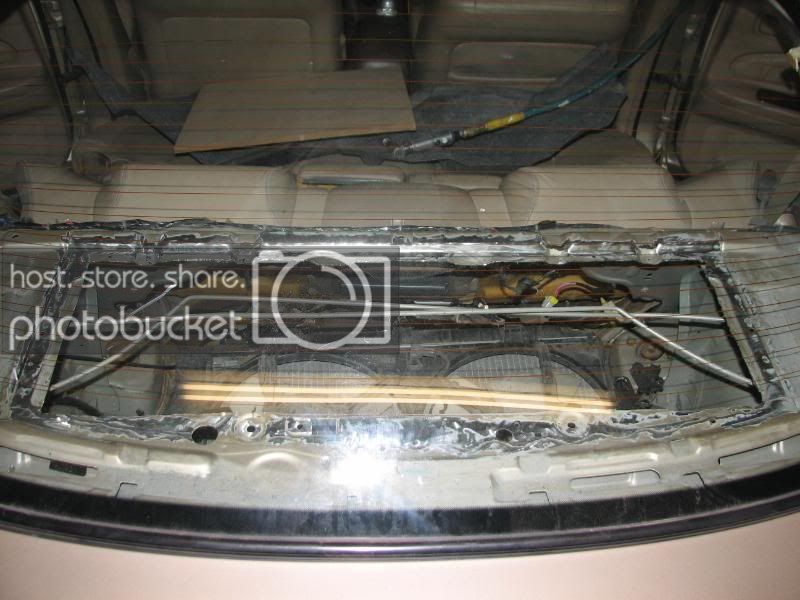

Dropped the frame in and tacked it in. Started stiching it. Against my better judgment I didnt seam weld 1st. This bit me in the ass when the seams that are 1/2" from the frame started distorting. before I went further I spot welded them best I could.
