Sundown 2012 Frames : Samples Arrived

[sundownz Pro Seller]

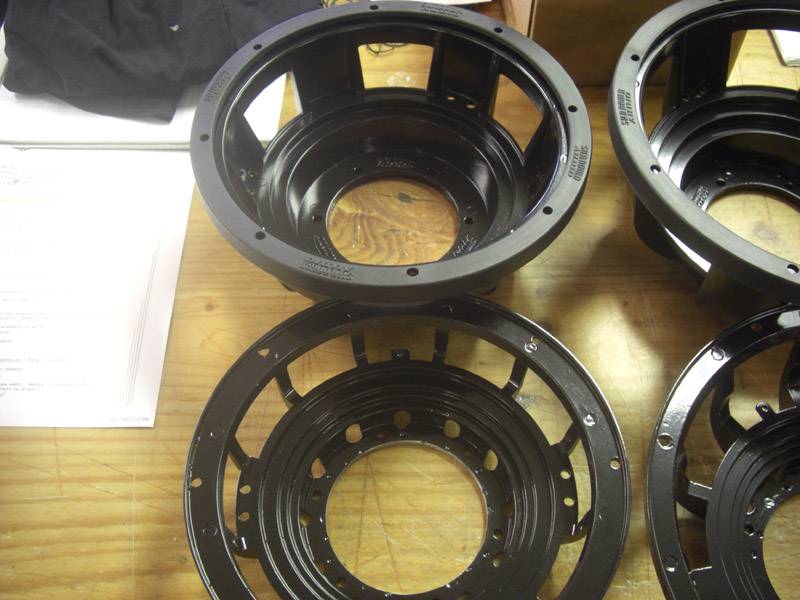

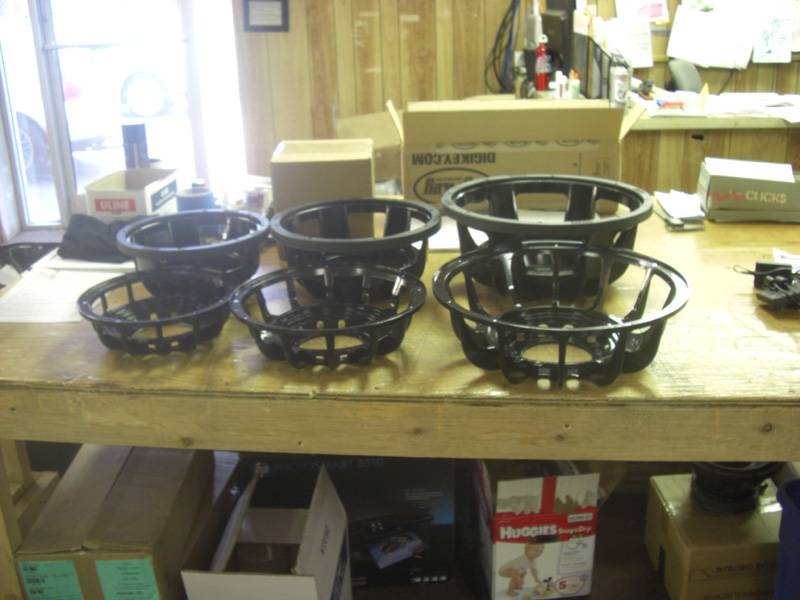

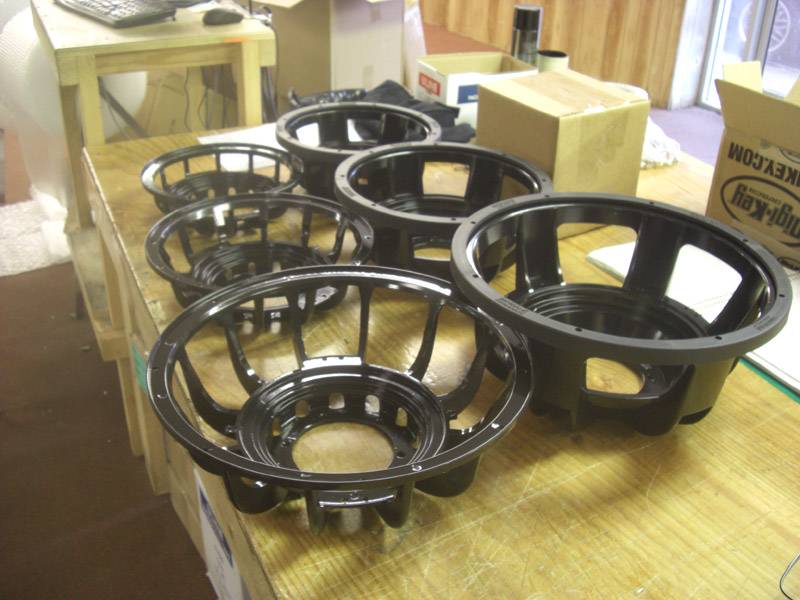

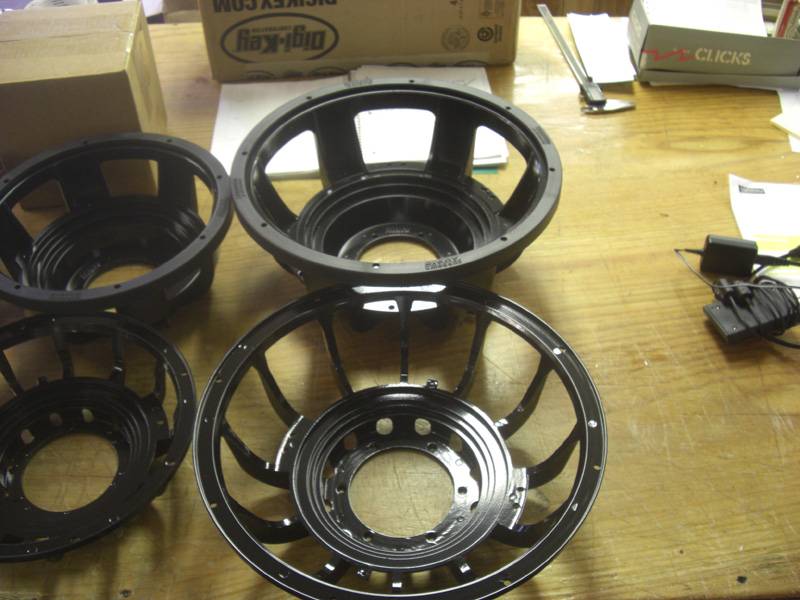

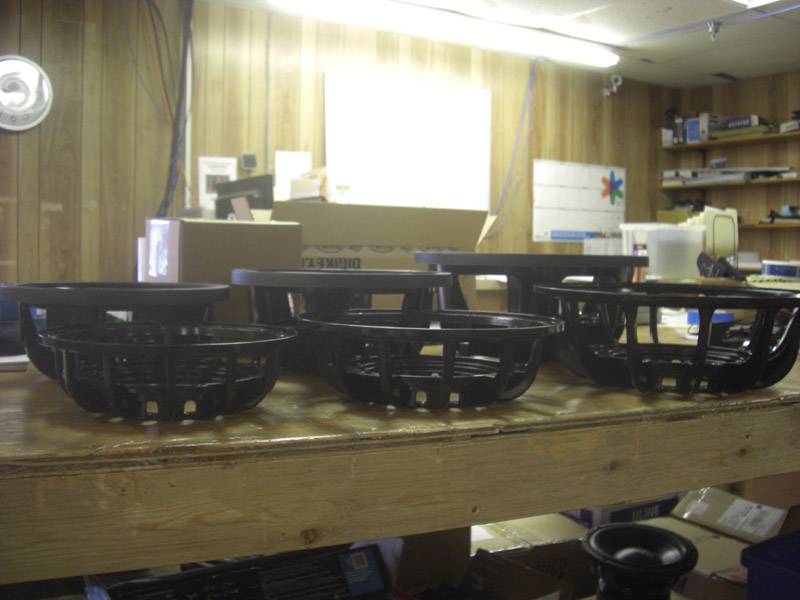

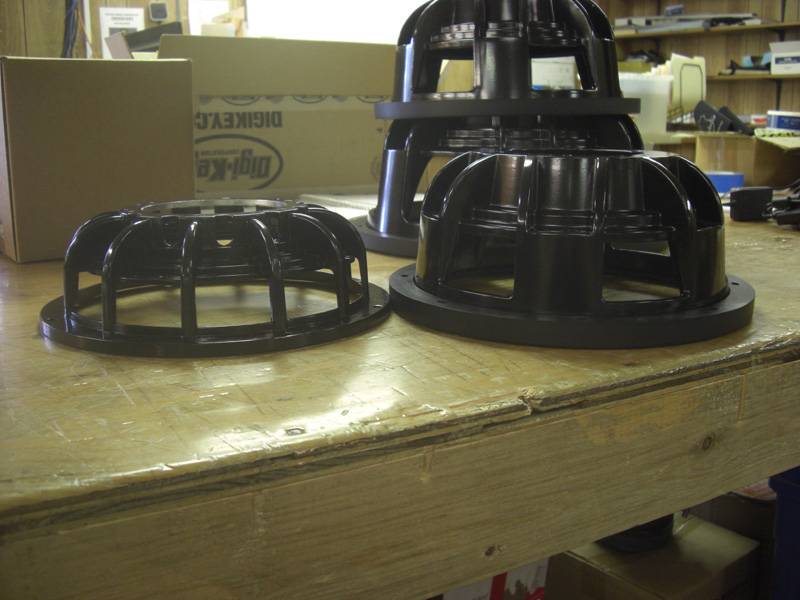

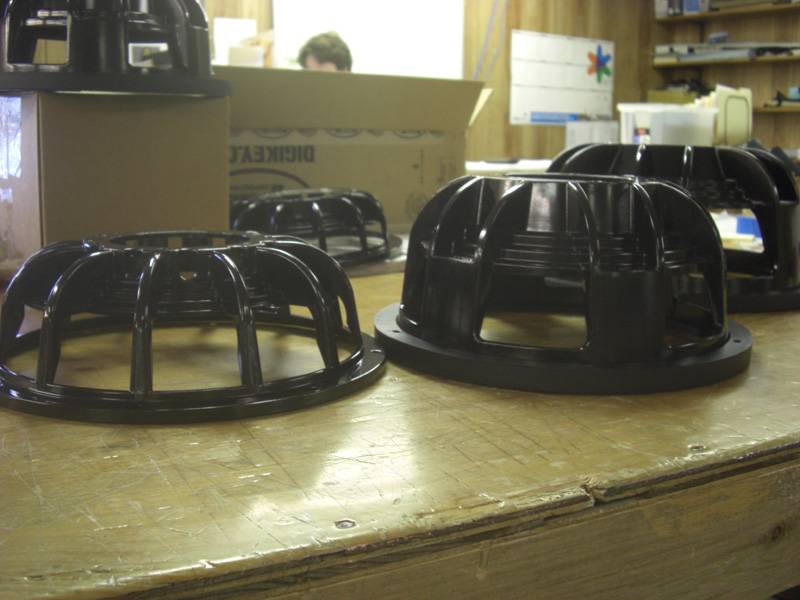

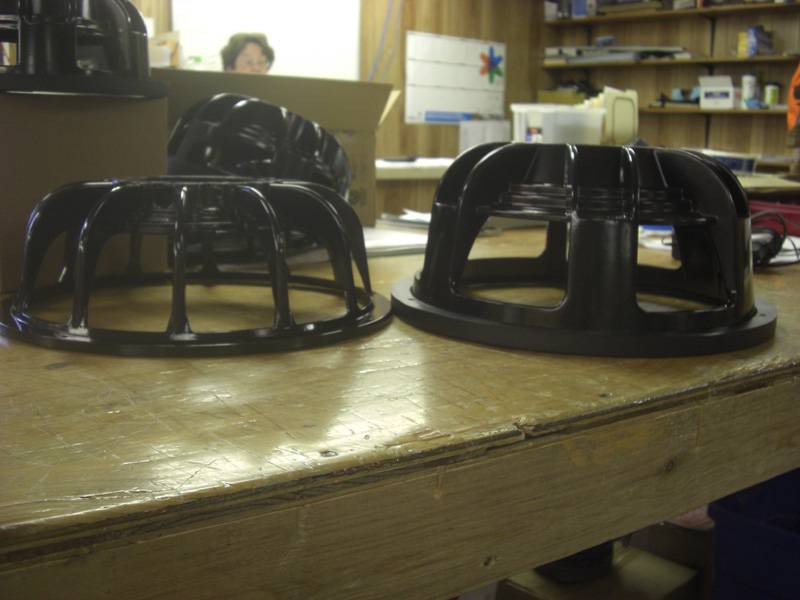

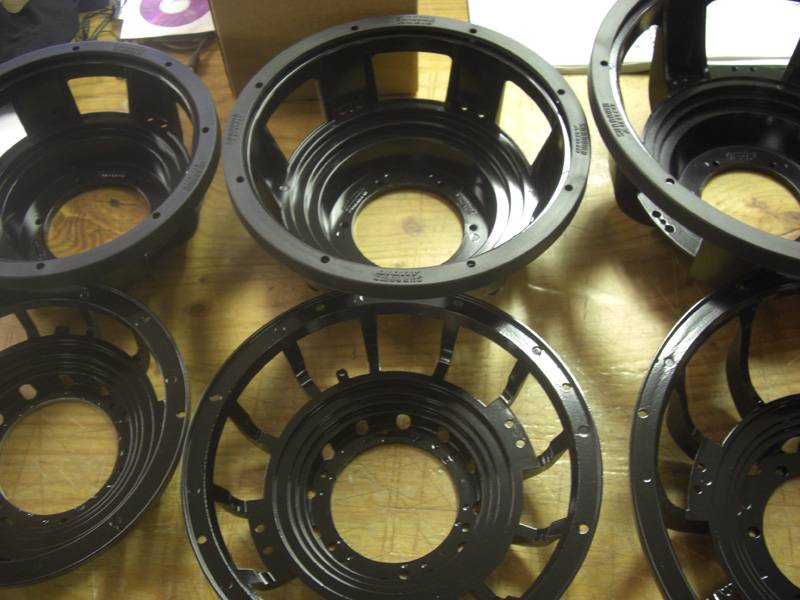

The samples arrived while I was out of town -- back now and on to the photos !

Weights :

10" 12-spoke : 1.7 lbs

10" Sundown : 4 lbs

12" 12-spoke : 2.3 lbs

12" Sundown : 5 lbs

15" 12-spoke : 3.4 lbs

15" Sundown : 7.9 lbs

Not a finely calibrated scale so within a few tenths.

Click to read more...



[sundownz Pro Seller]

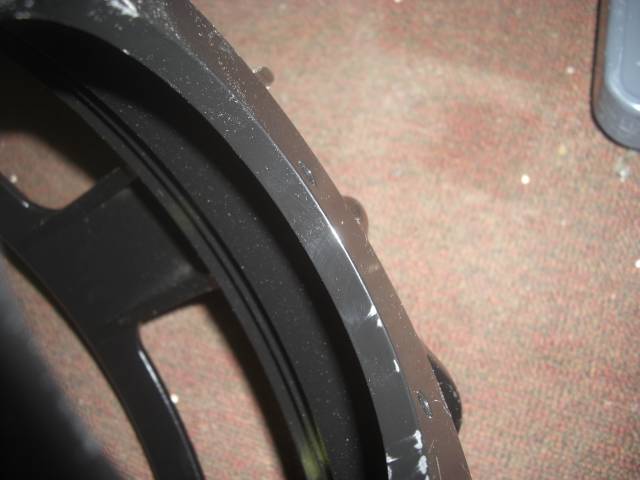

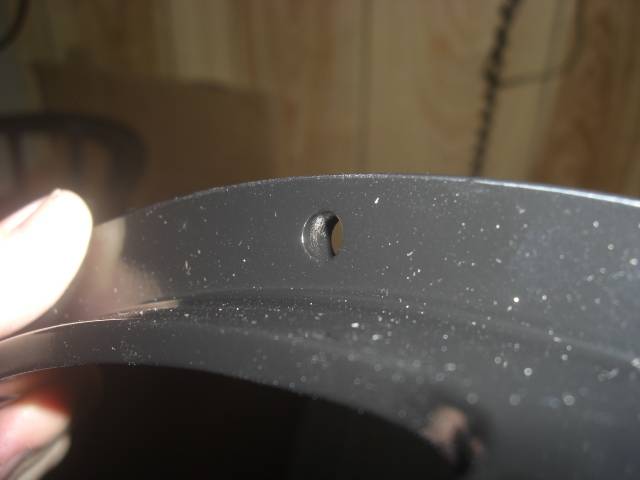

* THICK rim -- no more cracked rim with over-tightened screws or with a super heavy motor.

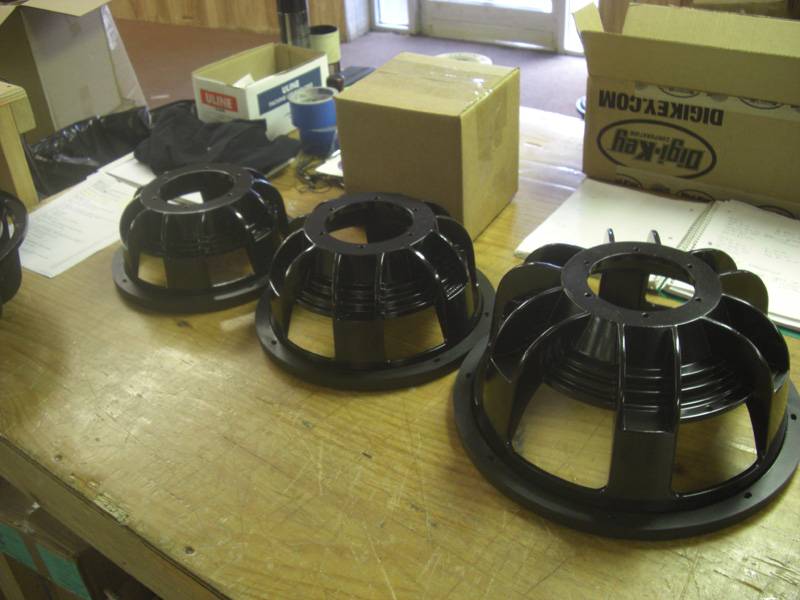

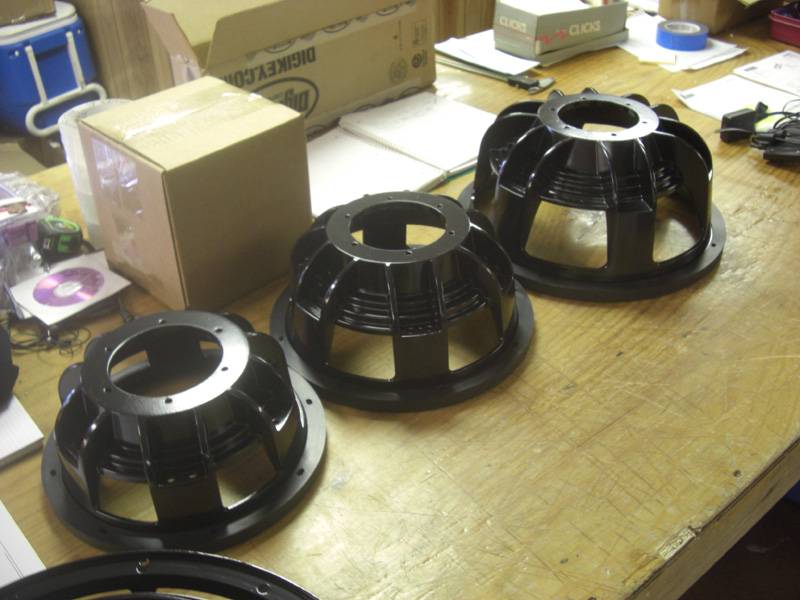

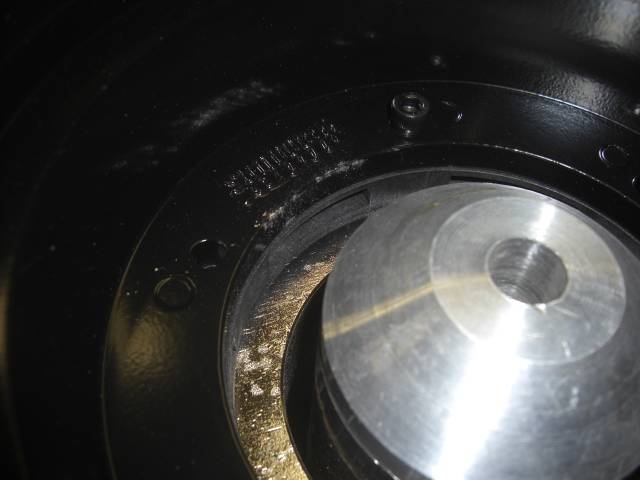

* THICK base -- no worries about bolts pulling through even with motors 2-3x heavier than we use now.

-----

Still awaiting our new cones and surrounds to arrive... then we can do some building and show off what these can do !

-----

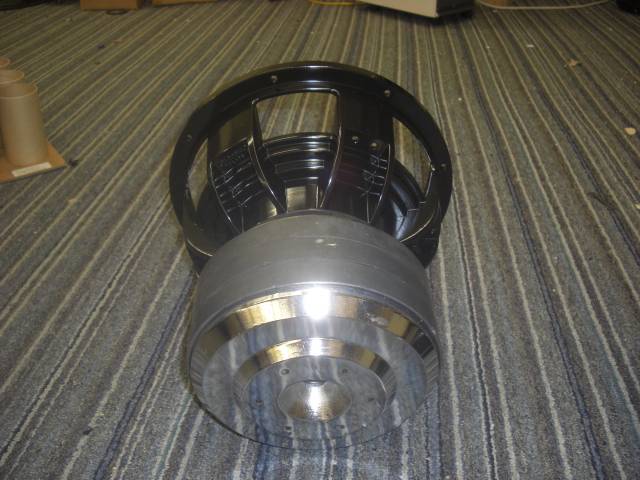

Mocked up on a motor with our new spacer ring... very similar to the Z v.3 18" spacer but the ID matches our new frame base and this one is a bit thicker to allow a bit more air flow as the new frames have more displacement potential. The same spacer works on all sizes 10/12/15 as well.

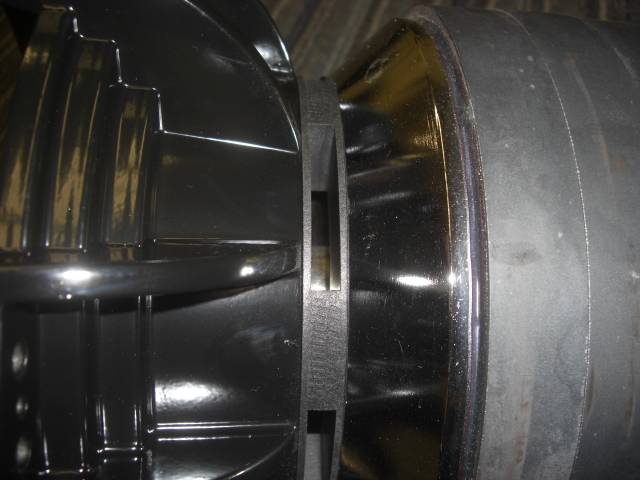

* Inner air passage on spacer

* Outer air passage

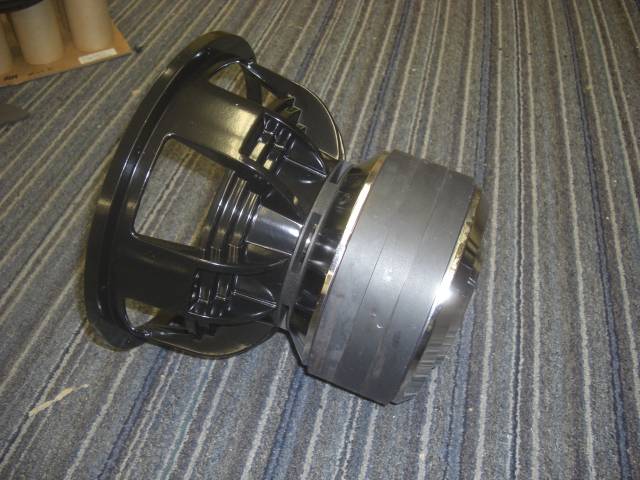

* This is a 12" frame and motor mock-up; proportionately looks alot like the SA-8 v.2



[Spooney 10+ year member]

* Outer air passage

* This is a 12" frame and motor mock-up; proportionately looks alot like the SA-8 v.2

That just looks sick man. I want it . Spider Landing 8 inches or bigger?



[sundownz Pro Seller]

The 10" has 8 3/8" -- the 12" has 9 1/4" -- the 15" has 10 1/8" spider



[Dtrom 10+ year member]

Beefy!!!!!



[Hall_393 10+ year member]

I want one //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[Serpent710 10+ year member]

looking forward to seeing the softies for them!



[AwesomeStranger 10+ year member]

Wow those look amazing. The new lineup is gonna be great.



[IAD-Zak 10+ year member]

makes me want to sell a kidney to do a new install with these



[BAPEKC 10+ year member]

Got my attention!



[SourDeez 10+ year member]

I didnt say you could go out of town jacob



[hispls 5,000+ posts]

Can't say I'm in love with non-standard spider sizes, but they sure look nice and functional.



[sundownz Pro Seller]

Can't say I'm in love with non-standard spider sizes, but they sure look nice and functional.

You can glue an 8" spider to any of them still //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif They have multiple landings -- but our 8" landing is over-sized to also accept the 8 3/8" model.

There is enough glue pad that most 8, 9, and 10" units will glue right on.



[dbjunior 10+ year member]

Can't wait to order a couple baskets cones and spiders. Are the spacers the same. For all baskets or each basket have a different Spacer?



[hispls 5,000+ posts]

You can glue an 8" spider to any of them still //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif They have multiple landings -- but our 8" landing is over-sized to also accept the 8 3/8" model.
There is enough glue pad that most 8, 9, and 10" units will glue right on.

Flexibility is great. Thank you for pushing some innovation.
