So I'm planning on getting a couple 12" Orion HPs.. Well I decided I was going to try and make a design for it this time... well I did.. but I don't know the tuning formula and I would like to know if this plan would work fine.. so basically my question is what is it tuned to and will it work fine.. and are my calculations right.

External Dimensions:

Width - 36"

Depth - 20"

Height - 16"

Its double baffled to help the flexing effect... I haven't taken out port displacement but I did take out my subwoofers displacement and it comes out to be 4.94 cu ft...

its not marked but the port goes back 14 1/4".... so what would it be tuned to?

Opinions and advice are welcome! //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif

Click to read more...



[j3bus2k3 5,000+ posts]

How can you design a box around an aribtrary port length? Shouldnt that be on the MAIN things to consider when designing a box since that is an integral part of said design?



[fwb_1234 10+ year member]

at 14.25 you are definitely tuned above 40hz. 16 tunes you to 40.



[vladd 10+ year member]

you're at about 46hz the way you have it, 2.2cubes/sub

fyi, by my calculations it would take 24.75" length to get you to 40hz and leaves you with just under 2cubes/sub



[coolahan 10+ year member]

thanks guys!! can anyone maybe come up with a design for me 2 cubes per sub... tuned at 37hz... displacement on each sub is .096 cu ft... max dimensions are 37 width, 18 height, 22 depth... would greatly appreciate it fellas... i sort of want the same kind of design if possible.. or just come up with one that you think looks good //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif seriously guys i would great appreciate it..

edit: its for 2 12's.. 11" cutout... 12.25" basket



[rpfuror 10+ year member]

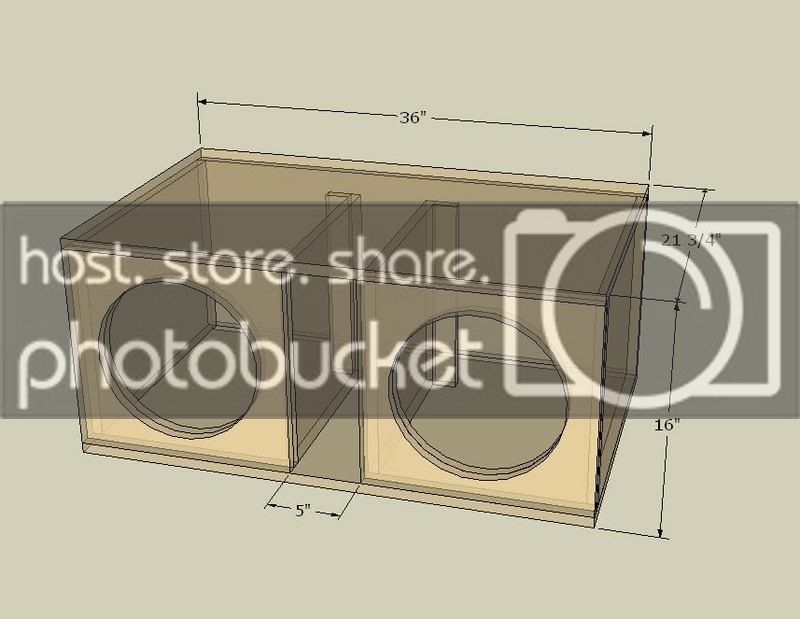

Here you go man. This one is acurate 4cu/ft @ 37 hz



[IonSQL 10+ year member]

How far back do those port walls go?



[rpfuror 10+ year member]

14.5 + 1.75 + double baffle



[IonSQL 10+ year member]

If you're going to do a center port like that, then the width across the back wall needs to be 1/2 of the main port width i.e. 2.5", not 5"



[bjfish11 5,000+ posts]

I got 46 hz on the original as well.



[PV Audio 5,000+ posts]

Here you go man. This one is acurate 4cu/ft @ 37 hz

But...no.

If you do a intrabaffle port, your rear port width must be half the width of the main port.



[IonSQL 10+ year member]

But...no.
If you do a intrabaffle port, your rear port width must be half the width of the main port.

Kinda like what I said, only you used a fancy word //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif



[PV Audio 5,000+ posts]

Yeah, I didn't see that you posted that, just responded after looking.

And i made the word up on the spot //content.invisioncic.com/y282845/emoticons/laugh.gif.48439b2acf2cfca21620f01e7f77d1e4.gif



[IonSQL 10+ year member]

haha sounded good to me, guess that's what we'll call it from now on //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif



[coolahan 10+ year member]

thanks guys //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif appreciate it very much!
