Ported Box for SSA ICON 18"

[Papermaker85 5,000+ posts]

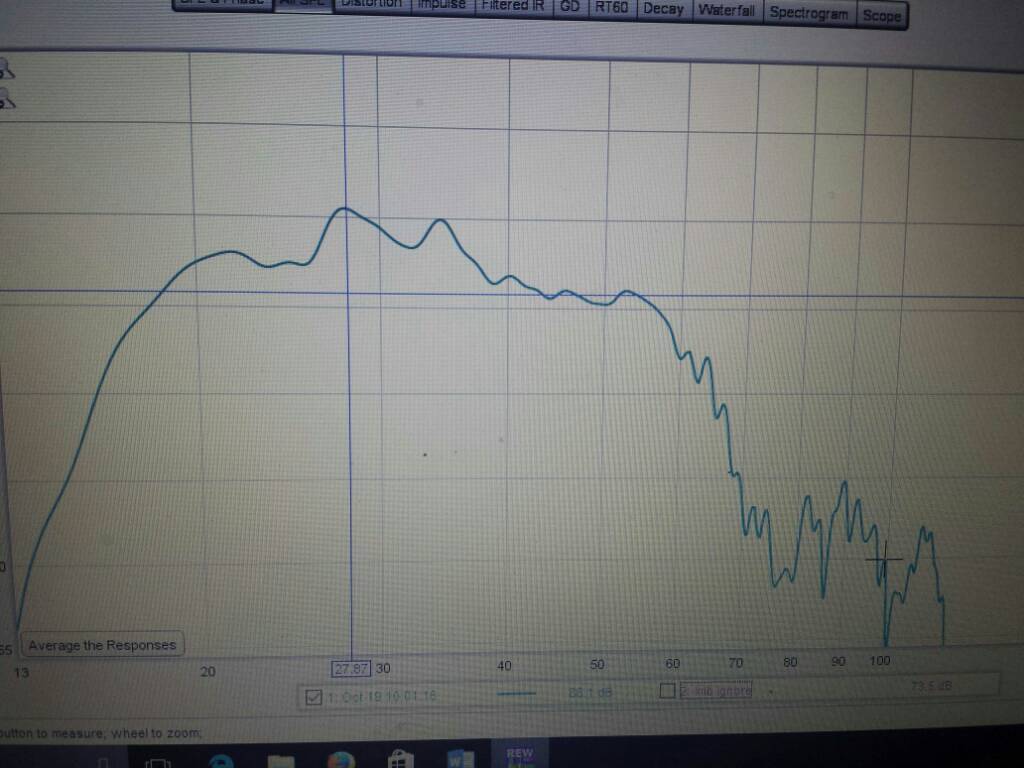

This is my Icon 12" in roughly 2 cuft ported at 30hz.

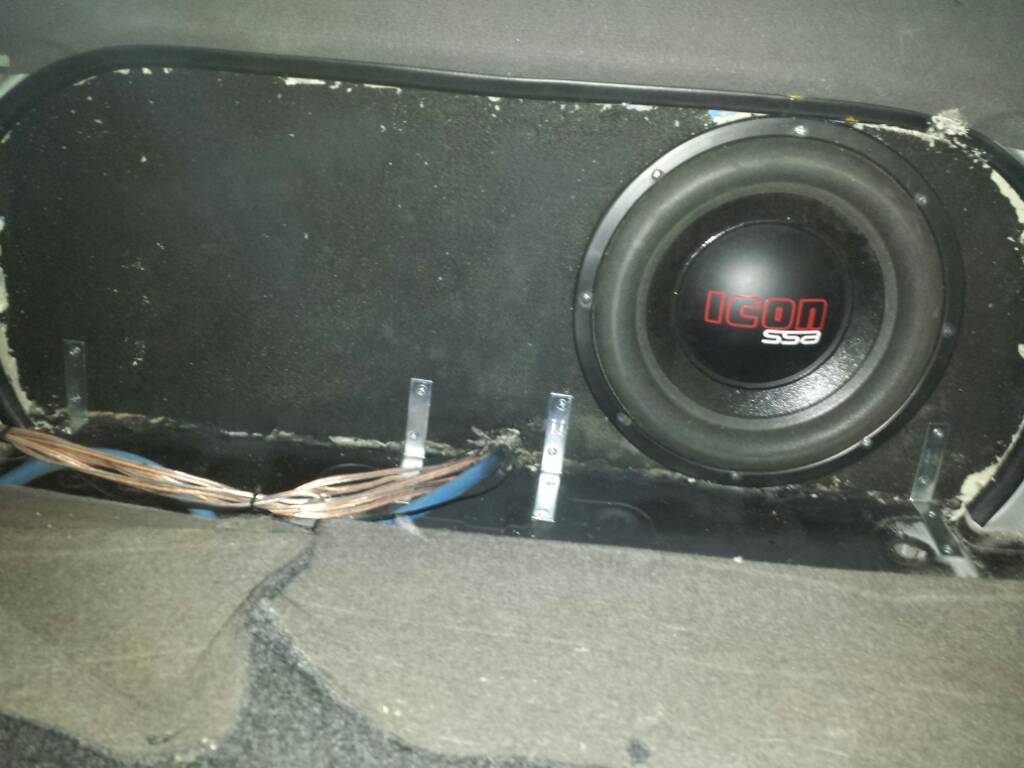

This is my Icon 12" in a IB config.

looks like a bit of a phasing issue ported. you tried different orientations? by no means is it bad. looks like you have alot of cabin gain down low though. that's not a bag thing considering hearing sensitivity goes way down around 30hz on down.



[The Camry]

looks like a bit of a phasing issue ported. you tried different orientations? by no means is it bad. looks like you have alot of cabin gain down low though. that's not a bag thing considering hearing sensitivity goes way down around 30hz on down.

What phasing? The first one is just the peak and a slope down to 100hz +
2nd one is Ib and all over the place because thats kinda just the nature of ib. When your trunk is your box.

Sent from my SGH-M919 using Tapatalk



[Papermaker85 5,000+ posts]

What phasing? The first one is just the peak and a slope down to 100hz +
2nd one is Ib and all over the place because thats kinda just the nature of ib. When your trunk is your box.

Sent from my SGH-M919 using Tapatalk

in relation to the driver and port brotator



[The Camry]

in relation to the driver and port brotator

Im not really sure what you mean
Sent from my SGH-M919 using Tapatalk



[The Camry]

Im not really sure what you mean
Sent from my SGH-M919 using Tapatalk

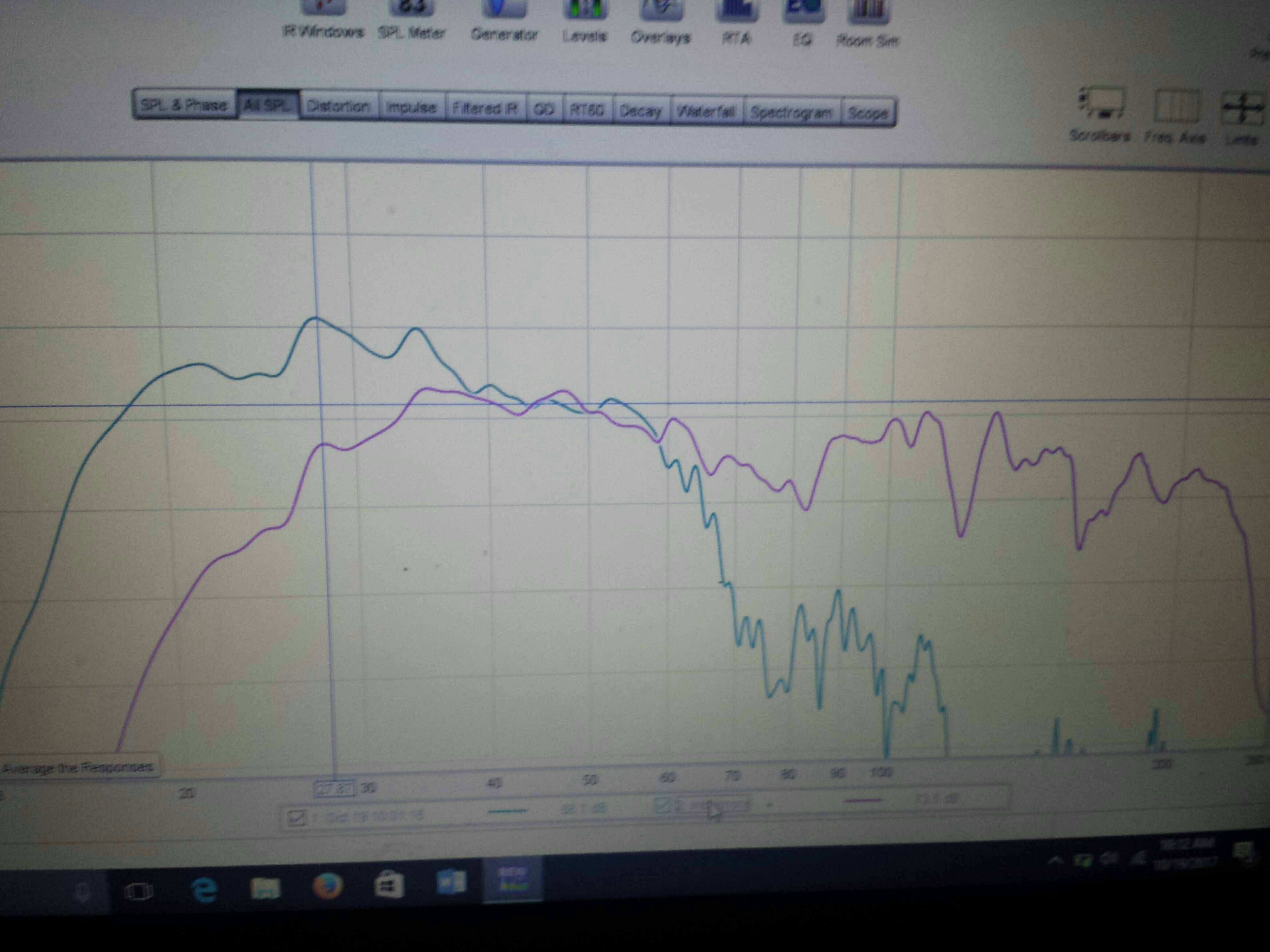

Found out my baffle was flexing so i braced the ever living heck outta it. Thats the new FR. You can see Cabin gain peaks lol.
Red line is my 10s in kicks

Sent from my SGH-M919 using Tapatalk



[Papermaker85 5,000+ posts]

what smoothing are you using? looks dan nice to me.. how is the transparency. looks like it has a good roll off any decent 6.5 will blend nicely



[carp0331]

I ran a Icon 12 in 2.5 cubes with 3-4" aeros. It was quad baffled (long story) and completely resin'd inside and out. Got loud on 1K. Just started the box build tonight. It's freaking huge. Jeep is slammed on some 22x10.5's so I may be getting some helper bags to assist the eibachs. Never ran a T-line on something this big. Pretty flipping excited to finish it. While I'm at it I'm finally gonna get around to installing my 8" Daytons in the front doors and I've got a new set of tang band tweeters coming in tomorrow. Still debating on what mids or full range to run and placement. Thinking about some 3" in the kick location in some pvc end caps. Set up is being ran off an us acoustics Barbara Ann. 8" are 8 ohm so I'll bridge them and get about 200 RMS to each for the midbass. Tweets and mids/fullrange will be ran off front channel with separate crossover for the tweeter.



[denim 5,000+ posts]

Interesting to see a standard Icon ran IB.



[carp0331]

[/ATTACH]

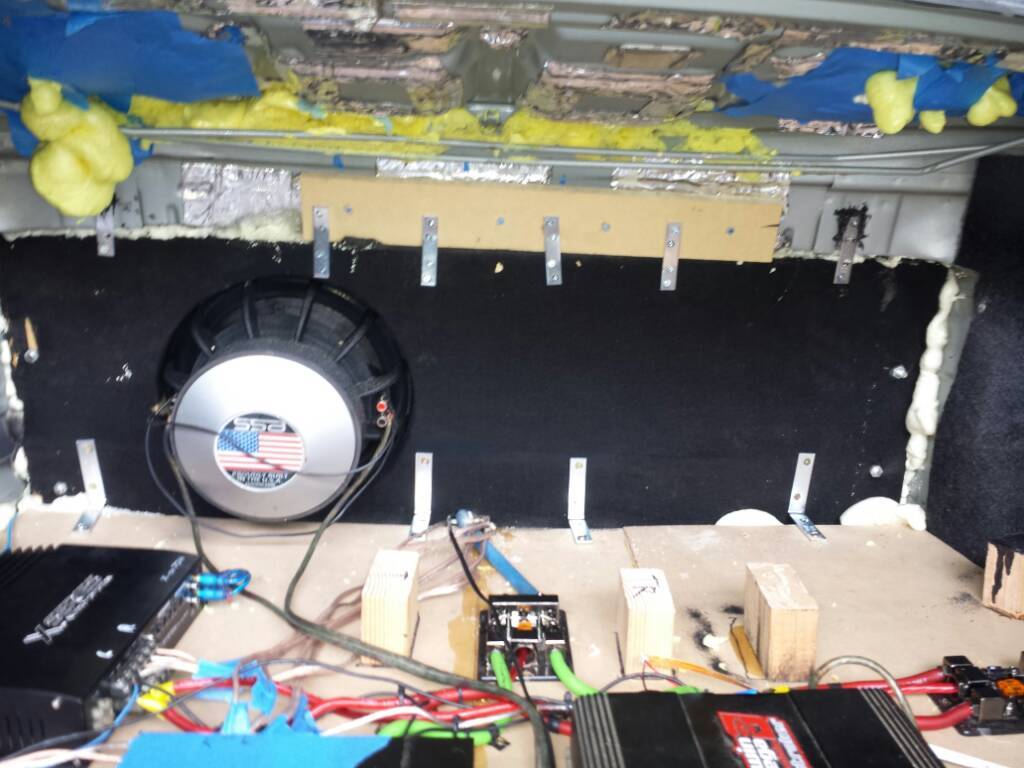

Old set up and new set up. Just finished the box. 10 cubes. 7.5 net. T-line box with 126" of port tuned to 33hz. Double baffled recessed. With 1" round wood stiffners for support. Doing some wiring upgrade and will hook up soon then update.



[The Camry]

Interesting to see a standard Icon ran IB.

Yea. I have to be careful about excursion of course but sq wise. Its freaking wonderful. I may sell it and go with am fi ib3 or two but im afraid to lose the sq qualities of this sub...
Sent from my SGH-M919 using Tapatalk
