Port length question Dayton HO 10

[Jimg]

question on what the port length needs to be

I asked parts express and this is what they sent back

: 1.5cft vented for the HO10 DFC subwoofer

One 4" port that is 39.15' long would tune well. That would be getting an F3 of about 26 Hz.

My question is this. the enclosure will be no where close 39 inches in length.

1 from what I can tell is I will have a port extending well outside the enclosure
2 or tune the box higher

for the ones that have expreience with this subwoofer what is your setup?

can someone point me in the right direction?

Click to read more...



[Ridinhi 5,000+ posts]

Dayton HO 10

I want a sub i can use in a small enclosure. Dayton recommends 1.2 cubic feet for the HO 10. This will be a good size. Would that be a ported or sealed enclosure. Also could I go with maybe a .8 to 1.0 cubic foot enclosure. And what should I tune the enclosure to? Thanks

www.caraudio.com



[Ridinhi 5,000+ posts]

From what I remember about this sub years ago,
.7@30hz is what was recommended by many. If I decide to try this sub in my single cab, that is what I will be going with. Port will be an external port that fires to driver side



[SlugButter]

Their recommendation is not going to work in a vehicle. For home audio, that wouldnt be an issue. I had one in 1 cube tuned to 30hz behind the seat of my s10, and that seemed to work well. You could probably go down to even .75 cubes tuned in the 30s and sound good. Subs in a house work different than in your car. The bass in the car is accentuated by cabin gain, which changes the whole enclosure.



[SlugButter]

That sub is absolutely awesome btw. One of the best 10s on the market anywhere near its price range.



[Jimg]

Cool Deal

thanks for your help

I am thinking I will start at .85 cf and tune and work the box size from there



[Popwarhomie 5,000+ posts]

Like everyone said that is home for home use. .75 at 32hz is what I would do.



[THATpurpleKUSH 5,000+ posts]

Or just buy a $10 pvc elbow and bend the port so you achieve an efficient volume and port tune combo.



[Ridinhi 5,000+ posts]



[Ridinhi 5,000+ posts]



[Ridinhi 5,000+ posts]



[Ridinhi 5,000+ posts]

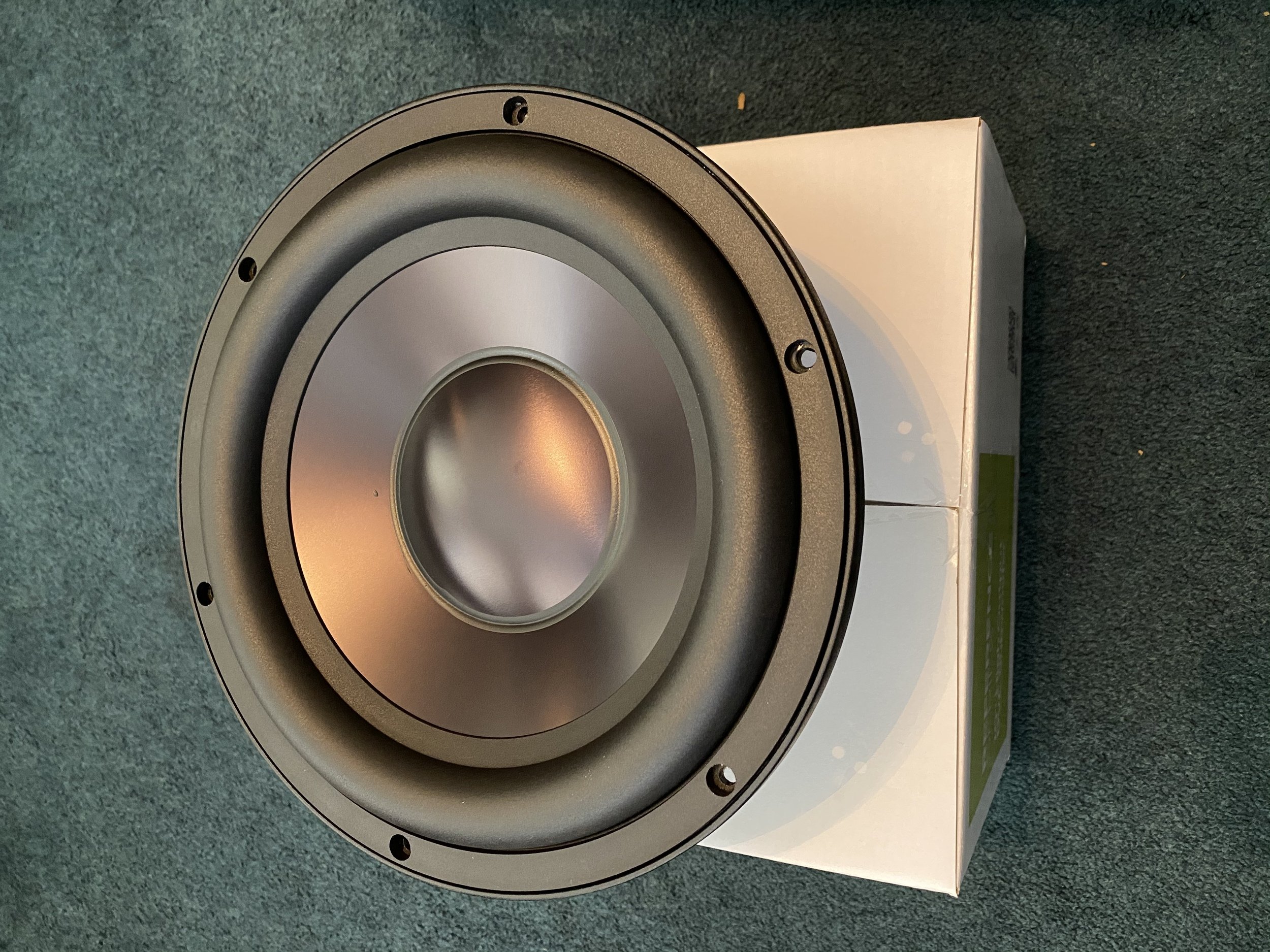

very nice looking sub indeed!
