Folded Horn Build for AudioFreak

[Pioneer~Saturn 5,000+ posts]

Hey guys,

This will be a folded horn build for AudioFreak, designed by pwk.

Lets get started..

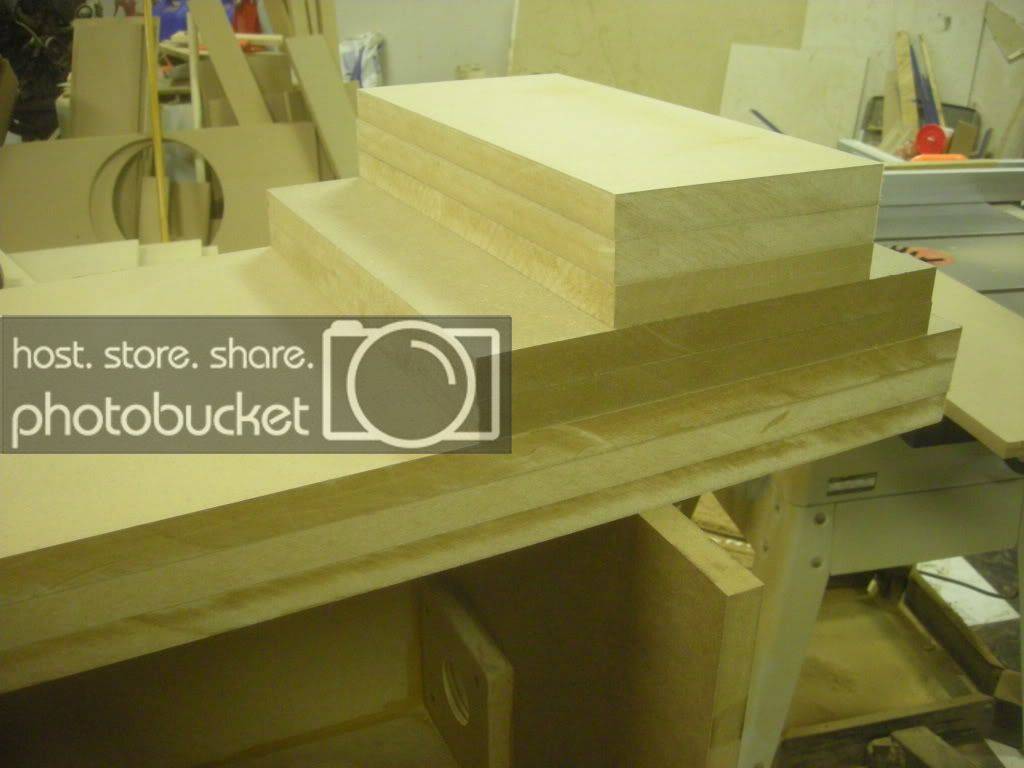

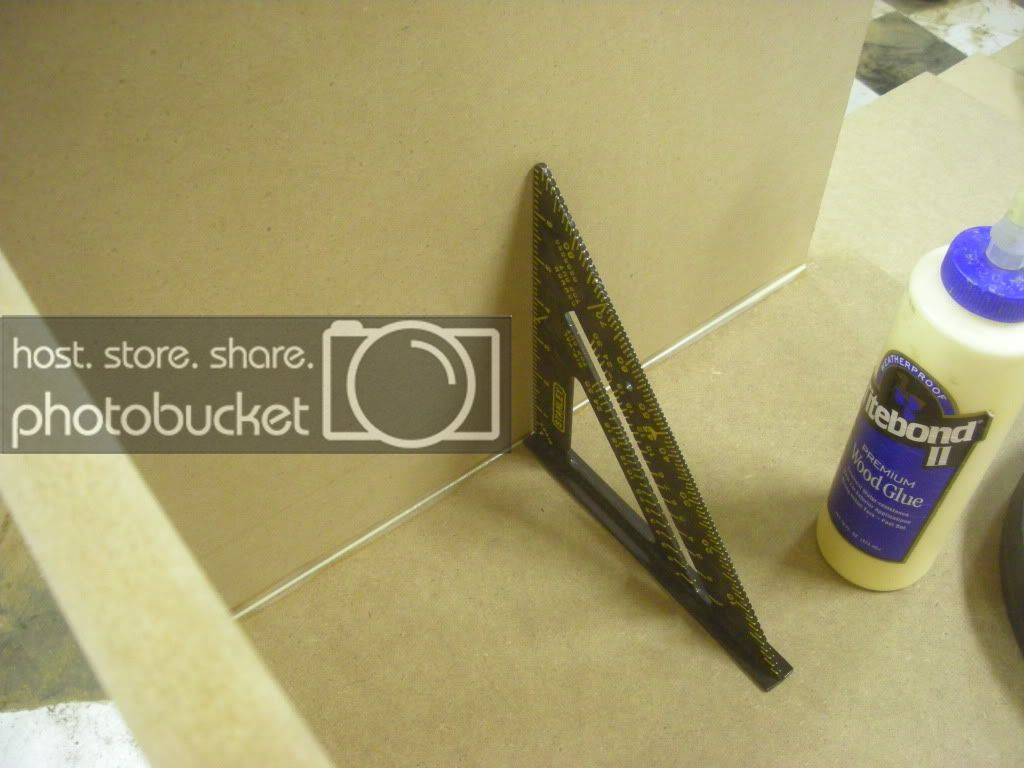

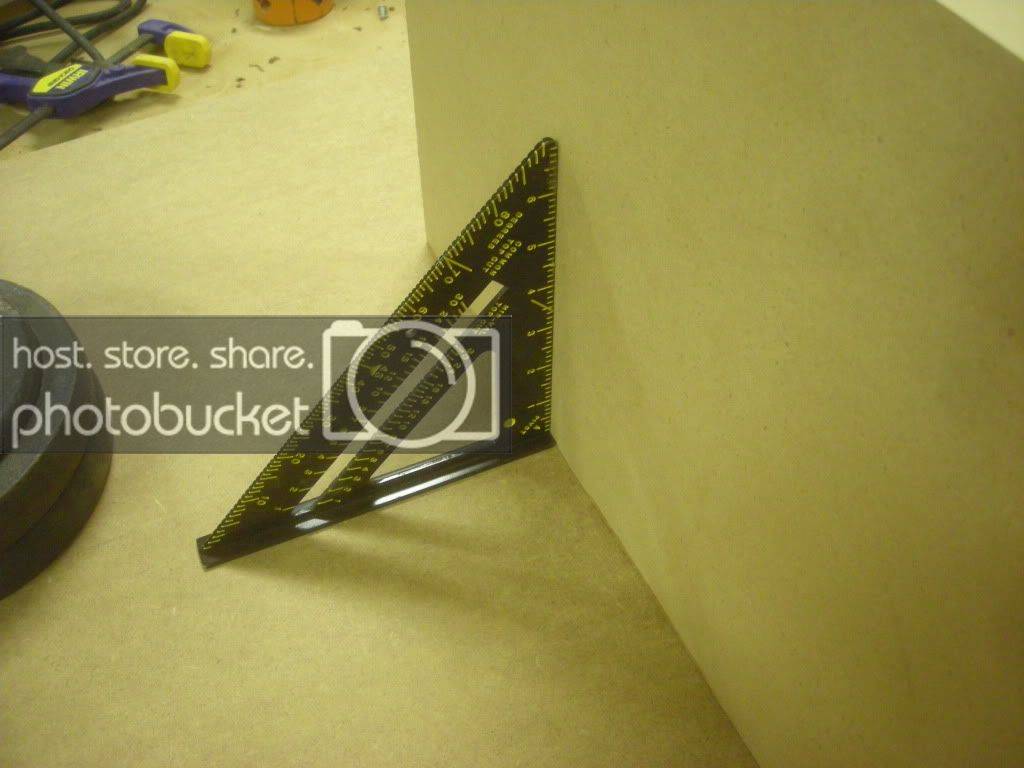

Some pieces cut:

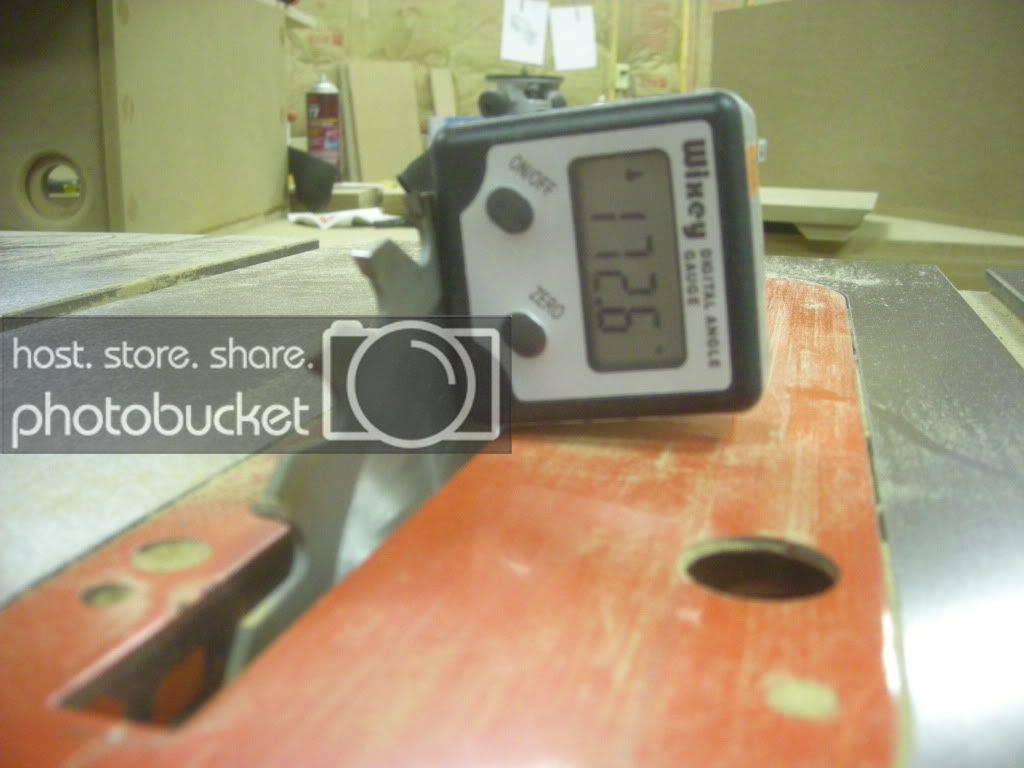

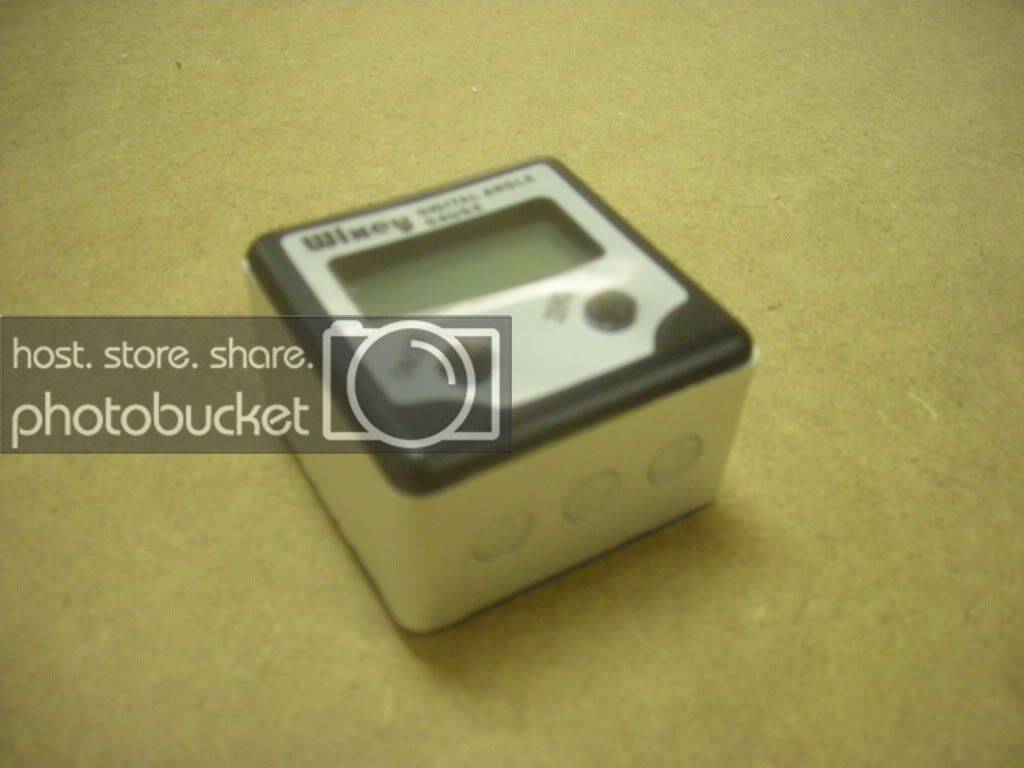

A magnetic angle detector for the odd-degree cuts..

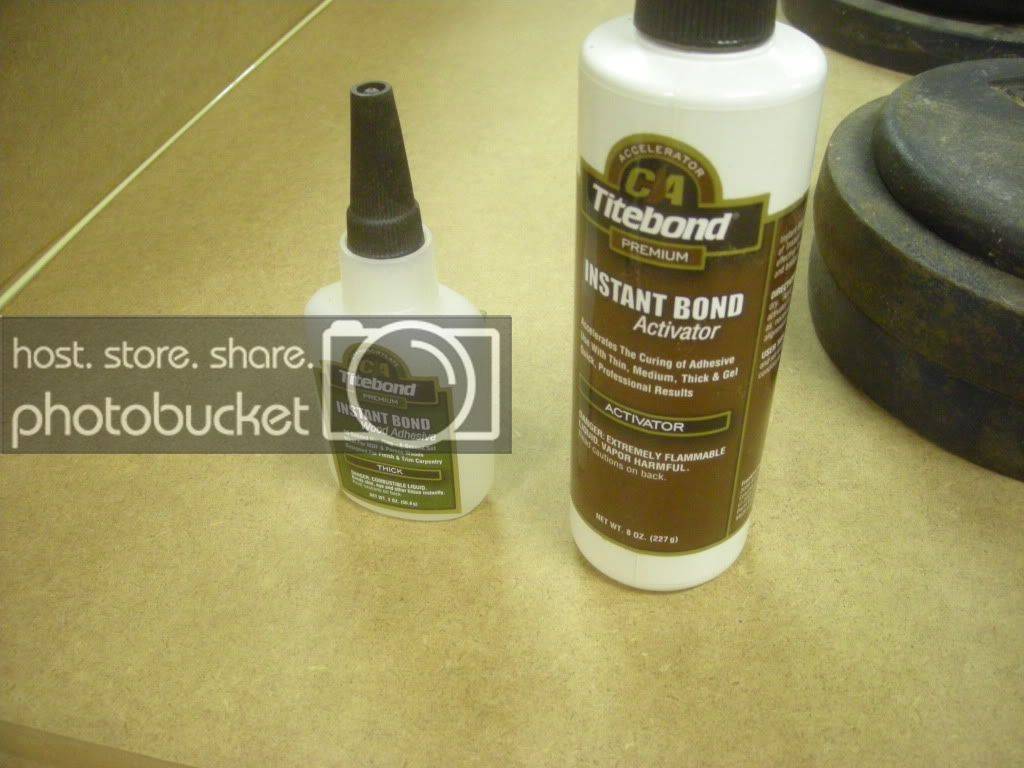

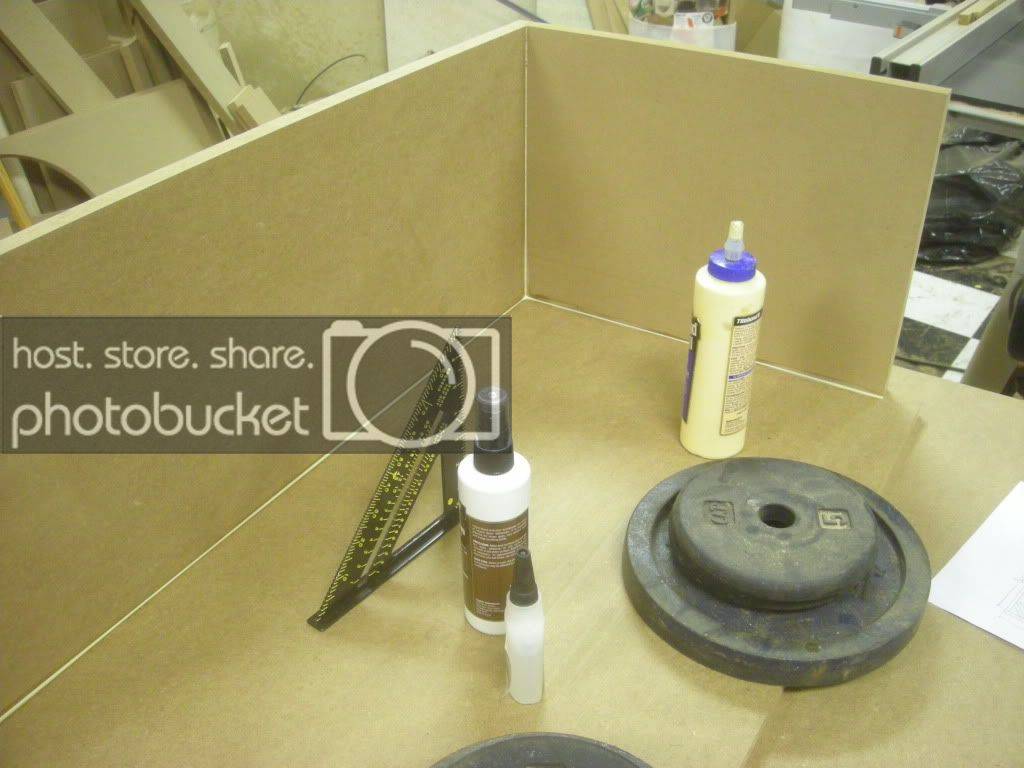

Also picked up some titebond instant bond for the pieces...really lets you get things going and fast!..and holds very very strong //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif

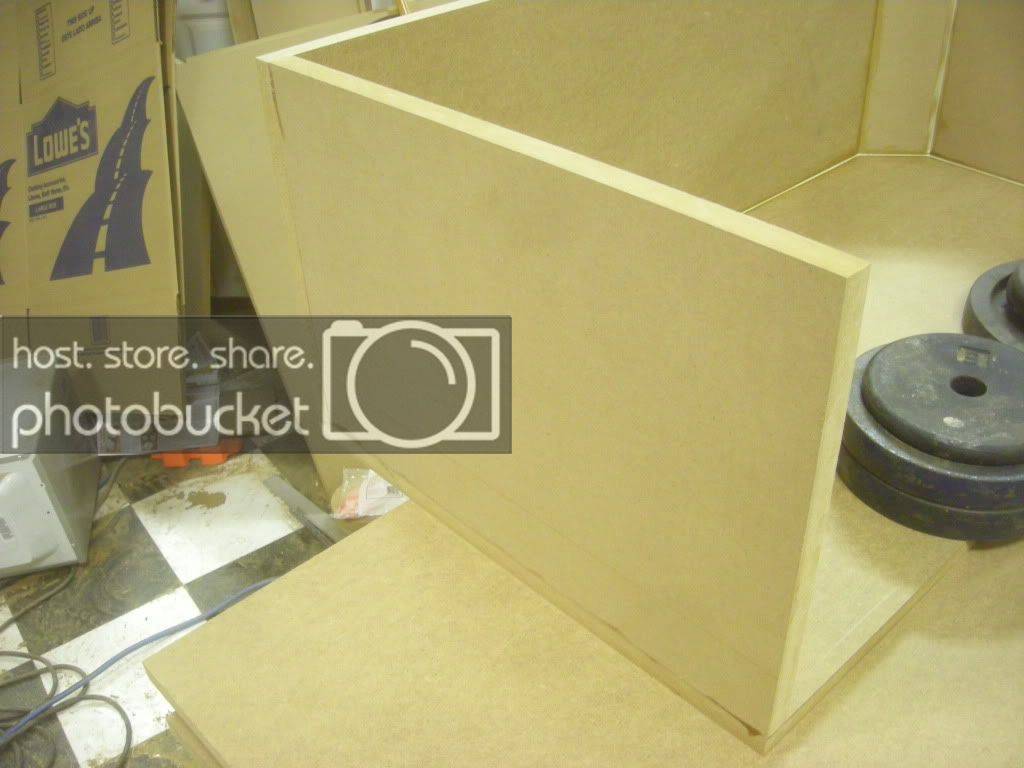

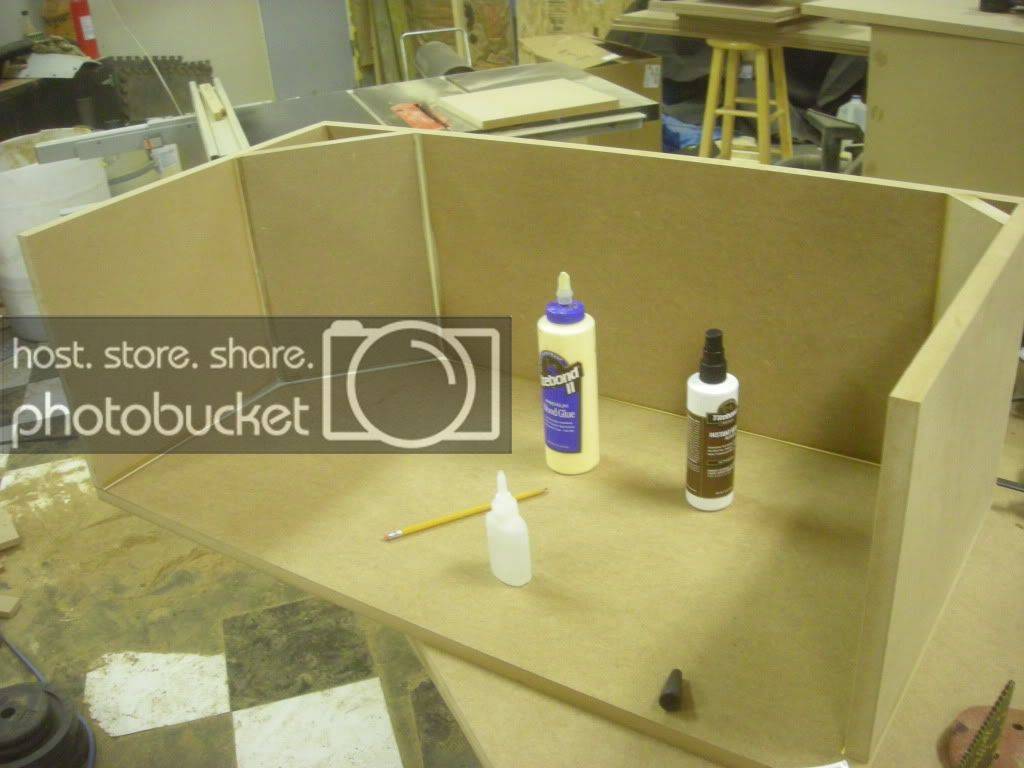

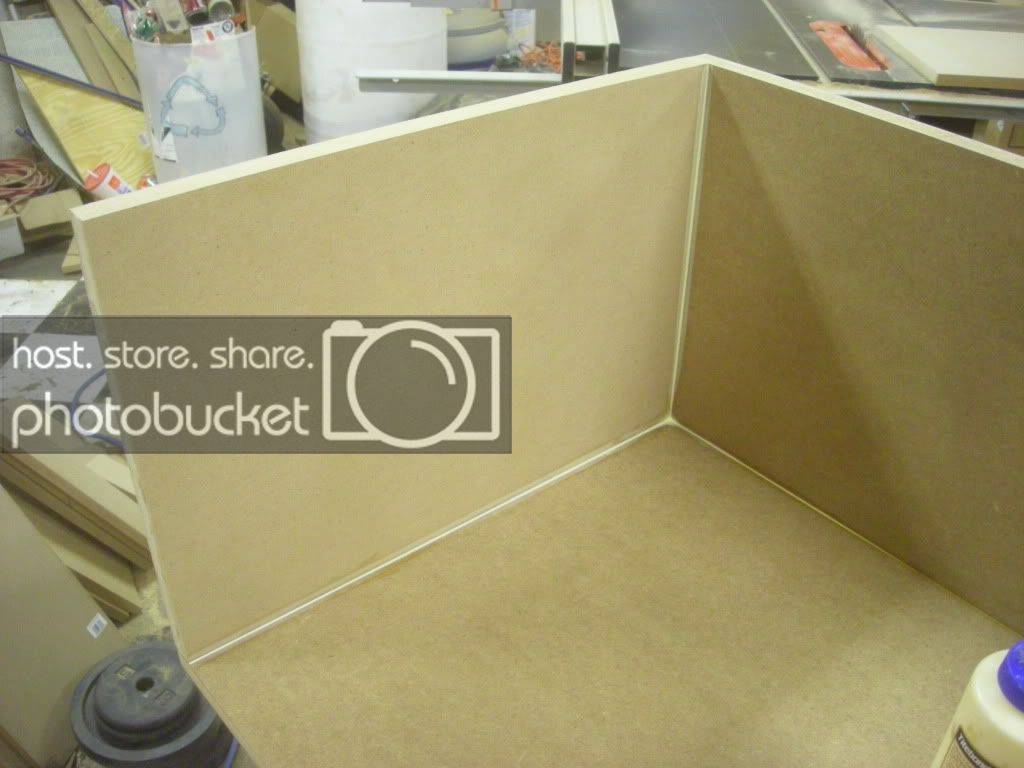

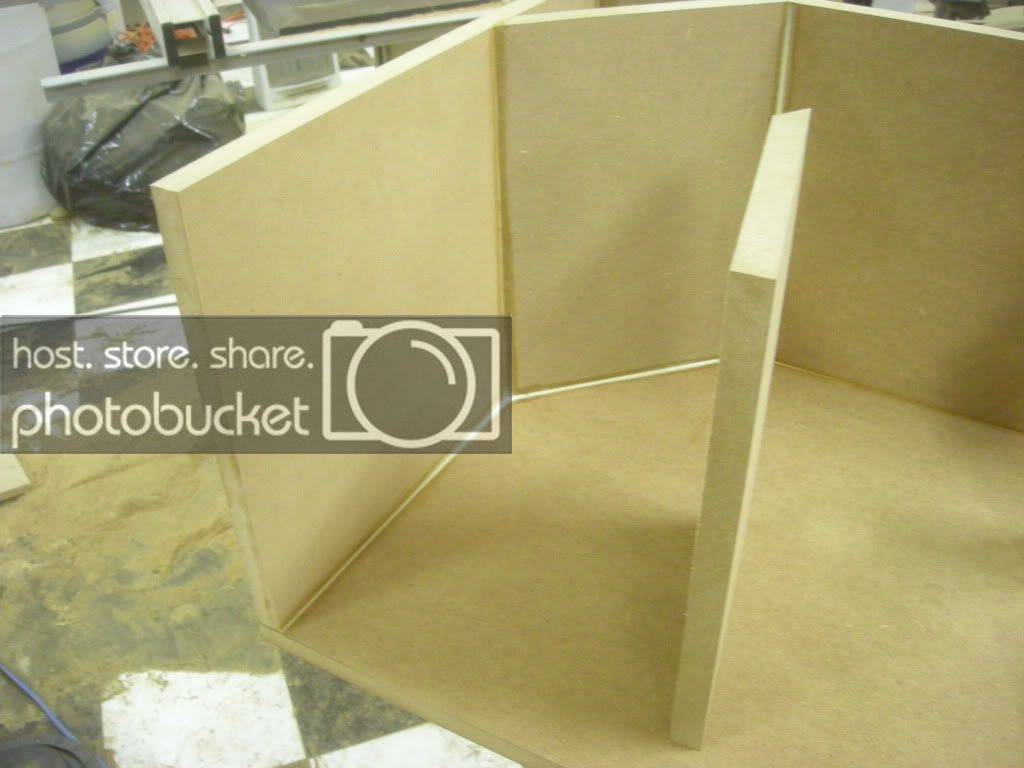

Back and side on..

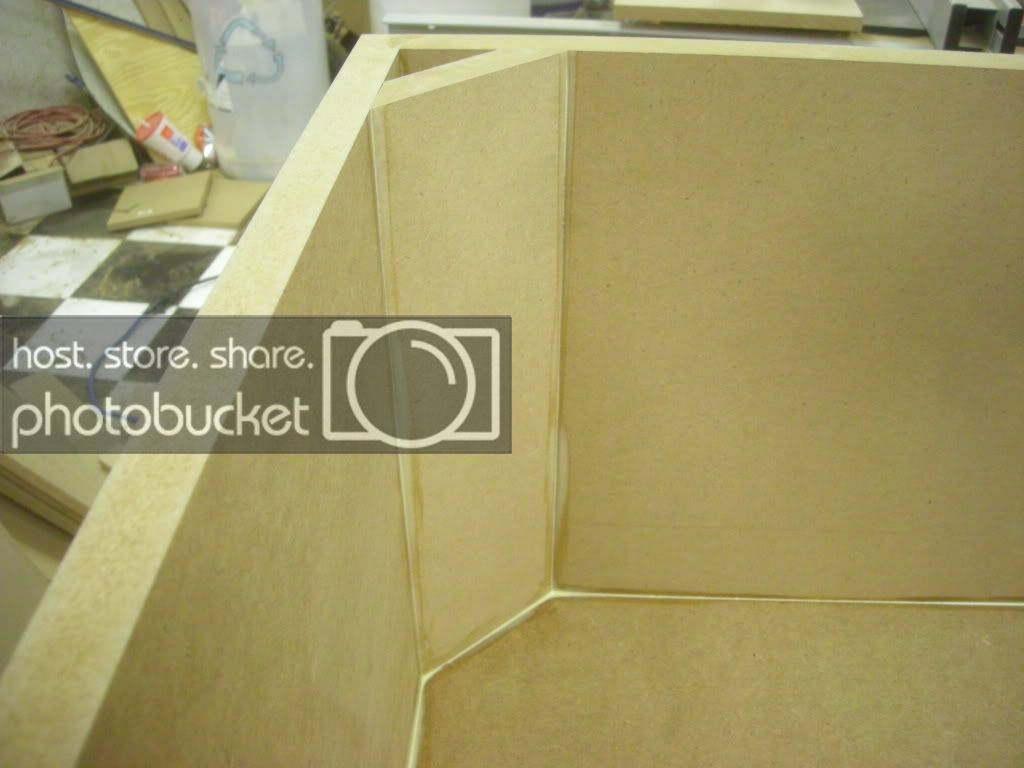

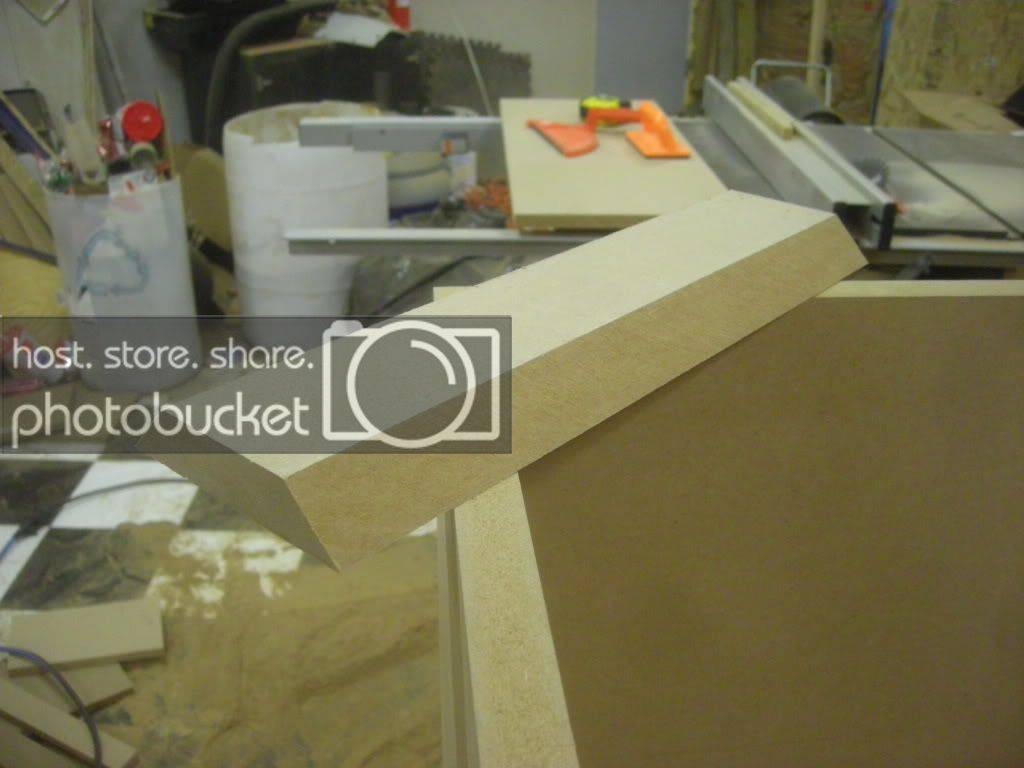

Insert for the corner..

Click to read more...



[Pioneer~Saturn 5,000+ posts]

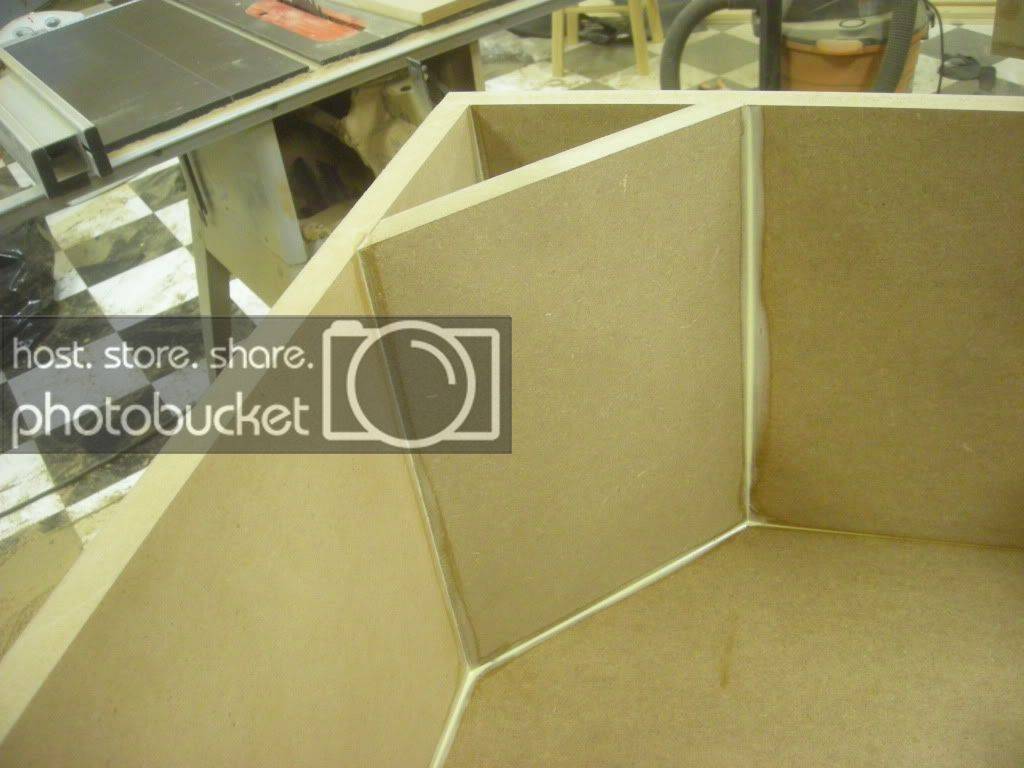

Other side on..

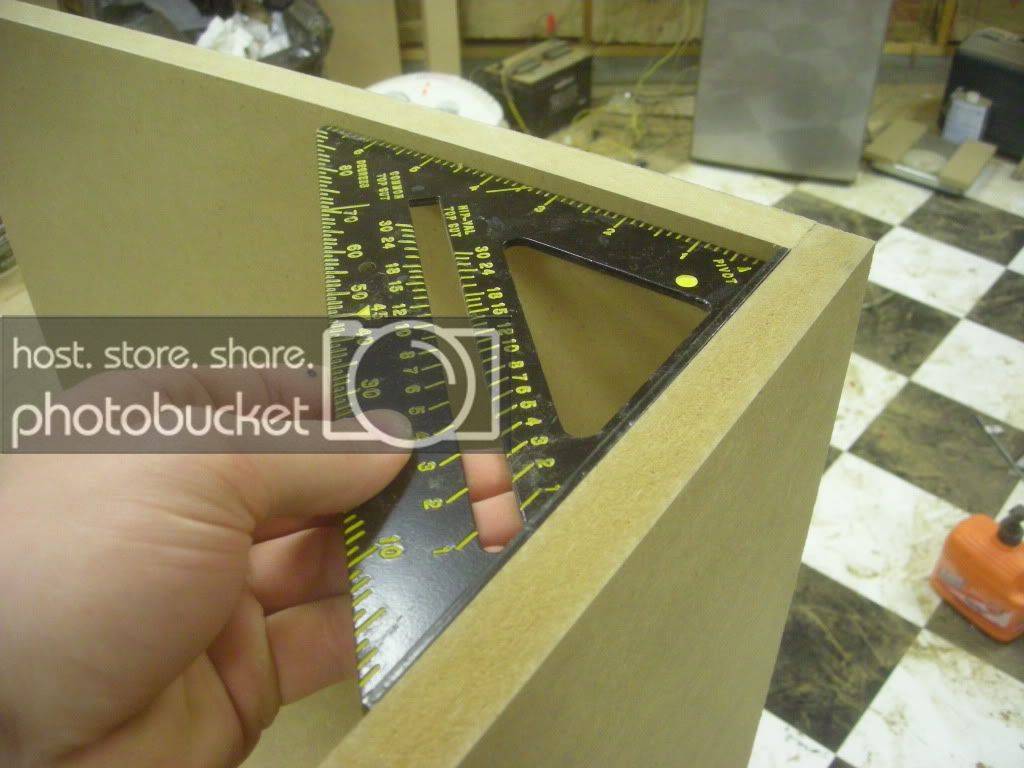

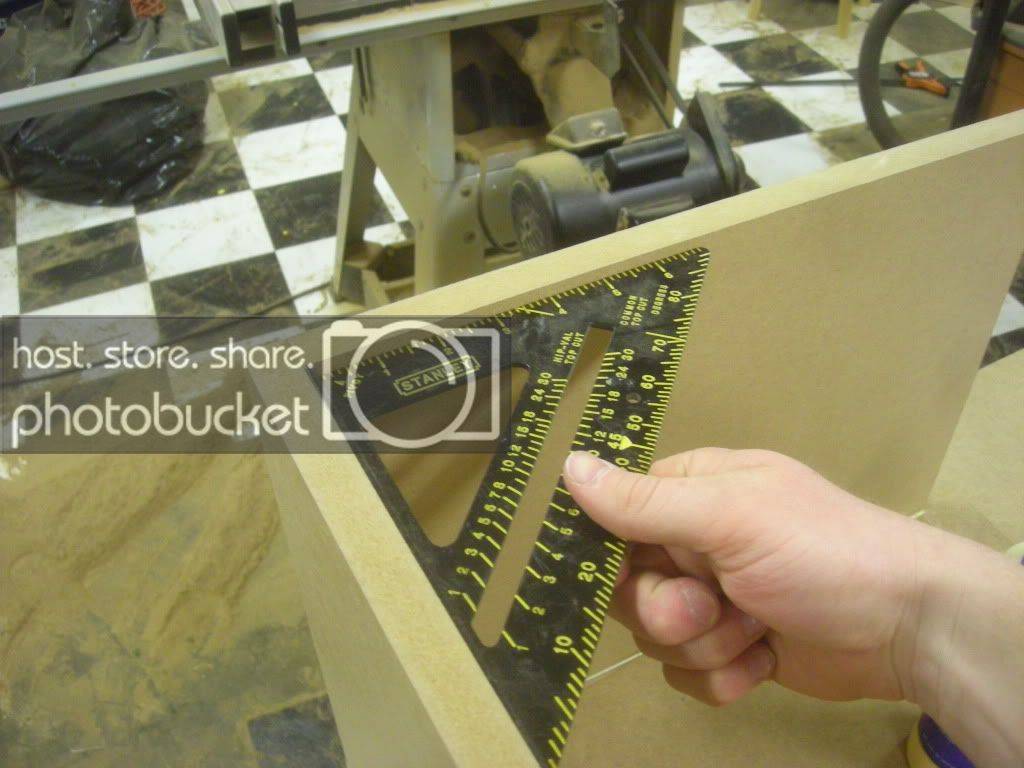

Getting it down to the 'enth-degree //content.invisioncic.com/y282845/emoticons/cool.gif.3bcaf8f141236c00f8044d07150e34f7.gif



[Pioneer~Saturn 5,000+ posts]

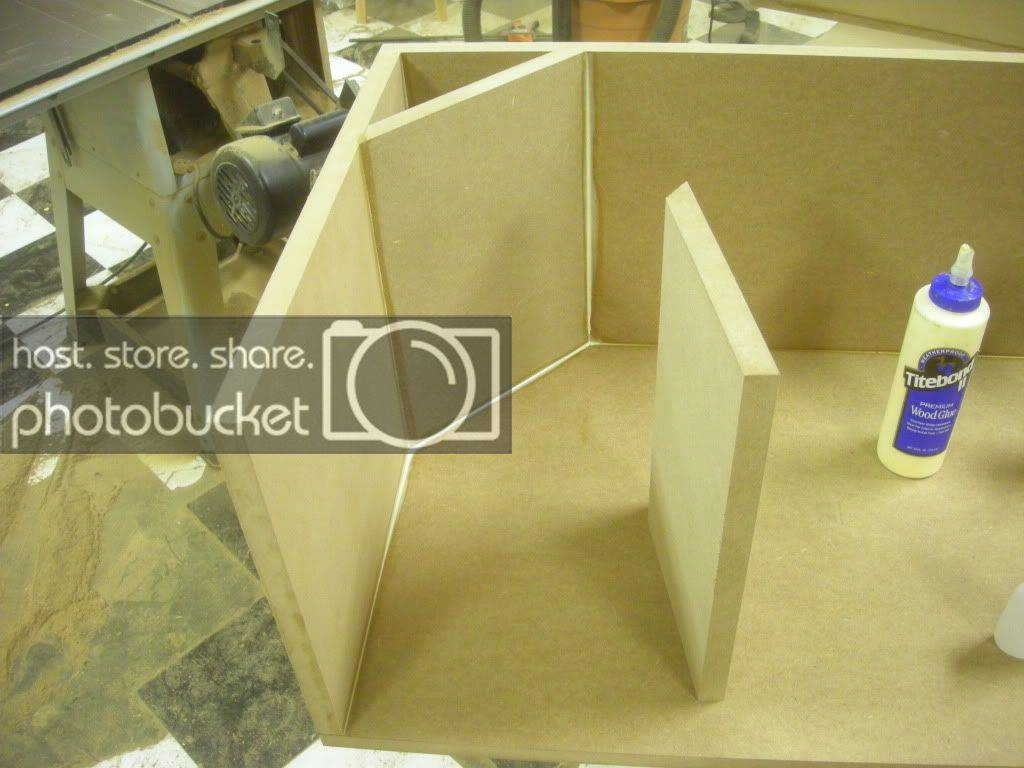

A mock-up of the piece to go there..

more as they come //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[AudioFreak 10+ year member]

Its lookin good:veryhapp:



[JimJ 5,000+ posts]

Looks extremely small...



[tc3k101 5,000+ posts]

what subwoofer?



[Pioneer~Saturn 5,000+ posts]

I didnt even tell you what's going in it yet..//content.invisioncic.com/y282845/emoticons/confused.gif.e820e0216602db4765798ac39d28caa9.gif how could u say its small..?

But it's for a 12"



[JimJ 5,000+ posts]

I didnt even tell you what's going in it yet..//content.invisioncic.com/y282845/emoticons/confused.gif.e820e0216602db4765798ac39d28caa9.gif how could u say its small..?
But it's for a 12"

Because I didn't figure you're putting a 6.5" or 8" in there, and that enclosure/flare size is usally what I've seen for Fostex or Lowther 6.5"/8" drivers.



[Twisted_0912 10+ year member]

nice i have always wanted to build one of these. where the fvck did you get that magnetic angle detector? i must have one



[Pioneer~Saturn 5,000+ posts]

I see //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[Pioneer~Saturn 5,000+ posts]

nice i have always wanted to build one of these. where the fvck did you get that magnetic angle detector? i must have one

At Woodcraft...it's pretty cool, but if your table saw isnt level it's kind of pointless, but you can just go off of whatever degree your table sits at and do the math, it wouldnt be too bad



[snfsh79077 10+ year member]

Looks extremely small...

thats what she said..



[Twisted_0912 10+ year member]

At Woodcraft...it's pretty cool, but if your table saw isnt level it's kind of pointless, but you can just go off of whatever degree your table sits at and do the math, it wouldnt be too bad

link?



[bradknob 10+ year member]

thats some thick wood u got there.



[Pioneer~Saturn 5,000+ posts]

link?

http://www.woodcraft.com/product.aspx?ProductID=147281&FamilyID=20709

//content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif
