Final Design Plan | RE SX | 2.431cf^3 c | Jeep YJ

[Oinkypig 10+ year member]

hey i just got my 12" D2 RE SX in the mail and i will be constructing an enclosure to fit behind the rear seat of my 1995 YJ Wrangler. Ive got a Cadence TXA-1000D amp that'll power it. My dimensions will be 32x11x16 (LxWxH) with 3/4" MDF board.

This has a total gross volume of 2.43135cf^3. Here is my design:

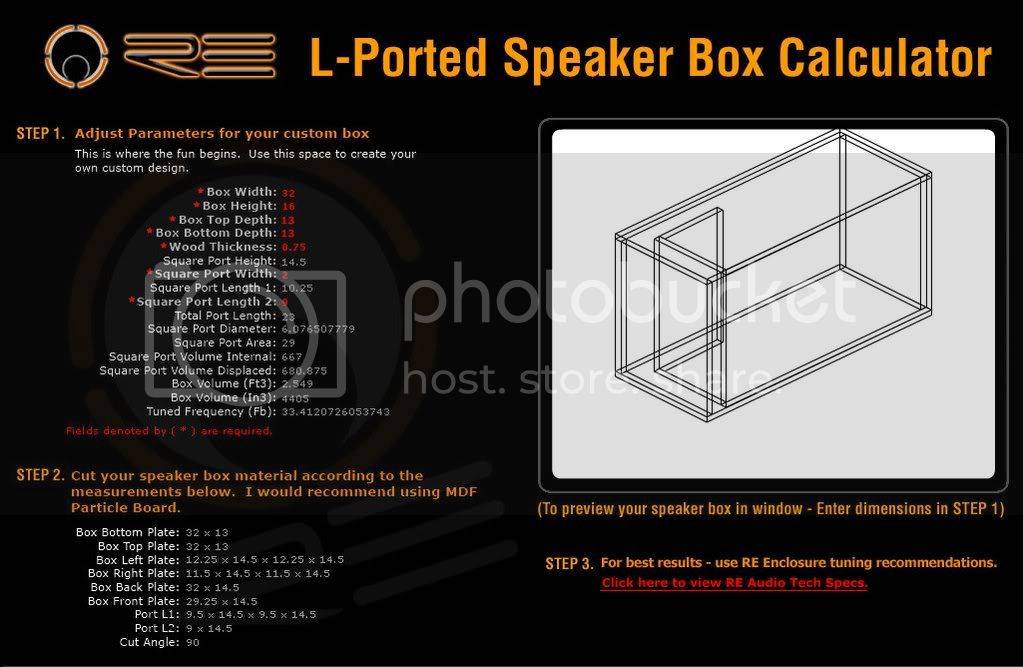

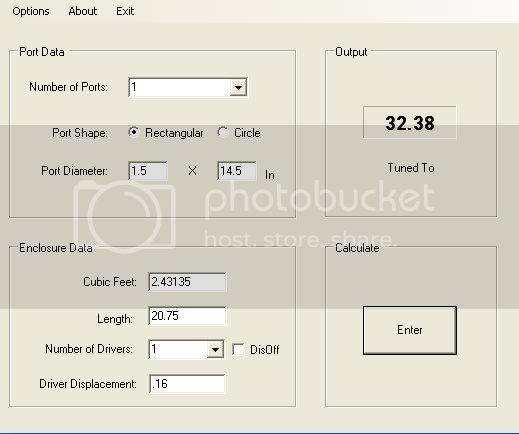

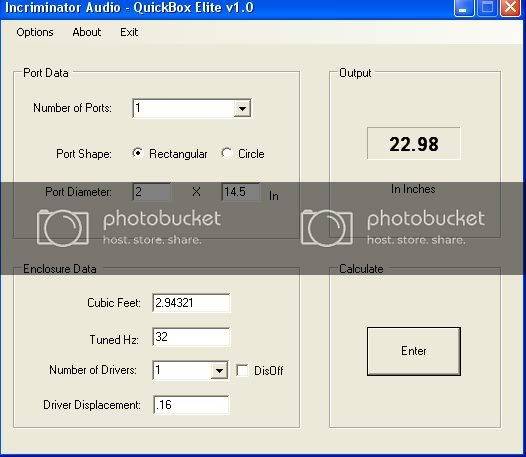

The RE SX has a displacement of .16cf^3. With the RE box calculator the port length is 20.75. the re calc program doesnt take into consideration the displacement of the sub, so that why i am also using Quickbox elite to figure out the length of the port w/ the displacement of the sub.

the RE shows what the enclosure will look like but wuickbox will show all the correct information. The Net volume w/o the sub is 2.163cf^3 and with the sub is 2.03cf^3. RE recommends that the 12" RE SX is in a 2cf^3 enclosure tuned to 33hz.

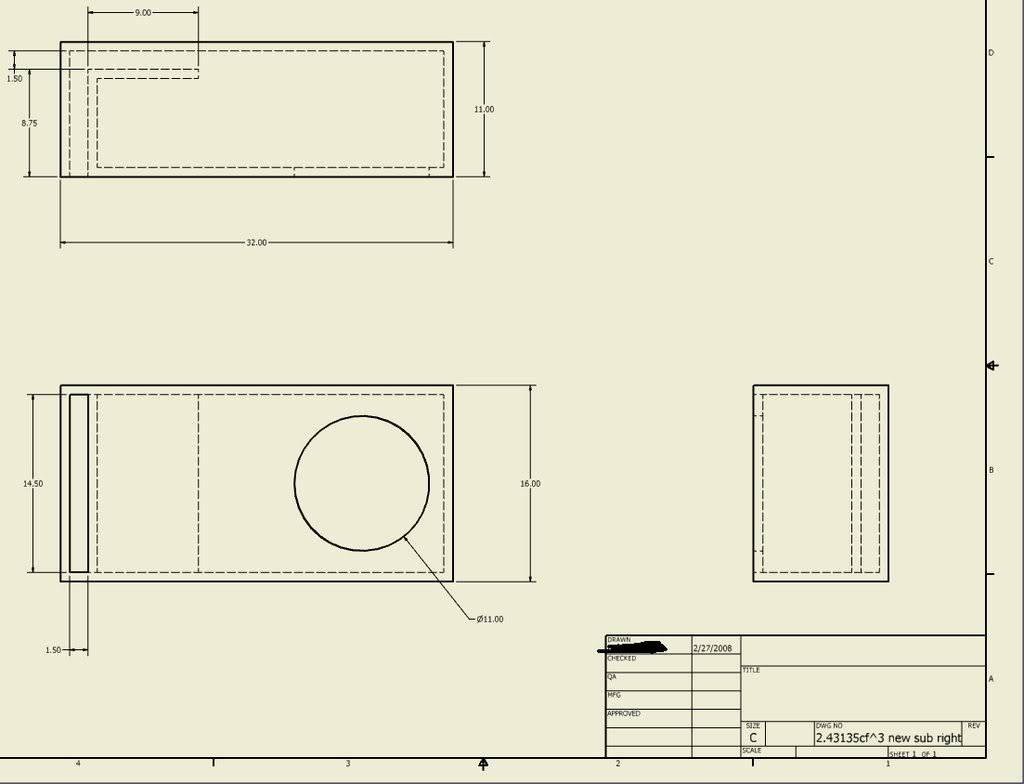

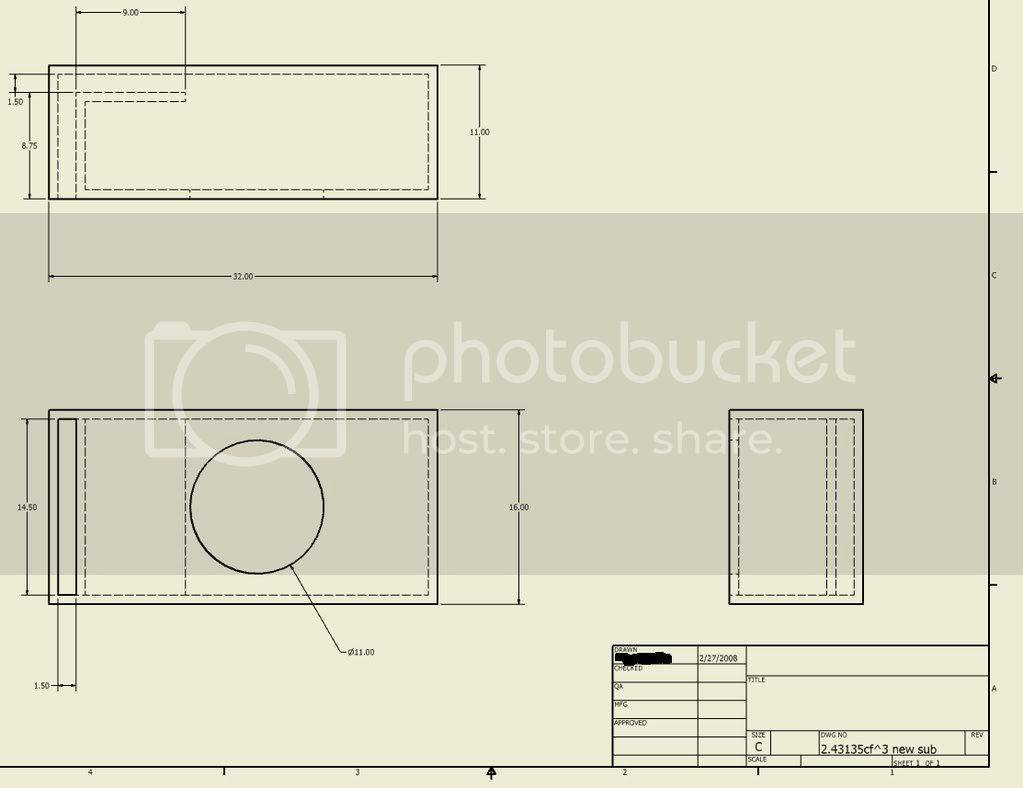

also would it hit harder if i placed the sub in the center of the enclosure or off to the right side?

RE SX SPECS:

12"

Mounting Depth - 6.5"

Mounting Hole Diameter - 11"

Overall Diameter - 12.5"

Bolt Hole Circle - 11.75"

Motor Width - 6.5"

Motor Depth - 3.25"

Basket Depth - 3.25"

Displacement - 0.16 cu. ft.

Weight - 24 lbs.

12" Compact Optimal

Sealed: NOT RECOMMENDED

ported: 1.5@35Hz 2.0@33Hz

Click to read more...



[MemphisCherokee 10+ year member]

using inventor?

well, the port seems small

very small

actually

it should be more in the area of 30ish sq inches



[Oinkypig 10+ year member]

ya i use inventor, ill redo the port. you think 2 x 14.5 will be good enough? or should i go with more port area?



[Oinkypig 10+ year member]

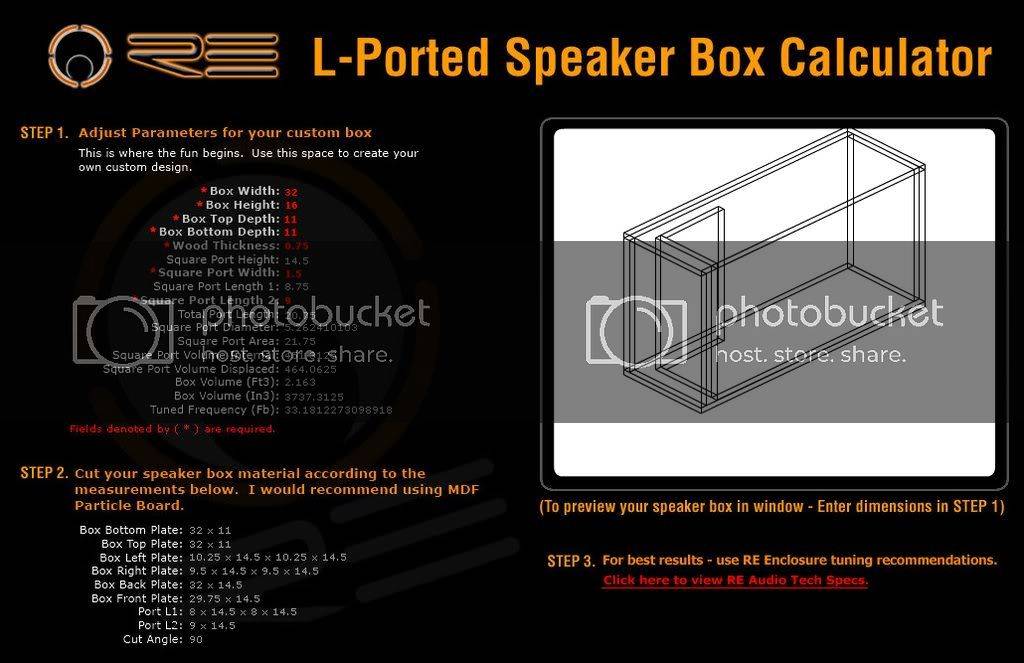

alright ive changed it a bit, this is wat i got now



[BuckyBoy 10+ year member]

12-16 sq in of port per cubic foot

So, you are borderline. I would increase the width at least 1/4"-1/2". It shouldn't increase the port length enough to cause any problems, but it just depends on the space you have to work with.



[cheeto 10+ year member]

Inventor pisses me off.



[Oinkypig 10+ year member]

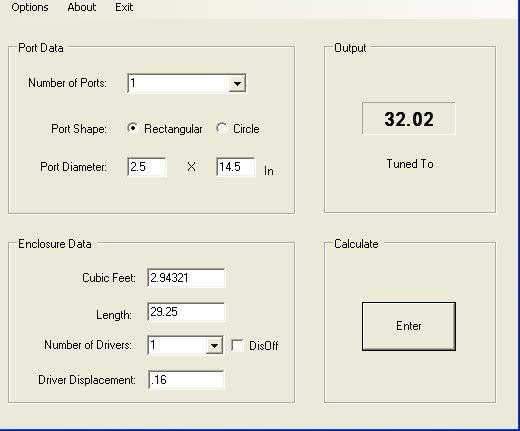

alrighty did it again, heres wat i got



[fbi90909 5,000+ posts]

looks good.
