Dual 10” 4th order Bandpass Build

[ultimate157 5,000+ posts]

Pretty obvious question, but in small bandpass enclosures, don't you have to destroy the box if you ever have/want to remove the subs?

Looks nice. More pics //content.invisioncic.com/y282845/emoticons/yumyum.gif.0556df42231b304b9c995aefd13928a8.gif



[rpfuror 10+ year member]

I am going to split the top of the box in 3 panels. 2 for the permanent sealed enclosure on each side and 1 for the vented area that will be screwed together and gasketed.



[Team Hammer 10+ year member]

Without going back and looking, Would it not be easier to just remove the back panel and reseal that. That way your less to warp anything or produce leaks. You can make a small groove to keep everything in-line and tight.



[rpfuror 10+ year member]

Right now the way it’s designed is to mount the sub thru the vented area. I want to make sure that the sealed portions stay sealed.

When I get more pictures up my logic I hope will be more apparent.



[ffkk 10+ year member]

Looks great sofar! Did u use winisd, BBP or something else for the design?

And whats this box volumes?

Oh, and whats your pass band?



[rpfuror 10+ year member]

Here are the specs:S Value : 0.70

Gain : 2 dB

Fb : 52Hz

Passband :

Lower cutoff 32Hz

Upper cutoff 85Hz

I designed the box based off equations in the loud speaker design handbook and modeled it with an old school pencil and paper before I put it in 3d.



[rpfuror 10+ year member]

Update:

Here is some more progression with the build.

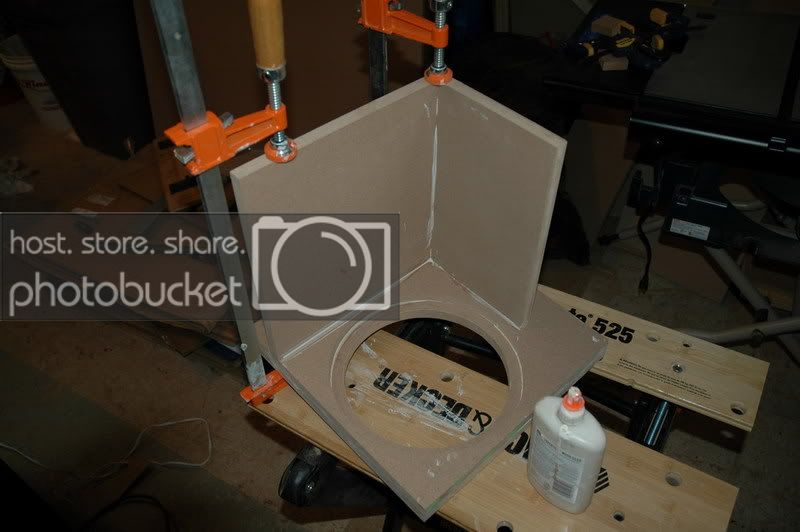

This is the second face the port walls.

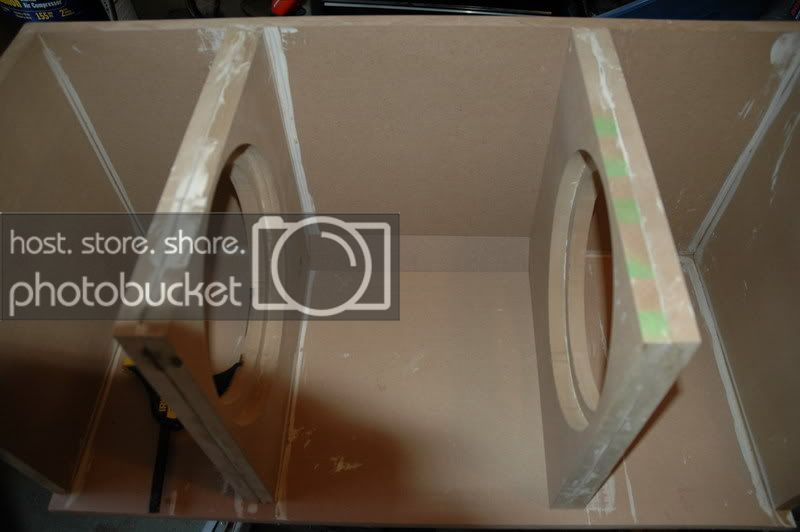

Mock up for placement of the faces

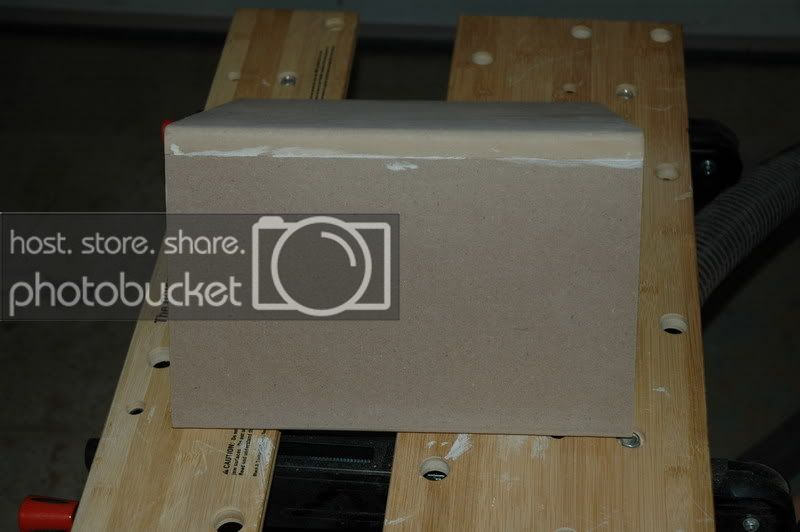

Rounded edges of the port walls

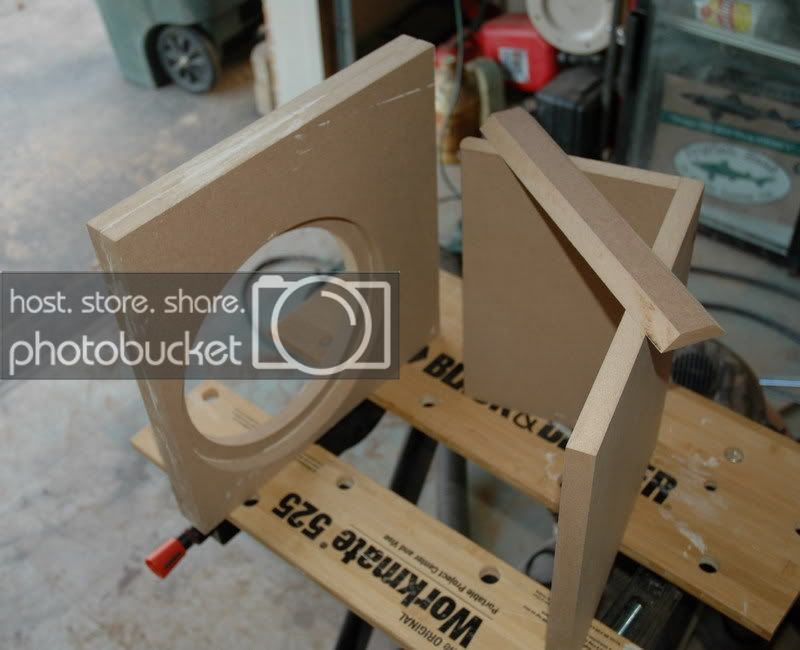

Port walls and 2nd face build



[nismos14 5,000+ posts]

Maybe I should go bandpass too... SP12 can do that ...hmmm



[Wkbdkid 10+ year member]

Looks good so far. Like how the box is setup.//content.invisioncic.com/y282845/emoticons/thumbsup.gif.3287b36ca96645a13a43aff531f37f02.gif



[rpfuror 10+ year member]

Update:

Here is even more progression with the build.

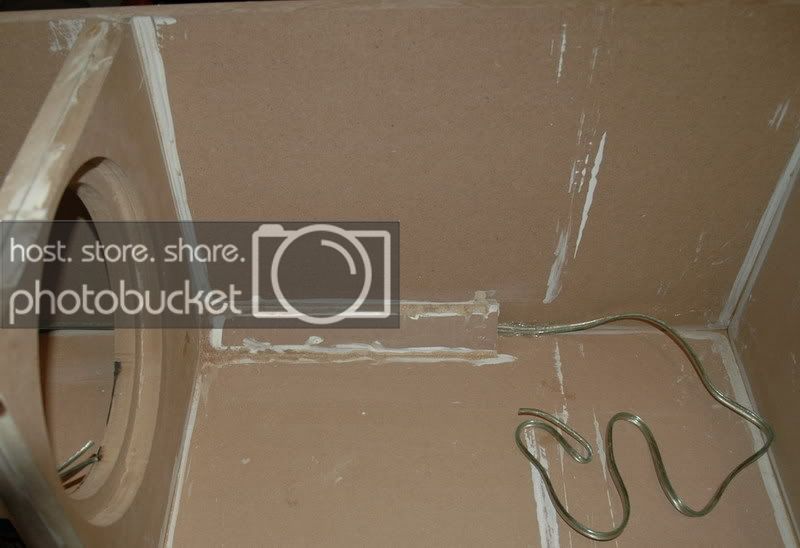

Port Bend and wire inplace.

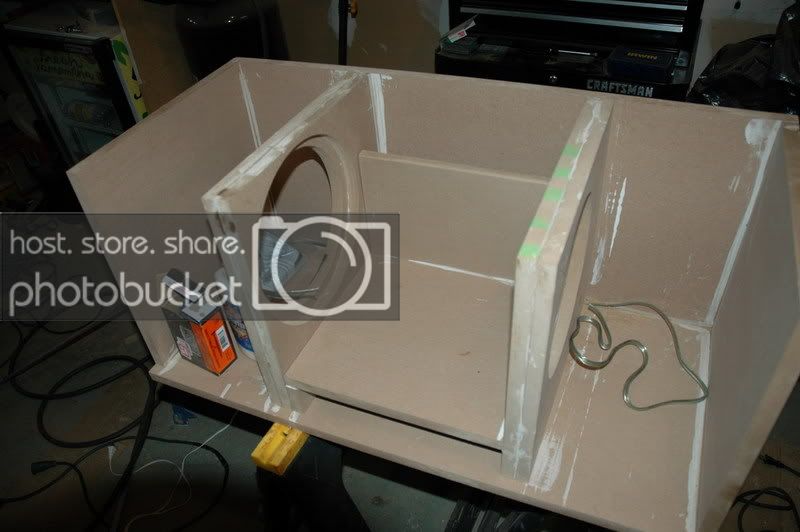

Port and Face Mockup

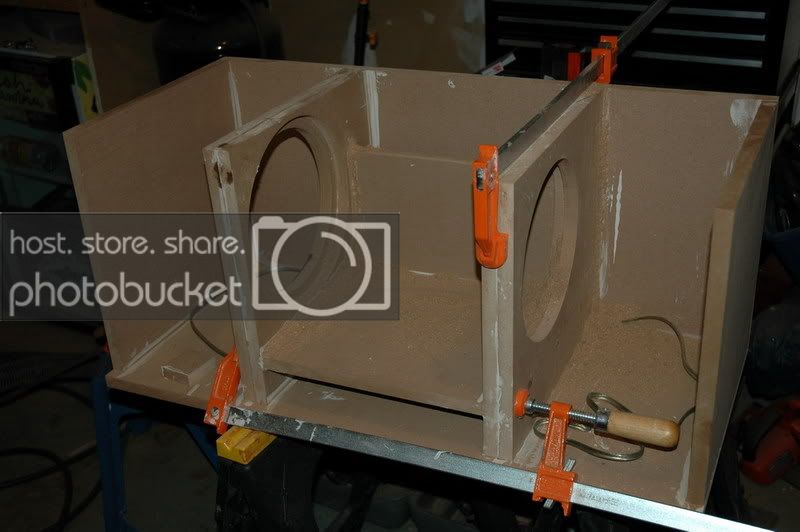

Port and Face in place with alot of "MDF glue" to seal up the lines.

I'm going to let the glue dry over night and then start sanding when I get a chance.



[ffkk 10+ year member]

I designed the box based off equations in the loud speaker design handbook and modeled it with an old school pencil and paper before I put it in 3d.

Stoopid me, its in your first post! U got lots of clamps like the most installers. They are bloody expensive yet so handy. I guess its justified if you're an installer by saving on time and screws //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif

so whats the volume of the front and rear chambers? I was interested in a design like this cos of my vehicle, but the size threw me off //content.invisioncic.com/y282845/emoticons/crap.gif.7f4dd41e3e9b23fbd170a1ee6f65cecc.gif



[SAG3 5,000+ posts]

Those are the worst D70 pics I have ever seen.



[ffkk 10+ year member]

Those are the worst D70 pics I have ever seen.

Hey SAG, we have a franchise here called Kauai. Its a health food place. Dont really fancy it that much. Prefer fried chicken //content.invisioncic.com/y282845/emoticons/naughty.gif.94359f346c0f1259df8038d60b41863e.gif



[rpfuror 10+ year member]

Those are the worst D70 pics I have ever seen.

I think that wasin referance to my camera?

If so I just put it on auto, focus and snap. It does great work I try, but to interested in the build not realy much on the quality of the pics.

If not nevermind.



[ffkk 10+ year member]

your chamber volumes?
