Dual 10” 4th order Bandpass Build

[rpfuror 10+ year member]

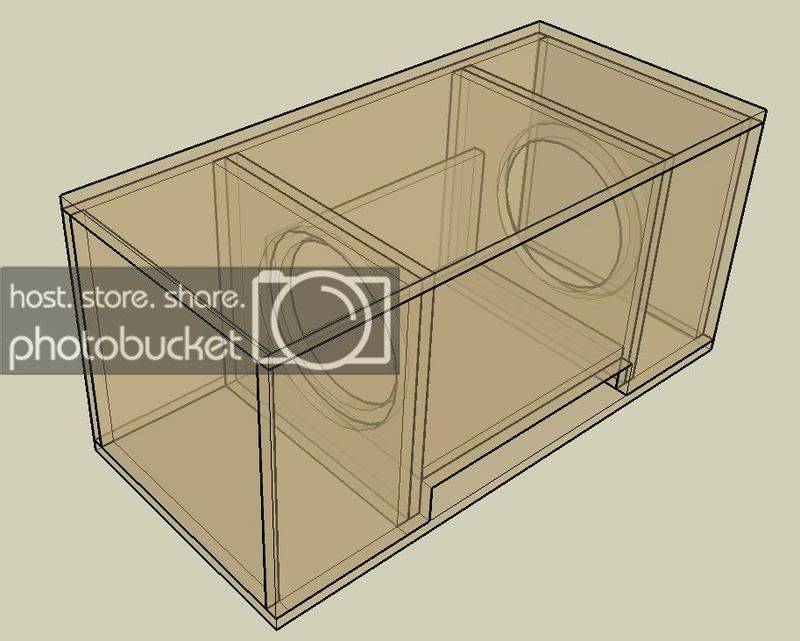

I have been playing around with designs, this one is a 4th order 3 chamber (2 separate sealed firing into a single vented chamber) bandpass designed around a set of 10” assassins.

Here are the specs:

S Value : 0.70

Gain : 2 dB

Fb : 52Hz

Passband :

Lower cutoff 32Hz

Upper cutoff 85Hz

More to come when it get a little warmer... Let me know what you think.

Click to read more...



[traksta15 10+ year member]

looks good-can't wait



[Rage00 10+ year member]

subscribed!



[Wonger 10+ year member]

I'll be watching this thread



[rpfuror 10+ year member]

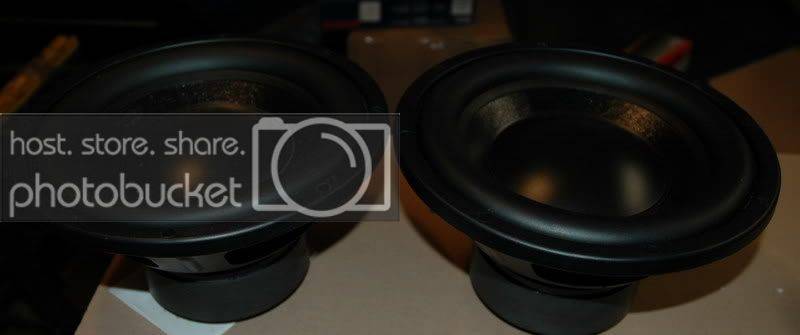

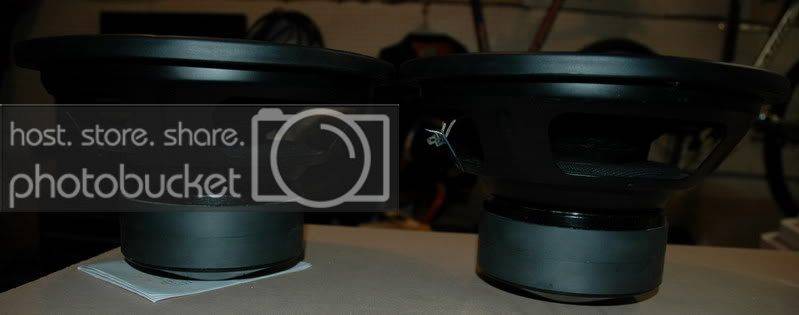

Here are a couple shots of the drivers:

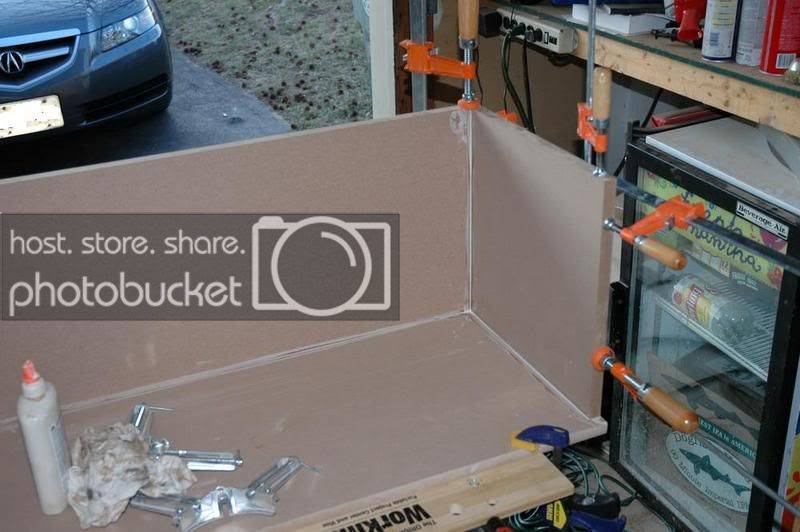

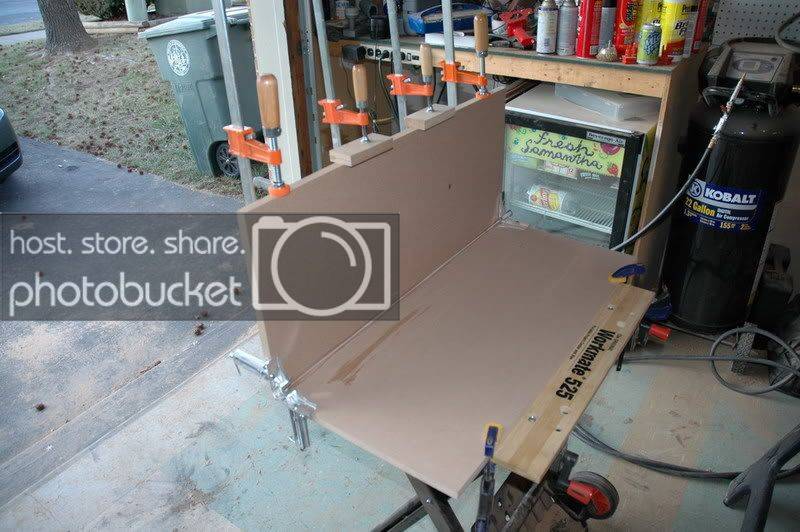

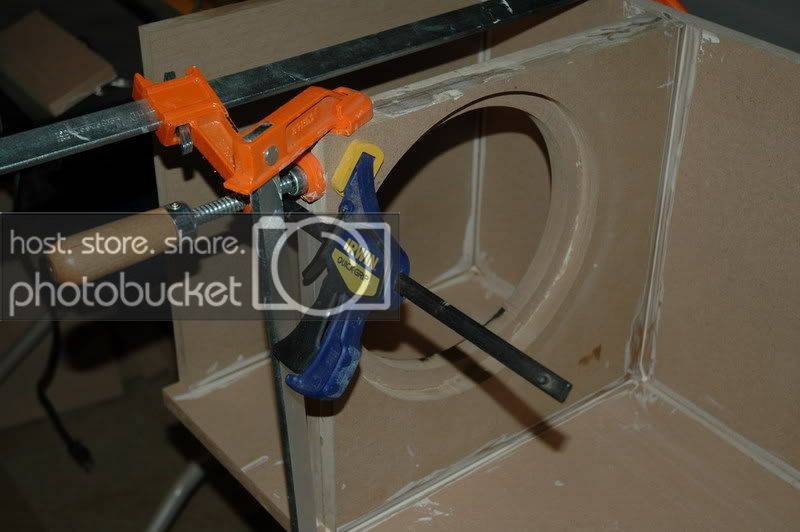

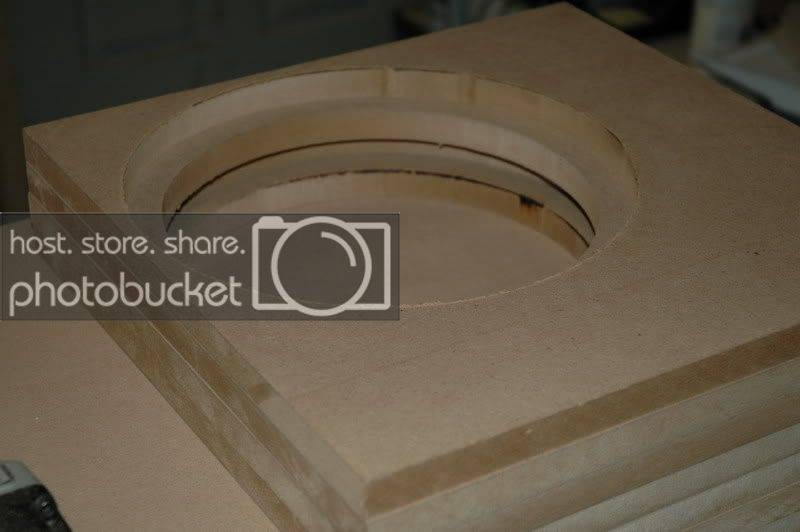

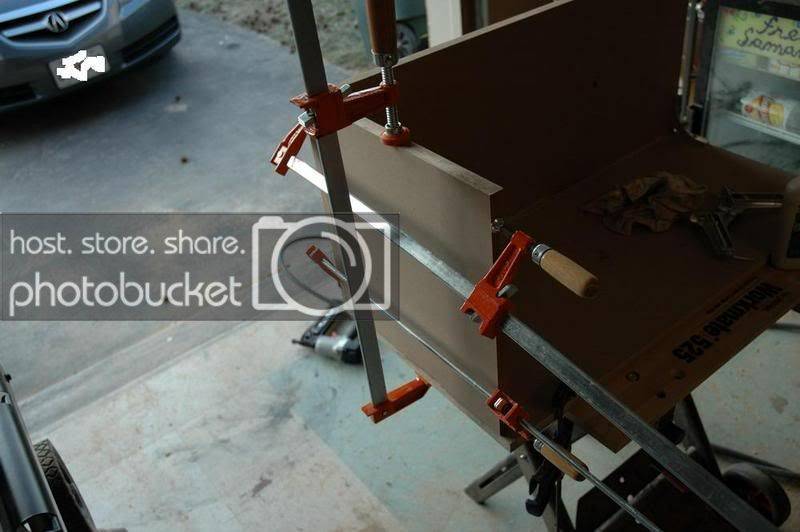

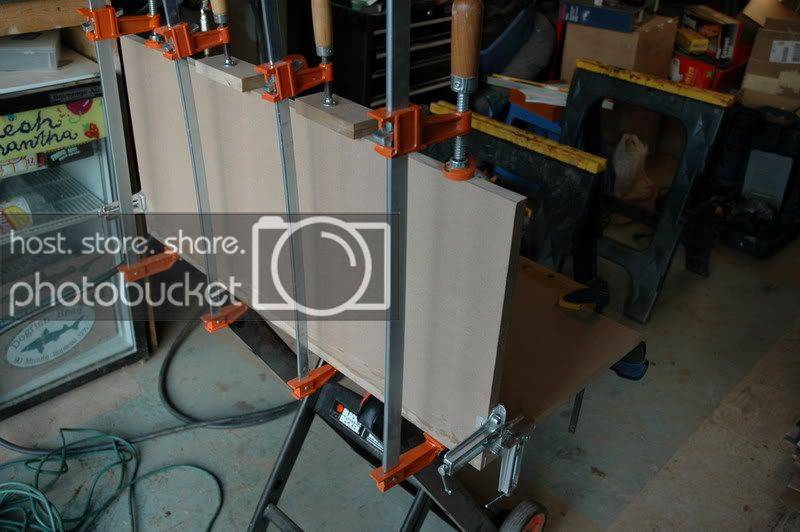

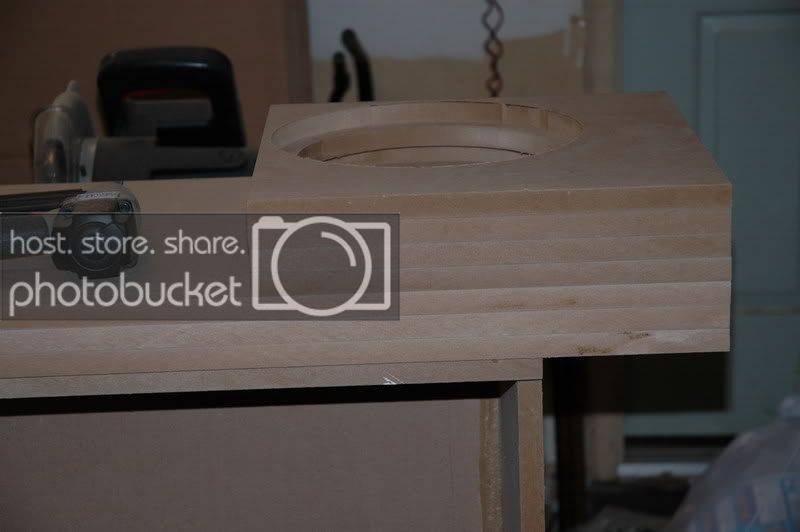

& a shot of the first sealed chambers face.

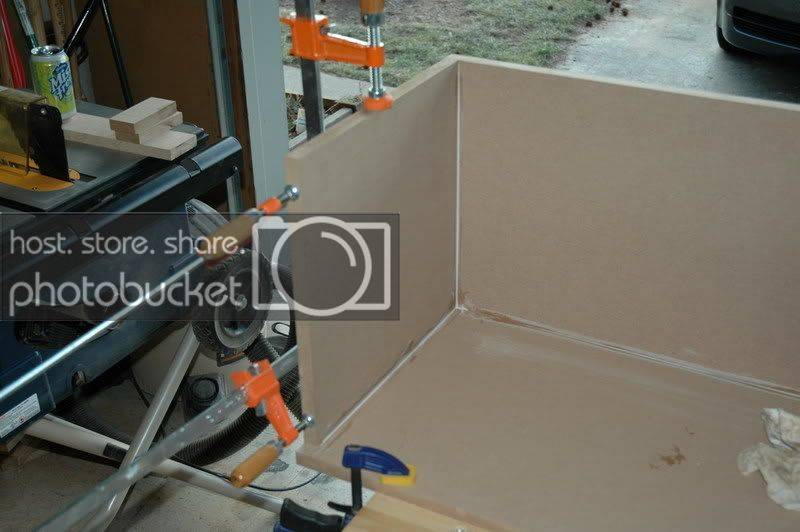

I'll let the glue dry tonight and work some more tomorrow.



[evan 10+ year member]

Looks really good.

Why are you recessing the subs if they aren't going to be visible?



[nismos14 5,000+ posts]

Excellent, can't wait for more pics!



[mikey060 10+ year member]

Looks really good.
Why are you recessing the subs if they aren't going to be visible?

my guess would be less turbulance? lol but doesnt seem like it would be...since it is sealed anyways...



[baseballer1100 5,000+ posts]

nice my friend real nice.



[Calikid 5,000+ posts]

looking good, keep posting more pics please.



[kicker06 10+ year member]

looks like good cuts.

nice box.



[rpfuror 10+ year member]

Looks really good.
Why are you recessing the subs if they aren't going to be visible?

I am recessing the subs so that the net volume of the port area is not effected by the small mass of the drivers face. With them sitting flush it would have caused turbulance due to restriction volume in the vented area and would have caused the passband to change.

Also, I flipped the recess around to make it easier to place the driver, you will see in upcoming photos.



[Team Hammer 10+ year member]

Nice detail and some thought went into it.

Are these going to be 180 degrees out a phase? Seems that they would cancel each other out firing that close at each other?

Let us know how it tunes out.



[rpfuror 10+ year member]

I designed it around the drivers being in phase, but I will be giving area to change this internal when I start to test.



[80INCHES 5,000+ posts]

nice build kep the pics commin
