Can someone Please double check my dimensions?

[David12460 10+ year member]

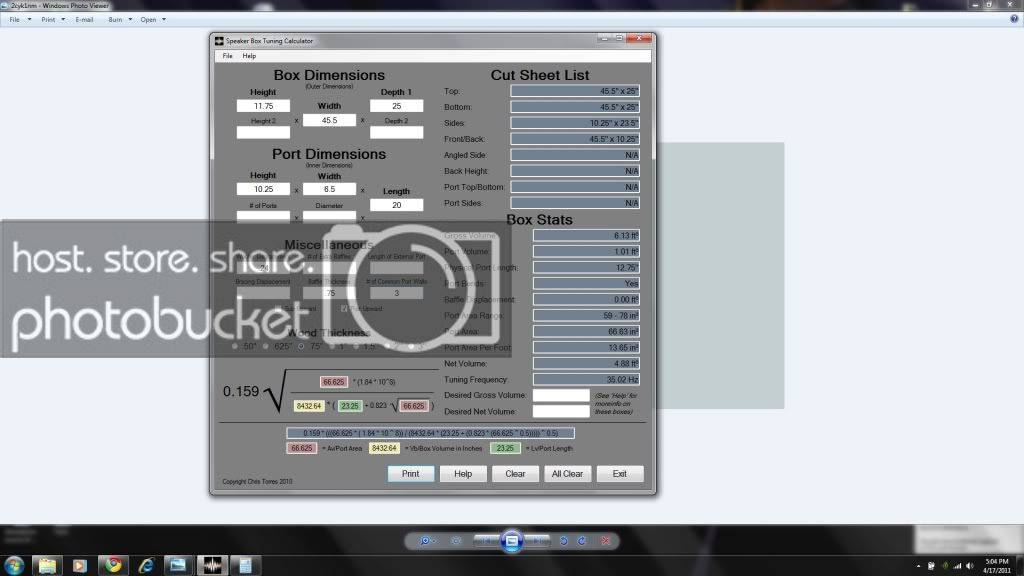

Here are the dimensions I came up with for my DC Audio Level 5 15" sub. Can the box builders on the forum double check my numbers? Also, can someone please draw up this enclosure to better help me with a visual? It would be greatly appreciated.

Click to read more...



[Louisiana_CRX 5,000+ posts]

nice



[David12460 10+ year member]

Can someone draw this up for me?



[David12460 10+ year member]

Bump



[bassboys1993 10+ year member]

what program is that? and i can try to draw it up on google sketchup



[David12460 10+ year member]

I got the program off of Steve meade's forum. Go to the enclosure section and its a sticky.



[bassboys1993 10+ year member]

oh alright for sure i havent went on SMD in awhile, and i made a box on google sketchup i can prolly email it to you or something, shoot me a pm



[OmegaBunny 10+ year member]

This is my first attempt at using anything like this but I think I got it for ya! There are no measurements on this but it is built to the specs you gave.

11.75"x45.5"x25" port width 6.5" and length 20"



[OmegaBunny 10+ year member]

Box size seems off. Internal volume before port and displacement is 6.9 ft^3. I'm not sure how to calculate everything but it seems like 2.1 ft ^3 seems like a lot. Someone who know how to do the math should check it.



[David12460 10+ year member]

If someone could double check the dimensions that would be great. If anyone wants to try to help me with a design that would be great. I'm trying to learn. The outside dimensions I have is the biggest space I have to work with. But if someone can try to work with that it would be appreciated. The port facing up might work better because the port is facing the hatch and may get too close.



[OmegaBunny 10+ year member]

What about using aero's



[OmegaBunny 10+ year member]

This seems more like what you would need for that sub, if this is accurate. Also note that this does not include any bracing.

Again, I;m not sure how accurate this is. You may want to see if a box designer will double check the measurements.



[David12460 10+ year member]

A lot of people said I should try for 5 cubic feet if possible. This is tough to get given my space constraints while keeping decent port area.

Again I have these dimensions to work with:

11.75 high

45 wide

25 deep



[OmegaBunny 10+ year member]

DC recommends 3. 75 thats what u would go with



[OmegaBunny 10+ year member]

Err I, I mean
