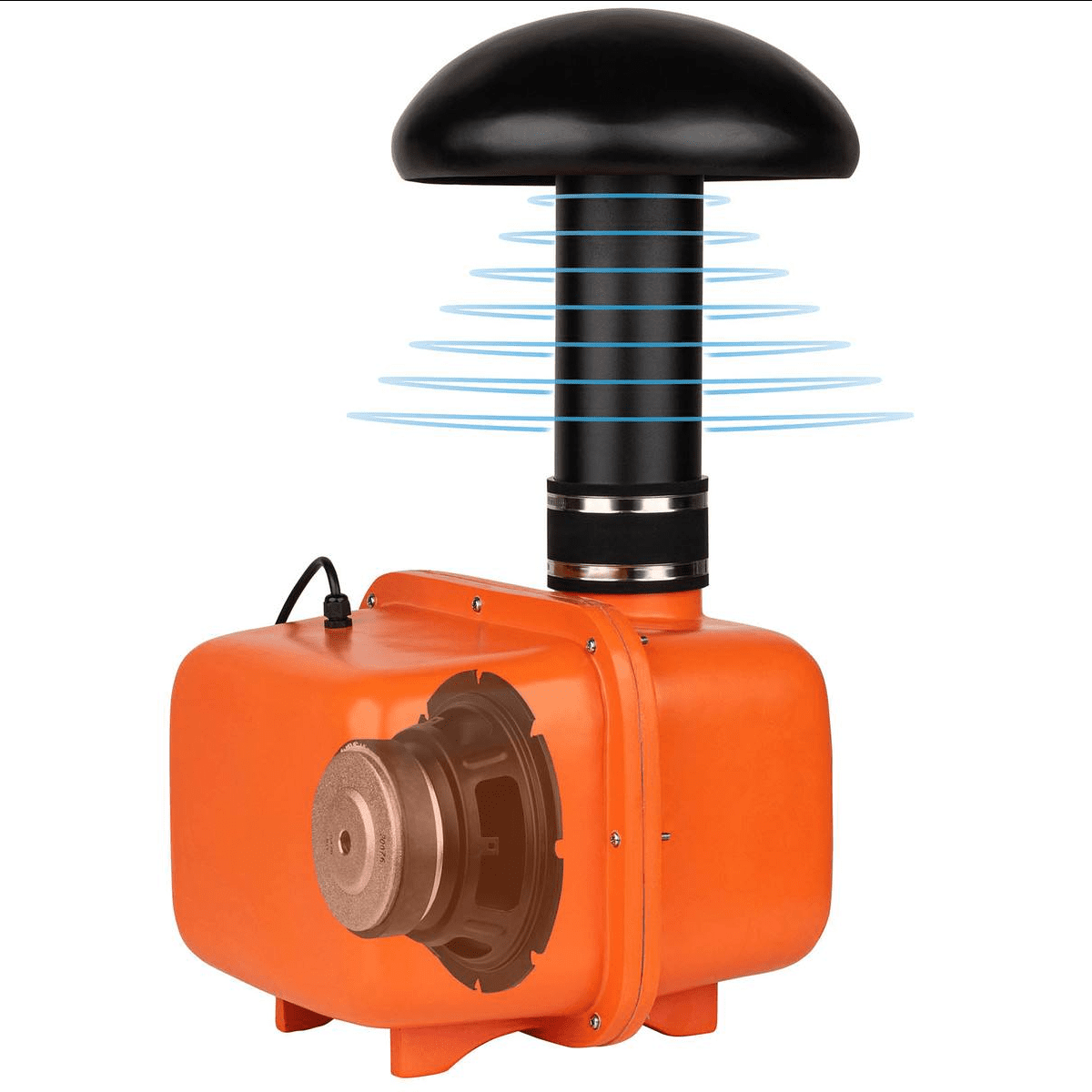

Anybody want an underground outdoor subwoofer?



[Ridinhi 5,000+ posts]

Anybody want an underground outdoor subwoofer?

View attachment 32745

Looks interesting



[Buck 5,000+ posts]

Looks interesting

IIRC it's a Dayton box and sub. I think it's a 4th order bandpass, which makes sense, to keep the motor protected from the elements in the sealed chamber.



[Buck 5,000+ posts]

I could totally make some underground subwoofers. I can put a t-line in your attic; just let me know! Hahaha



[Buck 5,000+ posts]

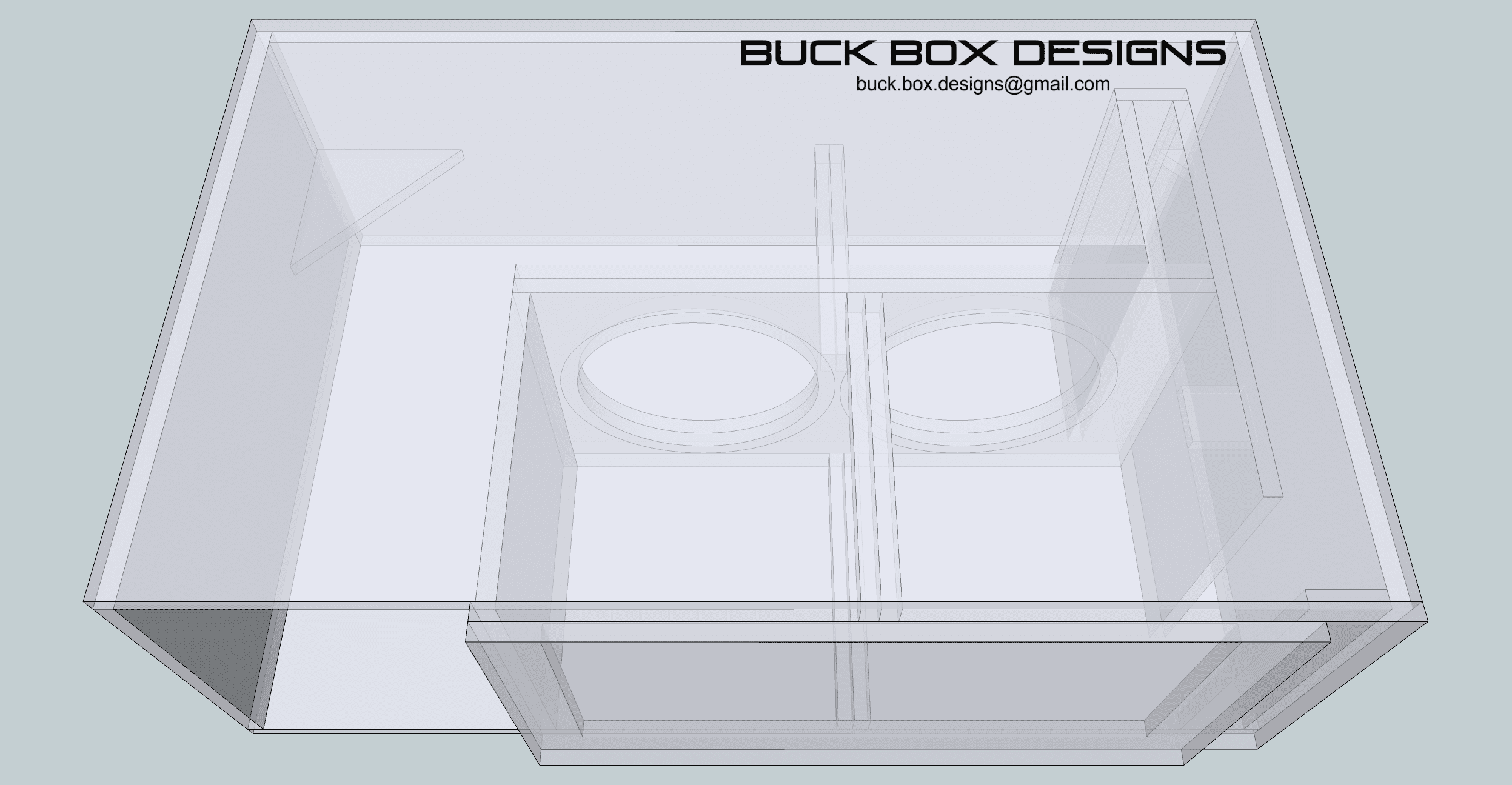

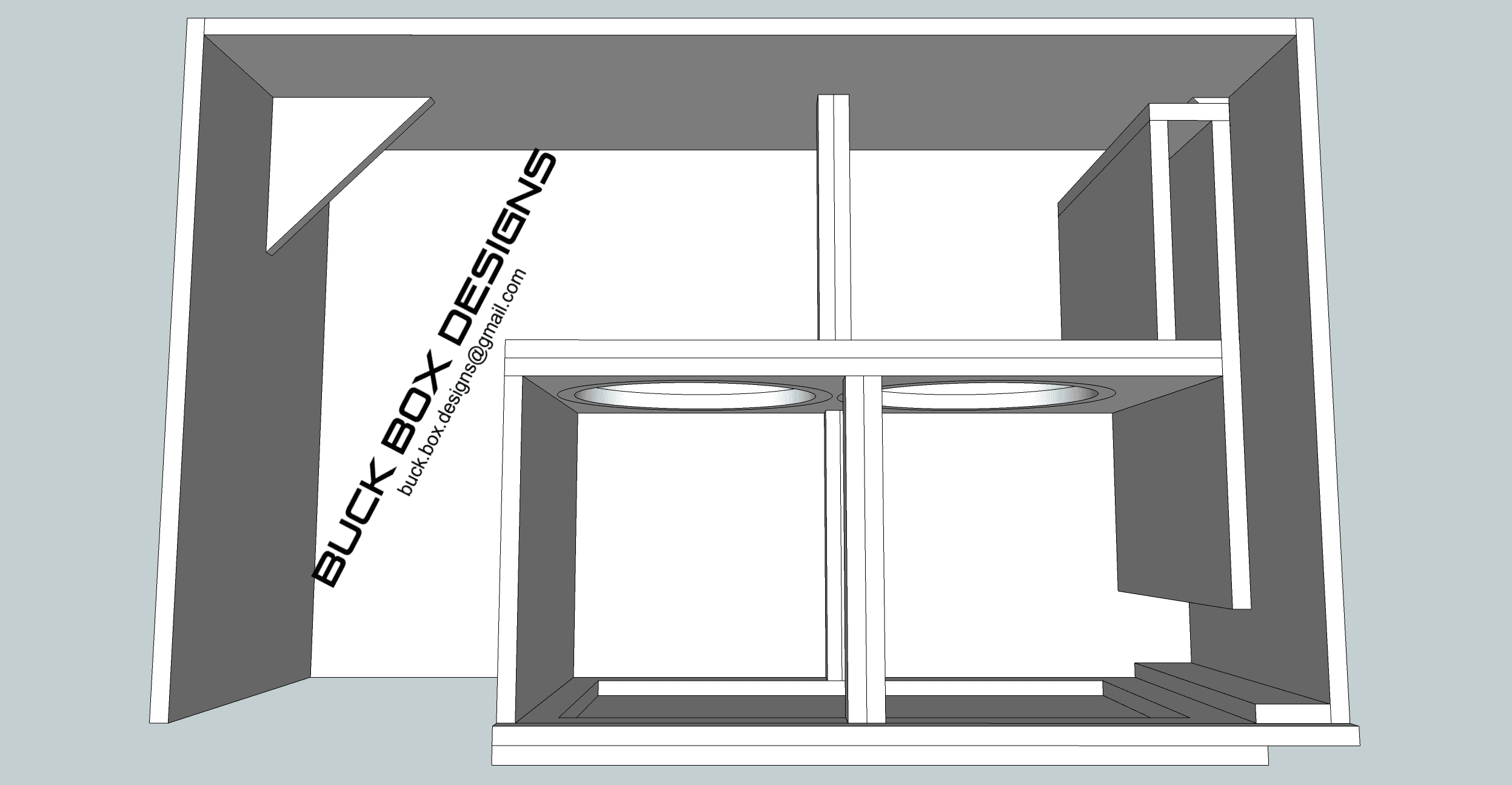

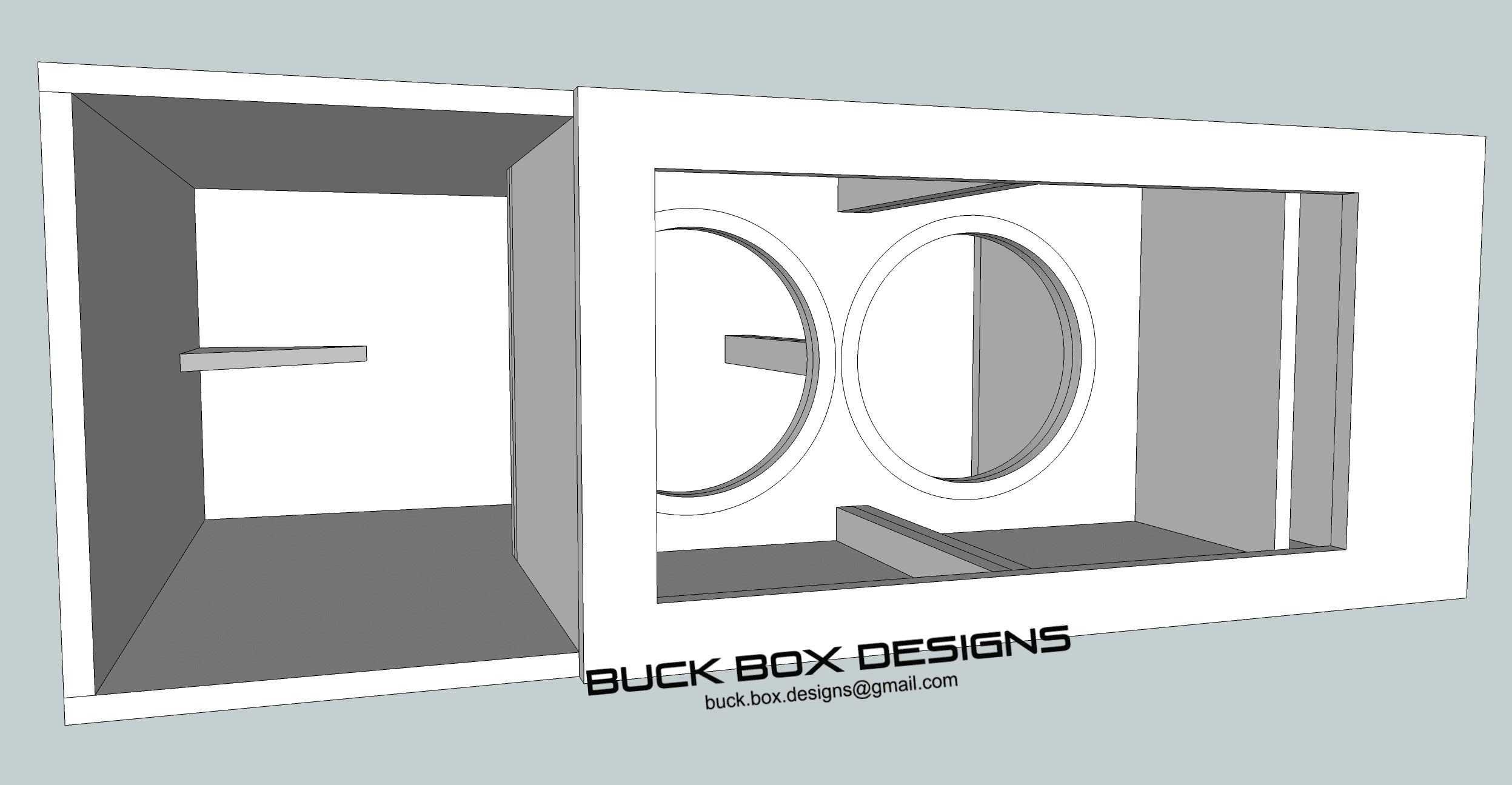

2 Sundown Ev4 12's series 6th order bandpass going in a fairly large van. I did a series 6th just to help overall loudness. This van has a ton of airspace, and we're trying to get all the loudness out of these 500 watt rms woofers. A pair of higher powered 12's may make it into this box at some point down the road.



[Buck 5,000+ posts]

This is an experimental design. Nothing in this box is random. I'm not exactly sure if it's going to act like a horn or act like a ported box, but this enclosure is designed based off 2 sound theories and raw sound math, so it's a free design for someone who couldn't or didn't want to pay for one at this time. So, if you maybe want a free design with the correct conditions to get one, let me know. I'll do some hybrid designs that I've been working on and trying to figure out the best way for them to work.

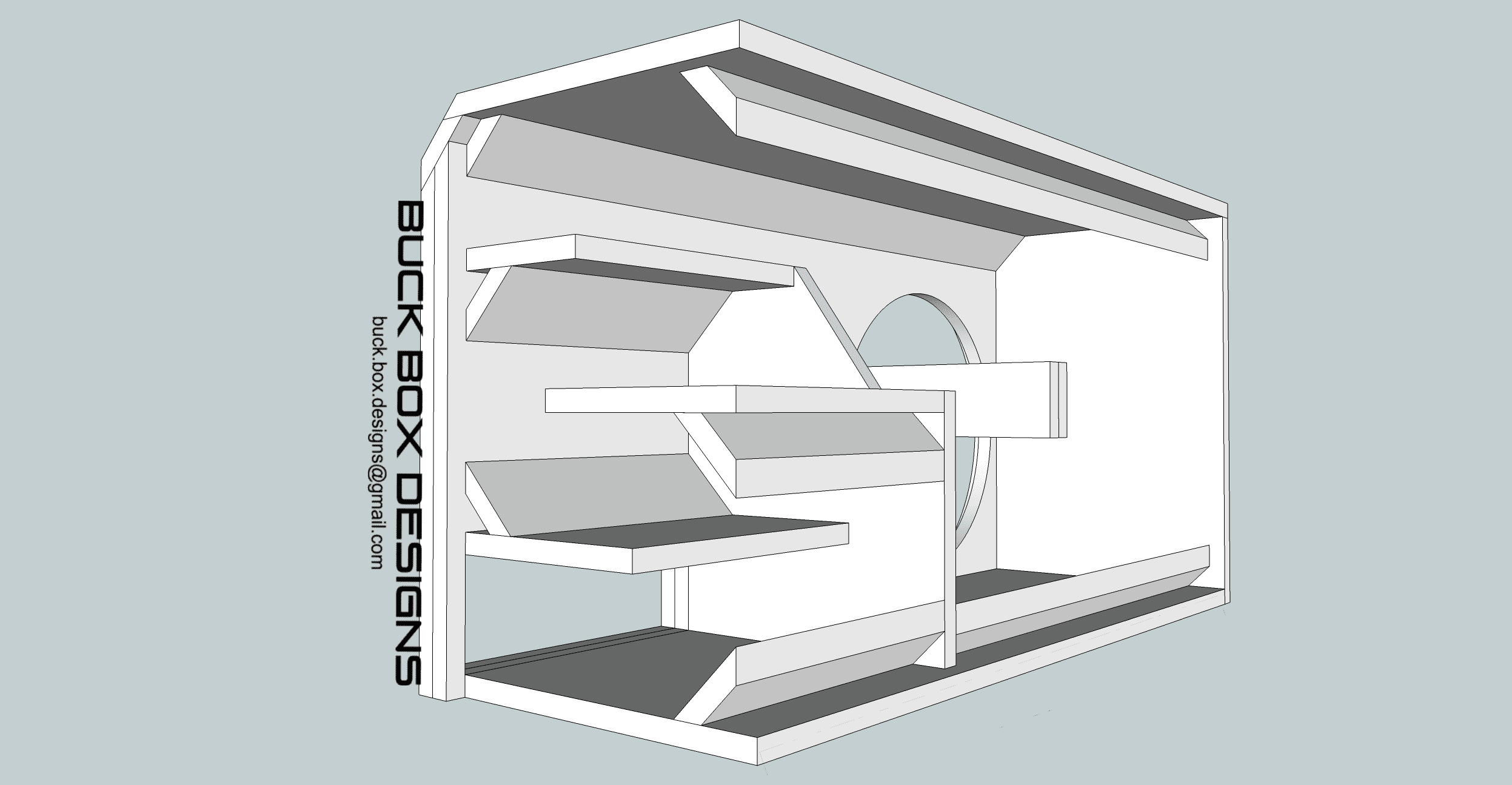

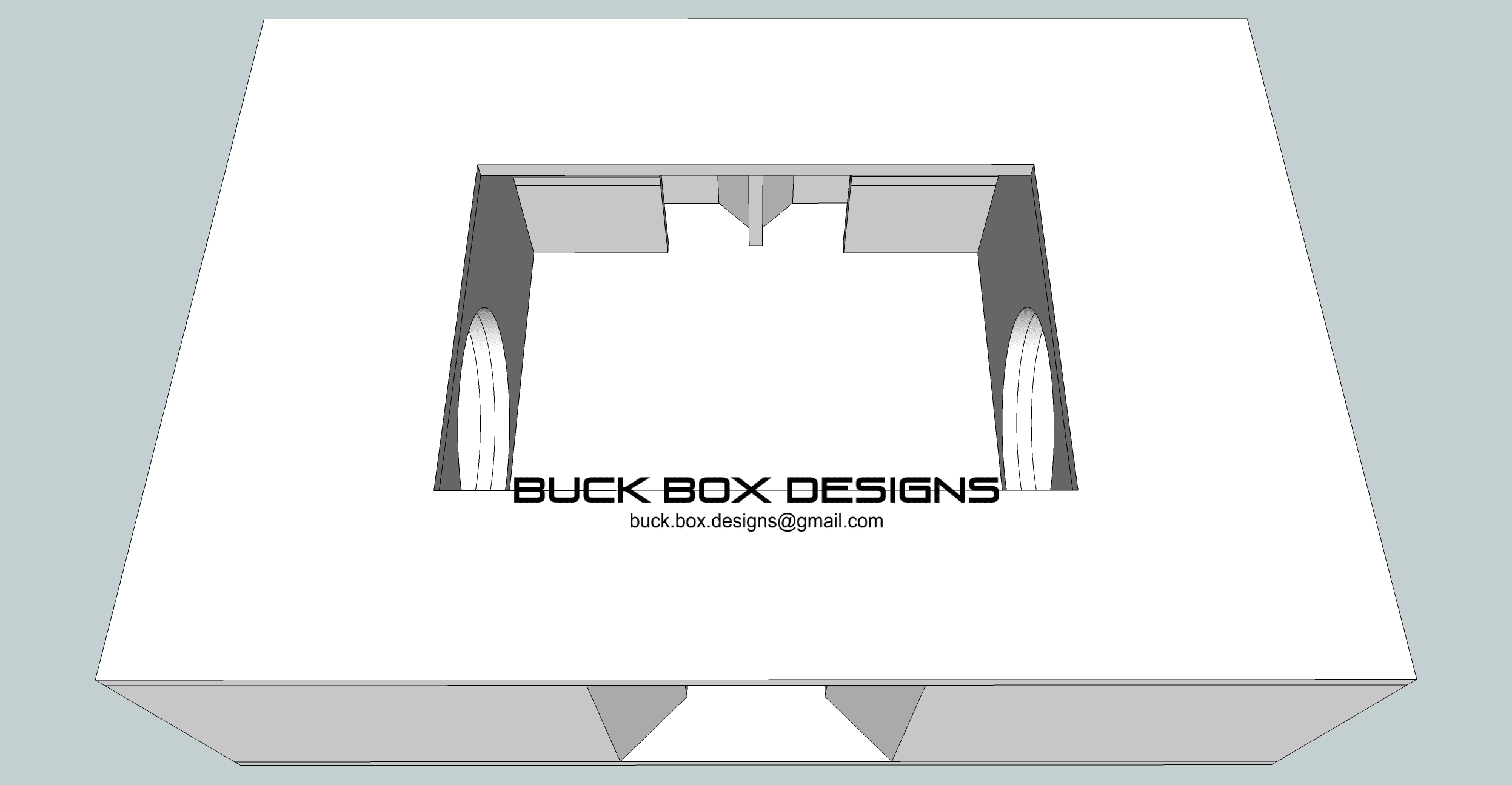

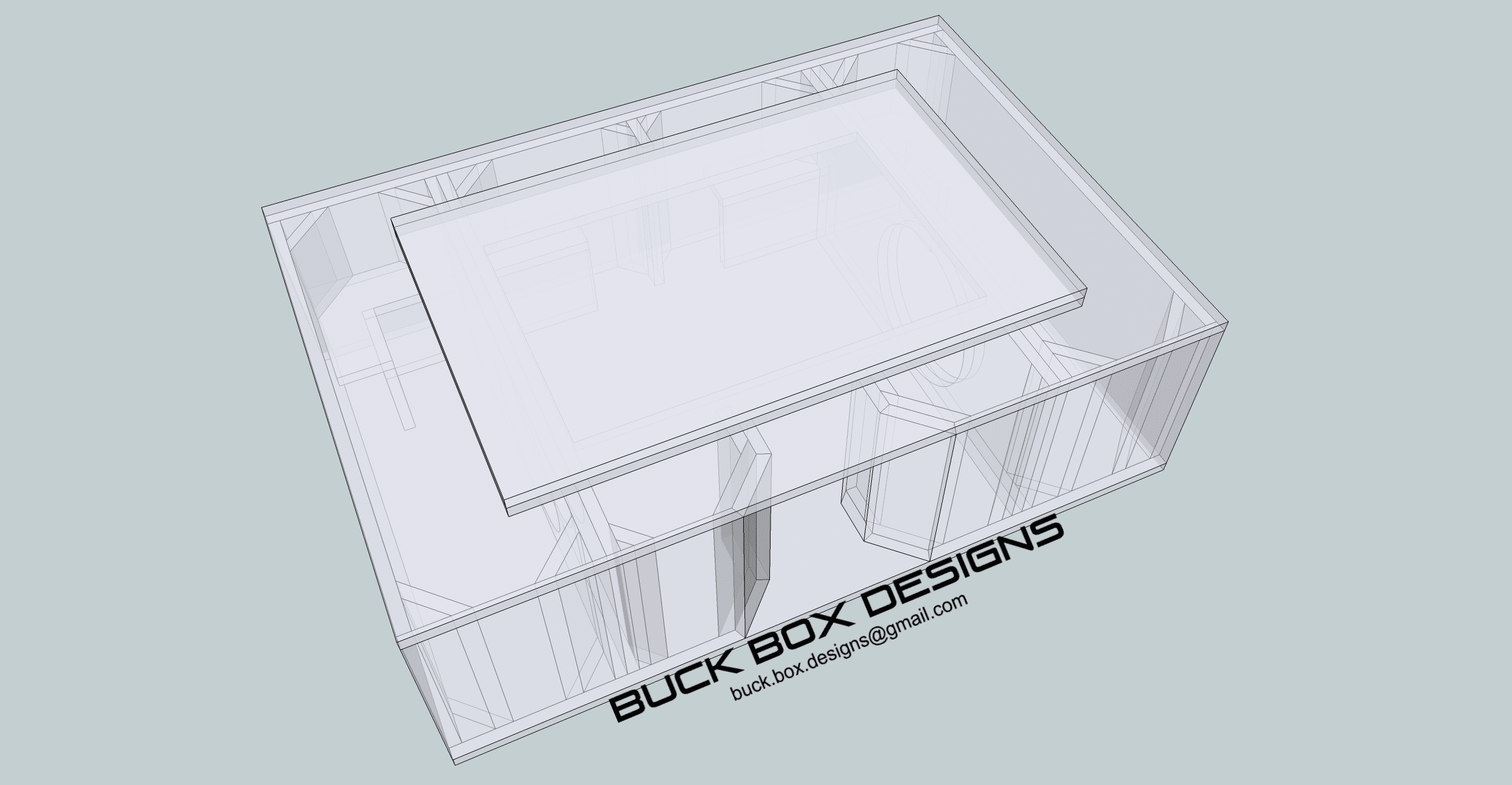

This box is for 2 Skar SVR 12's. I would either call this a tapped and folded rear-loaded horn or a series ported-transmission line. I didn't use any horn modeling to do this; it's all based on raw sound math, 1/4 wave math. The way rear loaded boxes work vs a t-line is based on different types of 1/4 wave calculations, but that's a lot to explain. Anyways, here's the box:



[Buck 5,000+ posts]

This is an experimental design. Nothing in this box is random. I'm not exactly sure if it's going to act like a horn or act like a ported box, but this enclosure is designed based off 2 sound theories and raw sound math, so it's a free design for someone who couldn't or didn't want to pay for one at this time. So, if you maybe want a free design with the correct conditions to get one, let me know. I'll do some hybrid designs that I've been working on and trying to figure out the best way for them to work.

This box is for 2 Skar SVR 12's. I would either call this a tapped and folded rear-loaded horn or a series ported-transmission line. I didn't use any horn modeling to do this; it's all based on raw sound math, 1/4 wave math. The way rear loaded boxes work vs a t-line is based on different types of 1/4 wave calculations, but that's a lot to explain. Anyways, here's the box:

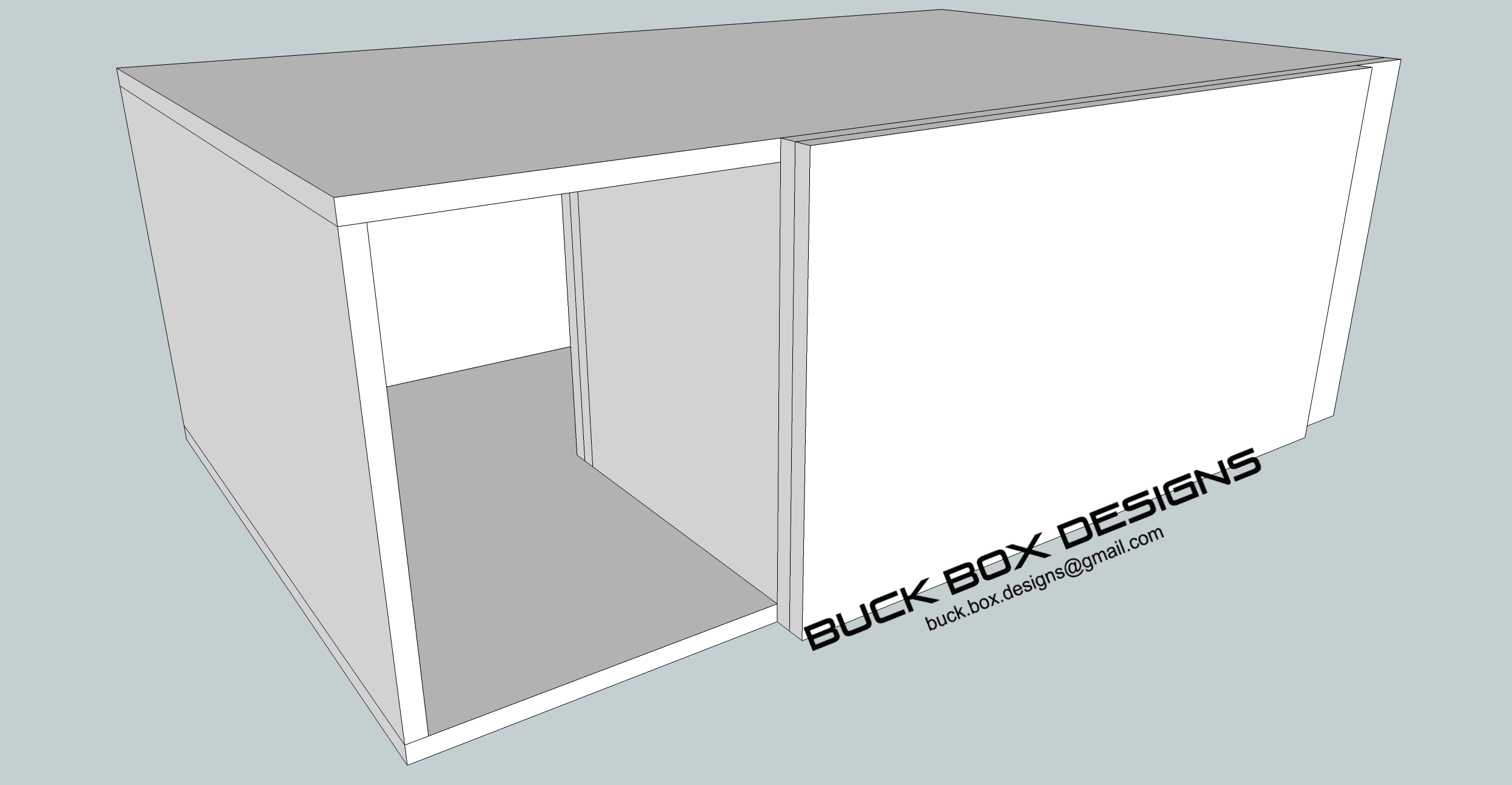

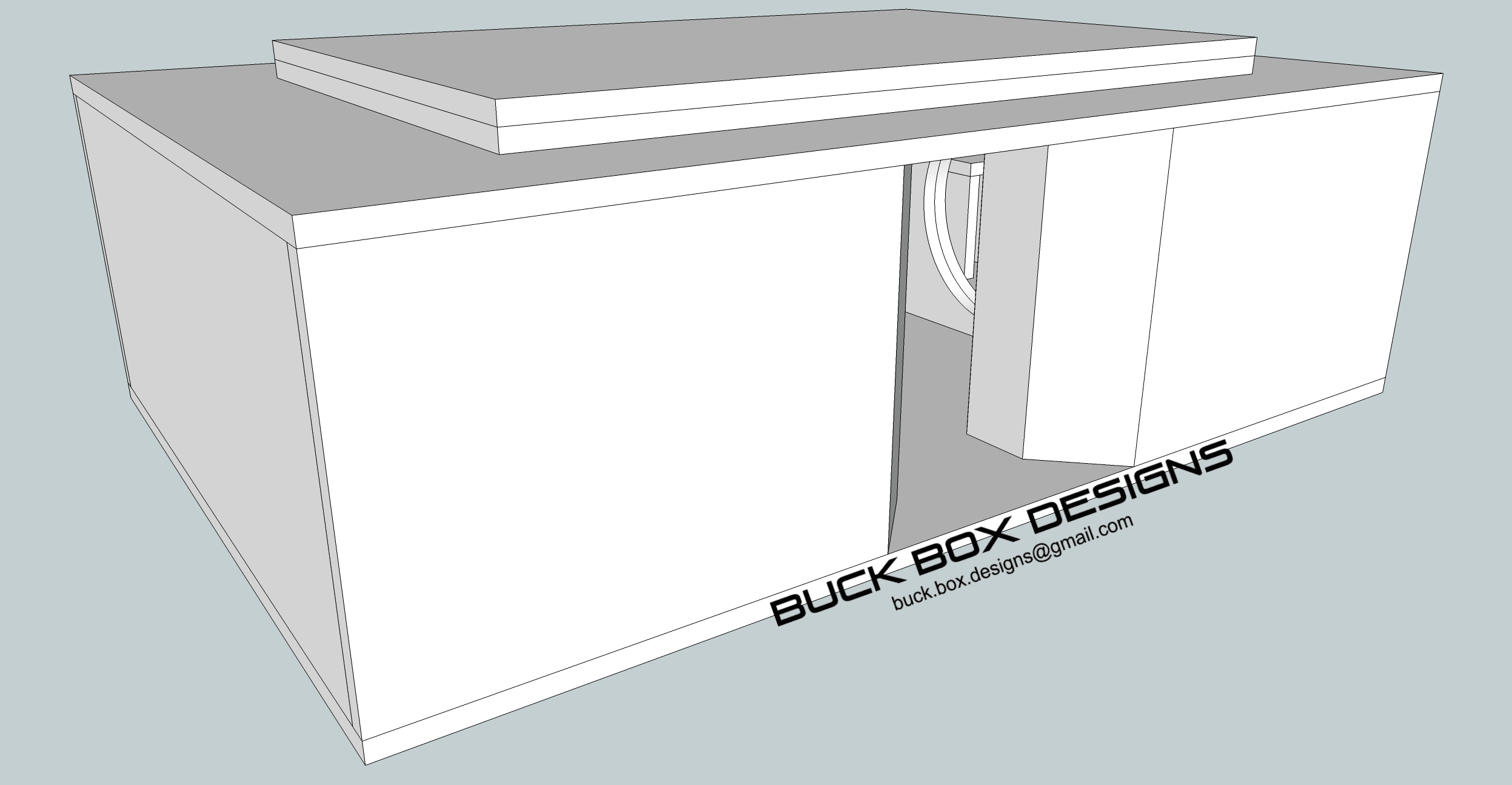

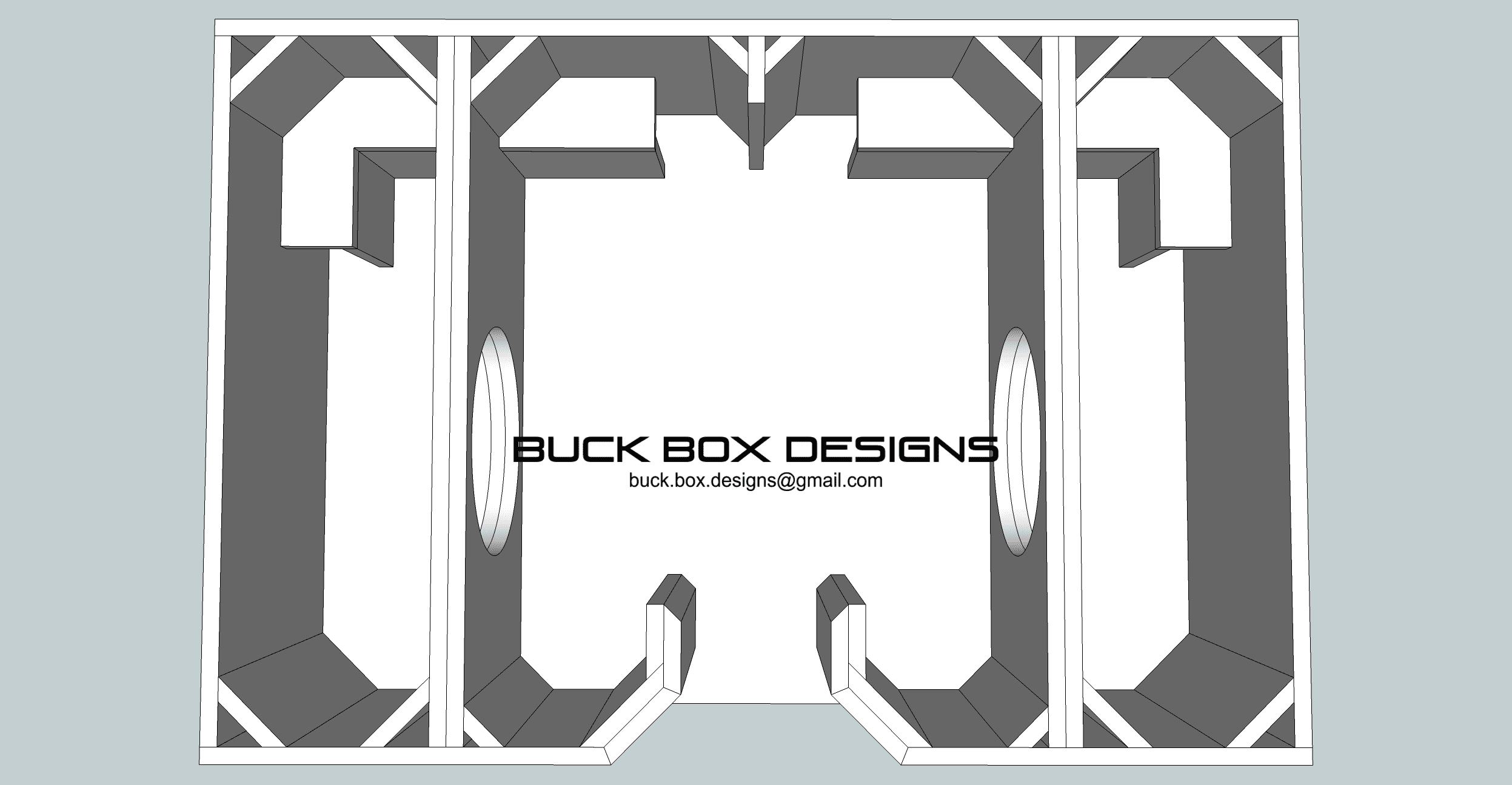

View attachment 32776

View attachment 32777

View attachment 32778

View attachment 32779

I literally don't know what to call this box, because I couldn't find an example where somebody did a box like this. This box is based off my studies of horns, the math from my studies. I'm surprised I can find tapped horns and what not, but I can't really seem to find any examples of this particular layout. So, it's completely experimental. Idc what modeling you have, how it plays is how it plays. Some of the features of this box are so custom and mixed audio 1/4 theories that I'm not even sure how you'd calculate or model this, without plainly having a 3d sound physics software that calculated this enclosure inside of the vehicle, with the subs being exactly where they are in the enclosure. But, that's why we experiment. We do it for the love of audio. My theory is that this will make more bass. That's the only reason I would try this



[Buck 5,000+ posts]

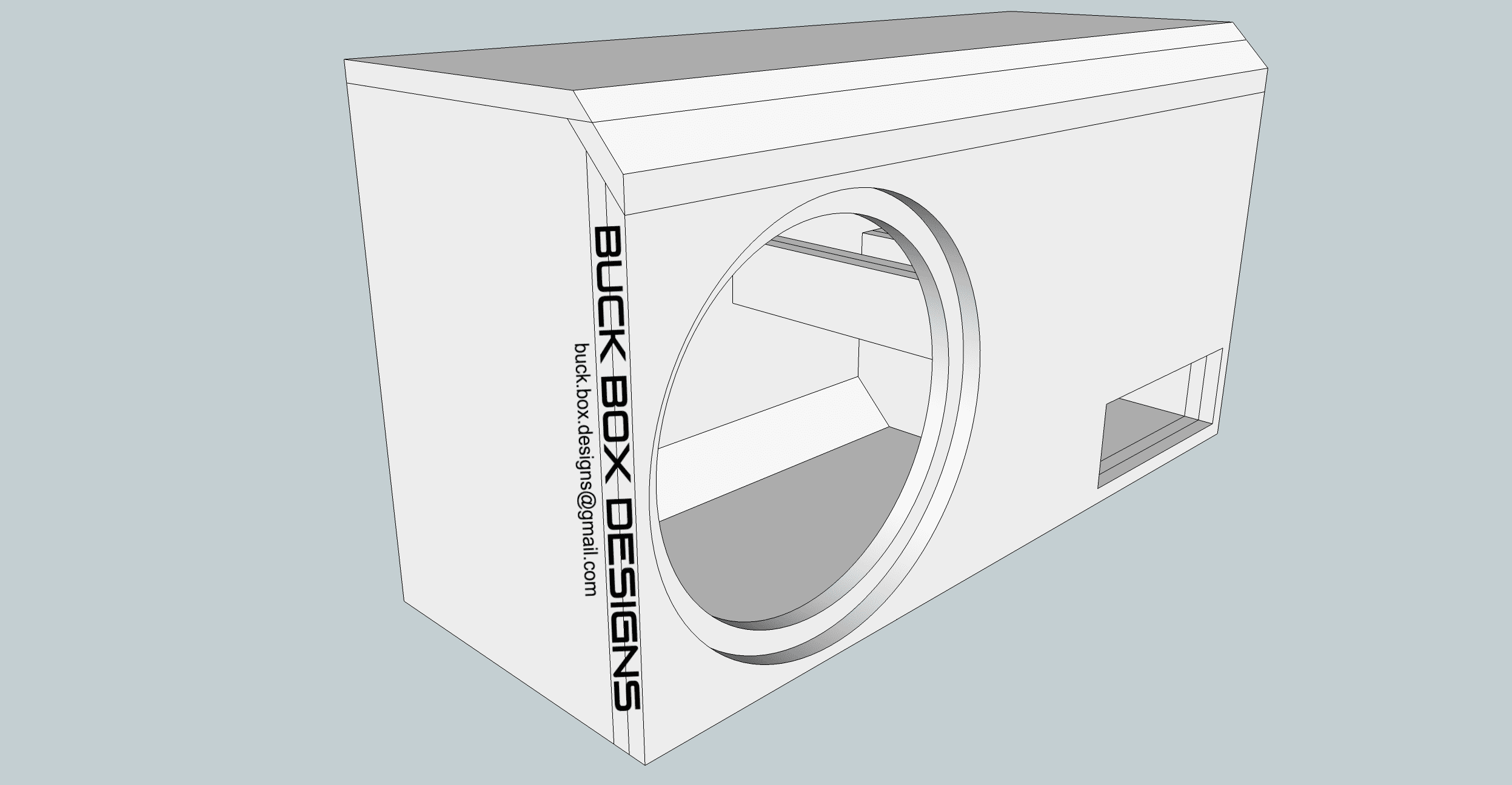

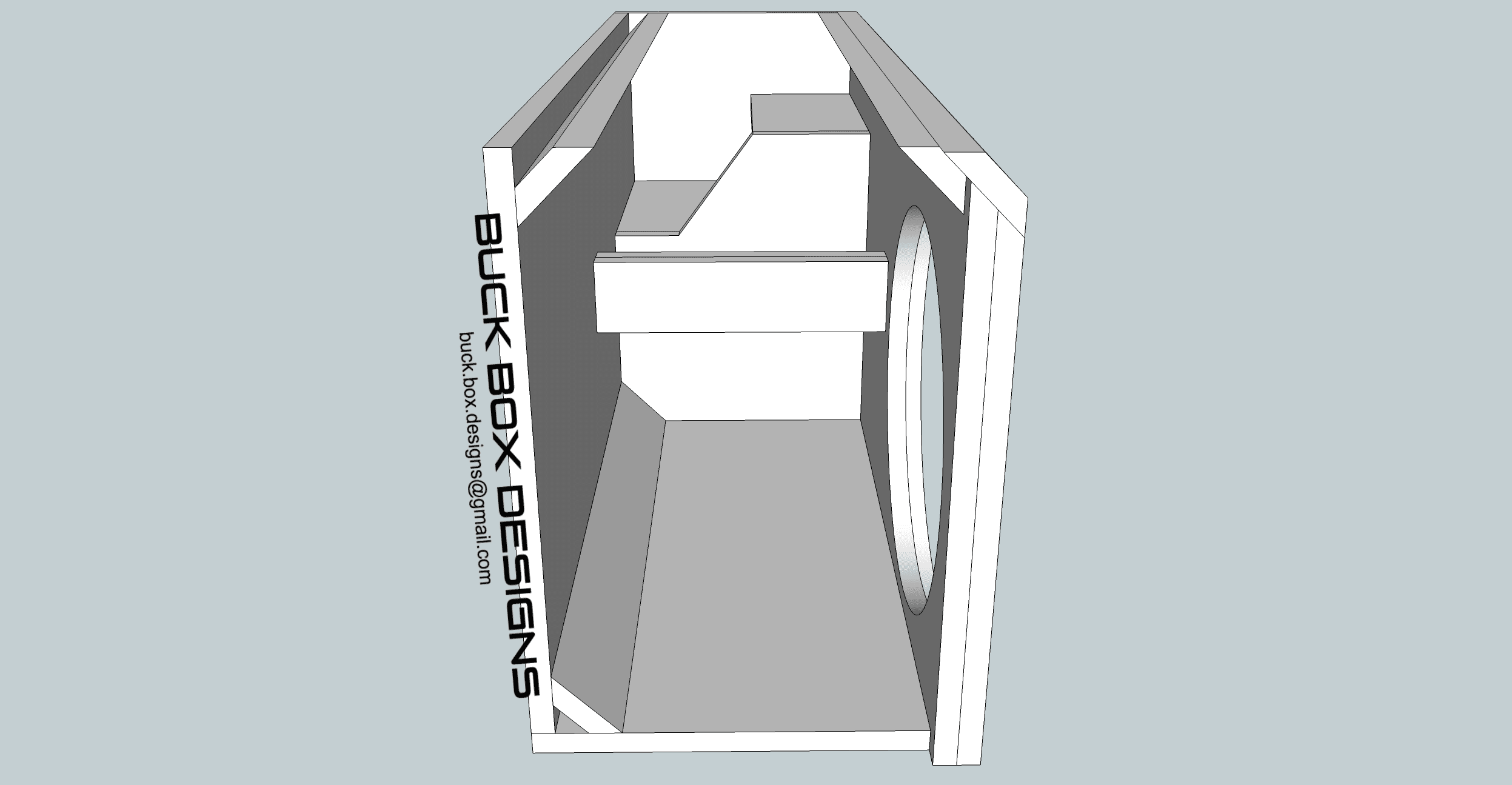

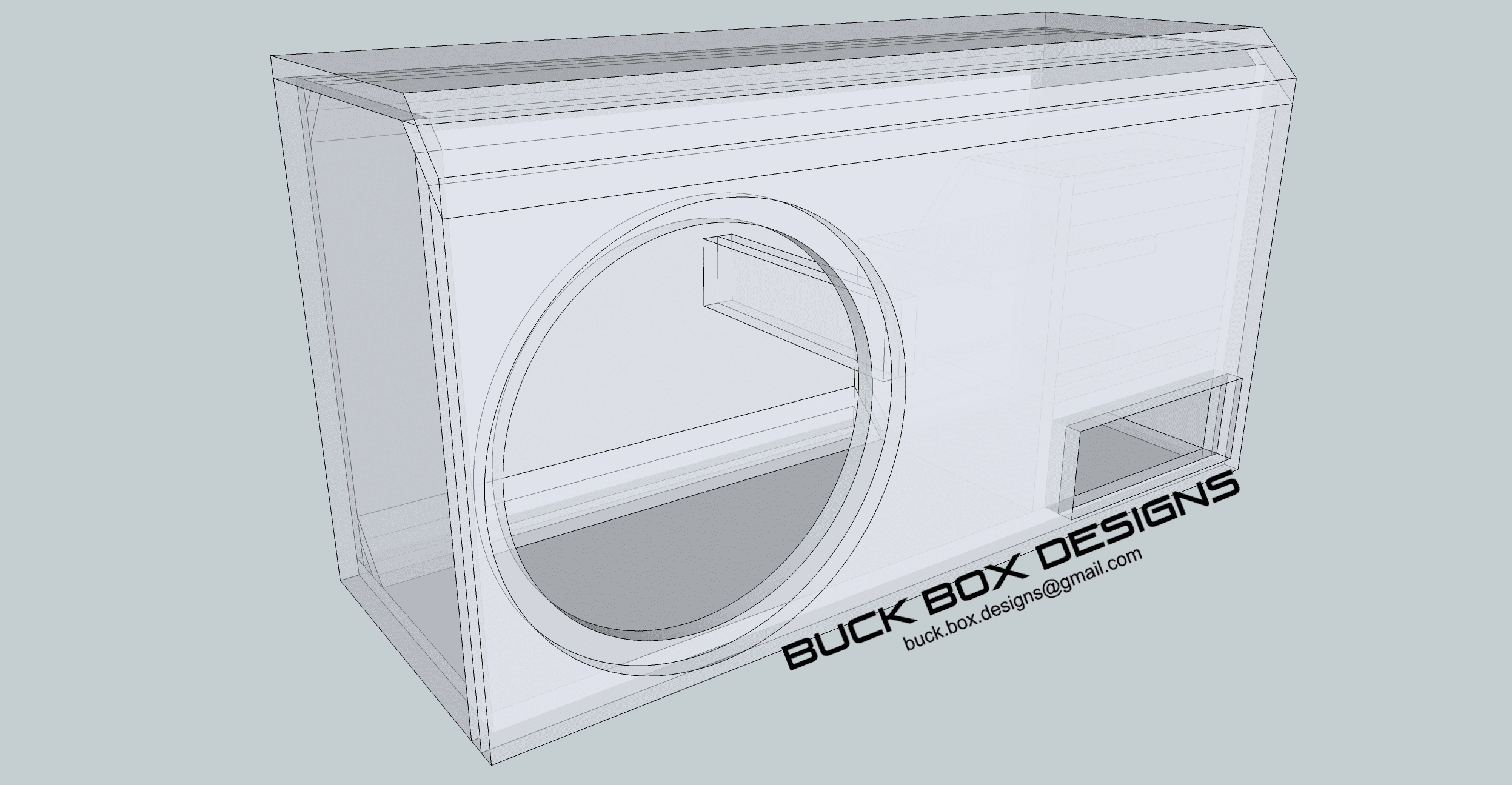

Skar VXF 15 ported going in the back of a smaller SUV.



[Buck 5,000+ posts]

Skar VXF 15 ported going in the back of a smaller SUV.

View attachment 32822

View attachment 32823

View attachment 32824

View attachment 32825

These subs might do very well in a 4th order bandpass. I think these VXF's are my favorite Skar sub.



[Ridinhi 5,000+ posts]

Skar VXF 15 ported going in the back of a smaller SUV.

View attachment 32822

View attachment 32823

View attachment 32824

View attachment 32825

I like this but man, those cuts to make that port would kick my @ss!



[Buck 5,000+ posts]

I like this but man, those cuts to make that port would kick my @ss!

That is 100% an OCD design. It's designed exactly like that to have a certain effect firing off the hatch, but yes, it's not the easiest ported box to build.



[Popwarhomie 5,000+ posts]

View attachment 32508

How's the glass roof holding up? I picked up a 2011 beater cheap to do an SPL build in. Thinking just mid 150 no wall build nothing crazy.
