Buck Box Designs - Refreshed Thread

[Boominburban 10+ year member]

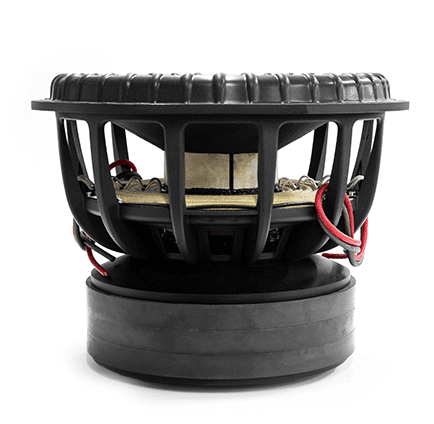

Uhhhh......this is a 15". 7500w, 5" voice coil. Almost 12" diameter motor. Fs of 23.7 hz.....ooooooo baby I'm going to have fun with this design.

View attachment 32466

http://[URL]https://pride.audio/product/subwoofer-pride-s5-15/

[/URL]

check you DMs ...



[Buck 5,000+ posts]

Skar ZVX 15 t/s parameters are



[Buck 5,000+ posts]

Skar ZVX 15 t/s parameters are

They aren't accurate, is what I mean. I very seriously doubt a 3" VC woofer has a Mms of 737g with also a Fs of 38 hz, lol. Wtf is that.



[ThxOne Premium Member]

Ok Buck... I am gonna give you the space I have to work with, what my subs are and what I listen too. What kind of simplified, ported enclosure can you come up with that has a 1 inch mounting baffle? I would like both subs to one side opposite of the port of which I would like slotted.

The dimensions:

WIDTH 40" and no wider externally.
Depth front to back 18"
Height 12" - 16"

Subs are a pair of Rockford Fosgate P3D2 10" subs - Corrected sub displacement is .070 cu. ft. or 2.0L each sub Per RF as of 2016.

Music is mostly Metal - Rock with Jazz, Country, Rap, Bass and other. I like a pronounced kick drum but when I listen to rap and bass I like it able to play down to 30-35hz before rolling off.



[Firewalker]

Email him thx he will send you a form to fill out and send back with everything on it. That is the quickest way to get a quote on your setup.



[ThxOne Premium Member]

Email him thx he will send you a form to fill out and send back with everything on it. That is the quickest way to get a quote on your setup.

I know. I am just curious what design he can come up with. I like his designs.



[Firewalker]

Ah okay wasn't sure since he does all that via email.



[Buck 5,000+ posts]

Ok Buck... I am gonna give you the space I have to work with, what my subs are and what I listen too. What kind of simplified, ported enclosure can you come up with that has a 1 inch mounting baffle? I would like both subs to one side opposite of the port of which I would like slotted.

The dimensions:

WIDTH 40" and no wider externally.
Depth front to back 18"
Height 12" - 16"

Subs are a pair of Rockford Fosgate P3D2 10" subs - Corrected sub displacement is .070 cu. ft. or 2.0L each sub Per RF as of 2016.

Music is mostly Metal - Rock with Jazz, Country, Rap, Bass and other. I like a pronounced kick drum but when I listen to rap and bass I like it able to play down to 30-35hz before rolling off.

Definitely email me at: buck.box.designs@gmail.com



[Buck 5,000+ posts]

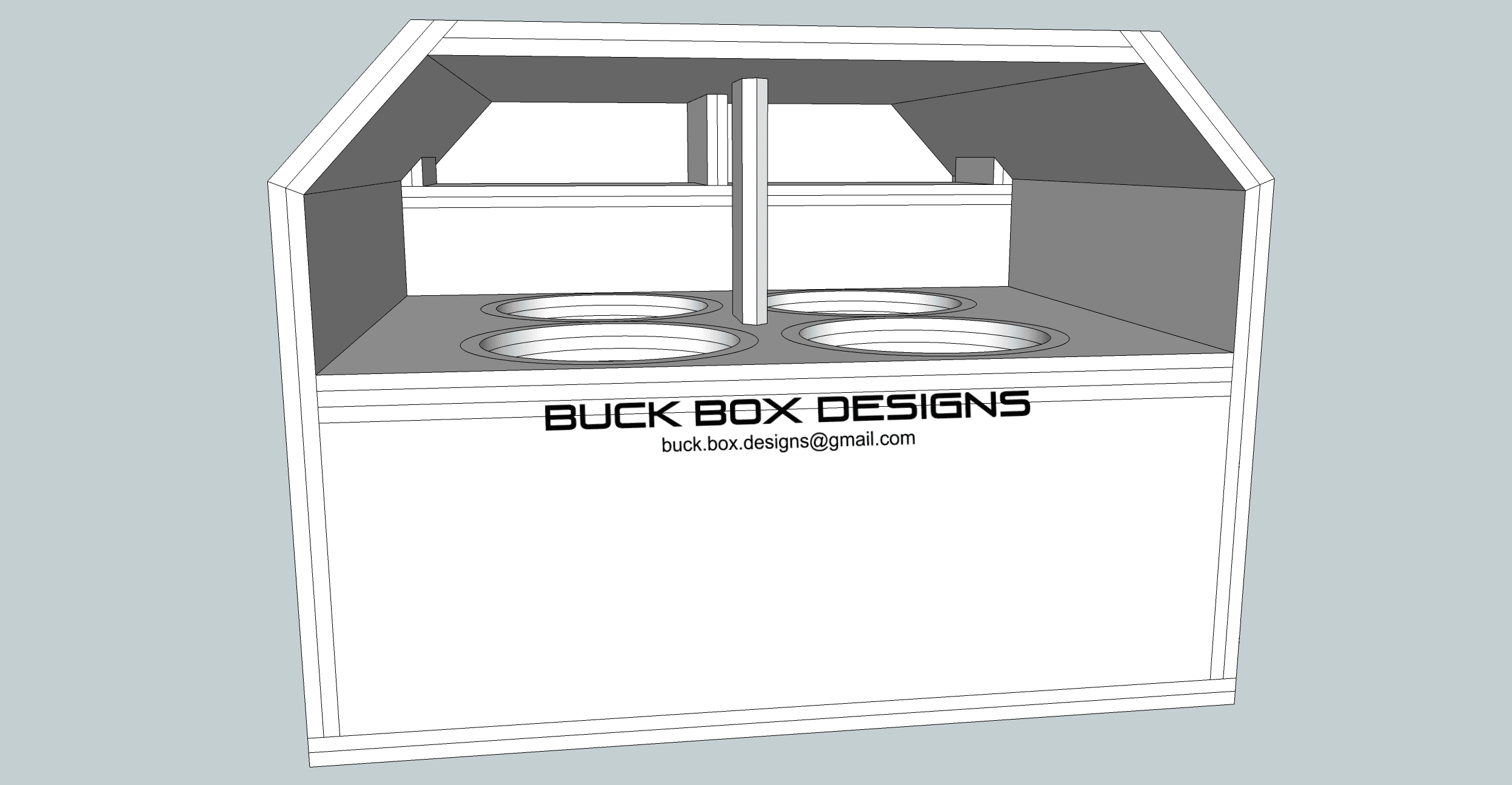

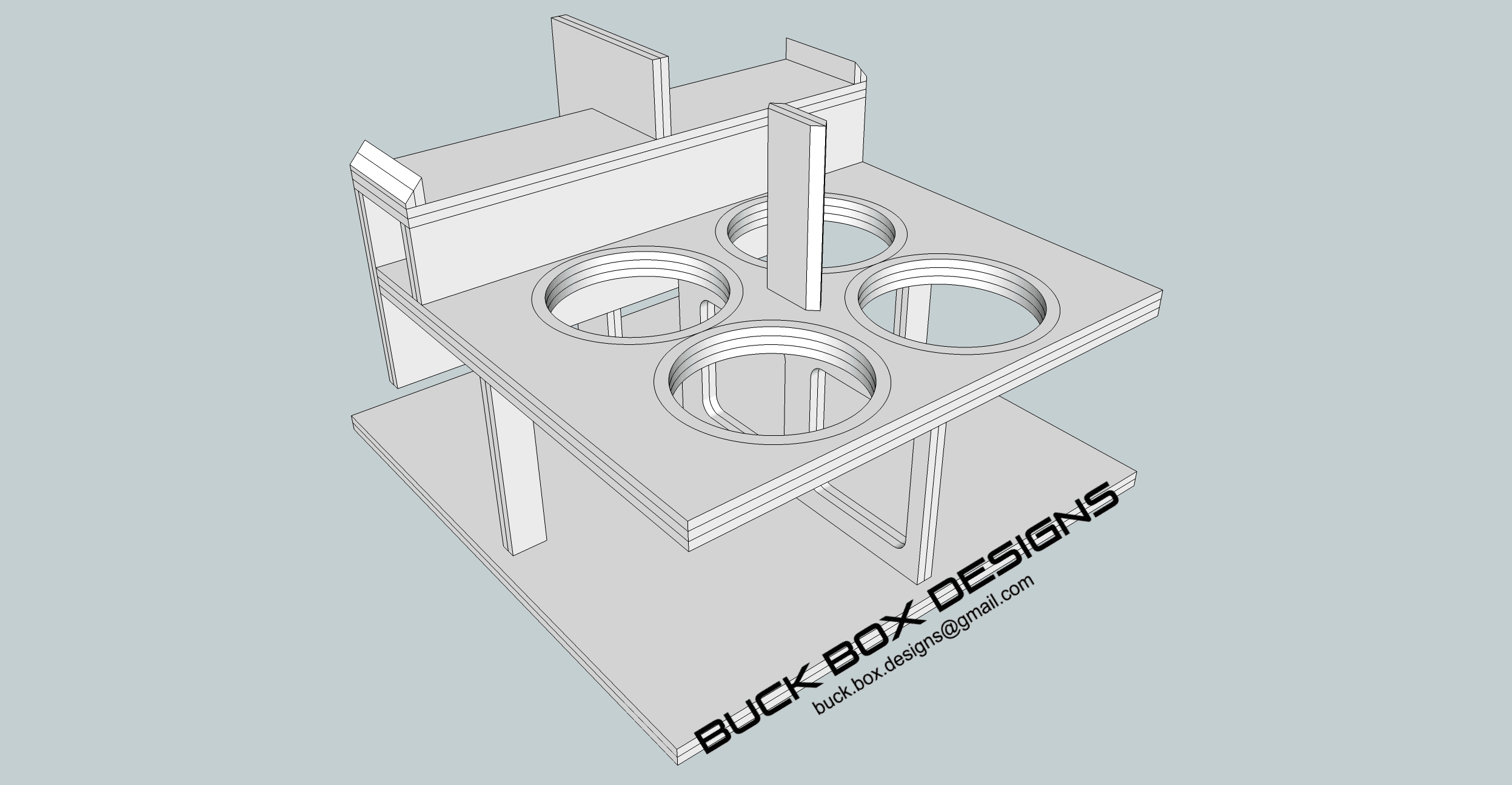

4 Skar ZVX 15 B-pillar ported/clamshell-like slide in wall going in a large SUV. I was told Sundown Zv5's or Zv6's might be put in this box, at some point, on 2 Sundown NS 6500's.



[nags 10+ year member]

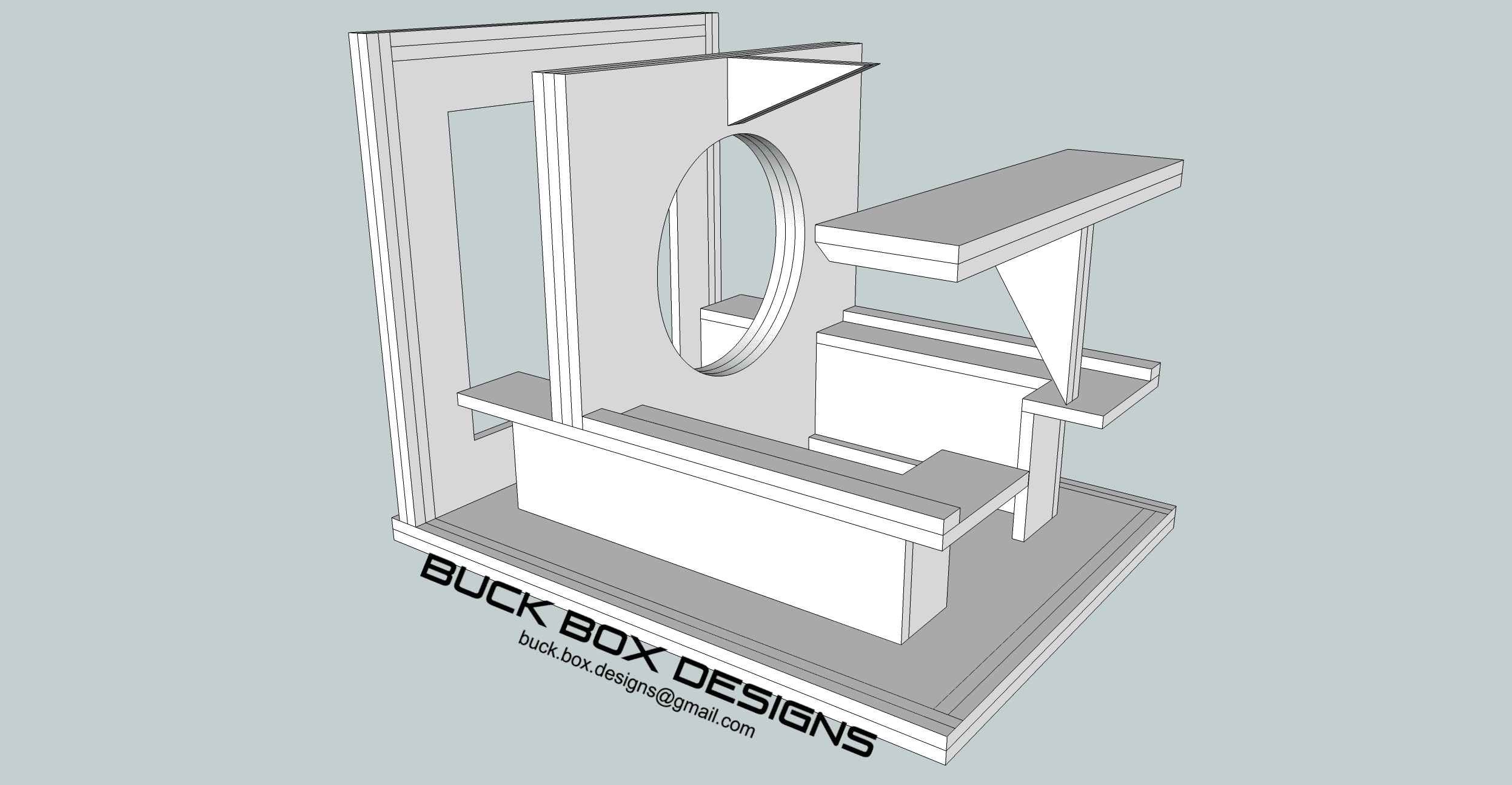

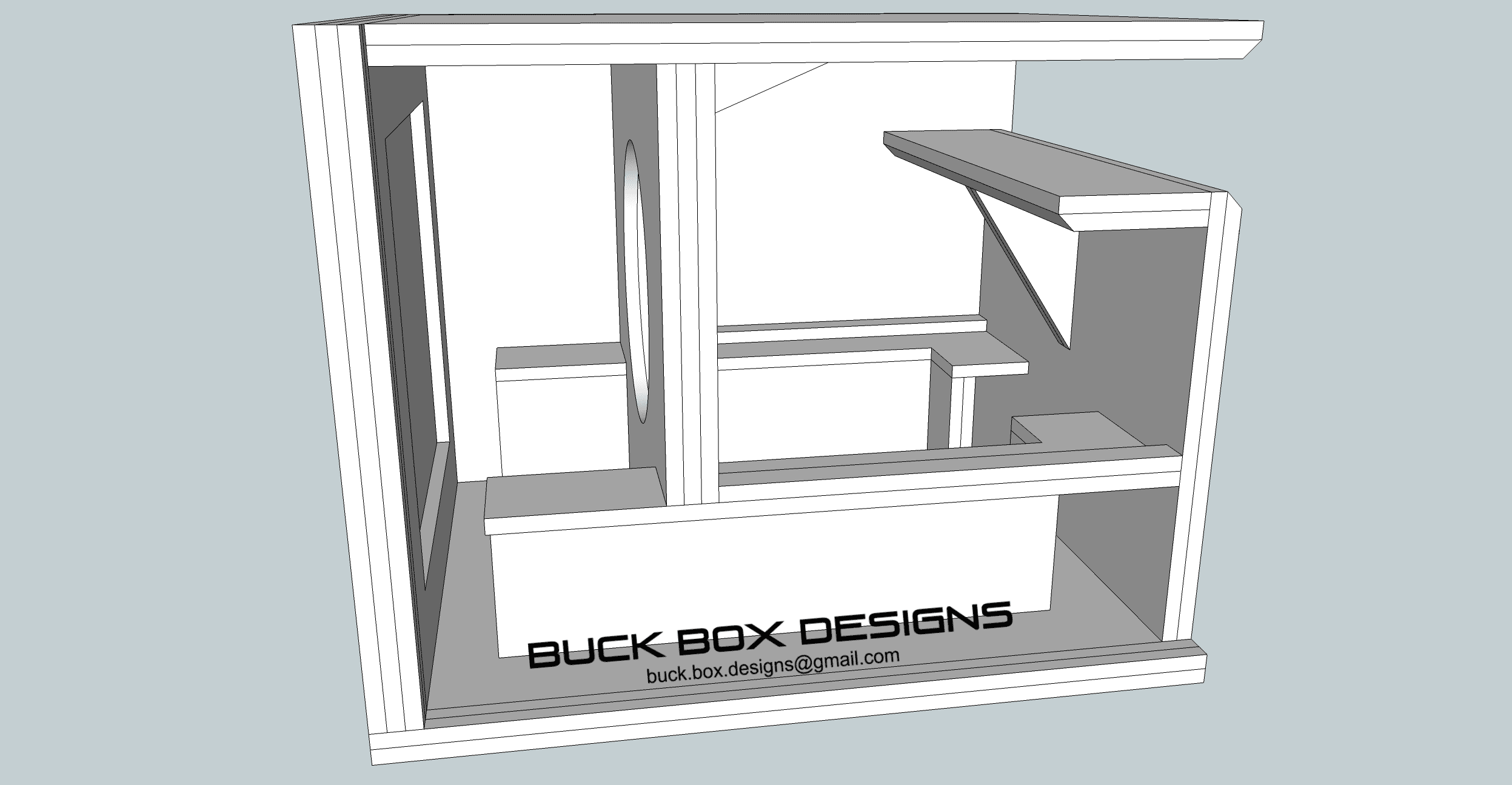

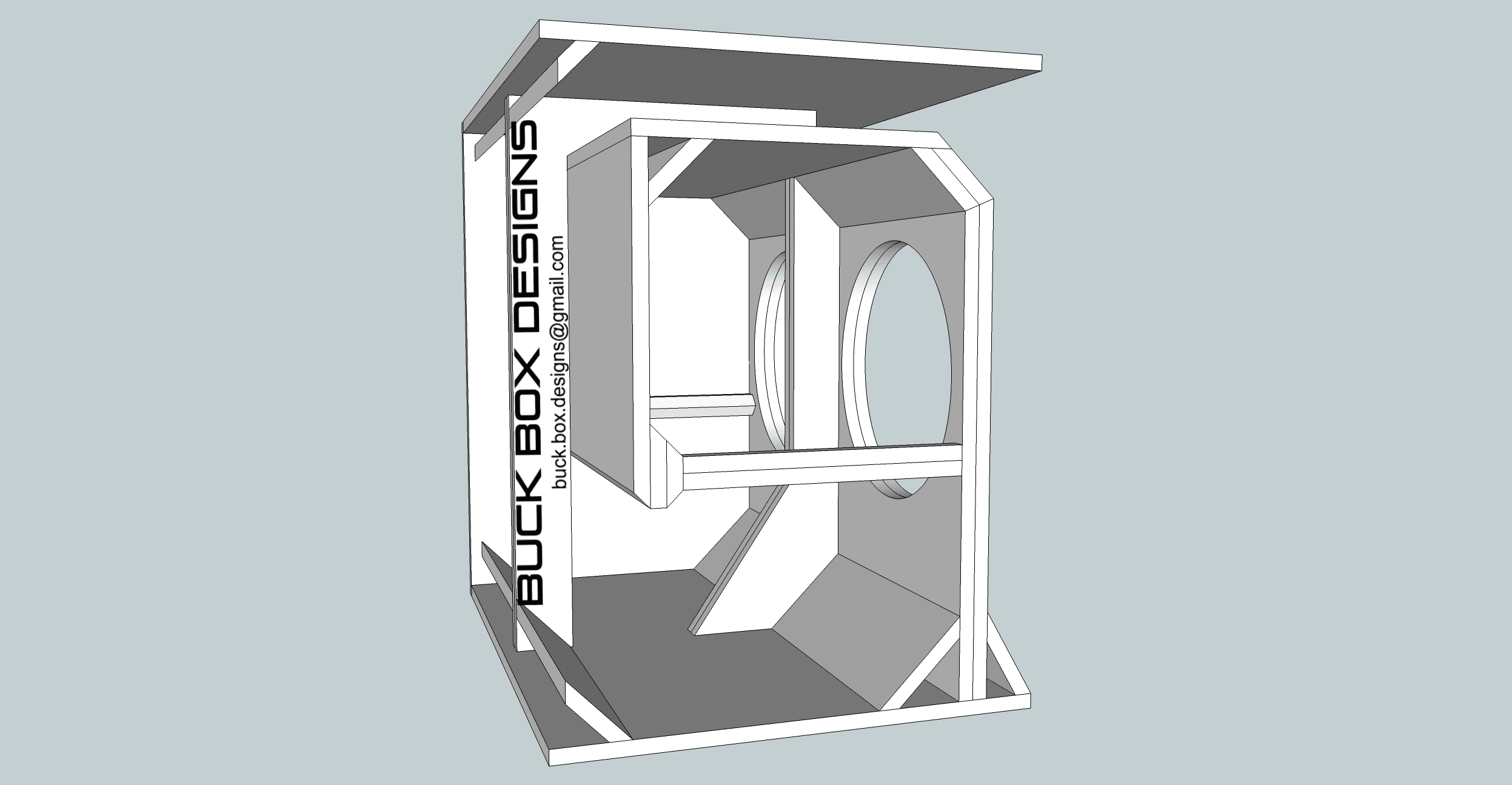

Pride S5 15" (7500w RMS / 5" VC) side firing in a series 6th order. Going in a quad cab pickup truck cab.

Dude! This woofer weighs 125 pounds and is almost 12" deep. So......that was difficult to layout.

View attachment 32492

View attachment 32493

This thing looks like a freakin' jungle gym.



[Buck 5,000+ posts]

This thing looks like a freakin' jungle gym.

The woofer was so big, and the box was almost the layout of a cube, so it can get hairy trying to run ports past the sub and keeping everything separated/not running into each other.



[Buck 5,000+ posts]

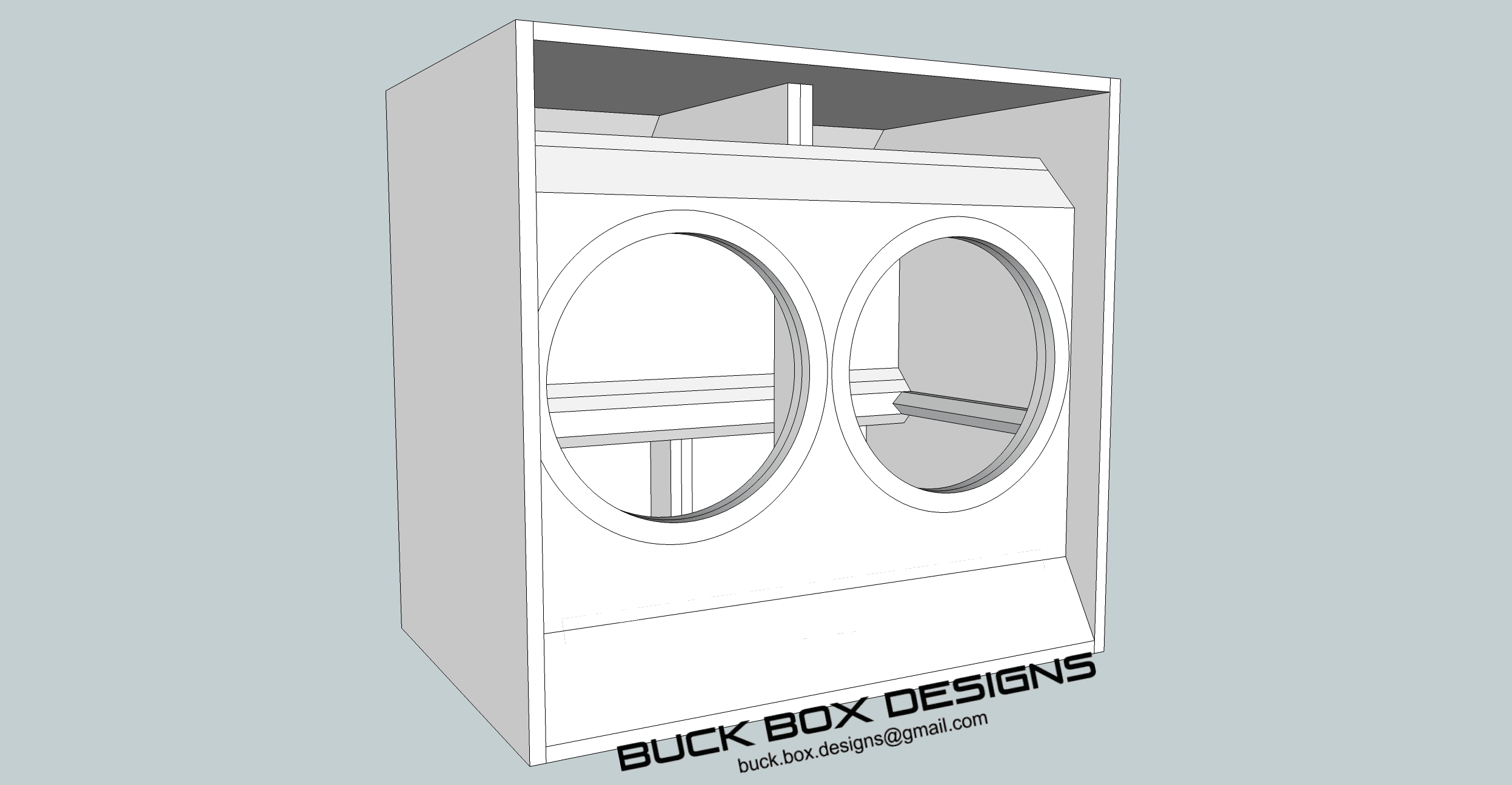

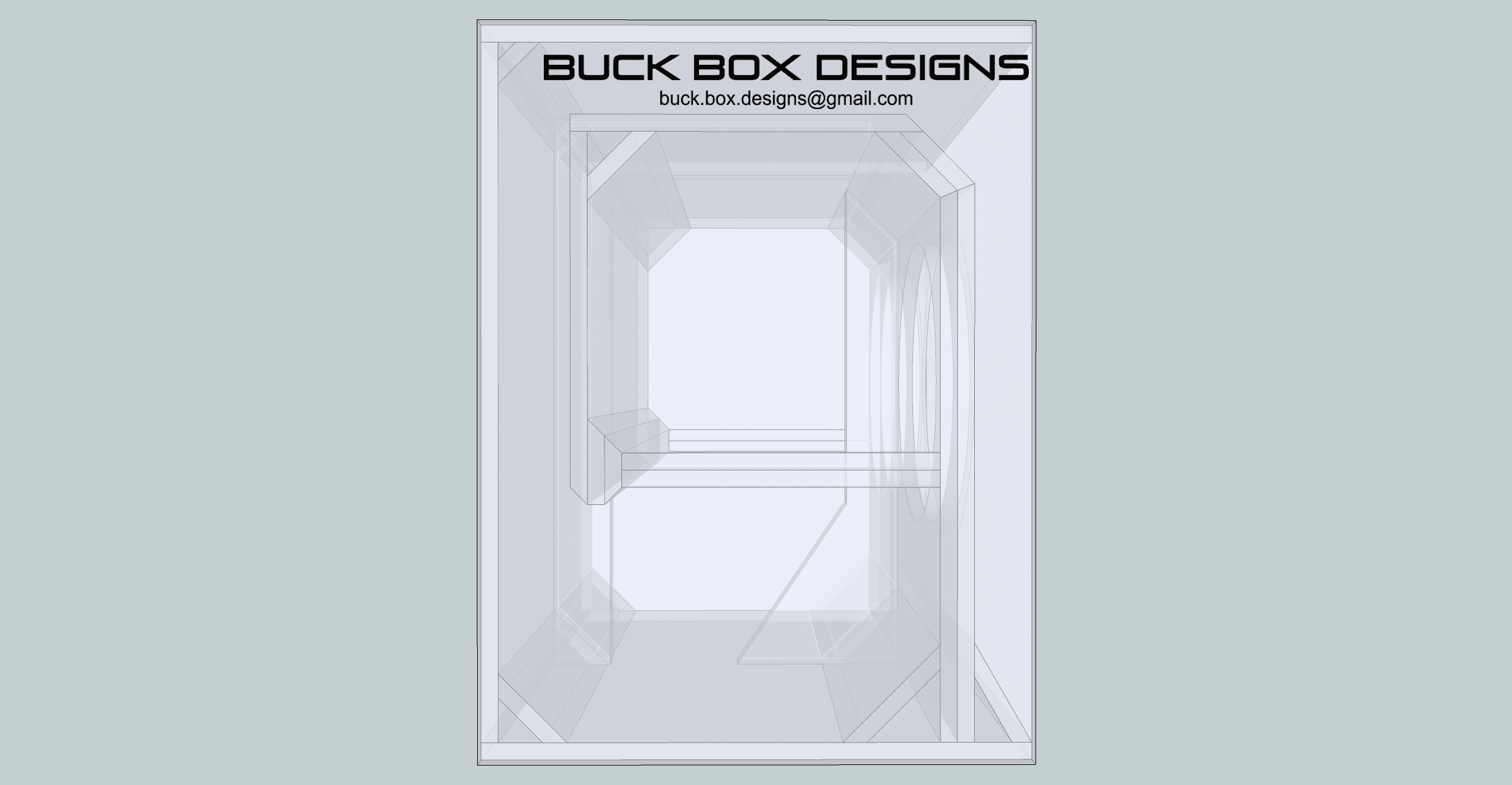

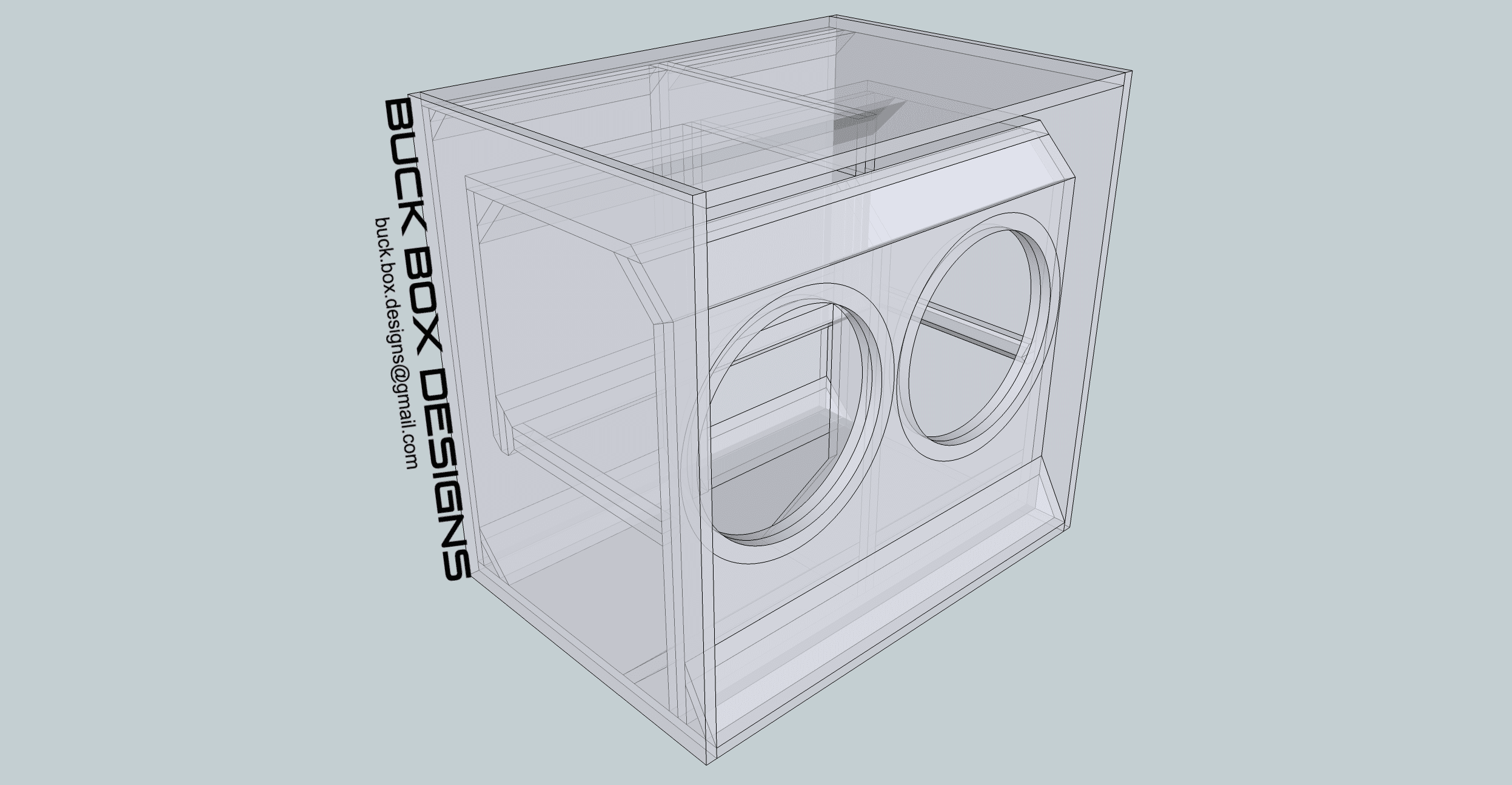

2 SoundQubed HDX3 15's ported slide in wall going in an older, small SUV.



[Buck 5,000+ posts]

Ok Buck... I am gonna give you the space I have to work with, what my subs are and what I listen too. What kind of simplified, ported enclosure can you come up with that has a 1 inch mounting baffle? I would like both subs to one side opposite of the port of which I would like slotted.

The dimensions:

WIDTH 40" and no wider externally.
Depth front to back 18"
Height 12" - 16"

Subs are a pair of Rockford Fosgate P3D2 10" subs - Corrected sub displacement is .070 cu. ft. or 2.0L each sub Per RF as of 2016.

Music is mostly Metal - Rock with Jazz, Country, Rap, Bass and other. I like a pronounced kick drum but when I listen to rap and bass I like it able to play down to 30-35hz before rolling off.

You have to email me for me to look at this.



[ThxOne Premium Member]

You have to email me for me to look at this.

I gotcha... I don't want to load you down. I was just curious of the design you would come up with.



[Buck 5,000+ posts]

US7103193B2 - Bandpass woofer enclosure with multiple acoustic fibers - Google Patents

A bandpass loudspeaker enclosure having three sub chambers, a first subchamber being a Helmholtz-reflex chamber with a passive acoustic radiator operating in parallel with the transducer, and the remaining two chambers utilizing two passive acoustic radiators to achieve three Helmholtz-reflex...

patents.google.com
