Bucks box designs are always so nice ..it almost makes me want to get back into car audio



[Marve_Lous]

You may want to check local pawn shops to find that missing router

He finally brought it back and I finished it



[Buck 5,000+ posts]

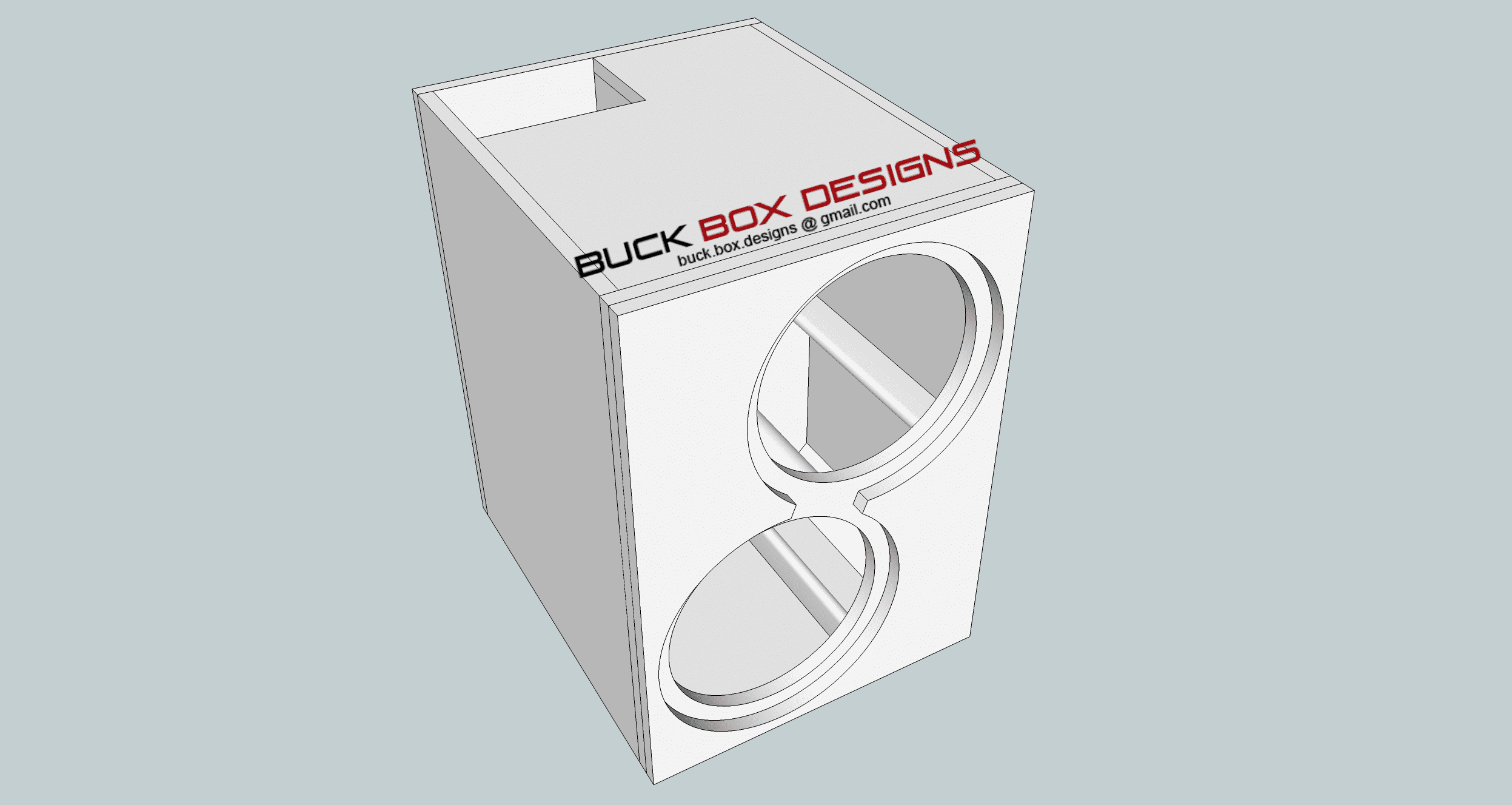

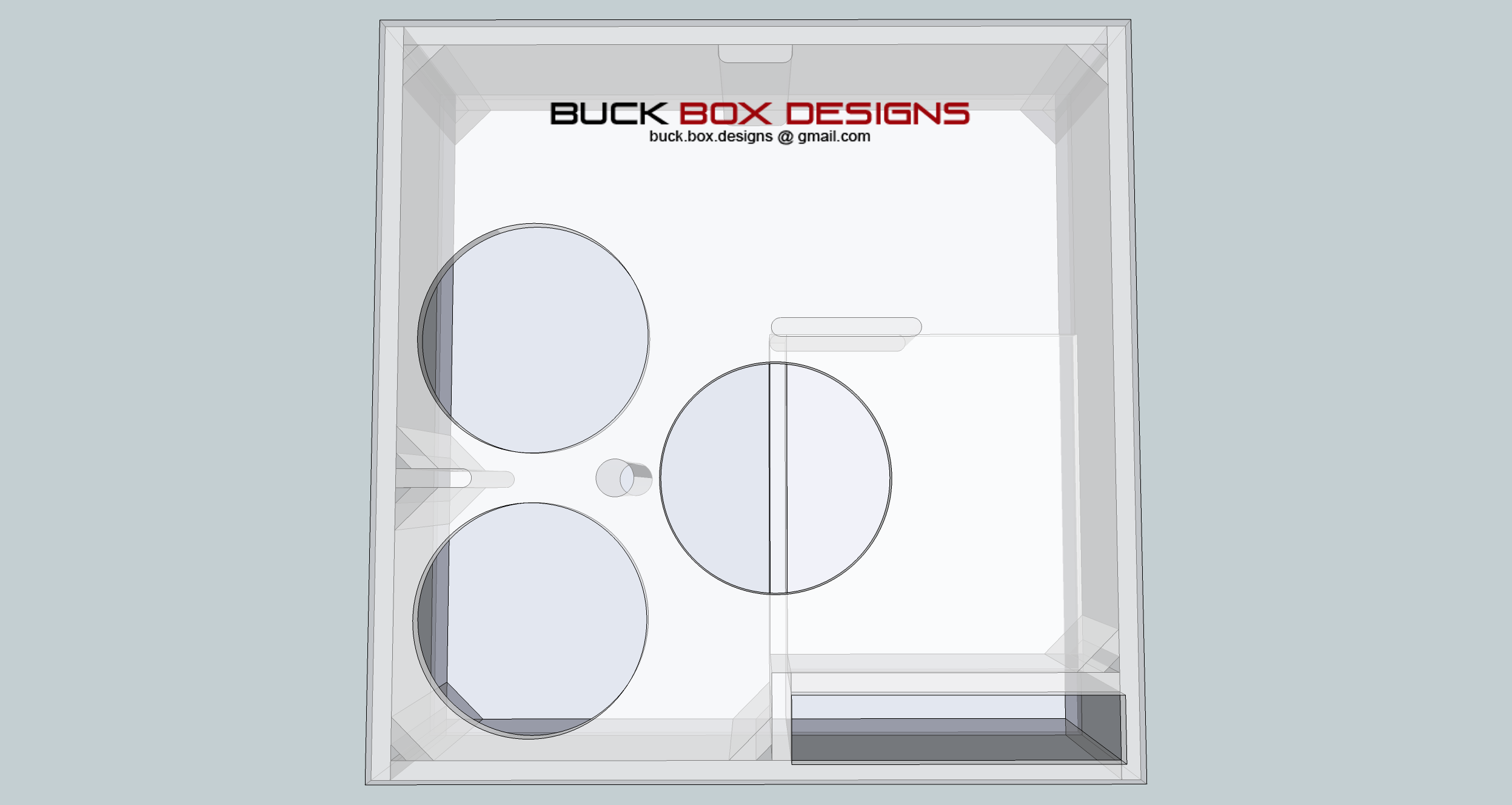

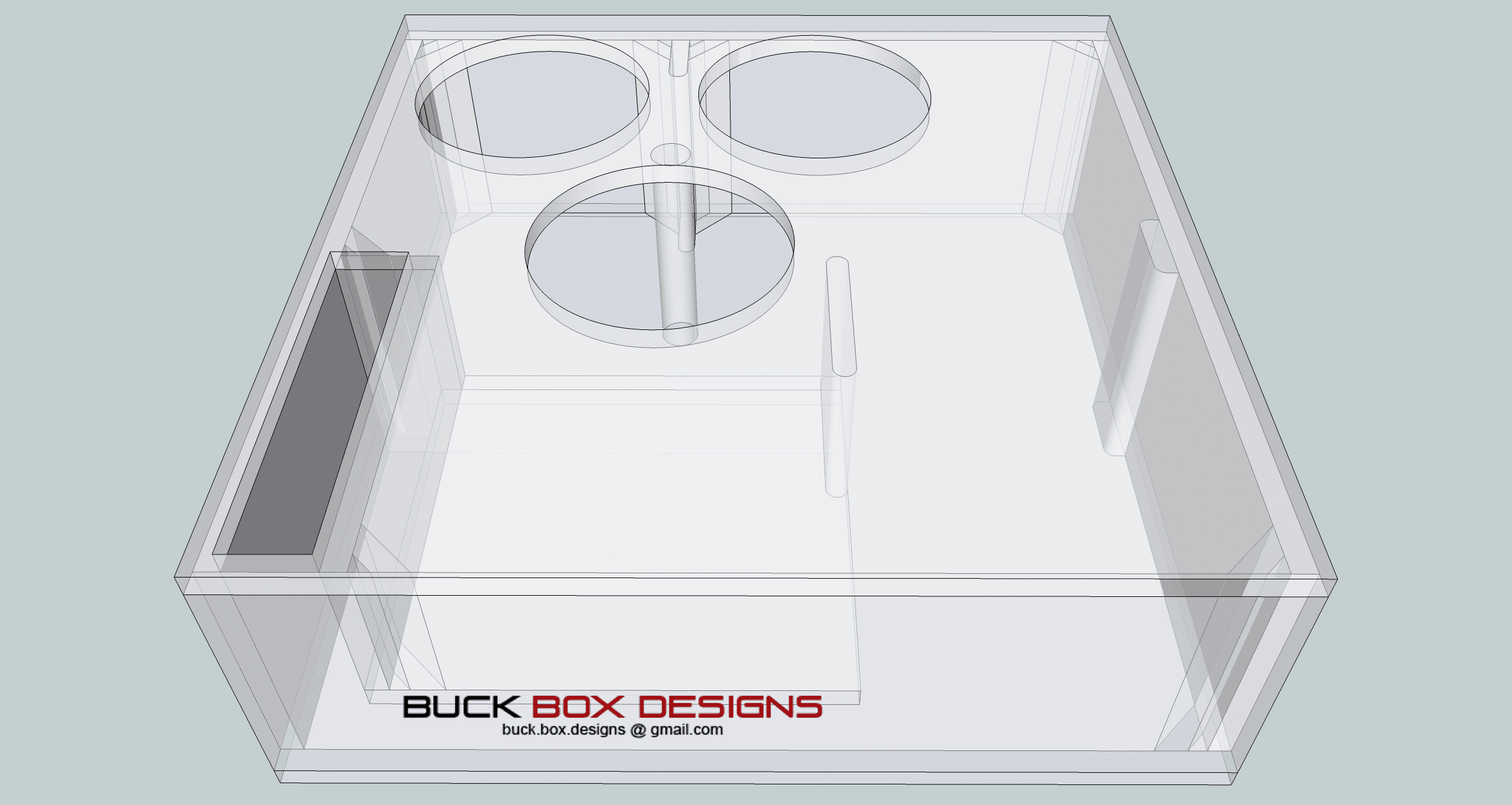

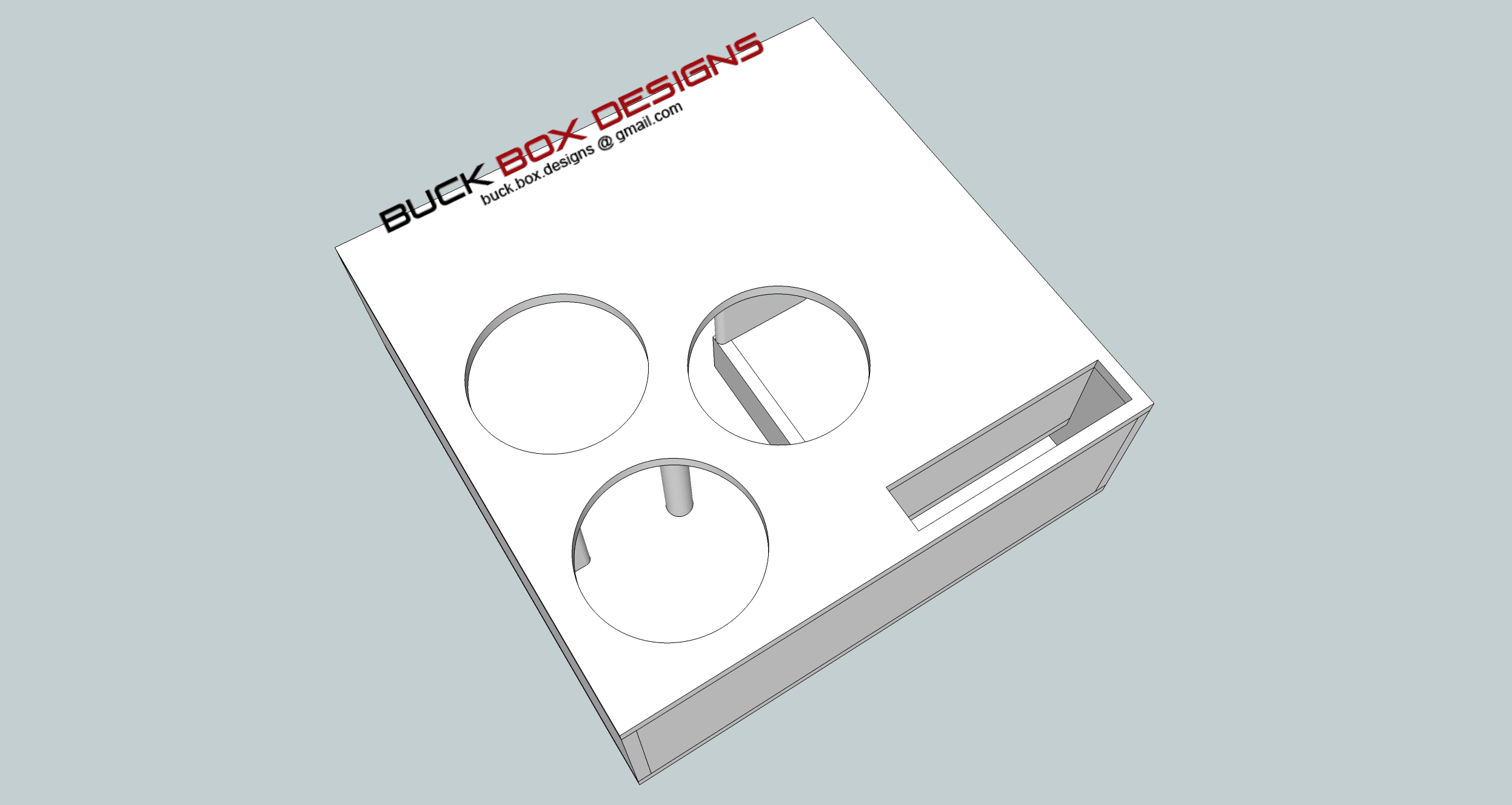

Had to re-design the 3 JL w3 10's ported box, luckily before it was built. Always measure few times to make sure your box fits!



[Buck 5,000+ posts]

2 DC Level 4 12's with XL soft parts, ported



[Buck 5,000+ posts]

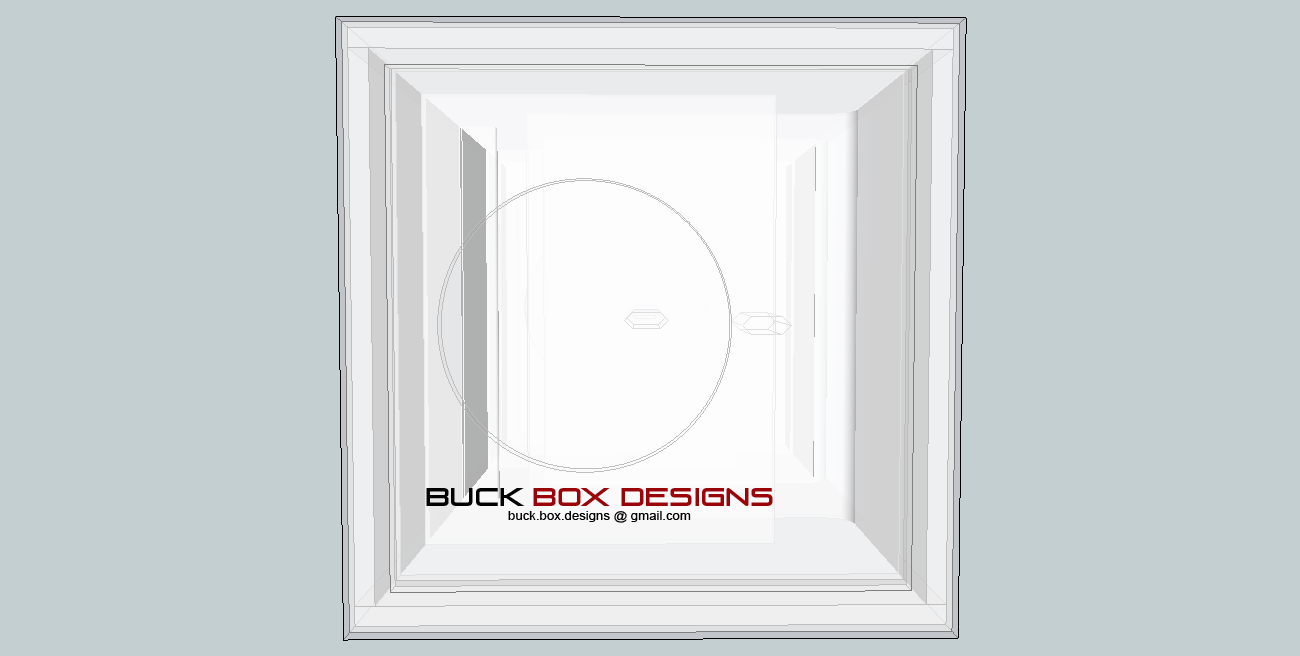

I may or may not be looking for a test subject for a rear loaded horn design



[Buck 5,000+ posts]

Doing tapered still ports or lines is a lot of math. I could take time to learn hornsrep I guess, but I'd almost rather create my own formulas for it. Nobody ever wants a rear loaded horn, so I haven't ever been encouraged to actually learn how to do them well. I'm not really the biggest fan of tapered t-lines, but in some situations, they have their uses.



[Buck 5,000+ posts]

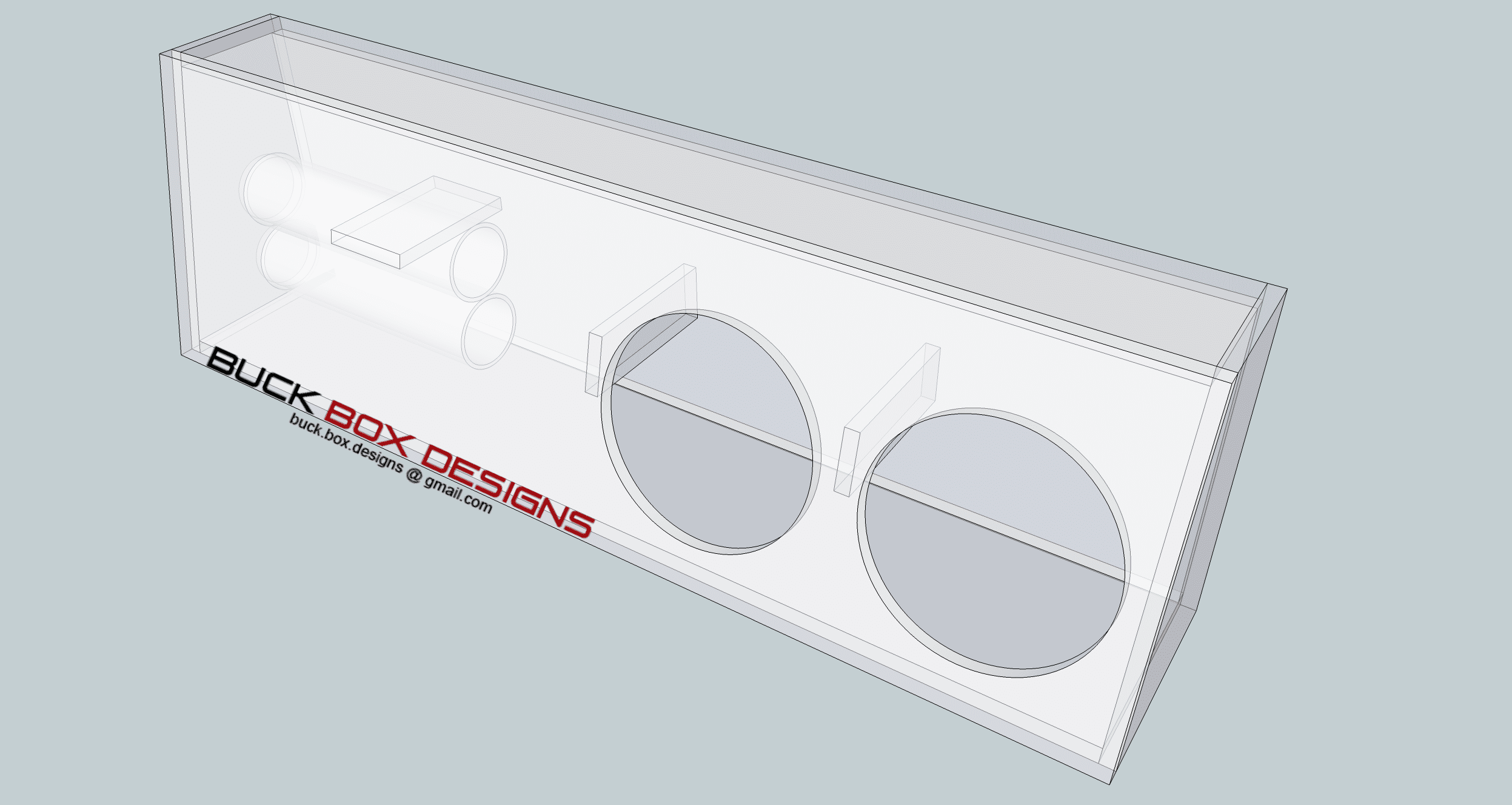

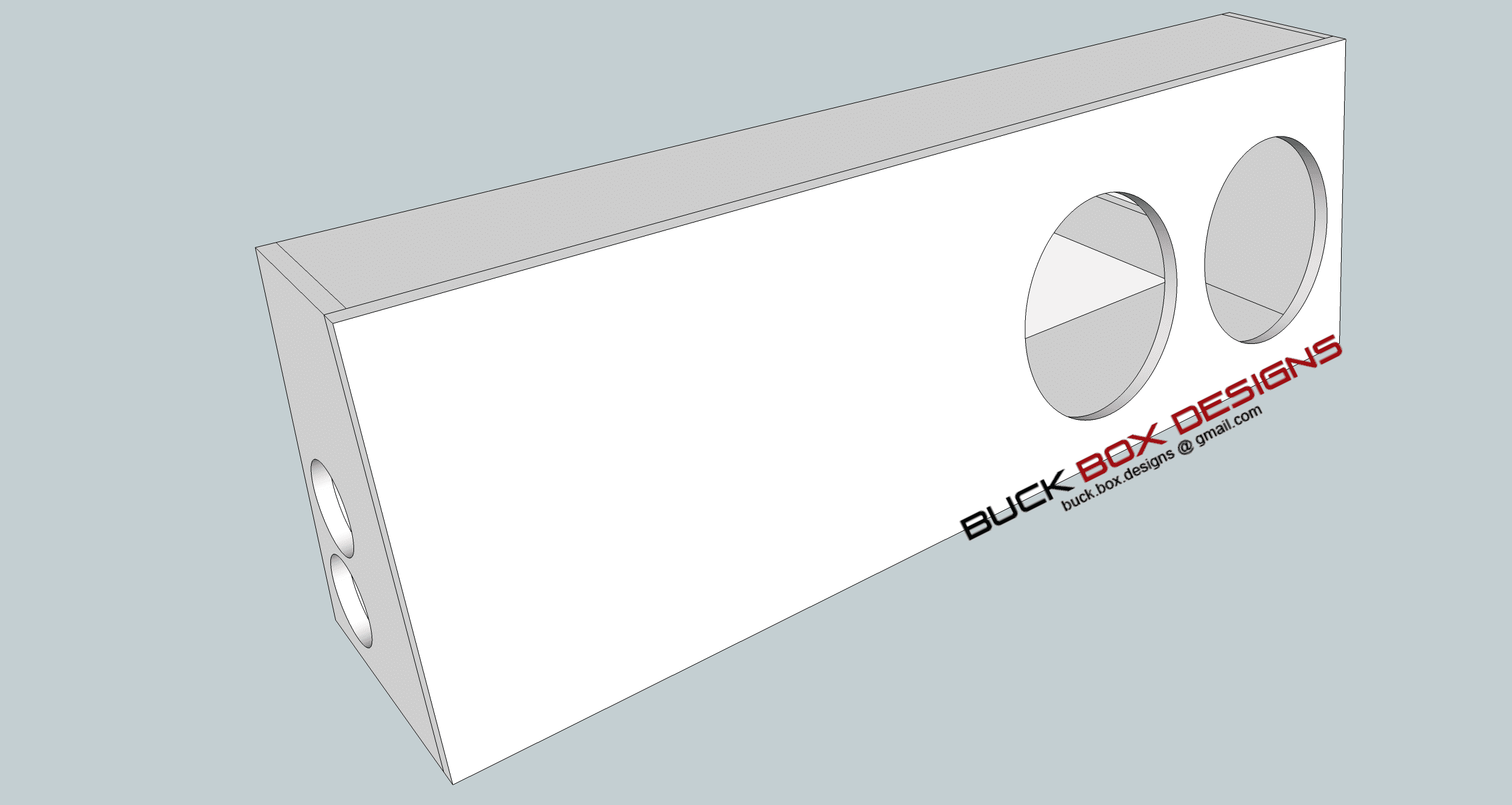

2 Skar VD-12's ported. These subs actually look like decent shallow mounts.



[Bobbytwonames 5,000+ posts]

!



[Buck 5,000+ posts]

Hey, is the Sundown SFB3000D a good match for 4-VFL8D2's? I appreciate your feedback. 3.5 cubes ported at 32hz. View attachment 25858

Email me at buck.box.designs@gmail.com and I'll give you my phone number. I'd like to keep this thread for my pictures, if you don't mind. No worries, though.



[Buck 5,000+ posts]

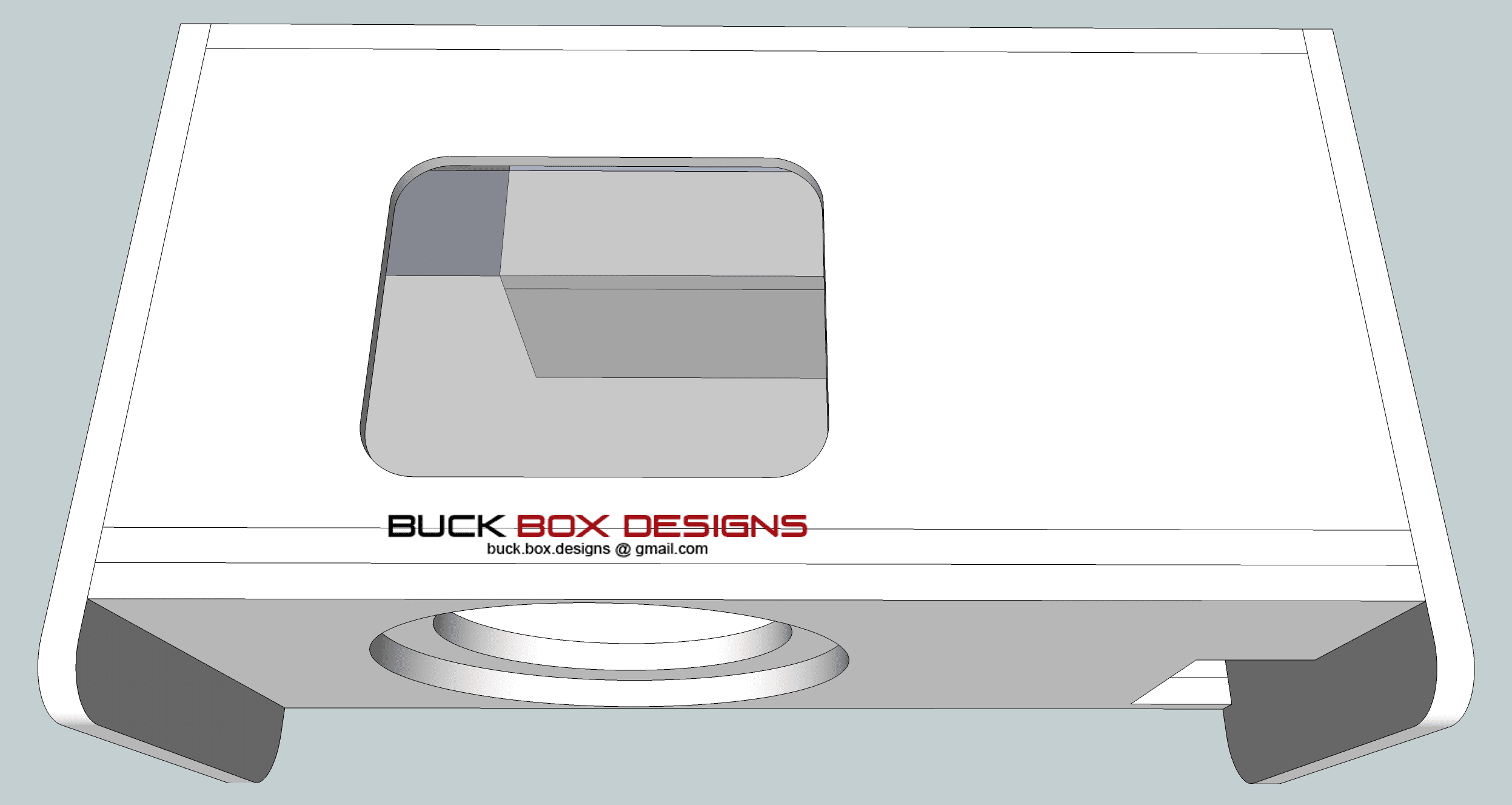

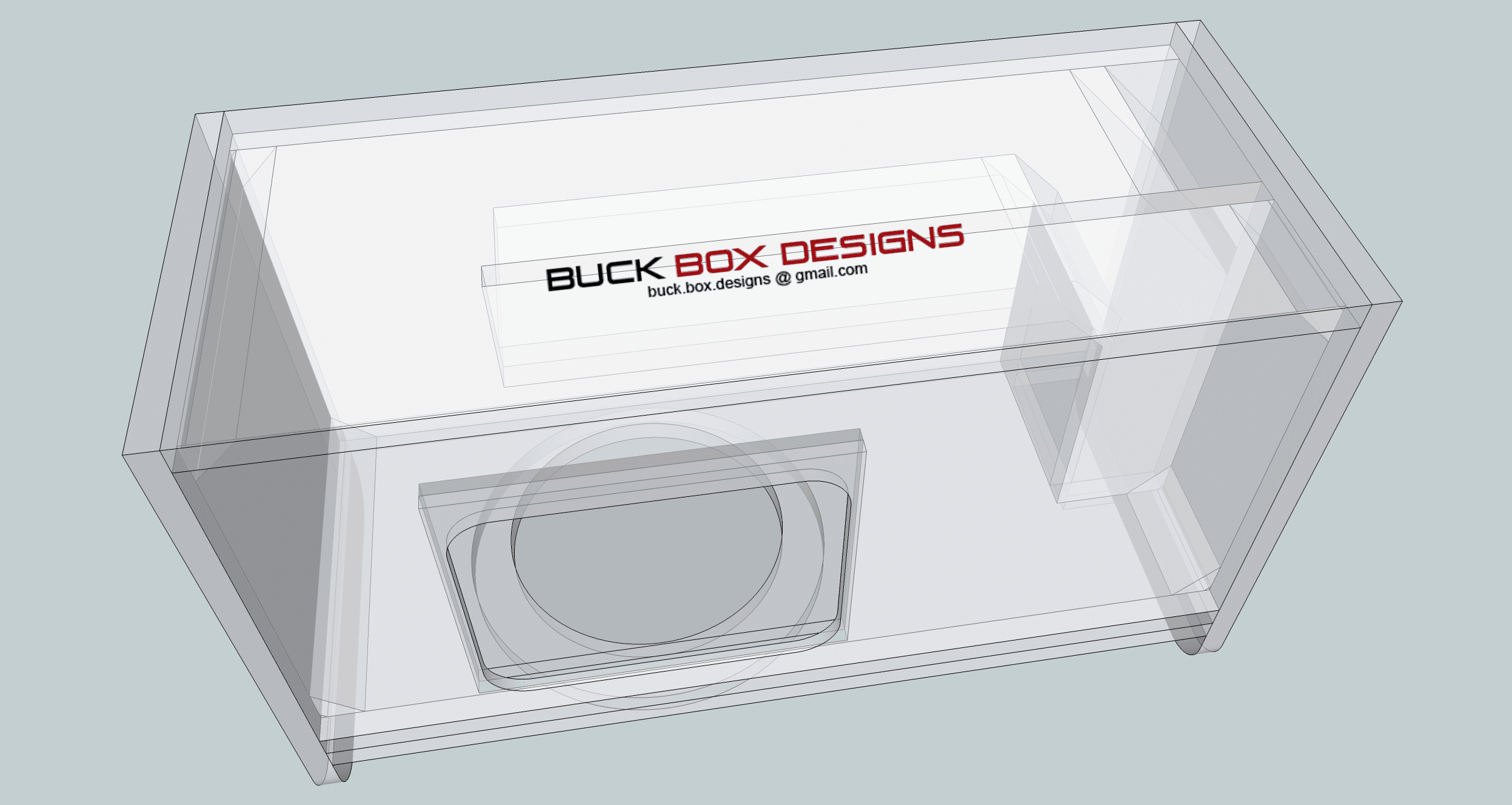

JL 10w7 downfiring ported box with plexi



[Buck 5,000+ posts]

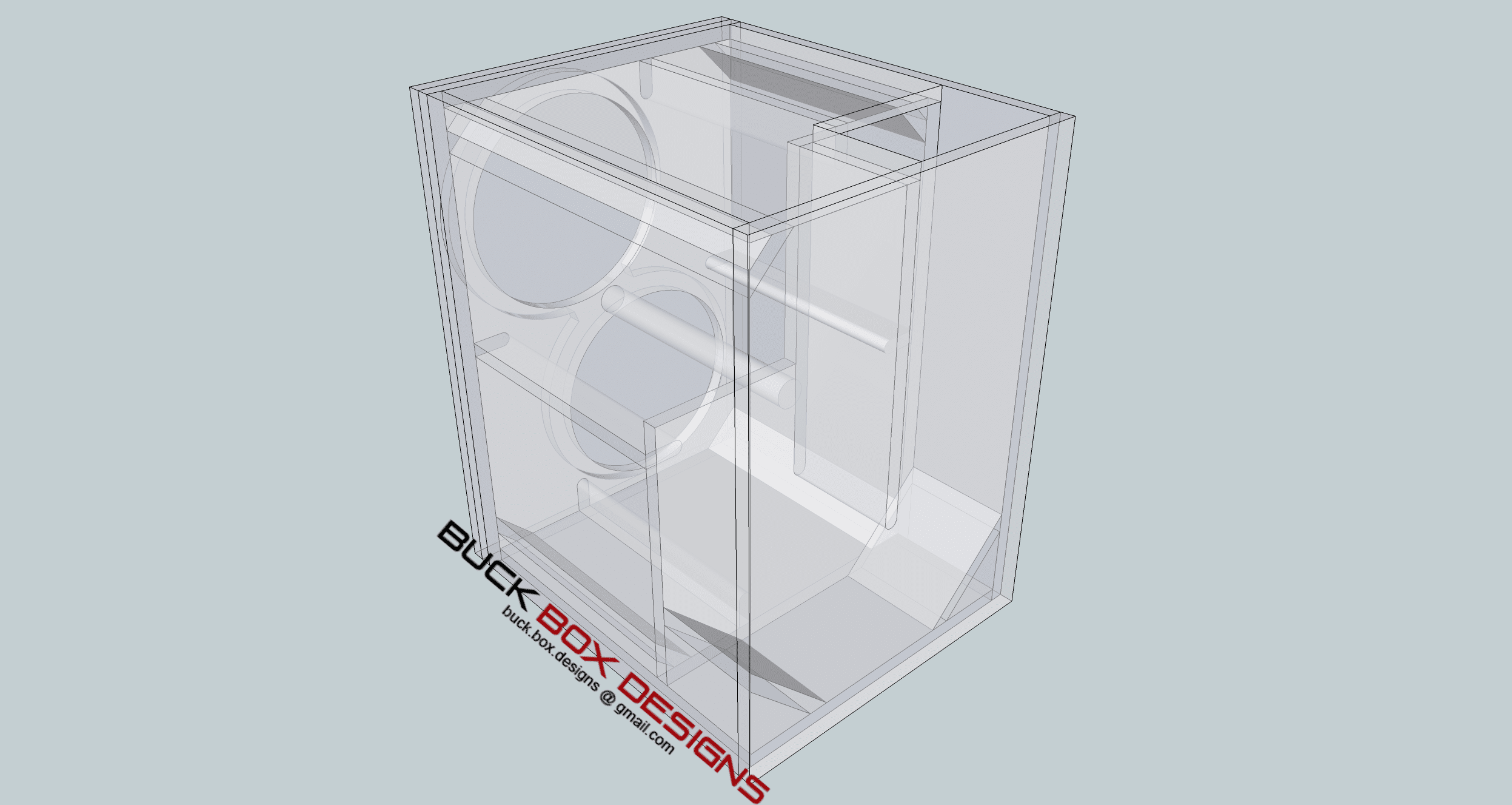

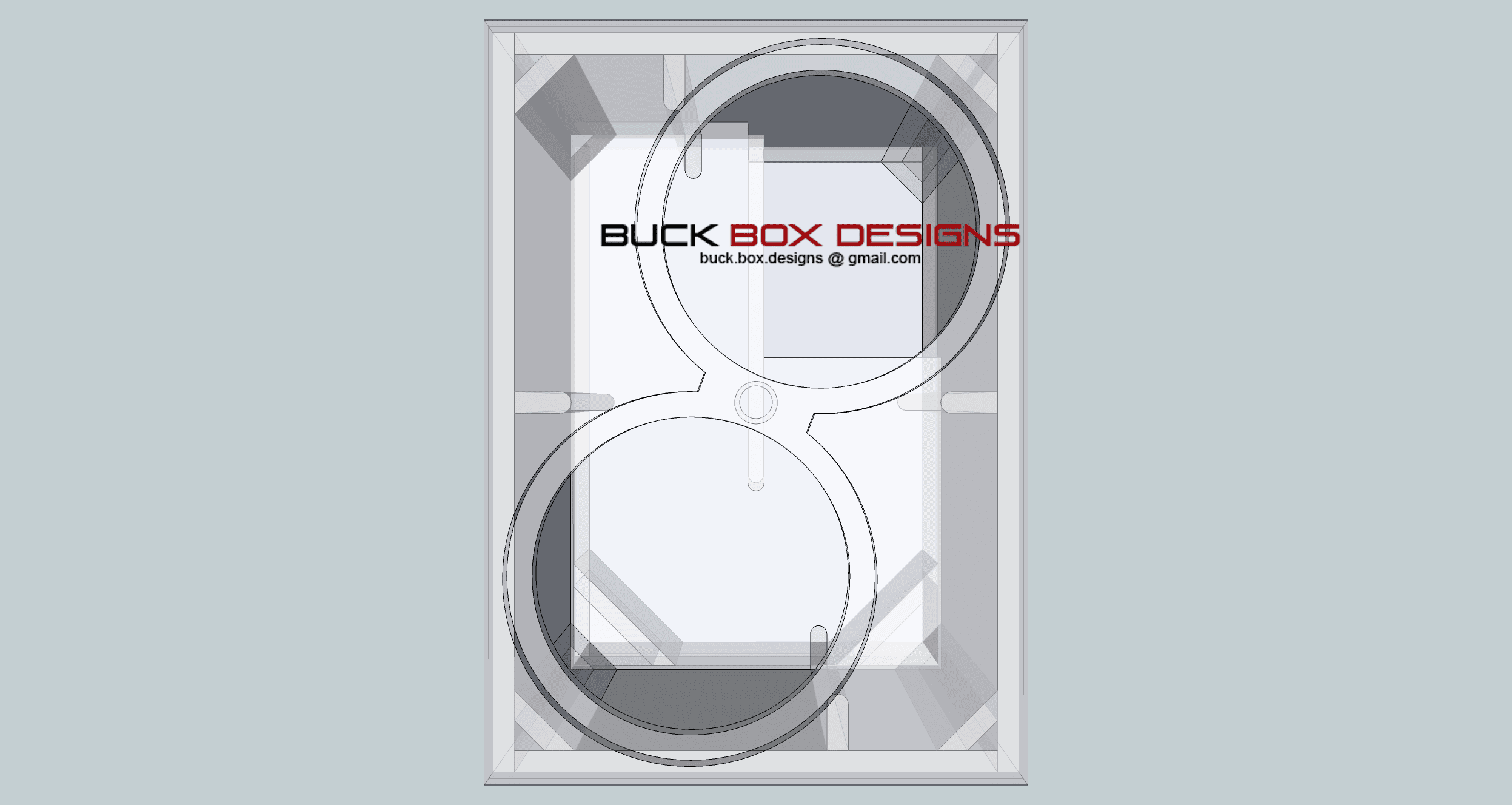

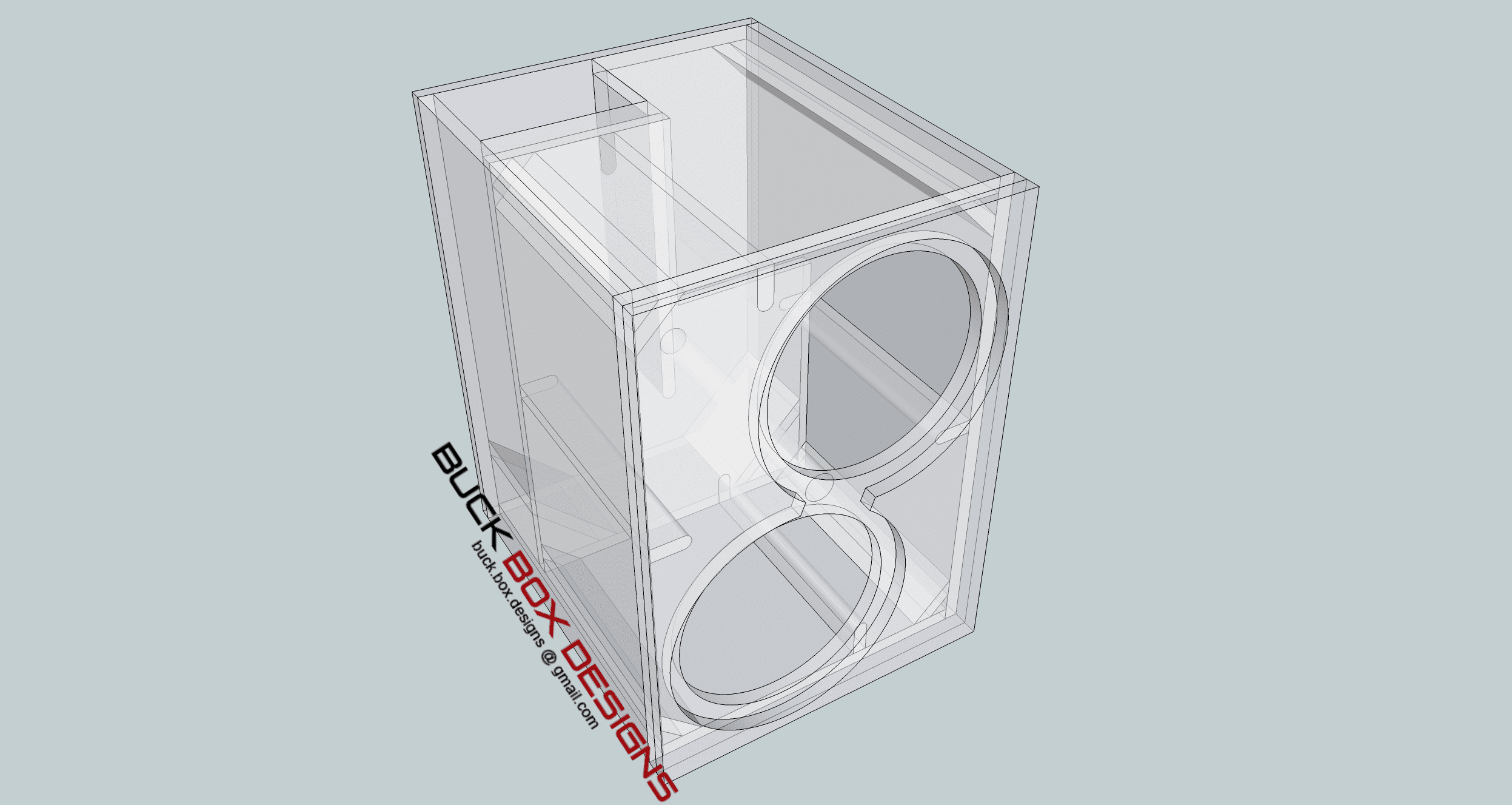

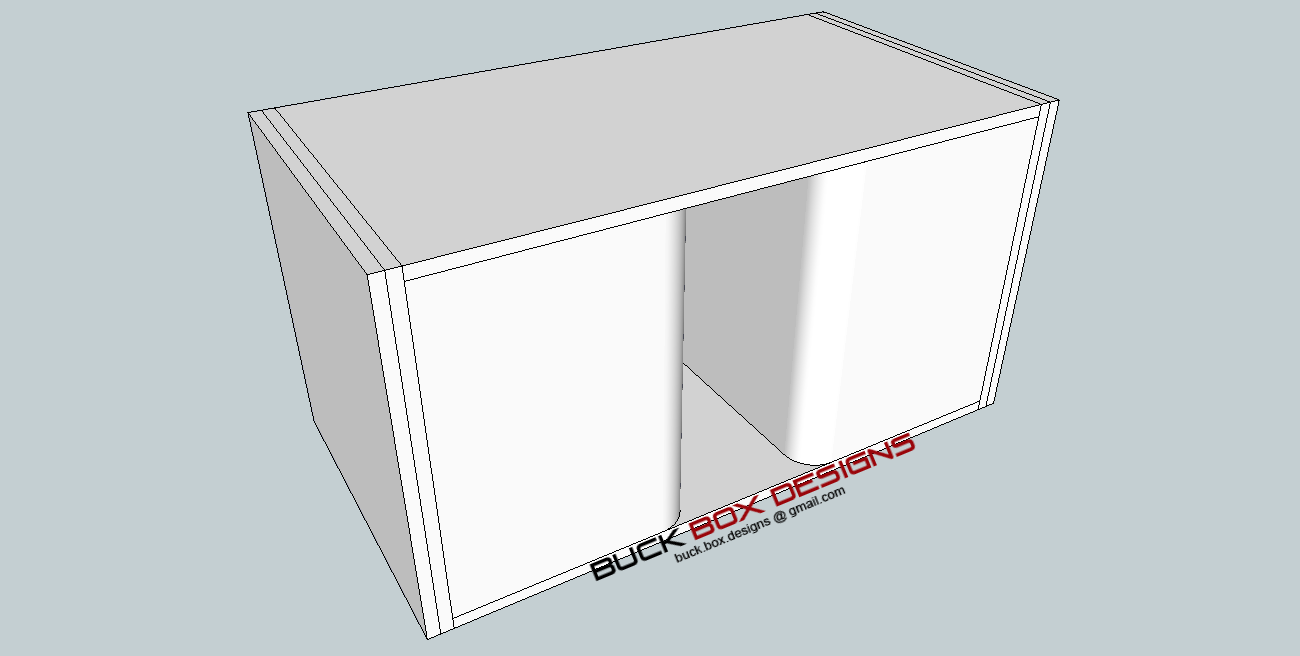

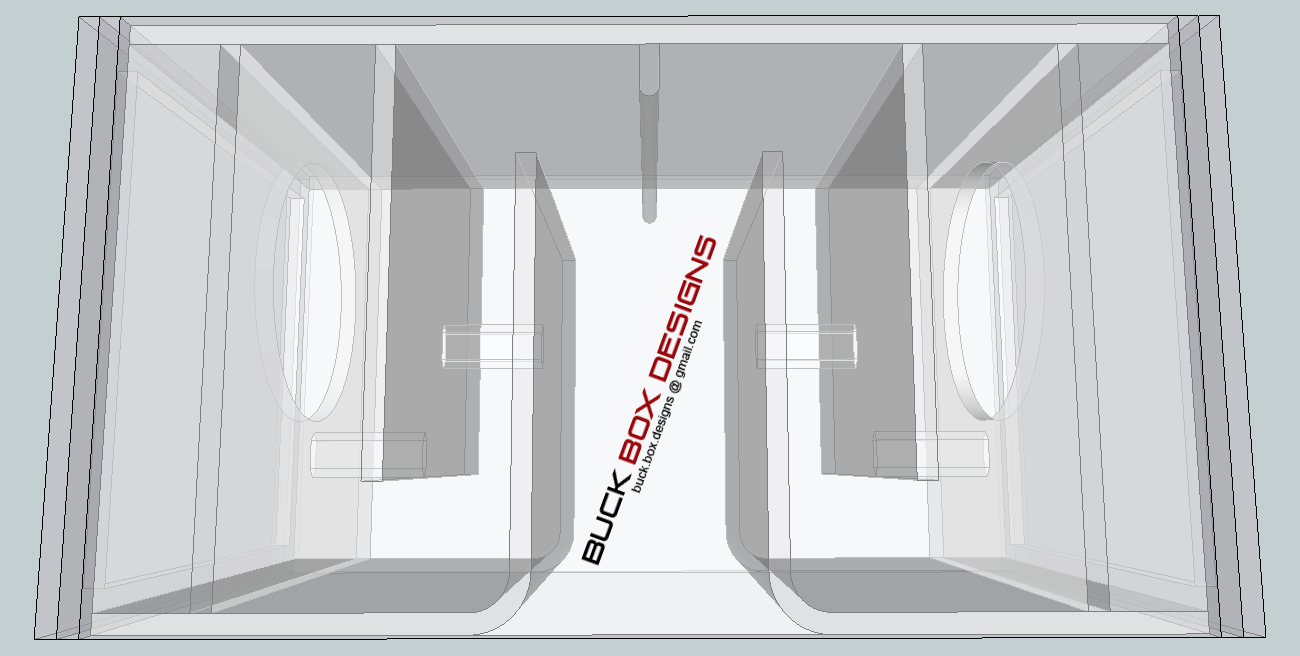

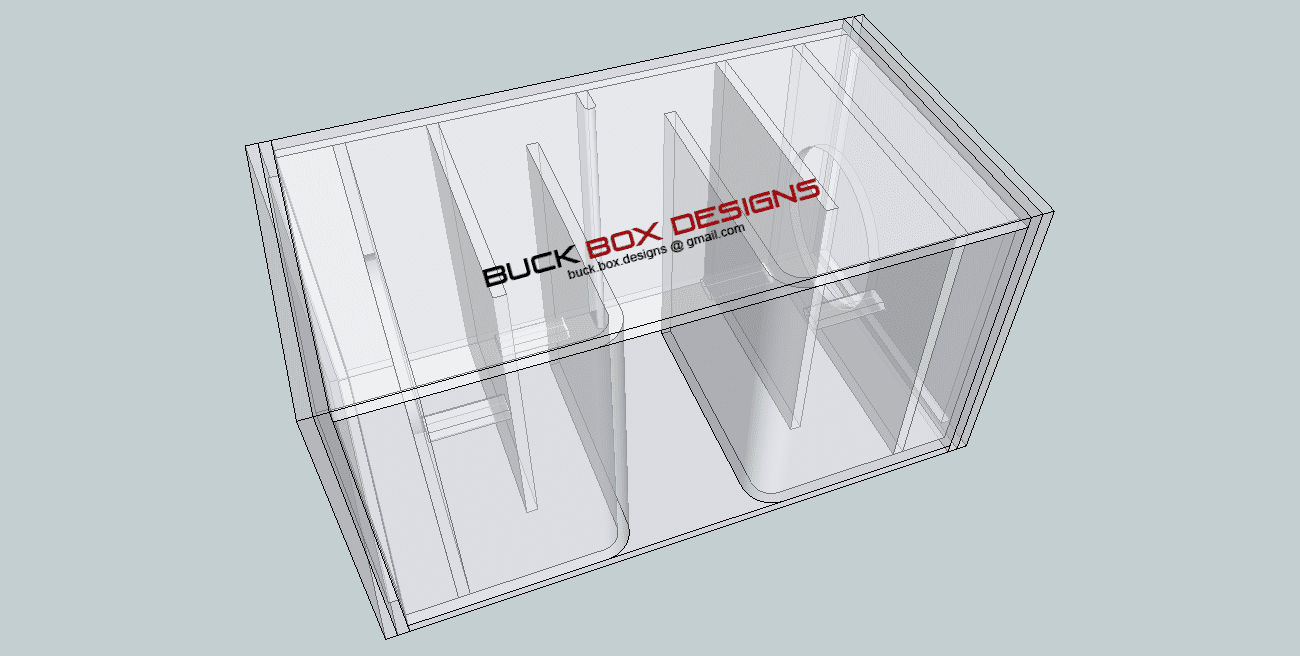

Ok. Buck is continuing to push the limits of my knowledge. I'm going all in, trying to do the best, complicated enclosures I can. I really love experimenting, I'm branching out my skills, combining them, trying to go harder than ever. Has a mild kerf port, too.

So this box is a Hybrid Sealed / Mildly Tapered T-line for 2 Pioneer Shallow Mount 12's (TS-SW30024). These woofers are actually more like 12.5's or 13's, the have quite a large Sd for a 12".

View attachment 25375

View attachment 25376

View attachment 25377

View attachment 25378

I got sent some build pics! Look at the quality of that kerf!



[Buck 5,000+ posts]

I have 890 sketchup files on my PC, all box designs except for 3.

I have a 4,843 png files on my PC (box design pics)



[Bobbytwonames 5,000+ posts]

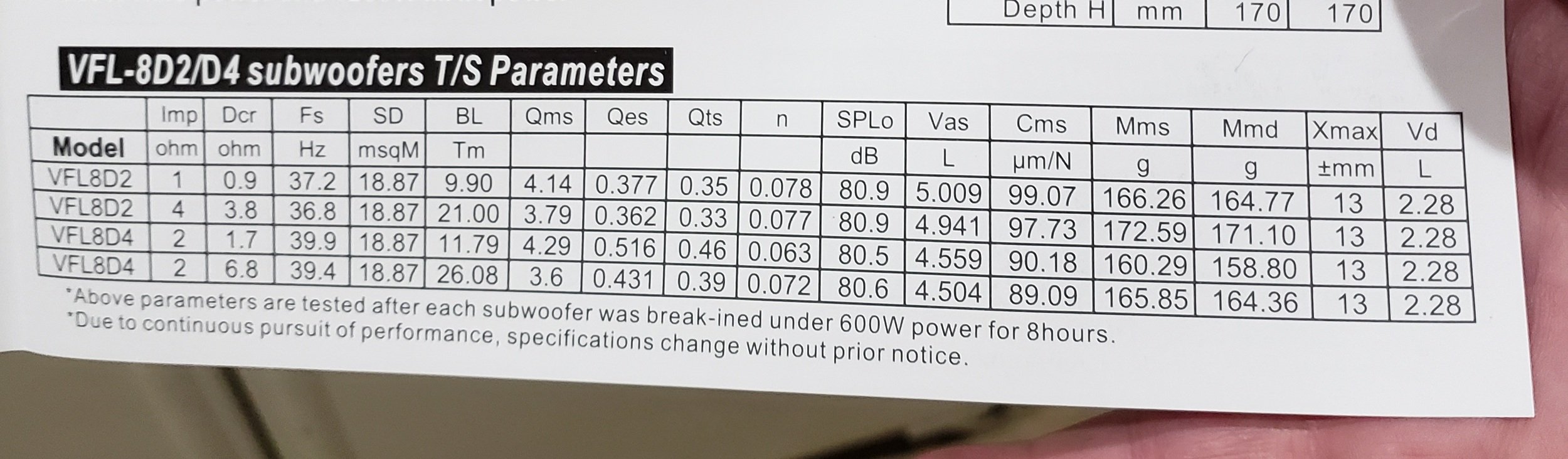

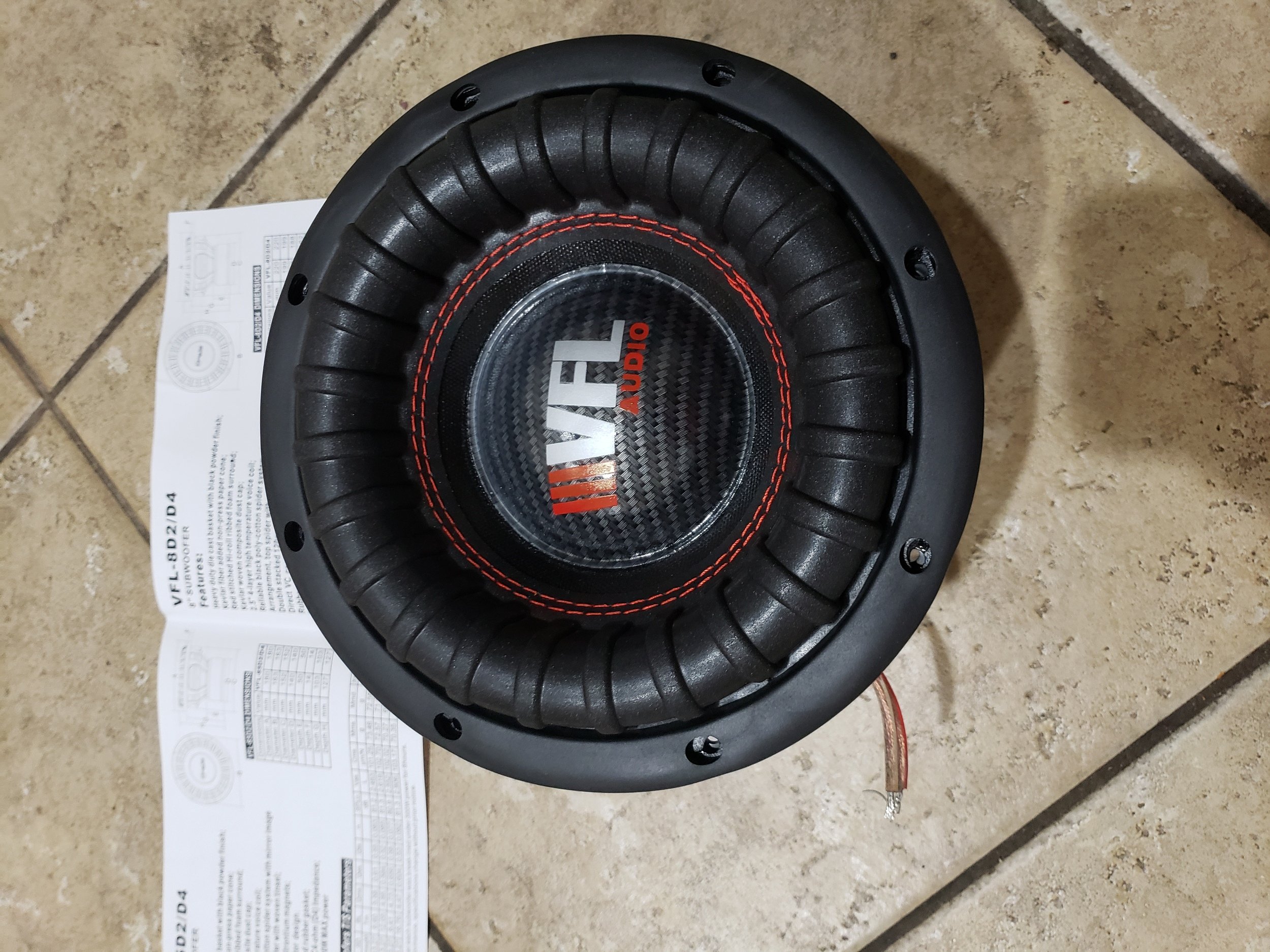

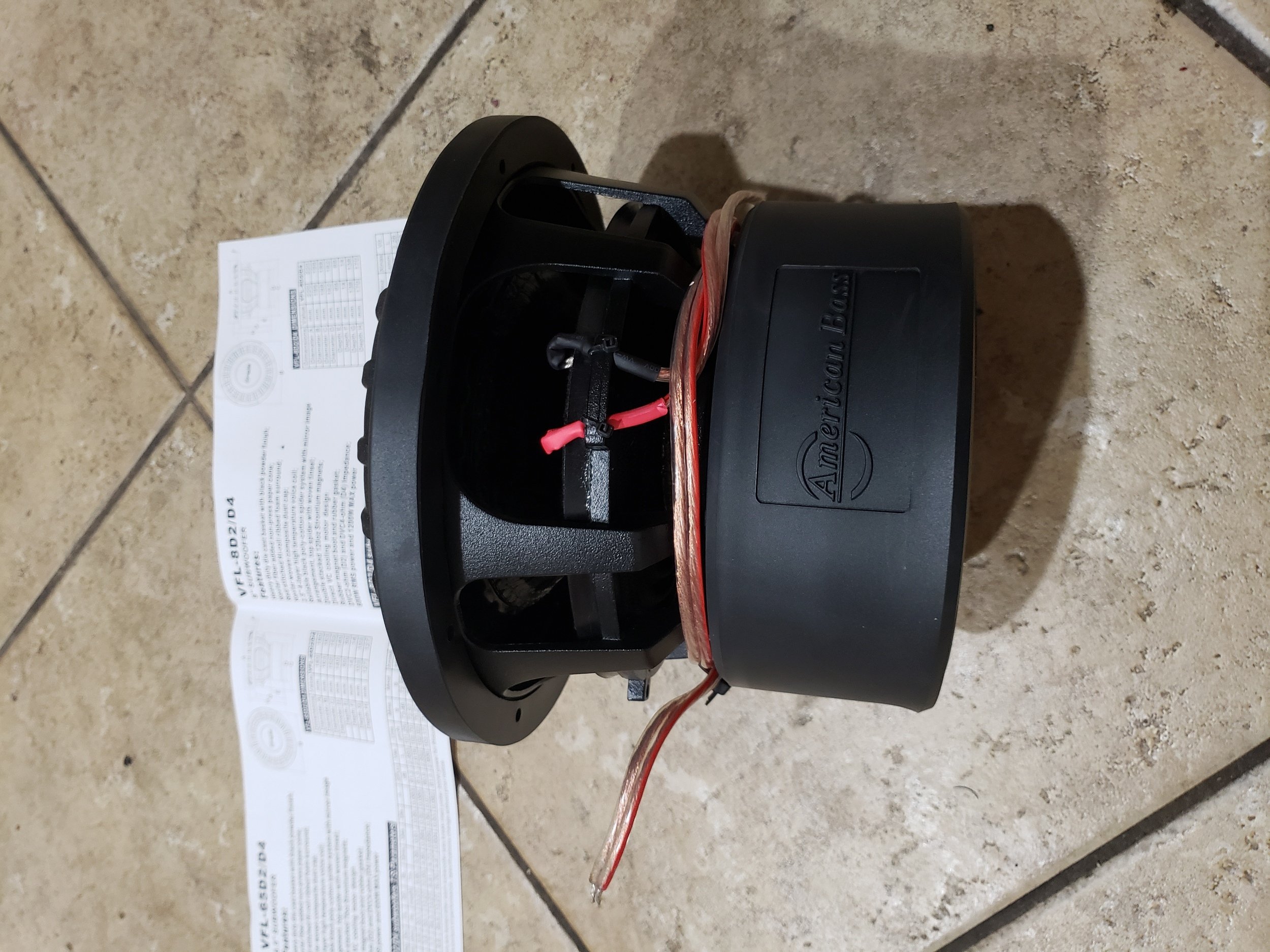

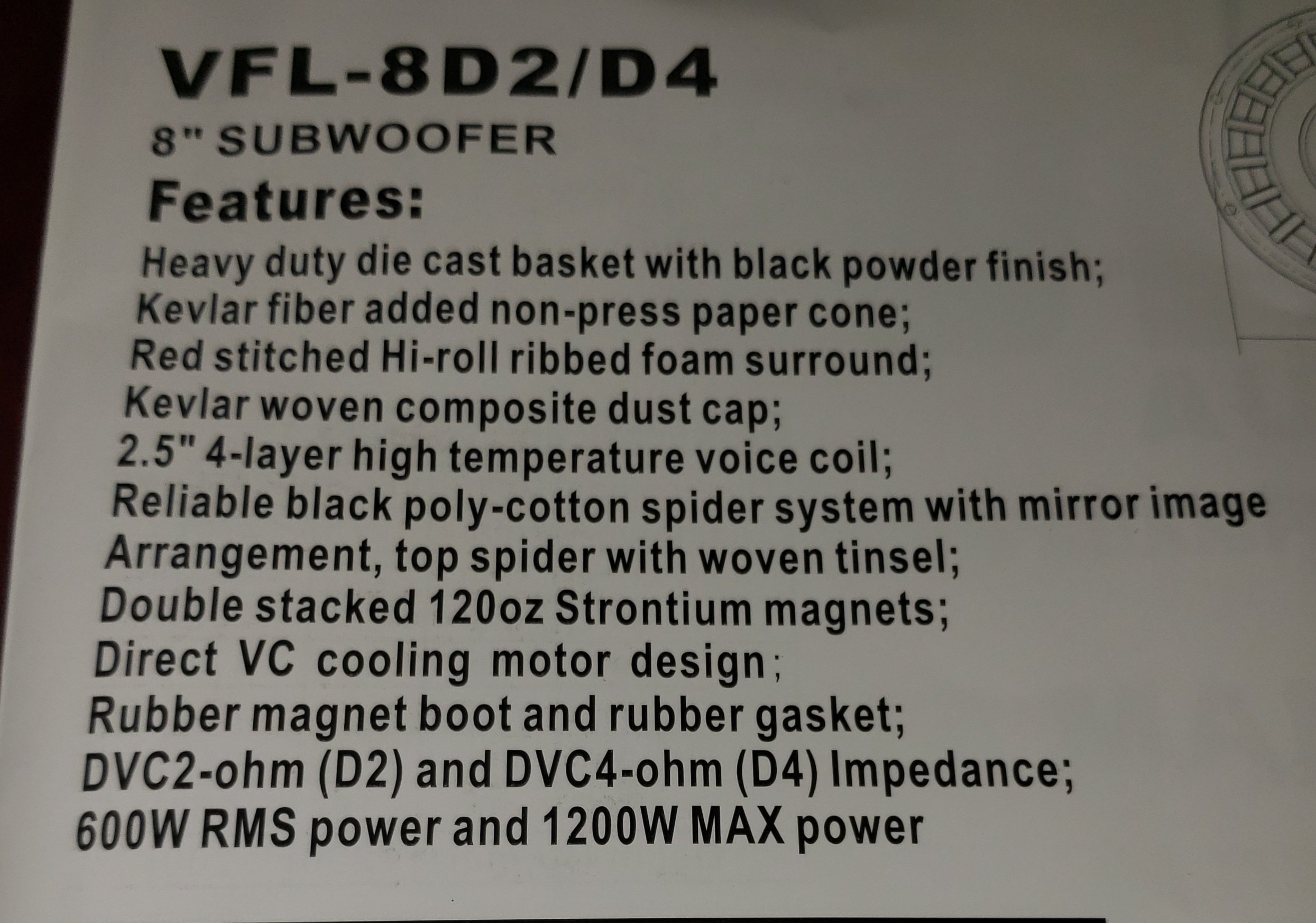

Buck, I got my 8's in today. 4-VFL8D2's. I sent you the parameters for the heck of it.



[Buck 5,000+ posts]

Buck, I got my 8's in today. 4-VFL8D2's. I sent you the parameters for the heck of it.

View attachment 25915View attachment 25916View attachment 25917View attachment 25918View attachment 25923

You sure you just don't want me to design it for you? Those t/s look pretty good to me man. Those are quite beefy, I'm surprised the Fs isn't a little higher.



[Buck 5,000+ posts]

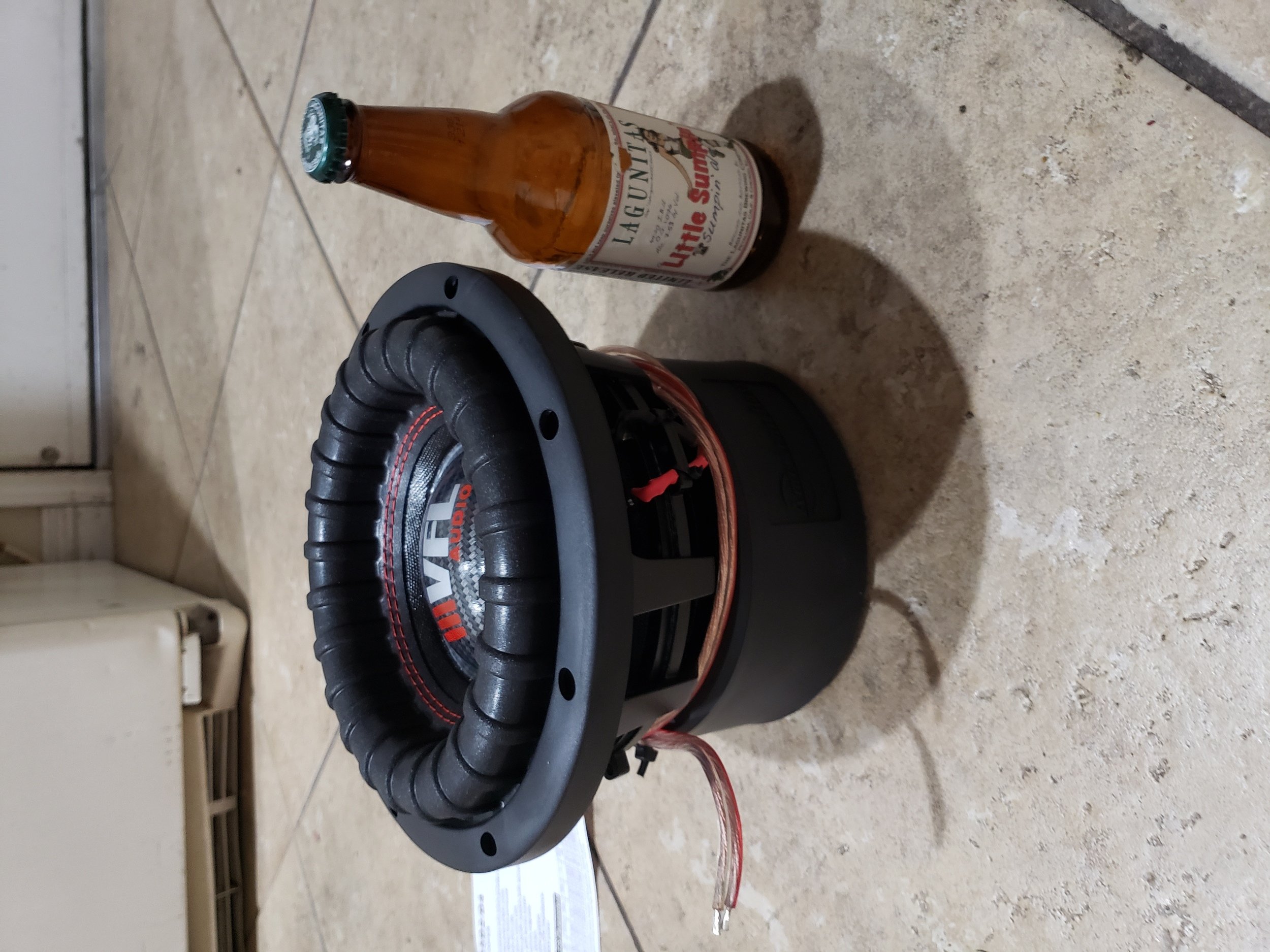

Those little guys are beefy. That's a good sized motor. If you're feeling lucky, you could put them in a cube per.

Buck, I got my 8's in today. 4-VFL8D2's. I sent you the parameters for the heck of it.

View attachment 25915View attachment 25916View attachment 25917View attachment 25918View attachment 25923

You sure you just don't want me to design it for you? Those t/s look pretty good to me man. Those are quite beefy, I'm surprised the Fs isn't a little higher.

8's can be very difficult to design because of port area reasons. Some 8's require way more port area than you'd think. Like WAY more port area than you'd think. I can't tell you the best port area bc I'm not designing it. If you look hard, you can find the recommended box volume for these 8's. It's hard to find, you have to know what other company uses the same woofer design as AB. I already gave you that hint.
