10” kicker 1ohm sub wiring help

[Anthony33173]

Whats up fellas. I’m confused here and looking for guidance in what to do with my 10” kicker compvr 1ohm with dual voice coils. I have only that sub to install and planning on powering it with the sub dedicated channel of my 5 channel amp. As the pic states the amp on its 5th/monoblock channel is capable of pushing out 370 watts @ 1 ohm which is perfect being that the sub is rated at 400. However I’m stuck now because the speaker has the dual voice coils and I’m wondering since I’m running that speaker alone if it will be working at 0.5 ohms if I wire the sub in series to activate both coils. However after reading the parameters of the sub I see it has an electrical voice coil resistance 1.97 and I’m wondering if that is per each coil which would result in the speaker having a total resistance of 1 ohm when wired in series by itself. Either way I’m going to have to wire the sub in that fashion I’m just curious if I’m taking advantage of the watts the amp is capable of pushing.

Click to read more...



[ThxOne Premium Member]

To the point... each coil is 2 ohms, it will be at 1 ohm at the amp if both coils are used and wired correctly.



[Anthony33173]



[ThxOne Premium Member]

Oh damn... yeah that's gonna be 1/2ohm... run it at 2ohm for safety.



[Anthony33173]

To the point... each coil is 2 ohms, it will be at 1 ohm at the amp if both coils are used and wired correctly.

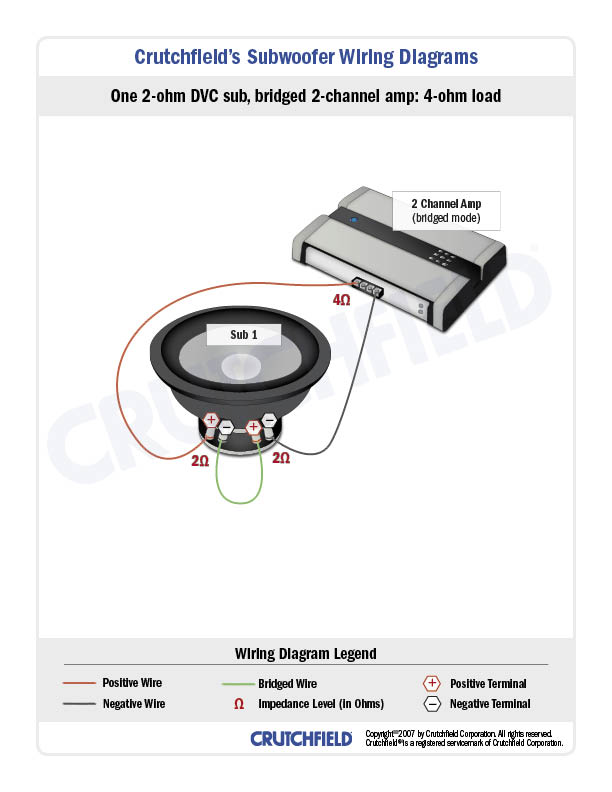

Sorry got bad reception and froze up uploading those pics but that’s what I figured and correctly would be as such ?



[ThxOne Premium Member]

Sorry got bad reception and froze up uploading those pics but that’s what I figured and correctly would be as such ? View attachment 21849

Yeah, don't do that... the amp will not like it. Run it at 2 ohms.



[ThxOne Premium Member]

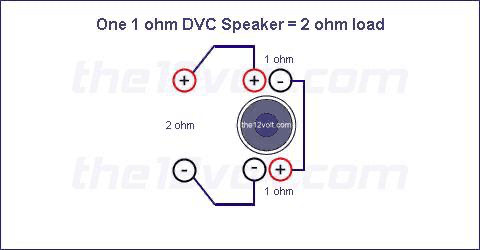

wire it like this...



[Anthony33173]

Yea I was about to post this

And thanks buddy



[ThxOne Premium Member]

Yea I was about to post this View attachment 21851
And thanks buddy

That is perfect. It will not get as much power but it will still produce bass.
