06 F150 4 tens Box build/ sub build

[Cali_Screw 10+ year member]

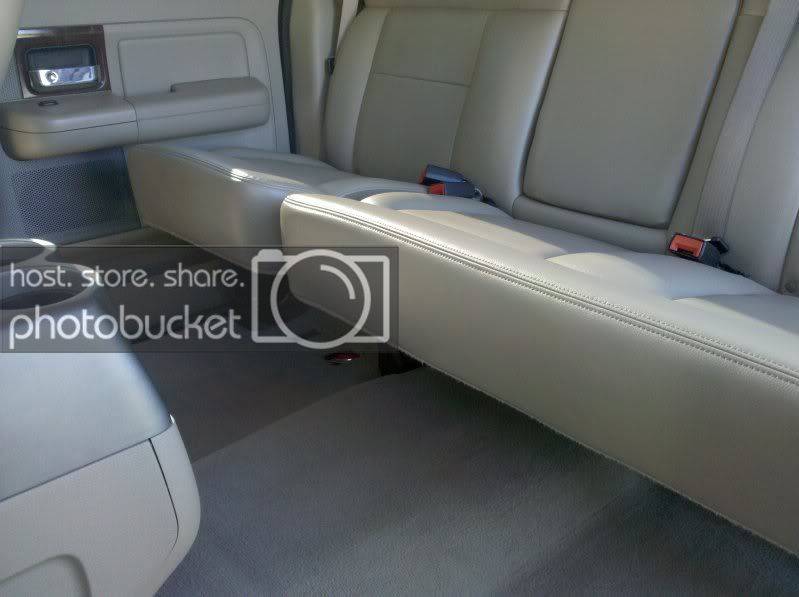

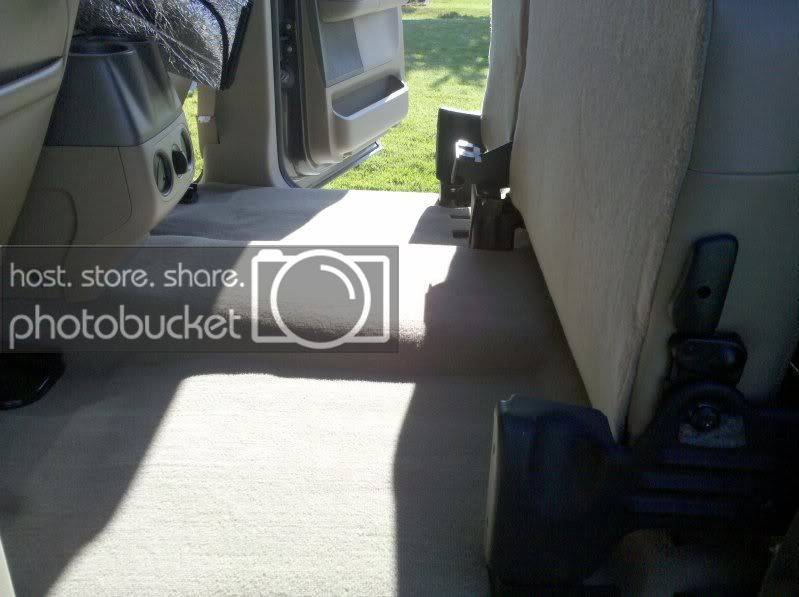

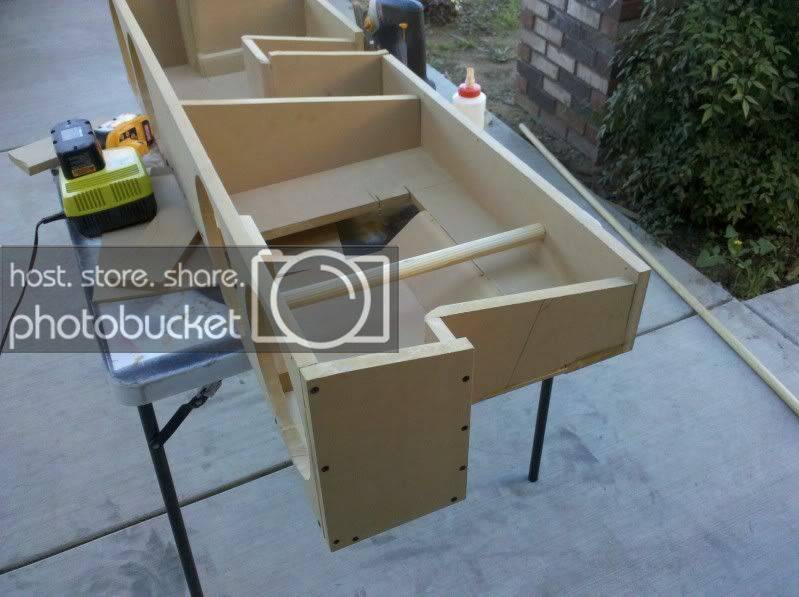

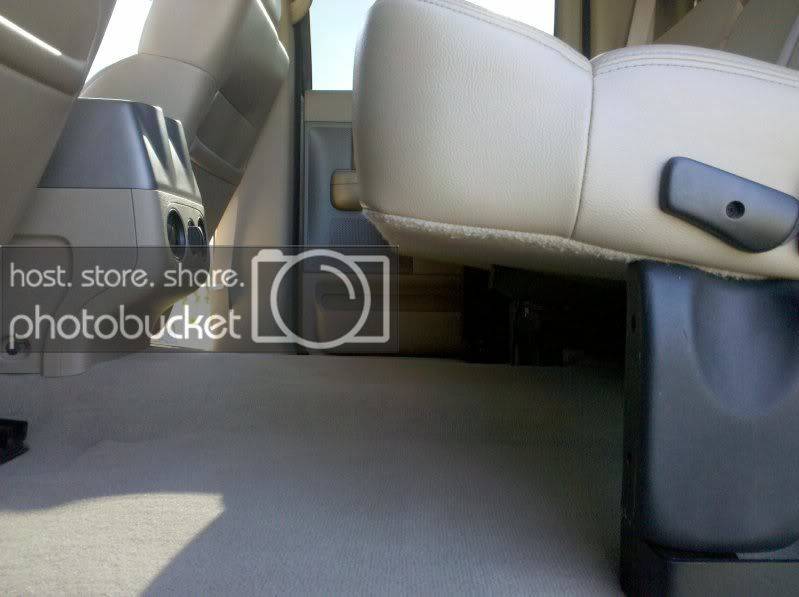

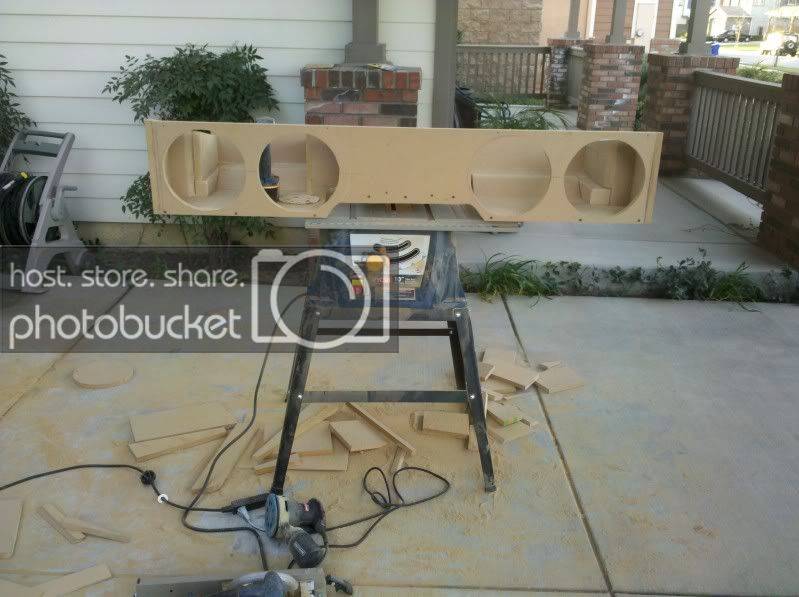

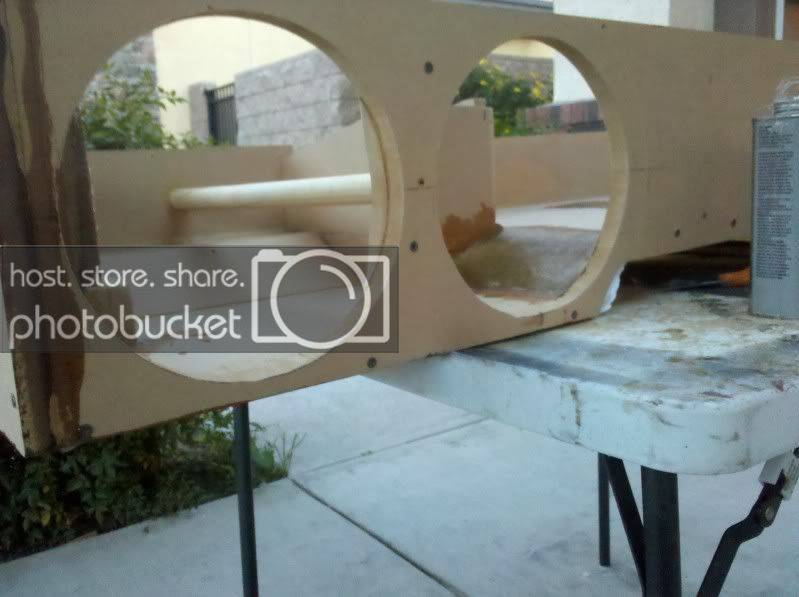

Thought i share a build Ive been working on my free time. Don't have much to share for the beginning of the box but here is what i have so far. To inform you a bit, its a box for 4 ten inch TC9 based subs. The enclosure is being built to fit under the rear seat. The rear seat does have a seat lift to allow for the subs. The box it self before displacement is about 3.6 cubic feet.

Click to read more...



[Cali_Screw 10+ year member]

Continued...



[1rockford1 5,000+ posts]

more



[Cali_Screw 10+ year member]

Now on to the sub portion,

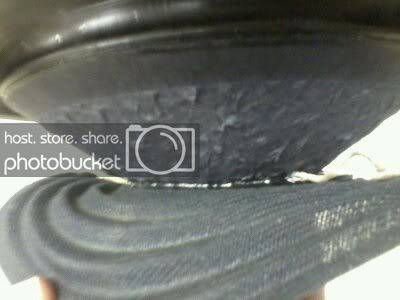

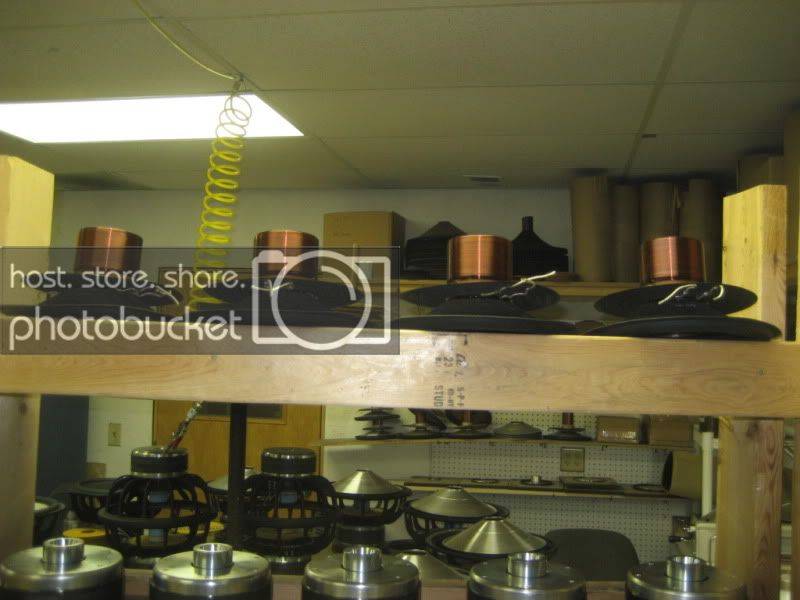

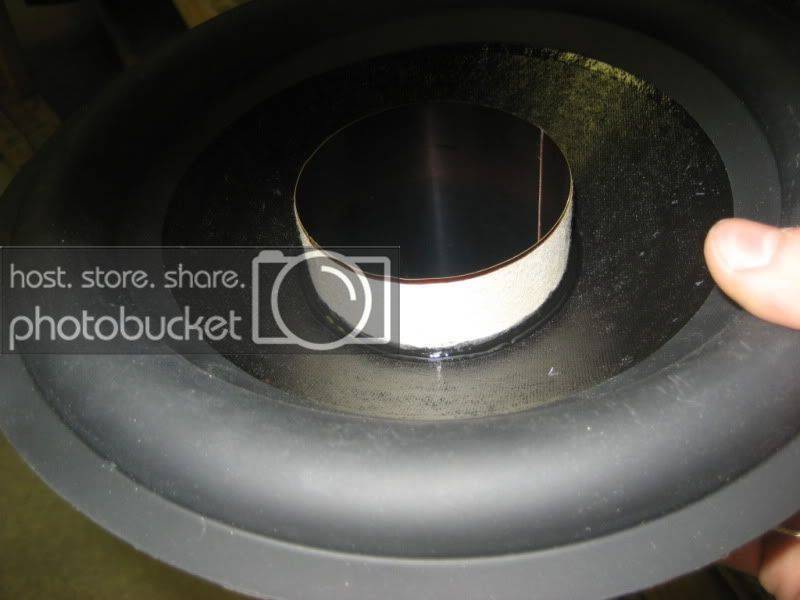

The subs are being built by Bumpin Buick, AkA Matt. Parts includes 10" paper pulp cone with half roll rubber surround. Single medium spider with sewn in leads, 4 layer copper coil D4 ohms.

Specs as of two hr break in:

Qts 0.350

Qes 0.375

Qms 5.30

Fs 29hz

Res 3.85Ω

Ls 4.05mH

Lp 8.10mH

Rp 7.50Ω

Dia 202mm

Vas 34.8l

mms 200g

cms 240um/N

bl 21T*m

Spl 87dB



[RAM_Designs 5,000+ posts]

Nice looking box so far. I hate under-seat boxes with a passion.



[outsideshot23 10+ year member]

ya.. looks good.. get every inch you can.. lol.. keep pics coming



[Cali_Screw 10+ year member]

Nice looking box so far. I hate under-seat boxes with a passion.

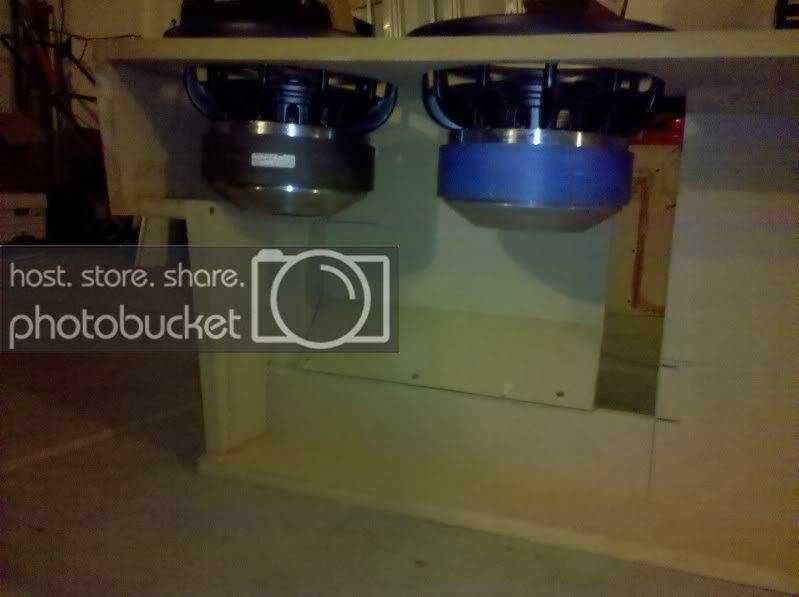

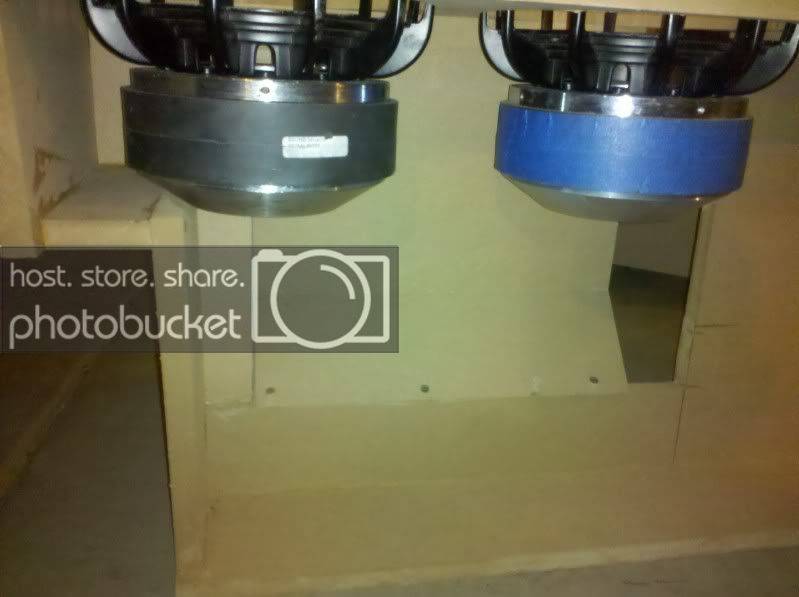

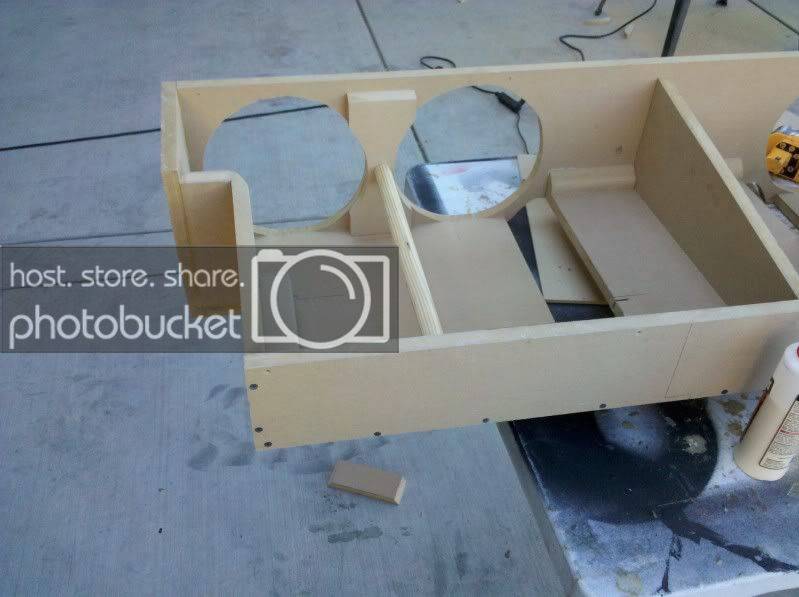

I don't mind them, as majority of my boxes i built are under the seat. Only issues that made this build a pain was having to work around annoying seat brackets. As you can see fitment of the motors was tight on some edges until i modified the box a bit. Box still need much work.

ya.. looks good.. get every inch you can.. lol.. keep pics coming

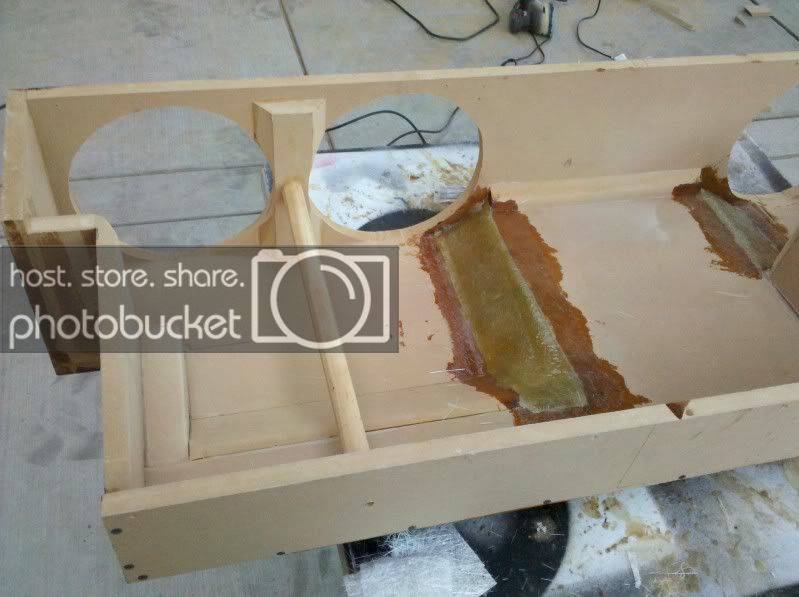

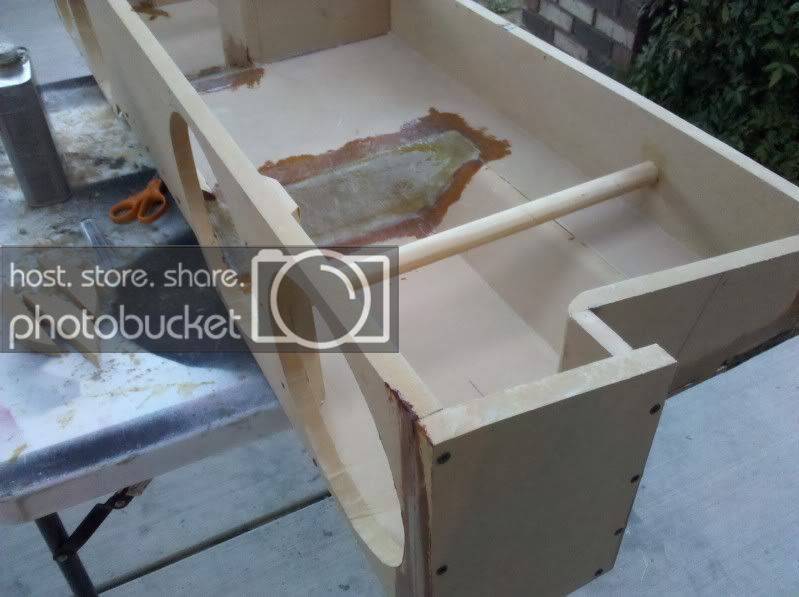

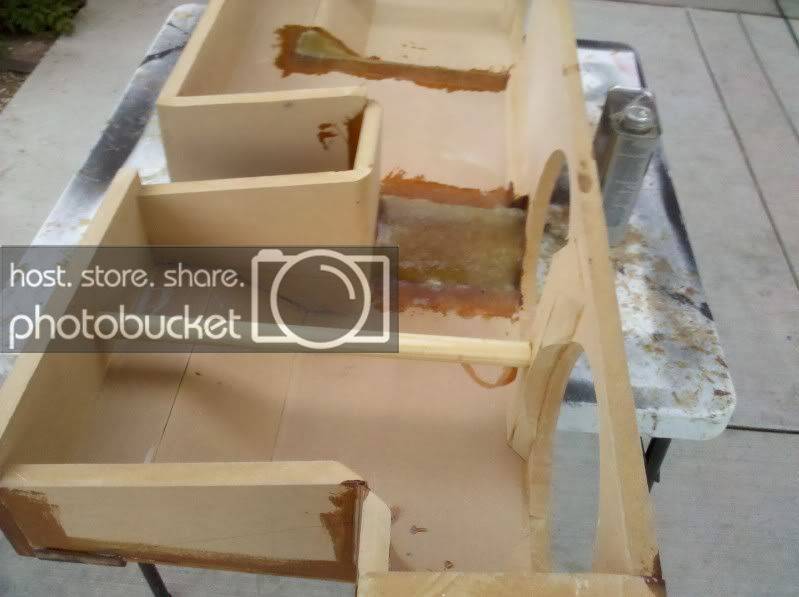

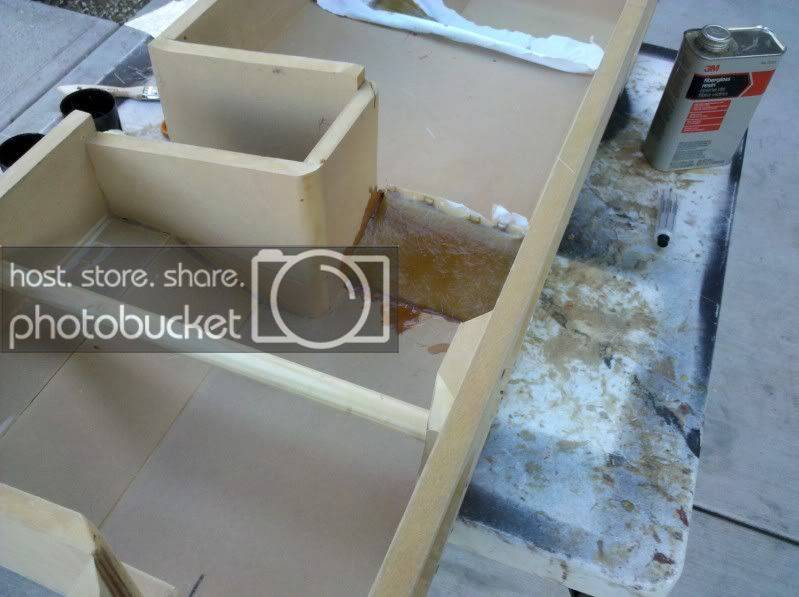

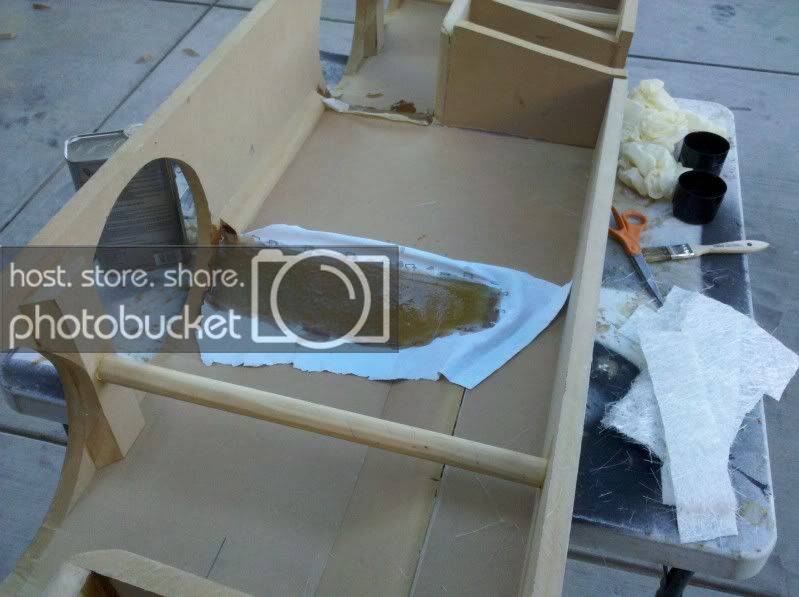

Im actually not a fan of fiber glassing but because of the fitment issues i faced with fitting this box ,i was forced to fiberglass at those certain points.



[bumpin buick 5,000+ posts]

everything goes out early monday morning to ya bud, keep up the good work box is looking tight.



[Ray21 10+ year member]

Looks good...



[Cali_Screw 10+ year member]

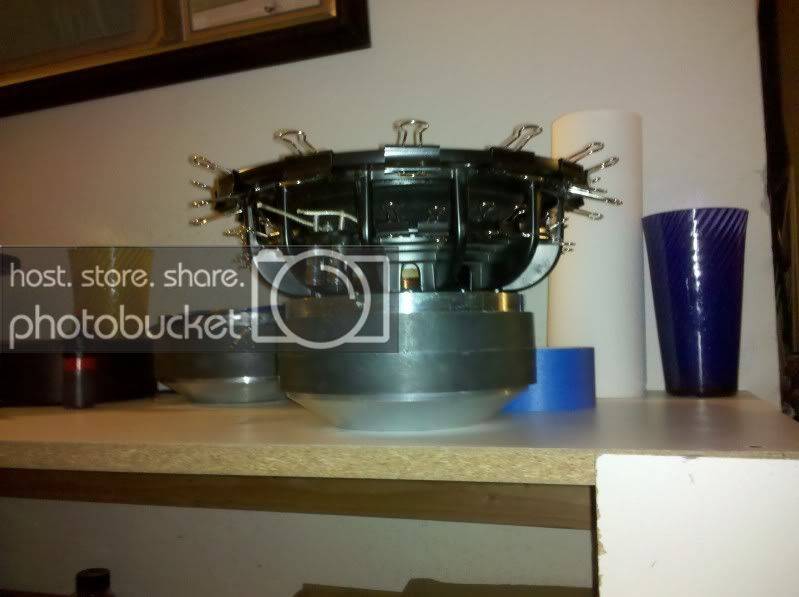

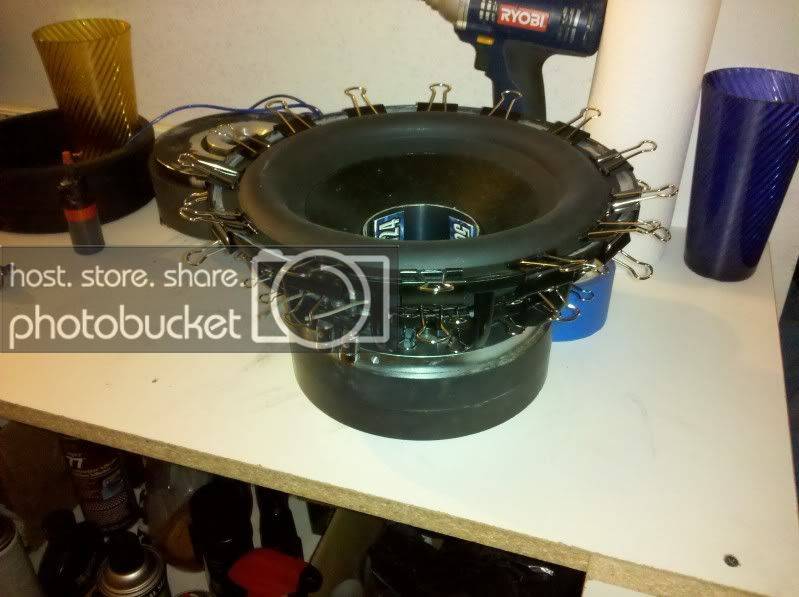

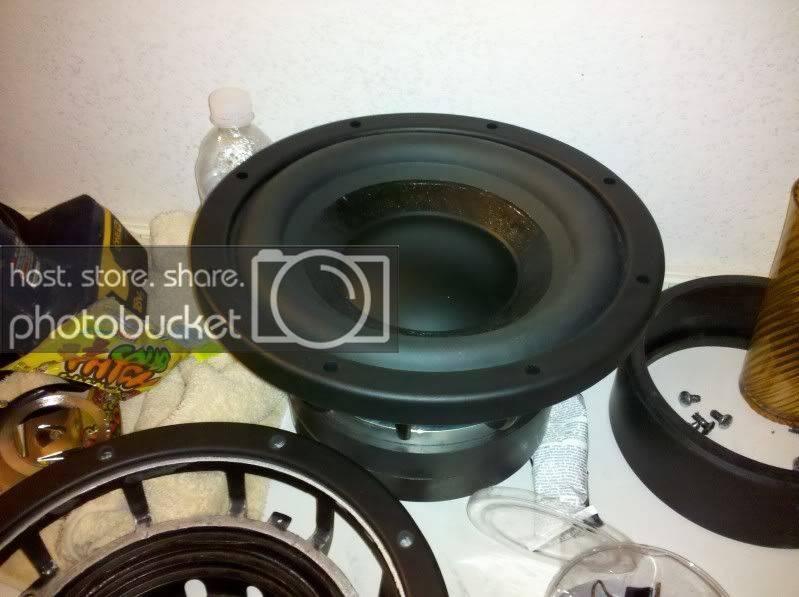

for those interested....

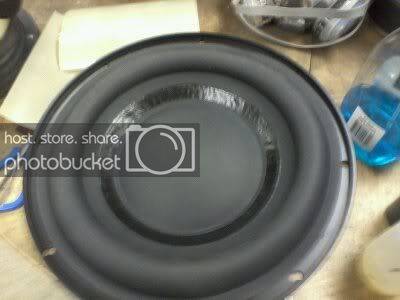

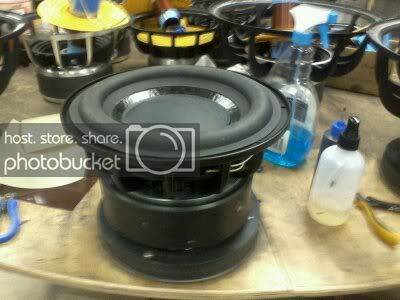

Been busy with work, then being sick and now rain, but here are some update pics of what has happen. Three of the subs are built, the last one needs to be done, unfortunately i ran out of glue lol. //content.invisioncic.com/y282845/emoticons/frown.gif.a3531fa0534503350665a1e957861287.gif

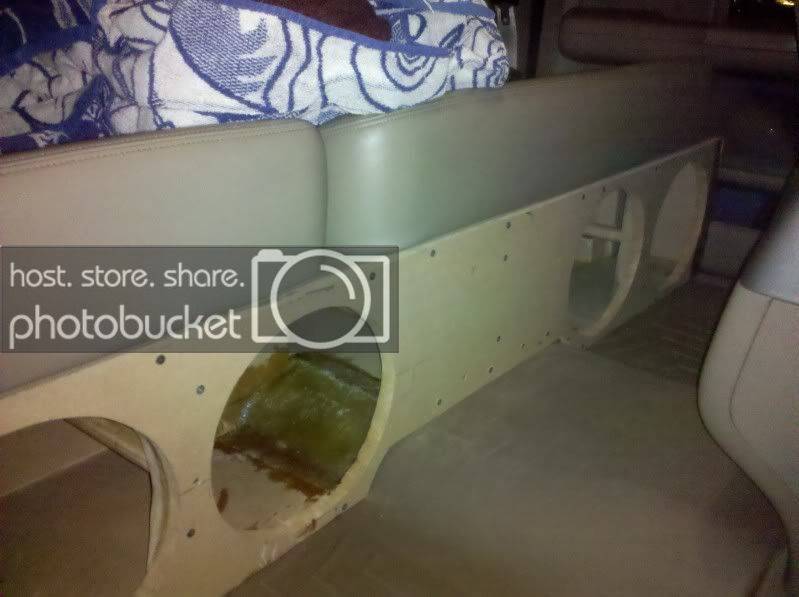

And here is a teaser pic of box:



[06Titan 10+ year member]

Looking good so far



[RAM_Designs 5,000+ posts]

I love simple subs like that. I try my best to stay away from logos. //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif



[Cali_Screw 10+ year member]

simple is the only way to do it! Carpet goes on tomorrow, wasn't able to get to it today lol.. **** Rain!



[Bettr n' Revrse 5,000+ posts]

Looks great man!



[Cali_Screw 10+ year member]

Looks great man!

thanks! more pics to come!
