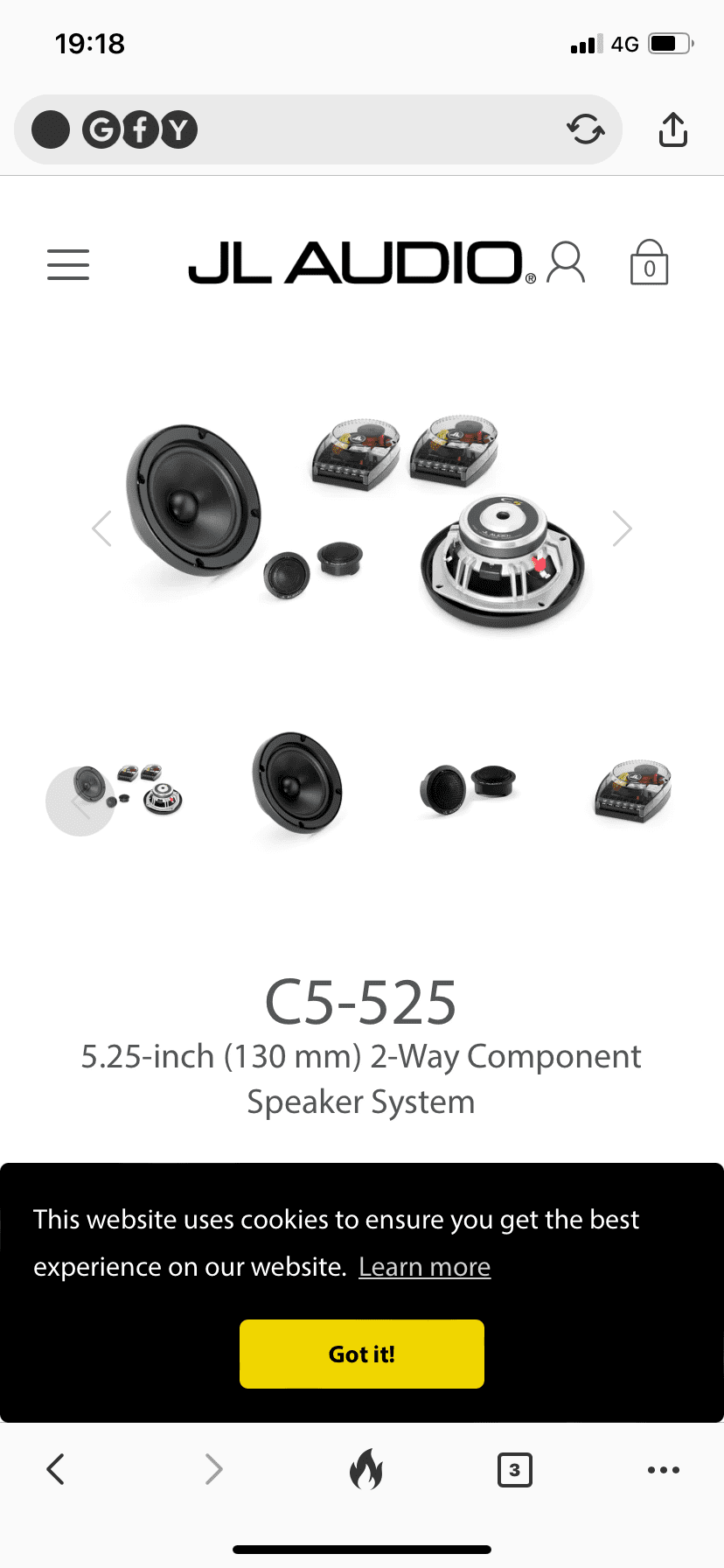

JL AUDIO C5-525-XL

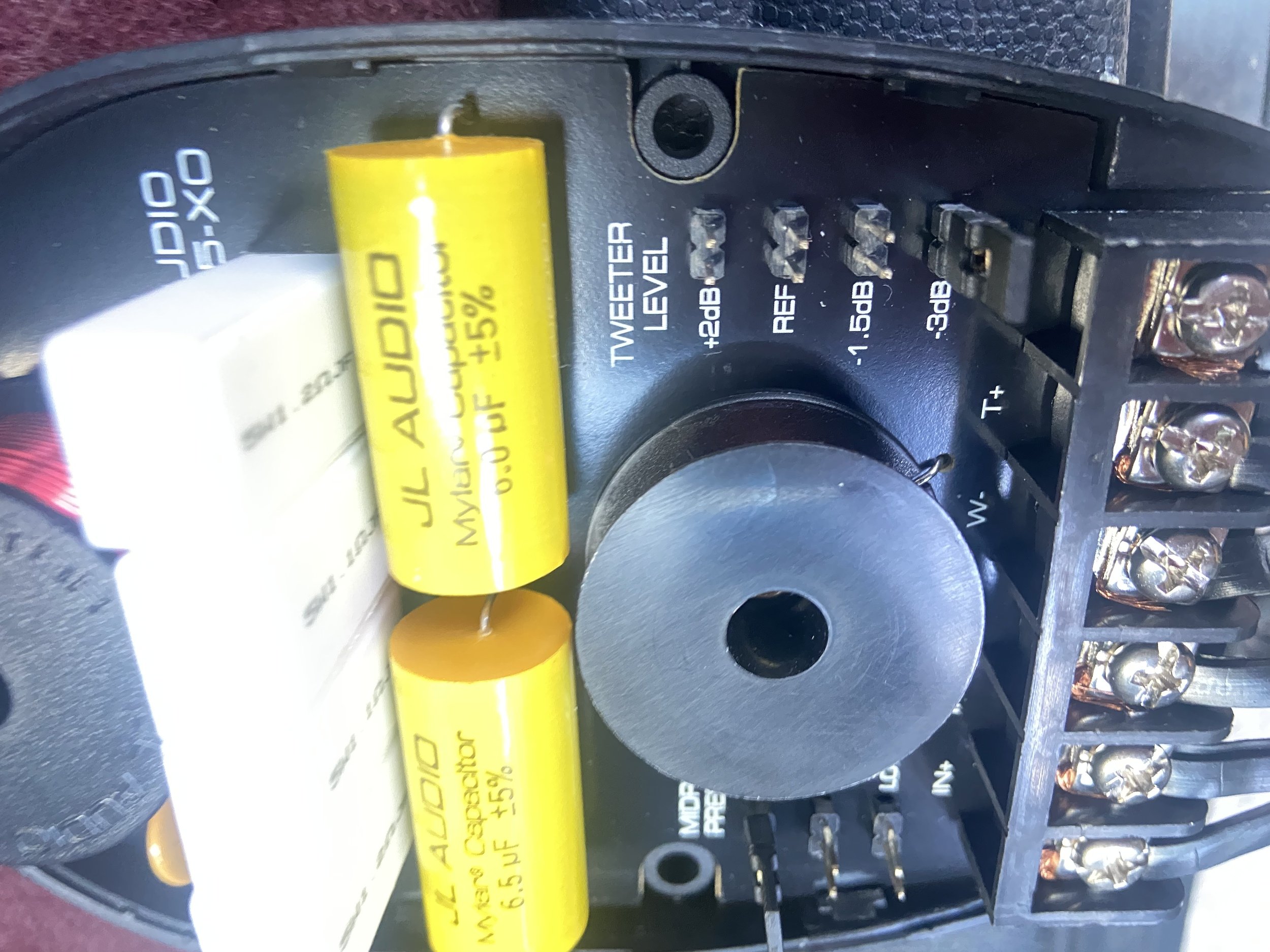

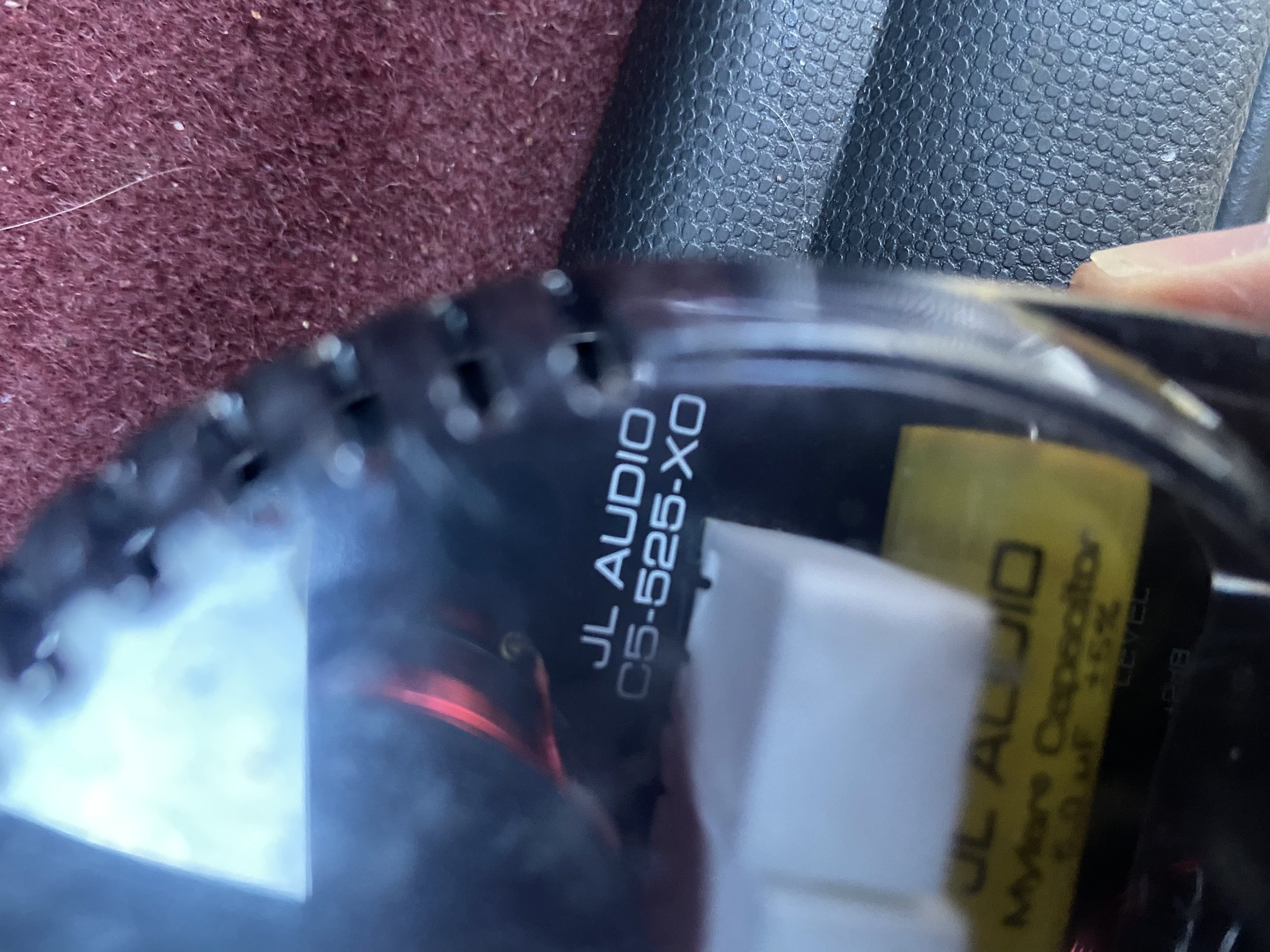

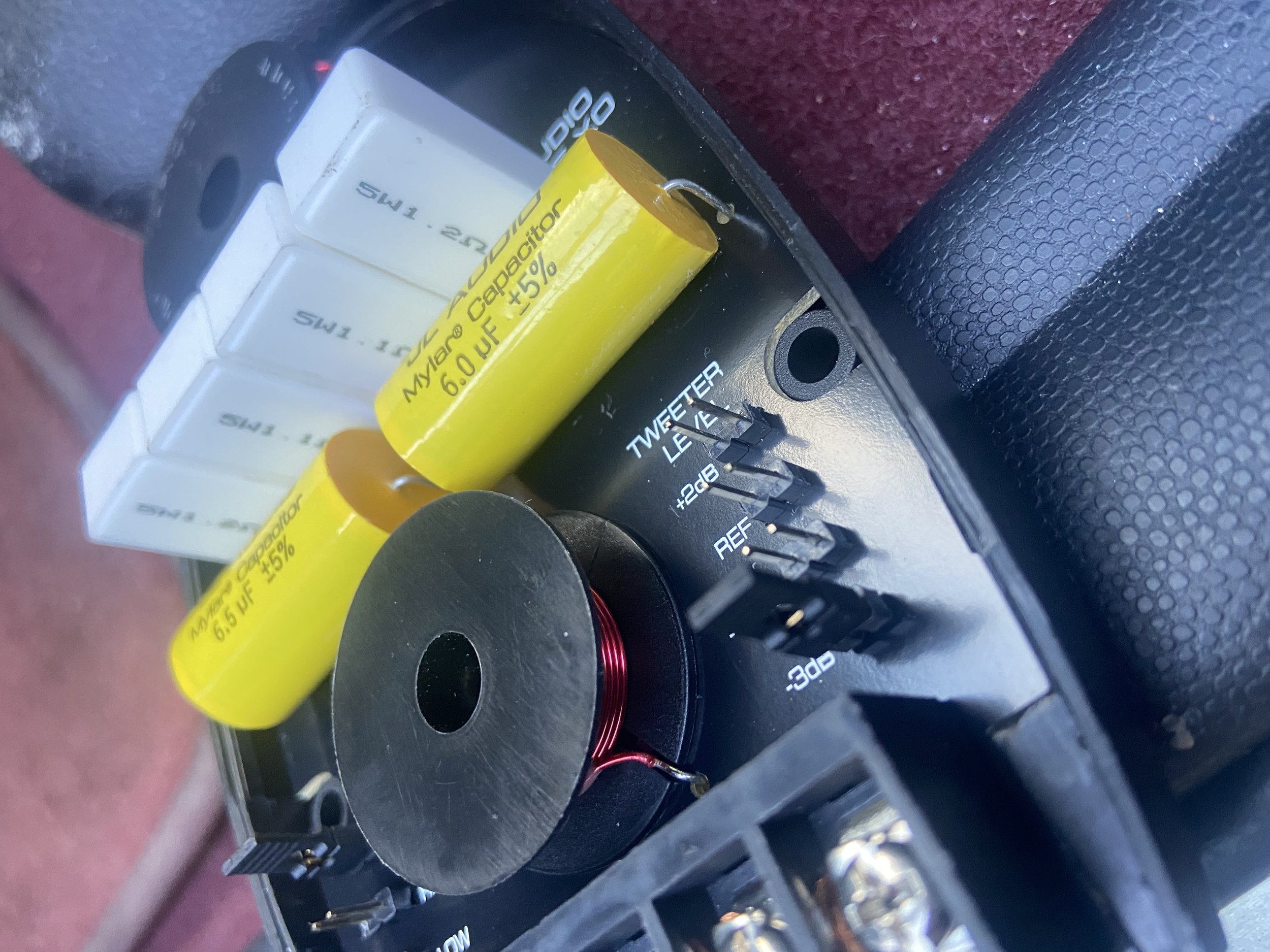

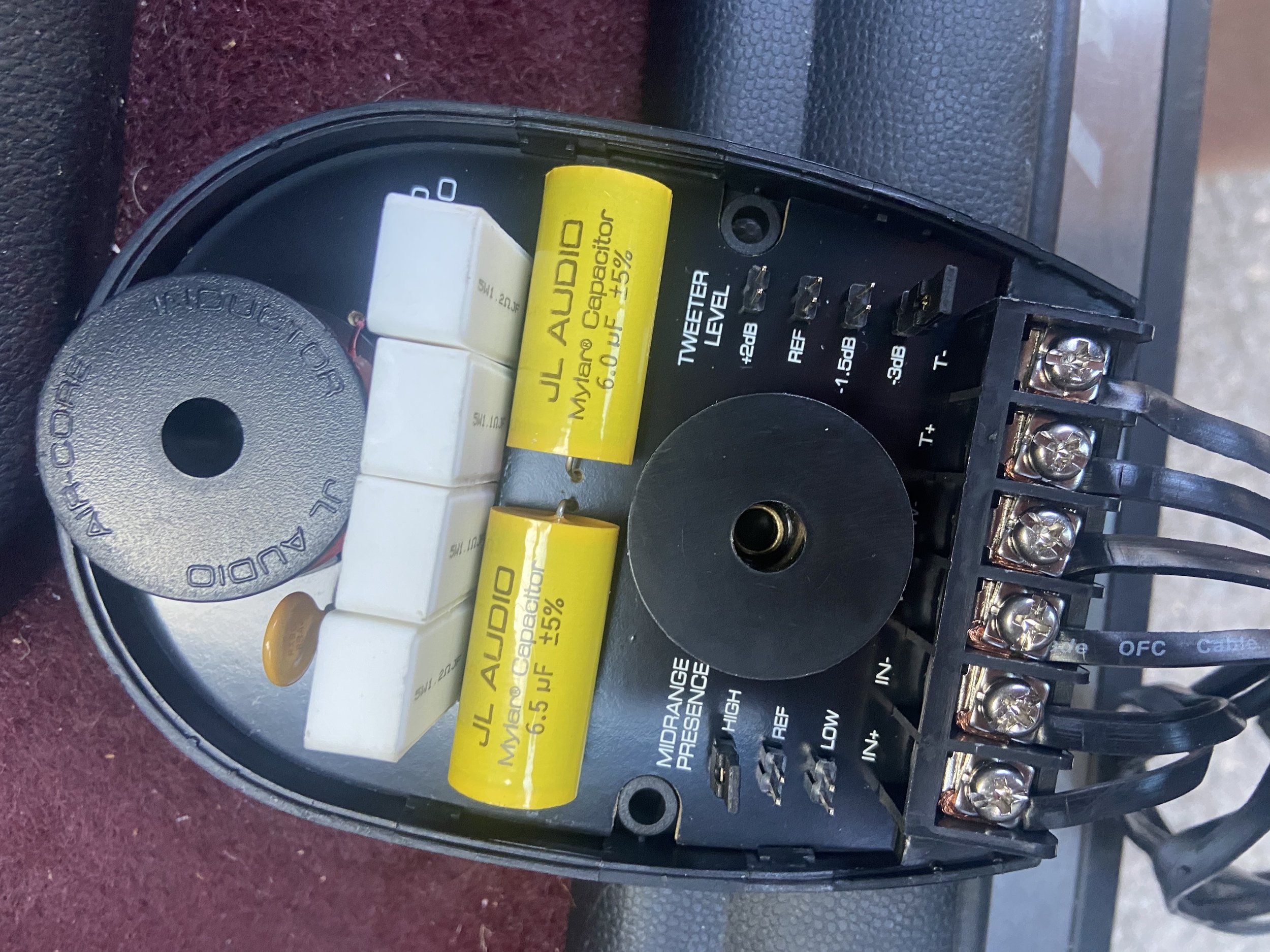

Sorry in advance don’t know all technical terms. Issue with the tweeter.: See that little plug thing that lets you choose what level to have. It works fine for the main speaker - I can choose anything. however for the tweeter I can only get it to work with +2 which isn’t ideal. I only discovered this is I had intermittent sound cutting out which I couldn’t figure out. The white block far right (capacitor?) seems a bit loose but don’t fancy dismantling any more - either way fiddling with tiny movements on that didn’t seem to make any difference. Any ideas?
Thanks so much. Simon.

Click to read more...



[Jimi77 Premium Member]

White blocks are resistors. They control the output level of the drivers. If one were broken or had a bad solder connection, that would explain the issue you're having.



[1aespinoza Premium Member]

Any ideas?

Try bridging the selection terminals with a metal object, maybe the jumpers have gone bad. If no change, unsnap the circuit board from the housing to inspect the solder side. Wiggle things as you scrutinize solder points.



[audiobaun 5,000+ posts]

You may be able to locate another set of Xovers like from CDT Audio that will give you some options with tweeter settings and working properly. There should be a nice selection for the Labor Day Sale



[Wildthing]

SORRY TO BUTT IN
Where do I wire the cables from the cross over in to ?



[audiobaun 5,000+ posts]

SORRY TO BUTT IN
Where do I wire the cables from the cross over in to ?

UUUGH WHAT?? LOL



[1aespinoza Premium Member]

SORRY TO BUTT IN
Where do I wire the cables from the cross over in to ?

The first two screws (IN+ IN-) go to the amp/radio. Second pair of screws (W+ W-) go to the woofer.
Third pair of screws (T+ T-) go to the tweeter.
