Sub Box Plans

[jamesdean 10+ year member]

I need someones help here, I recently acquired 2 Boston G512RS and I need a sub box built for it. I want to try and do it myself but I need some plans for it. the specs call for 2 cubic ft each and the port tuned to 32 hertz. anyones help would be GREAT!

Click to read more...



[miker 5,000+ posts]

post teh dimensions you have to work with.. If you want someone to help you.



[morgans432 10+ year member]

buckyboy does some great work check him out.. his company is in my signature if you want to see it



[jamesdean 10+ year member]

post teh dimensions you have to work with.. If you want someone to help you.

sorry bout that! I have a caddy cts and the truck is 37" wide and 17" tall



[iDesignBoxes 10+ year member]

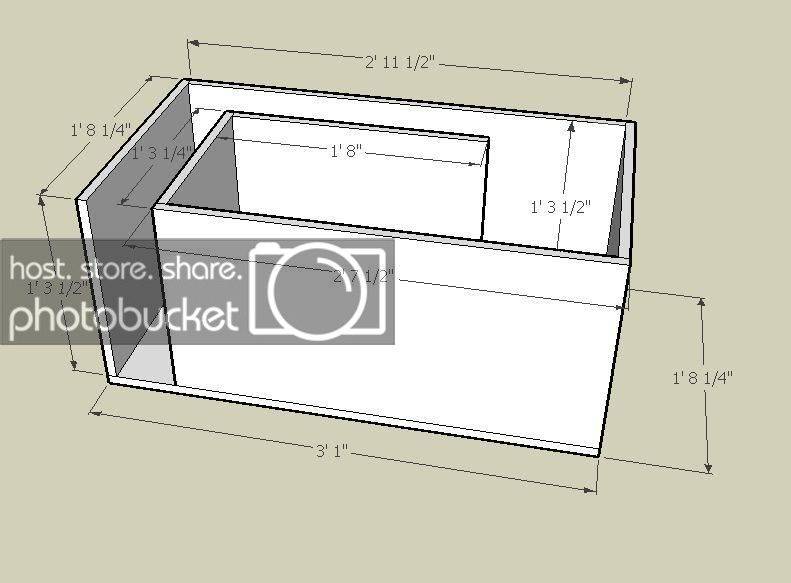

Top and Bottom: 2 37" x 20.25"

Front: 31.75" x 15.5"

Right Side: 19.5" x 15.5"

Back: 35.5" x 15.5"

Left Side: 20.25" x 15.5"

Port Piece 1: 14.25" x 15.5"

Port Piece 2: 18" x 15.5"

Net Volume: 4 cubic feet

Tuning Frequency: 32 Hz

Port Width: 4.5 inches

Port Area: 69.75 Square Inches

Port Length: 39 inches

These are accurate... The sketchup was not!



[jamesdean 10+ year member]

Top and Bottom: 2 37" x 20.25"Front: 31.75" x 15.5"

Right Side: 19.5" x 15.5"

Back: 35.5" x 15.5"

Left Side: 20.25" x 15.5"

Port Piece 1: 14.25" x 15.5"

Port Piece 2: 18" x 15.5"

Net Volume: 4 cubic feet

Tuning Frequency: 32 Hz

Port Width: 4.5 inches

Port Area: 69.75 Square Inches

Port Length: 39 inches

Thats perfect! Thank you sooo much!



[iDesignBoxes 10+ year member]

No prob man, I usually charge but I got bored lol.



[BuckyBoy 10+ year member]

How come the second port piece is labeled 1'8", but you listed it as 18"?

I don't think the first port piece is labeled right in that picture either? If the port and front piece are 15 1/4", then the port width along the back would only be 4.25".

I don't mean to critique your design, but if the guy is going to build the box according to your design and listed measurements, everything should be right.



[iDesignBoxes 10+ year member]

How come the second port piece is labeled 1'8", but you listed it as 18"?I don't think the first port piece is labeled right in that picture either? If the port and front piece are 15 1/4", then the port width along the back would only be 4.25".

I don't mean to critique your design, but if the guy is going to build the box according to your design and listed measurements, everything should be right.

Ack. Thanks for noticing that. I was pretty drunk and bored when I made it so my math was a bit off.

I hate converting decimal inches into foot inches... I will not design boxes while intoxicated again //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif

I apologize for any confusion!



[jamesdean 10+ year member]

Good thing you guys noticed that before I went out and built that! IDESIGN, would you be able to re sketch that drawing with the correct measurements please. Thank you.//content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[miker 5,000+ posts]

You should be able to figure it out your self.. He gave you all the port dimensions.. and he did do it for free //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[jamesdean 10+ year member]

If I go the route of a sealed enclosure that requires 1 cubic ft per sub, I can't just build a box that is 1cubic ft inside because I have to take into consideration the sub and the space that takes up, correct??



[miker 5,000+ posts]

What size are those subs?

12"s take up approx .07c ft each. so .14 for two.. So it's not a huge concern..



[rumple4skin 10+ year member]

Ack. Thanks for noticing that. I was pretty drunk and bored when I made it so my math was a bit off.
I hate converting decimal inches into foot inches... I will not design boxes while intoxicated again //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif

I apologize for any confusion!

rofl man the world needs more people like you make me a box please!!!



[jamesdean 10+ year member]

Heres the specs for the subs

G5 Specifications/Enclosure Recommendations

Model: G51244

Nominal Size: 12"4

RMS Power Handling: 450w

Impedance: Dual 4Ω

Frequency Response: 20-350Hz

(+/-3dB in car)

Mounting Cutout Diameter: 11 3/16"

(283mm)

Mounting Depth: 7 3/8"

(187mm)

Recommended Sealed 1.0 ft3

Enclosure Volume*: (28.3L)

Q-Tune™†: (HP & Q Setting) 28Hz@ 0.7

Recommended Ported 2.0 ft3

Enclosure Volume*: (56.6L)

Vent Diameter: 4" (10cm)

Vent Length: 14" (36cm)

Tuning Frequency: 33Hz

Q-Tune™†: (HP & Q Setting) 33Hz@ 1.0
