spike_e's big 3 with pics

[spike_e 10+ year member]

ok a couple ppl asked if i would take pics so here they are.

if you guys could also check my connections and offer som advice.

i still have to do the chasis to engine so pics of that will be up in a sec.

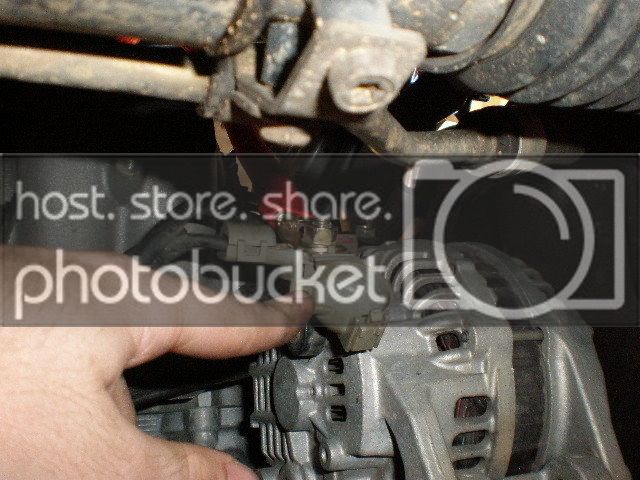

alternator

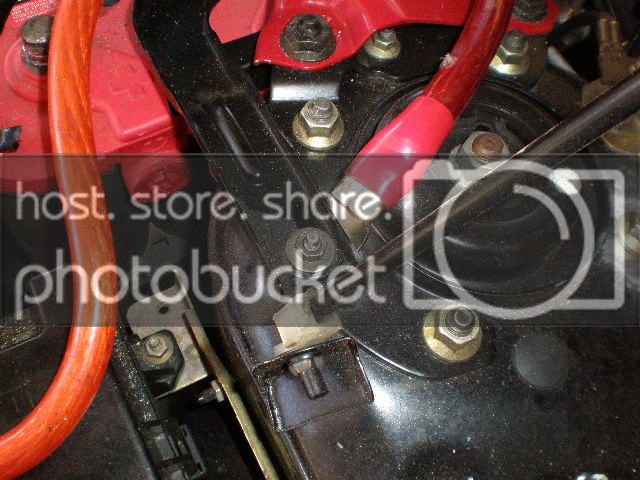

negative to chasis

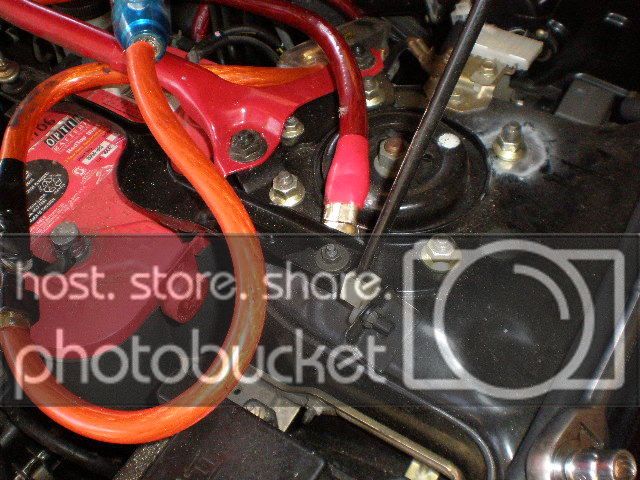

terminals

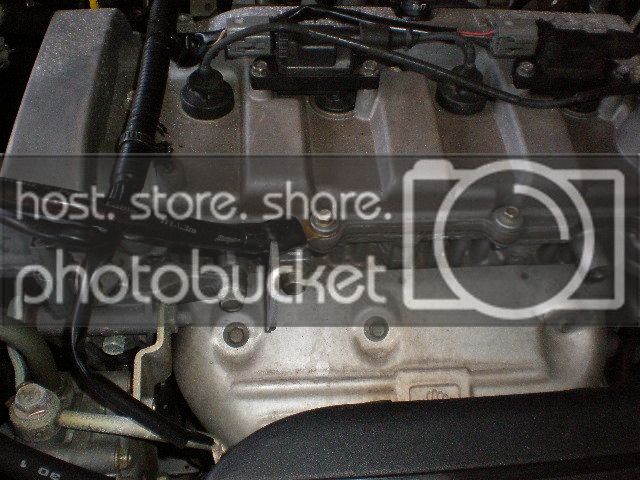

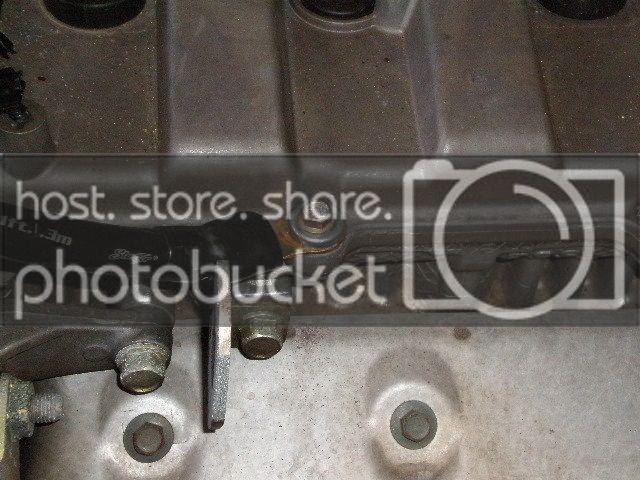

and the start of the engine to chasis

so let me know what you think ill post pics of the finished product in a whil

Click to read more...



[btdickey99 5,000+ posts]

looks good



[spike_e 10+ year member]

anyone else have have any comments?



[btdickey99 5,000+ posts]

wow...7 min bump



[tez4life Premium Member]

Looks great?

JK, looks really good. I can imagine it was tight in that car though. Im tempeted to take some pics when I do mine to show how easy it is, but its been a few of these threads already lol.



[350zspl 10+ year member]

looks right



[Ali1 10+ year member]

nice!



[blazeplacid 10+ year member]

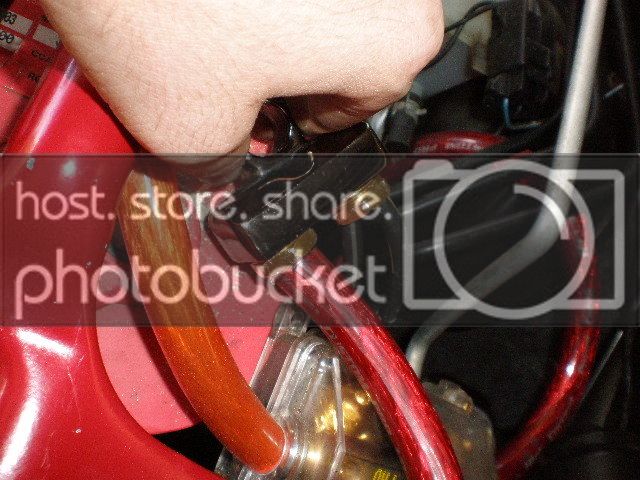

in the 4th pic you might wanna put more wire in the fuse holder or do something

looks kinda fire hazard-ish ,like it may come out



[blazeplacid 10+ year member]

also that strut bar is grounded somewhat so another reason to fix that problem



[fbi90909 5,000+ posts]

ok a couple ppl asked if i would take pics so here they are.if you guys could also check my connections and offer som advice.

i still have to do the chasis to engine so pics of that will be up in a sec.

alternator

i feel that that location is not a proper ground.

locate where your battery ground is leading to and ground at that point. along with the engine ground, locate where the engine is grounding to and run your new wire to that location.



[hemi=22s 10+ year member]

in the 4th pic you might wanna put more wire in the fuse holder or do something
looks kinda fire hazard-ish ,like it may come out

gonna say the same thing

is that even a 0awg fuse holder



[fbi90909 5,000+ posts]

gonna say the same thing is that even a 0awg fuse holder

it is an 1/0ga fuse holder.

it looks liek he cut too much jacket off. need to trim the wire some then shove it in there.



[spike_e 10+ year member]

it is an 1/0ga fuse holder.it looks liek he cut too much jacket off. need to trim the wire some then shove it in there.

yea i am. its not hooked up yet. the wire has been sittin in a box and i think in came loose. i will look into the ground.



[Qbenjamin 10+ year member]

Scrape the paint off where you are grounding...



[spike_e 10+ year member]

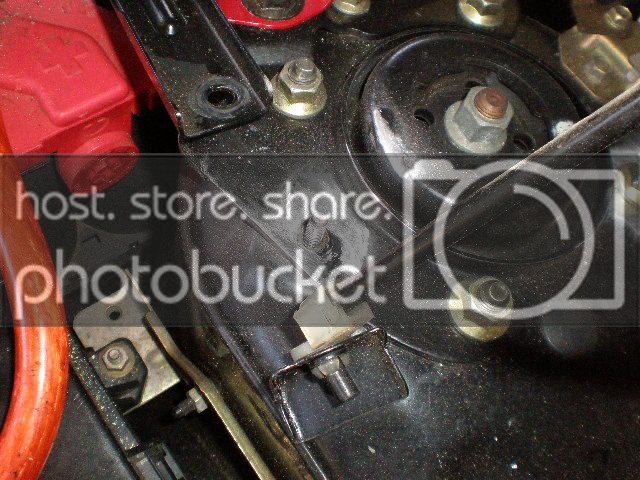

can you see the gold piece in the back with the plastic plug? that the batt ground.
