something to fit 0g in 4g terminal

[BoomBoxStereo 10+ year member]

well i have no experience with this so i do not know what it is called exactly... but i am interested in purchasing a piece so i can put 0g wire into my 4g amp terminals on my Diamond Audio D1000.1

Click to read more...



[Jerhemy 10+ year member]

ebay: 0 to 4 gauge reducer. I'd link you in but ebay doesn't really work on my work computer.



[trumpet 5,000+ posts]

A 0 ga to 4 ga distribution block would let you use 4 ga cable for a better connection.



[brooklynjoy2008 10+ year member]

You could just trim the wire to fit.



[gumby688 10+ year member]

Here ya go.



[Kingstroker 10+ year member]

You could just trim the wire to fit.

and put a little shrink tubing on it



[k3n12ock 10+ year member]

Here ya go.

^this guy is right



[k_schutte 10+ year member]

I've been using those exact SoundQuest ones for years. Only thing I recommend is this:

put them in the amp and tighten the screw.

loosen the screw and remove them from the amp.

there should be marks on them now from the screws.

take a drill/bit and drill a dimple where the mark is. I used a 3/16" or 1/4" on mine but depends on the set screw on your amp, obviously

Also, when I was using them on my DDZ1, I had them turned sideways because otherwise they would touch, watch out for that! it's not as cool as you'd think when they arc! LOL Ok, it is pretty cool as long as you get luck like I did and don't harm the amp any.

EDIT: I guess that wasn't on my Z1 but it happened on one of my dual input amps... and yes, I painted the positive terminals red on my amp. Always have, always will.



[BoomBoxStereo 10+ year member]

see the problem is my amp terminals are angled down slightly:

my amp is mounted on the back of my box and have no where else to mount it... i feel like the reducer will not fit with this ~45 degree angle



[Fireitup 10+ year member]

I'm sure Toolmaker can make them since he does make angled dual inputs. ToolMaker Metal Workz Online Store - Angled Dual 1/0ga Inputs 4ga Stub (Pair)



[The Silverman 10+ year member]

I have a pair of soundquest reducers that i never used if you're interested.



[gumby688 10+ year member]

Put some spacer blocks in there lift the amp off the box a bit and will give you the room I would use some rubber ones since you are mounted to your box it will help with the vibrations whice are bad for your amp anyways.



[BlurredVision 10+ year member]

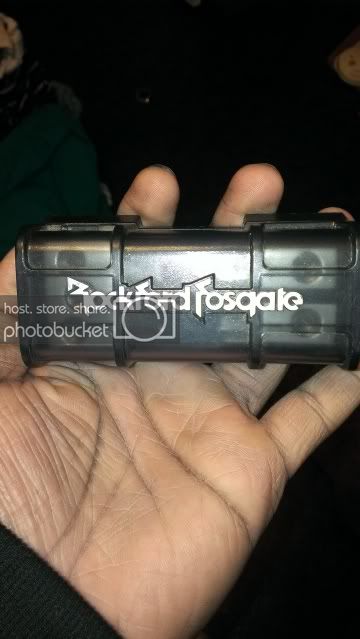

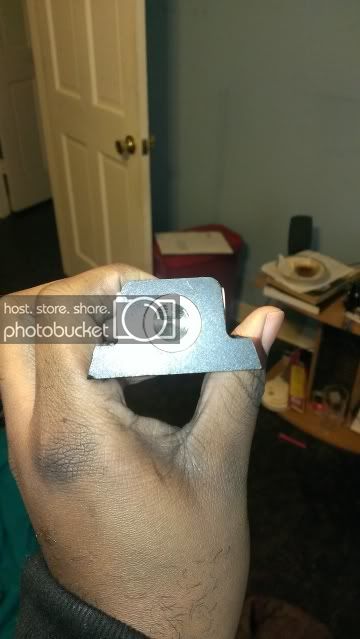

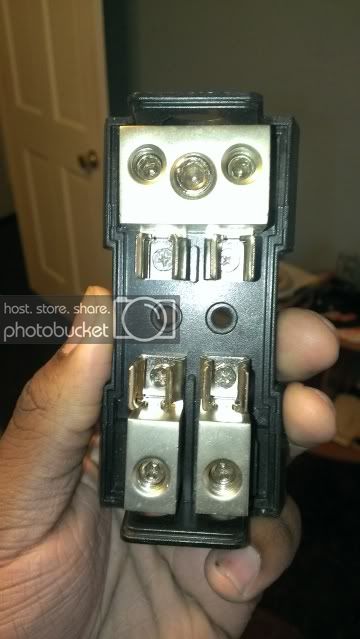

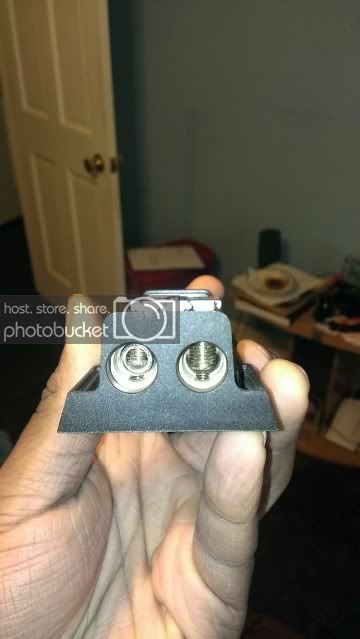

$15 shipped



[eddie_93 10+ year member]

$15 shipped

Have that same distro block. Would recommend! I got lucky and got mine on clearance at Best Buy super cheap



[BlurredVision 10+ year member]

Honestly I need it myself, but I have other stuff I need before I can even use it. Trying to help a fellow bass head
