Proper Way to Wire 2 Batteries in Trunk *PIC*

[bumpintrunk 10+ year member]

Is this the best way right here

Click to read more...



[alvitae 10+ year member]

That's how mine is wired.

Edit, Except I don't see a fuse between amps and batteries.



[ultimate157 5,000+ posts]

You only need 1 run of 0 to the trunk, unless you are going to draw ~300A+

Ground your batteries in the trunk and hook the amps directly to your batteries as pictured.



[chase008 10+ year member]

Why wouldn't u link the first battery run to the second battery so they all have 2 runs?? don't u want the last one???



[alvitae 10+ year member]

Why wouldn't u link the first battery run to the second battery so they all have 2 runs?? don't u want the last one???

Don't need it in that short of a run. Thats just a jumper.



[bumpintrunk 10+ year member]

Why wouldn't u link the first battery run to the second battery so they all have 2 runs?? don't u want the last one???

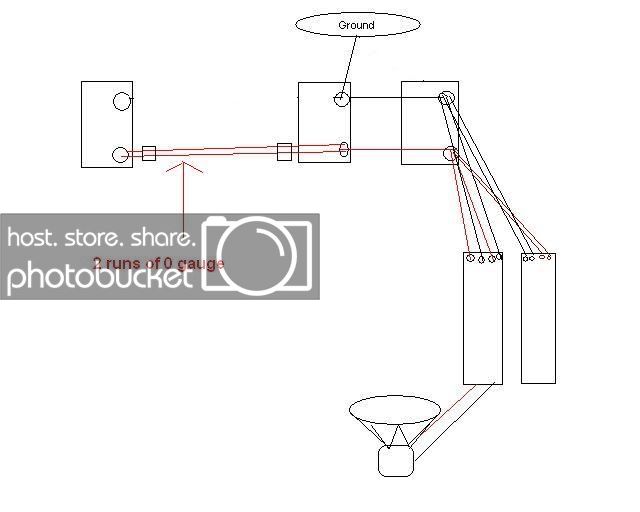

the batteries are wired in parallel thats why, and i runing 2 runs of 0 gauge btw because i'm running 2 Orion 2500d's



[IDSkoT 5,000+ posts]

You only need 1 run of 0 to the trunk, unless you are going to draw ~300A+
Ground your batteries in the trunk and hook the amps directly to your batteries as pictured.

No...

Grounding to the batteries is better than grounding it to the trunk.

And OP: If you plan on keeping these batteries close, there's been a flurry of copper bars on the forum for pretty cheap. You should snatch two or four. FOR TEH UBARNESS.



[chase008 10+ year member]

the batteries are wired in parallel thats why, and i runing 2 runs of 0 gauge btw because i'm running 2 Orion 2500d's

Ooo..



[ssackett 10+ year member]

Who needs fuses anyways??? //content.invisioncic.com/y282845/emoticons/confused.gif.e820e0216602db4765798ac39d28caa9.gif



[Stephen_c 10+ year member]

so the batterys are not grounded out back?



[chase008 10+ year member]

so the batterys are not grounded out back?

i'm gonna ground my battery in the trunk same with my amp



[wgsj_fortvalley 10+ year member]

needs a fuse.



[bumpintrunk 10+ year member]

No...Grounding to the batteries is better than grounding it to the trunk.

And OP: If you plan on keeping these batteries close, there's been a flurry of copper bars on the forum for pretty cheap. You should snatch two or four. FOR TEH UBARNESS.

Yea but i would hate to run another 2 runs of 0 gauge, and whats the advantage of copper bars vs. 0 gauge wringing?



[ultimate157 5,000+ posts]

No...Grounding to the batteries is better than grounding it to the trunk.

Feel free to reread my post.



[bumpintrunk 10+ year member]

needs a fuse.

the fuses are in the diagram i just didnt label them //content.invisioncic.com/y282845/emoticons/tongue.gif.6130eb82179565f6db8d26d6001dcd24.gif
