Mystery socket - Pioneer SPH-DA360DAB

[Dotcom1970]

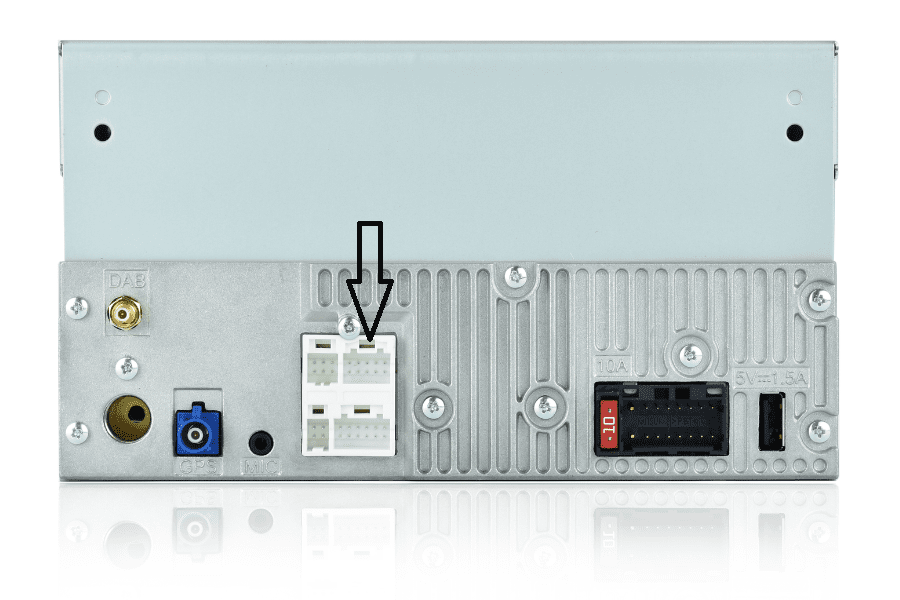

Does anybody know what this socket is for? The other three are mentioned in the installation guide for connection to video, pre-outs, steering wheel controls etc, but this one isn't mentioned, nor are there are supplied cables. I know on other SPH-EVO models they have can bus interface connections, so I wondered if this is the same. If so, does anybody have the pinouts?

Click to read more...



[Deiimos]

I did a very quick search, so take this with a grain of salt.

Check page 6 of the installation manual, looks like it has something to do with video output for a rear monitor? But I don't own one, nor do I have any experience with it, so that is as much help as I can try to offer.

Click this link, scroll down to the "Installation Manual", and see page 6. Looks to have arrows that point to that exact connector.

Support for SPH-DA360DAB

Wifi enabled Mechafree 6.8â Capacitive touchscreen multimedia player, with easy smartphone connectivity supporting Apple CarPlay wireless and Android Auto wireless and USB Mirroring for iPhone and Android. Bluetooth, DAB/ DAB+ Digital Radio, 13-band GEQ, advanced audio features and premium audio...

www.pioneer-car.eu



[Dotcom1970]

I did a very quick search, so take this with a grain of salt.

Check page 6 of the installation manual, looks like it has something to do with video output for a rear monitor? But I don't own one, nor do I have any experience with it, so that is as much help as I can try to offer.

Click this link, scroll down to the "Installation Manual", and see page 6. Looks to have arrows that point to that exact connector.

Support for SPH-DA360DAB

Wifi enabled Mechafree 6.8â Capacitive touchscreen multimedia player, with easy smartphone connectivity supporting Apple CarPlay wireless and Android Auto wireless and USB Mirroring for iPhone and Android. Bluetooth, DAB/ DAB+ Digital Radio, 13-band GEQ, advanced audio features and premium audio...

www.pioneer-car.eu

Cheers Deiimos, however, the video output is a different part of that connector



[Deiimos]

Well, the odd thing is, page 3 of that manual shows the left socket as the rear view input, mute, and steering wheel control. While the right side you point to is listed as "pre-out supply" which seems to be monitor output.

I don't know, last resort would be to try asking Pioneer directly.
