My Box Build

[Caleb9107 10+ year member]

Well over the past few weeks I have been working on designs to get exactly what I wanted to fit in my vehicle. This box is built purely for music and I just wanted something to hit the lows. I am not looking to get numbers out of this box or subs because I know they aren't amazing. Since I am only 18 years old and don't have my own tools, my uncle helped me build this whole thing so I could learn how to do alot of woodworking with his tools. Well on to the stats/pics.

External Dimensions: 41.5W x 18H x 19D

Each chamber is 2.2 Cu Ft tuned to 35 Hz.

Green LED's for the extra Dbzzz.

All comments are welcome and appreciated.

The table saw

Test kerf #1

Test kerf #2 (FAIL)

Success!

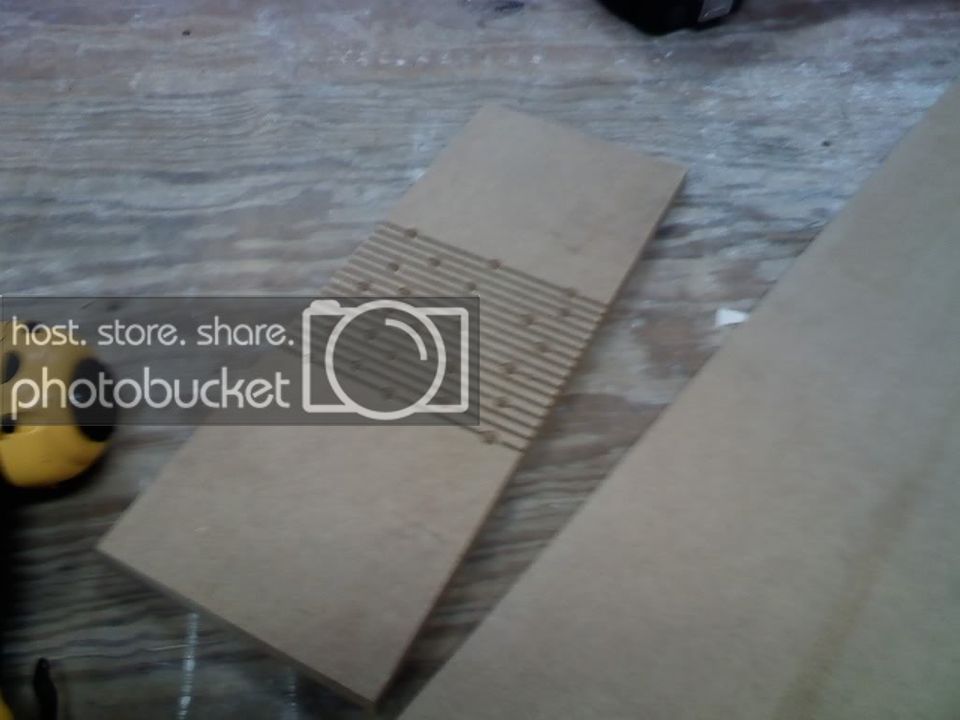

Drilled holes for the resin

Me drilling holes

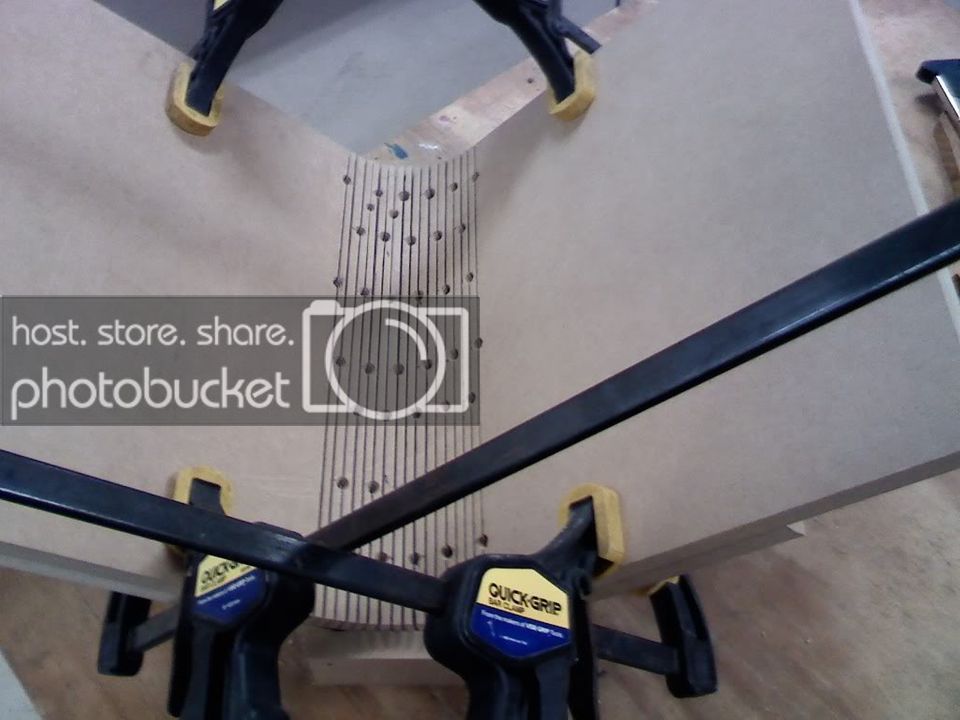

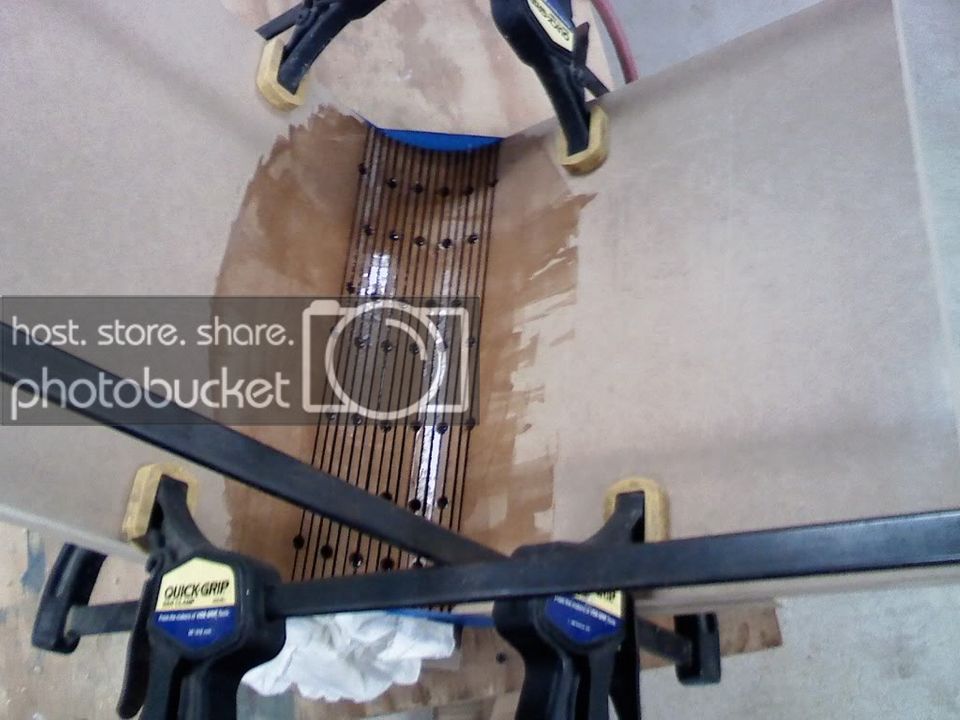

First resined up

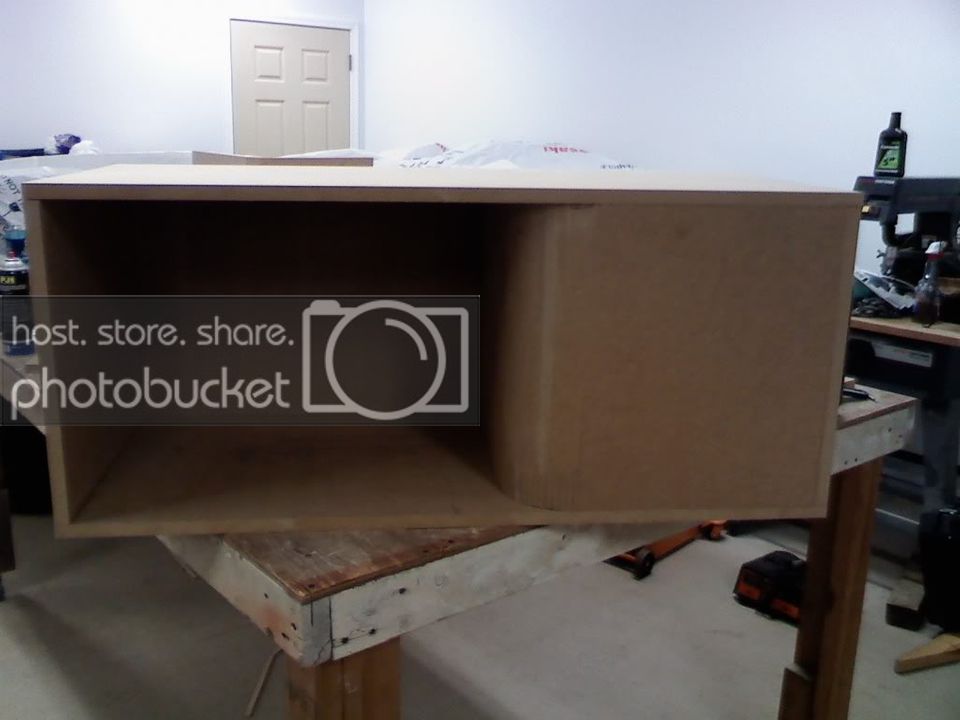

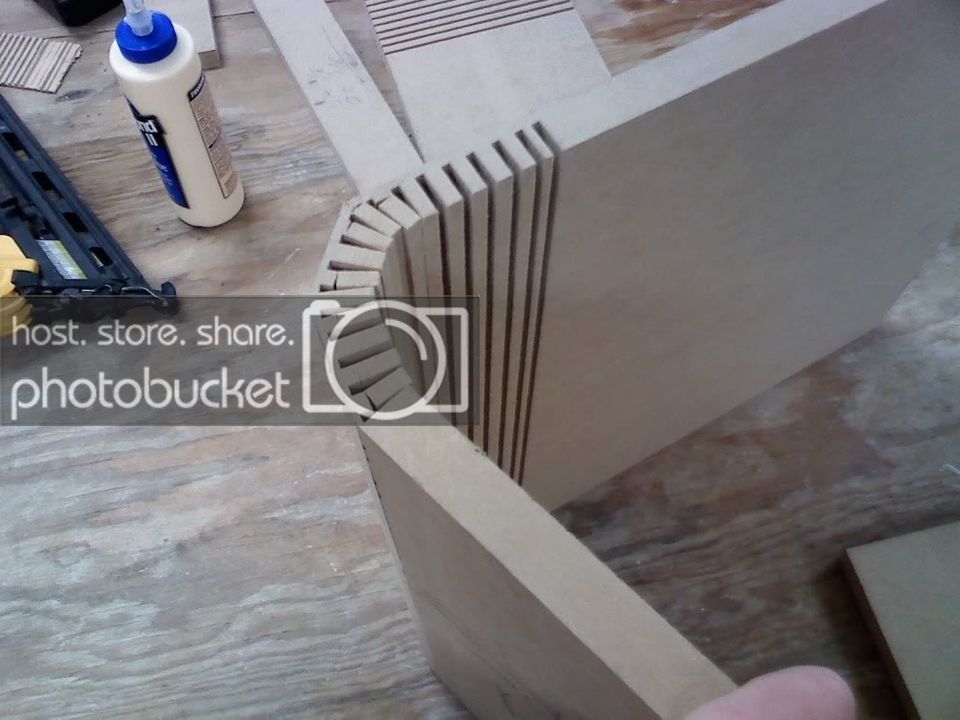

One side mocked up

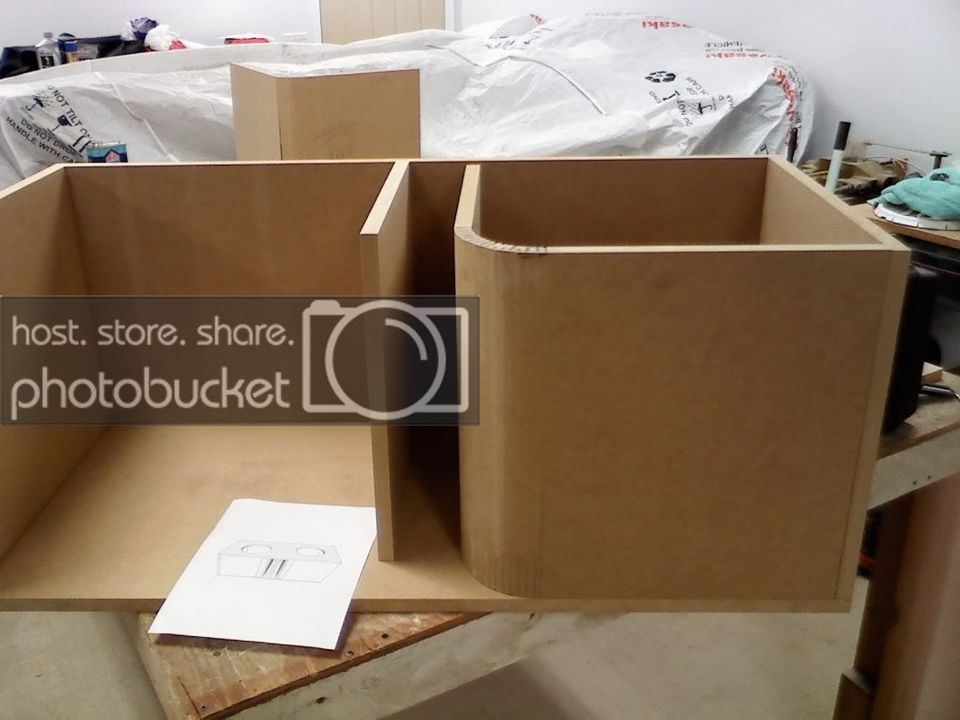

One kerf with the divider

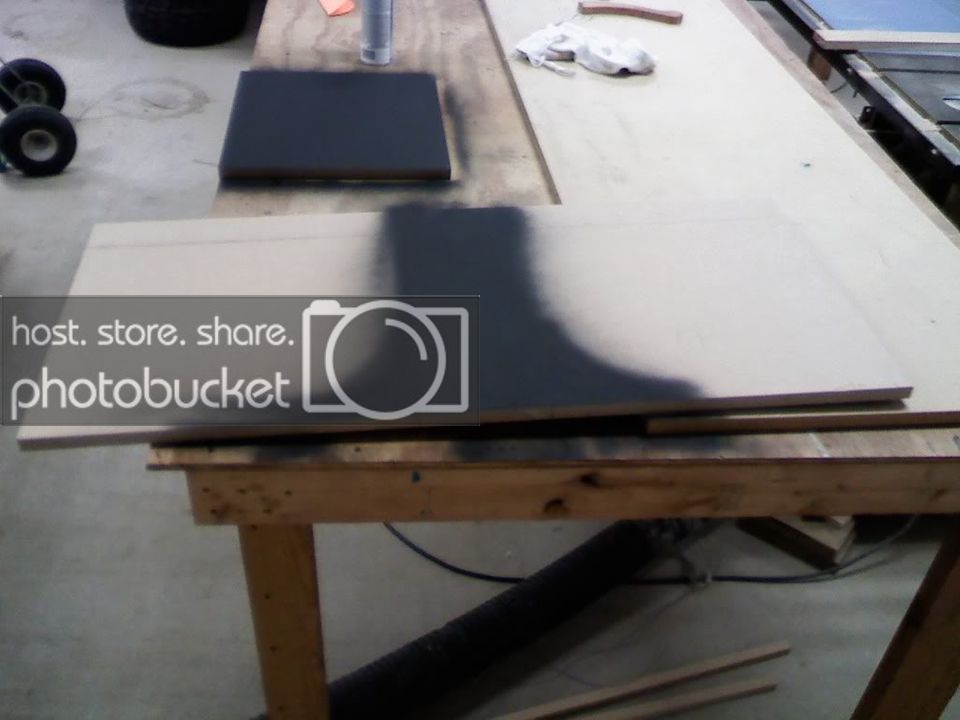

The bottom painted

Click to read more...



[Caleb9107 10+ year member]

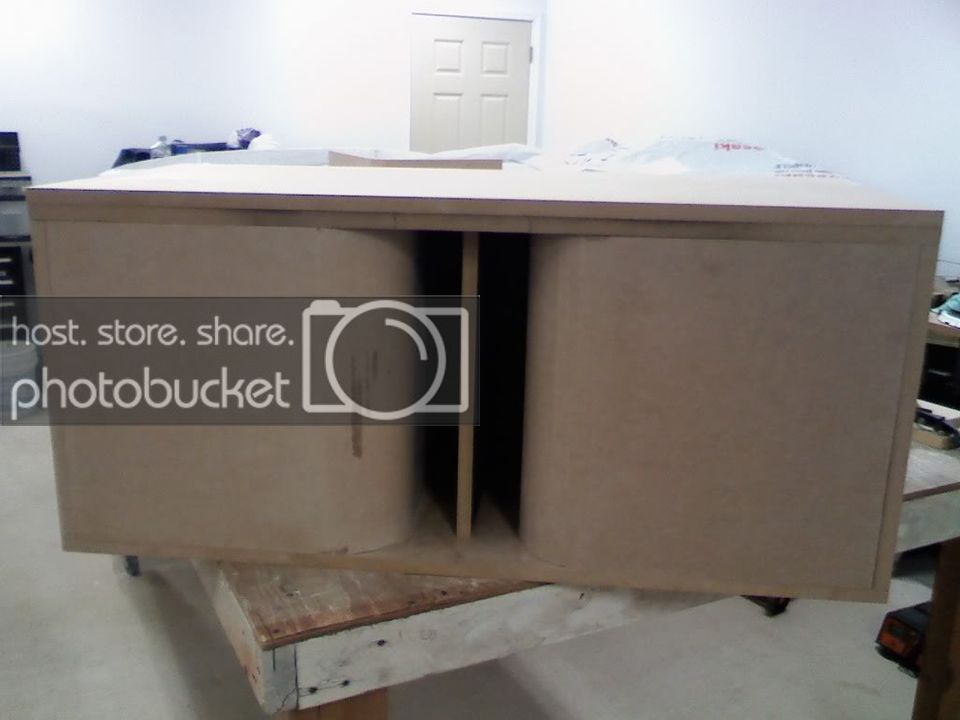

All mocked up minus the sub holes being cut

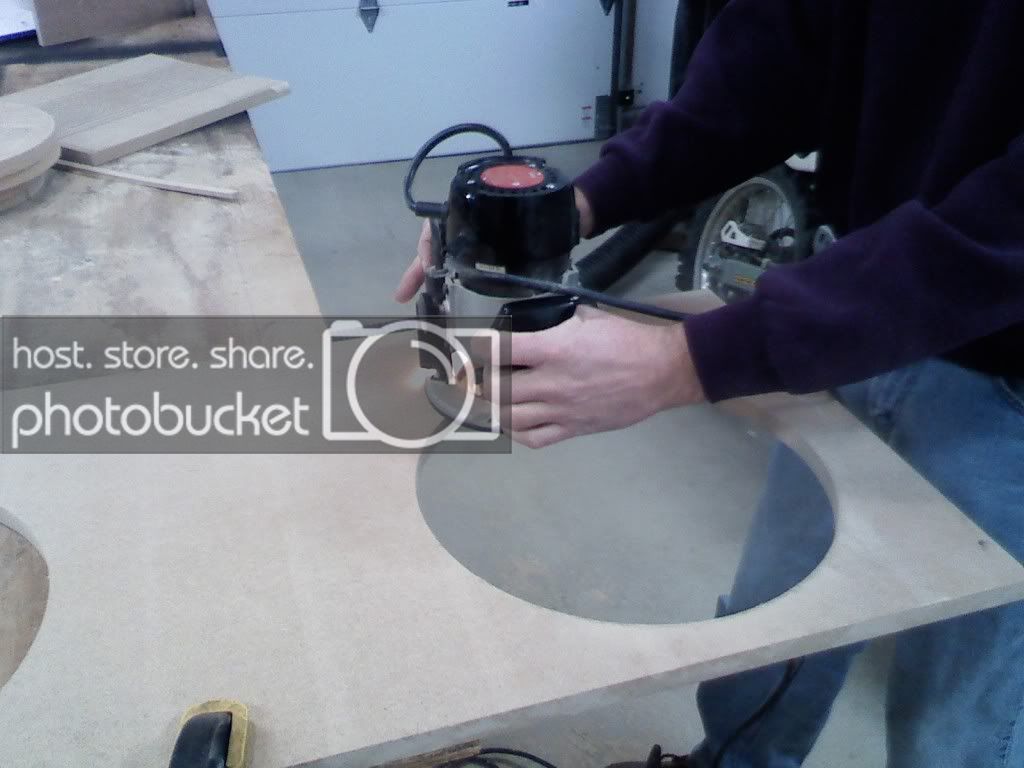

Routing the holes

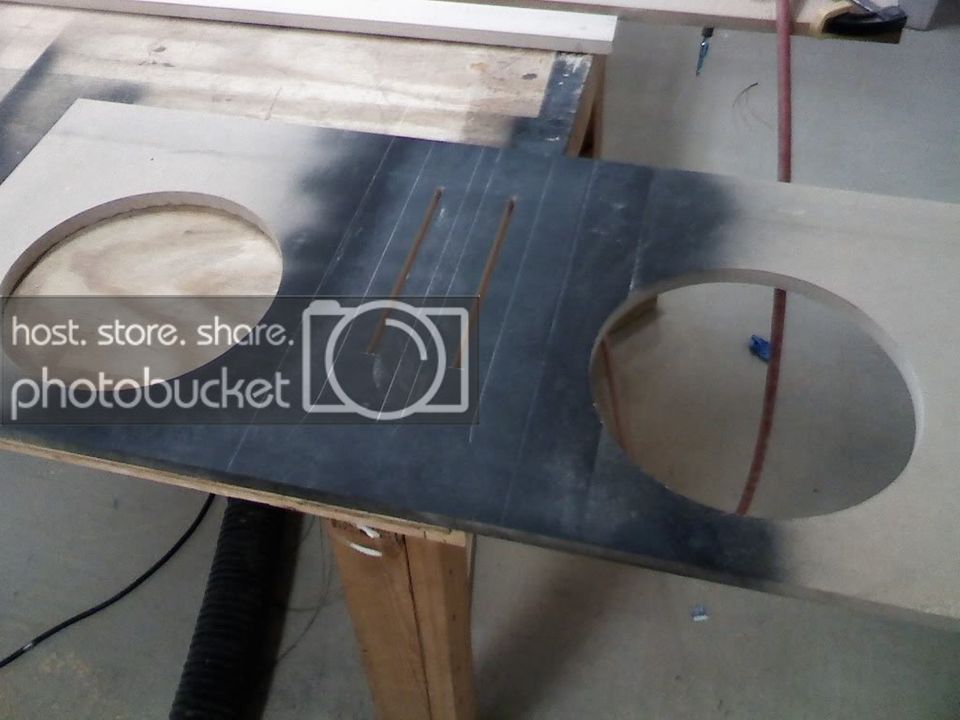

Top being painted

Box minus the baffle

Clamping it all together

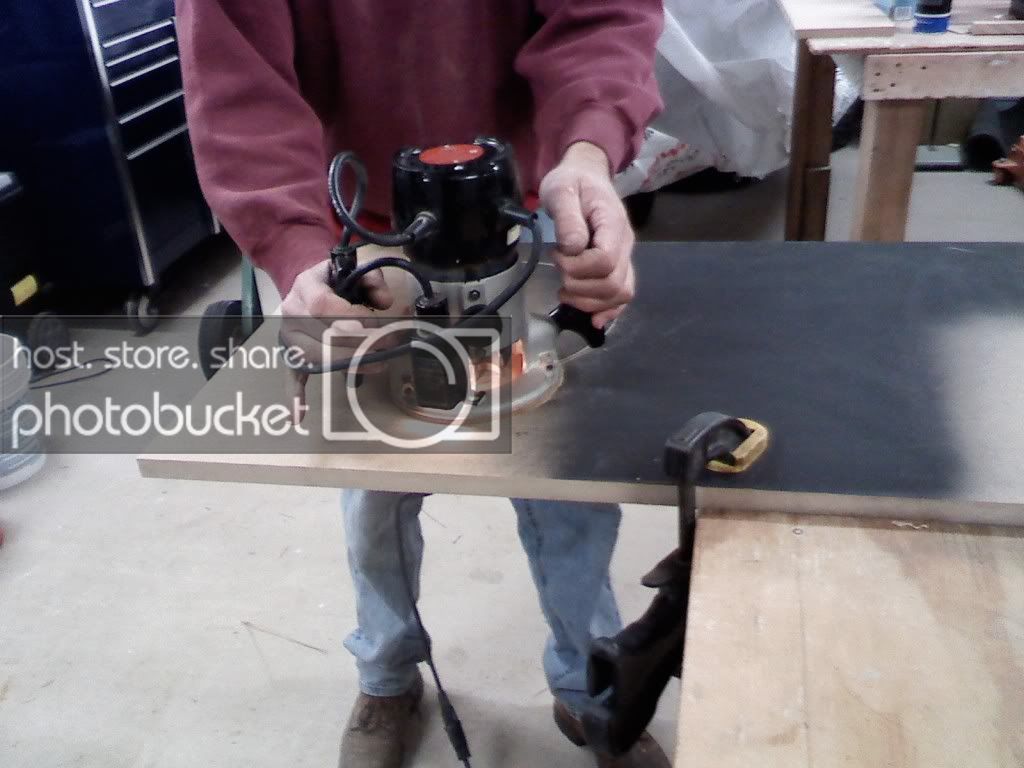

1/2" roundover on the baffle

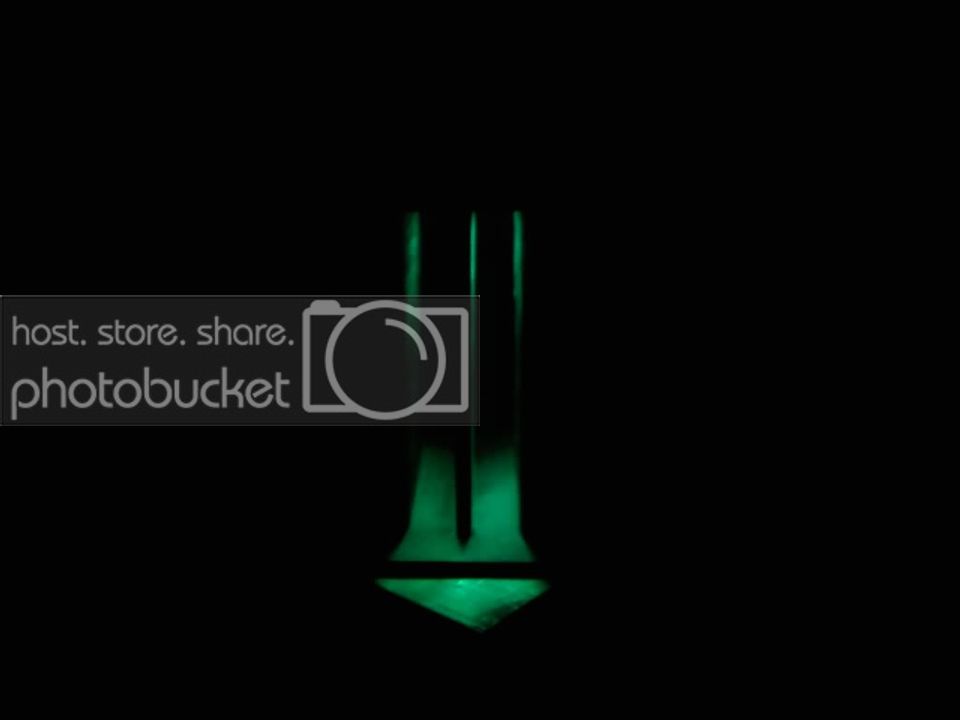

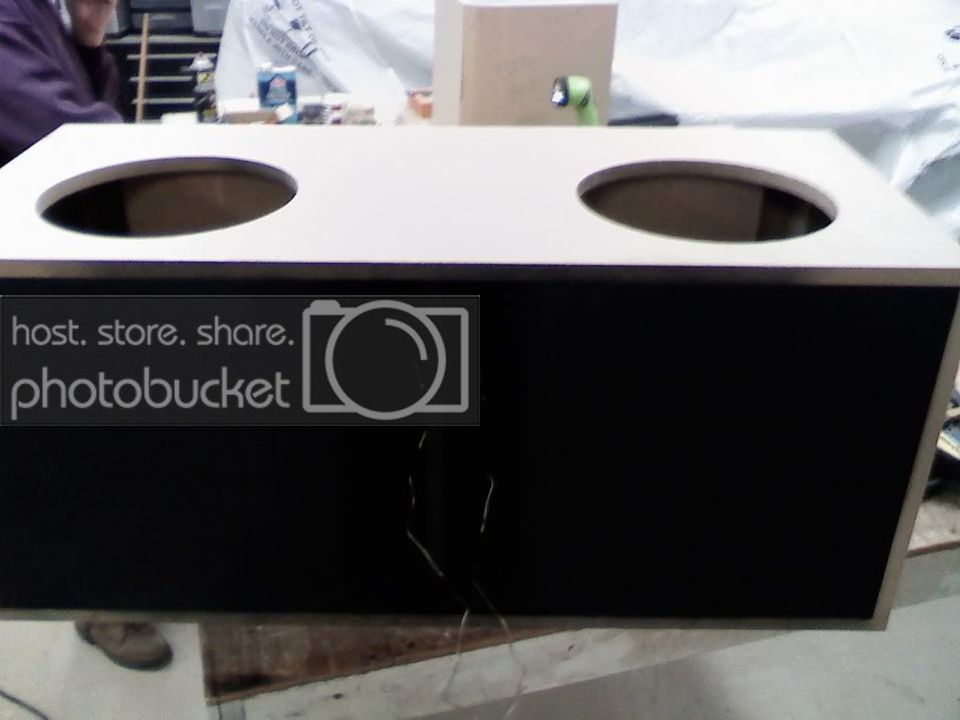

The LED's in

I will have the finished pictures tomorrow because it is too dark out now to take any. So far I love it! It hits the lows pretty well and it really rumbles the car. I'm going to bondo the whole thing, smooth it out and paint the whole thing satin black pretty soon. So let me know what you think.. //content.invisioncic.com/y282845/emoticons/crap.gif.7f4dd41e3e9b23fbd170a1ee6f65cecc.gif

Side note: Anyone with an SUV.. How do you dampen your rear window from rattling. I have a 2000 Ford Explorer and my window now seems to rattle around a good bit.. Any tips for quieting this down would be greatly appreciated!

Thanks,

Caleb



[Ray21 10+ year member]

Very nice. What subs?



[Caleb9107 10+ year member]

Currently I am running Audiobahn AW1200's. //content.invisioncic.com/y282845/emoticons/eek.gif.771b7a90cf45cabdc554ff1121c21c4a.gif They are the older models, but I will probably be upgrading pretty soon.. These are just a set I have had for a year or so and finally decided to make something for them that can be used for whatever I choose to go with next! //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif



[WrenchGuy 10+ year member]

Cool.

The trick to the window is copper pipe foam/insulator(like a pool noodle but softer) from the hardware. Wrap it around the weather seal and the window should close tight against it. It eventually keeps the shape too.

Worked for my Tahoe but you'll get the idea if you need smaller.



[BushJ311 5,000+ posts]

Very nice



[soloXgt 10+ year member]

looks good



[DB-Audio 10+ year member]

great job like the leds



[patotay 10+ year member]

looks good..goodluck



[djarmy2004 10+ year member]

**** nice first box, my first one def wasnt as pretty. Good Job



[Caleb9107 10+ year member]

Thanks everyone! I was really excited to get it under way and when we finally finished it up, I was really impressed! I can't wait to build more in the future! If I go back out to the car tonight I'll take pics of the box in the car!



[JohnnyStan 10+ year member]

be happy you can take advantage of all those nice tools, it ***** when you dont have good equipment to make your cuts //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif

very nice box by the way



[Caleb9107 10+ year member]

Thanks man! I know, I was really lucky he has all that stuff from over the years!



[-Leister- 10+ year member]

Very nice.
