My 1/0 Wiring Layout. Is this Right? Pic Included.

[znewberry]

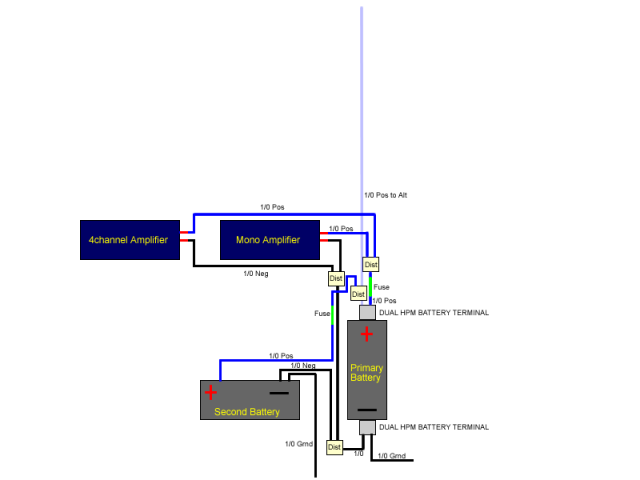

Here is a pic I drew up for my chrysler 300 2013 "primary battery is in the trunk" I have never setup a complete system so i drew it up to reassure myself. Please review my drawing and tell me

1) will it work?

2) is there a better way?

my main concern was fitting everything on the battery terminals. I found some stingers that accept x2 1/0.



bb code image

Click to read more...



[los33 10+ year member]

Here is a pic I drew up for my chrysler 300 2013 "primary battery is in the trunk" I have never setup a complete system so i drew it up to reassure myself. Please review my drawing and tell me
1) will it work?

2) is there a better way?

my main concern was fitting everything on the battery terminals. I found some stingers that accept x2 1/0.



bb code image

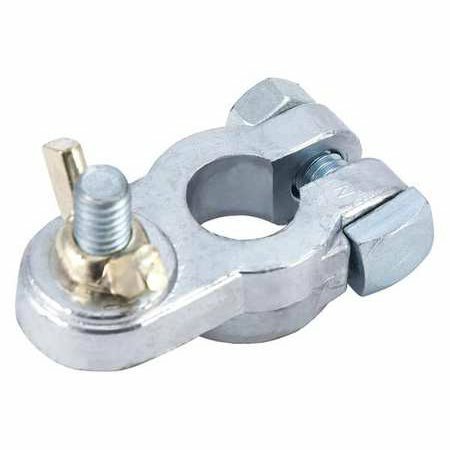

You can always use one of these terminals and use lugs on all the cables to just screw tight them to the battery.

Sent from my SM-N950U using Tapatalk



[znewberry]

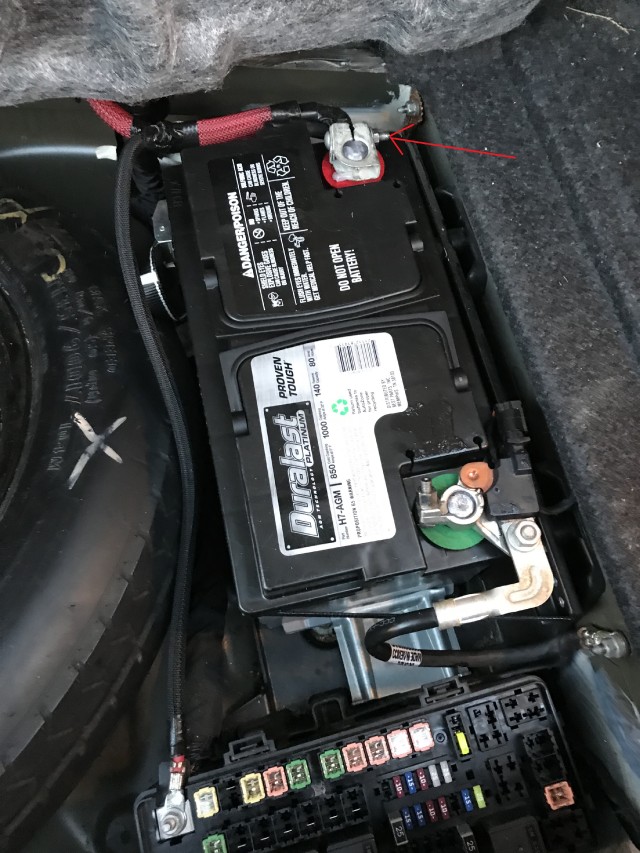

here is what the primary battery looked like stock. its already crammed running 1 mono.... that peice seems similar to what stock was.

WIll I lose power with 4 dist blocks like that?



[los33 10+ year member]

here is what the primary battery looked like stock. its already crammed running 1 mono.... that peice seems similar to what stock was.
WIll I lose power with 4 dist blocks like that?

What i posted compared to the photo are totally different.
And no you wont lose power with 4 dist blocks.

Sent from my SM-N950U using Tapatalk



[znewberry]

What i posted compared to the photo are totally different.
And no you wont lose power with 4 dist blocks.

Sent from my SM-N950U using Tapatalk

ty
