Is this wired properly??

[Twisted0811]

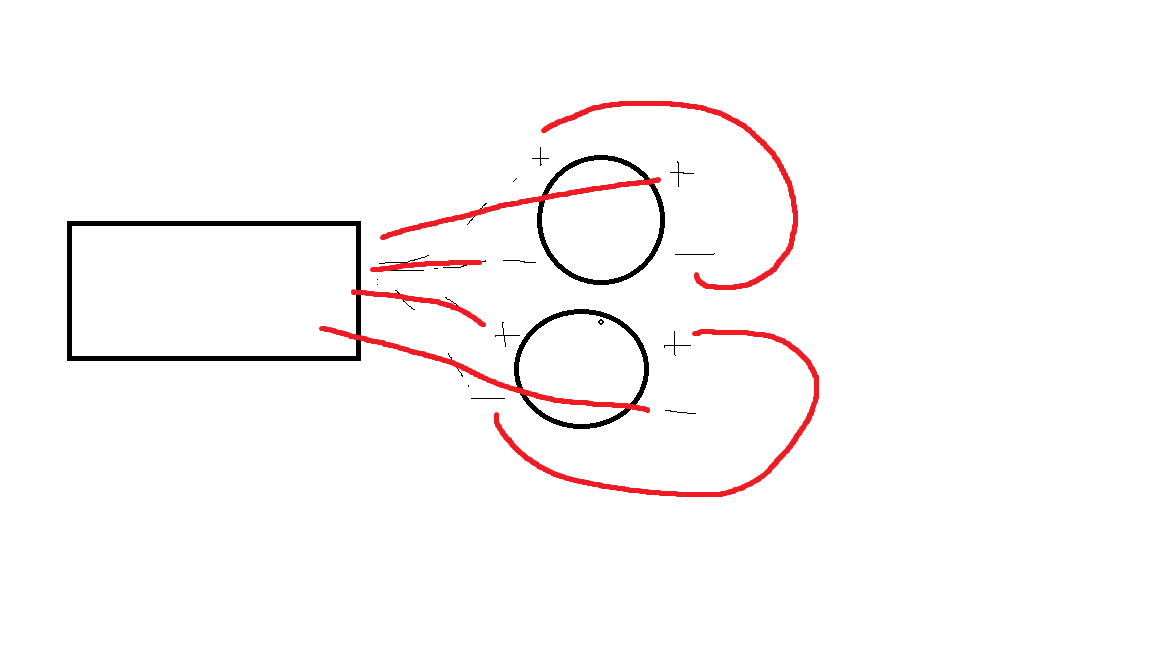

My setup is Skar RP2000 1D pushing 2 Skar SVR12 D2's and this is how it is currently wired, when I removed my CVR's this is how they were wired so I copied it. However they do not sound right they have a rubber smell and are warm to the touch. My gain is only about a 3rd of the way up.

Click to read more...



[marc2112 10+ year member]

Something like this?

It should be fine.



[Popwarhomie 5,000+ posts]

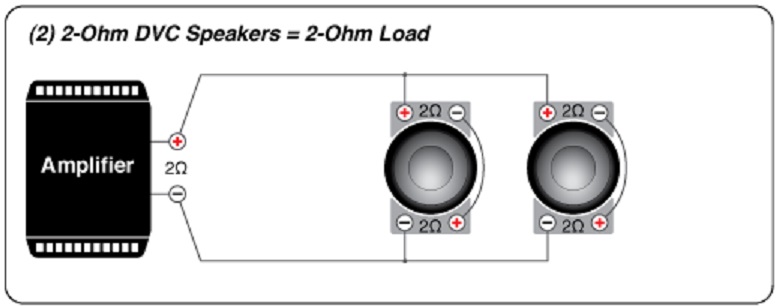

Subwoofer Wiring Diagrams for Two 2 Ohm Dual Voice Coil Speakers

www.the12volt.com

You might only have one coil per subwoofer powered. Hard to tell from your drawing.



[Twisted0811]

Something like this?

View attachment 26407

It should be fine.

This is how it is currently wired, but like I said it sounds way off. If I wire it to 1 ohm would that push my amp to .5 ohms I don't want to blow anything. Sorry just learning all this what would be the best way to wire it up



[marc2112 10+ year member]

This is how it is currently wired, but like I said it sounds way off. If I wire it to 1 ohm would that push my amp to .5 ohms I don't want to blow anything. Sorry just learning all this what would be the best way to wire it up

No I wouldn't do .5. Your problem must be something else. Can you take some pics?



[hispls 5,000+ posts]

My setup is Skar RP2000 1D pushing 2 Skar SVR12 D2's and this is how it is currently wired, when I removed my CVR's this is how they were wired so I copied it. However they do not sound right they have a rubber smell and are warm to the touch. My gain is only about a 3rd of the way up.View attachment 26406

This picture shows you only having one coil per sub wired to your amp.



[Twisted0811]

This picture shows you only having one coil per sub wired to your amp.

correct that should be a 2 ohm load. I was afraid to run them parallel to 1 ohm in fear that I would put a .5 ohm load on my amp. Plus after watching this amp on the dyno it put out 1600 watts at 2 ohms and the subs are only 800 rms. This is the part I'm attempting to learn



[audiobaun 5,000+ posts]

Wire them to a final 2 ohm load



[Twisted0811]

Wire them to a final 2 ohm load

and that is the schematic that marc2112 posted earlier correct?



[marc2112 10+ year member]

and that is the schematic that marc2112 posted earlier correct?

Yes but he is right.. you only have one coil per sub wired.



[Twisted0811]

Yes but he is right.. you only have one coil per sub wired.
View attachment 26408

Okay thanks guys ill try this tonight after work and let yall know how it works out



[Twisted0811]

Also that explains the smell and odd sound of the subs, I am looking at the way its wired and this amp makes 2200 rms at 1 ohm. So I am actually running these subs at 2200 watts to single voice coil. So thank you guys probably just saved me a pile of money.



[LsGuy]

It sounds like you already realized this, but wiring to one voice coils means your subs are now rated for 400 rms each.



[hispls 5,000+ posts]

It sounds like you already realized this, but wiring to one voice coils means your subs are now rated for 400 rms each.

And they will not perform as intended if half the coil isn't energized. There is virtually never a time to only run one coil of a multiple voice coil woofer.



[Twisted0811]

And they will not perform as intended if half the coil isn't energized. There is virtually never a time to only run one coil of a multiple voice coil woofer.

Thanks I really appreciate all the feed back. I learned alot really quick with this thread. Yall are a good bunch of people and have a great deal of info on this site. Thanks again.
