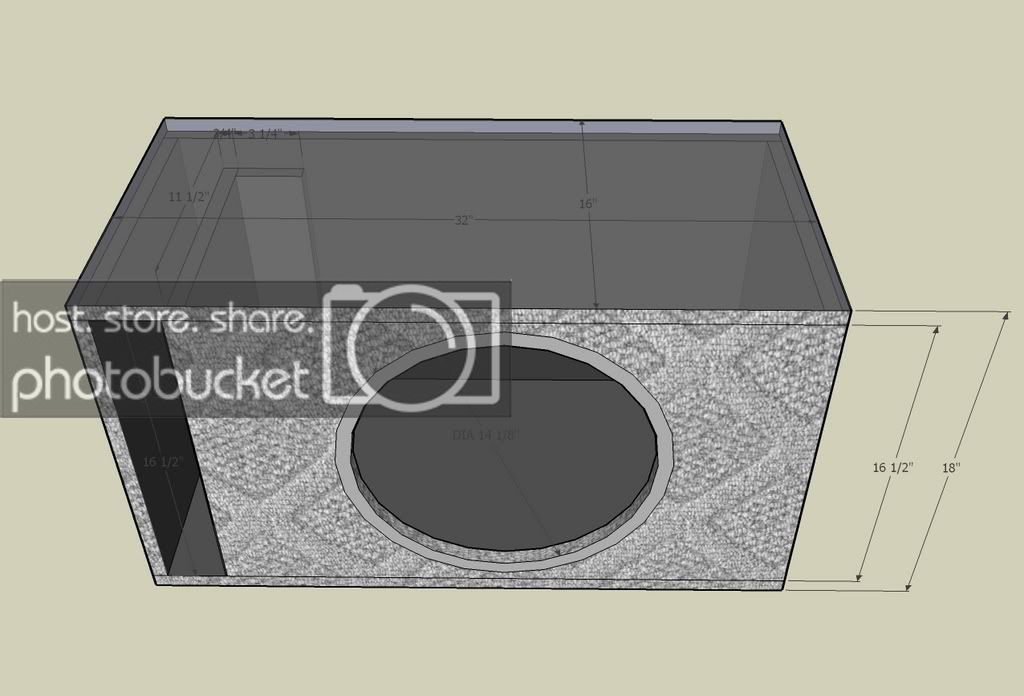

32in long by 18in deep x 15in high slant front L shape ported box tuned to 28-30hz for single 15in sub



[oxsign 5,000+ posts]

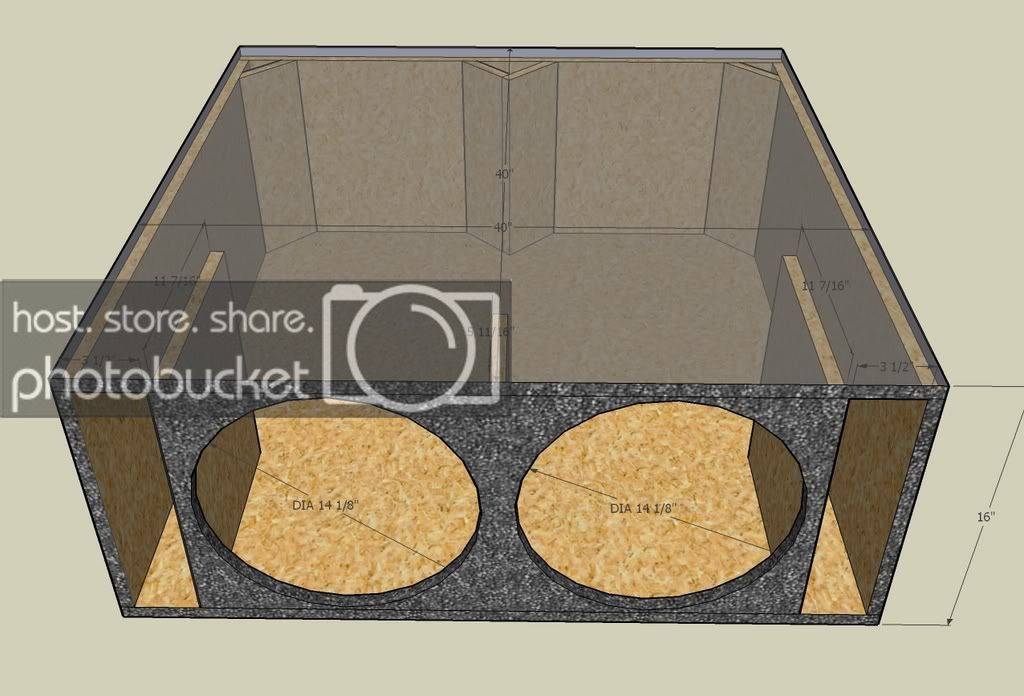

40Wx40Dx16H, 2 15"s, duel slot ports, tuned to 34hz.



[rcnshoe 10+ year member]

Hey I could use some help with a box and port size, I need a slot port along the side tuned to 30. My box needs to be 18 tall, 18 deep, and 18.75 wide, for one 12" sub, here's the specs for that. http://www.woofersetc.com/index.cfm?fuseaction=product.display&Product_ID=1880 How wide, tall, deep should I make my port.. Thanks

2.73^3 w/o port @ 30hz



[rcnshoe 10+ year member]

32in long by 18in deep x 15in high slant front L shape ported box tuned to 28-30hz for single 15in sub

Not goings to work because Hole Dia. for a 15" is around 14" so 15"high - 3/4 MDF top and - 3/4 MDF ='s 13.5" to work with. 15" woofer will not fit.



[rcnshoe 10+ year member]

40Wx40Dx16H, 2 15"s, duel slot ports, tuned to 34hz.

12.34^3 w/o ports @ 34hz with duel slot ports.



[rcnshoe 10+ year member]

All files on my computer lemme know if anyone wants them there *skp files



[riddla 10+ year member]

Not goings to work because Hole Dia. for a 15" is around 14" so 15"high - 3/4 MDF top and - 3/4 MDF ='s 13.5" to work with. 15" woofer will not fit.

ok 16in high please. If its slanted I should be able to turn box at an angle to fit in the boot.

Recently built box with 15in high but after fitting it, the total heigh was 16.5 so it should work please ?



[rcnshoe 10+ year member]

Hello i will be attempting my FIRST ported box this weekend, I just seen that you do box designs. I have a 15" TC-2000 that I cant find specs on, I have no clue about tuning at all. Like if it is tuned to 35hrts will inot hear anything under that? What is the tuning thing? Sorry for the noob questions, If this helps here is a little more information on this, I have a MTX1501d pushing it @ 2 ohms, I listen to mostly rap music, for mids and highs I have 2 sets of Diamond audio D6 in the front door, so keeping up woth the bass wont be that hard. I have a 2005 Chevy Malibu, seats don't fold down. Im looking for something loud, I dont care if I can hit high numbers but I want it to be loud. Right now it is in a 3.0 SQft Sealed box and it can shake the **** outa the car but I still want louder.

Thanks for all of the help

Jack Linder

here you go man.

4.22^3 w/o port @ 35hz



[jesse59672 10+ year member]

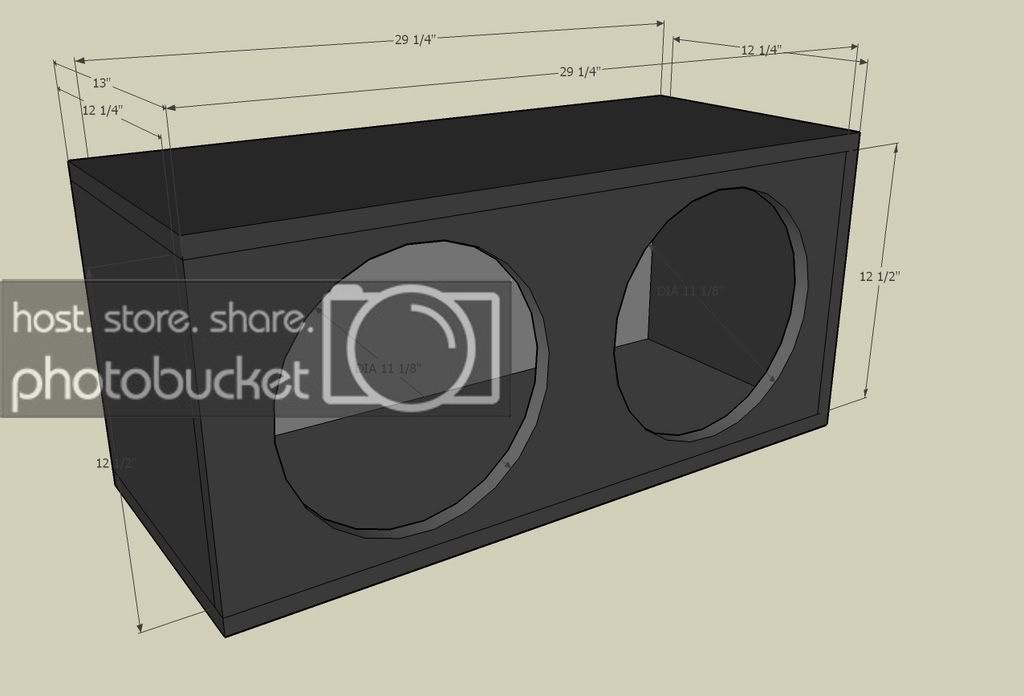

30 x 14 x 13 sealed box //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif w/ 3/4th mdf

2x top & bottom 30'' x 13''

2x front & back 29.25'' x 12.50''

2x side pieces 12.25'' x 12.50''

2x 11.125'' round cutouts on the front board



[Ali1 10+ year member]

looking for a box for two 12s ported in an 03 mustang. I will find dimensions later on, but i didnt think there was much room to fit a pair of 12s with proper spacing



[morgans432 10+ year member]

35 wide

22 deep

18 high

Ported box for 2 12" id max's

1999 toyota corlla



[oxsign 5,000+ posts]

12.34^3 w/o ports @ 34hz with duel slot ports.

That looks great. Can you tell me how much port area that is?



[jesse59672 10+ year member]

dew sum math



[rcnshoe 10+ year member]

30 x 14 x 13 sealed box //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif w/ 3/4th mdf
2x top & bottom 30'' x 13''

2x front & back 29.25'' x 12.50''

2x side pieces 12.25'' x 12.50''

2x 11.125'' round cutouts on the front board

Last one for the night.

2.37^3 sealed box.



[rcnshoe 10+ year member]

That looks great. Can you tell me how much port area that is?

Pretty Sure its around 103 sq in. Good night guys. Will finish up tomorrow. ZZZZ
