folded horn pics.

[nathanh 10+ year member]

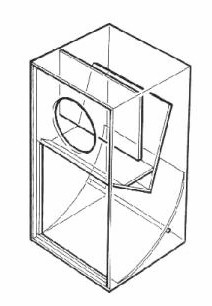

found this build on google images... anyone know much about these?

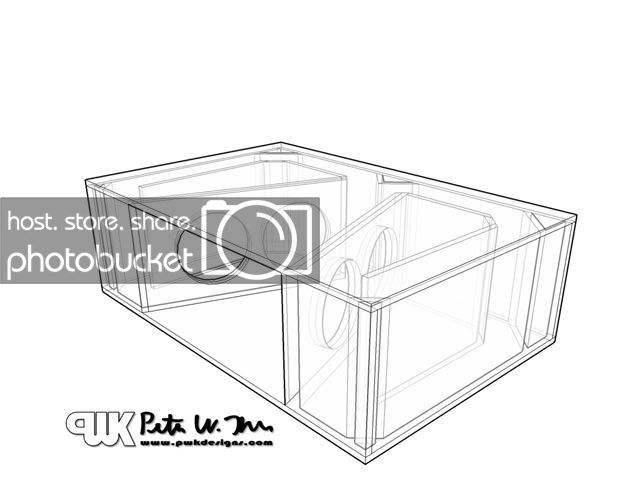

this one is 4 10's... anyone know why they are facing each other?

Click to read more...



[BigE 10+ year member]

nice



[snb778 5,000+ posts]

i think the concept of those boxes is: the best ideal box design is one with no sides measuring the same length... I was taught this in a sound acoustics class that I took



[djman37 5,000+ posts]

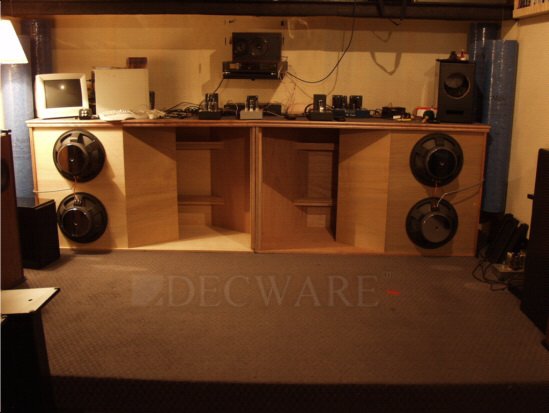

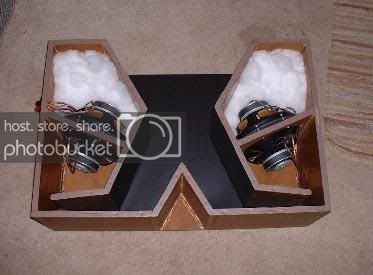

middle two are http://www.decware.com boxes, the wicked one is the 4 iso clamshelled 10's, next are a pair of imperials. the bottom can be found on http://www.speakerplans.com

ps, the first one looks like a mess and the wicked one probably didn't need the padding.



[nathanh 10+ year member]

how big would one of these boxes be for a 12 inch type x? anyone have any ideas?



[bhsdriller 10+ year member]

I don't get it...why not just build a regular ported box and be done with it.



[01 S 10 10+ year member]

I'd like to hear one of these in person, looks interesting. what would be the main purpose of something like this? a flat response from way low to 60-70hz? thats what ive heard, not sure if its true

anything like this done with a higher powered system? like 3kw, 4kw?



[Rich B 5,000+ posts]

I don't get it...why not just build a regular ported box and be done with it.

Speak a word, any word, out loud.

Now cup your hands in front of your mouth and repeat saying the same word.

Notice the difference?



[Cpyder 10+ year member]

Here's the world's largest horn subwoofer apparently

http://www.royaldevice.com/custom.htm.



[Beat_Dominator 5,000+ posts]

Make small drivers with low x-max and low power sound like larger drivers, at the cost of size and complexity.



[djman37 5,000+ posts]

I'd like to hear one of these in person, looks interesting. what would be the main purpose of something like this? a flat response from way low to 60-70hz? thats what ive heard, not sure if its true

anything like this done with a higher powered system? like 3kw, 4kw?

i wouldn't bother with high power, the whole point of those designs is to get more out of less.

To get subs to fit, at least in the Wicked One, that can take that power is tough. There was a build on their forums using 10" XXX(old ones) and the box had to have notches to allow the magnets to fit.

Beat's right, you use lower powered subs, but I know my WO sounded REAL NICE. 4th order FTW.



[mcsoul 10+ year member]

Stumbled on this CL add, looks like there are some folded horn plans available for sale

at the site this guy references. He built one and is trying to sell it way high imo.

http://dallas.craigslist.org/sdf/ele/963773962.html

http://www.billfitzmaurice.com/Builders.html

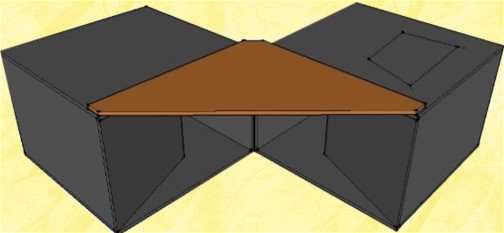

Apparently you can couple the folded horn cabs into arrays that increase the output.

cool.

Tuba 24 array



[nathanh 10+ year member]

what i have read from is that a ported box is designed to give you a couple more db's but also a well tuned box will perform at a slight lower freq. but reduce sound quality.

the info i have gathered off the folded horn is that it is the best design for a speaker, making it conciderably louder but also with no sacrafice to sound quality.

i have been pulling my hair over the designs of sealed ported tline and folded horn... i want the best sound quality and a tline is way to big to fit into my car, but i have a type x in a sealed box and i want to test a different closure in my other car.

but this folded horn idea has got me going crazy. i want to design and build one for my type x and see what it does. i also have 2 10w6's to play with... but i was interested to know if there is anyone out here that knows what type of spec these boxes need to be built for.

plan on running the type x, or w6's on 1000 rms.

i'm really interested in running that in my car with the 2 w6's



[vforvengence 10+ year member]

what i have read from is that a ported box is designed to give you a couple more db's but also a well tuned box will perform at a slight lower freq. but reduce sound quality.
the info i have gathered off the folded horn is that it is the best design for a speaker, making it conciderably louder but also with no sacrafice to sound quality.

i have been pulling my hair over the designs of sealed ported tline and folded horn... i want the best sound quality and a tline is way to big to fit into my car, but i have a type x in a sealed box and i want to test a different closure in my other car.

but this folded horn idea has got me going crazy. i want to design and build one for my type x and see what it does. i also have 2 10w6's to play with... but i was interested to know if there is anyone out here that knows what type of spec these boxes need to be built for.

plan on running the type x, or w6's on 1000 rms.

i'm really interested in running that in my car with the 2 w6's

Thats seems like ti would sound really nice. I haven't heard anyone dissapointed in a folded hord that was properly build and desinged. But it has to be perfect or else it sounds like crap



[nathanh 10+ year member]

well how would i go about finding plans for a 12 inch with 1000 watts?
