Hi everyone,

Now is time to present my project

Few pictures when car has been stock:

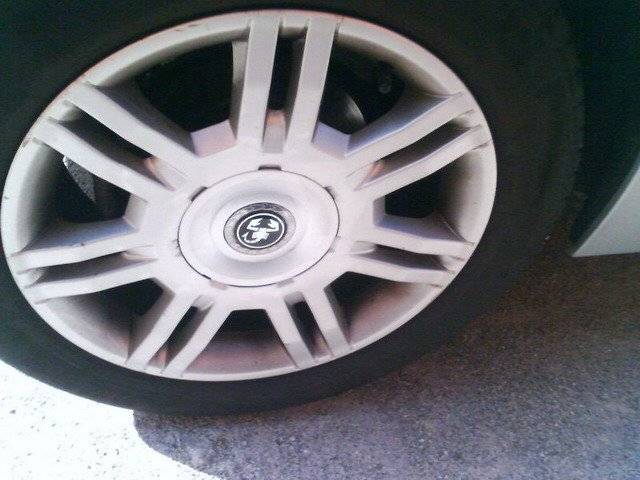

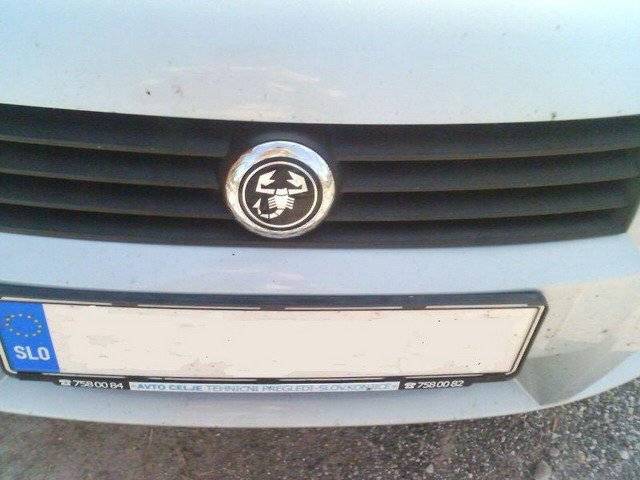

Few new badges:

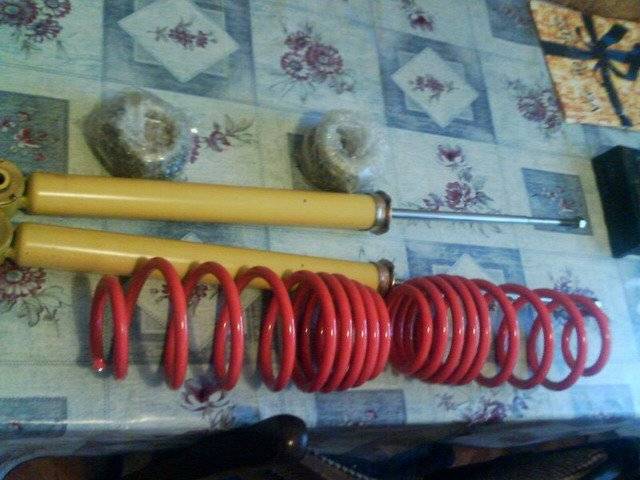

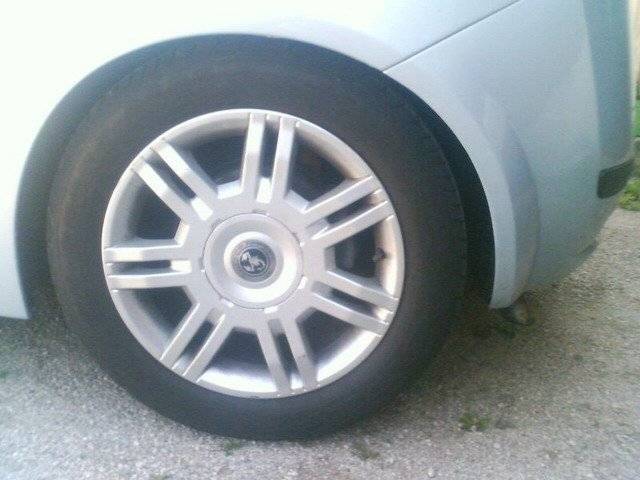

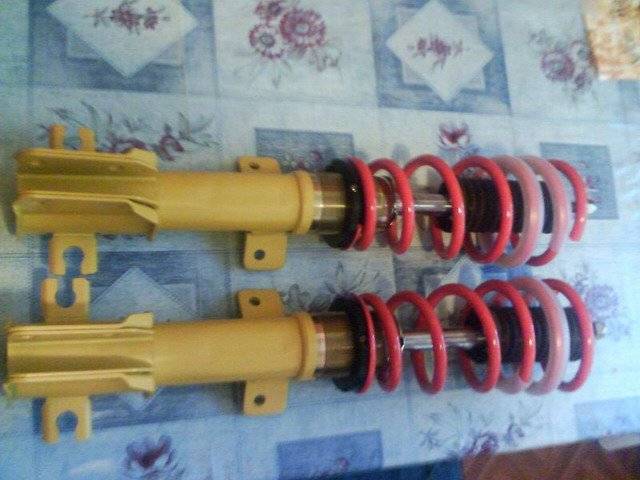

First Im buy new complete suspension and lower car for 5cm.

Click to read more...



[_Dejan_ 10+ year member]

Then Im build my first CARPC with next components:

Jetway 7F2WE-1G5-OC 1.5GHz

M2-ATX 6-24V DC/DC (160 Watt)

Adapter HDD 2.5" to 3.5"

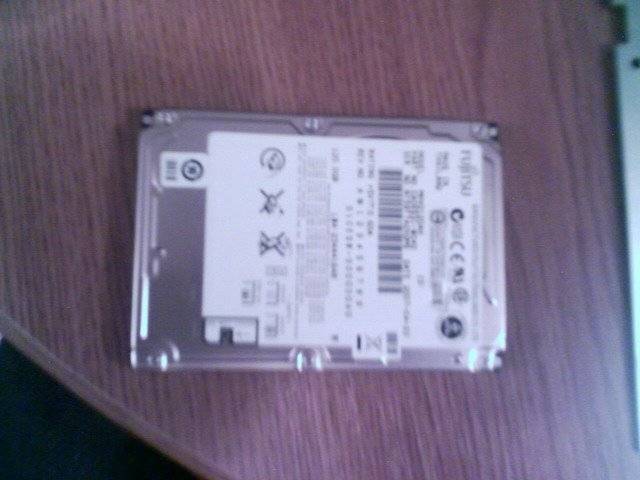

2,5" HDD

RAM 1024MB DDR-II 533MHz CL4

VoomPC [black Edition]

BU353 USB GPS (Sirf III)

USB Bluetooth Jabra A320s

USB Wireless card with external 6dB antenna

7" LCD In-Dash Touchscreen (K90)120GB

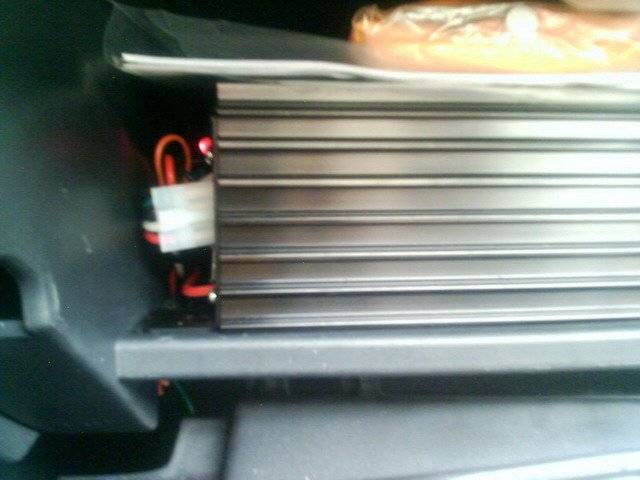

Installing carpc into car:

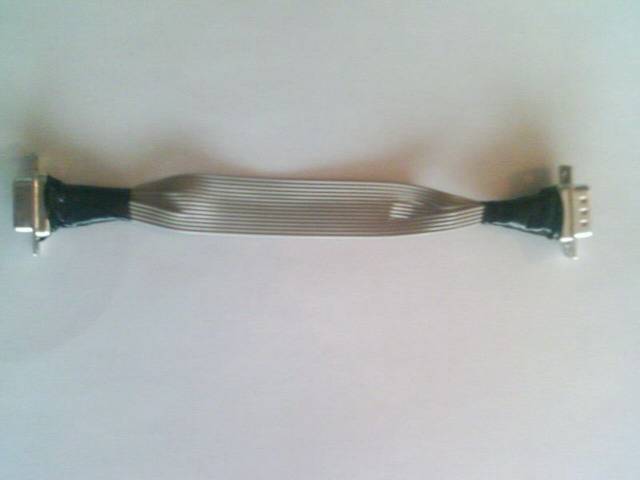

VGA cable:

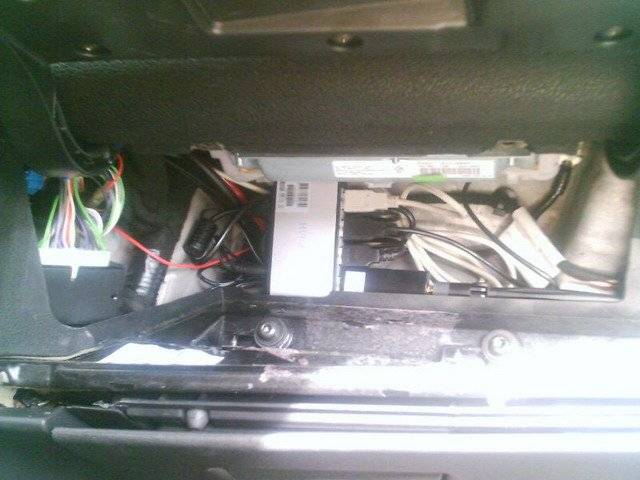

USB HUB with WLAN, BT, TS & GPS



[_Dejan_ 10+ year member]

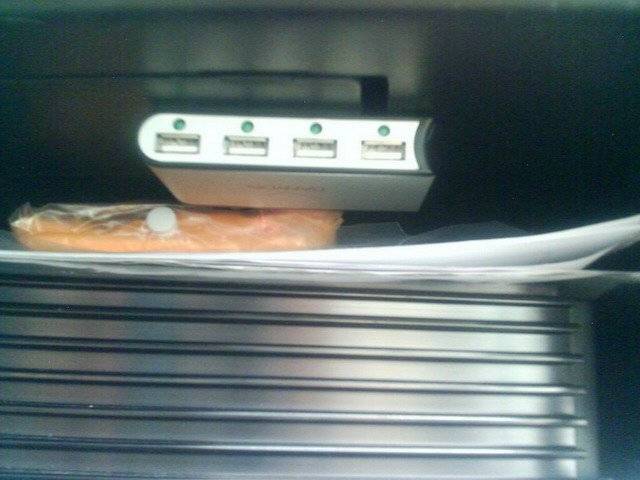

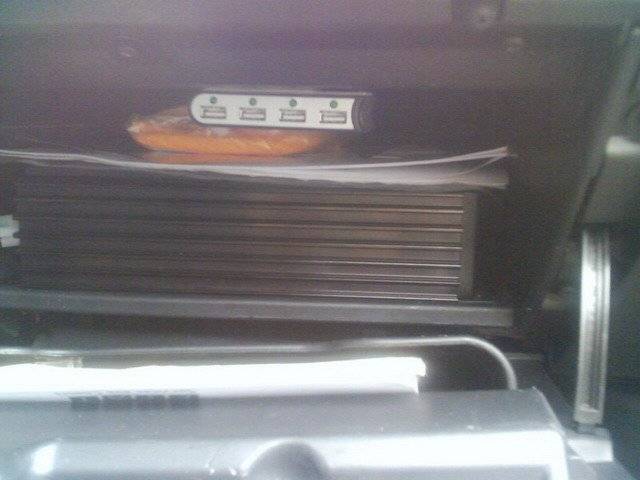

second USB HUB

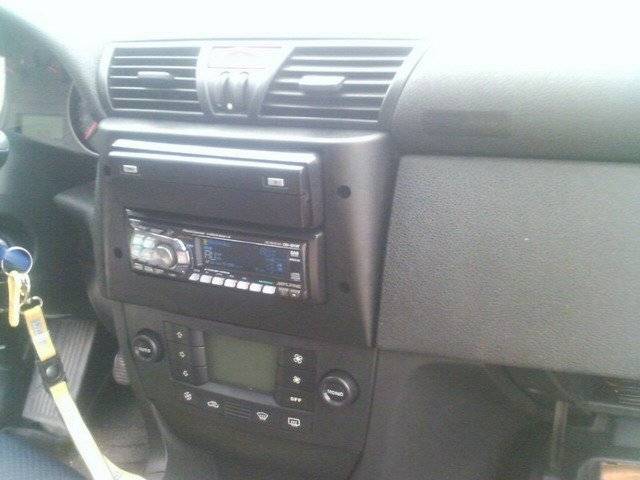

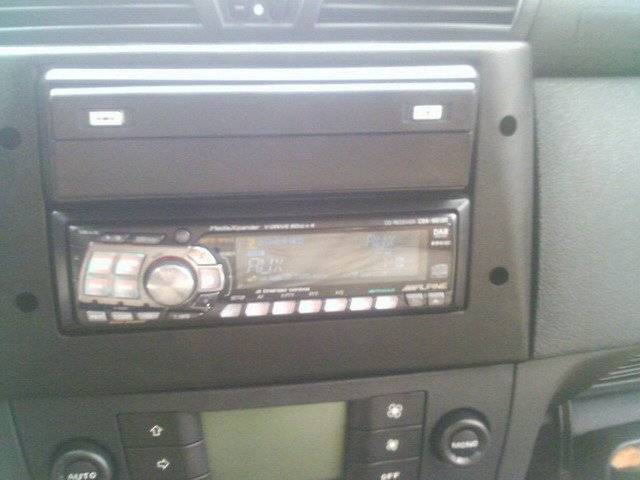

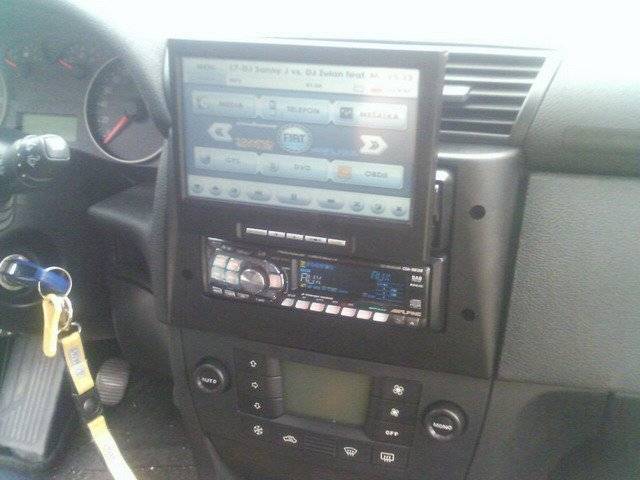

Radio & LCD:



[_Dejan_ 10+ year member]

Then Im sell this CARPC and start build new INDASH CARPC //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif

First Im buy few new things.

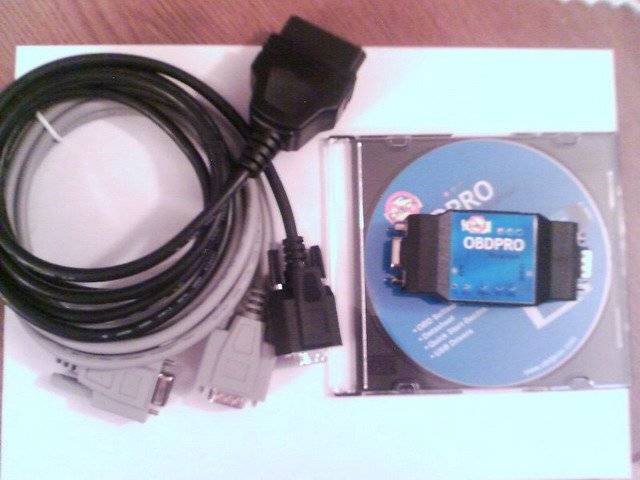

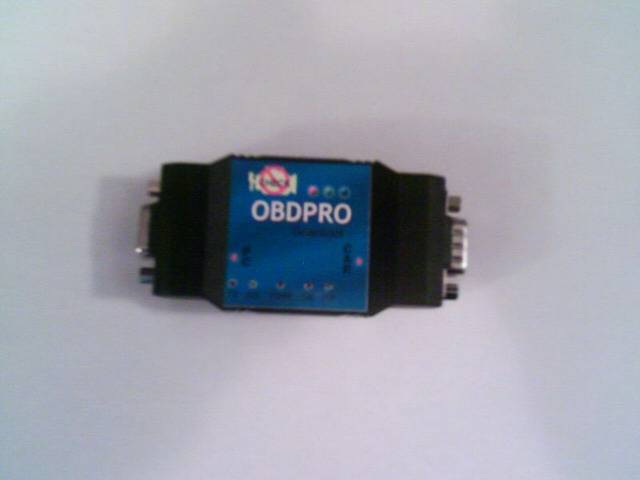

OBD Pro:

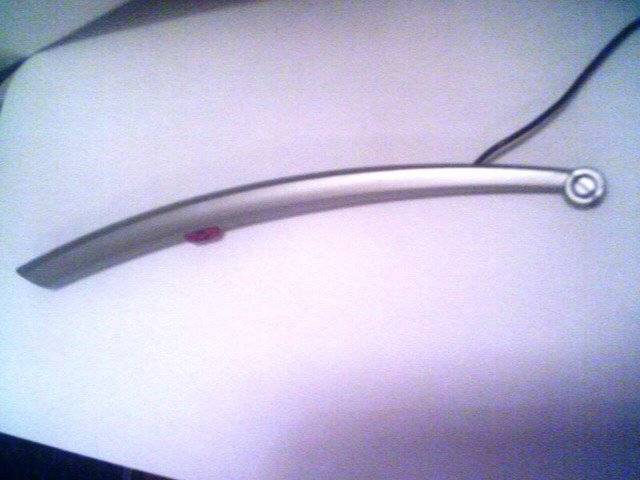

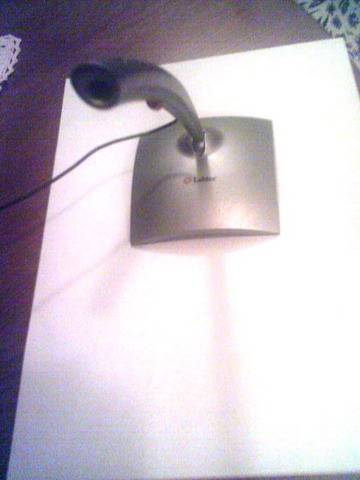

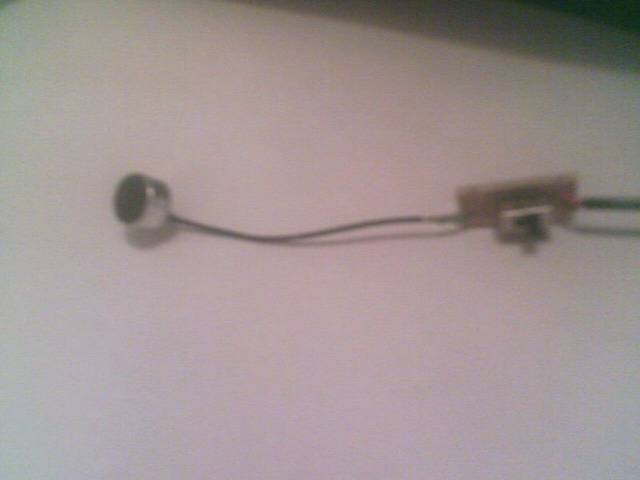

Microphone:

Then Im buy components:

-MainBoard: VIA PICO PX 10000G Pico-ITX

-Ram A-DATA SO DDR2 1GB 533MHz

-HDD 2.5" WD 1600BEVS S-ATA

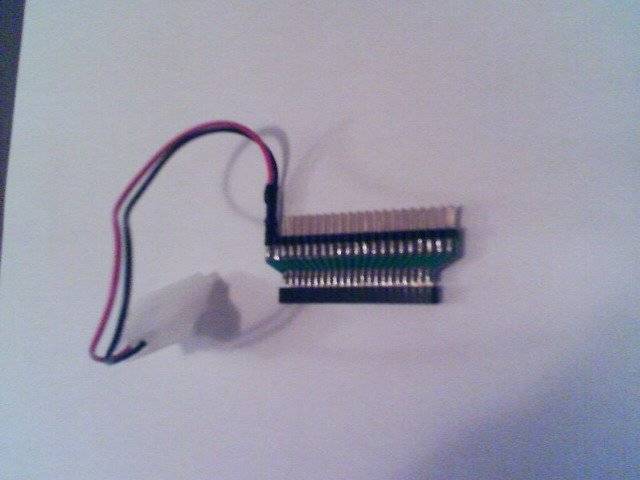

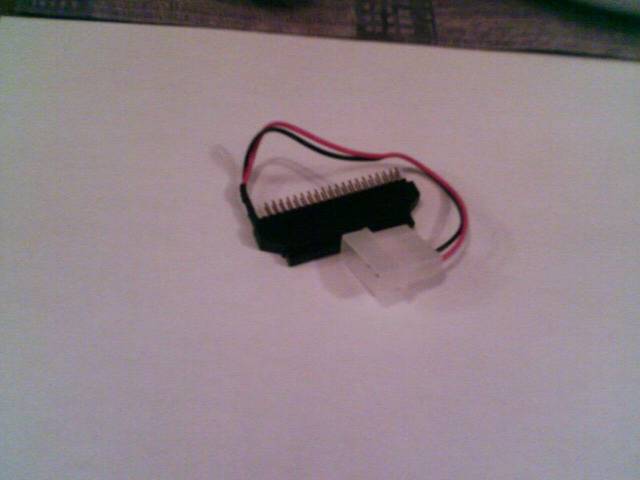

-Adapter SATA-HDD 2.5" to SATA-MB and Power

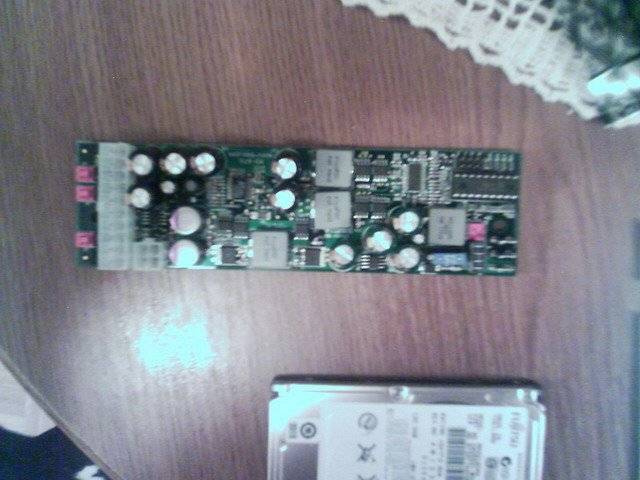

-Power Suply M2-ATX 6-24V DC/DC (160 Watt)

-Monitor LCD TS CTF800

-GPS OEM GlobalSat ET-332

-TPMS



[_Dejan_ 10+ year member]

Then Im start making mask for LCD:

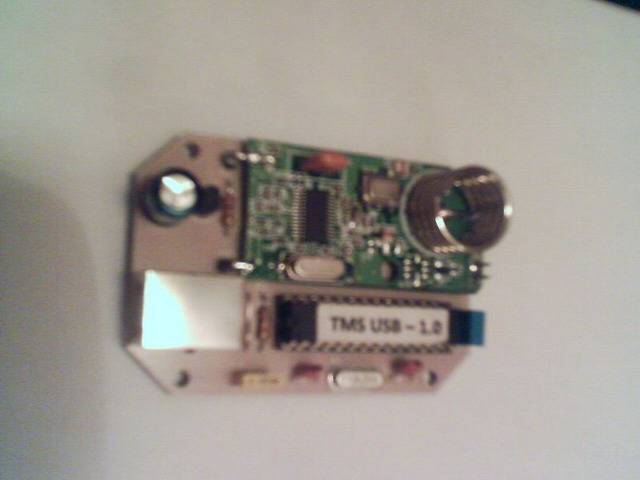

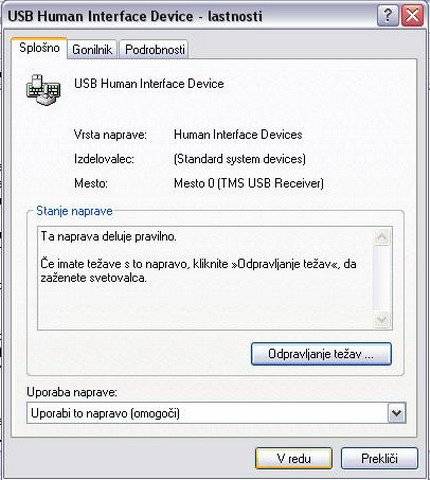

and building TPMS:

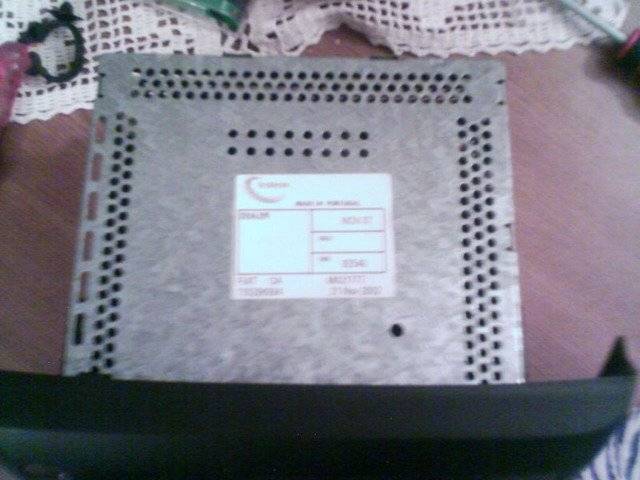

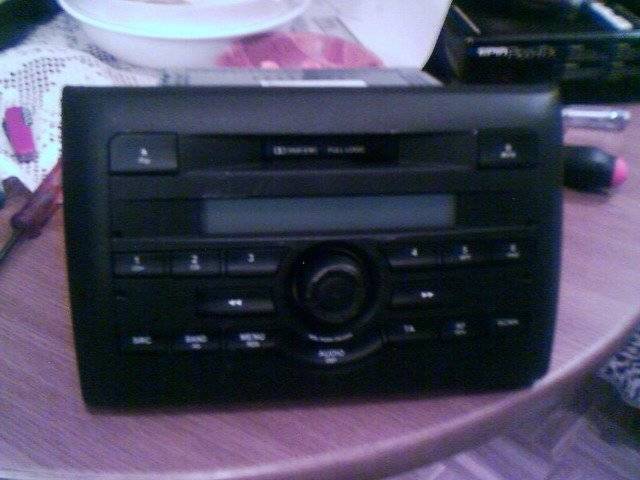

And then Im find first little problem. I need case for carpc. hmmmmmmmmm where can I get it? Maybe build it from old PC case? no to hard And Im find old radio from mothers stilo Looks nice maybe I can use it

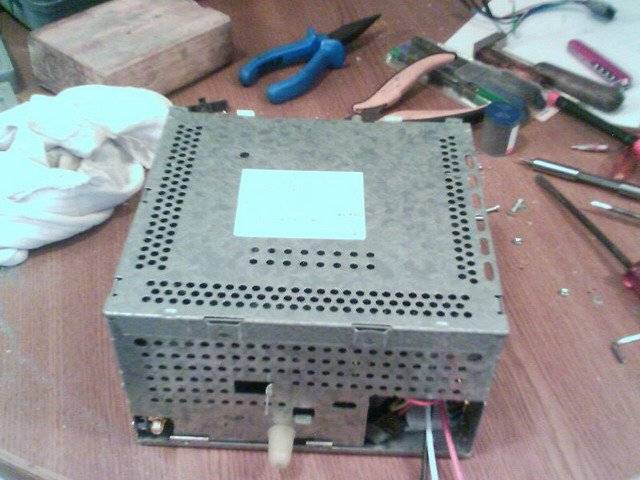

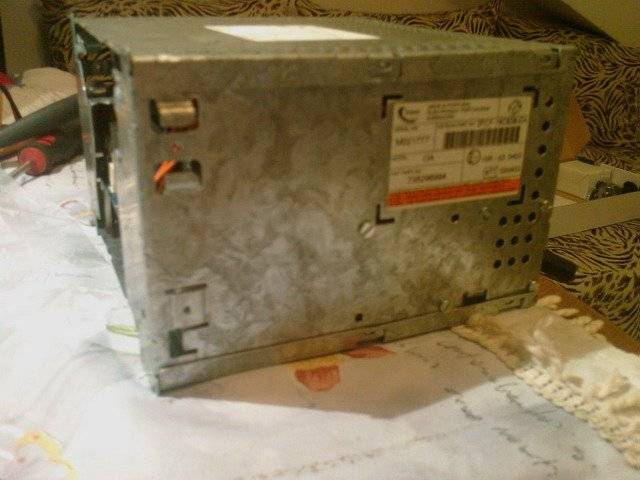

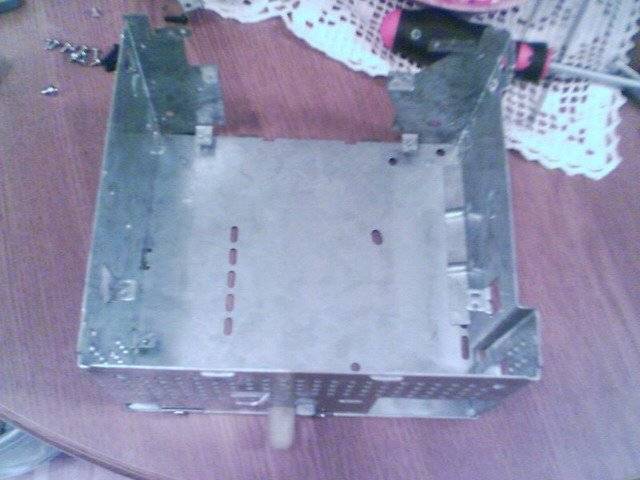

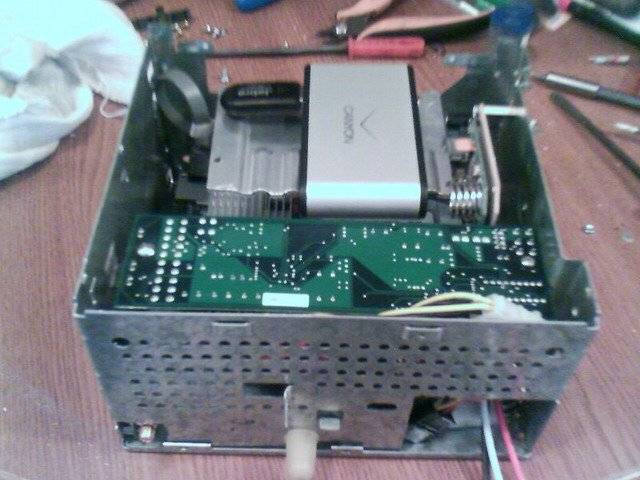

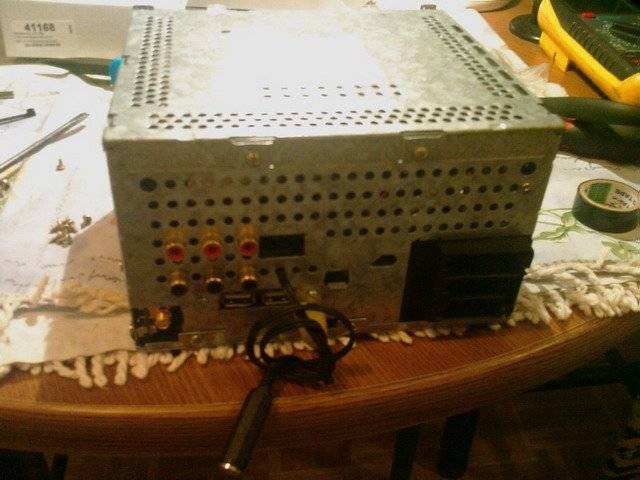

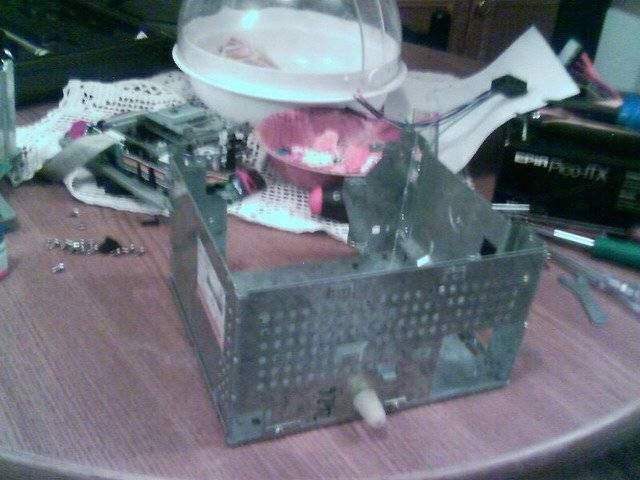

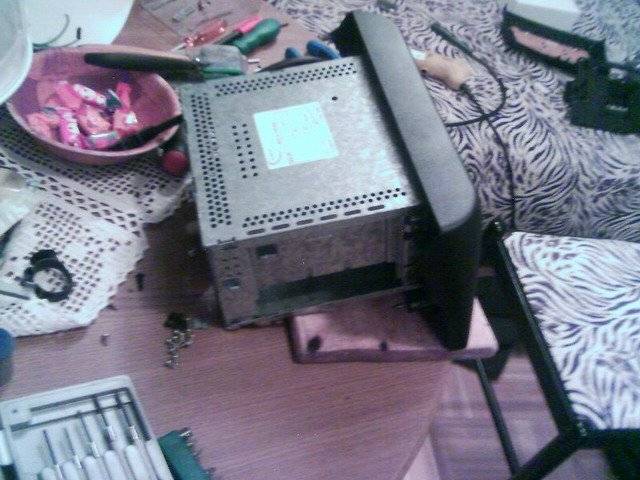

Time to destroy it

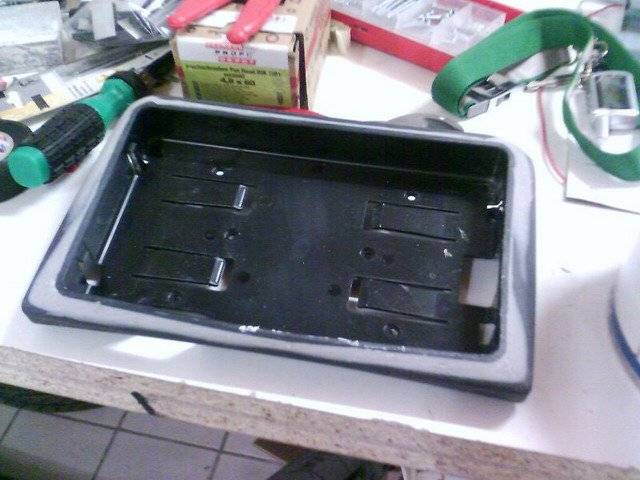

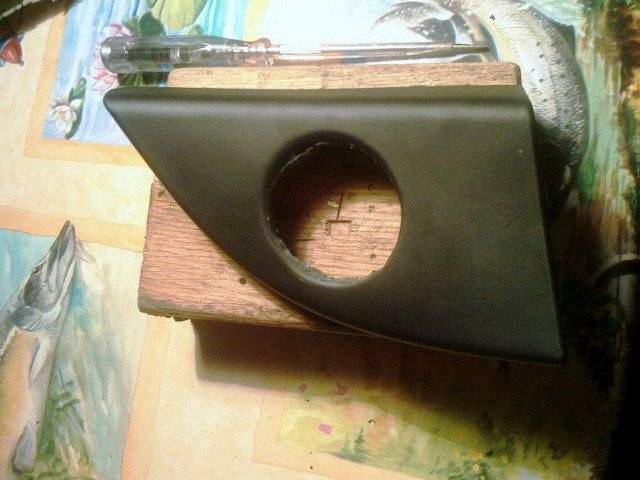

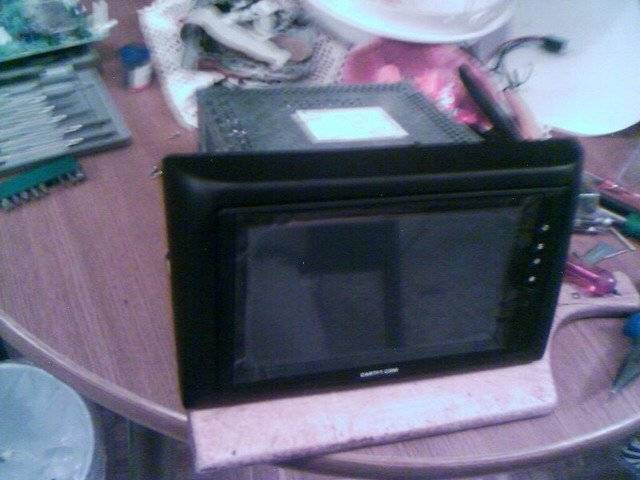

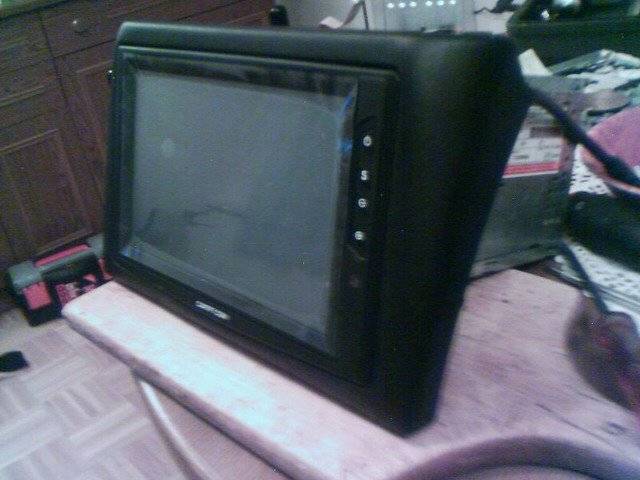

And with new mask for LCD:



[_Dejan_ 10+ year member]

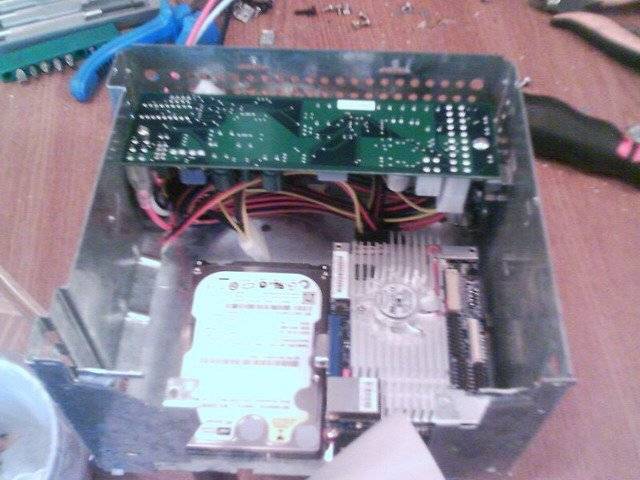

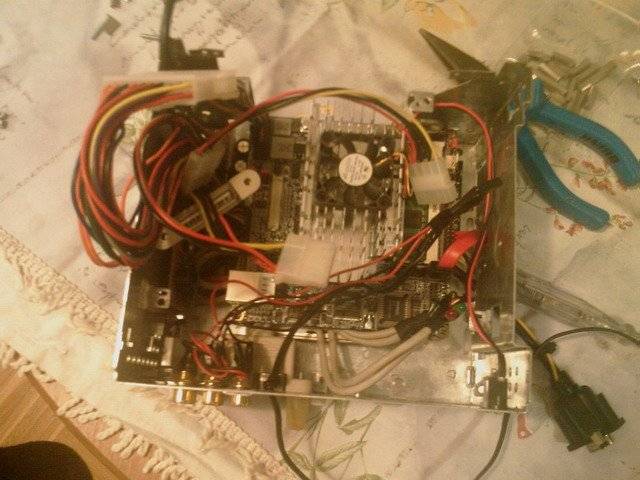

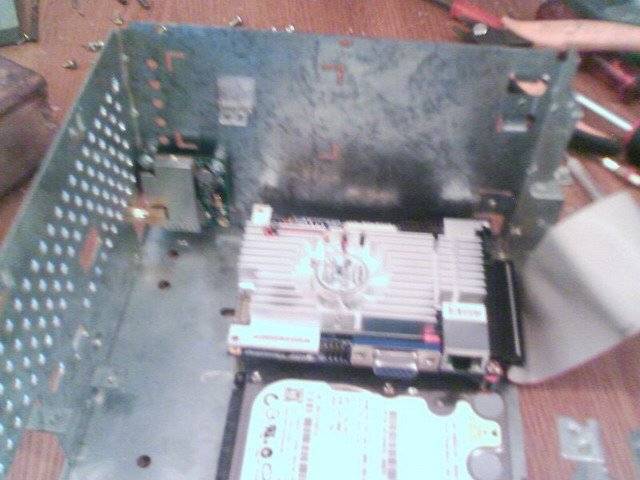

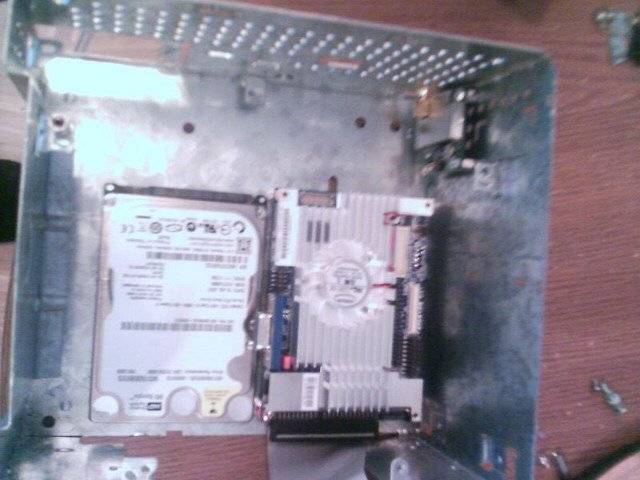

On this picture you can see MB, HDD & GPS:

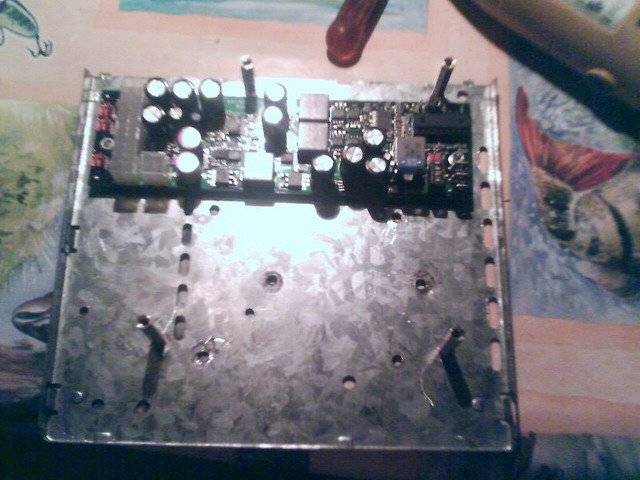

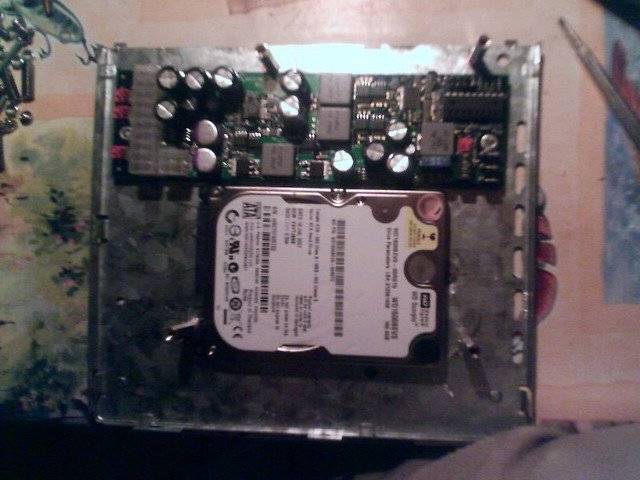

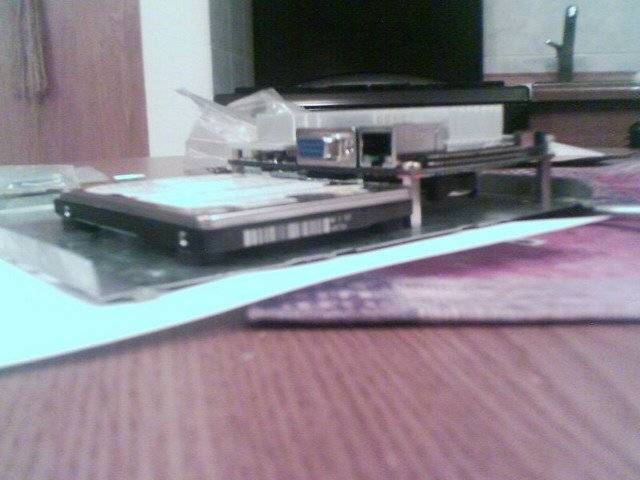

then Im put HDD on rubbers:

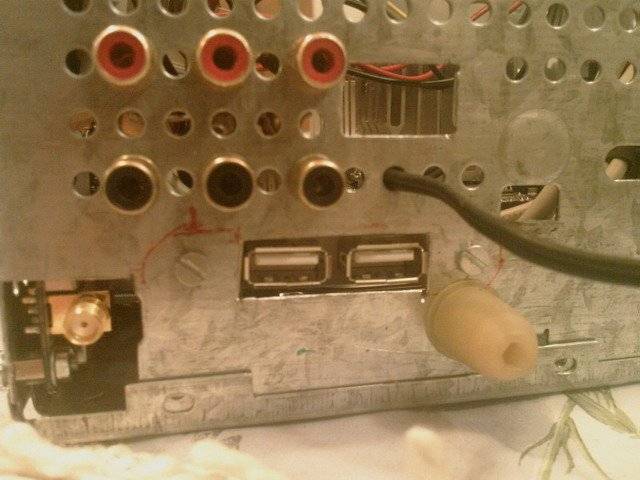

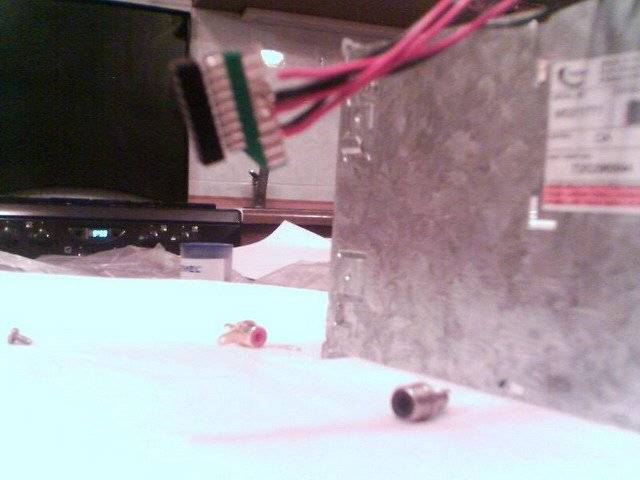

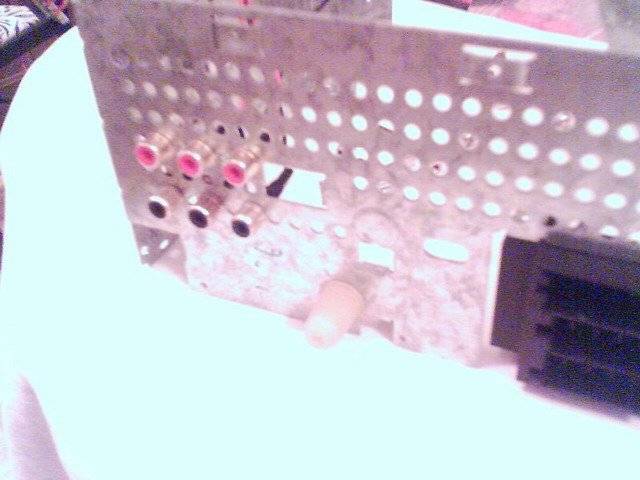

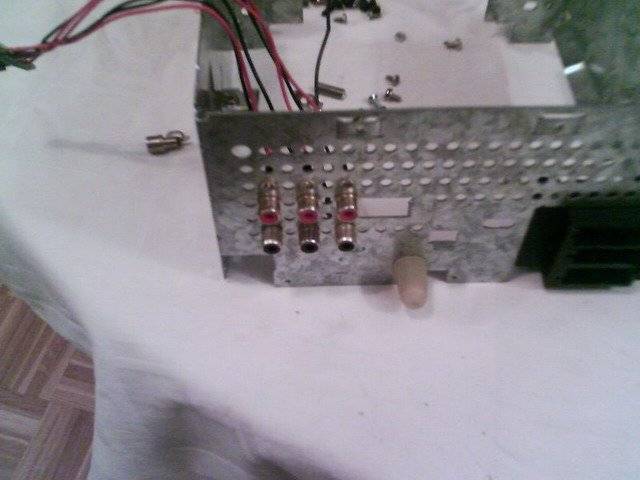

And build audio connector:



[_Dejan_ 10+ year member]

then Im stop my project because pico MB doesn't support S3 power state and Im sell it. Yesterday Im receive new board VIA EPIA NX15000G and continue building CARPC. Im change positions of components, HDD & M2-ATX power suply is below MB.

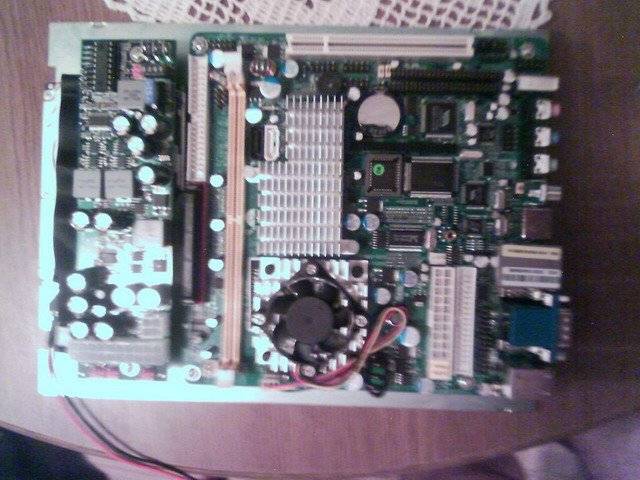

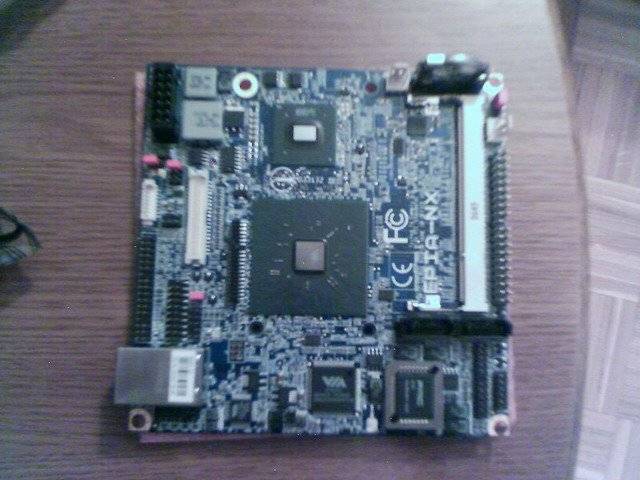

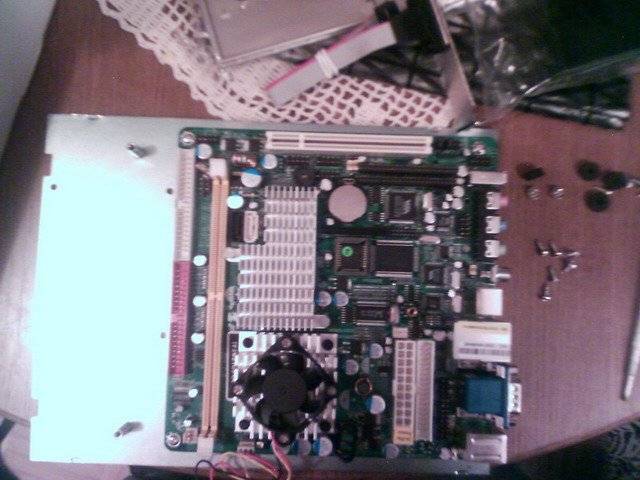

Motherboard VIA EPIA NX15000G

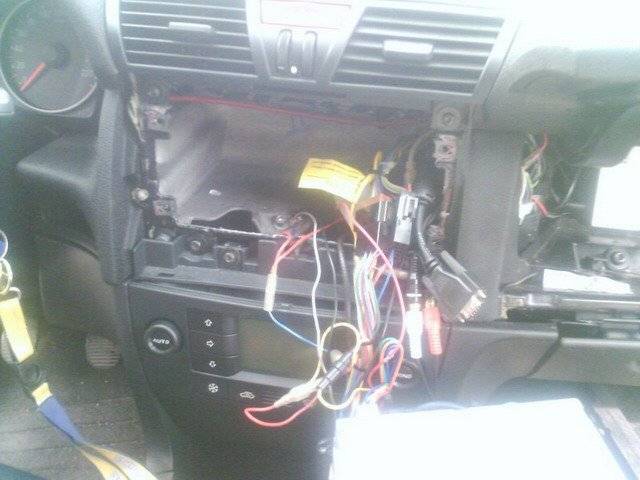

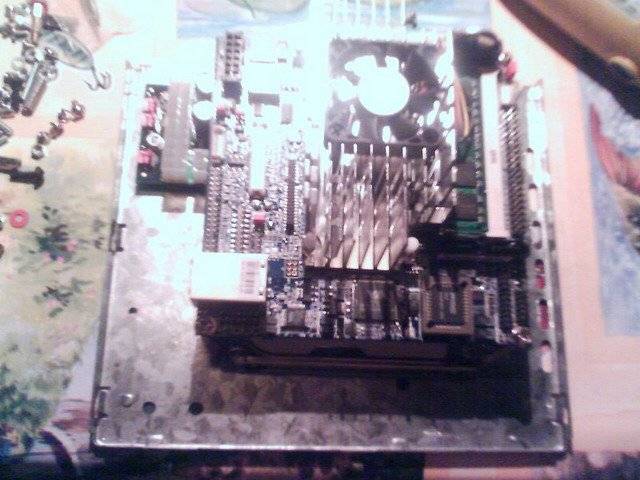

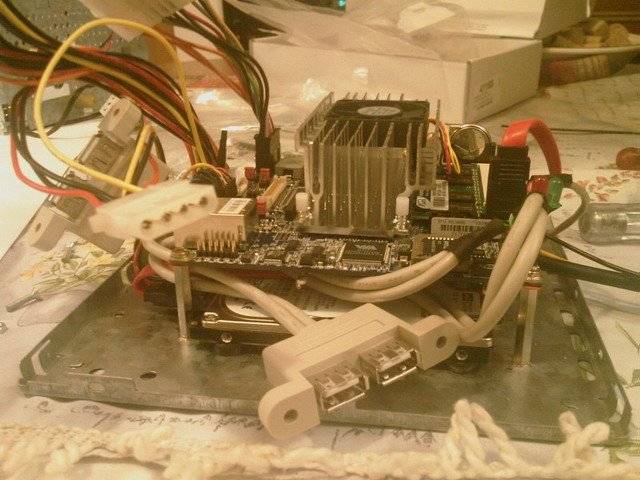

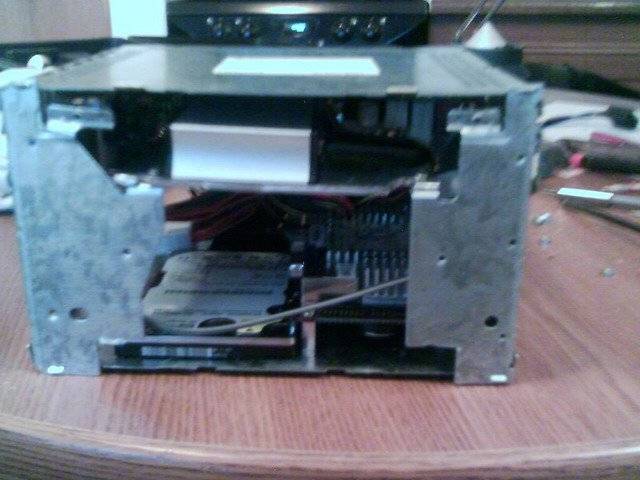

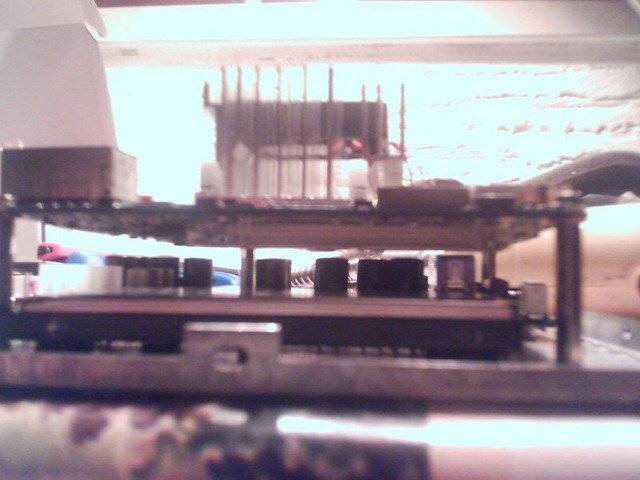

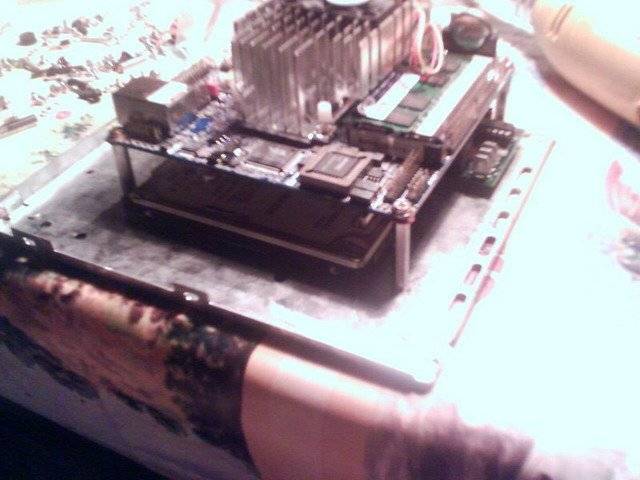

then Im must find best positions for power supply, HDD and motherboard:



[_Dejan_ 10+ year member]

I have a little more space...

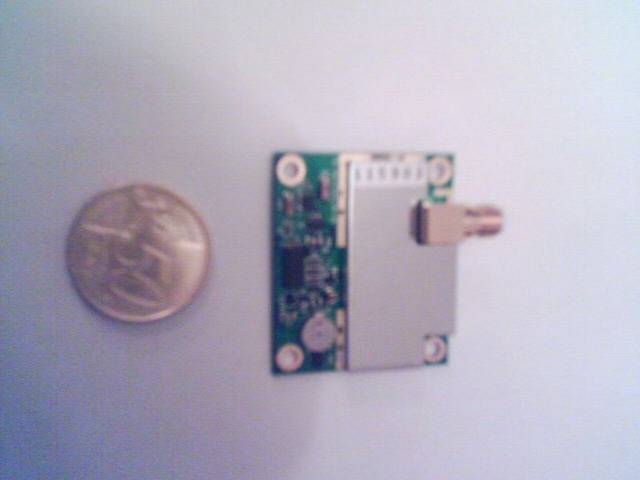

I continue with my project. Im build TTL->USB module for my GPS globalsat ET332 module.

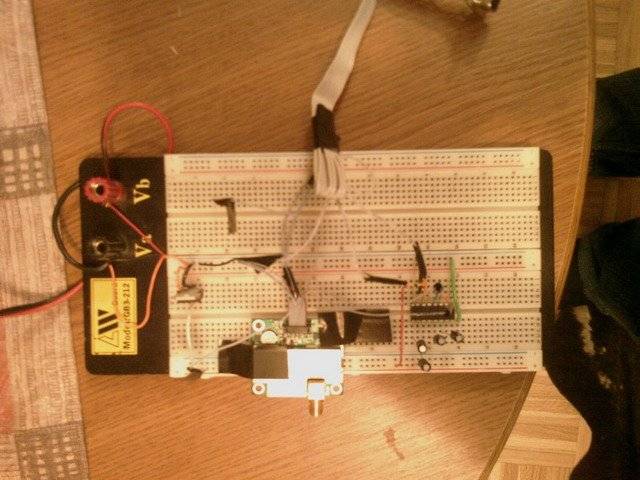

First TTL->RS232:

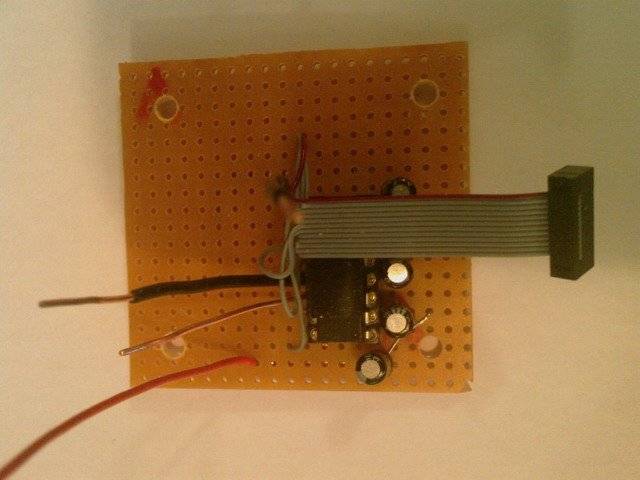

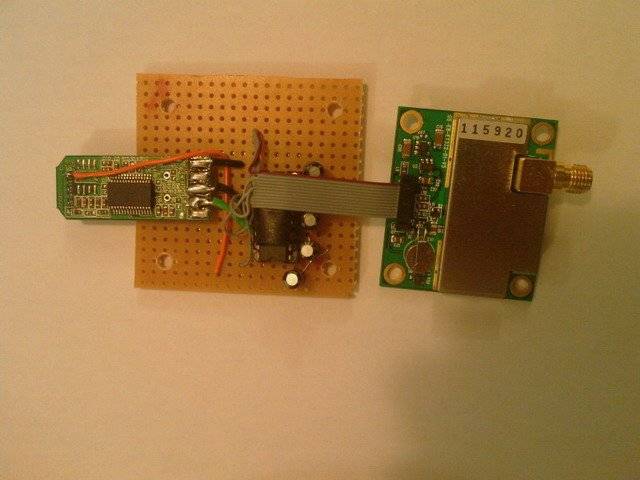

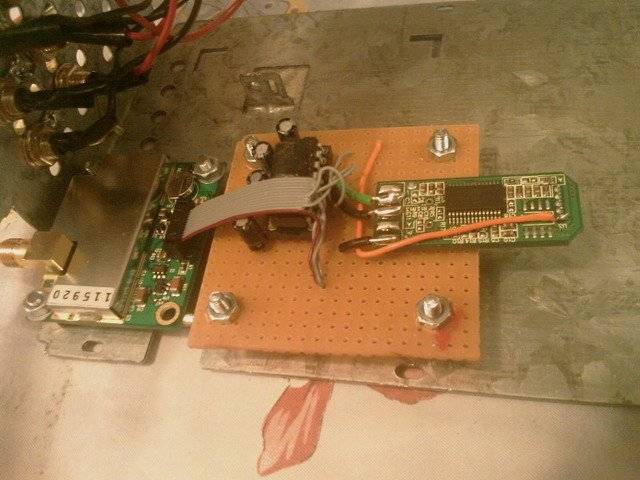

And then real board TTL->USB:

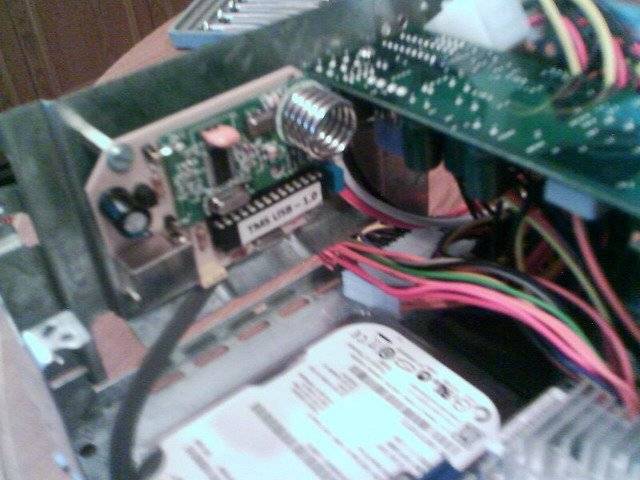

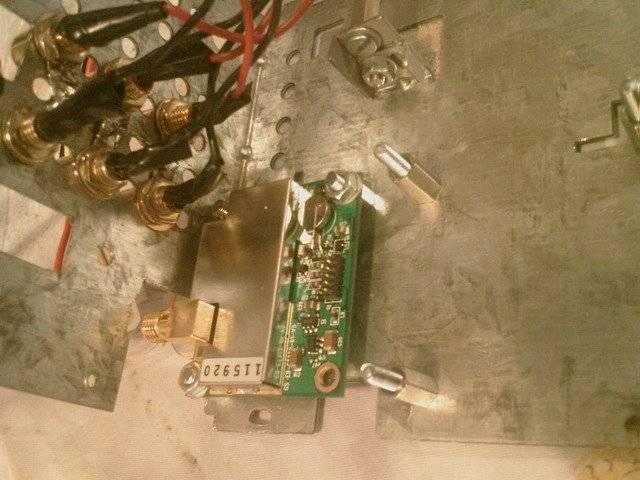

Mounting GPS and modul in case:



[_Dejan_ 10+ year member]

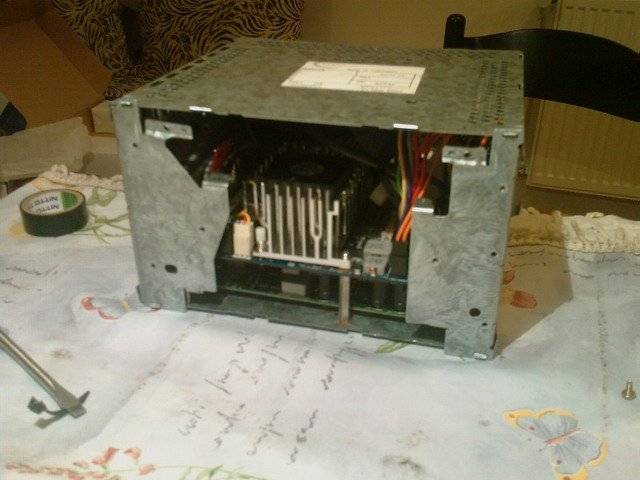

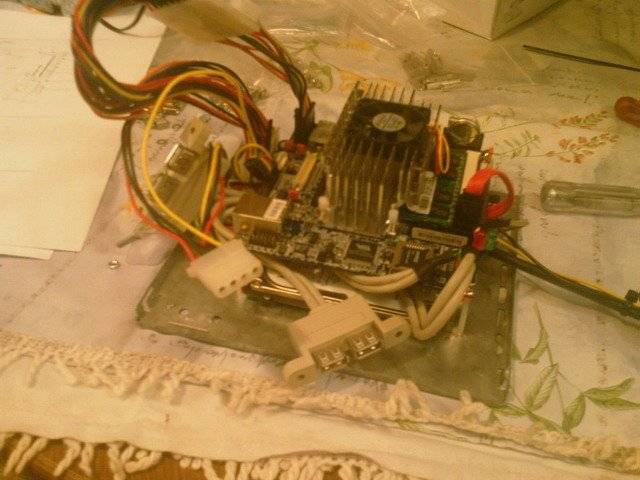

Preparing for putting case together:

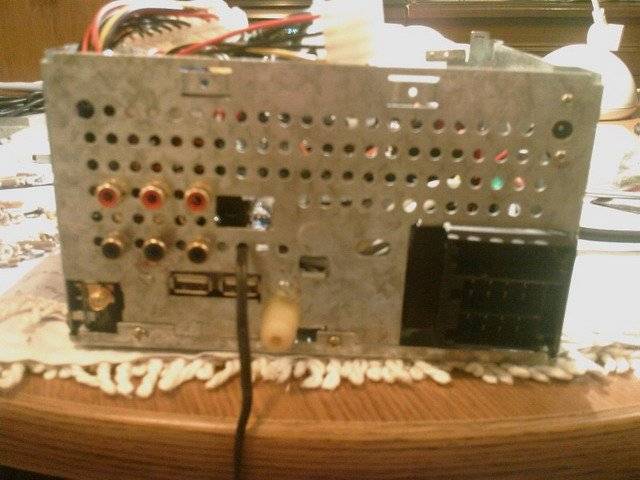

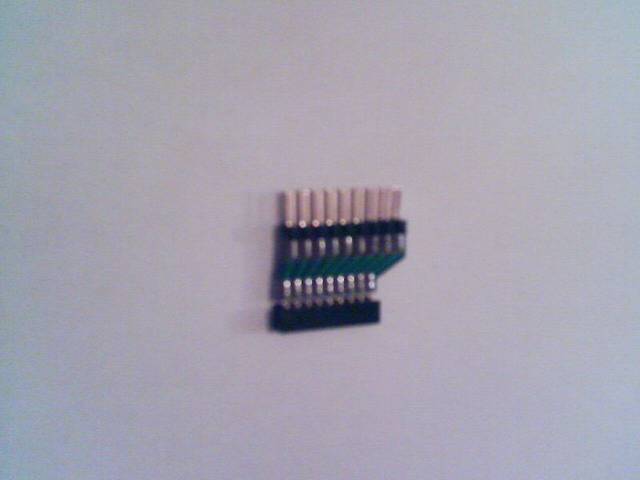

USB connector, GPS connector and Audio connectors:

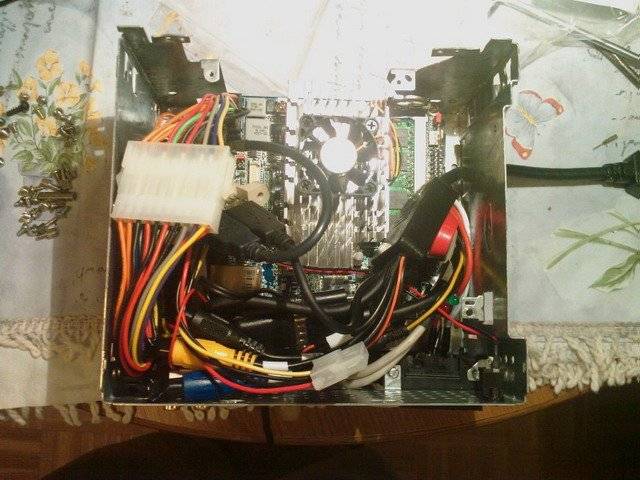

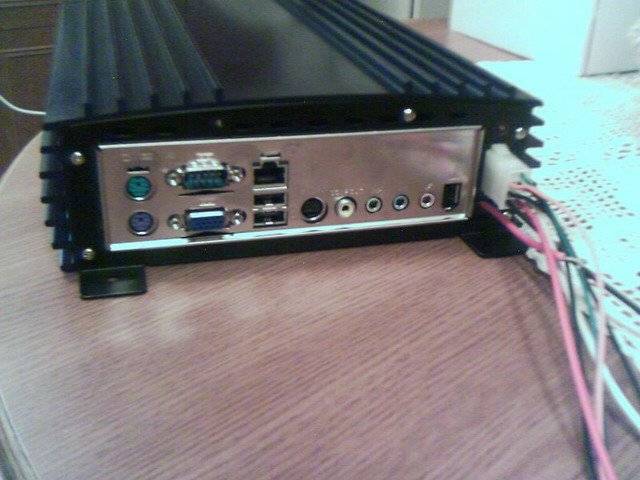

Finished case:

And here is one quick movie how work...



[Idealrealist 10+ year member]

Neat.



[_Dejan_ 10+ year member]

So there is preparing for update audio system.

In original place in door will be Hertz Mille ML165:

and tweeters Hertz Space 1.1:



[_Dejan_ 10+ year member]

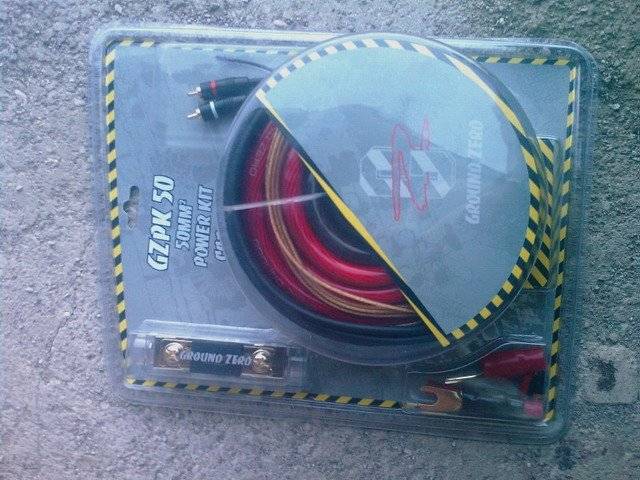

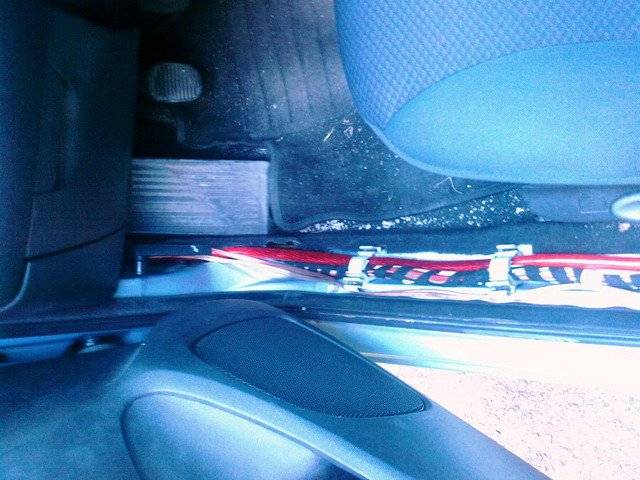

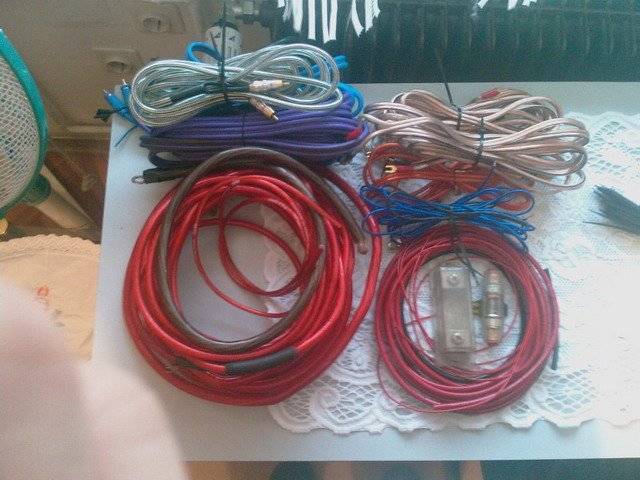

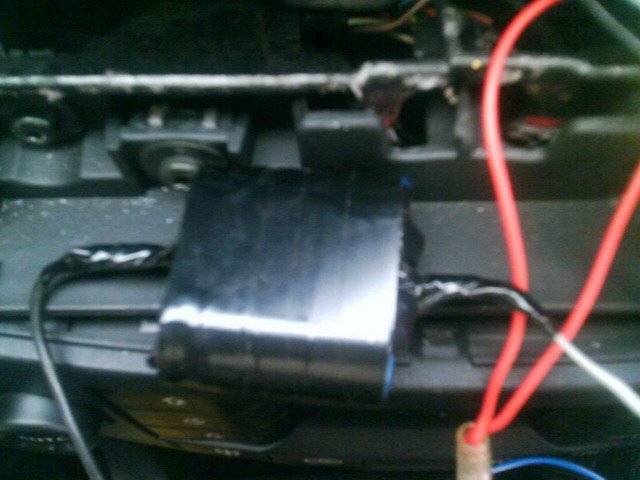

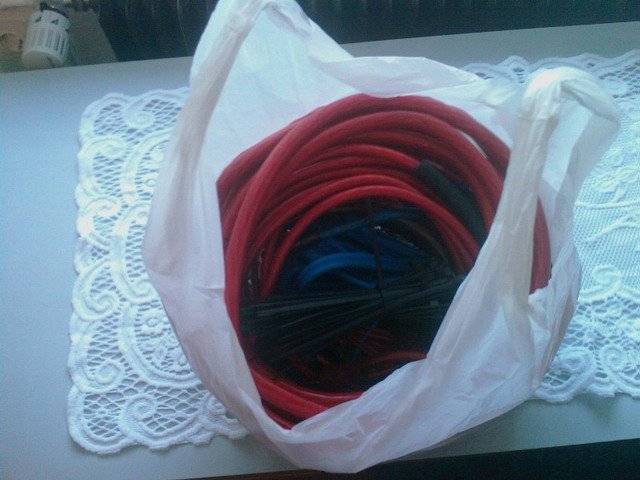

Few old power cables:

And new:

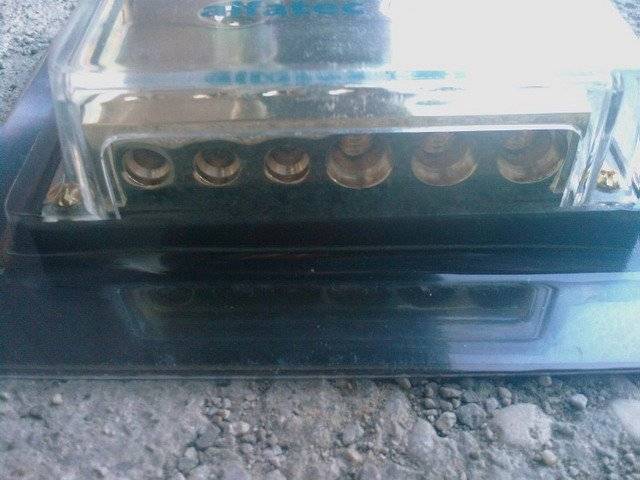

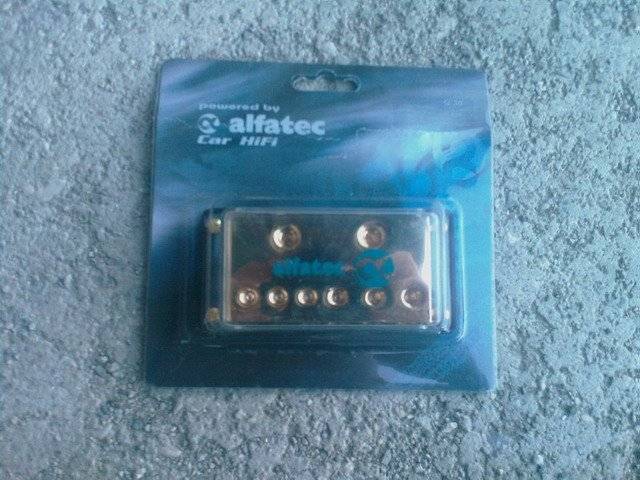

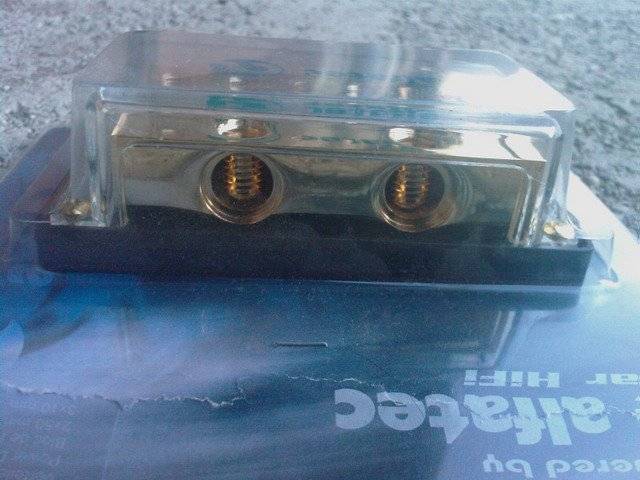

Block for + power cable. in: 2x 50mm2 out: 3x35mm2 + 3x10mm2:

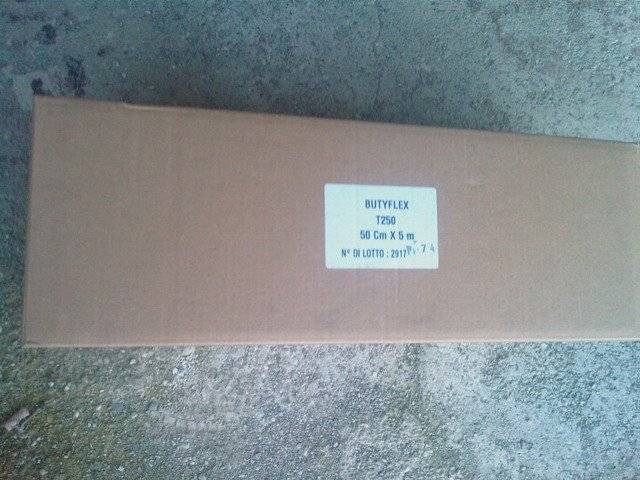

Buttyflex for damping door:



[_Dejan_ 10+ year member]

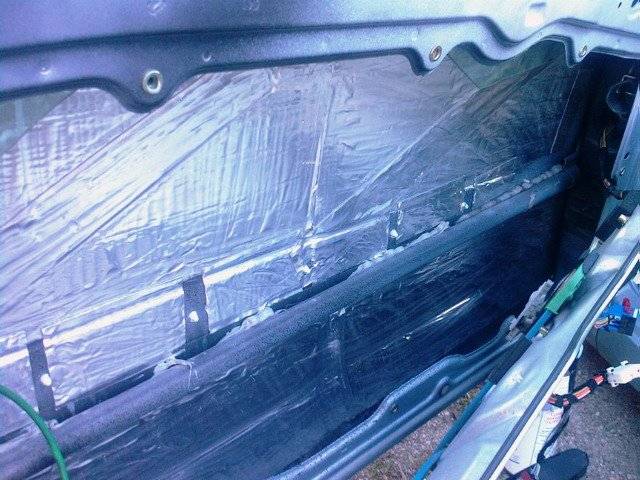

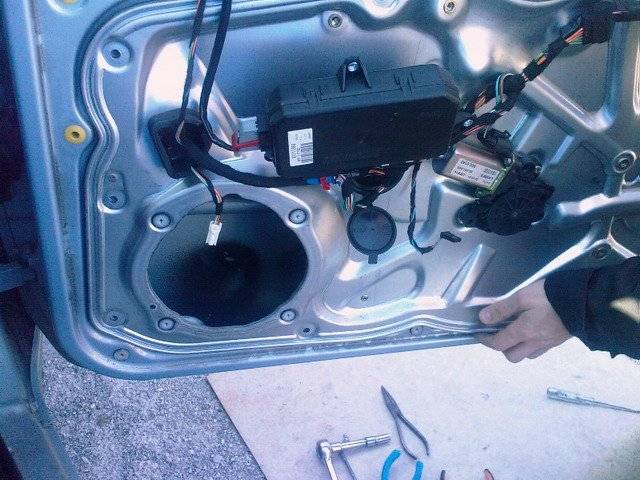

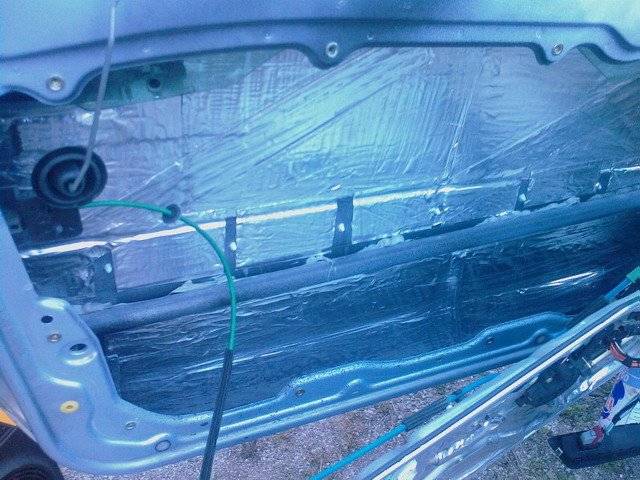

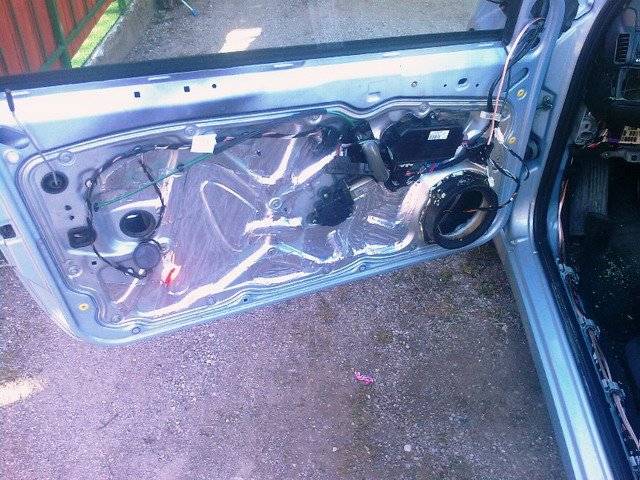

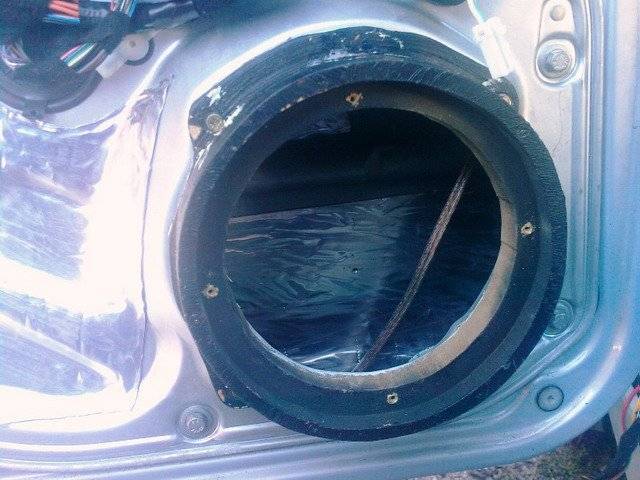

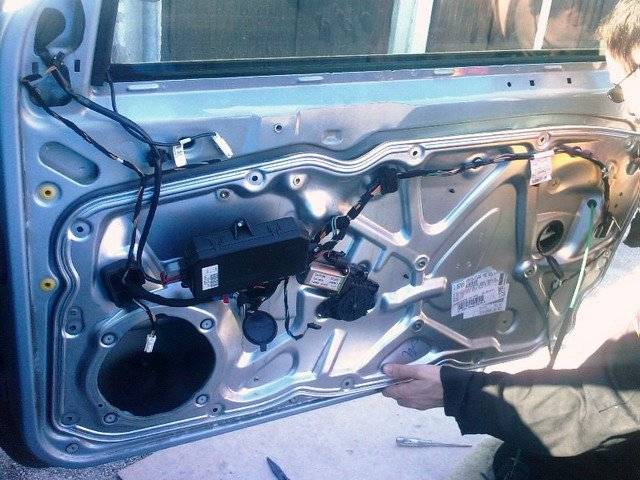

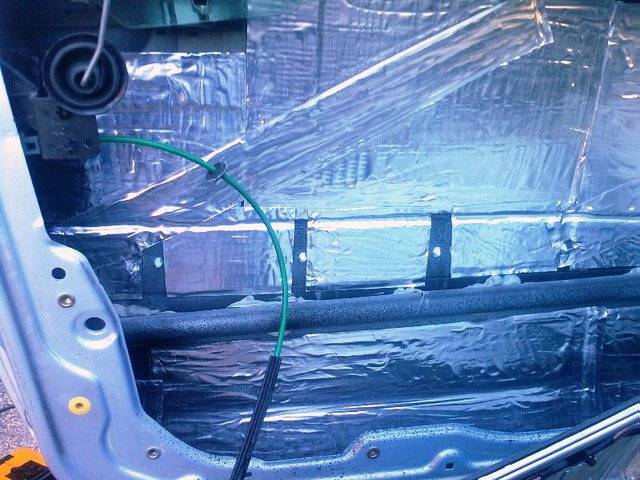

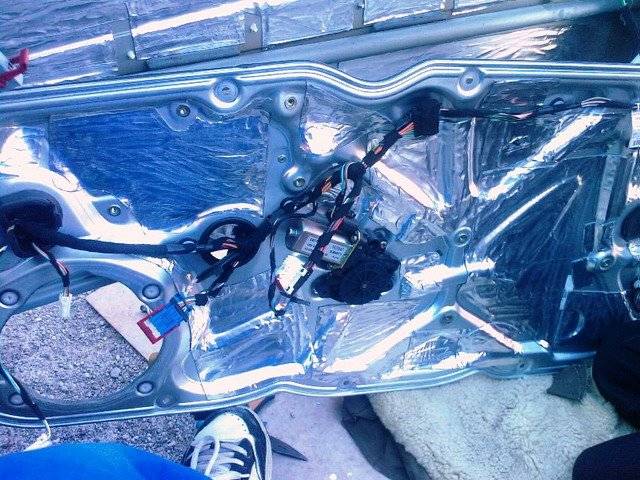

Then installing components in my car. First we are put down all things from door and put Buttyflex into it.

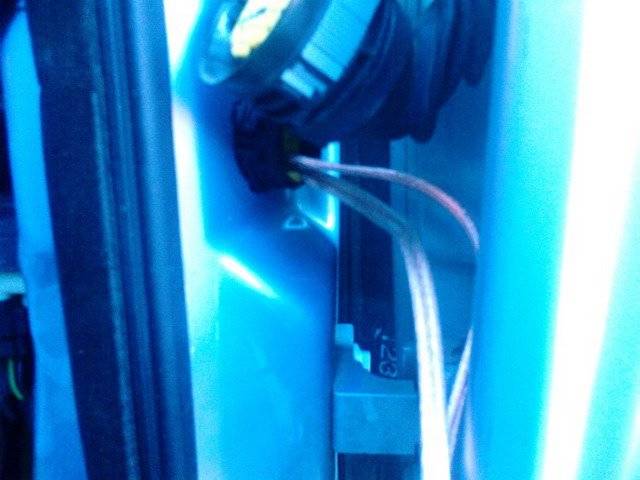

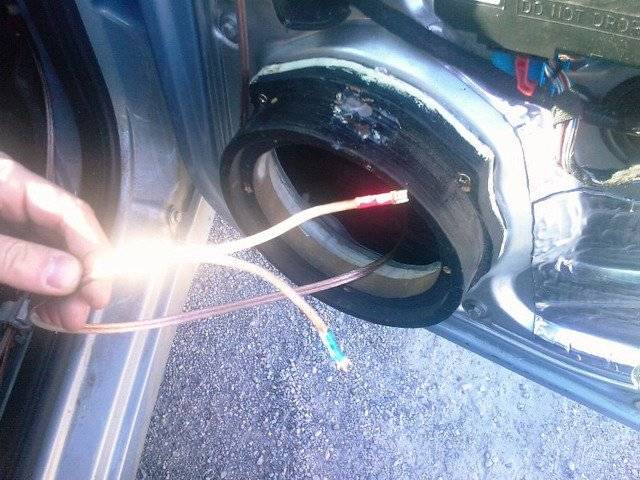

Then Im trough original door connector put two cables one 2.5mm2 for ML165 and 1.5mm2 for tweeter.

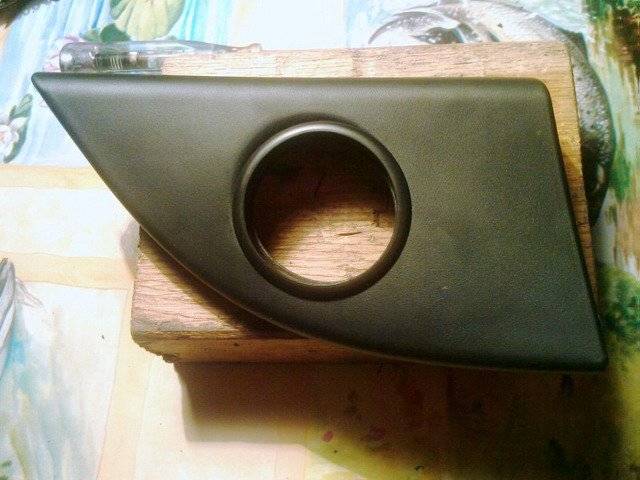

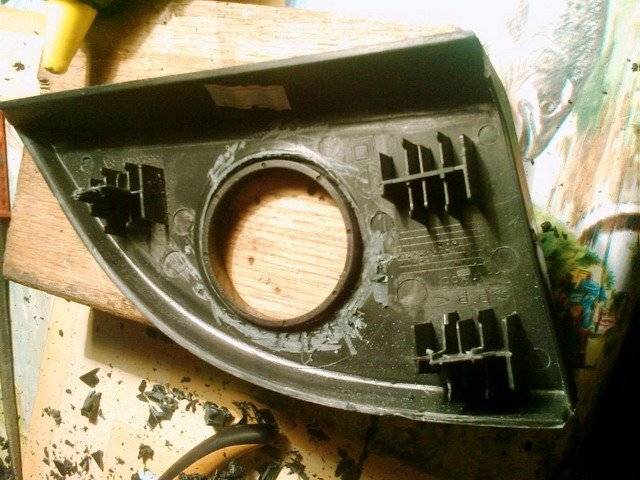

Installing tweeter in original position:



[_Dejan_ 10+ year member]

Continue with installing:

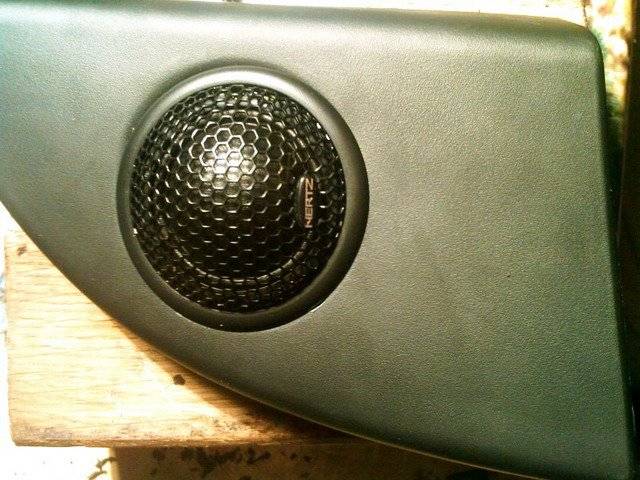

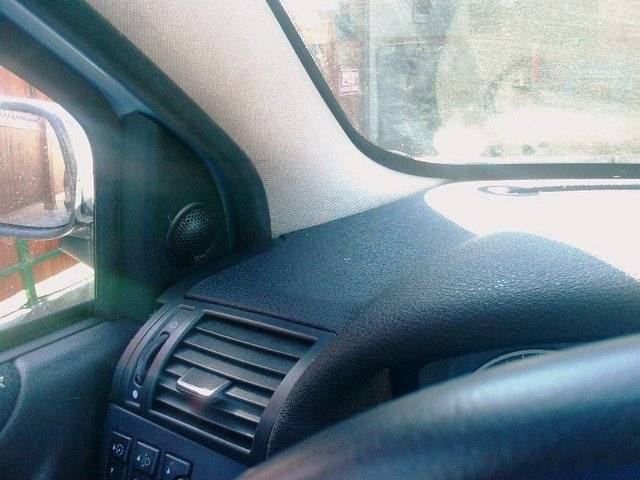

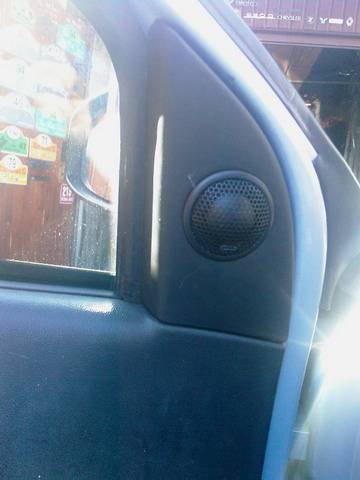

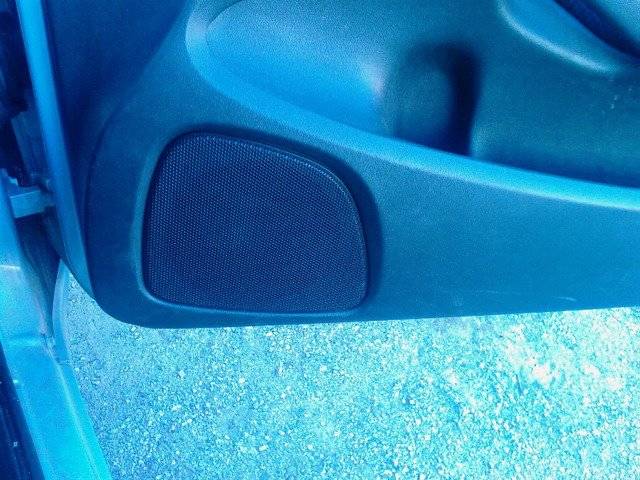

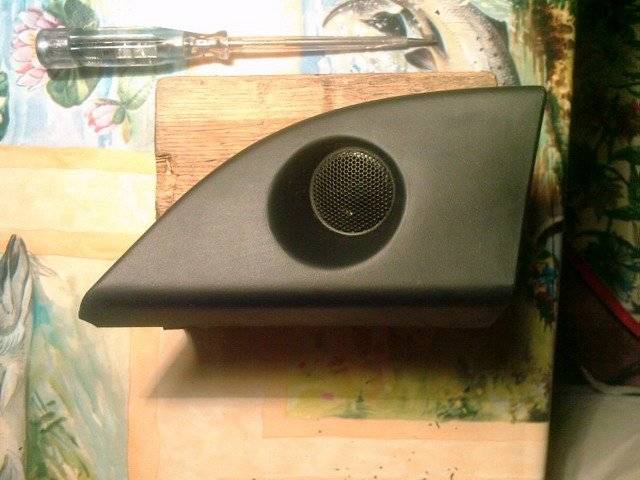

Test how look tweeter in original position:



[_Dejan_ 10+ year member]

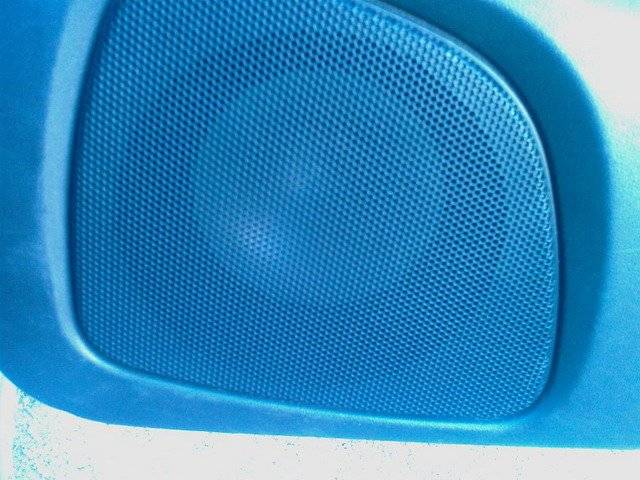

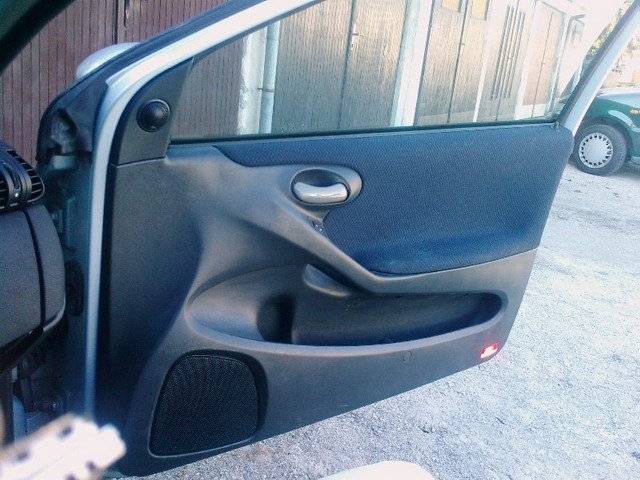

Completed door:

And 50mm2 cable:

Im receive first amplifier Audison LRx4.1K for front system:

And free t-shirt:

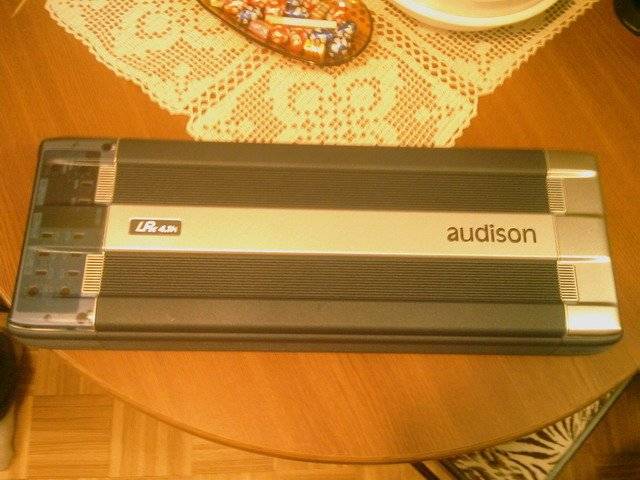

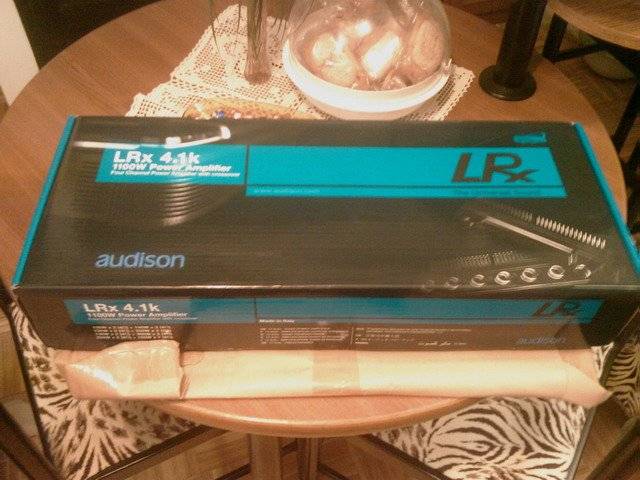

Amplifier Audison LRx4.1K:
