Canaan's '04 Avalanche 6th-order build.

[Canaan 10+ year member]

Well, looks like there have been quite a few Avalanche builds lately, so here is mine.

System:

Hu:

Eclipse 7200mkII

Mid/highs:

DD C4a (active)

DD AW6.5

DD AT28

Hell of alot of Damplifier Pro

Sub:

DD 3515E (pair) D1.5 w/ 6" CF-caps

IA 20.1...for now, DD amp(s) coming soon

Box:

Series tuned 6th order

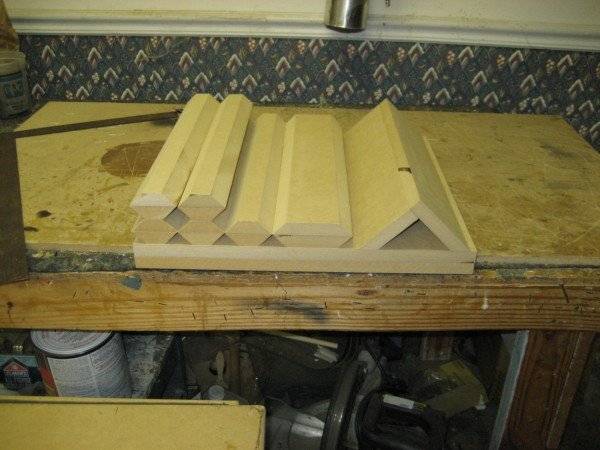

Plenty of wedges

Baffles

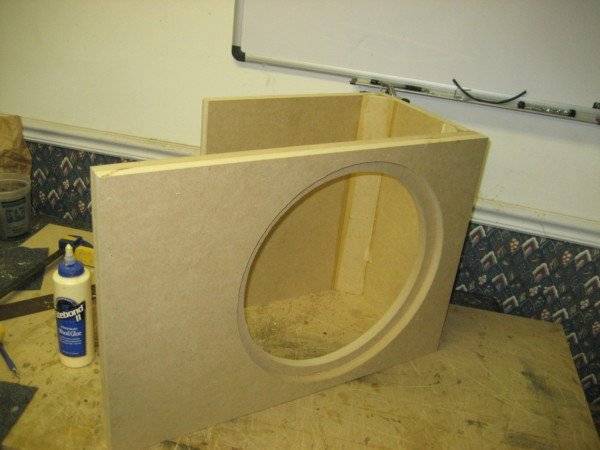

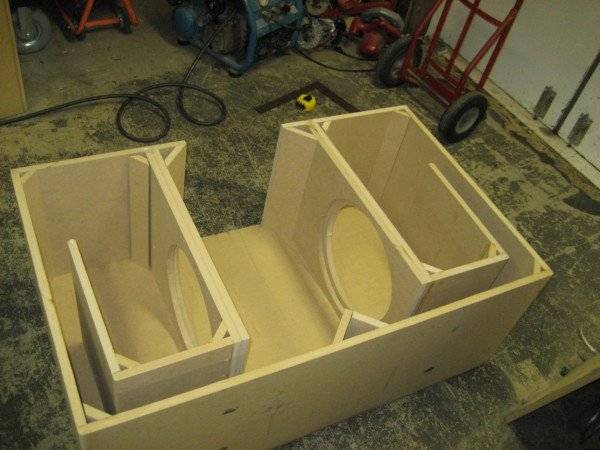

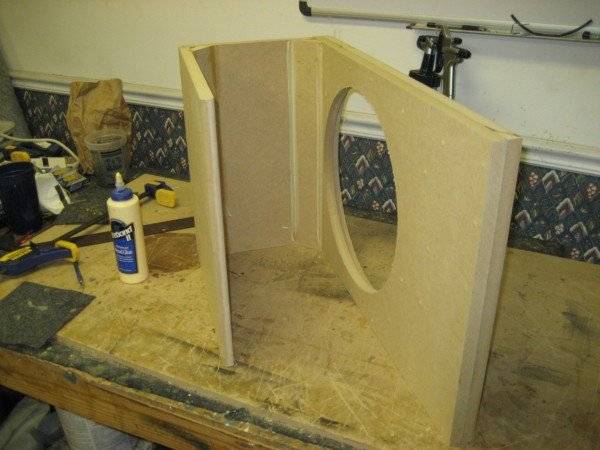

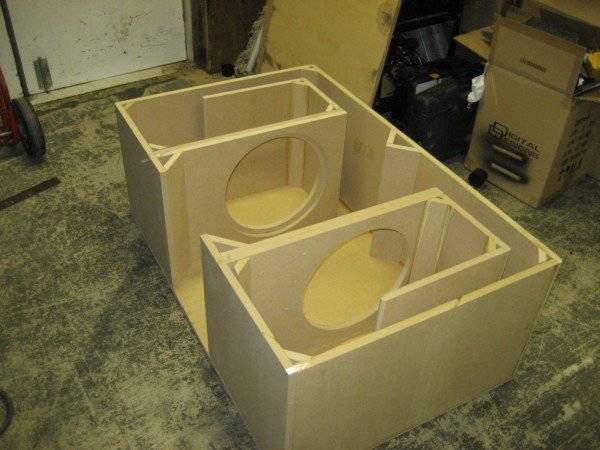

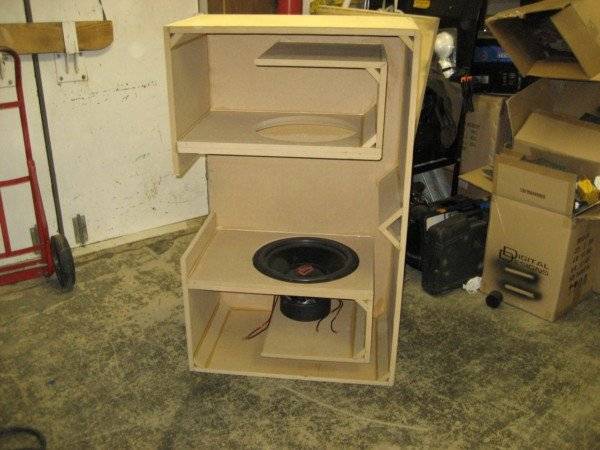

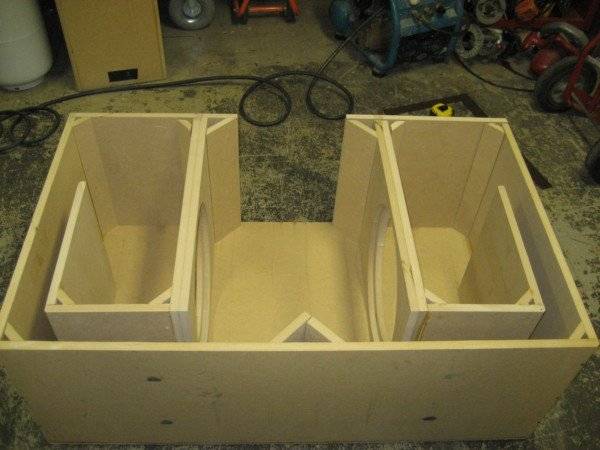

Set the box together for a quick look at the layout, not shot together and glued yet. Still have t router a few edges like the ports and back wedge.

Forward port is 12"w x 17.5"t. the 45's the lead up to it will have some ~7" extensions unto the cabin to allow for an amp/batt-rack just behind the seats in the Avalanche.

Likely going w/ 2 Deka 9a31's, one on each side of the port. Batts will likely be hidden, amps recessed.

I need to decide on a color to paint the interior of the box. My trucks interior is grey, so i'm thinking about painting it grey also...that or black. If its black, I may do some lights so you can see the ports.

What do you think? What color?

I'm shooting the box together now, should be don't in about an hour. May start the amp/batt-rack today too.

Awhile back, I ran the #'s for SuperGumby's box w/ the 4 DC15's. My calc's said it should peak at about 38hz and still have flat responce, I think he peaked right at that freq. I designed mine along the same style of response.

I'm trying a little something new w/ my in-vehicle response calculations. Hoping the actual response will be close to this:

30hz + 4.1 dB

35hz + 4.9 dB

40hz + 3.6 dB

45hz + 3.6 dB

50hz + 2.1 dB

55hz + 1.2 dB

60hz + 0.0 dB

65hz + 0.1 dB

70hz + 0.7 dB

75hz + 1.5 dB

80hz + 2.7 dB

So, I'm hoping for a good boosts in the 30-45hz range and have it flatten out over 50-80hz. Low pass around 80-100hz should help level out the high freq.

If my calc's a within +/-1dB...and I'm REALLY hoping they are, I may be onto something here. I got close w/ Gumby's box...tweaked the calc's a little for this one.

Also, have this in mind. My only time metering w/ this truck was w/ a DD2510 in a halfassed 6th order. That did 144.x @ 47hz.

If this is a complete bust...oh well, I'll try again. //content.invisioncic.com/y282845/emoticons/crap.gif.7f4dd41e3e9b23fbd170a1ee6f65cecc.gif

Click to read more...



[misfit138 5,000+ posts]

nice looking enclosure



[JBGabriel 10+ year member]

Looks good to me!



[1ndatrunk 10+ year member]

Can you tell me what the outside dims of the box is? I may have to have you design me one for my Cadi



[Canaan 10+ year member]

External is 49w 19t 30d.

Allows you to keep 1/2 the bed.



[1ndatrunk 10+ year member]

External is 49w 19t 30d.
Allows you to keep 1/2 the bed.

Dammit. It would fit in my trunk if it was about 6" narrower, or had a "T" shape at the back seat. //content.invisioncic.com/y282845/emoticons/verymad.gif.3f39c5c2fd57527b671fad3efdfac756.gif



[Canaan 10+ year member]

Dammit. It would fit in my trunk if it was about 6" narrower, or had a "T" shape at the back seat. //content.invisioncic.com/y282845/emoticons/verymad.gif.3f39c5c2fd57527b671fad3efdfac756.gif

This design would not work well in a trunk car, even if you could fit it in there.

Its designed for the acoustics of an Avalanche or cut-thru in a Silverado, that trunk would throw the designed response all to hell.



[CranberryYumYum 10+ year member]

only work if you had an escalade, which you don't



[Savag3 10+ year member]

that design is sik . . who designed it ? oh i see you designed it , very nice !



[Savag3 10+ year member]

This design would not work well in a trunk car, even if you could fit it in there. Its designed for the acoustics of an Avalanche or cut-thru in a Silverado, that trunk would throw the designed response all to hell.

i wana design like that for two RD alpha 12's cut thru my dakota . . pm when u get a chance



[AQHDC3 10+ year member]

Looks very good! Im tuned in.



[1ndatrunk 10+ year member]

only work if you had an escalade, which you don't

//content.invisioncic.com/y282845/emoticons/frown.gif.a3531fa0534503350665a1e957861287.gif, buy me one then ***

This design would not work well in a trunk car, even if you could fit it in there. Its designed for the acoustics of an Avalanche or cut-thru in a Silverado, that trunk would throw the designed response all to hell.

Could you design one for a single 15 to do the same, response-wise, in a Fleetwood/Box chevy trunk?



[Canaan 10+ year member]

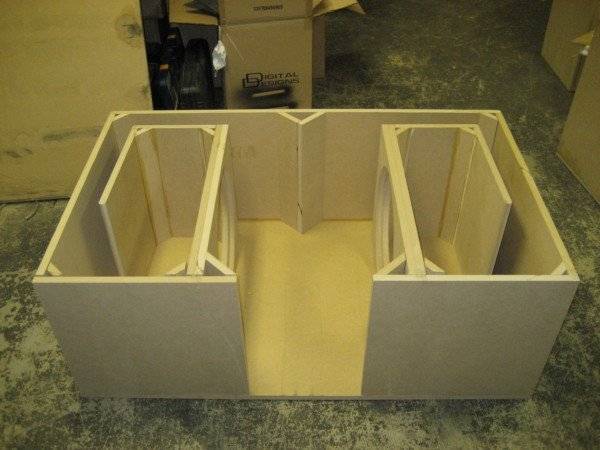

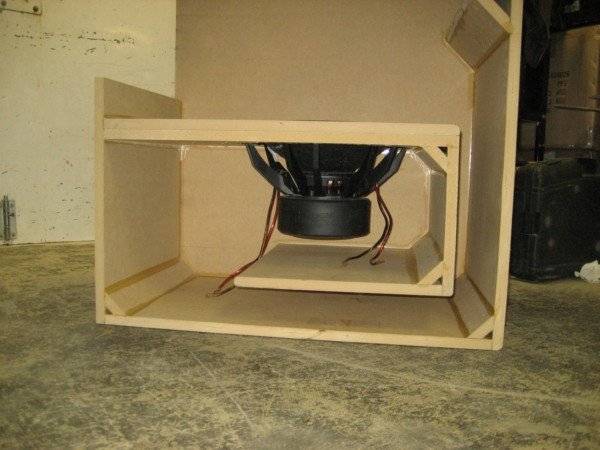

Few more pics.

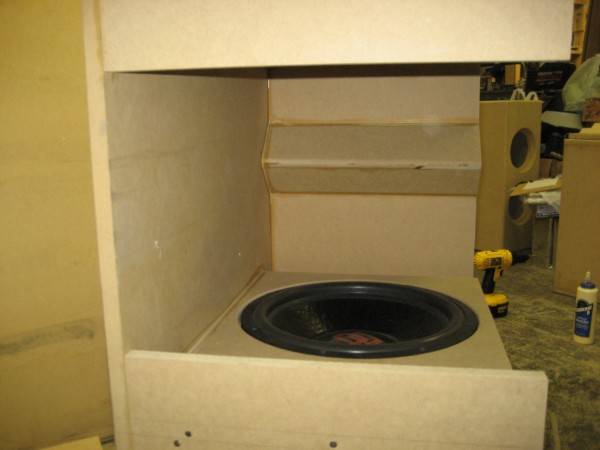

A look thru the port.

Bout to start the amp/batt rack.



[Skip01 5,000+ posts]

Neato



[tez4life Premium Member]

Very nice, very impressive.
