Hi All,

My daughter bought a '15 Camaro, very base model, very base radio (non-BA). I bought front-door (cheaper Infinity) components from Crutchfield. They sent connection adapters for the door woofers, but had a note that they don't have a connector for the tweeters. I figured it OK as they will tap off the woofer, through its included crossovers. If I hook just the woofer up, it works. If I try to connect the tweeter to either from the woofer, the tweeter doesn't play and the woofer starts to crackle/static when the volume goes up, even moderately.

The factory tweeter has a cap with it to block lower freq. I can't seem to get them both to play at once. I can get the tweeter to play plugging in them alone.

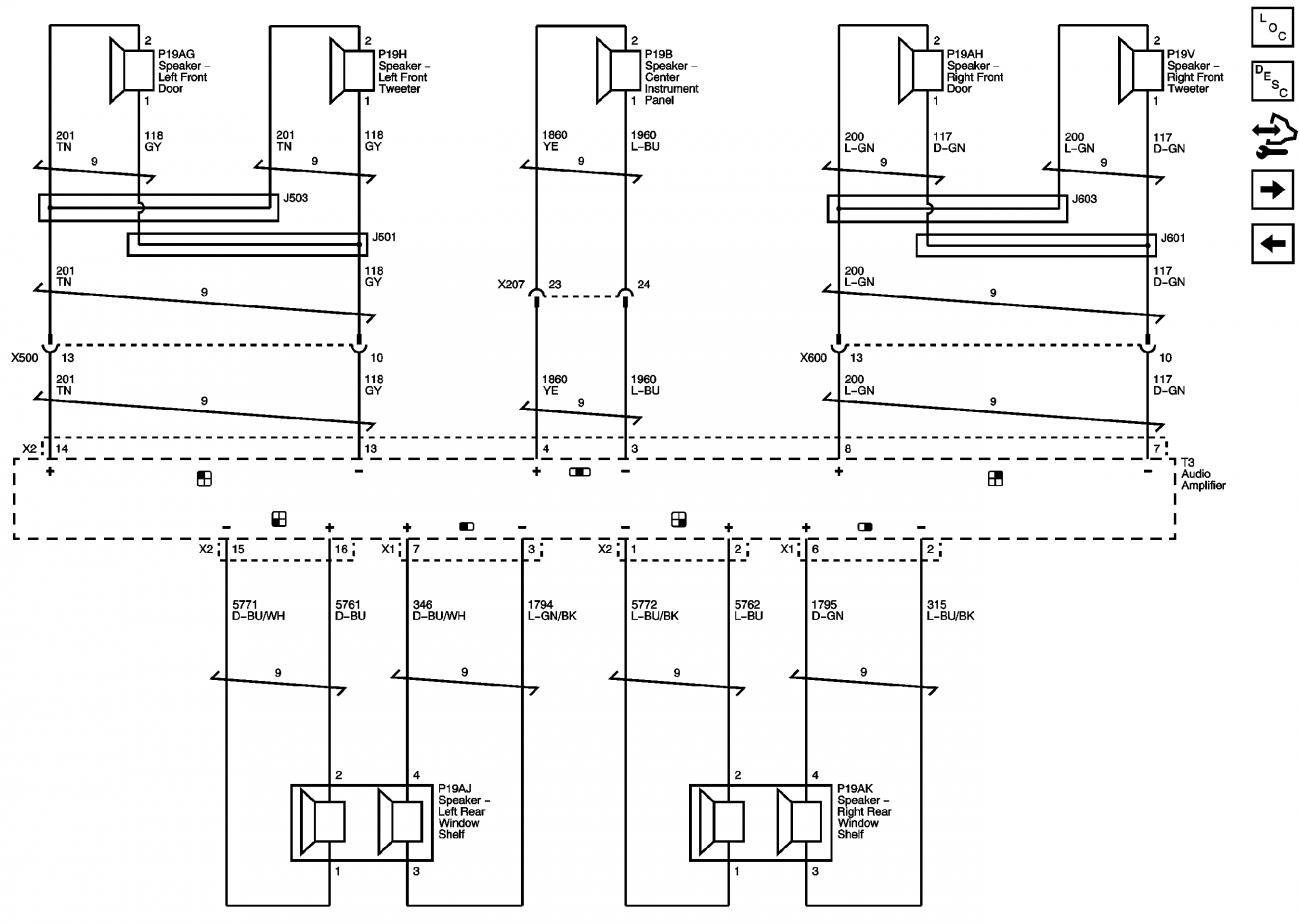

From what I understand, the Boston Acoustic system has a factory amp and requires 2 ohm speakers as the they are wired in series. I don't have BA so I shouldn't have the amp (IIRC). I've installed a Pioneer headunit using iDataLink CAM1 setup. I'm running speakers off the deck right now. Factory speakers work fine. Looking at a wiring diagram, it looks like the door is wired in a certain way. The diagram is with the amp. In another diagram, I saw that the non-amp systems have different color wiring. I have the tan/grey wires show below.

On to my questions:

• If these speakers 4ohm and in series, that would be 8 ohms. Could that cause my woofer to crackle vs just playing softer?
• Is it possible I have an amp (too lazy to look)? I shouldn't have on unless the doors show BA logo on grill.
• If I do, in fact, have tan/grey wires in series, can I just cut and connect the two wires in the door before they split?

I've done plenty of installs. I know if we ever get an amp I'll need to run new wires anyway, but I have a nice T-harness no splicing hookup behind the radio. I don't want to run new wires.

Thanks!
-P

Click to read more...



[CarAudio.com - Hal AI Bots]

Hi All,

My daughter bought a '15 Camaro, very base model, very base radio (non-BA). I bought front-door (cheaper Infinity) components from Crutchfield. They sent connection adapters for the door woofers, but had a note that they don't have a connector for the tweeters. I figured it OK as they will tap off the woofer, through its included crossovers. If I hook just the woofer up, it works. If I try to connect the tweeter to either from the woofer, the tweeter doesn't play and the woofer starts to crackle/static when the volume goes up, even moderately.

The factory tweeter has a cap with it to block lower freq. I can't seem to get them both to play at once. I can get the tweeter to play plugging in them alone.

From what I understand, the Boston Acoustic system has a factory amp and requires 2 ohm speakers as the they are wired in series. I don't have BA so I shouldn't have the amp (IIRC). I've installed a Pioneer headunit using iDataLink CAM1 setup. I'm running speakers off the deck right now. Factory speakers work fine. Looking at a wiring diagram, it looks like the door is wired in a certain way. The diagram is with the amp. In another diagram, I saw that the non-amp systems have different color wiring. I have the tan/grey wires show below.

On to my questions:

• If these speakers 4ohm and in series, that would be 8 ohms. Could that cause my woofer to crackle vs just playing softer?
• Is it possible I have an amp (too lazy to look)? I shouldn't have on unless the doors show BA logo on grill.
• If I do, in fact, have tan/grey wires in series, can I just cut and connect the two wires in the door before they split?

I've done plenty of installs. I know if we ever get an amp I'll need to run new wires anyway, but I have a nice T-harness no splicing hookup behind the radio. I don't want to run new wires.

Thanks!
-P
